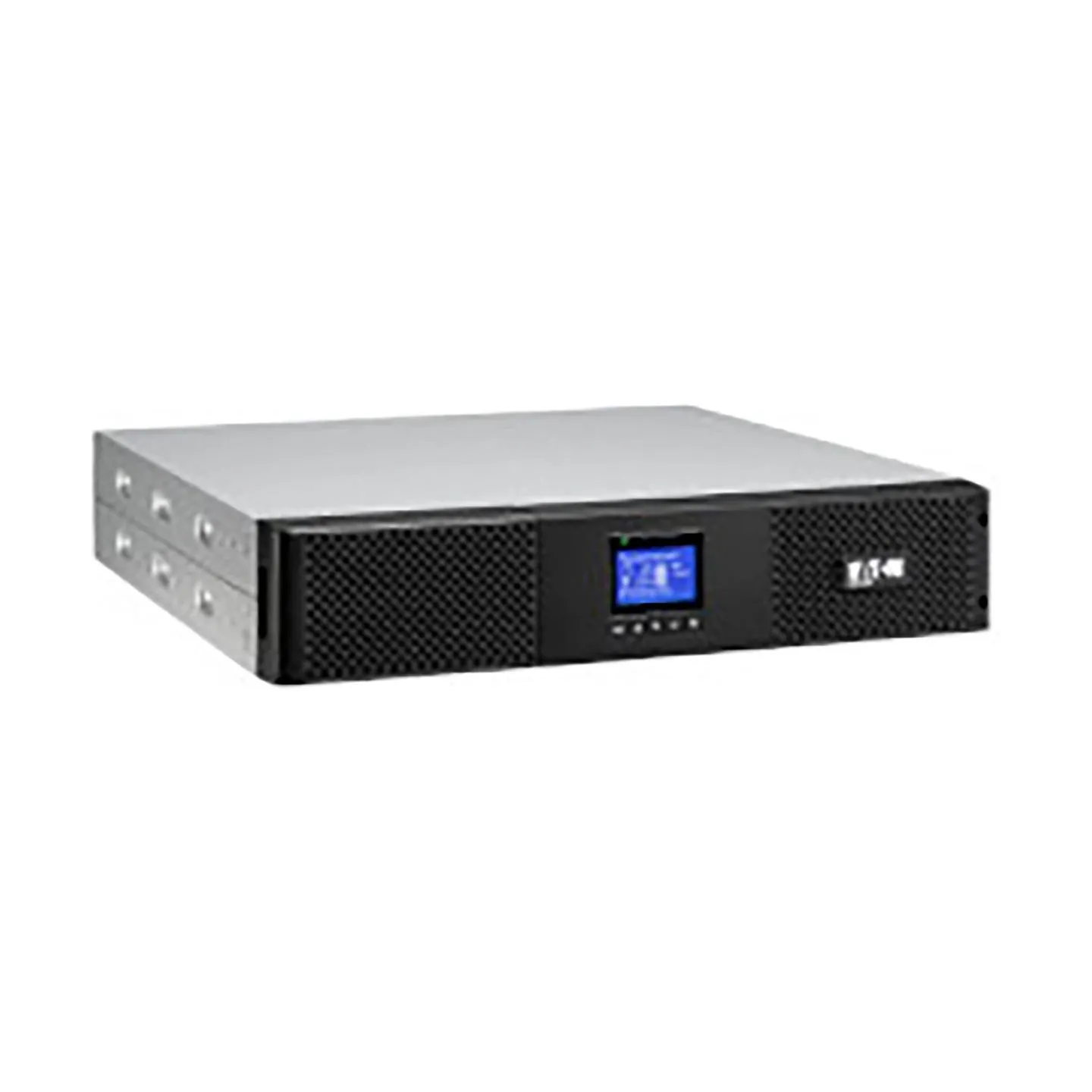

Eaton 9SX 1000i Rack2U
Price:
€1,298.33
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
UPS topology Double-conversion (Online)
Output power capacity 1 kVA
Output power 900 W
Input operation voltage (min) 190 V
Input operation voltage (max) 276 V
Input frequency 40 - 70 Hz
Output frequency 50/60 Hz
Maximum current 10 A
AC outlet types C13 coupler/C14 coupler
Power plug C14 coupler
USB port Yes
Serial interface Yes
Form factor Rackmount
Colour Black
Display type LCD
Operating temperature (T-T) 0 - 40 °C
Weight 15.7 kg
Manufacturer Website:
https://www.eaton.com/gb/en-gb/skuPage.9SX1000IR.html
- Category Code
- UPW
- CnCode
- 85044095
- Unit Box Height
- 0.24
- Unit Box Length
- 0.57
- Unit Box Width
- 0.55
- Input frequency
- 40 - 70 Hz
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 190 V
- Maximum current
- 10 A
- Noise level
- 41 dB
- Output frequency
- 50/60 Hz
- Output power
- 900 W
- Output power capacity
- 1 kVA
- UPS topology
- Double-conversion (Online)
- AC outlet types
- C13 coupler/C14 coupler
- AC outlets quantity
- 7 AC outlet(s)
- Power plug
- C14 coupler
- Serial interface
- Yes
- Serial interface type
- RS-232
- USB 2.0 ports quantity
- 1
- USB port
- Yes
- Display type
- LCD
- Form factor
- Rackmount
- Product colour
- Black
- Rack capacity
- 2U
- Operating temperature (T-T)
- 0 - 40 °C
- Certification
- IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
- Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
- Depth
- 438 mm
- Height
- 86.5 mm
- Weight
- 15700 g
- Width
- 438 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.07524 cubm
- Unit Calculated Weight
- 15.7 kg
