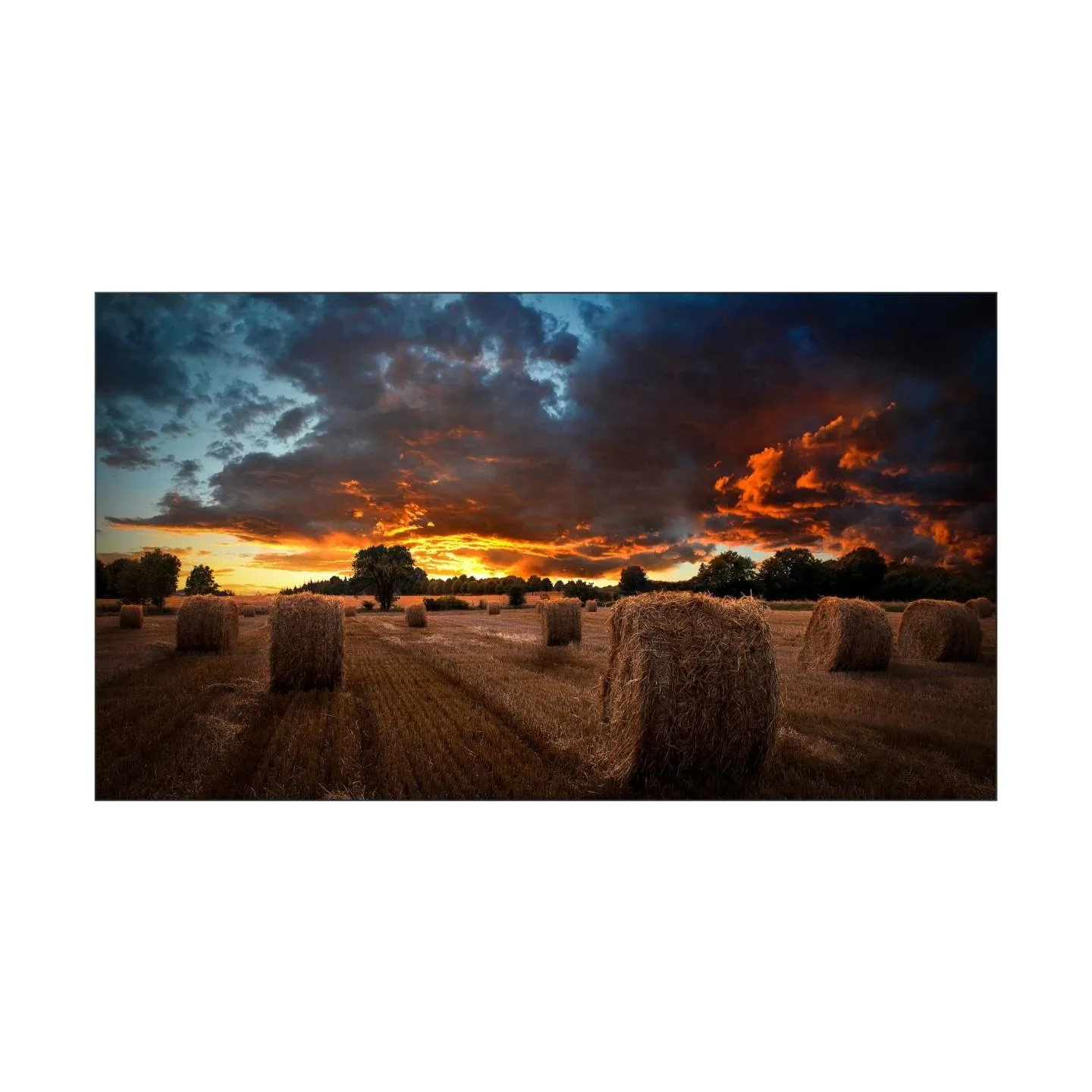

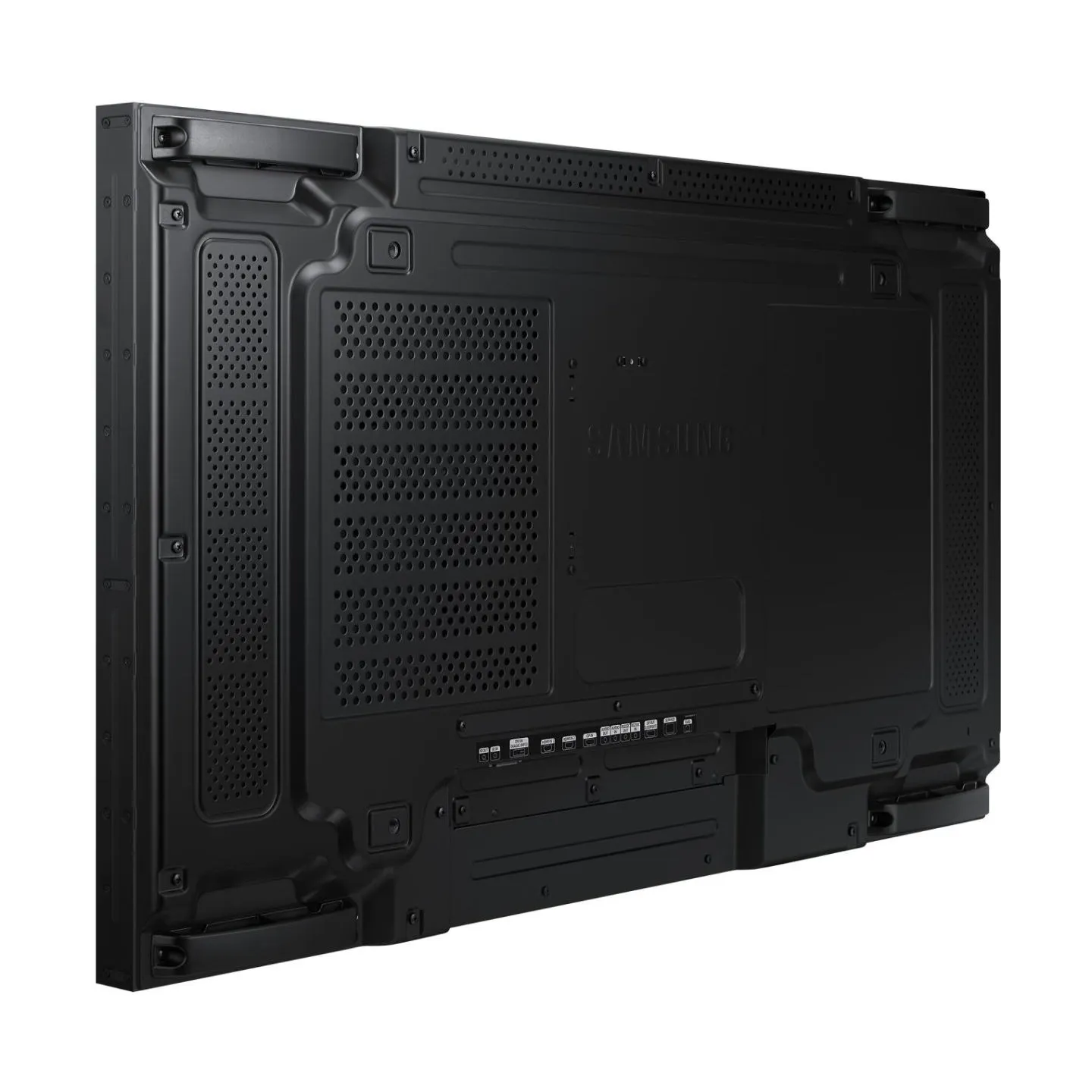

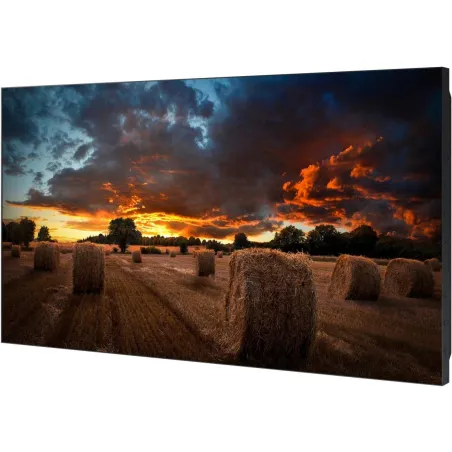

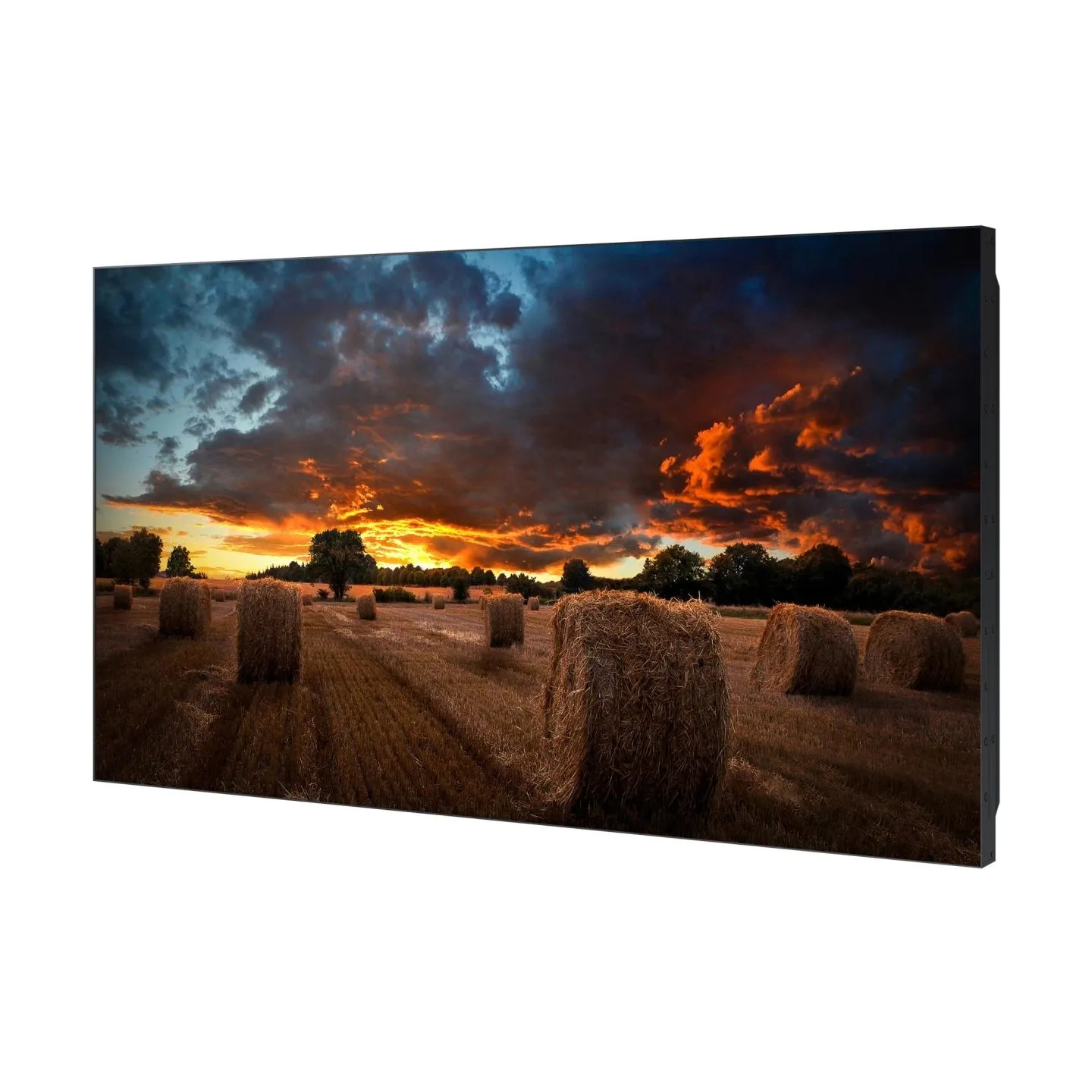

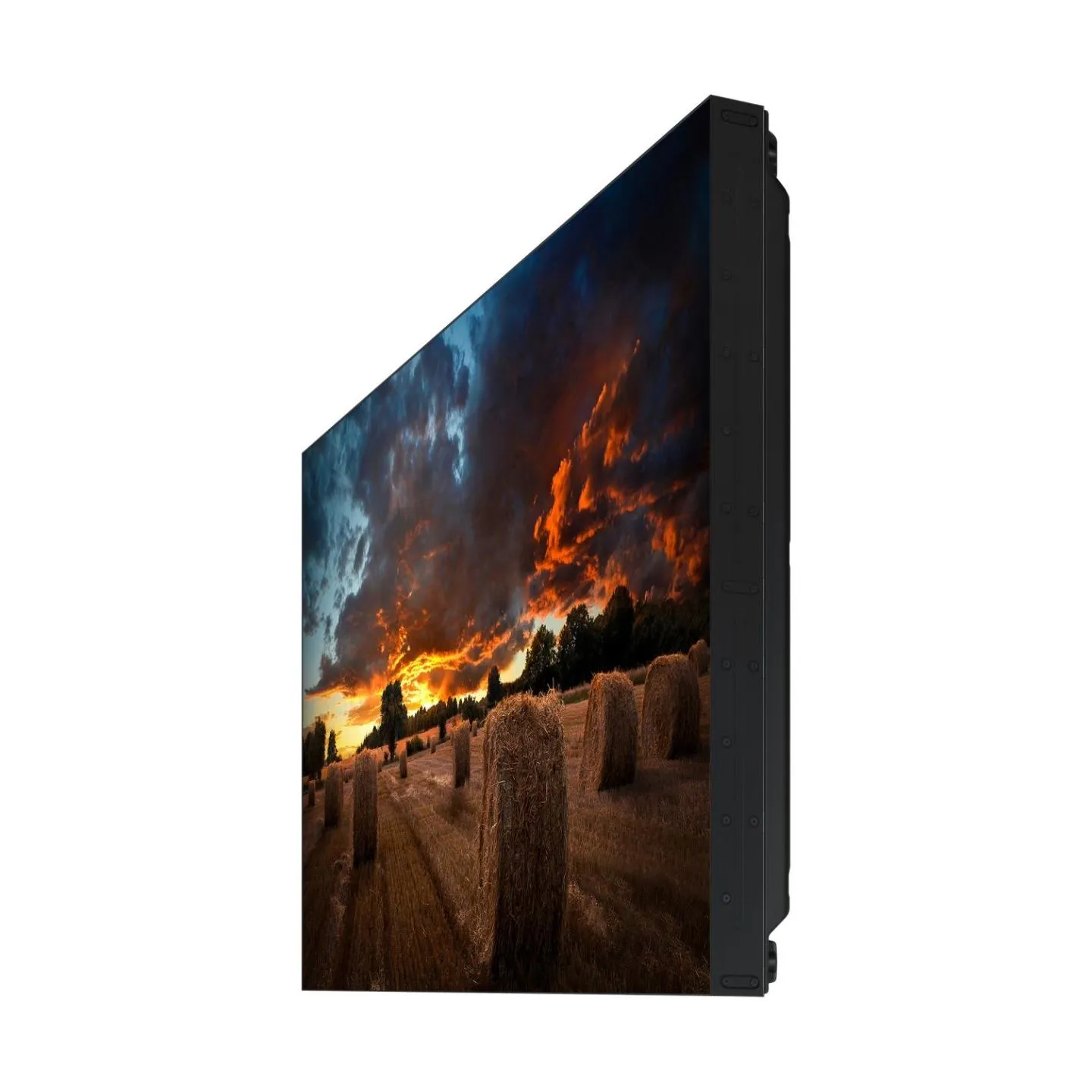

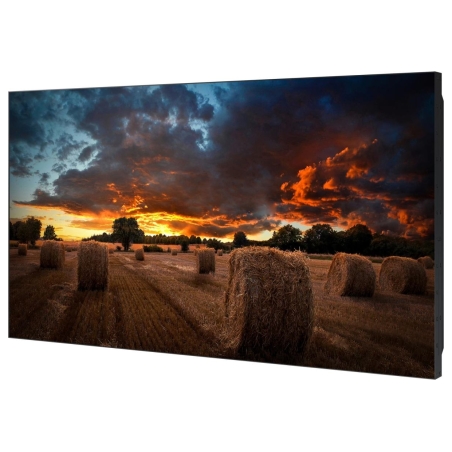

Model VM55B-U
55 "
1920 x 1080 pixels
LED
Full HD
Panel type IPS
Pixel pitch 0.63 x 0.63 mm
Brightmess 500 cd/m²
Response time 0.008 s
Operating hours (hours/days) 24/7

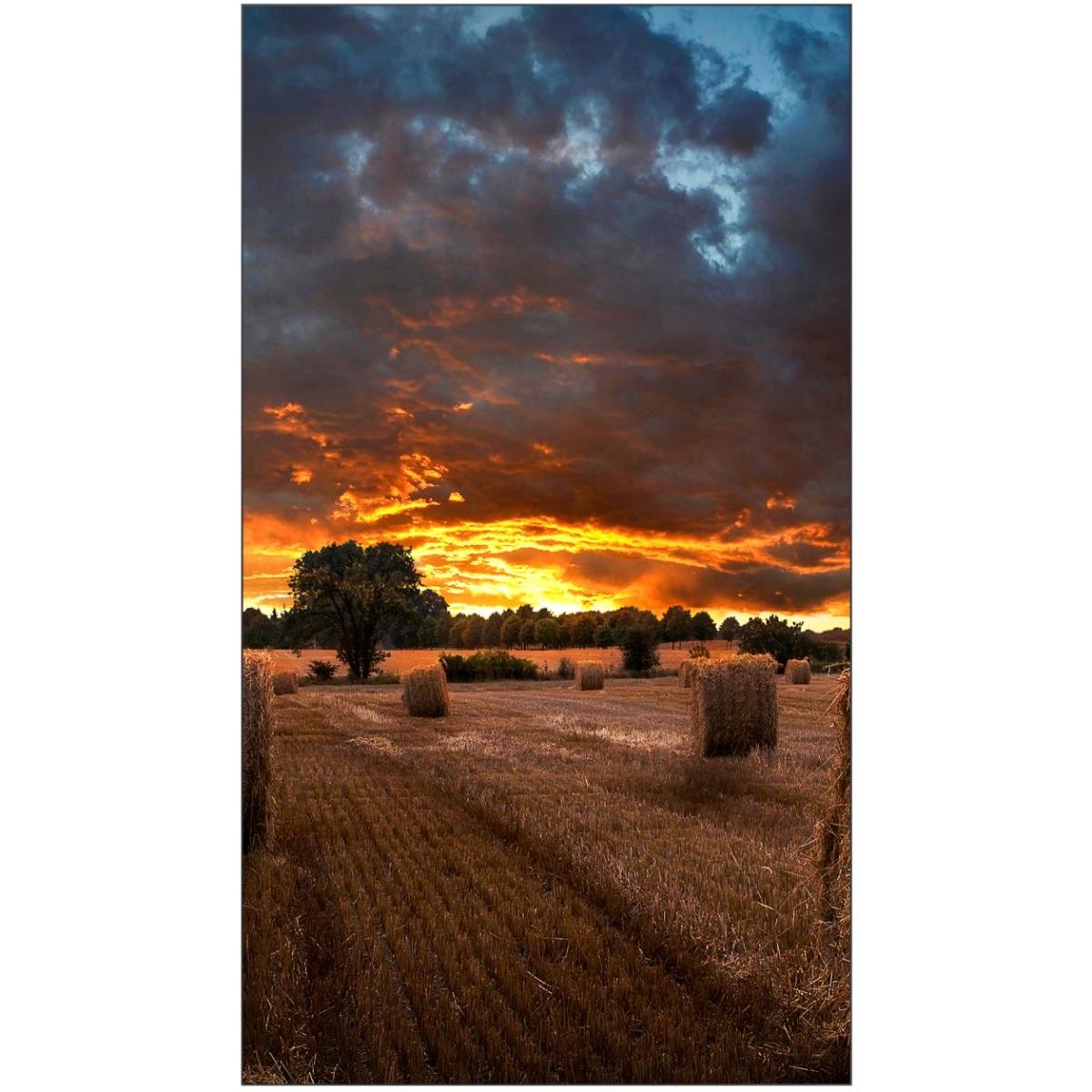

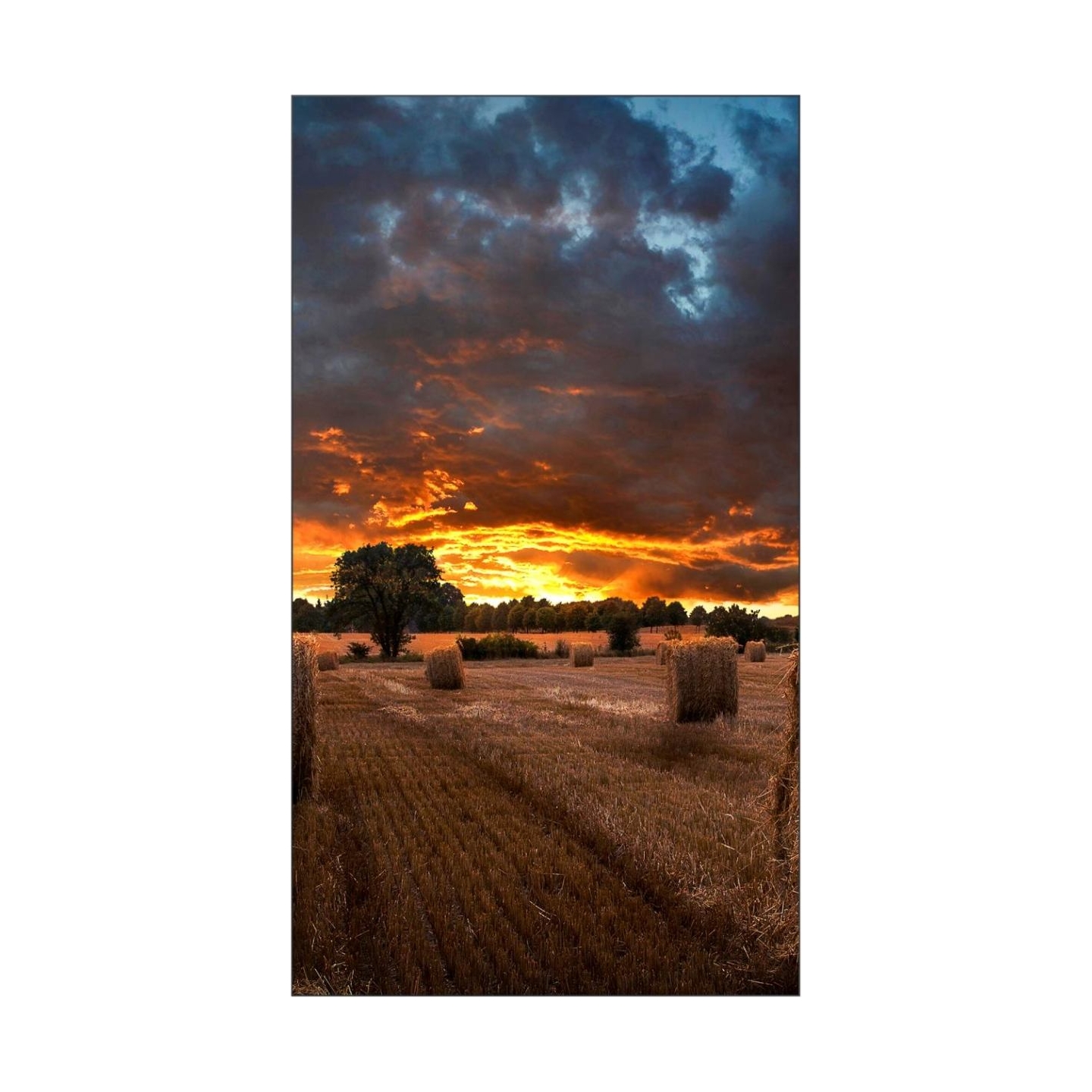

Orientation Horizontal/Vertical
VESA mounting Yes
Operating temperature (T-T) 0 - 40 °C
Weight 21200 g
- Category Code
- VWD
- CnCode
- 85285291
- Unit Box Height
- 0.83
- Unit Box Length
- 1.395
- Unit Box Width
- 0.265
- Colour gamut
- 72 %
- Contrast ratio (dynamic)
- 45000:1
- Contrast ratio (typical)
- 1200:1
- Display brightness
- 500 cd/m²
- Display diagonal
- 55 "
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LED
- Haze rate
- 25 %
- HD type
- Full HD
- Horizontal scan range
- 62.7 - 72.3 kHz
- Operating hours (hours/days)
- 24/7
- Panel type
- IPS
- Pixel pitch
- 0.63 x 0.63 mm
- Response time
- 0.008 s
- Vertical scan range
- 57 - 63 Hz
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
- Bezel width (bottom)
- 1.25 mm
- Bezel width (top)
- 2.25 mm

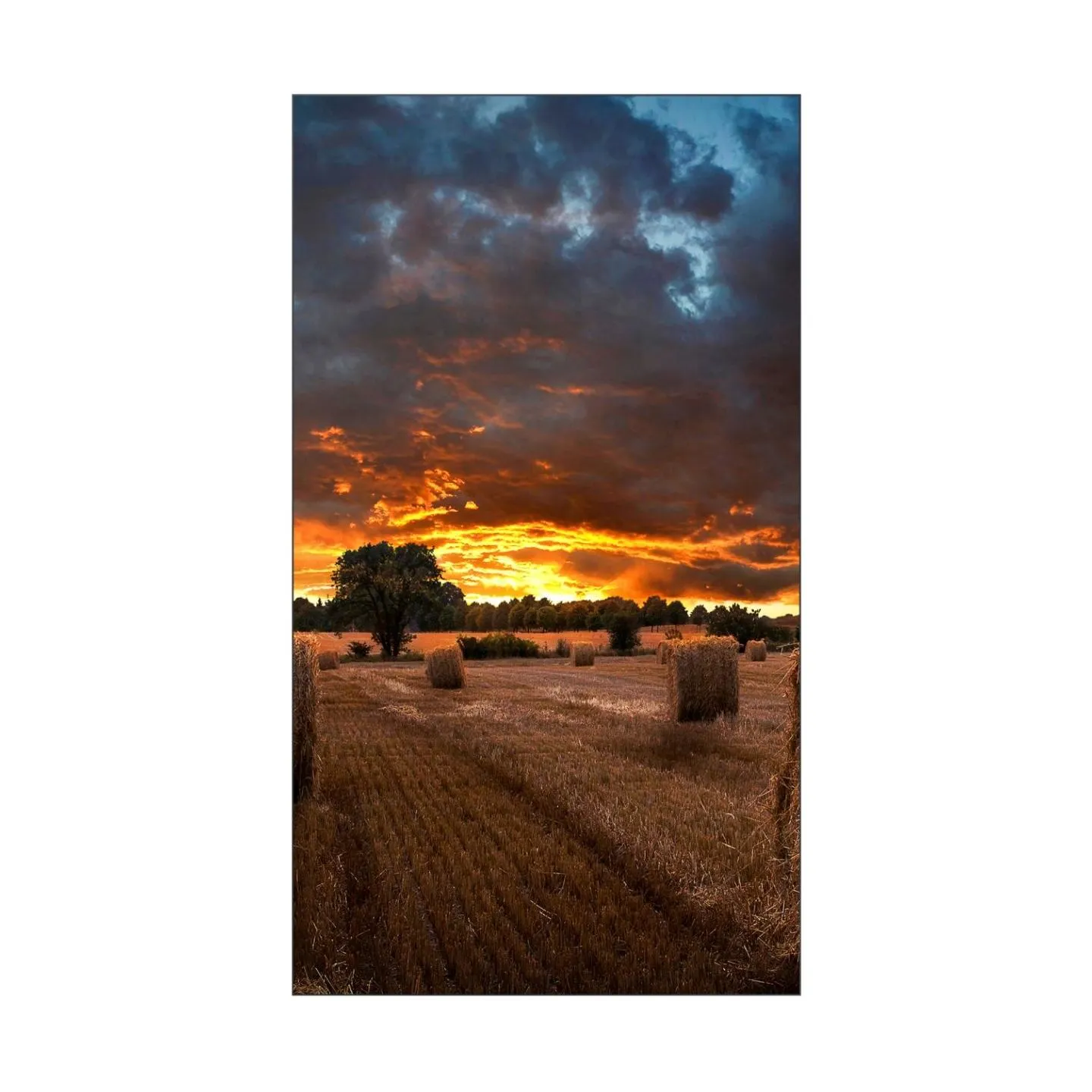

- Orientation
- Horizontal/Vertical
- Panel mounting interface
- 600 x 400 mm
- Placement supported
- Indoor
- Product colour
- Black
- VESA mounting
- Yes
- Wall mountable
- Yes

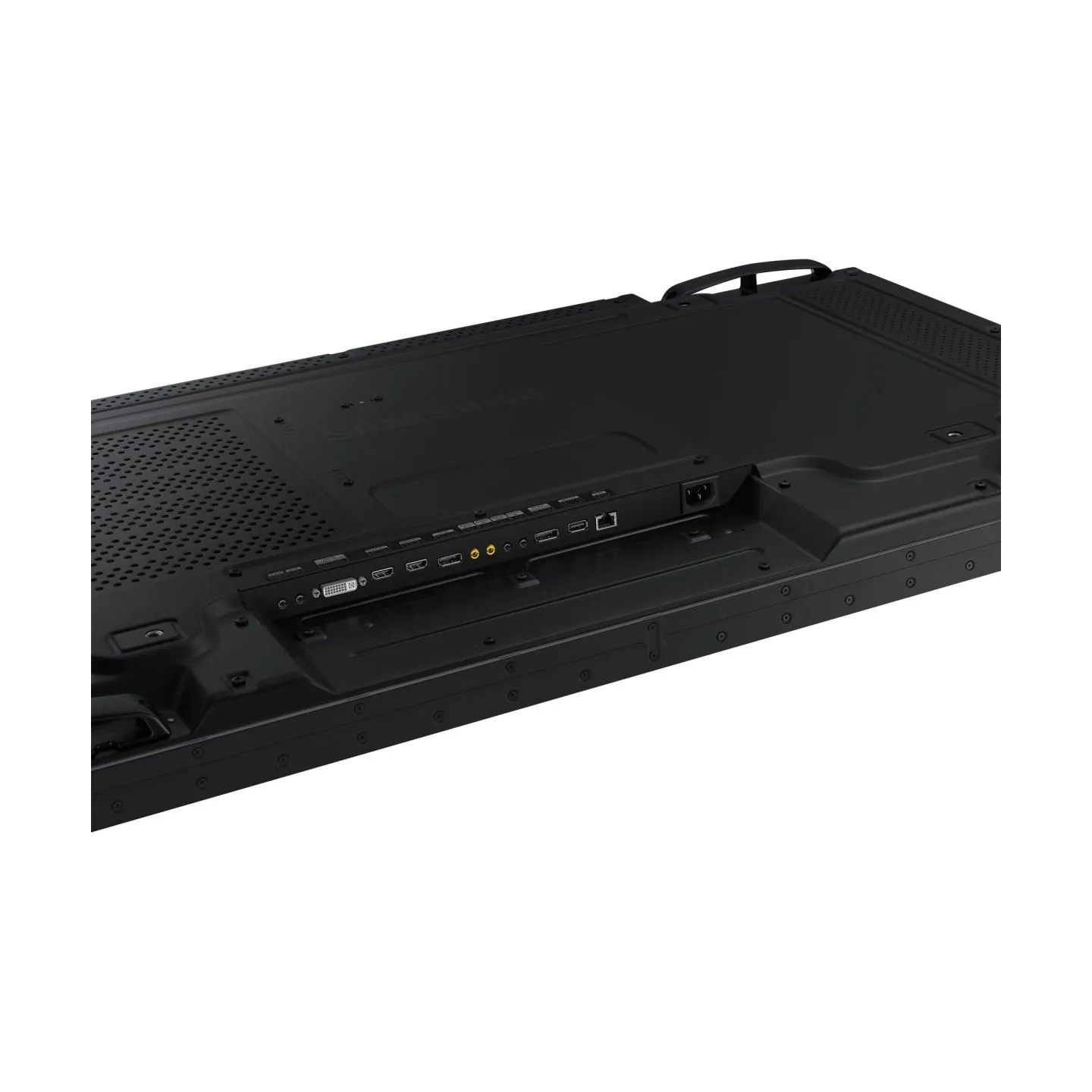

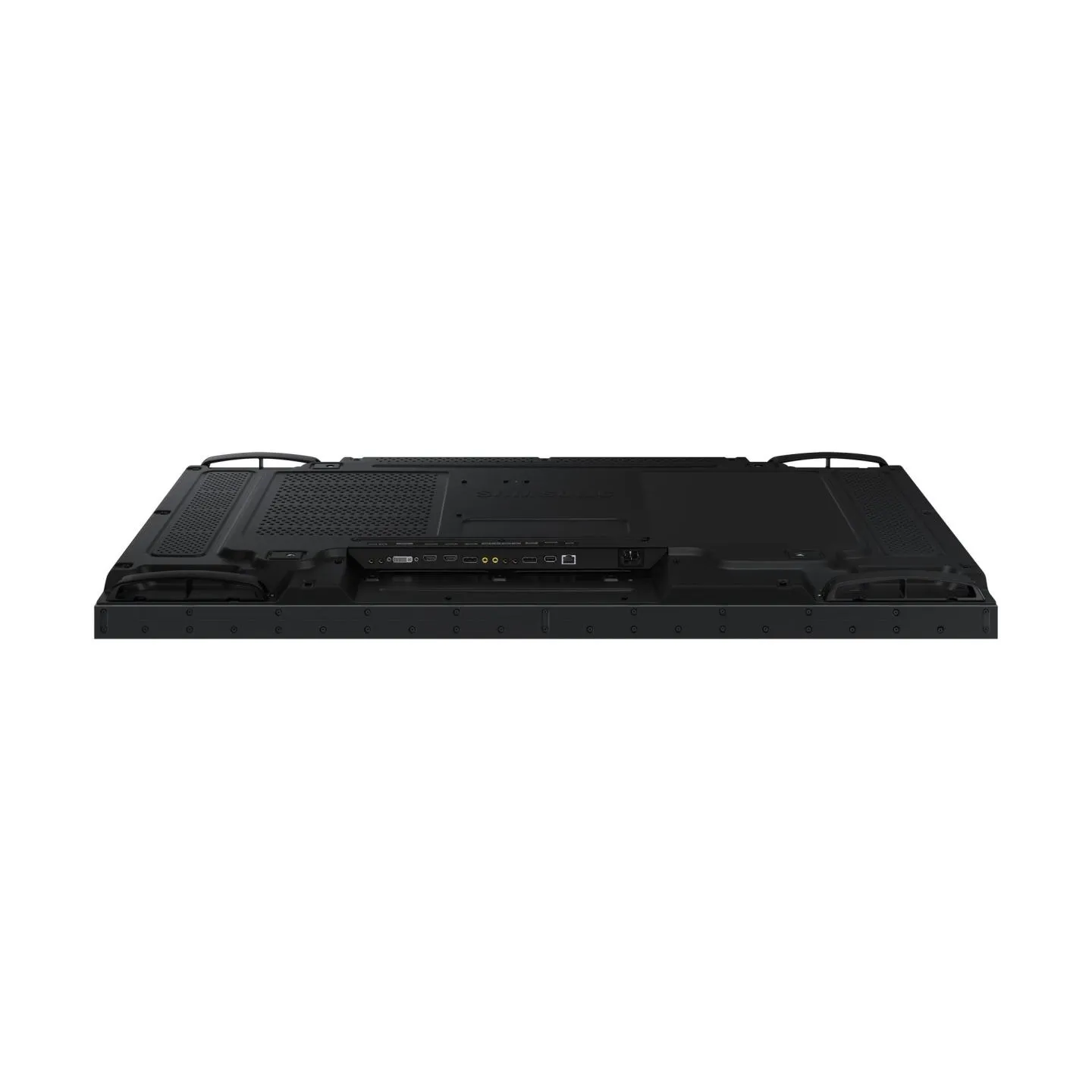

- Audio input
- Yes
- Audio output
- Yes
- DisplayPort version
- 1.2
- DisplayPorts in
- 1
- DisplayPorts quantity
- 1
- DVI port
- Yes
- DVI-D ports quantity
- 1
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- HDCP
- Yes
- HDCP version
- 2.2
- HDMI input ports quantity
- 2
- HDMI ports quantity
- 2
- HDMI version
- 2.0
- IR input ports quantity
- 1
- RS-232 input ports
- 1
- RS-232 output ports
- 1
- USB port
- Yes
- USB ports quantity
- 1
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Energy consumption (SDR) per 1000 hours
- 165 kWh
- Energy efficiency class (SDR)
- G
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 220 W
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- 10 - 90 °C
- Certification
- FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 ? EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14
- Depth
- 73.1 mm
- Height
- 684.3 mm
- Weight
- 21200 g
- Width
- 1213.5 mm
- Mounting kit
- Yes
- Package depth
- 257 mm
- Package height
- 844 mm
- Package weight
- 28800 g
- Package width
- 1398 mm
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/1192452/fiches?language=EN
- Energy efficiency class
- G
- EPREL Registration Number
- 1192452
- EPREL Version Number
- 3
- Model name
- VM55B-U
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.3068 cubm
- Unit Calculated Weight
- 28.8 kg
