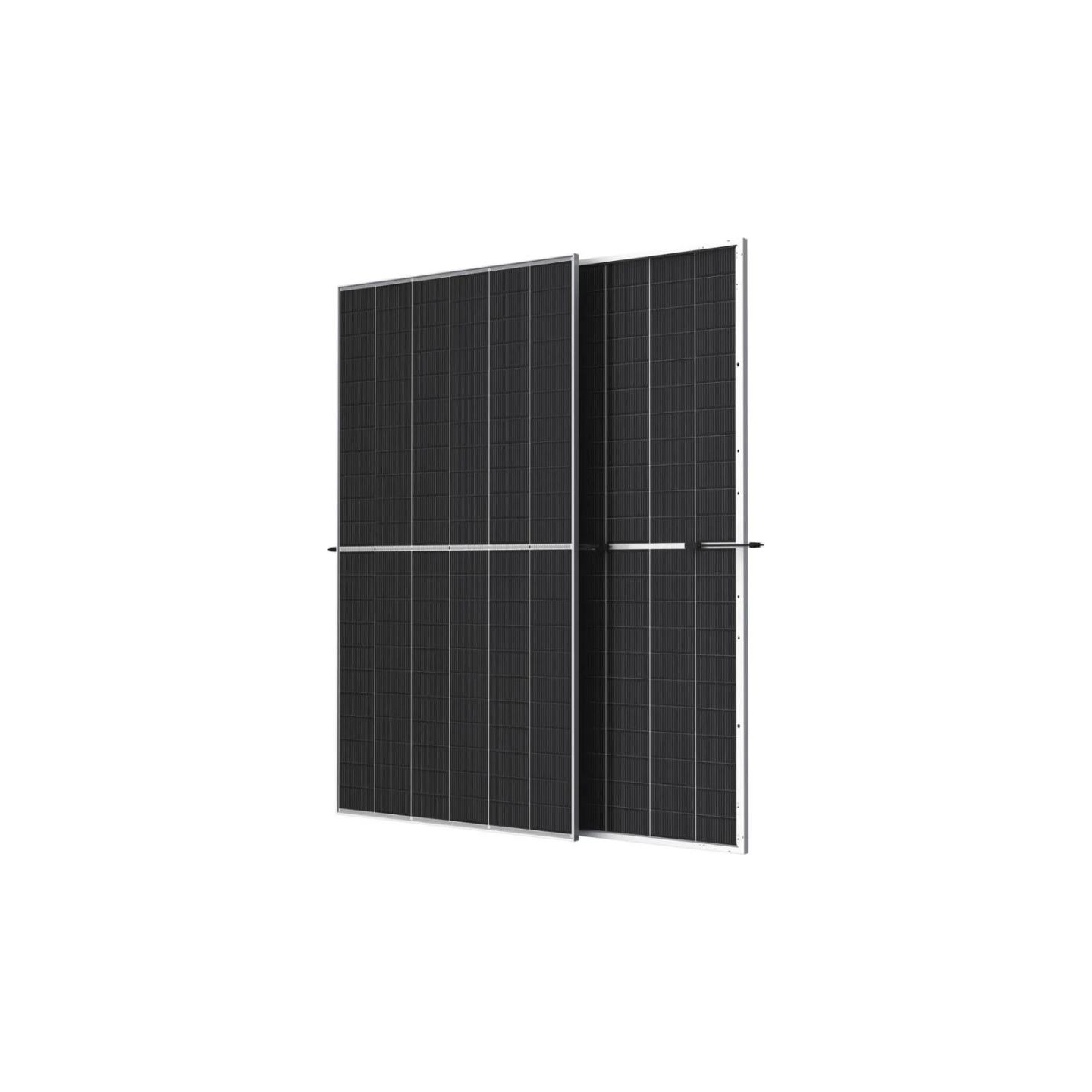

Trinasolar | 715 W | VERTEX TSM-NEG21C.20 | N-Type BIFACIAL Dual Glass i-TOPCon Monocrystalline

Name: Trinasolar | 715 W | VERTEX TSM-NEG21C.20 | N-Type BIFACIAL Dual Glass i-TOPCon Monocrystalline
Brand: TRINASOLAR
SKU: TSM-NEG21C.20 N-TYPE 715 W
Price: 109.77 EUR
Availability: InStock

SKU TSM-NEG21C.20 N-TYPE 715 W Category Solar panels

€109.77

Tax included

Share on

More information: original (external link)

Gross depth (mm): 2390.00 mm
Gross height (mm): 40.00 mm
Gross weight: 38.79 kg
Gross width (mm): 1310.00 mm
Net weight: 38.30 kg
Packing quantity: 33 pc(s)
Paper/Pasteboard: 400.00 g
Plastic (No PET): 85.00 g
Tare weight (kg): 0.49 kg
Volume (m3): 0.13 m³
Embeeded battery: No
WEEE tax: Yes
WEE classification: CL109:4B:2024-01-01
Producer: TrinaSolar
Palette Qty: 33 pc(s)
Net weight master carton: 1263.9 kg
Tare weight master carton: 16.005 kg
Peak power: 715 W
Power Tolerance-PMAX: 0/+5 W
Maximum Power Voltage: 41.1 V
Open Circuit Voltage: 49.2 V
Short Circuit Current: 18.44 A
Efficiency: 23.2 %
Number of cells: 132
Glass thickness: 2 mm
Module weight: 38.3 kg
Module Dimensions: 2384 x 1303 x 33 mm
J-Box: IP68
Frame dimensions: 33 mm
Maximum System Voltage: 1500 V
Operating temperature (T-T): -40 to +85 °C
Temperature Coefficient of PMAX: -0.29%/°C
Temperature Coefficient of VOC: -0.24%/°C
Temperature Coefficient of ISC: 0.04%/°C
Product workmanship warranty: 12 year(s)
Power warranty: 30 year(s)
First year degradation: 1 %
Annual power degradation: 0.40 %
Solar Cells: Monocrystalline
Quantity per shipping carton: 33 pc(s)
Producer product name: VERTEX TSM-NEG21C.20
Producer product family: N-type Bifacial Dual Glass i-TOPCon Monocrystalline
Warranty: 144 month(s)
