Duco Multi-zone Valve DucoBox Energy (Sensorless), 160
€142.30
More information: ducobox-energy-comfort (external link)
More information: original (external link)
- Gross depth (mm)
- 610.00 mm
- Gross height (mm)
- 823.00 mm
- Gross weight
- 33.35 kg
- Gross width (mm)
- 810.00 mm
- Net weight
- 31.00 kg
- Packing quantity
- 1.00 pc(s)
- Tare weight (kg)
- 2.35 kg
- Volume (m3)
- 0.41 m³
- Embeeded battery
- No
- WEEE tax
- Yes
- WEE classification
- CL109:4:2017-04-01
- Producer
- DUCO
- Palette Qty
- 2 pc(s)
- Paper/Pasteboard
- 1880 g
- Plastic (No PET)
- 471 g
- Producer product name

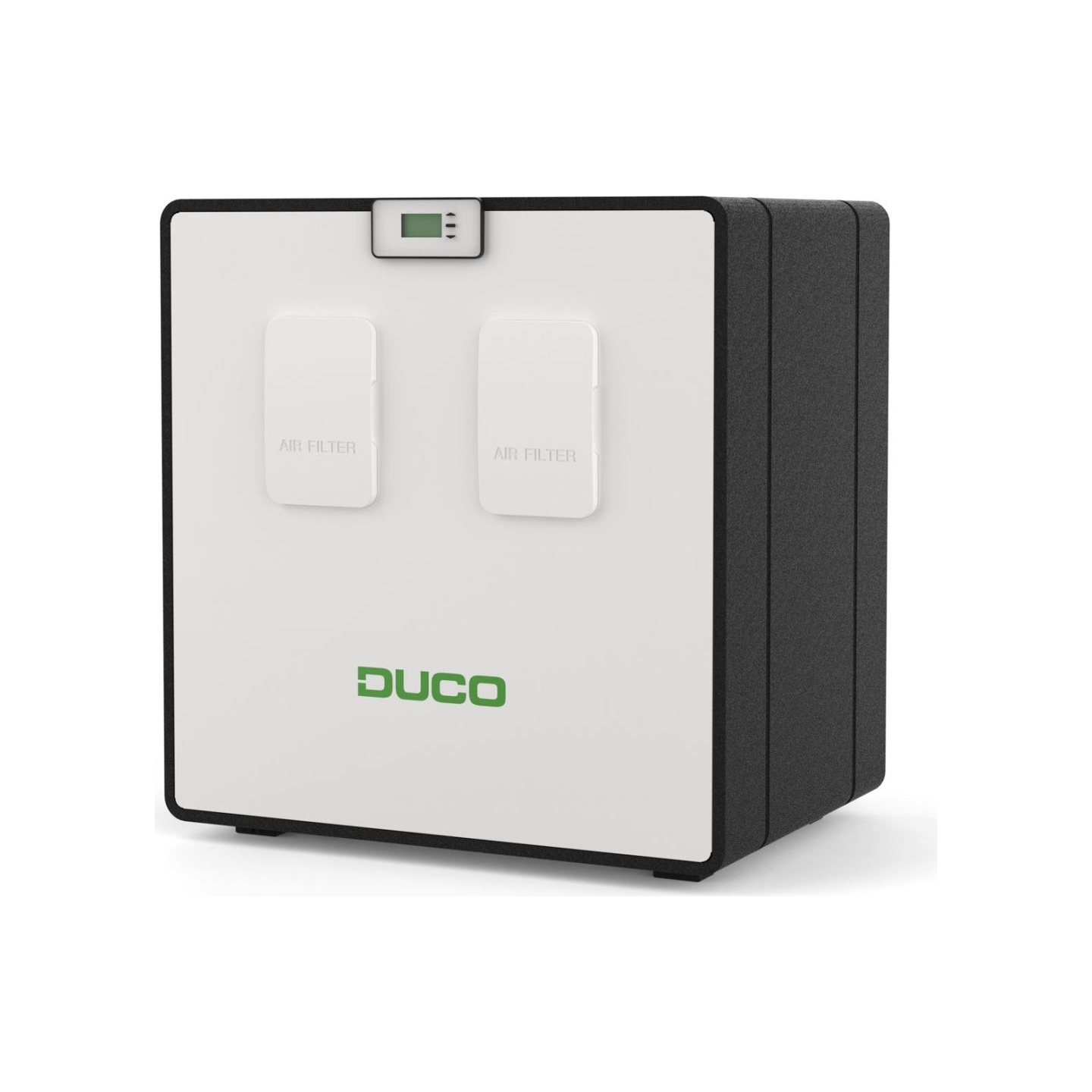

- DucoBox Energy Comfort D400
- Dimensions (WxHxL)
- 756 x 800 x 584 mm
- Connections
- Internal diameter: 180 mm
- Colour of product
- White/Black
- Weight
- 31 kg
- Cable length
- 2 m
- Mounting
- Wall mounting (standard), Floor mounting as an option using a support frame
- Material
- Inside section: EPP, PP, ABS
- Heat exchanger
- v1: PP-v2: PET/Alu
- Casing
- Coated sheet steel + EPP
- Condensate drain
- 32 mm
- Energy Class
- A+
- Filter
- Dynamic airflow filter supply air, Standard, Optional
- Sensors
- Integrated: pressure, temperature, onboard switch sensor; External: CO2 (via optional Room sensor), Humidity (via optional Room sensor or measurement in ETA duct), external Switch Sensor (voltage-free input) (optional)
- Power supply
- 230 V, 50 Hz via 3-core power cable with earthed plug
- Motor type
- DC
- IP class
- IP40
- Efficiency
- 87.9 %
- Flow rate
- 400 m³/h
- Pressure (Pa)
- 150 Pa
- Warranty
- 24 month(s)
