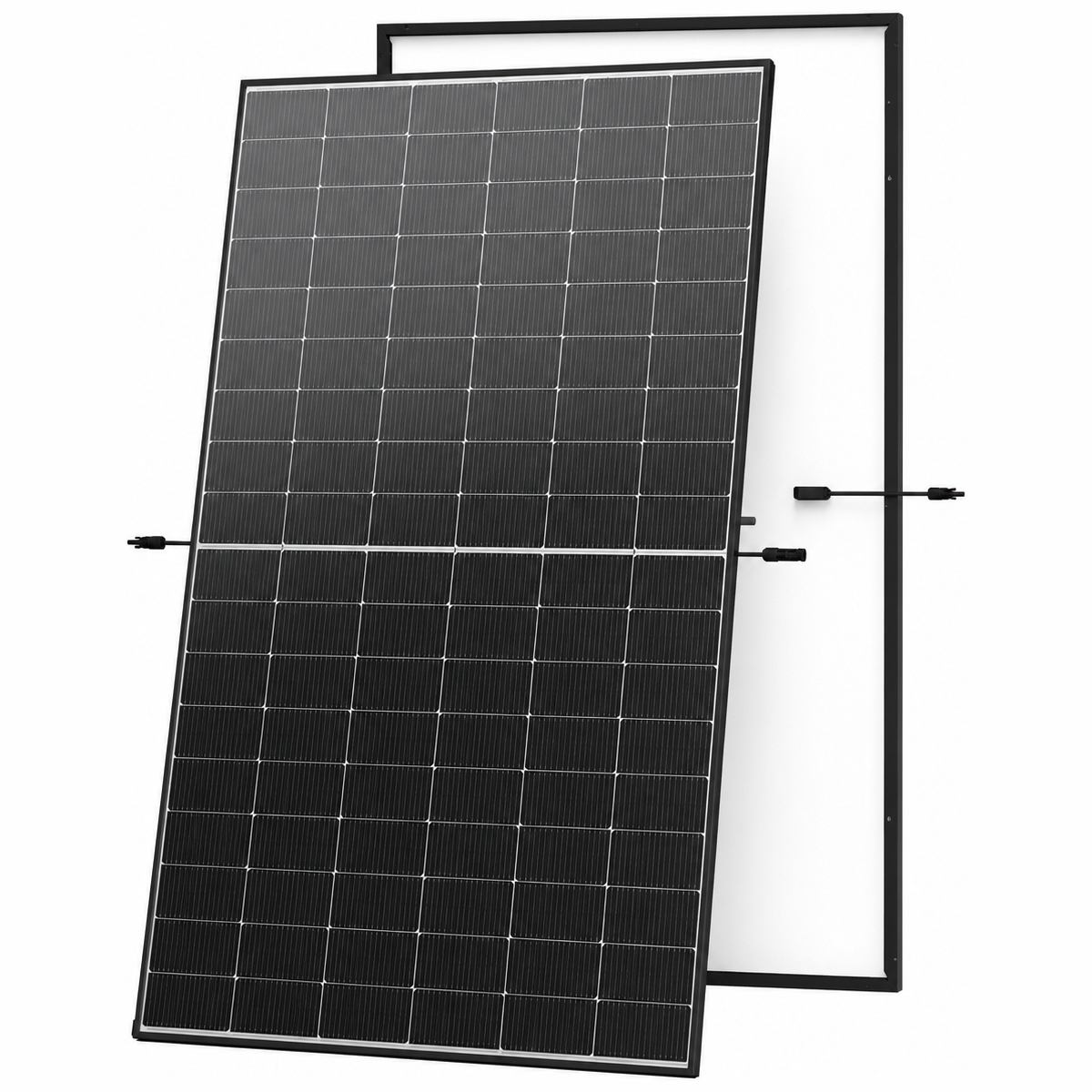

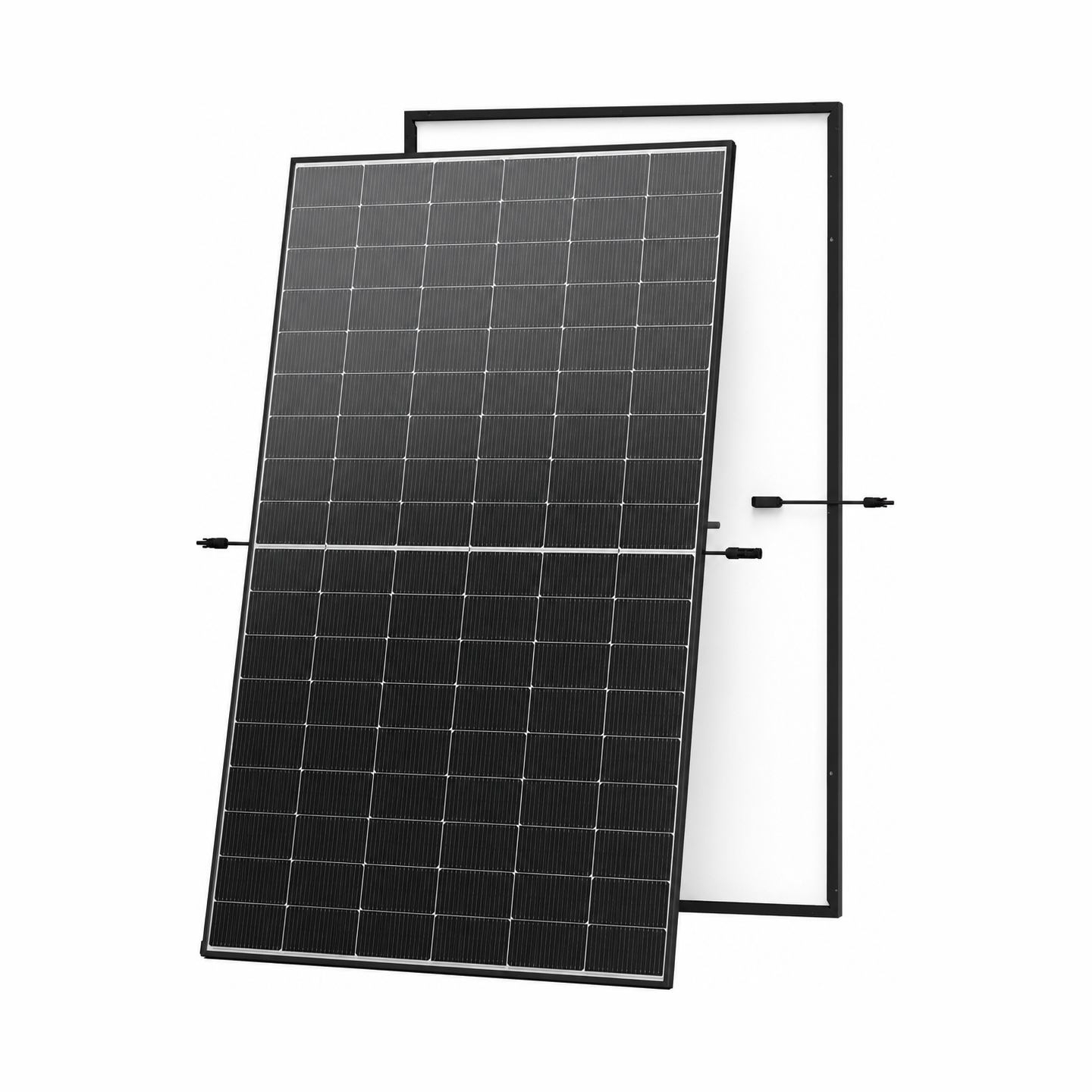

Trinasolar | 515 W | VERTEX S+ NEG18R.28 | N-Type Monofacial Dual Glass i-TOPCon Monocrystalline

Name: Trinasolar | 515 W | VERTEX S+ NEG18R.28 | N-Type Monofacial Dual Glass i-TOPCon Monocrystalline
Brand: TRINASOLAR
SKU: TSM-NEG18R.28 515W
Price: 84.7 EUR
Availability: InStock

SKU TSM-NEG18R.28 515W Category Solar panels

€84.70

Tax included

Share on

More information: NEG18R (external link)
More information: original (external link)

Gross depth (mm): 2000.00 mm
Gross height (mm): 30 mm
Gross weight: 25.00 kg
Gross width (mm): 1140.00 mm
Net weight: 23.50 kg
Packing quantity: 1.00 pc(s)
Paper/Pasteboard: 1200.00 g
Plastic (No PET): 300.00 g
Tare weight (kg): 1.50 kg
Volume (m3): 0.0684 m³
Embeeded battery: No
WEEE tax: Yes
WEE classification: CL109:4B:2024-01-01
Producer: TrinaSolar
Peak power: 515 W
Maximum Power Voltage: 33.9 V
Open Circuit Voltage: 40.9 V
Short Circuit Current: 15.96 A
Efficiency: 23.4 %
Number of cells: 108
Glass thickness: 1.6 mm
Module weight: 23.5 kg
Module Dimensions: 1961 x 1134 x 30 mm
J-Box: IP68
Maximum System Voltage: 1500 V
Operating temperature (T-T): -40 to +70 °C
Temperature Coefficient of PMAX: -0.29%/°C
Temperature Coefficient of VOC: -0.24%/°C
Temperature Coefficient of ISC: 0.04%/°C
First year degradation: 1 %
Annual power degradation: 0.4 %
Solar Cells: Monocrystalline
Producer product name: VERTEX S+ NEG18R.28
Producer product family: N-Type Monofacial Dual Glass i-TOPCon Monocrystalline
Palette Qty: 36 pc(s)
Warranty: 300 month(s)
