- SKU
- KBGBAAA8B850U06
- Barcode
- 4719331866082

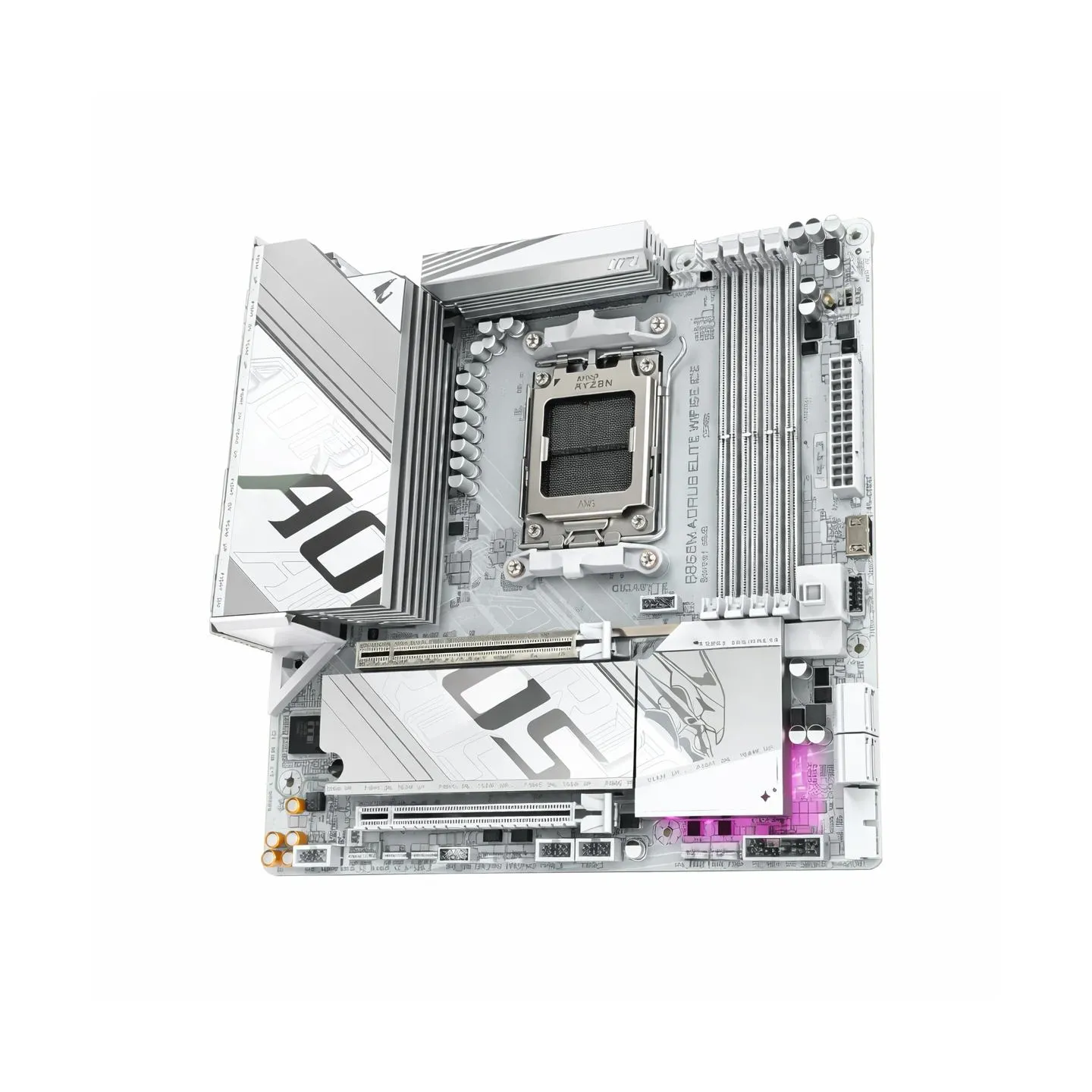

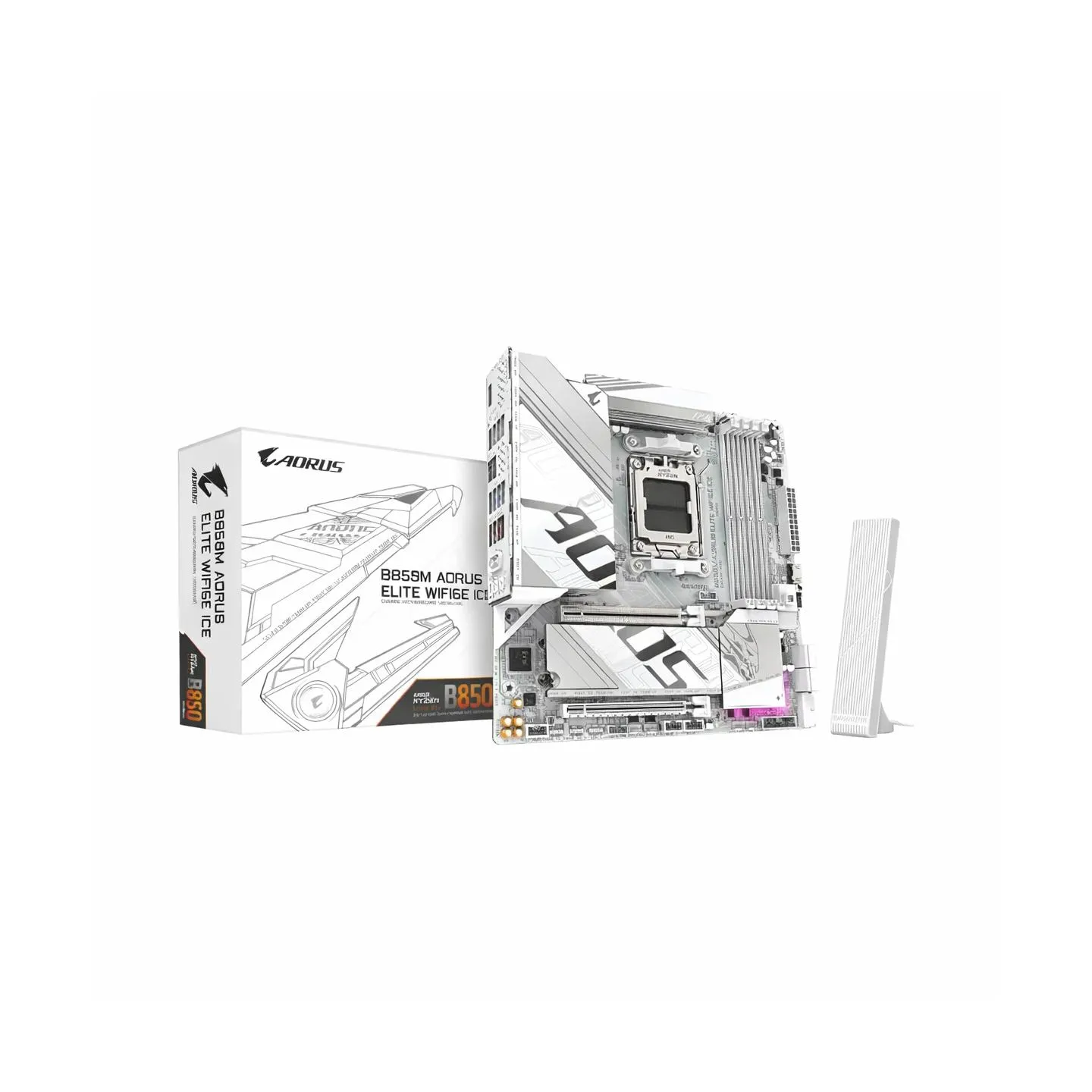

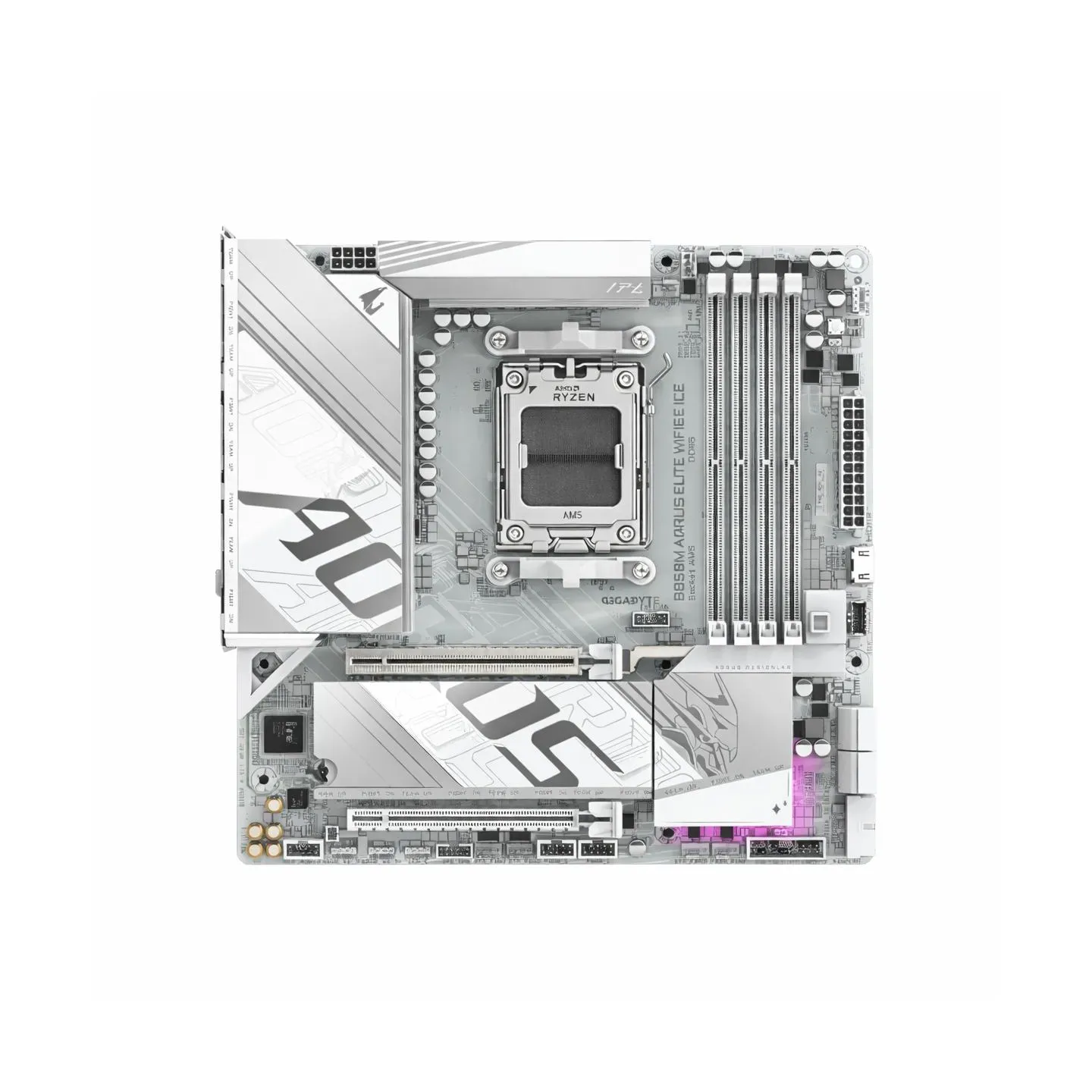

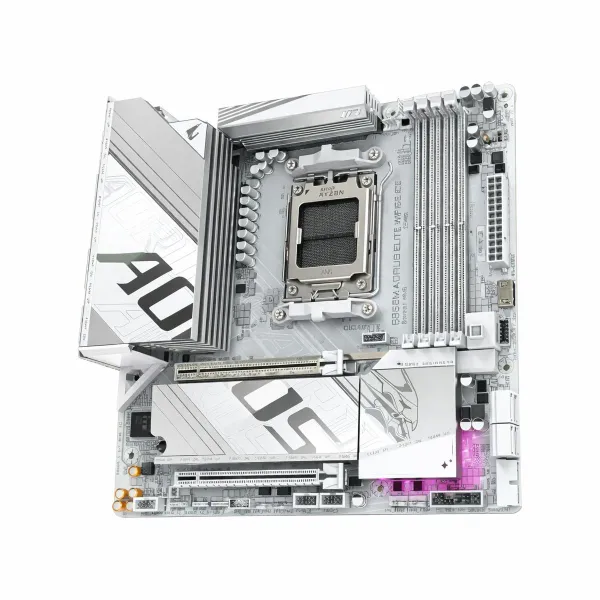

- Model
- B850M A ELT WF6E ICE
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 8200 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ax
- Network interface
- LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module Realtek Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
- USB ports at back panel
- 12
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

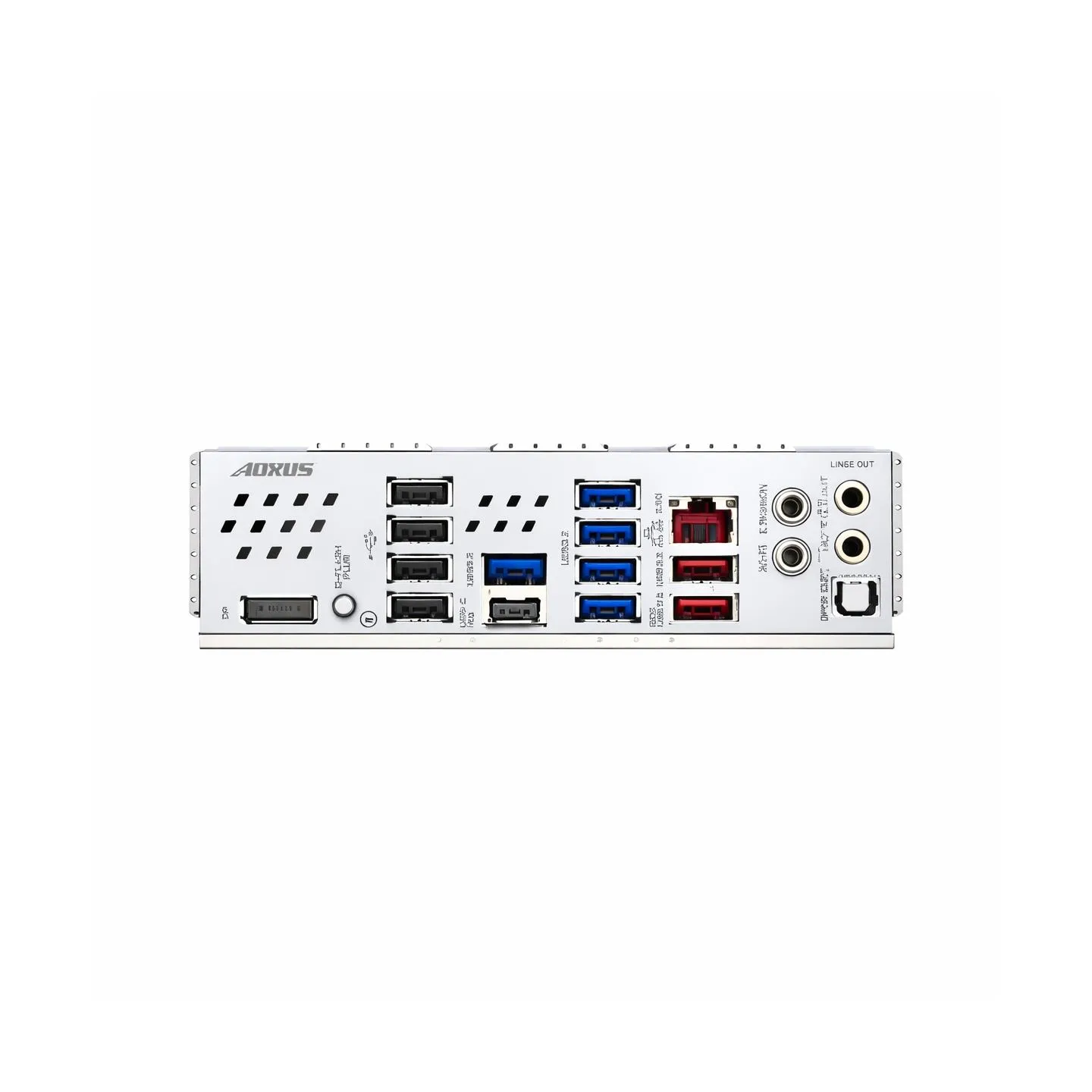

- External connectors
- 5 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x DisplayPort
- External connectors

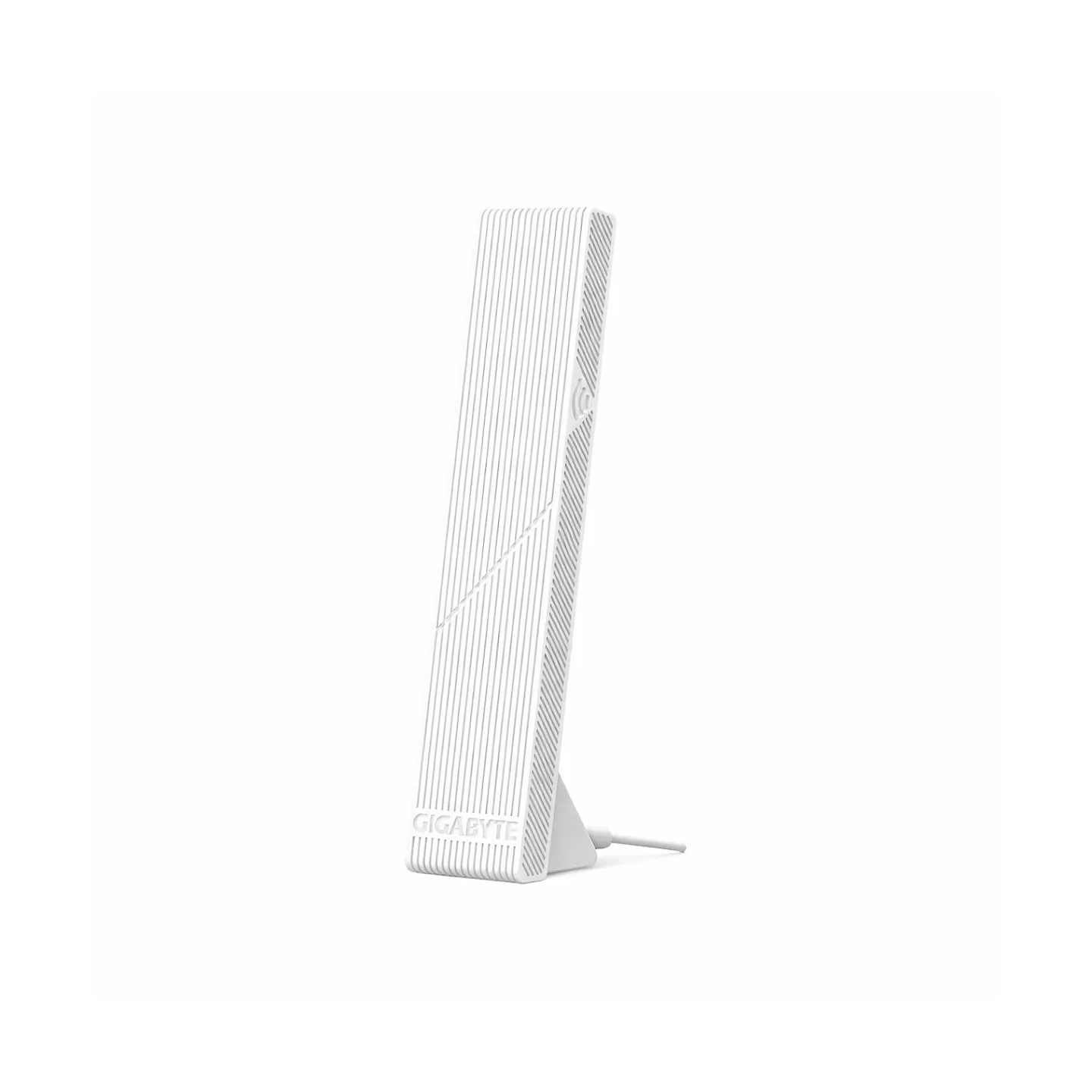

- 2 x SMA
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- Onboard connectors
- 1 x HDMI
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 3 x 4pin Chassis fan
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
