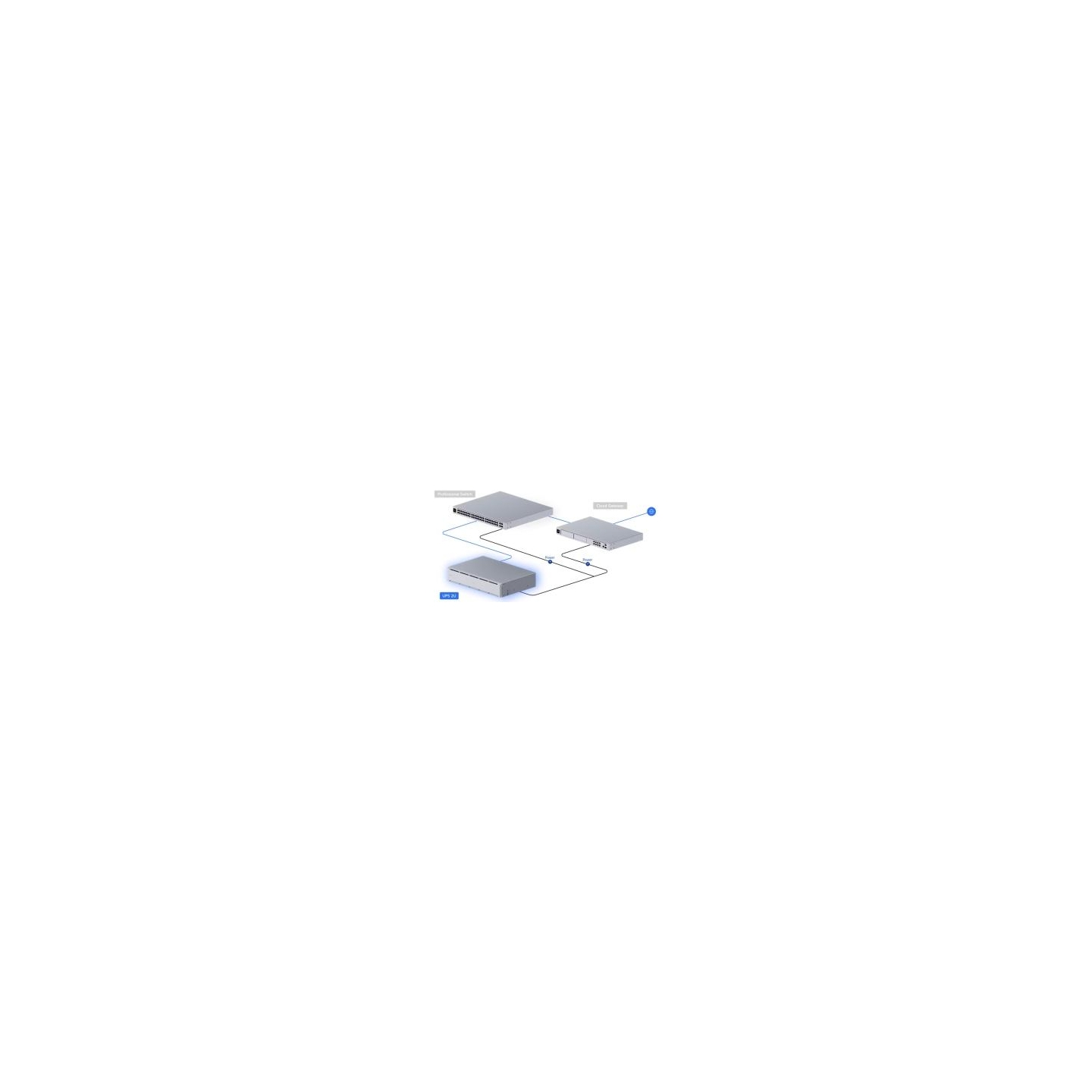

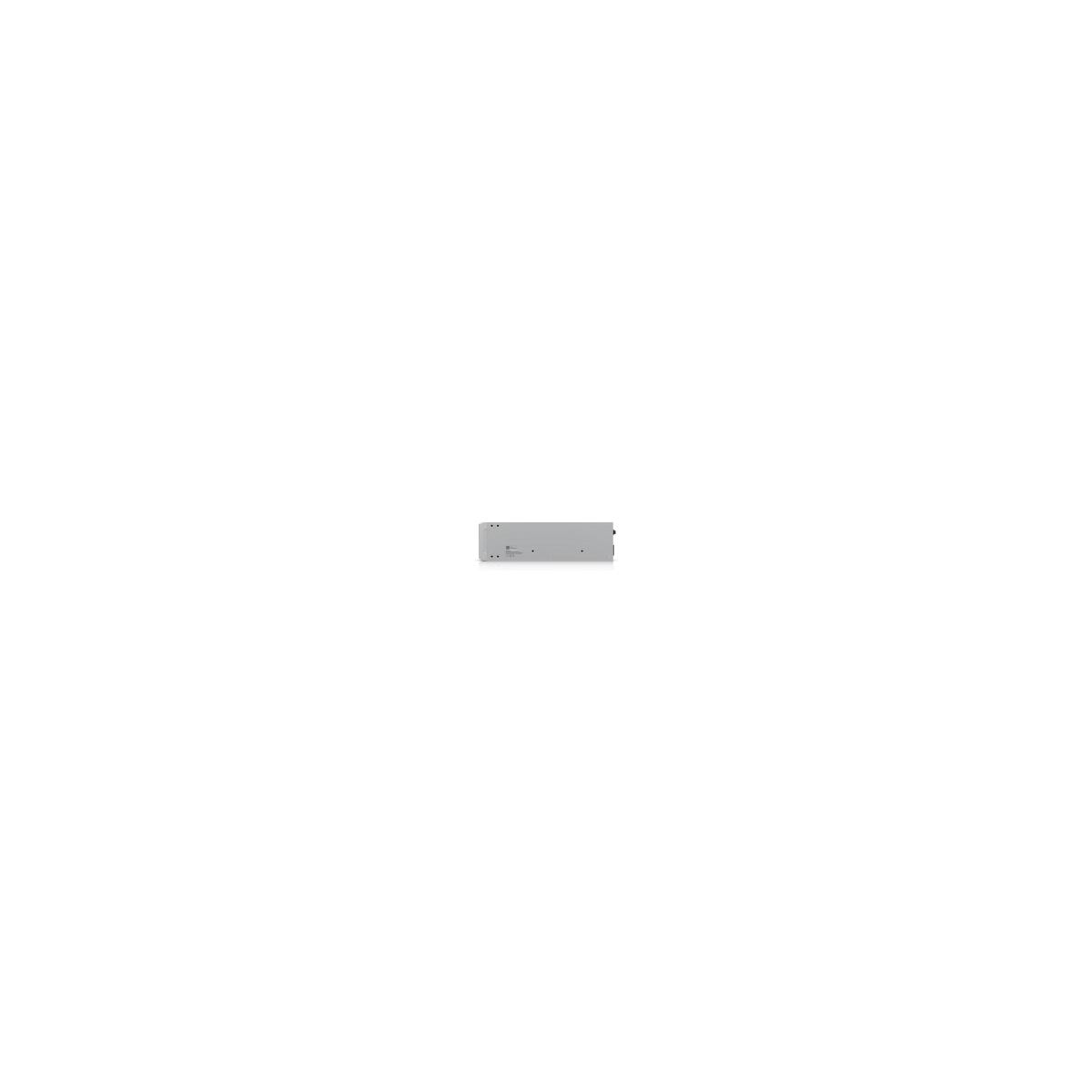

Ubiquiti UPS UniFi UPS 2U UPS Rack 2U UPS-2U 1,5 kVA
Price:
€393.00
Tax included
Share on
UPS topology Line-Interactive
Output power capacity 1.5 kVA
Output power 1000 W
Waveform Sine
Input operation voltage (min) 170 V
Input operation voltage (max) 280 V
Input frequency 50/60 Hz
Output frequency 50/60 Hz
Surge protection Yes
AC outlet types C13 coupler/C14 coupler
Power plug NEMA 5-15P
3xEthernet LAN (RJ-45) ports
Battery technology Lead-Acid
Battery voltage 12 V
Battery recharge time 8 h
Form factor Rackmount
Colour Grey
Control type Buttons
LED indicators Status
International Protection (IP) code IP20
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Rack mount kit Yes
Weight 13.7 kg
Manufacturer Website:
https://eu.store.ui.com/eu/en/category/integrations-power-tech/collections/unifi-power-tech-ups/products/ups-2u-eu
- Category Code
- UPR
- CnCode
- 85044095
- Unit Box Height
- 0.26
- Unit Box Length
- 0.75
- Unit Box Width
- 0.58
- Input frequency
- 50/60 Hz
- Input operation voltage (max)
- 280 V
- Input operation voltage (min)
- 170 V
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 220 V
- Output power
- 1000 W
- Output power capacity
- 1.5 kVA
- Output voltage regulation
- 10 %
- Overload capacity (5 minute)
- 110 %
- Power protection features
- Over voltage/Overload/Short circuit
- Surge protection
- Yes
- Transfer time (Line Mode to Battery Mode)
- 10 ms
- UPS topology
- Line-Interactive
- Waveform
- Sine

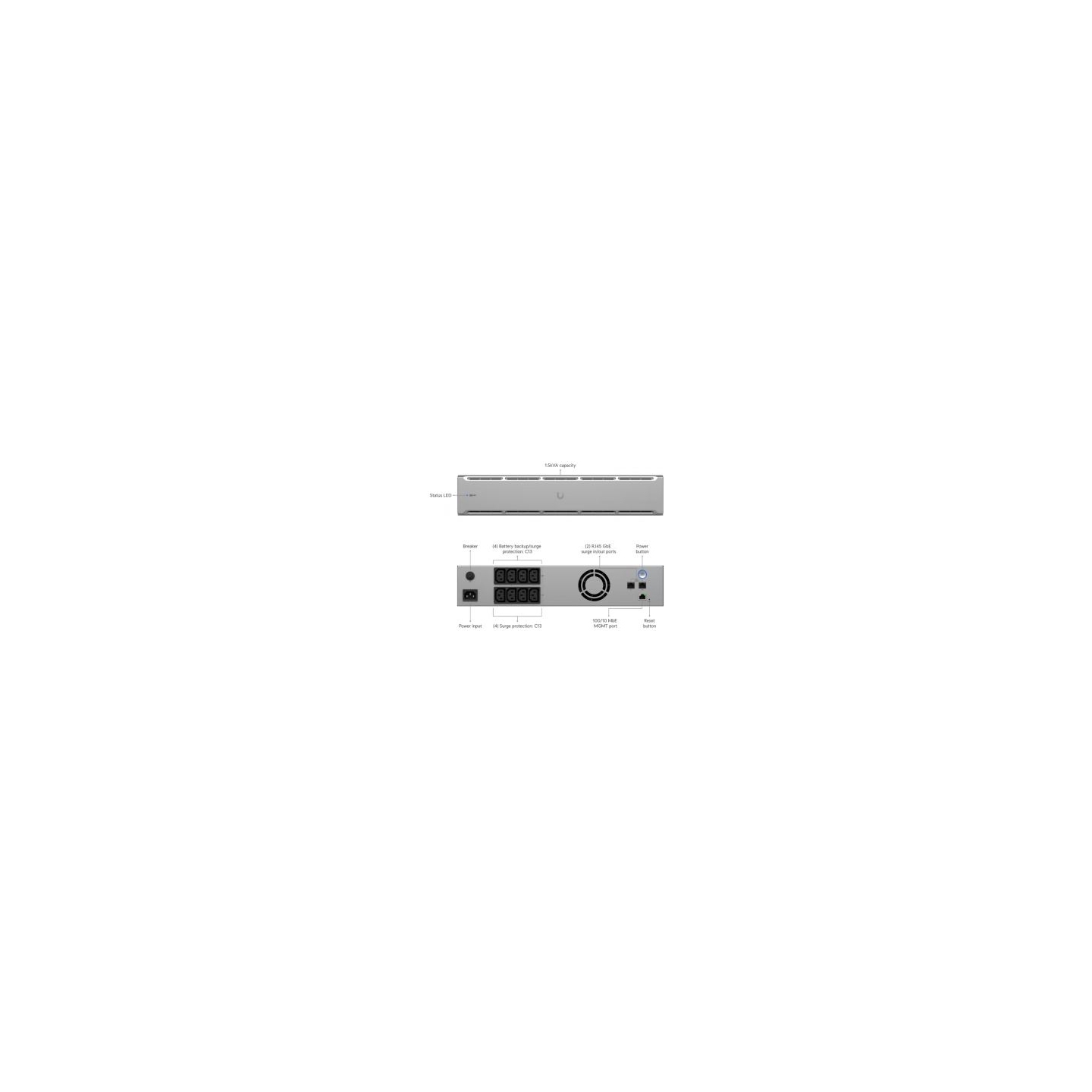

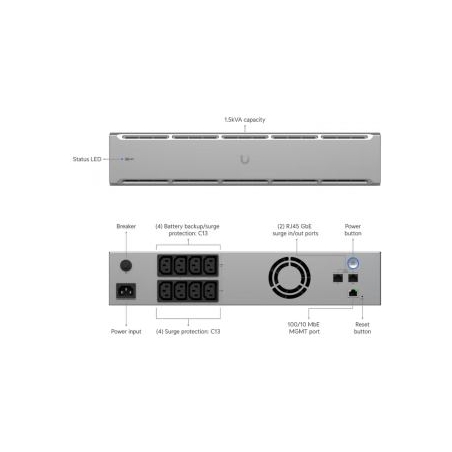

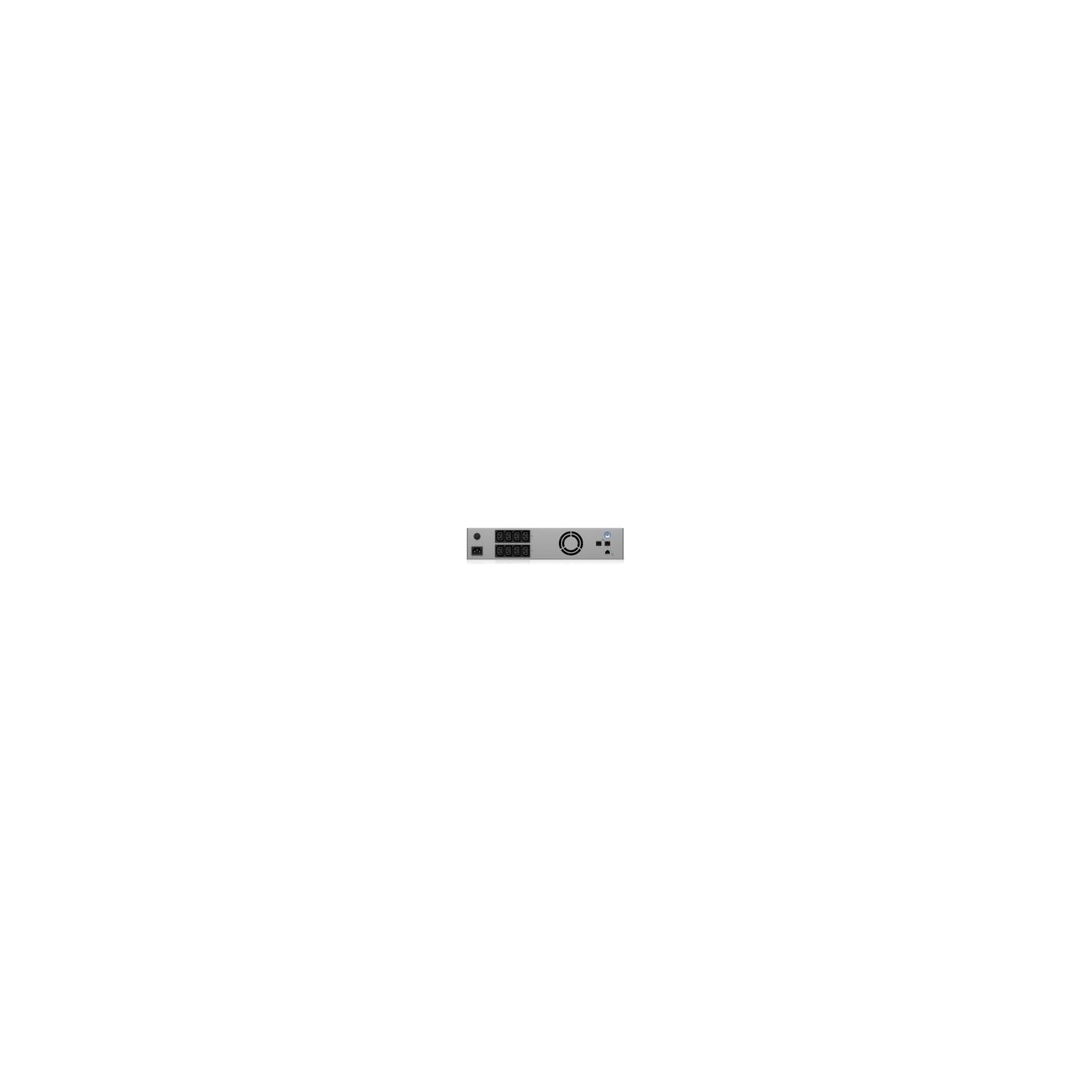

- AC outlet types
- C13 coupler/C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Ethernet LAN (RJ-45) ports
- 3
- Power plug
- NEMA 5-15P
- Battery capacity
- 9 Ah
- Battery recharge time
- 8 h
- Battery technology
- Lead-Acid
- Battery voltage
- 12 V
- Number of batteries included
- 2 pc(s)
- Typical backup time at full load
- 2.3 min
- Typical backup time at half load
- 8 min
- Control type
- Buttons
- Form factor
- Rackmount
- Housing material
- Steel,Galvanized steel
- International Protection (IP) code
- IP20
- LED indicators
- Status
- Product colour
- Grey
- Rack capacity
- 2U
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 50 °C
- Cables included
- Input power cable
- Compliance certificates
- CE
- Rack mount kit
- Yes

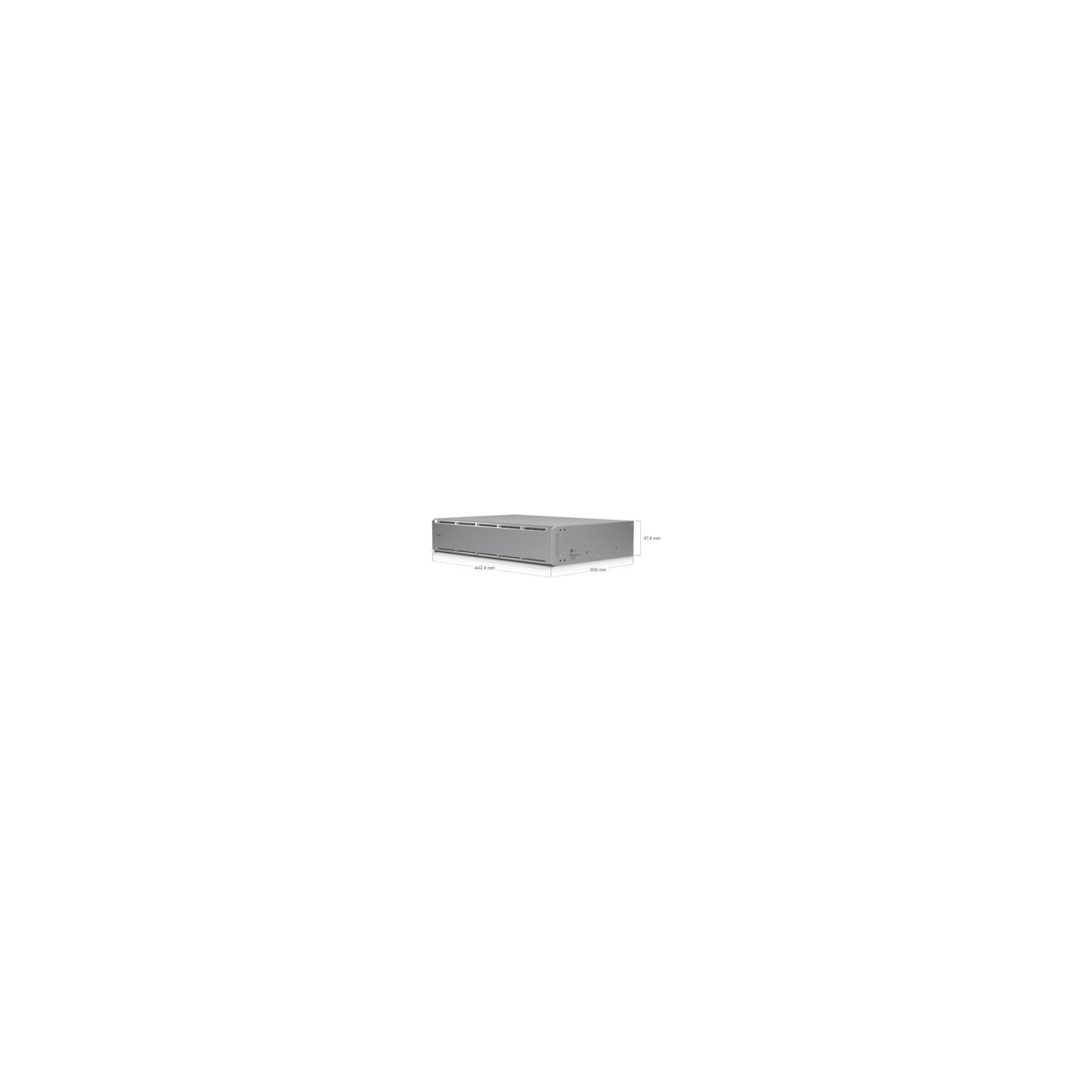

- Depth
- 300 mm
- Height
- 87.4 mm
- Weight
- 13700 g
- Width
- 442.4 mm
- Product Net Weight
- 13.7 kg
- Shipping Box Depth
- 75 cm
- Shipping Box Height
- 26 cm
- Shipping Box Weight
- 19.8500003815 kg
- Shipping Box Width
- 58 cm
- Unit Calculated Volume
- 0.1131 cubm
- Unit Calculated Weight
- 19.9 kg
- Units per Shipping Box
- 1
- Model
- UPS-2U
- Model name
- UPS-2U
