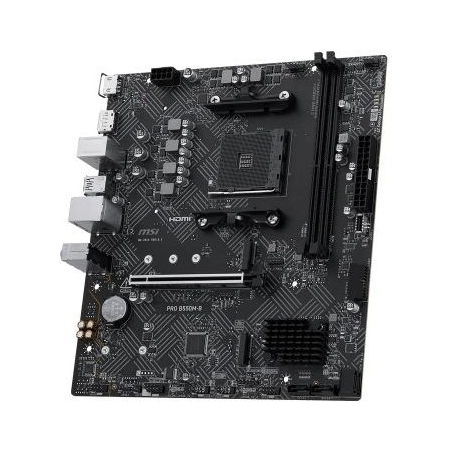

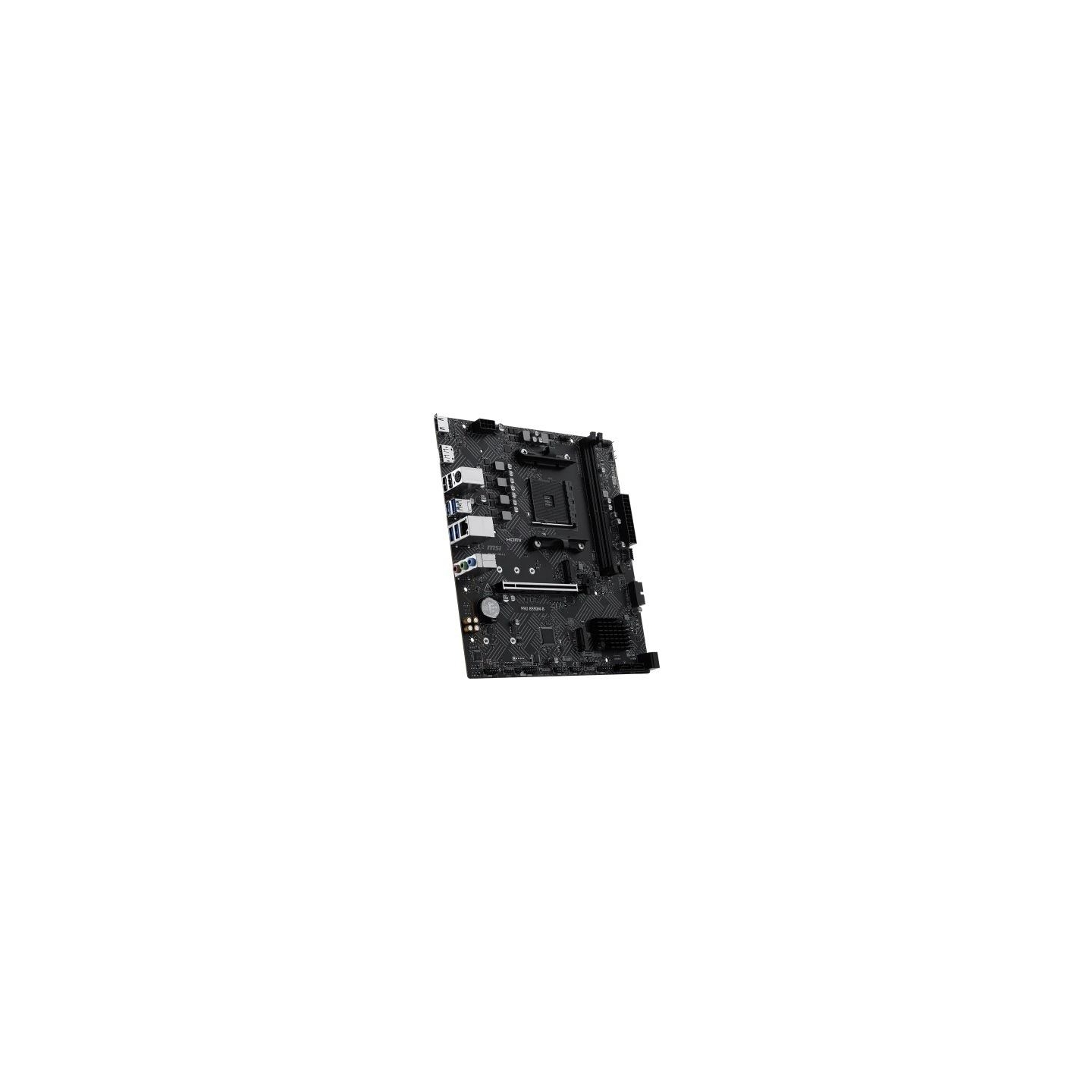

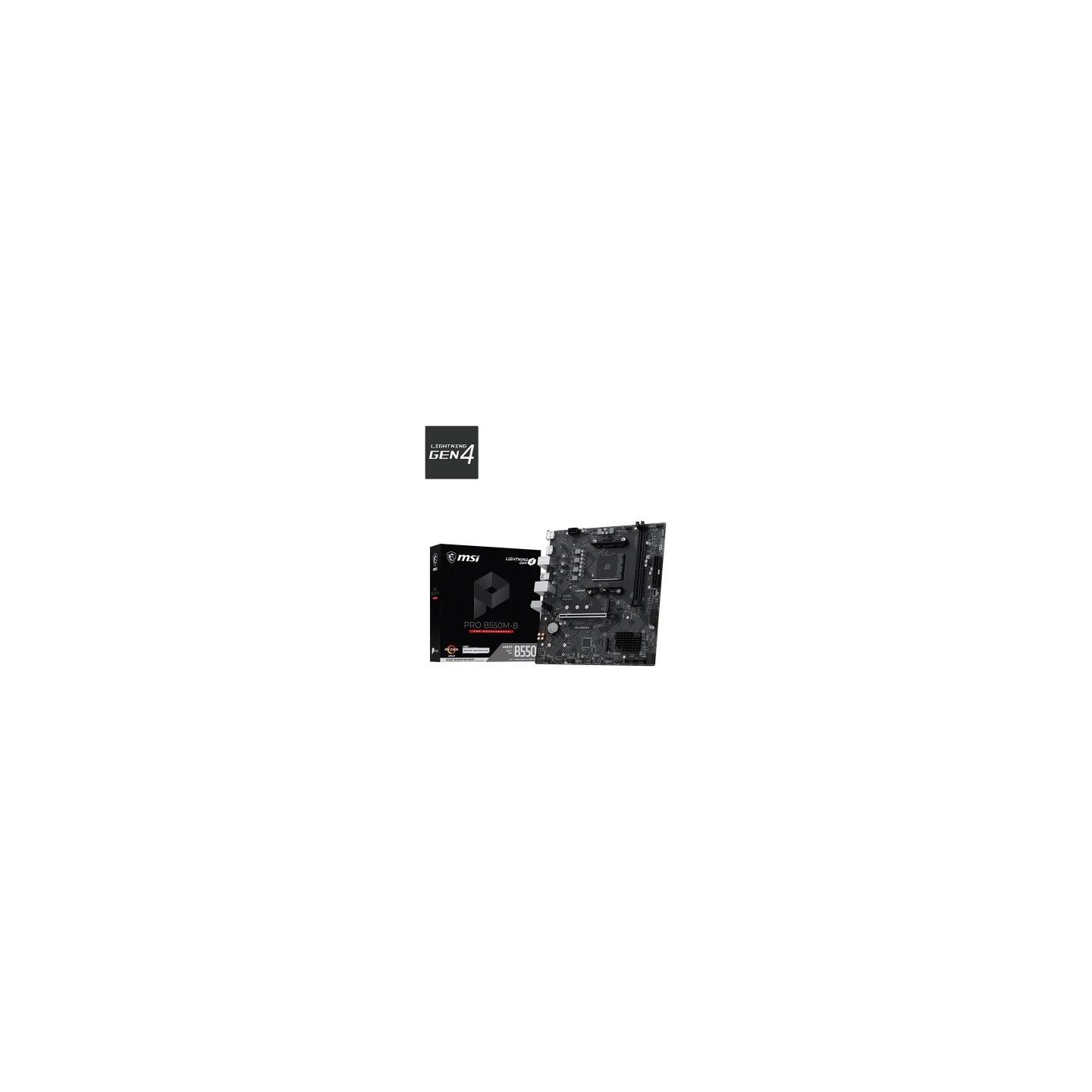

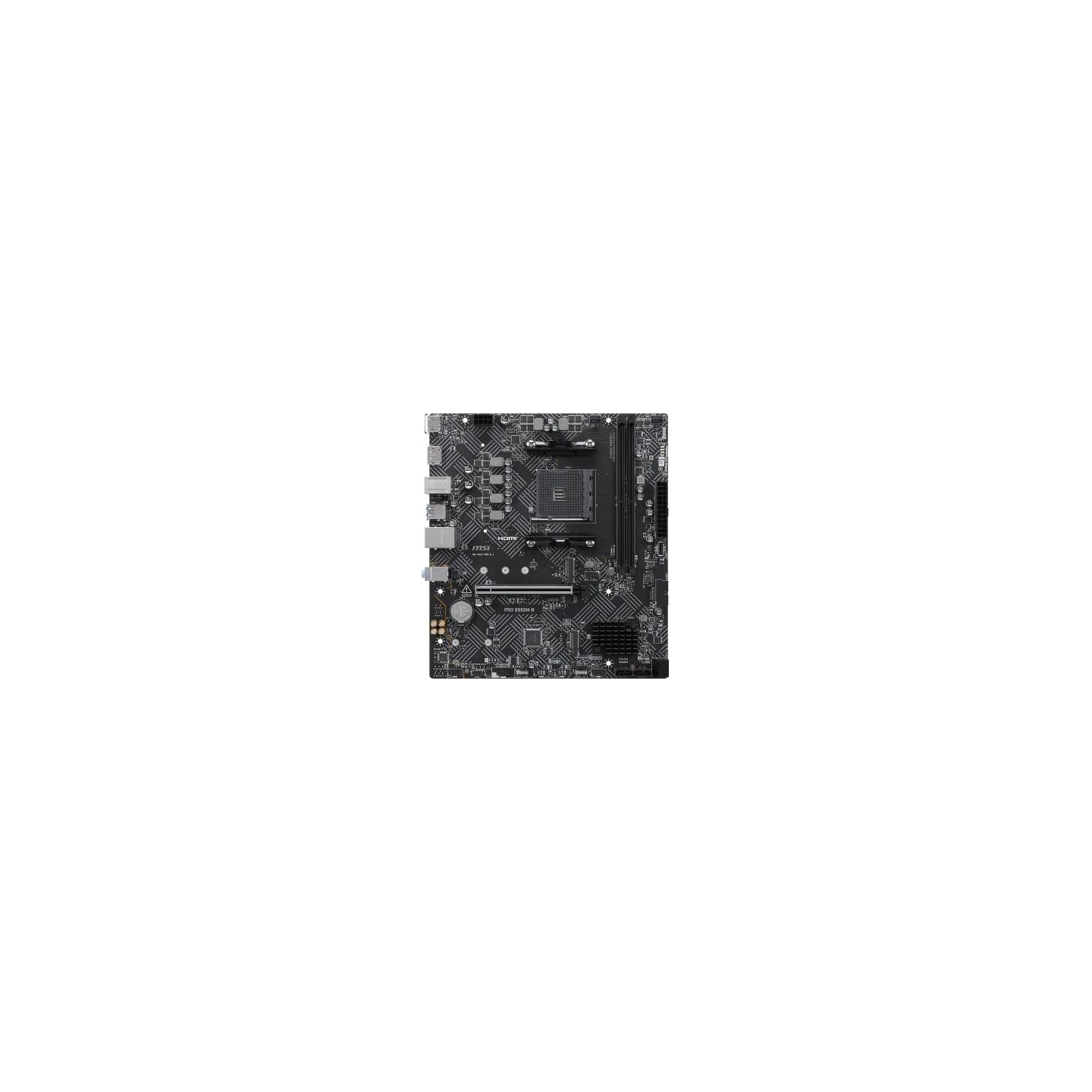

MSI Motherboard PRO B550M-B am4 2DDR4 mATX

MSI Motherboard PRO B550M-B am4 2DDR4 mATX

Name: MSI Motherboard PRO B550M-B am4 2DDR4 mATX
Brand: MSI
SKU: PRO B550M-B
Price: 90.25 EUR
Availability: InStock

SKU PRO B550M-B Category Mainboards

€90.25

Tax included

Last items in stock

Share on

SKU: KBMSIAA7B550U10
Barcode: 4711377428927
Data Act: Link
Model: PRO B550M-B
CPU socket: Socket AM4
Processor family: AMD Ryzen 7
Processor family: AMD Ryzen
Processor family: AMD Ryzen 3
Processor family: AMD Ryzen 5
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B550
Memory type: DDR4
Number of DDR4 slots: 2
Memory bus frequency: 4400 MHz
Memory bus frequency: 4600 MHz
Memory bus frequency: 2667 MHz
Memory bus frequency: 3866 MHz
Memory bus frequency: 2800 MHz
Memory bus frequency: 4133 MHz
Memory bus frequency: 3000 MHz
Memory bus frequency: 3200 MHz
Memory bus frequency: 2933 MHz
Memory bus frequency: 4000 MHz
Memory bus frequency: 3600 MHz
Memory bus frequency: 3466 MHz
Memory bus frequency: 3733 MHz
Memory bus frequency: 4266 MHz
Memory bus frequency: 3066 MHz
Max memory size: 64
Expansion slots: 1 x PCIe x 16
Expansion slots: 2 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Storage 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G (Qty) RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Graphics: 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz
Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface: 1 x 10/100/1000 Mbit/s
Network interface: Realtek RTL8111H 1Gbps LAN
USB ports at back panel: 6
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 7
FireWire (IEEE 1394): No
COM connector / port: Yes
LPT connector / port: No
External connectors: 2 x USB 2.0
External connectors: 1 x RJ-45
External connectors: 1 x MIC
External connectors: 1 x HDMI
External connectors: 1 x Line Out
External connectors: 1 x Line In
External connectors: 1 x DisplayPort
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 4 x USB 3.2 Gen 1 Type-A
Onboard connectors: 2 x USB 3.2 Gen 1 Type-A
Onboard connectors: 4 x EZ Debug LED
Onboard connectors: 1 x 4pin Chassis fan
Onboard connectors: 4 x USB 2.0/1.1
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x Chassis intrusion header
Onboard connectors: 1 x Serial port header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 2 x System panel header
Form factor: micro ATX
Dimensions: 220mm x 243.84mm
Supported operating systems: Windows 10
Supported operating systems: Windows 11
Designation: CE+WEEE
