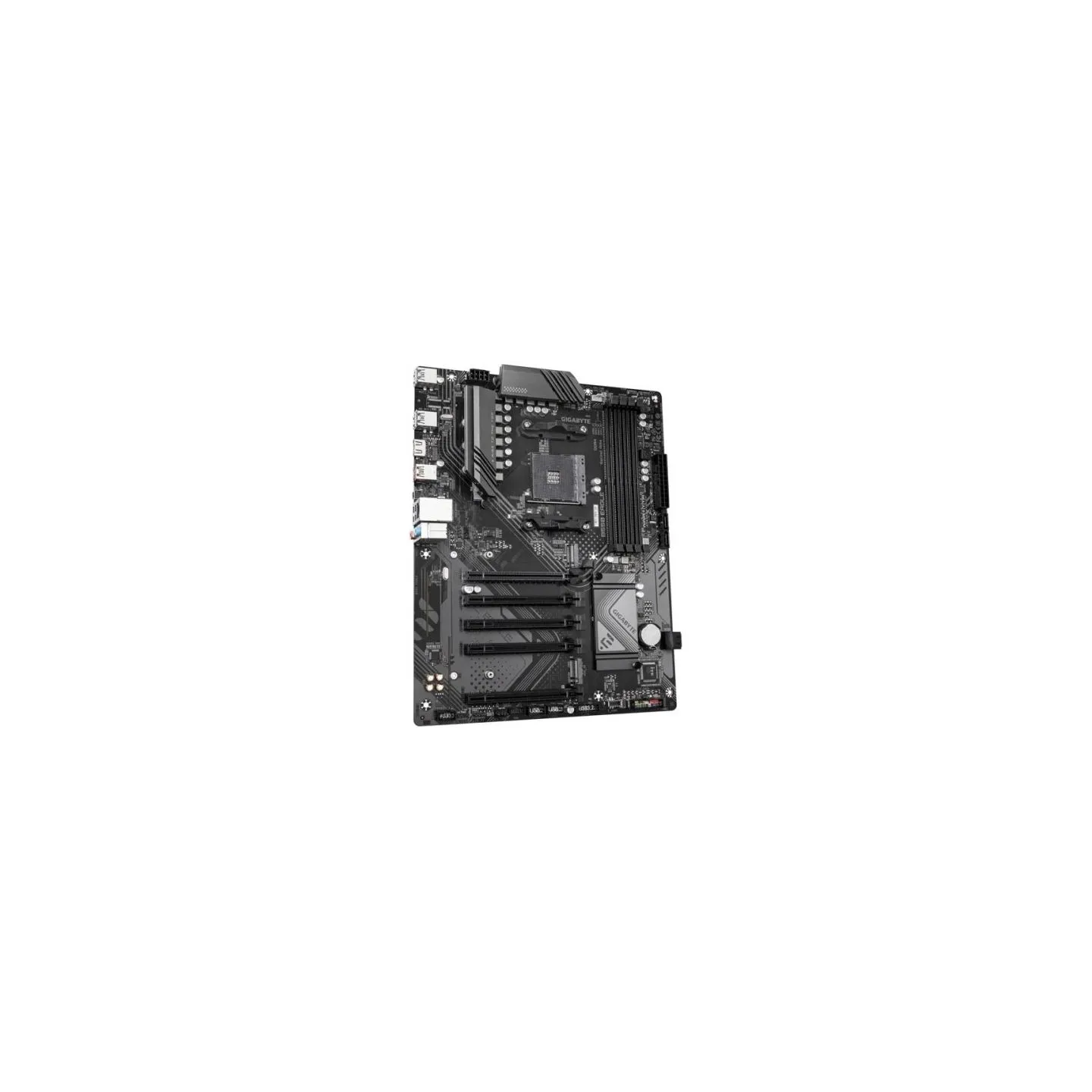

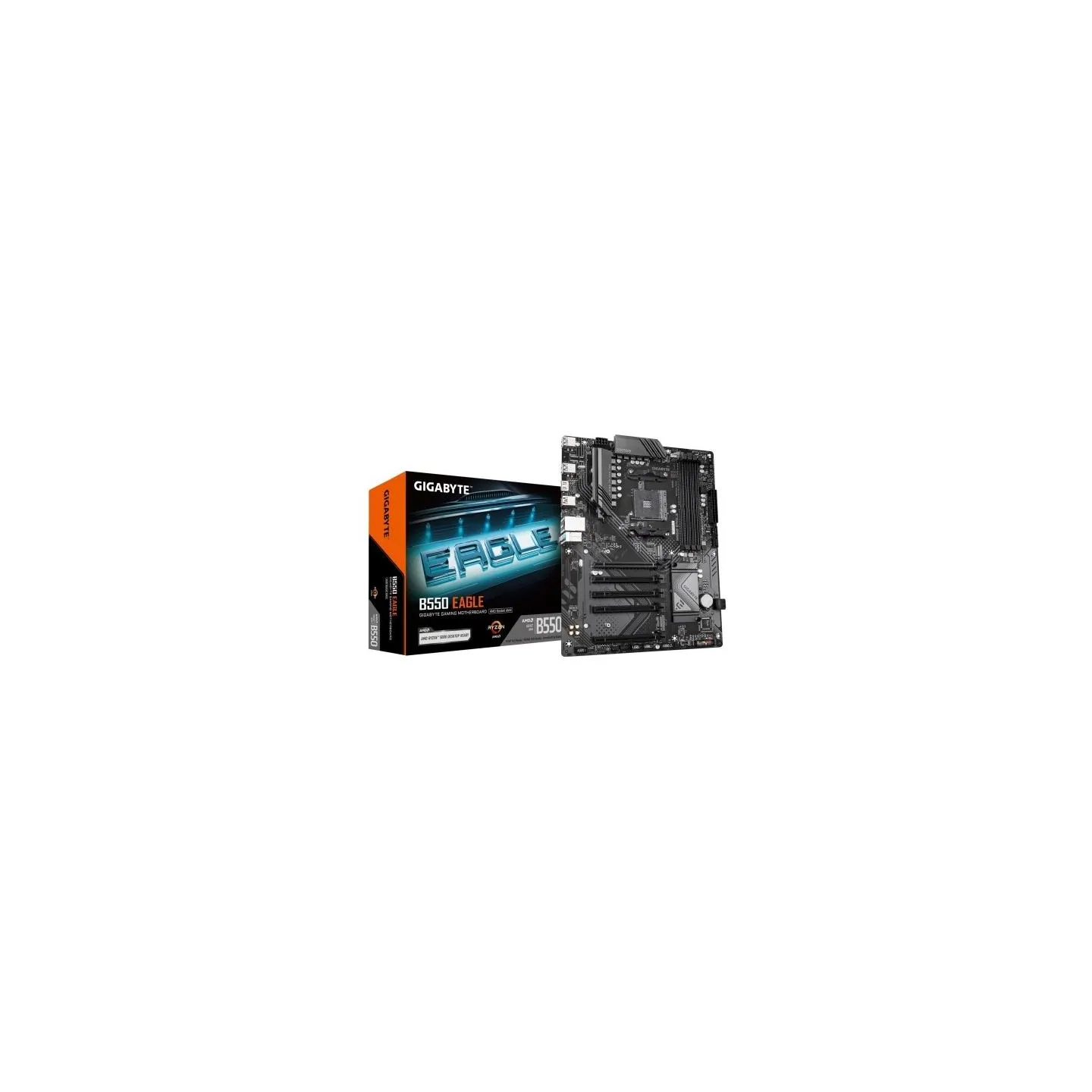

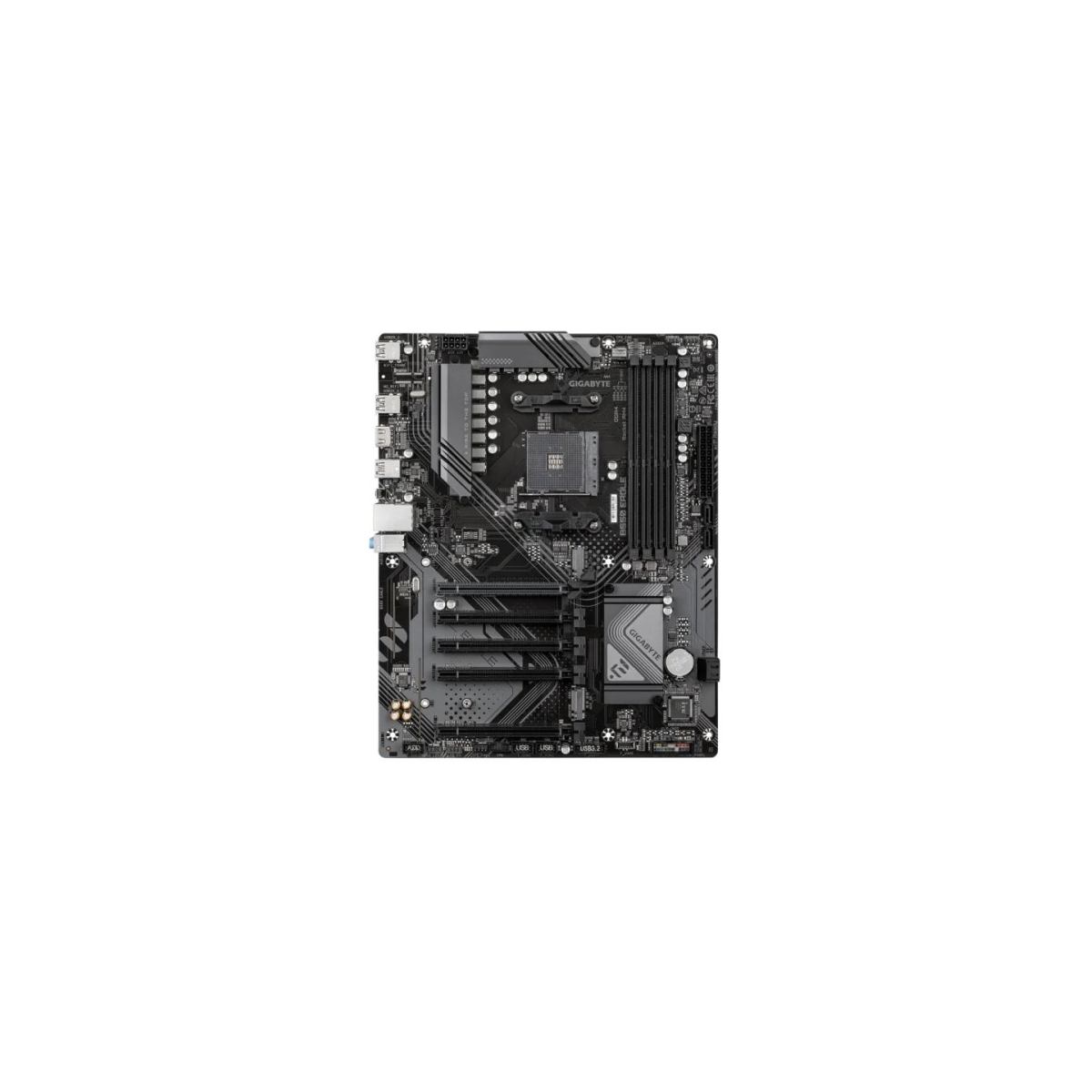

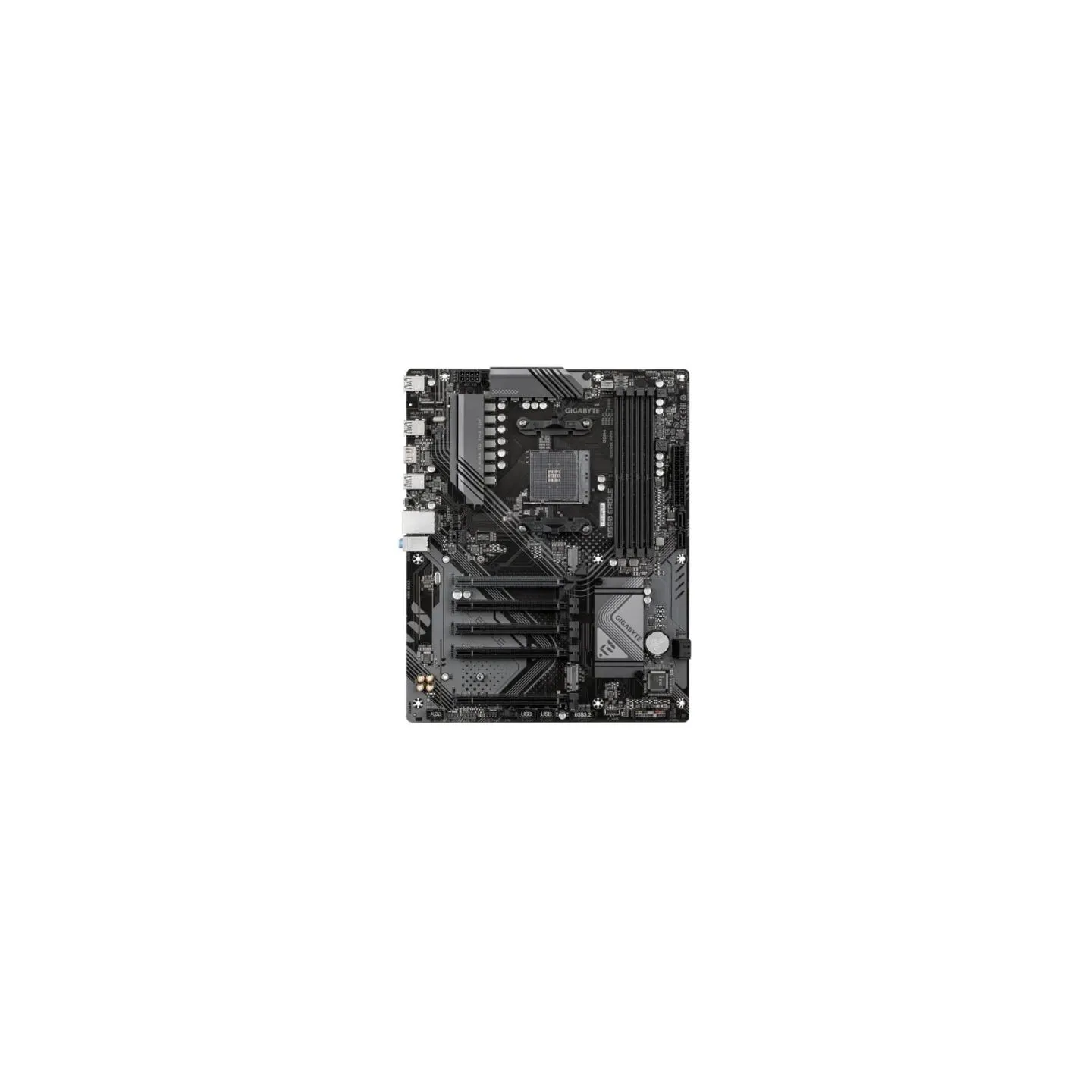

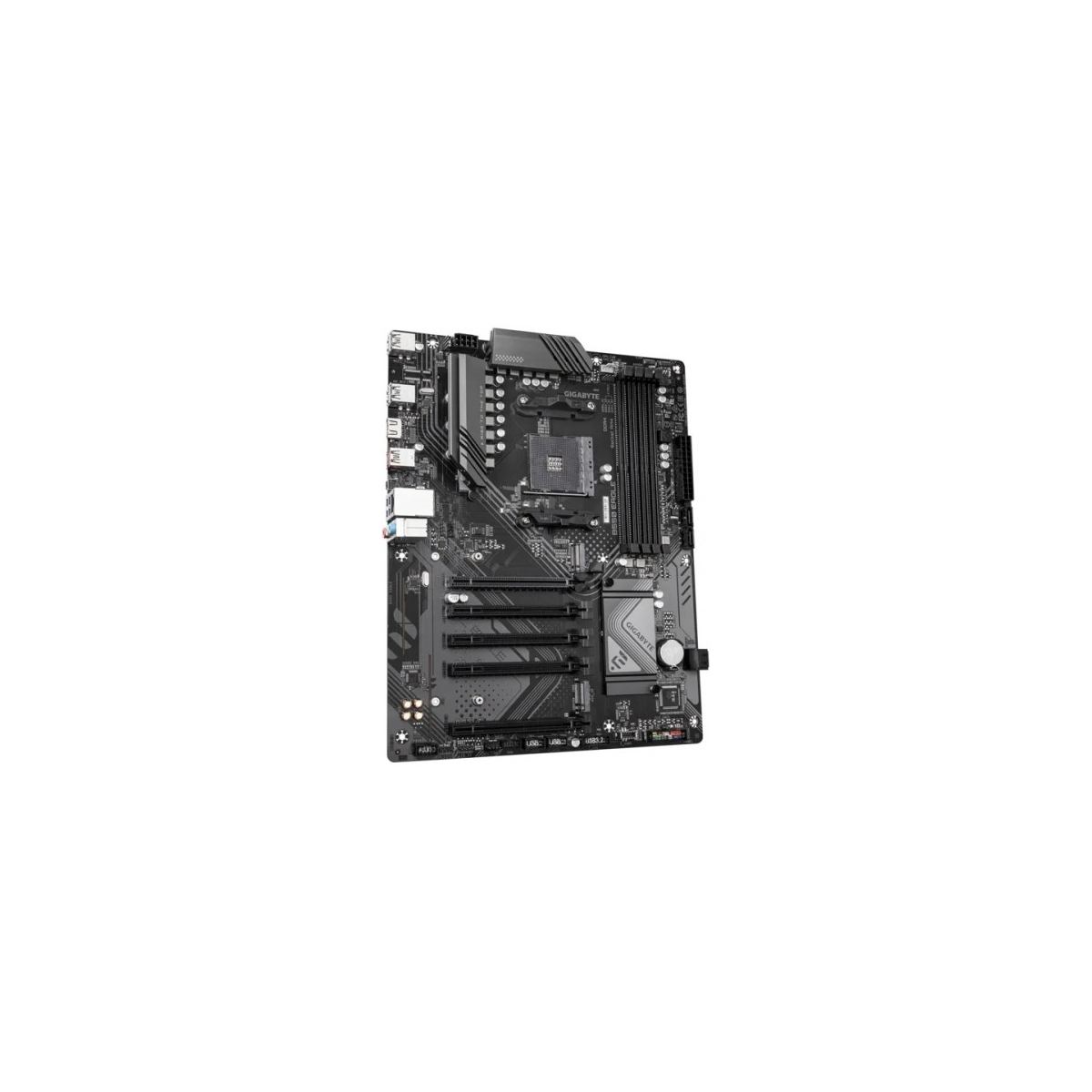

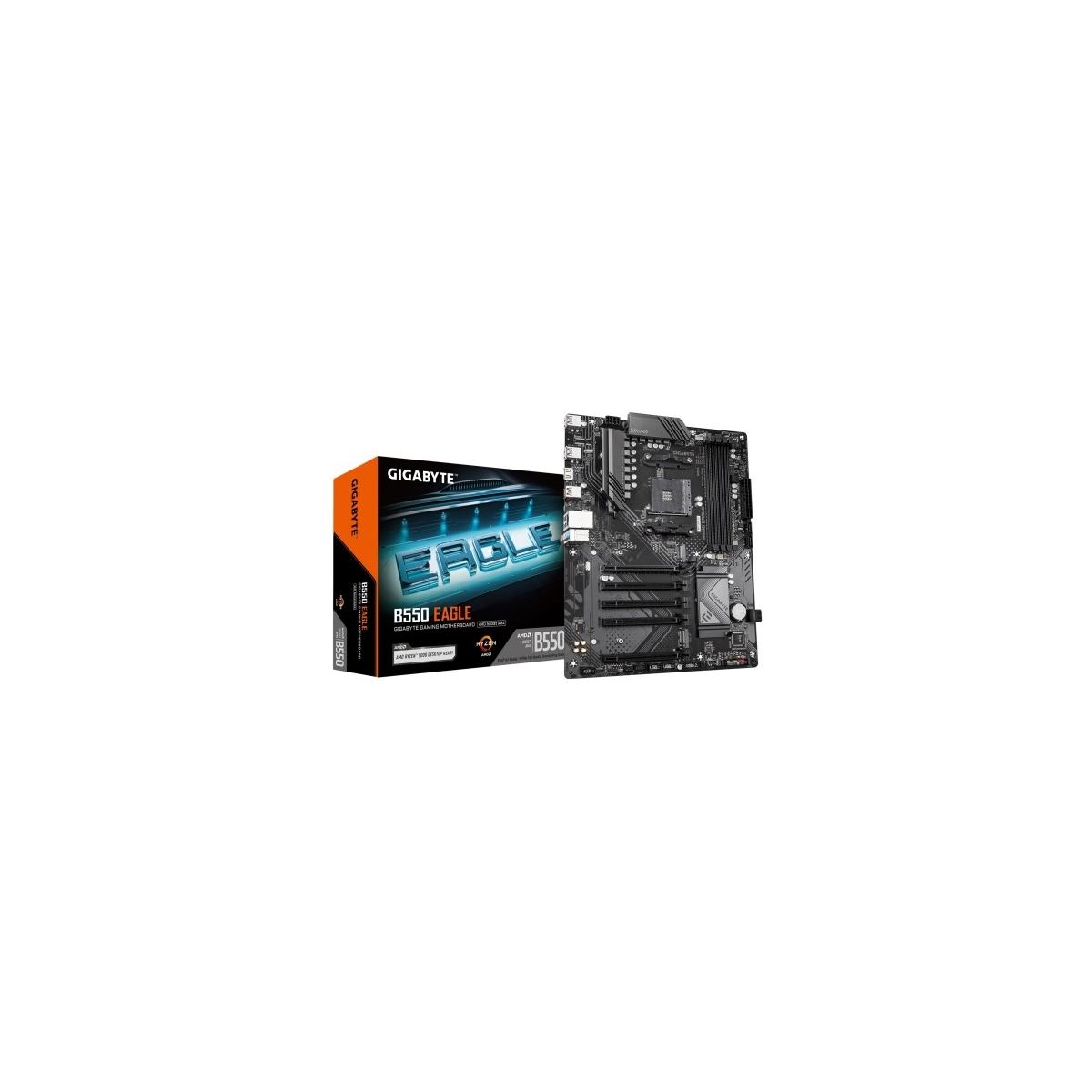

Gigabyte B550 EAGLE AM4 MB
Price:
€114.00
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBGBAAA7B550A09
- Barcode
- 4719331868208
- Model
- B550 Eagle
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2667 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Chipset 1.4 × PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
- Graphics
- Integrated graphics support: AMD Radeon graphics card compatible 1 × HDMI port: Supports up to 4096 × 2160 @ 60 Hz
- Sound card
- Audio codec: Realtek High Definition Audio support Audio channels: 2/4/5.1/7.1
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.0
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x USB 3.0 Type-C
- External connectors
- 1 x HDMI
- External connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
