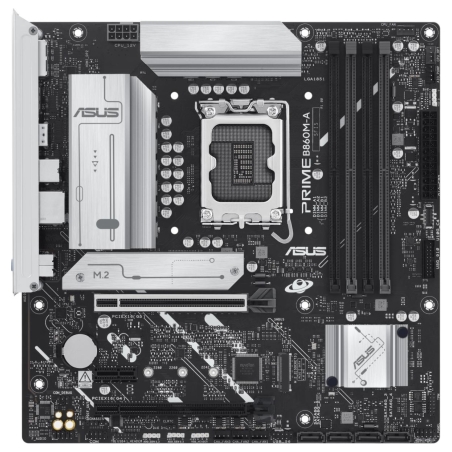

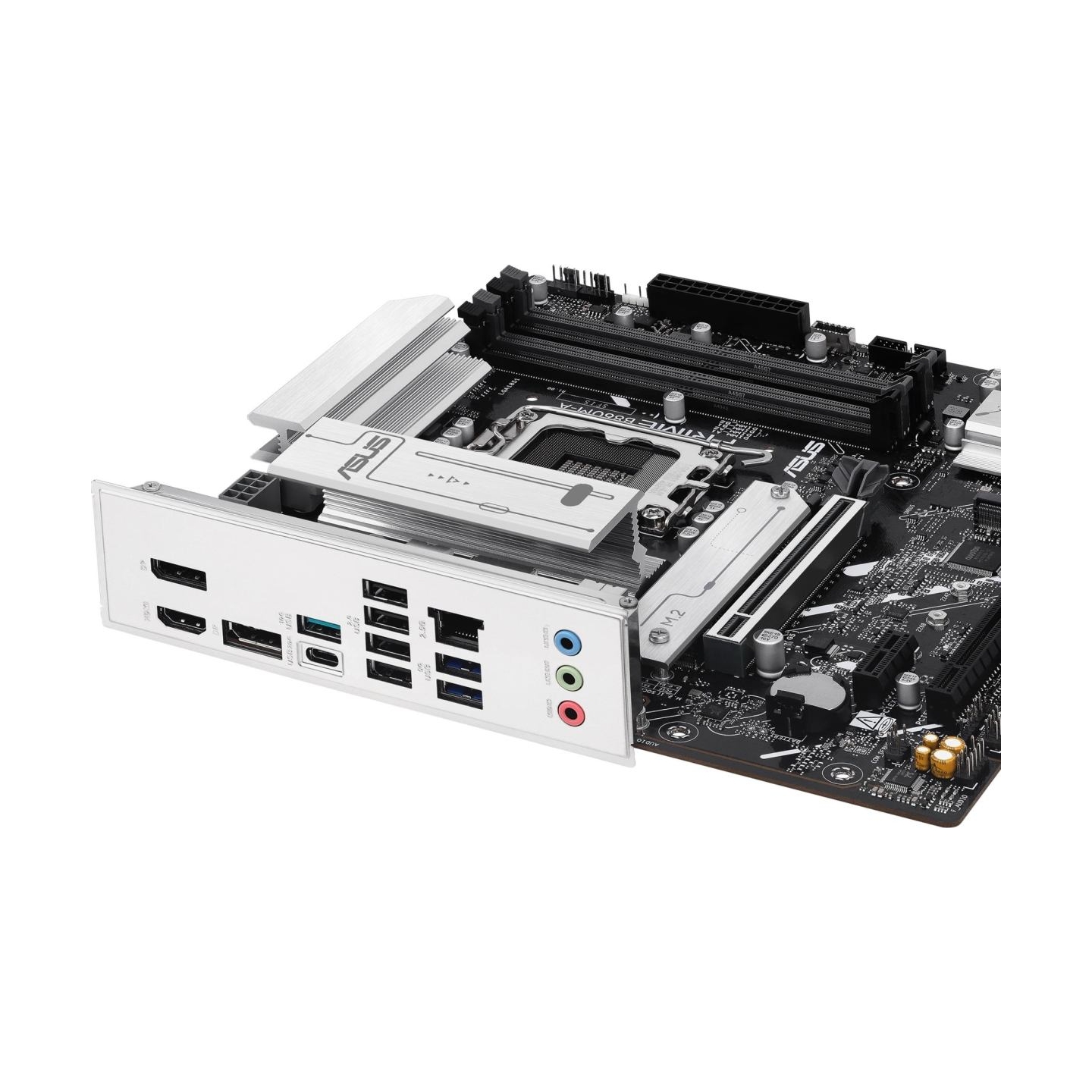

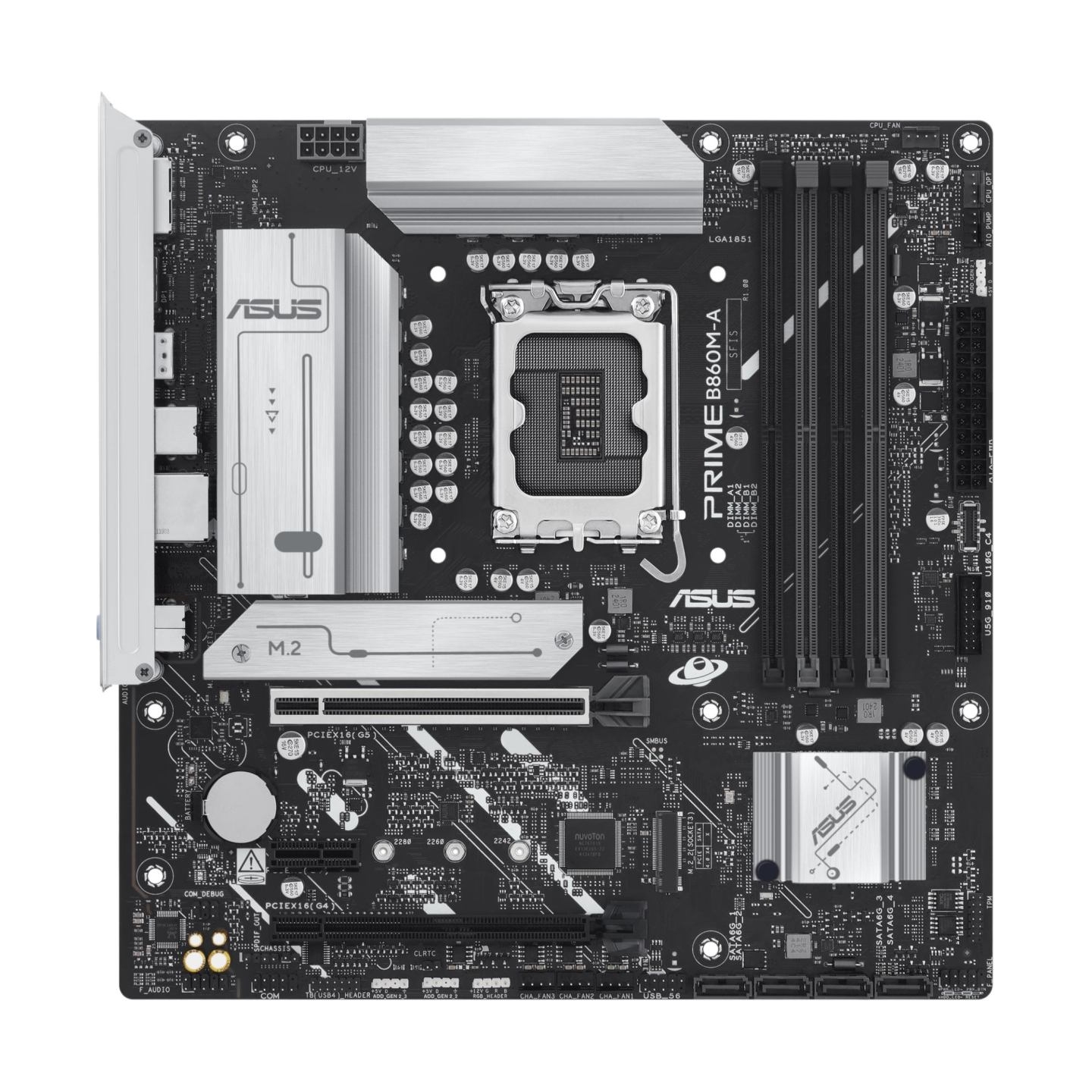

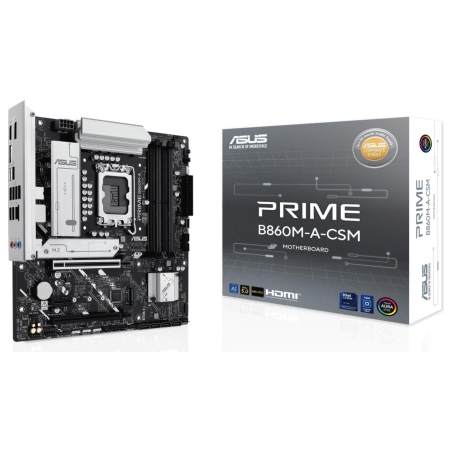

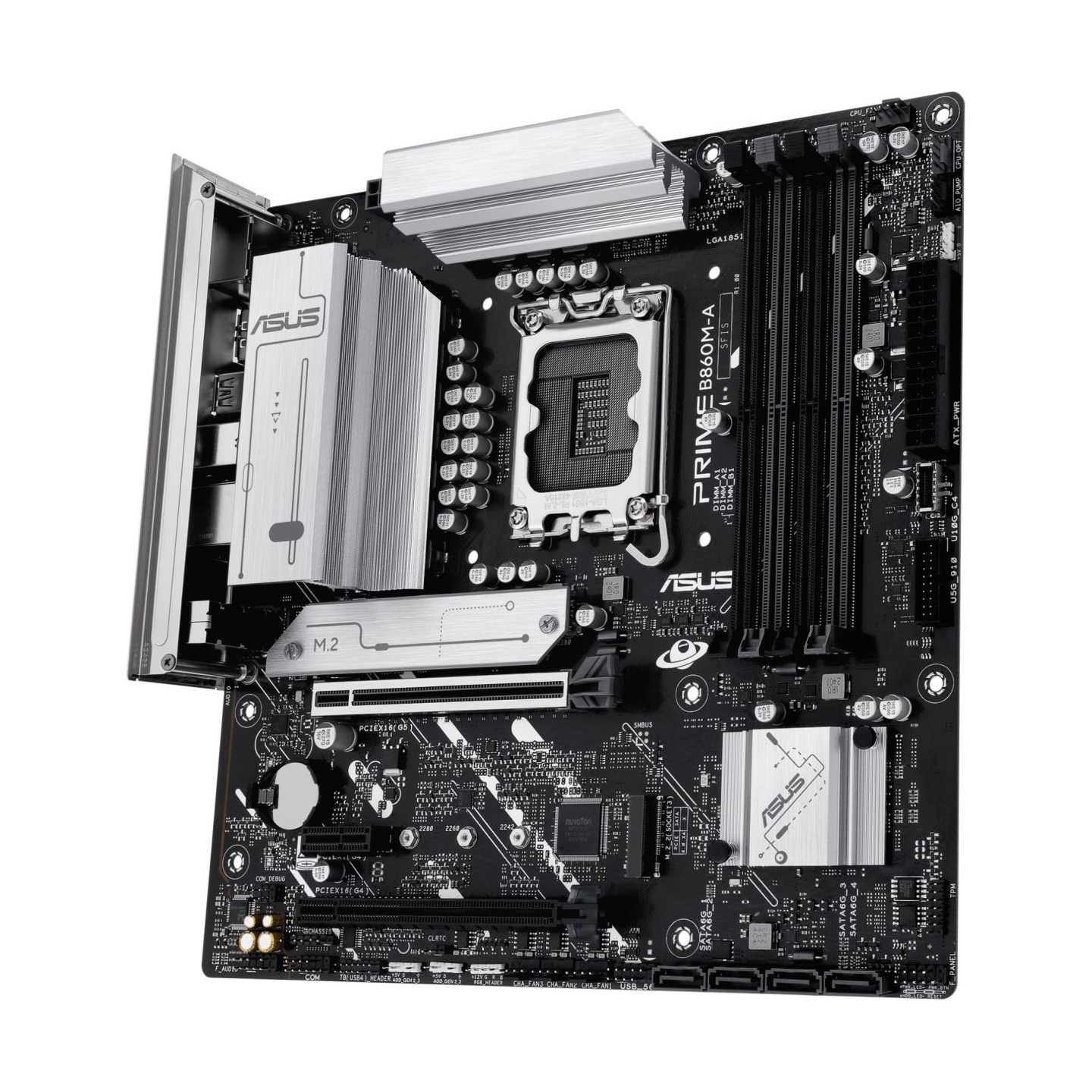

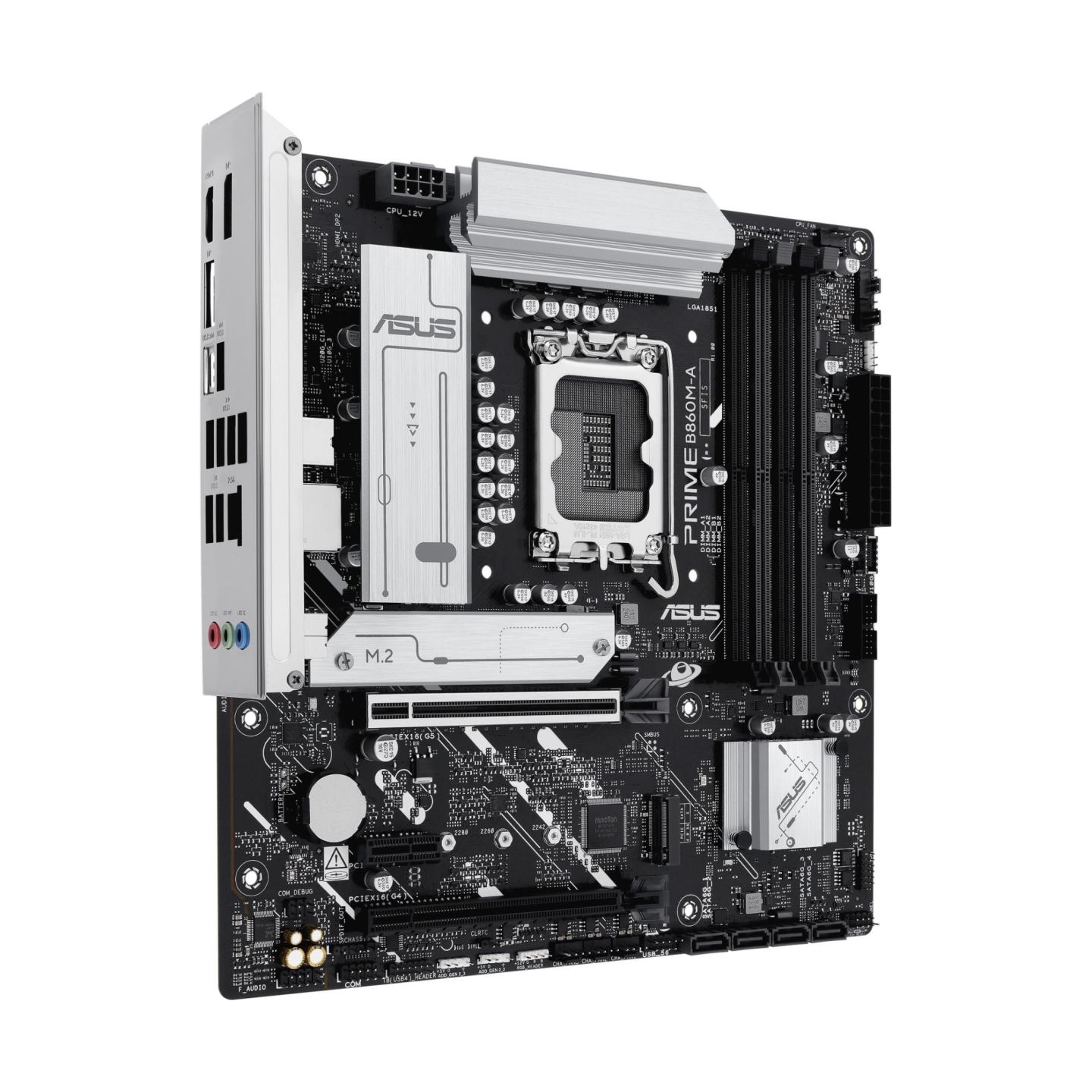

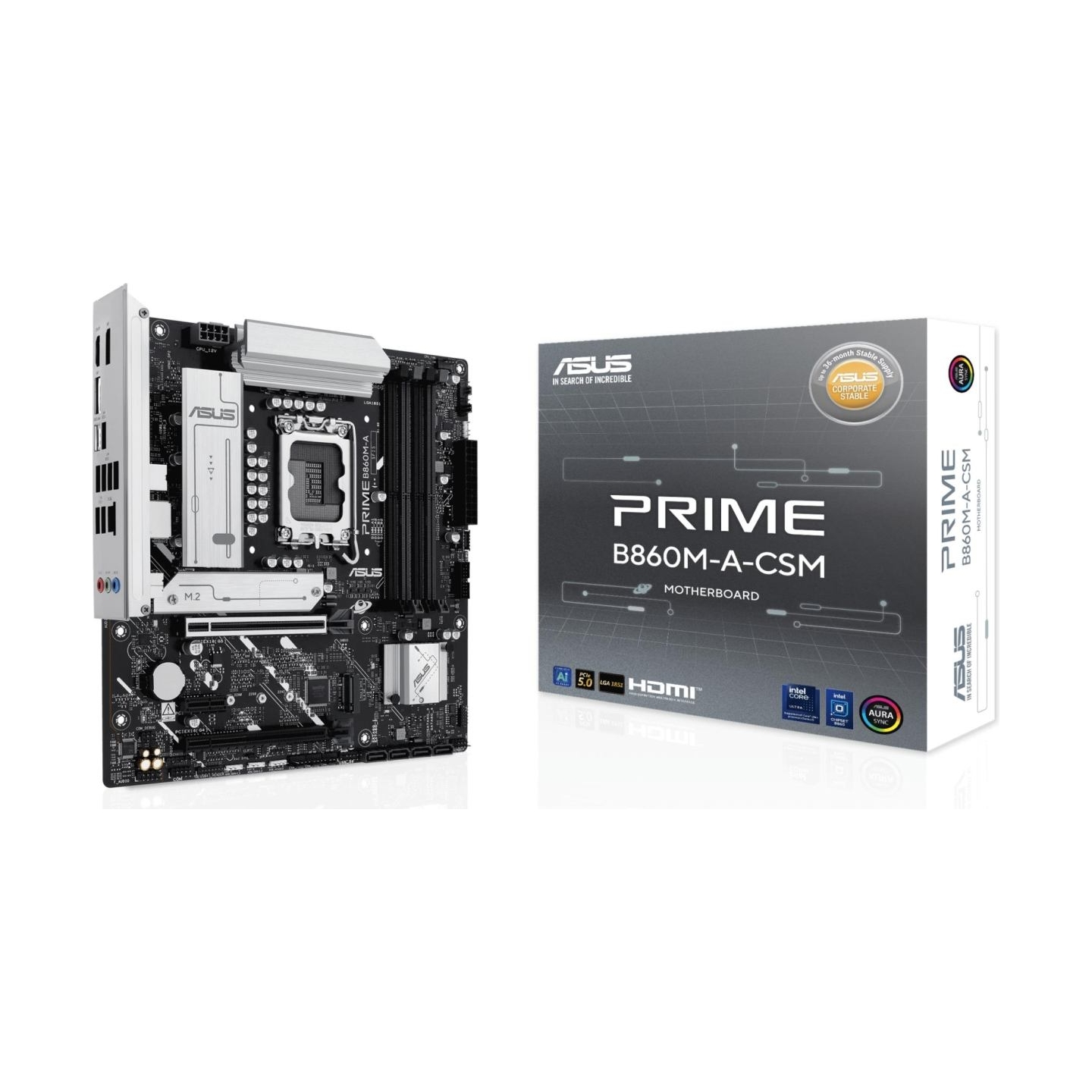

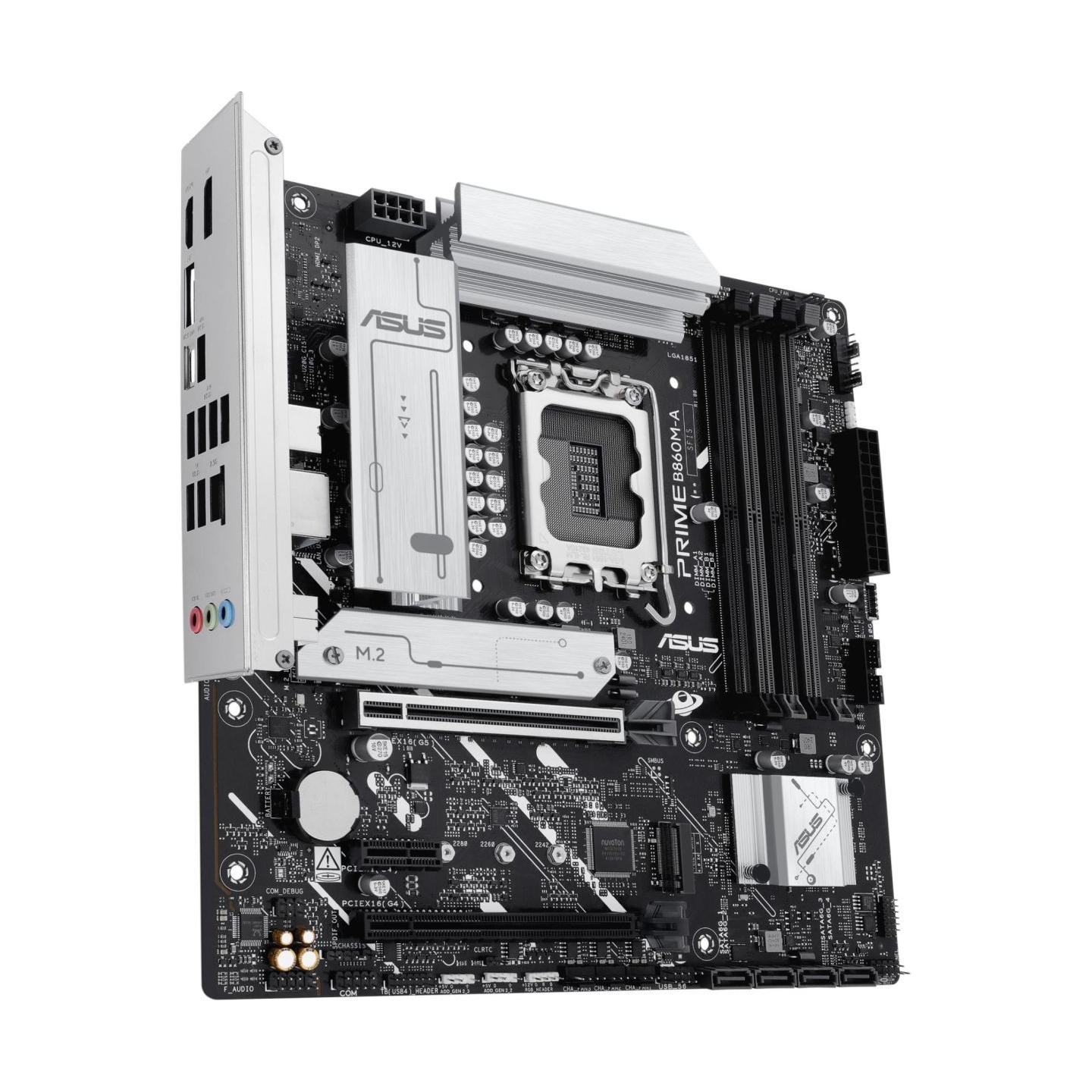

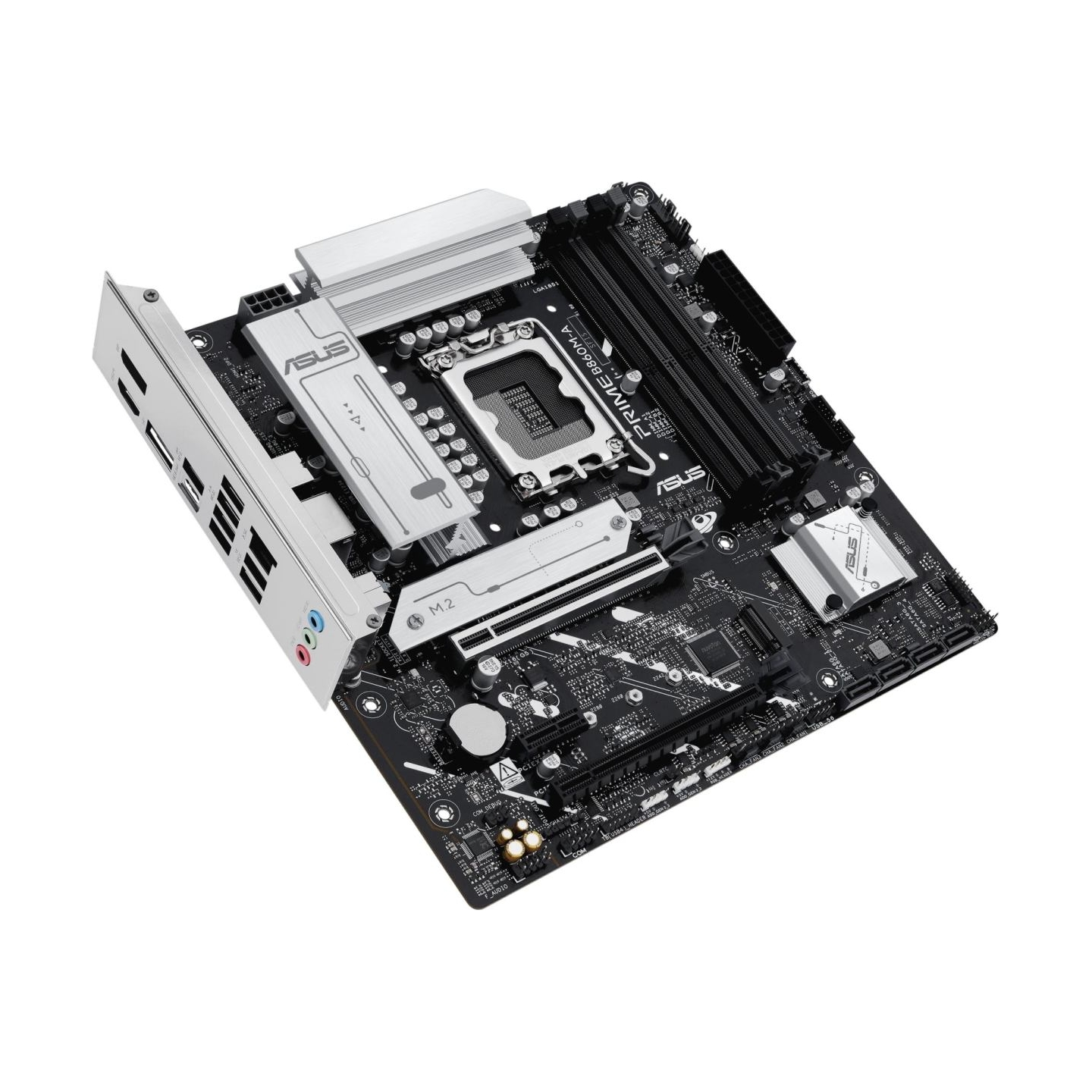

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Manufacturer Website:
https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.28
- Unit Box Width
- 0.275
- Motherboard chipset
- Intel B860
- Product colour
- Multicolour
- Component for
- PC
- Motherboard form factor
- micro ATX
- Audio output channels
- 7.1 channels
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64/Windows 11
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speed (max)
- 8666 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0/1/10/5
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 3
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- 12V power connector
- Yes
- Number of COM connectors
- 1
- Thunderbolt headers
- 1
- TPM connector
- Yes

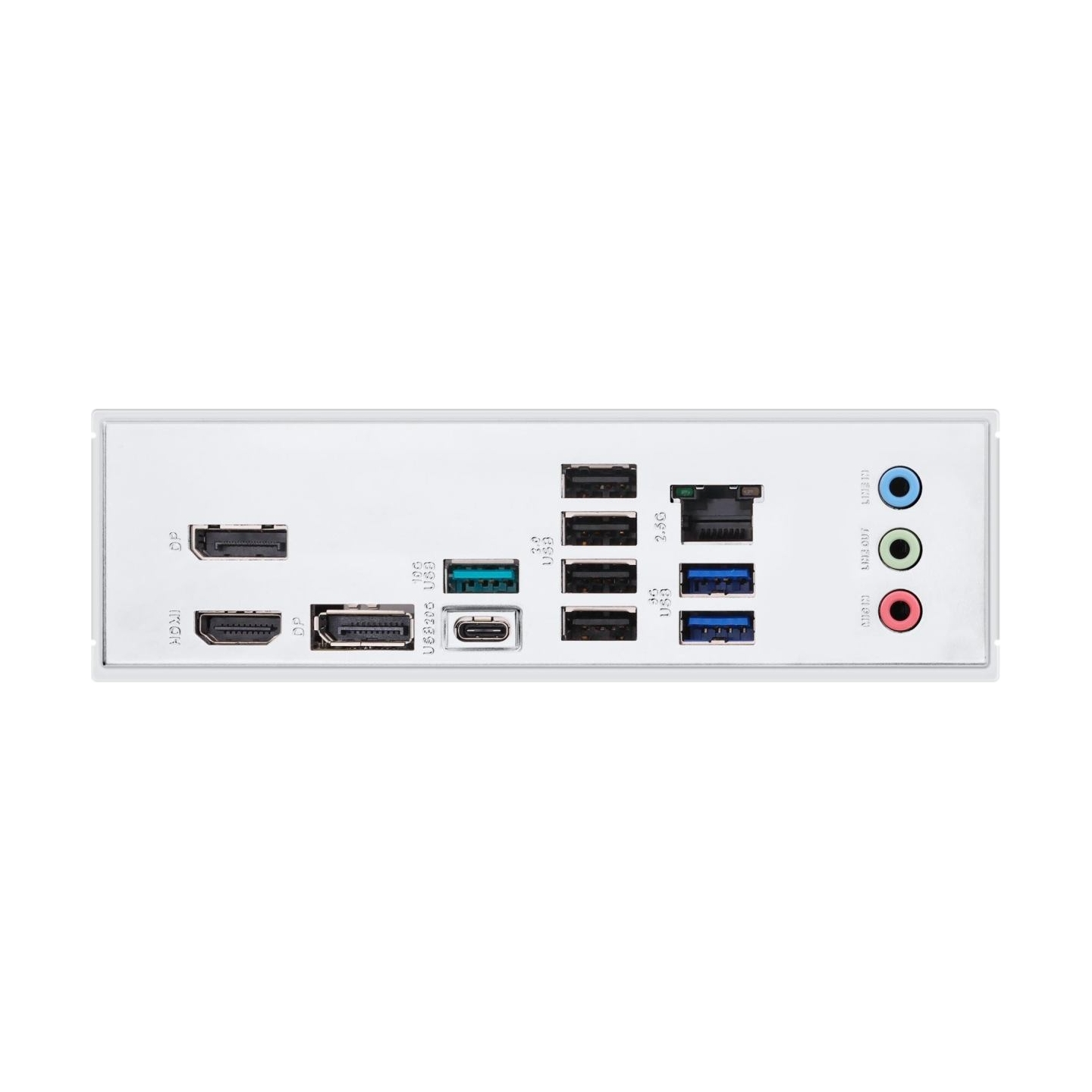

- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 2
- Line-in
- Yes
- Microphone in
- Yes
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- No
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- Package width
- 275 mm
- Package depth
- 275 mm
- Package height
- 67.5 mm
- Package weight
- 1360 g
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 50 mm
- Weight
- 815 g
- Unit Calculated Weight
- 1.42 kg
- Product Net Weight
- 1 kg
- Unit Calculated Volume
- 0.006102 cubm
- Units per Shipping Box
- 10
- Shipping Box Weight
- 14.2 kg
- Unit Width
- 27.5 cm
- Shipping Box Height
- 30 cm
- Unit Depth
- 28 cm
- Shipping Box Depth
- 56.5 cm
- Unit Height
- 7 cm
- Shipping Box Width
- 36 cm
- Name
- MB B860 S1851 MATX/PRIME B860M-A-CSM ASUS
- Model
- PRIME B860M-A-CSM
