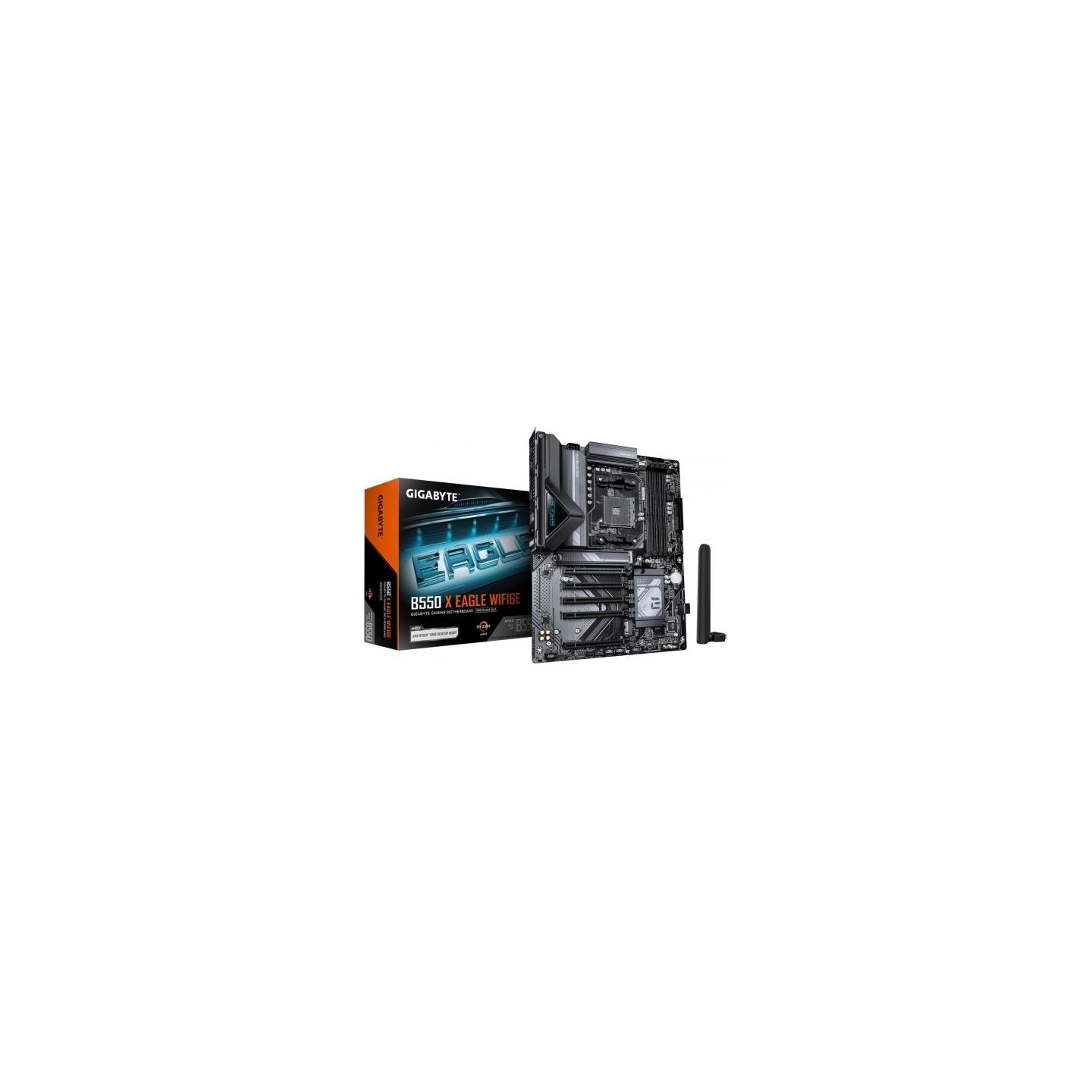

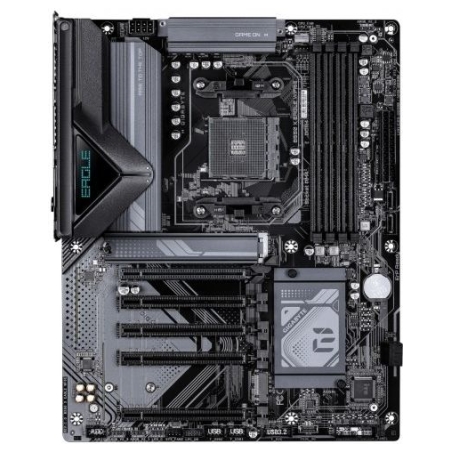

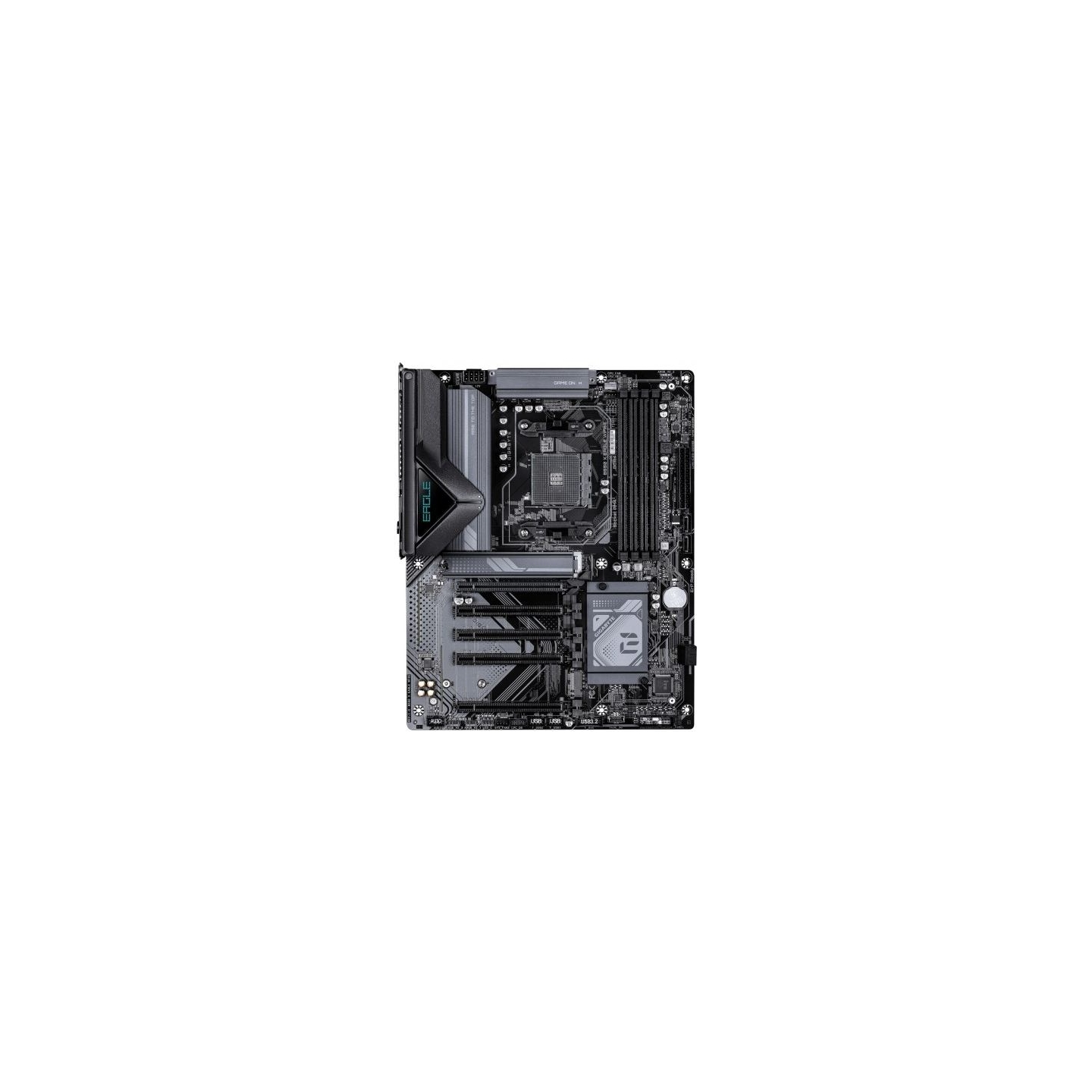

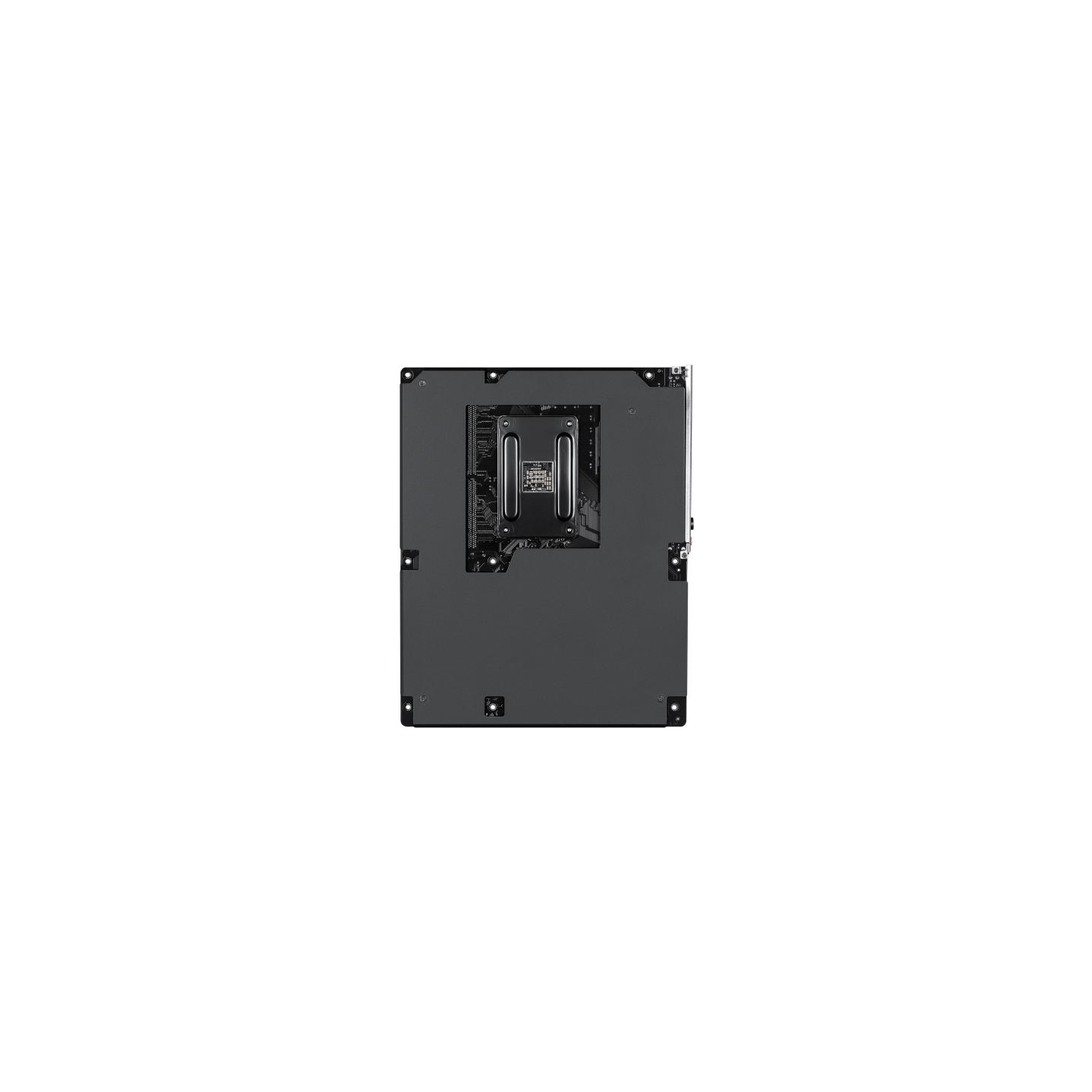

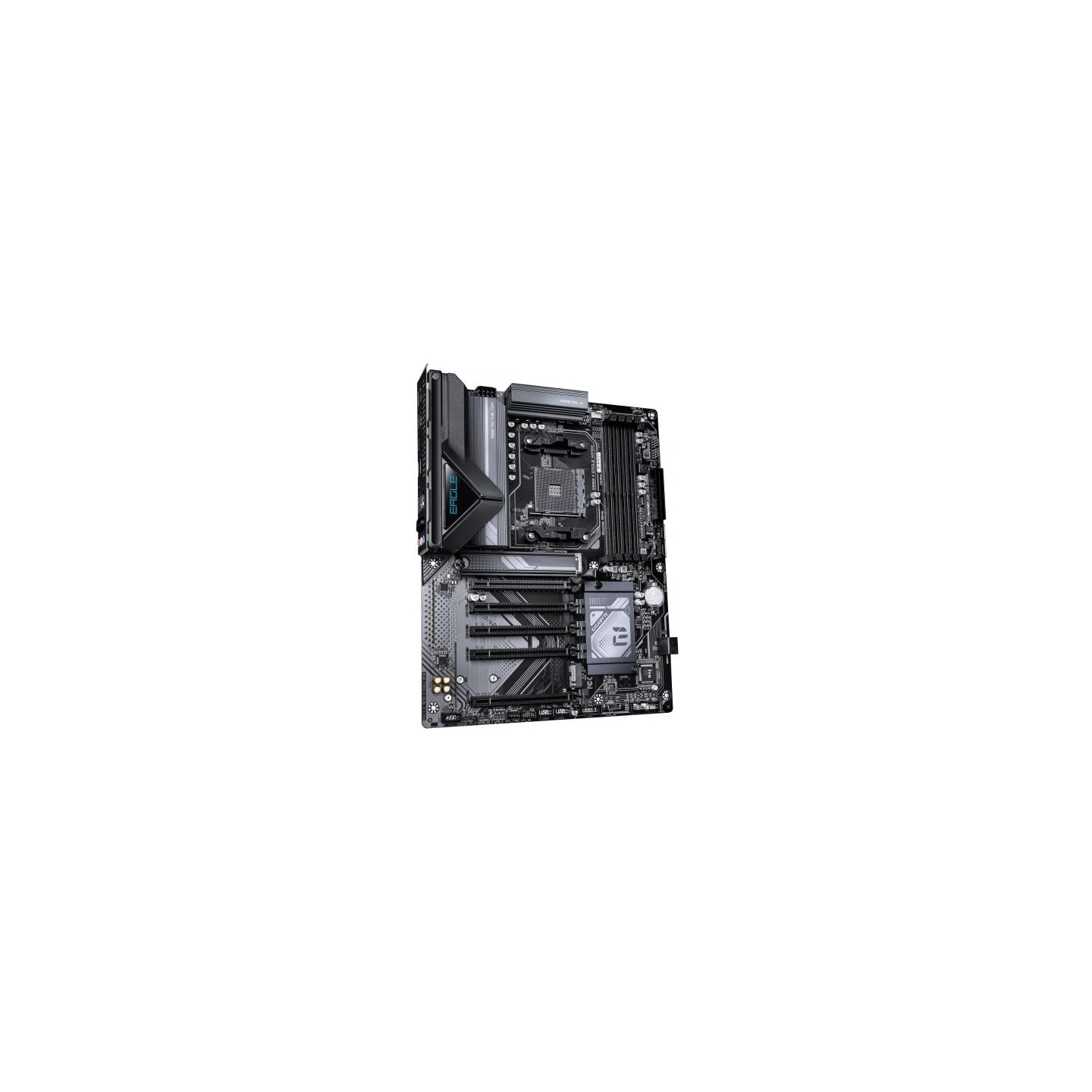

Gigabyte Motherboard B550 X EAGLE WF6E AM4 4DDR4 ATX

Gigabyte Motherboard B550 X EAGLE WF6E AM4 4DDR4 ATX

Name: Gigabyte Motherboard B550 X EAGLE WF6E AM4 4DDR4 ATX
Brand: GIGABYTE
SKU: B550 X EAGLE WF6E
Price: 142.73 EUR
Availability: InStock

SKU B550 X EAGLE WF6E Category Mainboards

New

€142.73

Tax included

Share on

SKU: KBGBAAA7B550A14
Barcode: 4719331883331
Model: B550 X EAGLE WF6E
CPU socket: Socket AM4
Processor family: AMD Ryzen 3
Processor family: AMD Ryzen 5
Processor family: AMD Ryzen 7
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B550
Memory type: DDR4
Number of DDR4 slots: 4
Memory bus frequency: 2400 MHz
Memory bus frequency: 2667 MHz
Memory bus frequency: 2933 MHz
Memory bus frequency: 2133 MHz
Memory bus frequency: 3200 MHz
Max memory size: 128
Expansion slots: 1 x PCIe x 16
Expansion slots: 4 x PCIe x 16
Expansion slots: 2 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics: Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface: 1 x 100/1000/2500Base-T
Network interface: LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 6E MT7902 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
USB ports at back panel: 8
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

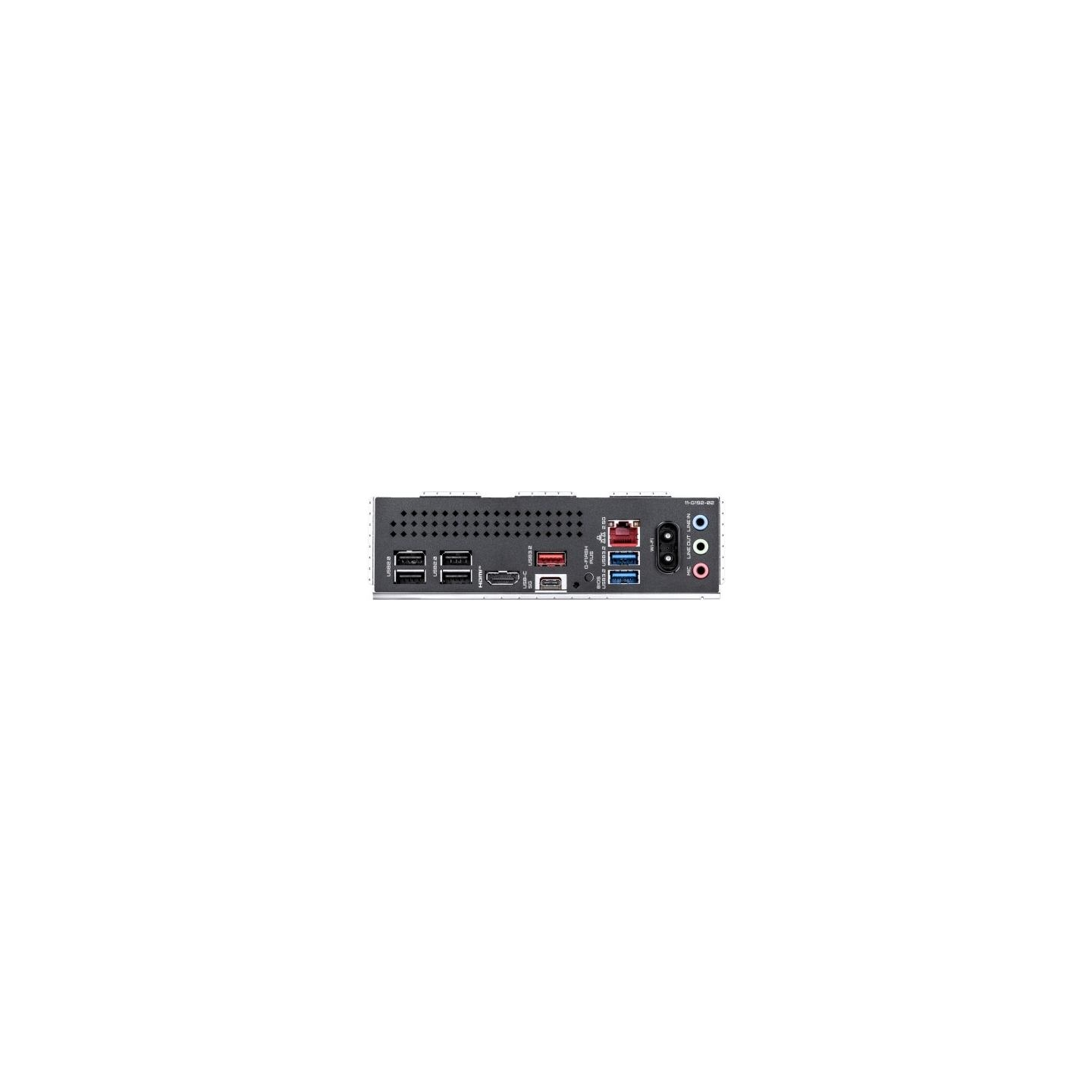

External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 1 x RJ-45
External connectors: 1 x Q-Flash Plus button
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x Line In
External connectors: 2 x SMA
External connectors: 4 x USB 2.0
External connectors: 1 x HDMI
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 2 x M.2
Onboard connectors: 1 x System panel header
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x Front panel audio header
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Dimensions: 30.5cm x 24.4cm
Supported operating systems: Windows 11
Supported operating systems: Windows 10
Software: Norton(R) Internet Security (OEM version)
Designation: CE+WEEE
