Gigabyte B550M GAMING X WIFI6 AM4 MB
€116.70

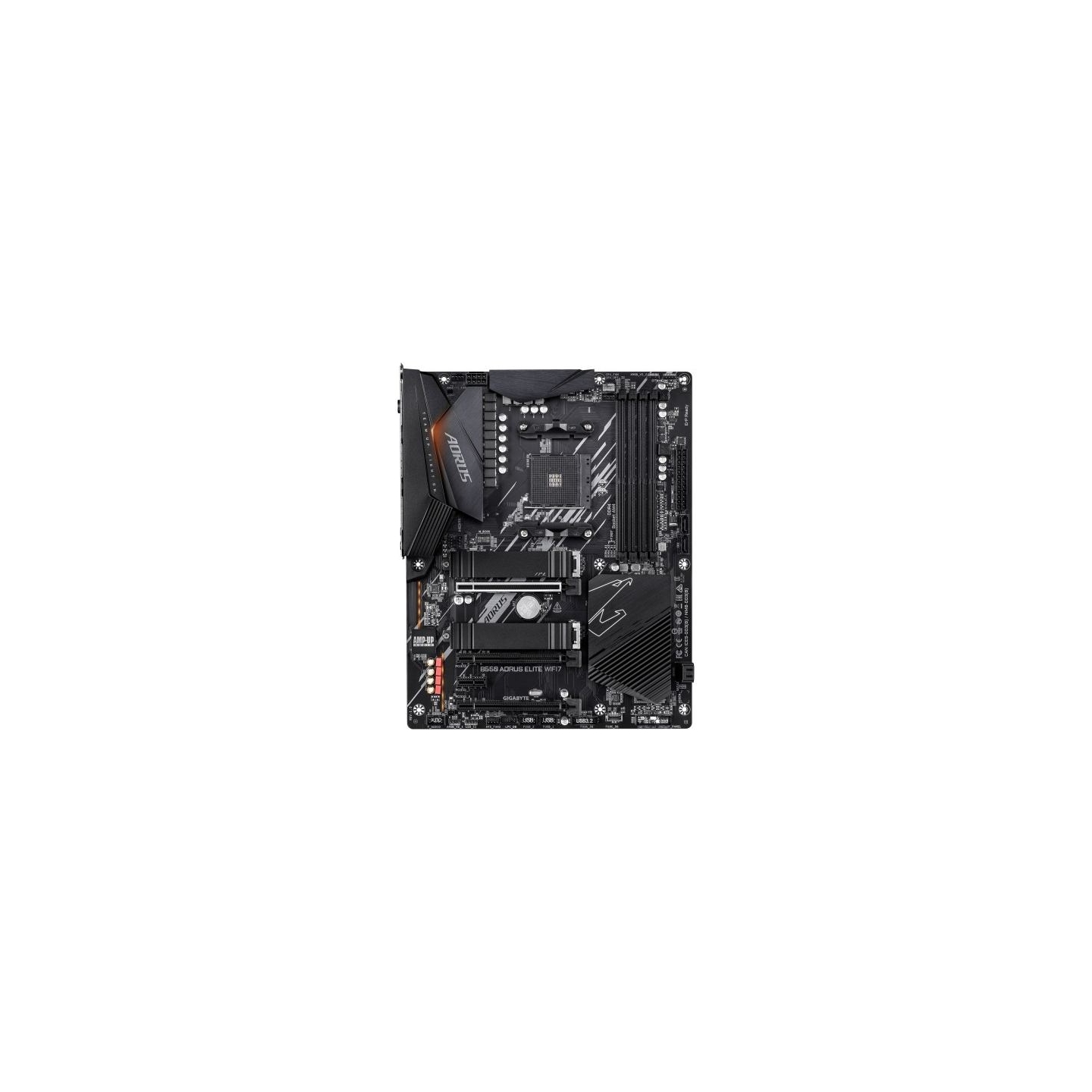

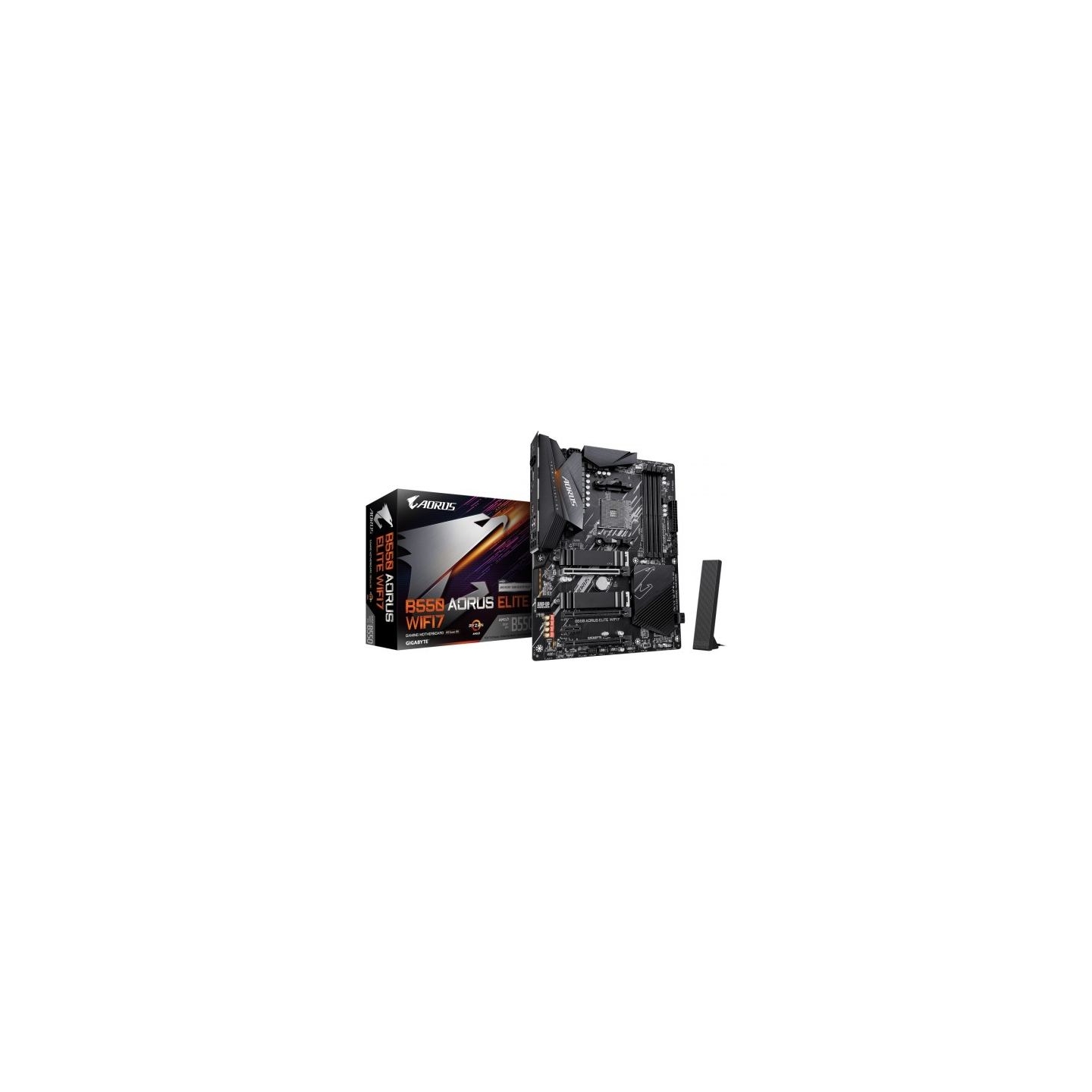

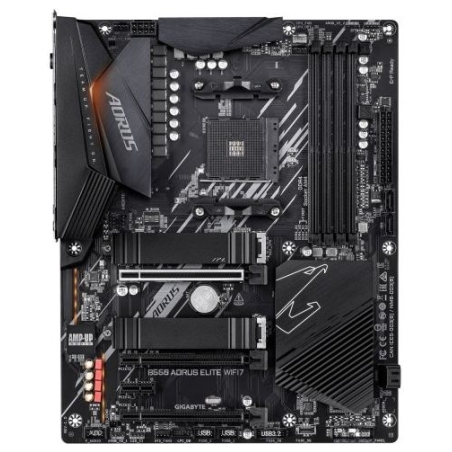

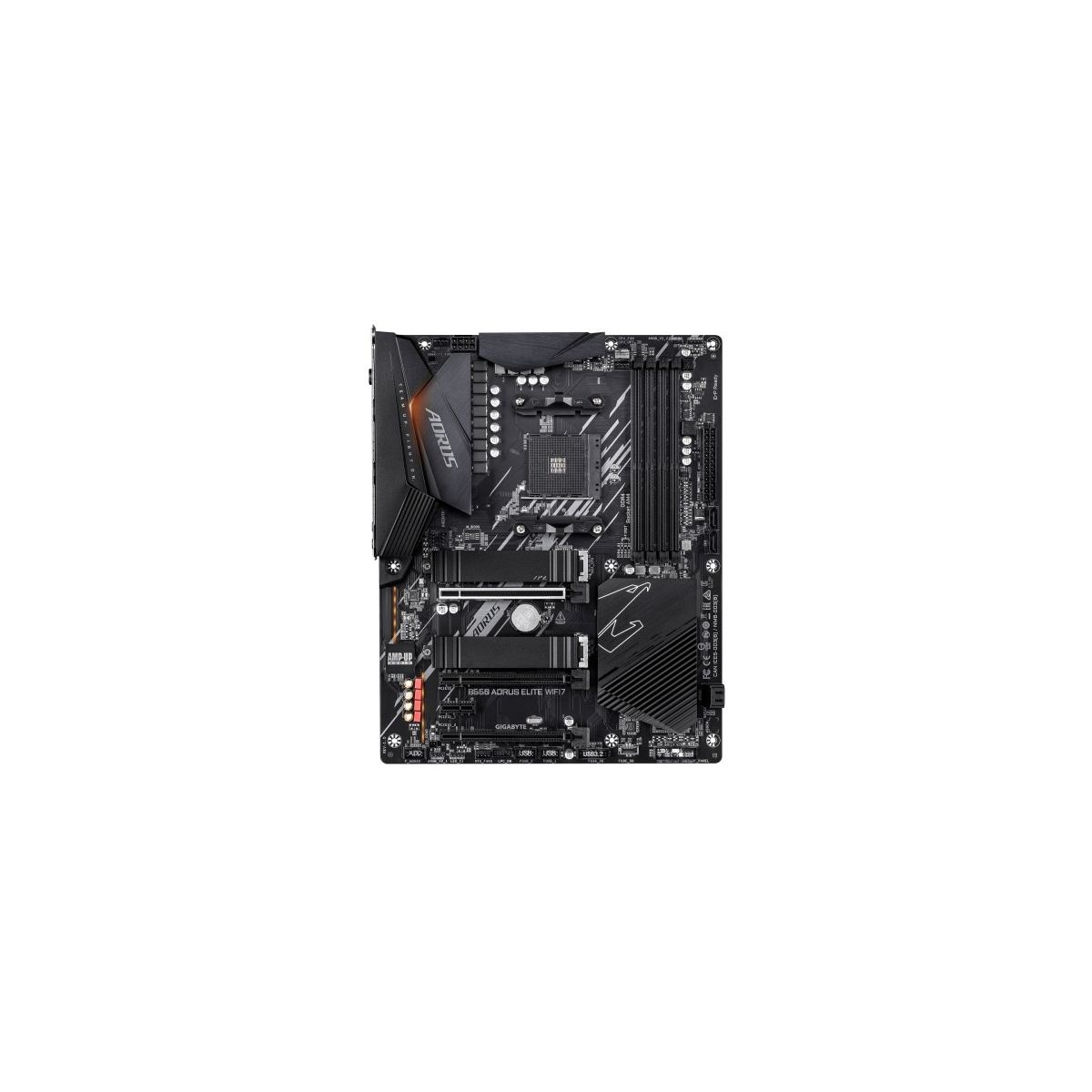

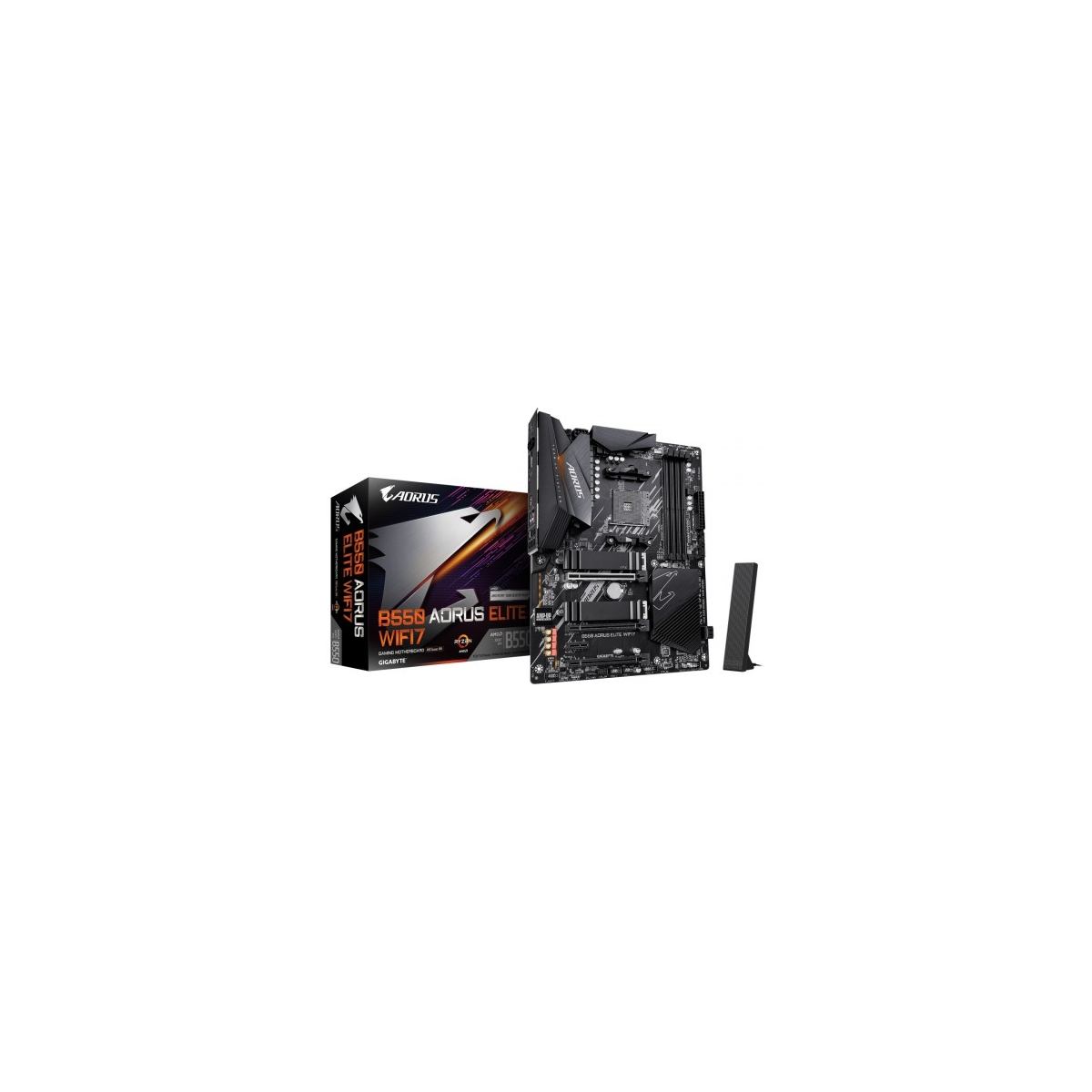

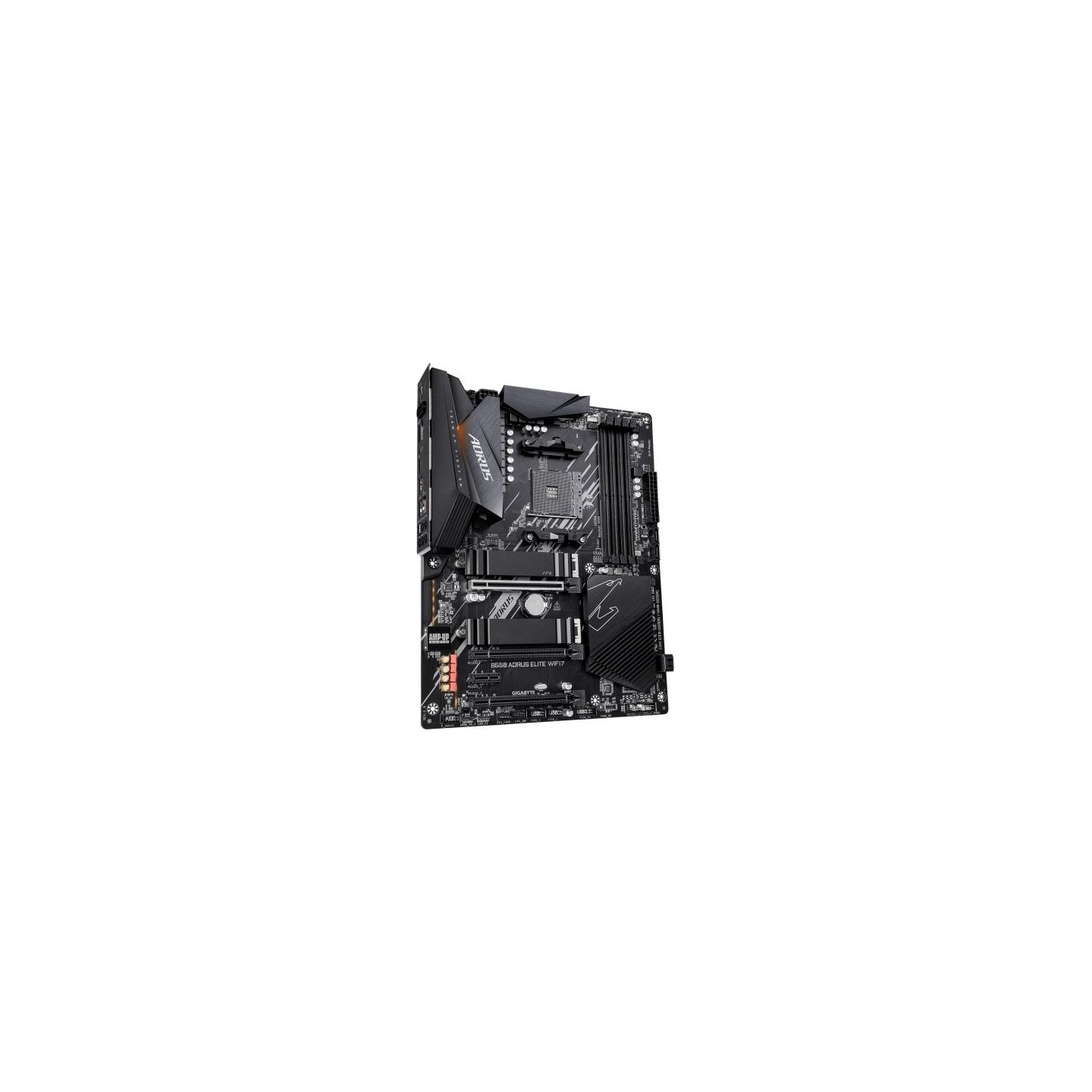

Gigabyte Motherboard B550 AORUS ELITE WiFi7 AM 4 4DDR4 ATX
New
Price:
€171.76
Tax included
Share on
- SKU
- KBGBAAA7B550A13
- Barcode
- 4719331883362
- Model
- B550 AORUS ELITE WIFI7
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 4733 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3200 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 2 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen(TM) 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen(TM) 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
- Graphics
- Integrated Graphics Processor with AMD Radeon(TM) Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz - Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. Maximum shared memory of 16 GB
- Sound card
- Realtek(R) Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- LAN: Realtek(R) 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module Realtek(R) Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
- USB ports at back panel
- 7
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

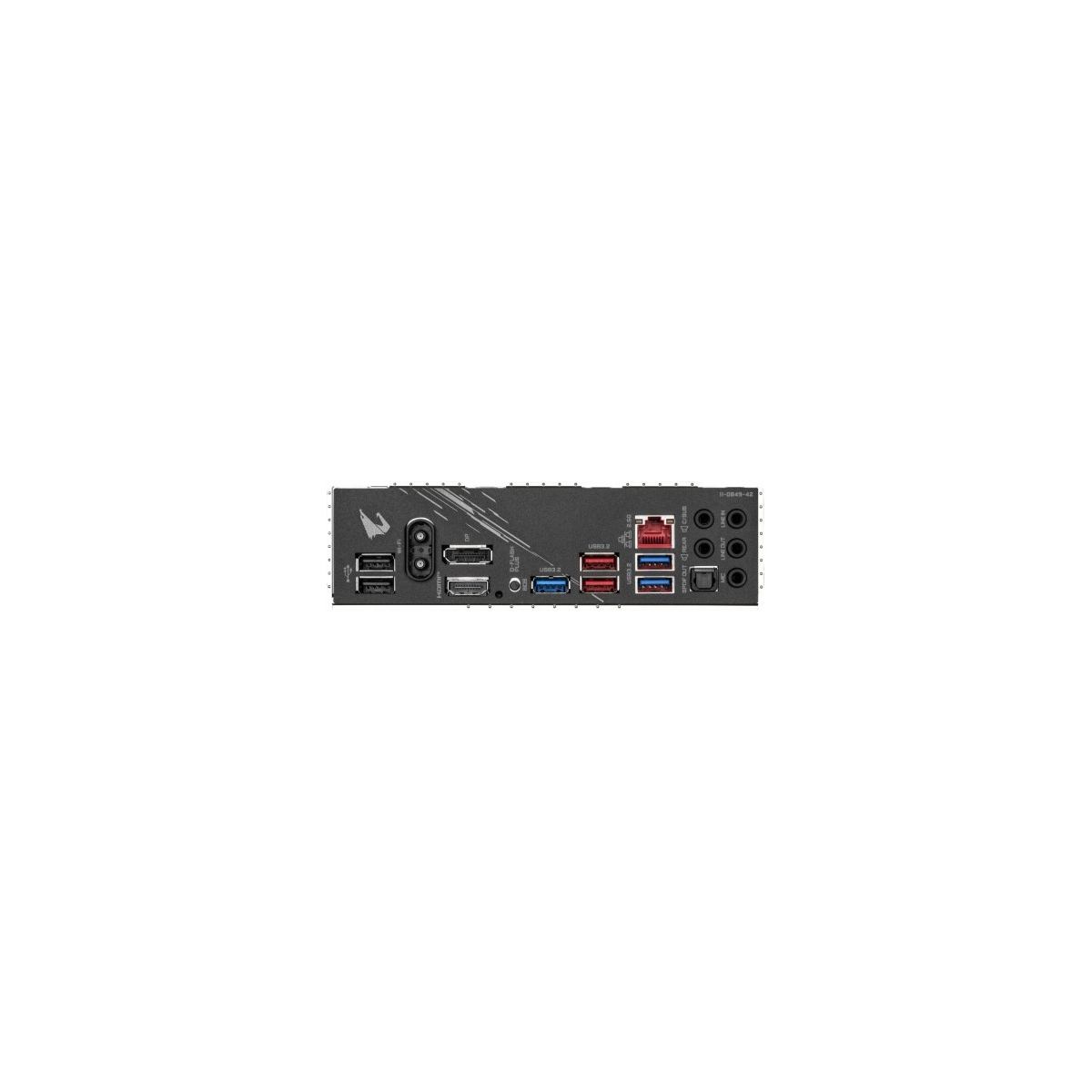

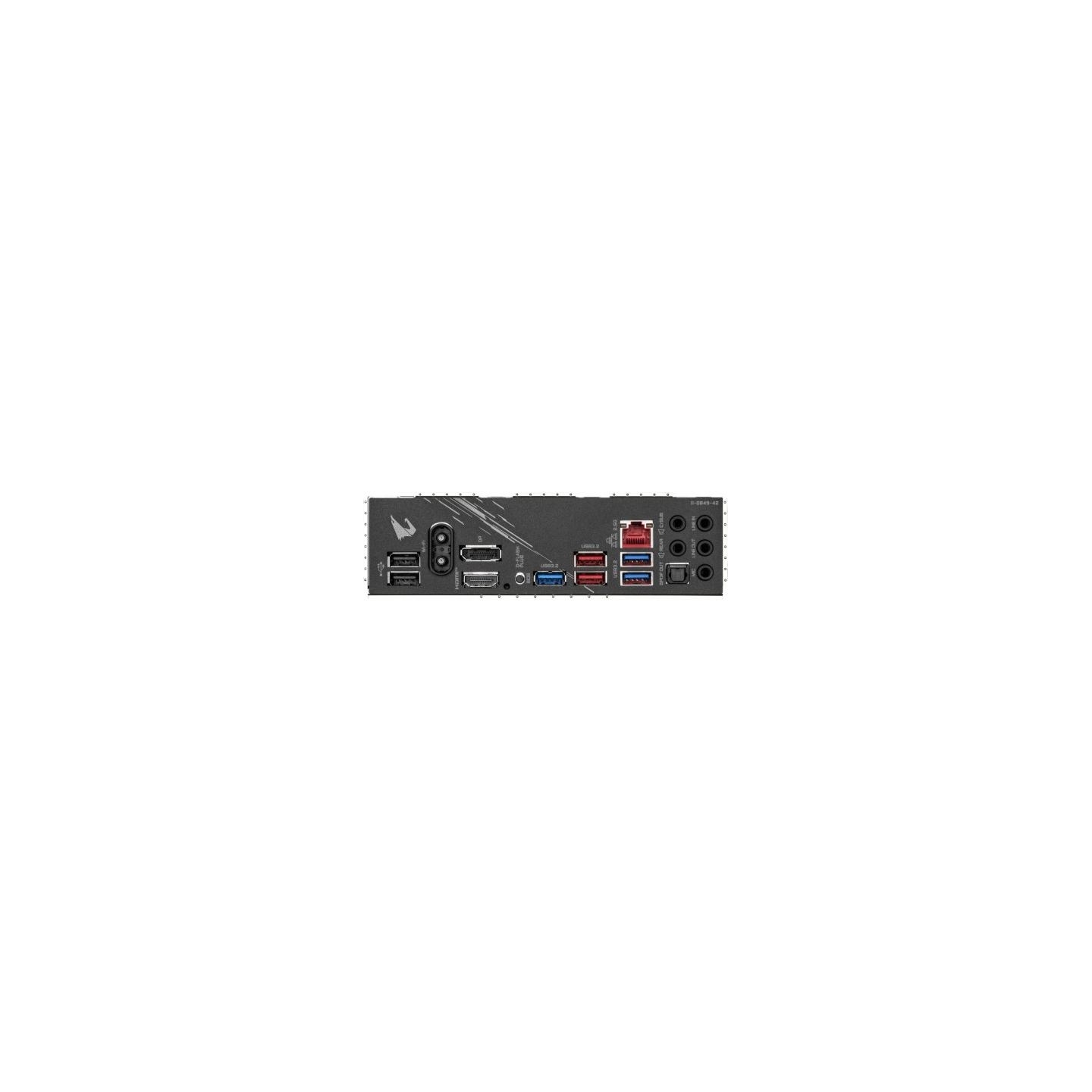

- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x SMA
- External connectors
- 5 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x CPU cooler LED strip/RGB LED strip header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x RGB LED Strip
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version)
- Other information
- AMD Ryzen(TM) 5000 Series/3000 Series Processors support two USB 3.2 Gen 2 Type-A ports (red) on the back panel AMD Ryzen(TM) 5000 G-Series/4000 G-Series/3000 G-Series Processors support two USB 3.2 Gen 1 ports (red) on the back panel
- Designation
- CE+WEEE
