Gigabyte Motherboard B550 X GAMING WF7 AM4 4DDR4 ATX

Gigabyte Motherboard B550 X GAMING WF7 AM4 4DDR4 ATX

Name: Gigabyte Motherboard B550 X GAMING WF7 AM4 4DDR4 ATX
Brand: GIGABYTE
SKU: B550 X GAMING WF7
Price: 159.67 EUR
Availability: InStock

SKU B550 X GAMING WF7 Category Mainboards

New

€159.67

Tax included

Share on

SKU: KBGBAAA7B550A12
Barcode: 4719331883454
Model: B550 X GAMING WIFI7
CPU socket: Socket AM4
Processor family: AMD Ryzen
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B550
Memory type: DDR4
Number of DDR4 slots: 4
Memory bus frequency: 2400 MHz
Memory bus frequency: 2933 MHz
Memory bus frequency: 3200 MHz
Memory bus frequency: 2133 MHz
Memory bus frequency: 2667 MHz
Max memory size: 128
Expansion slots: 1 x PCIe 3.0 x 16
Expansion slots: 2 x PCIe 3.0 x 1
Expansion slots: 1 x PCIe x 16
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen(TM) 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen(TM) 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Graphics: Integrated Graphics Processor with AMD Radeon(TM) Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz - Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB.
Sound card: Realtek(R) Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: Bluetooth
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface: LAN: Realtek(R) 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module: Realtek(R) Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
USB ports at back panel: 7
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 1
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

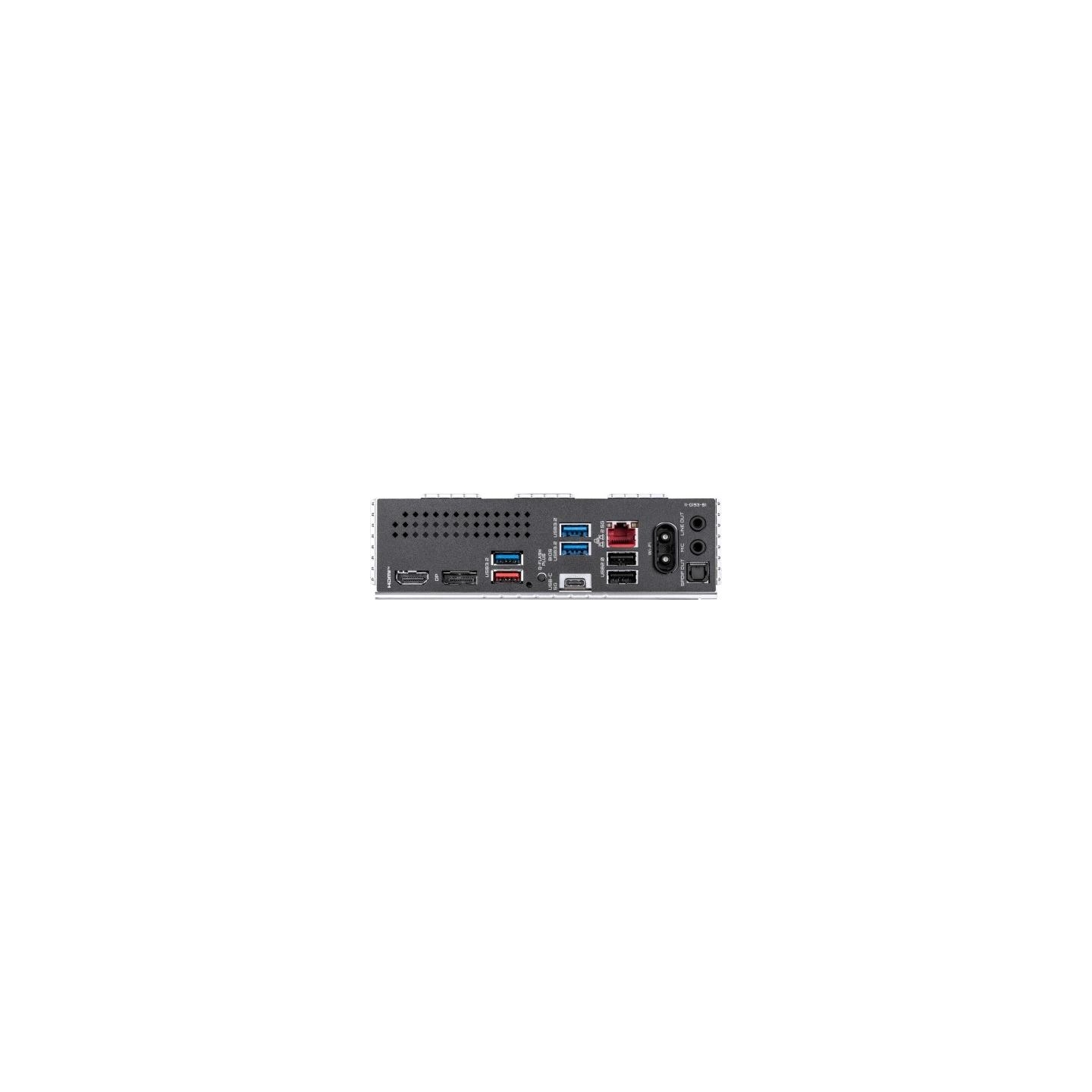

External connectors: 1 x MIC
External connectors: 3 x USB 3.2 Gen 1 Type-A
External connectors: 1 x S/PDIF
External connectors: 1 x Q-Flash Plus button
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 1 x USB 3.2 Gen 1 Type-C
External connectors: 1 x DisplayPort
External connectors: 2 x SMA
External connectors: 2 x USB 2.0
External connectors: 1 x Line Out
External connectors: 1 x HDMI
External connectors: 1 x RJ-45
Onboard connectors: 2 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x System panel header
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 4 x USB 2.0/1.1
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 2 x M.2
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x 24pin ATX zasilanie
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Dimensions: 30.5 x 24.4 cm
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version)
Designation: CE+WEEE
