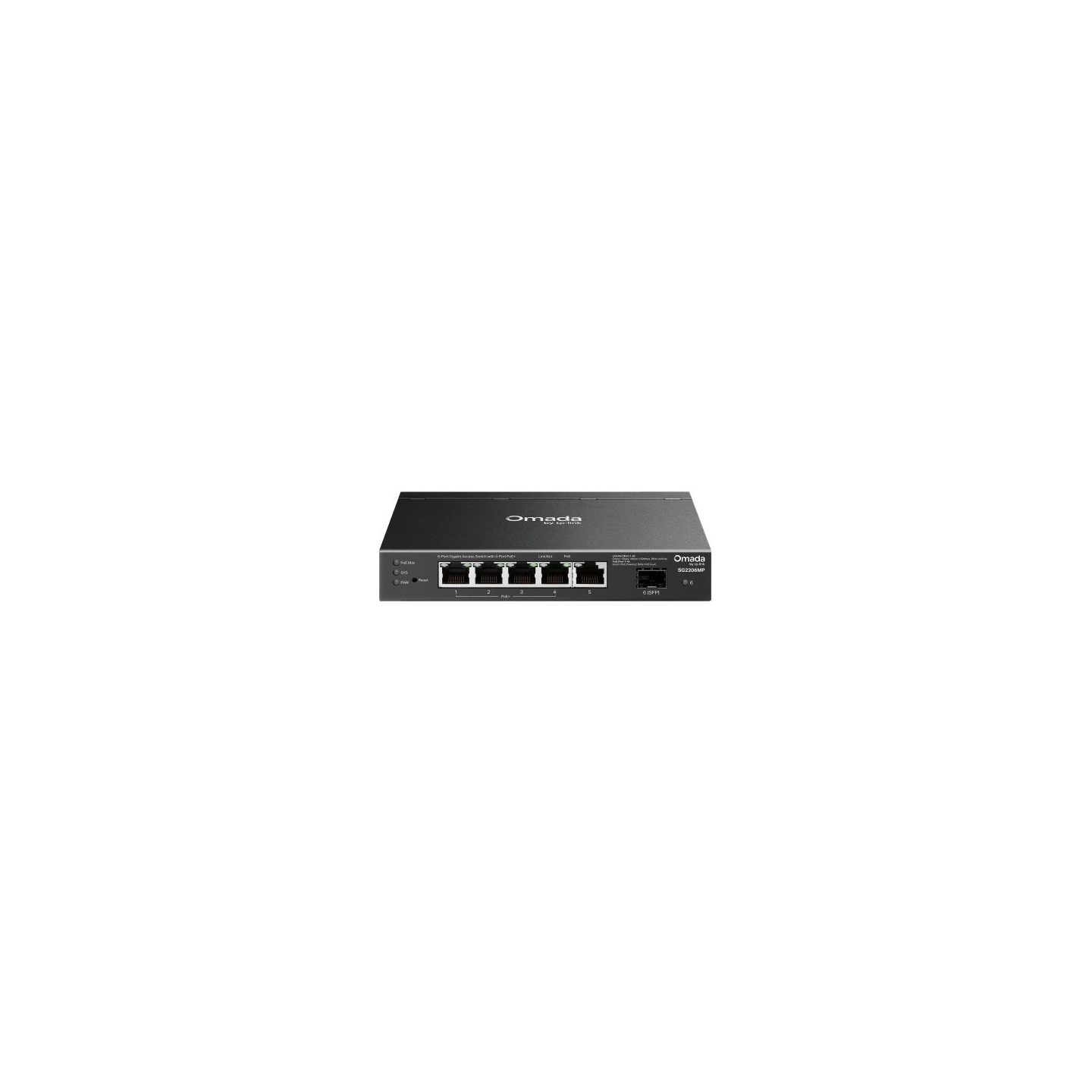

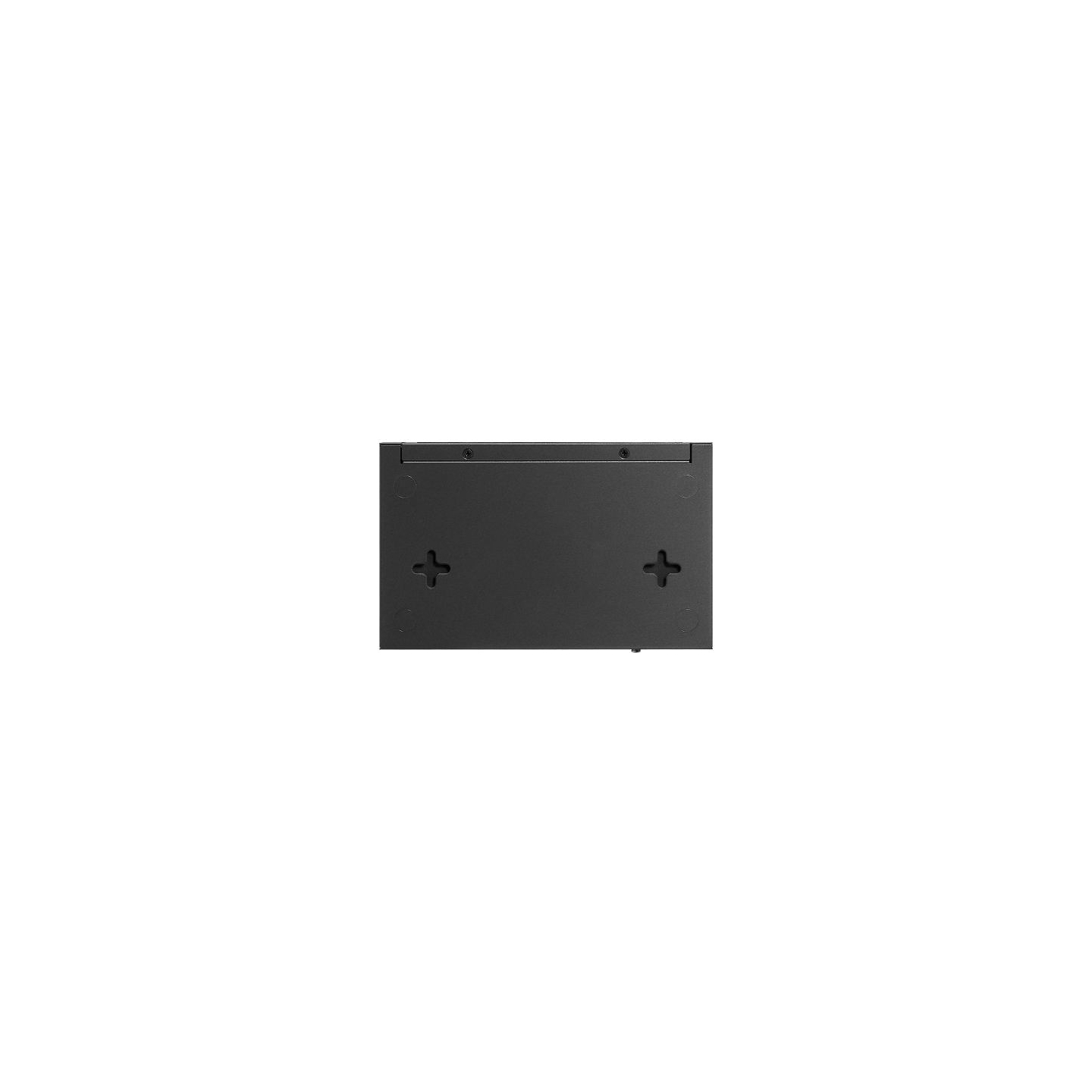

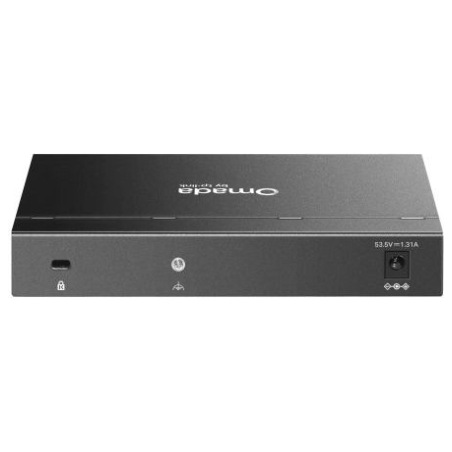

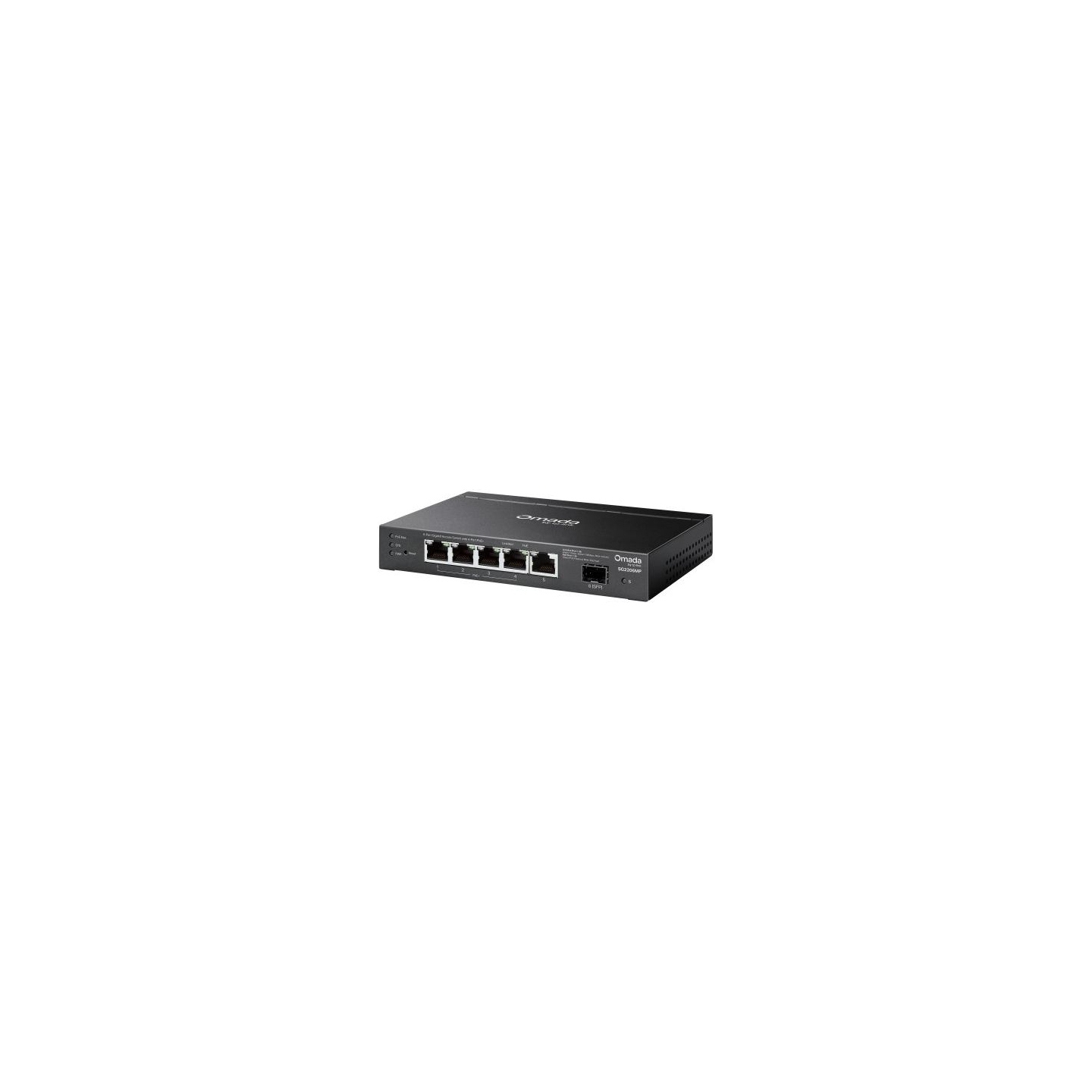

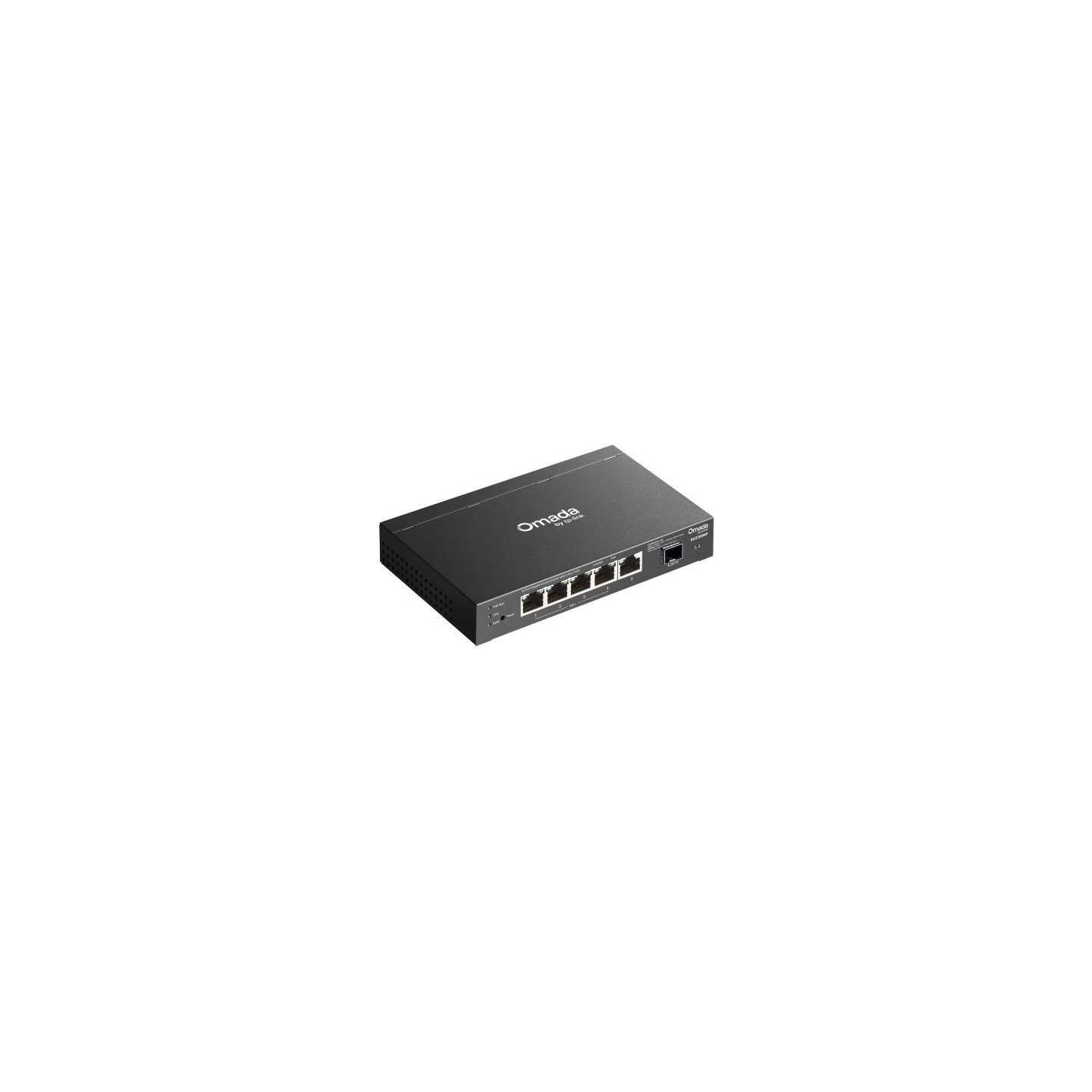

Tp-Link SG2206MP

Name: Tp-Link SG2206MP
Brand: TP-LINK
SKU: SG2206MP
Price: 111.33 EUR
Availability: InStock

SKU SG2206MP Category Switches

New

€111.33

Tax included

Share on

SKU: NUTPLSZ32000003
Barcode: 1210002602402
Switch class: Managed
Application: Home and small office
Switch layer: L2+
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 1
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of ports 25Gb: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 4
Number of COMBO ports: None
Number of SFP ports: 1
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Forwarding mode: Store-and-forward
Throughput: 12
Forwarding rate: 8.95
Packet buffer: 4.1
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9
Number of VLAN groups: 4
VLAN: VLAN Groups Maximum 4K VLAN Groups 802.1Q VLAN Tagging VLAN MAC Address: 16 Entries VLAN Protocol GVRP Voice VLAN
QoS: 802.1p CoS/DSCP prioritization support 8 priority queues Prioritization schedule mode: SP (Strict Priority) WRR (Weighted Round Robin) Queue weight configuration Bandwidth control Port/flow-based rate limiting Smoother operation Storm control Multiple control modes (kbps/rate) Broadcast/Multicast/Unknown-Unicast transmission control
Management, monitoring, configuration: Omada App: Yes. Requires the Omada Hardware Controller, Omada Cloud-based Controller, or Omada Software Controller. Cloud Access: Yes. Requires the Omada Hardware Controller, Omada Cloud-based Controller, or Omada Software Controller. ZTP Zero-touch Setup: Yes. Requires use of a cloud controller Centralized management: Omada cloud-based controller (requires embedded version 5.15.22 or later) Omada hardware controller (requires embedded version 5.15.20 or later) Omada software controller (requires embedded version 5.15.20 or later) Management panel features: Graphical User Interface (GUI) Command Line Interface (CLI) via Telnet SNMP v1/v2c/v3 SNMP Trap/Inform RMON (groups 1, 2, 3, 9) SDM template DHCP/BOOTP client Dual Image, Dual Configuration CPU Usage Monitoring Cable Diagnostics EEE SNTP System Log Digital Diagnostic Monitoring (DDM) Operation Administration and Maintenance (OAM)
Other functions: Automatic device discovery Group configuration Group software updates Intelligent network monitoring Abnormal event alerts Unified configuration Reboot scheduling
Chassis type: Rack
Power consumption: 73.7
Environment requirements: Permissible operating temperature: -5-40°C Permissible storage temperature: -40-70°C Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
Certificates: CE, FCC, RoHS
Accessories included: SG2206MP Power Supply Power Cable Mounting Kit Quick Installation Guide Rubber Feet
Power supply: 53.5 VDC / 1.31 A
Dimensions: 158 × 100.7 × 25.4 mm
Designation: CE+WEEE
Data Act: Link
