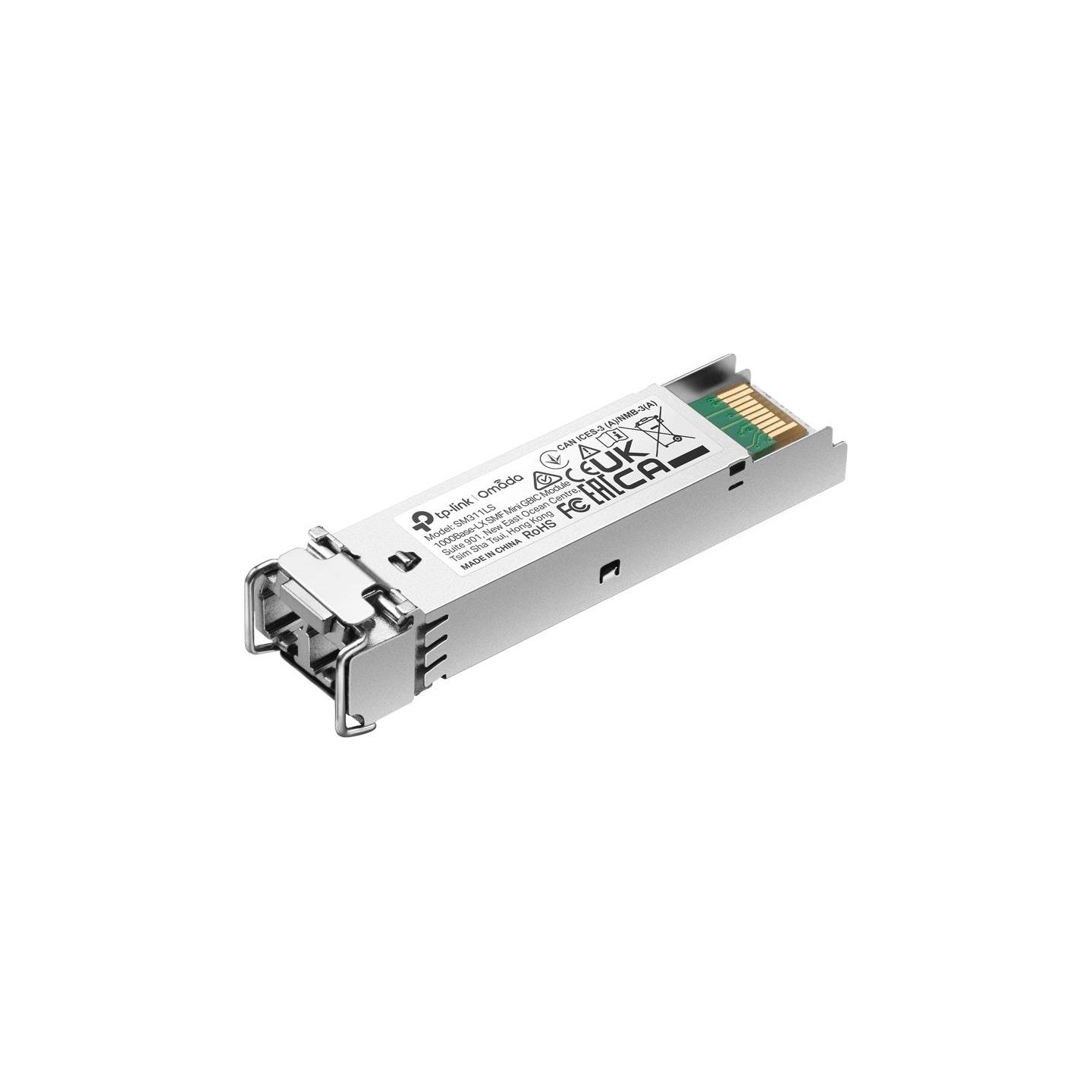

Tp-Link TL-SM311LS, Single-mode MiniGBIC module work with MC210CS | TP-LINK | MiniGBIC Module | TL-SM311LS | Single-Mode Fiber
New
Price:
€16.75
Tax included
Last items in stock
Share on
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Manufacturer Website:
https://www.omadanetworks.com/de/business-networking/omada-accessory-module-cable/sm311ls/
- Category Code
- NTM
- CnCode
- 85176200
- Unit Box Height
- 0.04
- Unit Box Length
- 0.125
- Unit Box Width
- 0.082
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- mini-GBIC
- Single-mode fiber (SMF) supported
- Yes
- Fiber optic connector
- LC
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- SFP transceiver standard
- LX
- Maximum transfer distance
- 20000 m
- Wavelength
- 1310 nm
- Networking standards
- IEEE 802.3z
- Fiber ethernet cabling technology
- 1000BASE
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
- Product colour
- Silver
- Hot-Plug support
- Yes
- Hot-swap
- Yes
- Brand compatibility
- MSA Compliant
- Input voltage
- 3.3 V
- Compliance certificates
- CE/Federal Communications Commission (FCC)
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 10 - 90 %
- Storage relative humidity (H-H)
- 5 - 90 %
- Width
- 55.4 mm
- Depth
- 14.6 mm
- Height
- 12.9 mm
- Quantity per pack
- 1 pc(s)
- Manual
- Yes
- Package width
- 38 mm
- Package depth
- 207 mm
- Package height
- 38 mm
- Package weight
- 110 g
- Unit Calculated Weight
- 0.06 kg
- Product Net Weight
- 0.05 kg
- Unit Calculated Volume
- 0.00041 cubm
- Units per Shipping Box
- 1
- Shipping Box Weight
- 0.06 kg
- Unit Width
- 8.2 cm
- Shipping Box Height
- 4 cm
- Unit Depth
- 12.5 cm
- Shipping Box Depth
- 12.5 cm
- Unit Height
- 4 cm
- Shipping Box Width
- 8.2 cm
- Name
- NET SWITCH MODULE MINI GBIC/SM311LS TP-LINK
- Model
- TL-SM311LS
