Tp-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots
New
Price:
€1,825.79
Tax included
Last items in stock
Share on
- SKU
- NUTPLSZ24000019
- Barcode
- 4895252501476
- Switch class
- Managed
- Application
- Medium and large companies
- Switch layer
- L2
- Switch layer
- L2+
- Switch layer
- L3
- Network architecture
- GigabitEthernet
- Number of 10/100 Mbps ports
- None
- Number of 10/100/1000 Mbps ports
- 24
- 10/100/1000/2500 Mbps ports
- None
- Number of 10Gb ports
- None
- Number of ports 25Gb
- None
- Number of PoE ports (PoE & PoE+)
- None
- Number of PoE+ ports
- None
- Number of COMBO ports
- None
- Number of SFP ports
- None
- Number of SFP+ ports
- 4
- Number of SFP56 ports
- None
- Number of QSFP+ ports
- None
- Console port
- Yes
- Forwarding rate
- 95.2
- Memory buffer
- 3
- MAC address table size
- 32
- Support for Jumbo frames
- Yes
- Jumbo frame size
- 9
- Stackability
- Yes
- Maximum number of units per stack
- 8
- Number of VLAN groups
- 4000
- VLAN
- VLAN Capabilities Maximum of 4,000 VLAN groups (802.1Q VLAN) 802.1Q VLAN tagging support MAC-based VLAN entries: up to 200 Multicast VLAN support Management VLAN support VLAN VPN (QinQ): up to 256 entries GVRP support VLAN protocol support: 16 protocol templates, 12 VLAN protocols Voice VLAN support Private VLAN support
- QoS
- Voice VLAN & QoS Features Voice VLAN: Voice VLAN support User-defined OUI (Organizationally Unique Identifier) Improved traffic performance and smoother voice transmission Quality of Service (QoS): 8 priority queues per port Port-based priority IEEE 802.1p priority support DSCP-based priority support Minimum queue bandwidth allocation Scheduling modes: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Traffic Control: Rate limiting (bandwidth control) Storm control (broadcast, multicast, and unknown unicast suppression) Flow Actions / QoS Marking: QoS remarking support 802.1P remarking DSCP remarking
- Security
- Security Features Port isolation for traffic separation CPU protection (CPU Defend) Dynamic ARP Inspection (ARP inspection) Protection against DoS attacks IPMACPort binding (up to 1024 entries) DHCP Snooping IPv4 source address protection IPv6-MAC binding Port binding (up to 1024 entries) DHCPv6 Snooping Neighbor Discovery (ND) detection and ND Snooping IPv6 source address protection DHCP filtering Port security via static and dynamic configuration Up to 64 MAC addresses per port Storm Control for broadcast, multicast, and unknown unicast traffic (kb/s or percentage-based modes) 802.1X Authentication: Port-based authentication MAC-based authentication VLAN assignment support MAB (MAC Authentication Bypass) Guest VLAN support RADIUS-based authentication and authorization AAA support (including TACACS+) Secure Management: Web management via HTTPS with SSLv3 / TLS 1.2 encryption Secure CLI access via SSHv2 IP / Port / MAC-based access control
- L2 features
- Layer 2 Switching & Network Control Features Link Aggregation & Redundancy: Link Aggregation support Spanning Tree Protocol (STP) Port- and VLAN-based loopback detection ERPS (Ethernet Ring Protection Switching) 802.3x flow control Multicast & IGMP Features: Up to 2048 IGMP groups supported IGMP Snooping MLD Snooping (IPv6 multicast) PIM-DM (IPv4 multicast routing protocol) Fast Leave support Multicast VLAN Registration (MVR) Static multicast IP support Multicast filtering L2 multicast forwarding table Monitoring & Mirroring: Port mirroring support RSPAN (Remote Switched Port Analyzer) MAC Addressing: MAC address table support for efficient switching and learning Multicast Control: Full multicast traffic management and optimization features
- L3 features
- Layer 3 Routing & IP Services IP Interfaces: IPv4 interfaces: up to 256 IPv6 interfaces: up to 256 Routing: Static routing: up to 1,024 entries IPv6 static routing: up to 512 entries Host route table: up to 6,100 entries Dynamic Routing Protocols: RIP v1/v2: up to 8,190 entries OSPF v2/v3: OSPF v2: up to 8,190 entries OSPF v3: up to 4,097 entries Redundancy & Load Balancing: VRRP v2/v3: up to 64 groups ECMP: 256 entries Up to 32 ECMP next-hops per destination ARP & Address Resolution: Static ARP entries: up to 512 Dynamic ARP entries: up to 7,680 Proxy ARP supported DHCP Services: DHCP Server: Up to 64 IP pools Up to 1,000 manual binding entries DHCP Relay: Interface-based relay VLAN-based relay
- Chassis type
- Rack
- Fan
- Yes
- Power supply
- Internal
- Power consumption
- 28.4
- Environment requirements
- Environmental Specifications Storage temperature: -40°C to 70°C Operating temperature: -5°C to 50°C (up to 300 m altitude) -5°C to 45°C (up to 2,000 m altitude) -5°C to 40°C (up to 3,000 m altitude) Operating humidity: 10% to 90%, non-condensing Storage humidity: 5% to 90%, non-condensing
- Accessories included

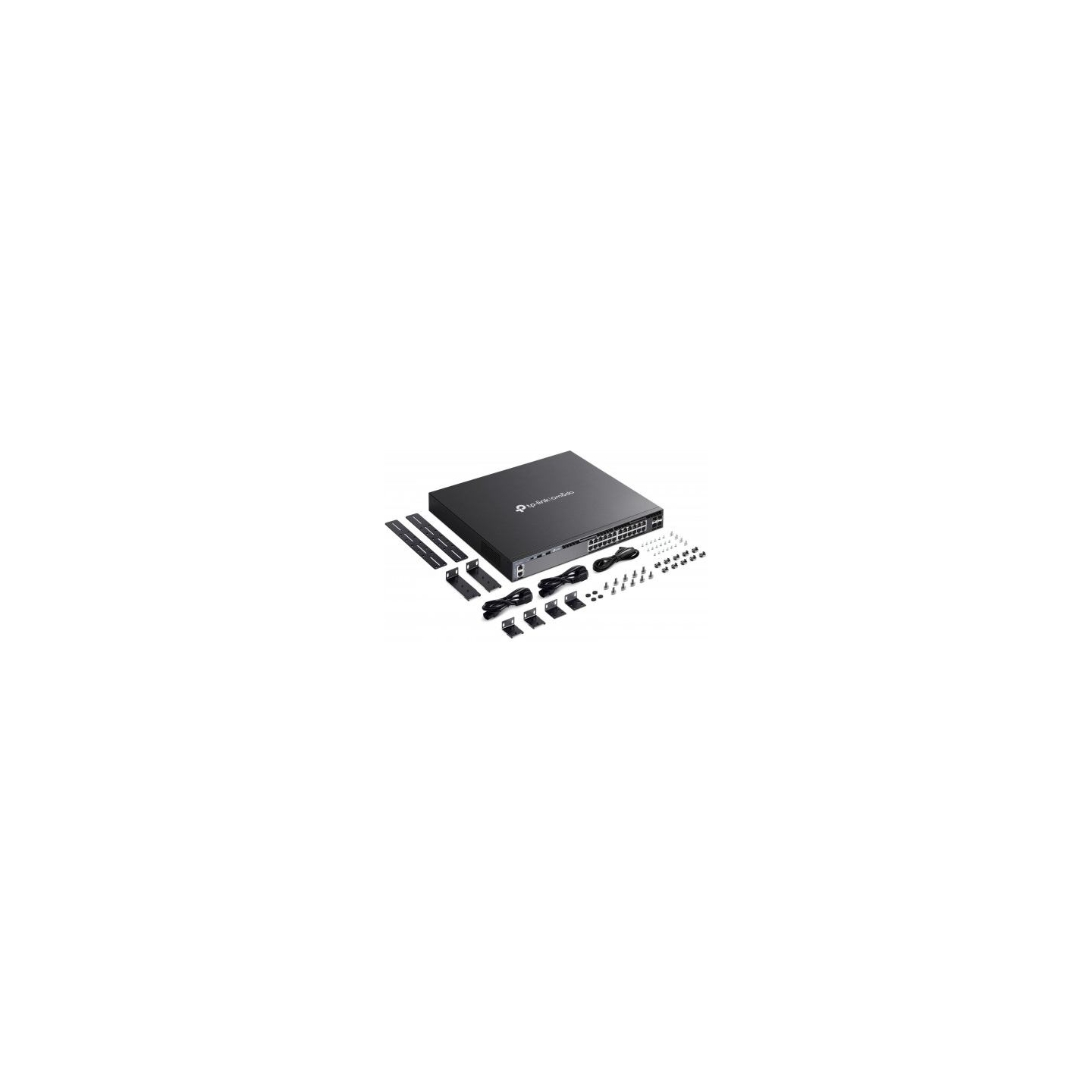

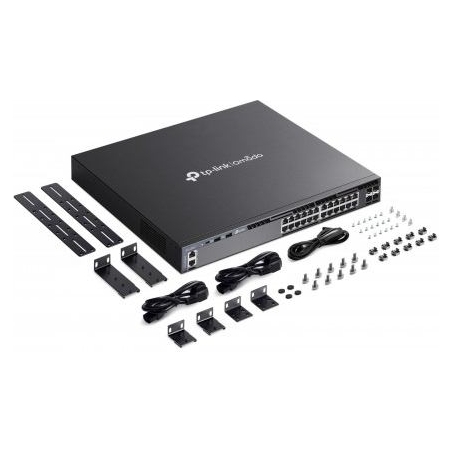

- Package Contents SG6428X switch unit 2 × power cables RJ45 console cable Quick installation guide Rack mounting kit Rubber feet
- Power supply
- Power Supply Two internal integrated power supplies Input: 100-240 V AC, 50/60 Hz
- Dimensions
- 440 × 380 × 44 mm
- Designation
- CE+WEEE
