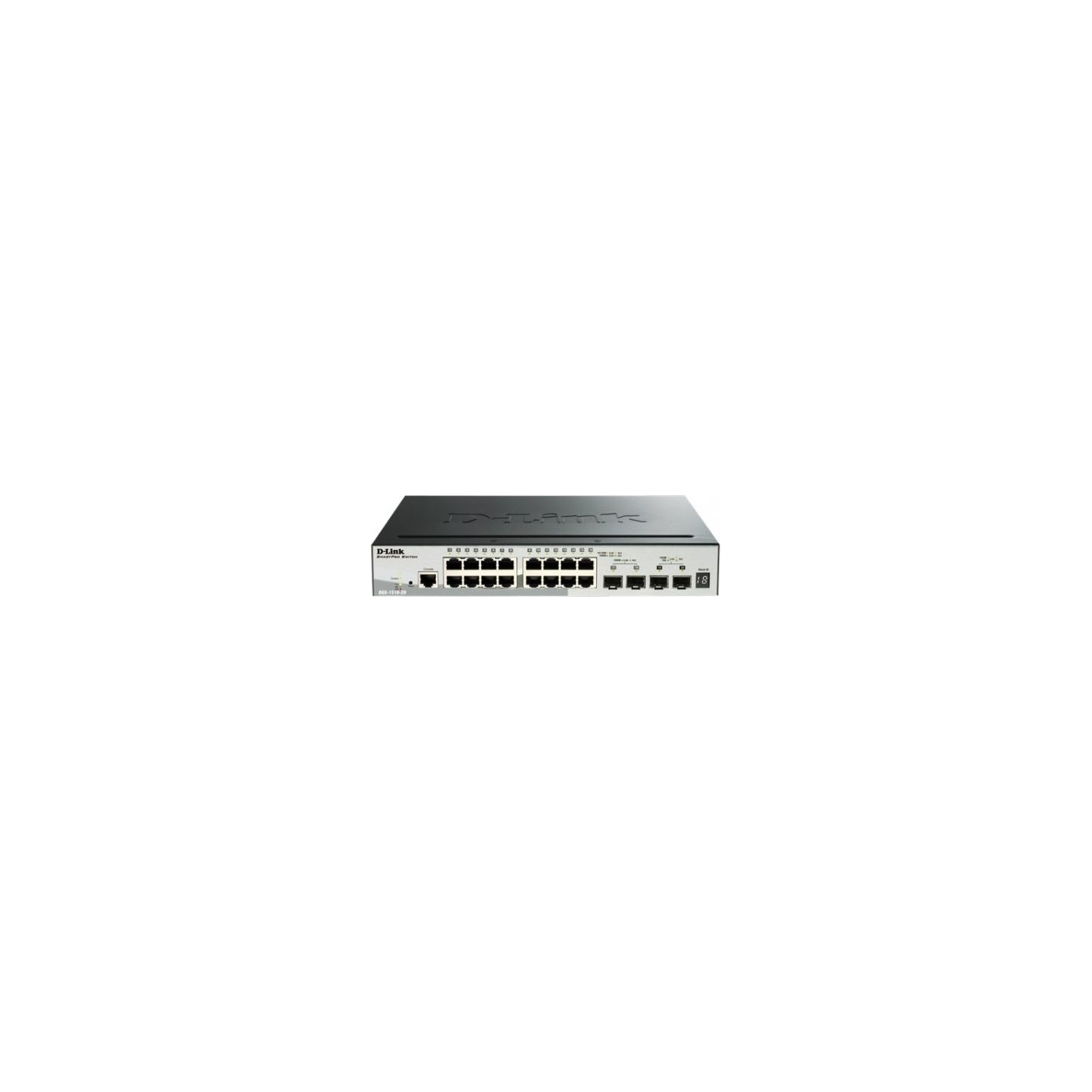

D-Link Switch DGS-1510-20 18xGE 2x10GE 2xSFP+

Name: D-Link Switch DGS-1510-20 18xGE 2x10GE 2xSFP+
Brand: D-LINK
SKU: DGS-1510-20/E
Price: 313 EUR
Availability: InStock

SKU DGS-1510-20/E Category Switches

New

€313.00

Tax included

Share on

SKU: NUDLISS20000000
Barcode: 790069467912
Switch class: SMART
Application: Medium and large companies
Switch layer: L2+
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 18
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: 2
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: 2
Number of SFP+ ports: 2
Number of QSFP+ ports: None
Console port: Yes
Forwarding mode: Store-and-forward
Throughput: 76
Forwarding rate: 56.54
Packet buffer: 1.5
MAC address table size: 16384
Support for Jumbo frames: Yes
Jumbo frame size: 9
Stackability: Yes
Maximum number of units per stack: 6
Number of VLAN groups: 4000
VLAN: 802.1Q Tagged VLAN 4K VLAN Groups Configurable VID: 0~4094 GVRP VLAN Wizard Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN 2.1 MAC-based VLAN Protocol-based VLAN
Supported protocols and standards: IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3ae 10 GbE IEEE 802.3x Flow Control for Full-Duplex Mode Auto-negotiation
QoS: 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number DSCP of IPv6 Traffic Class IPv6 flow label 802.1p Quality of Service Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin (WRR) Deficit Round Robin (DRR) SPQ + WRR 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)
Security: Port Security: Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Dynamic ARP Inspection D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention: Max. 64 entries SSH: Supports v2, Supports IPv4/IPv6 BPDU Attack Protection DoS Attack Prevention SSL: Supports v1/v2/v3, Supports IPv4/IPv6 Traffic Segmentation IP-MAC-Port Binding DHCP snooping IP Source Guard Dynamic ARP Inspection IPv6 DHCP Guard IPv6 RA Guard IPv6 Snooping IPv6 Source Guard IPv6 ND Inspection
Management, monitoring, configuration: Command Line Interface (CLI) Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP: Supports v1, v2c, v3 SNMP Trap System Log: Max. 10,000 log entries Debug command Multiple images DHCP Server DHCP Client Surveillance mode DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1 LLDP, LLDP-MED DHCP relay Web-based GUI NTP Telnet client (supports CLI only) PD-Alive (PoE models only
L2 features: MAC Address Table: Up to 16,384 Flow Control: 802.3x Flow Control, HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 512 IGMP groups Supports 128 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Host-based IGMP Snooping Fast Leave MLD Snooping Supports MLD v1/v2 Supports 512 groups Supports 128 Static Multicast Addresses Per VLAN MLD Snooping Host-based MLD Fast Leave MLD Snooping Querier Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP Loopback Detection v4.07 802.3ad Link Aggregation: Max. 32 groups per device/8 ports per group Port Mirroring Support 4 mirroring groups One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups Ethernet Ring Protection Switching (ERPS)
L3 features: ARP: 256 Static ARP, Supports Gratuitous ARP IPv6 Neighbour Discovery (ND) 16 IP interfaces Default Routing Static Routing: 64 IPv4 Static Route Entries, 32 IPv6 Static Route Entries UDP helper
Chassis type: Rack
Chassis type: Desktop
Fan: Yes
Power supply: Internal
Power consumption: 20.3
Mean time between failures (MTBF): 882152
Power supply: 100 - 240 V AC 50/60 Hz
Dimensions: 280 x 180 x 44 mm
Weight: 1.24
Environment requirements: Working temperature: -5 to 50C Storage temperature: -20 to 70C Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing
Certificates: Certifications: CE, FCC, C-Tick, VCCI, BSMI, CCC, IPv6 Ready Logo Phase 2 Safety: cUL, CB
Designation: CE+WEEE
Data Act: Link
