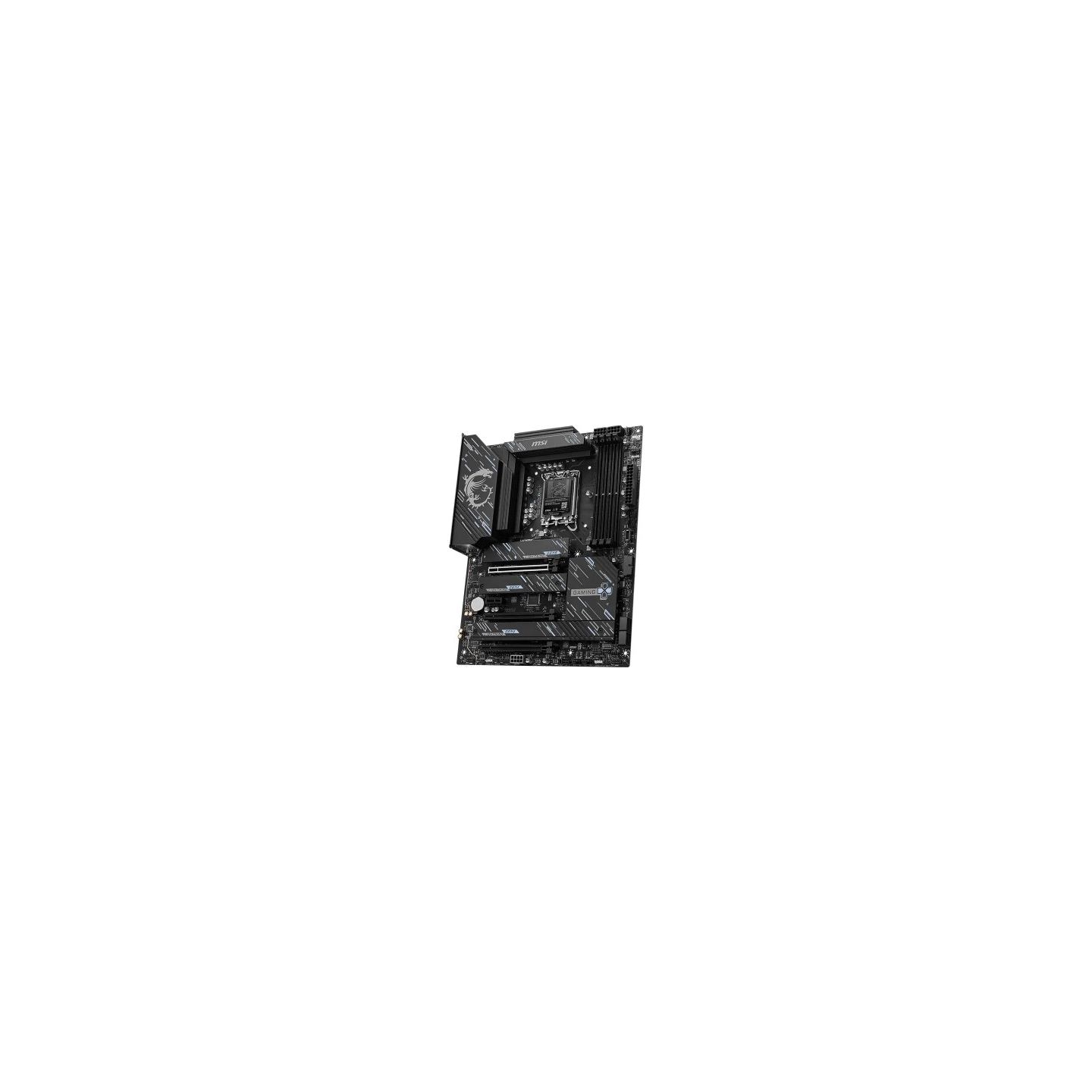

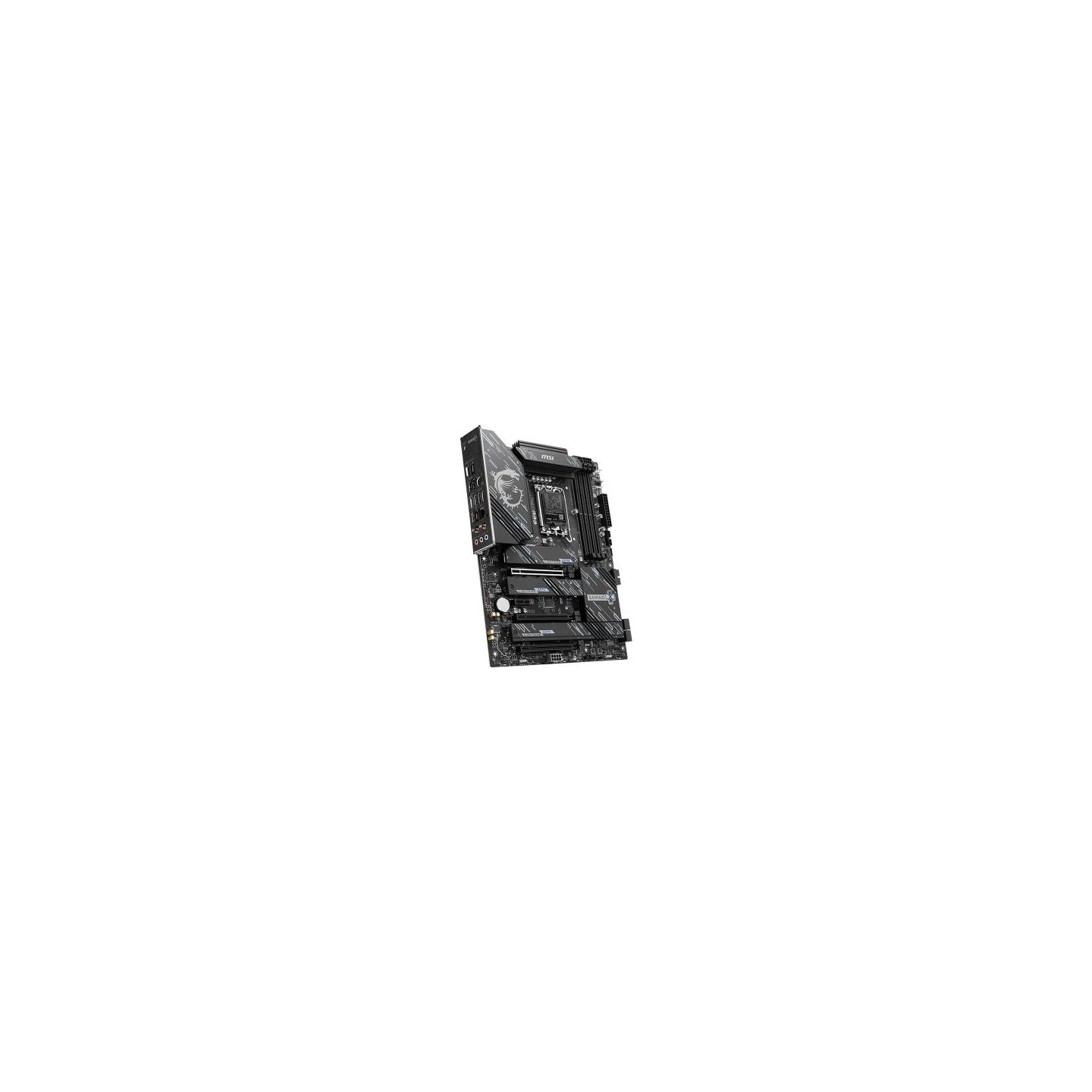

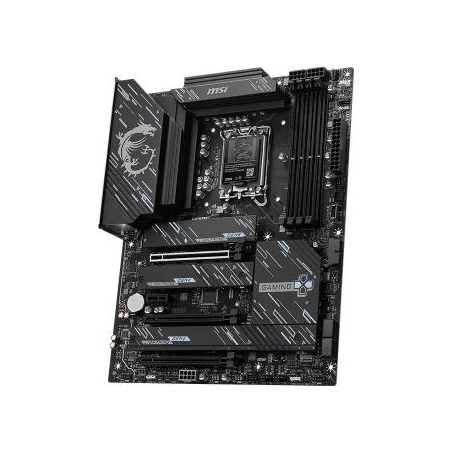

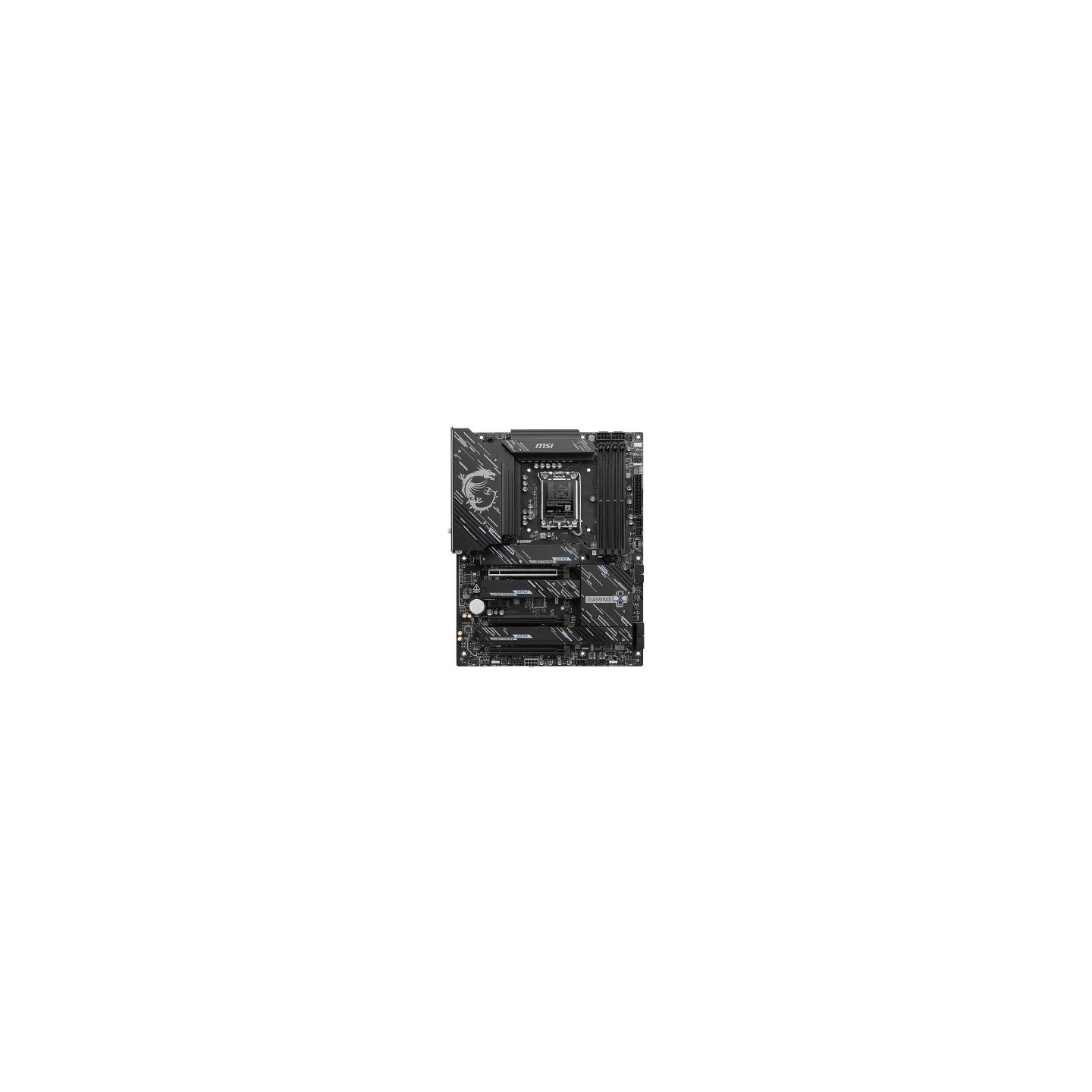

MSI Motherboard Z890 GAMING PLUS WIFI6E s1851 4DDR5 ATX

MSI Motherboard Z890 GAMING PLUS WIFI6E s1851 4DDR5 ATX

Name: MSI Motherboard Z890 GAMING PLUS WIFI6E s1851 4DDR5 ATX
Brand: MSI
SKU: Z890 GAMING PLUS WIFI6E
Price: 269.49 EUR
Availability: InStock

SKU Z890 GAMING PLUS WIFI6E Category Mainboards

New

€269.49

Tax included

Share on

SKU: KBMSIIIFZ890A13
Barcode: 4711377431118
Model: Z890 GAMING PLUS WIFI6E
CPU socket: LGA1851
Processor family: Intel Core Ultra
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: INTEL Z890
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 9200 MHz
Max memory size: 256
Expansion slots: 1 x PCIe x 1
Expansion slots: 3 x PCIe x 16
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 4 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
Graphics: 1 x HDMI(TM) - Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Sound card: Realtek(R) ALC897 Codec 7.1-Channel High Definition Audio
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: 1 x 10/100/1000/2500/5000 Mbit/s
Network interface: Bluetooth
Network interface: LAN: Intel Killer E5000 5Gbps LANWIRELESS LAN & BLUETOOTH: Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
USB ports at back panel: 8
USB ports on motherboard: 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 2
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 1 x HDMI
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x Flash BIOS Button
External connectors: 1 x USB 3.2 Gen 2 Type-C
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 4 x USB 2.0
External connectors: 1 x Line Out
External connectors: 1 x RJ-45
External connectors: 1 x MIC
External connectors: 1 x Line In
External connectors: 2 x SMA
External connectors: 1 x DisplayPort
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 1 x EZ Conn-header
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 4 x USB 2.0/1.1
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 2 x 8pin 12V
Onboard connectors: 1 x Chassis intrusion header
Onboard connectors: 2 x System panel header
Onboard connectors: 4 x EZ Debug LED
Onboard connectors: 1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors: 1 x 8-pin PCIe
Onboard connectors: 4 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x Tuning Controller connector
Onboard connectors: 4 x M.2
Onboard connectors: 5 x 4pin Chassis fan
Onboard connectors: 1 x Front panel audio header
Form factor: ATX
Dimensions: 243.84 x 304.8 mm
Supported operating systems: Windows 11
Designation: CE+WEEE
