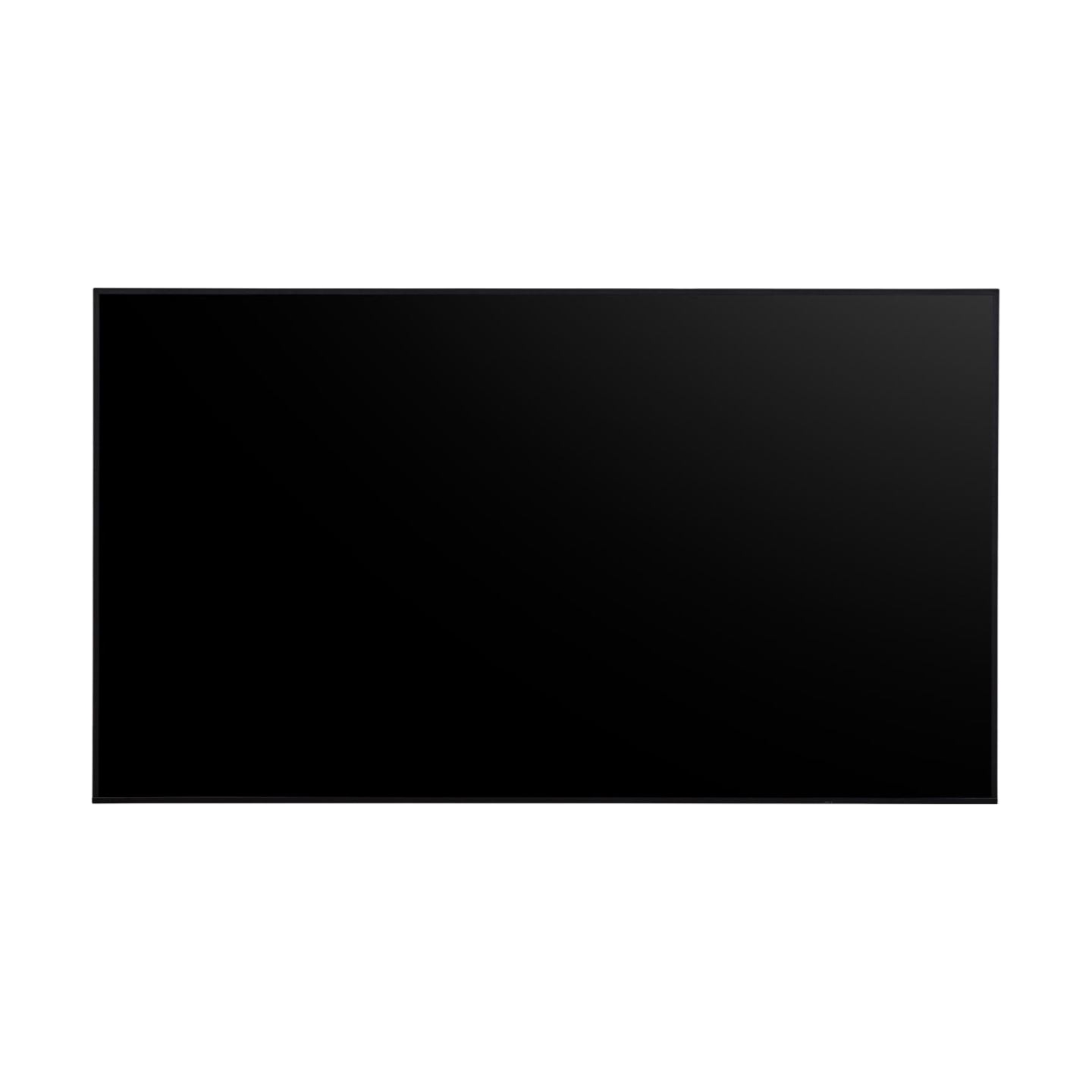

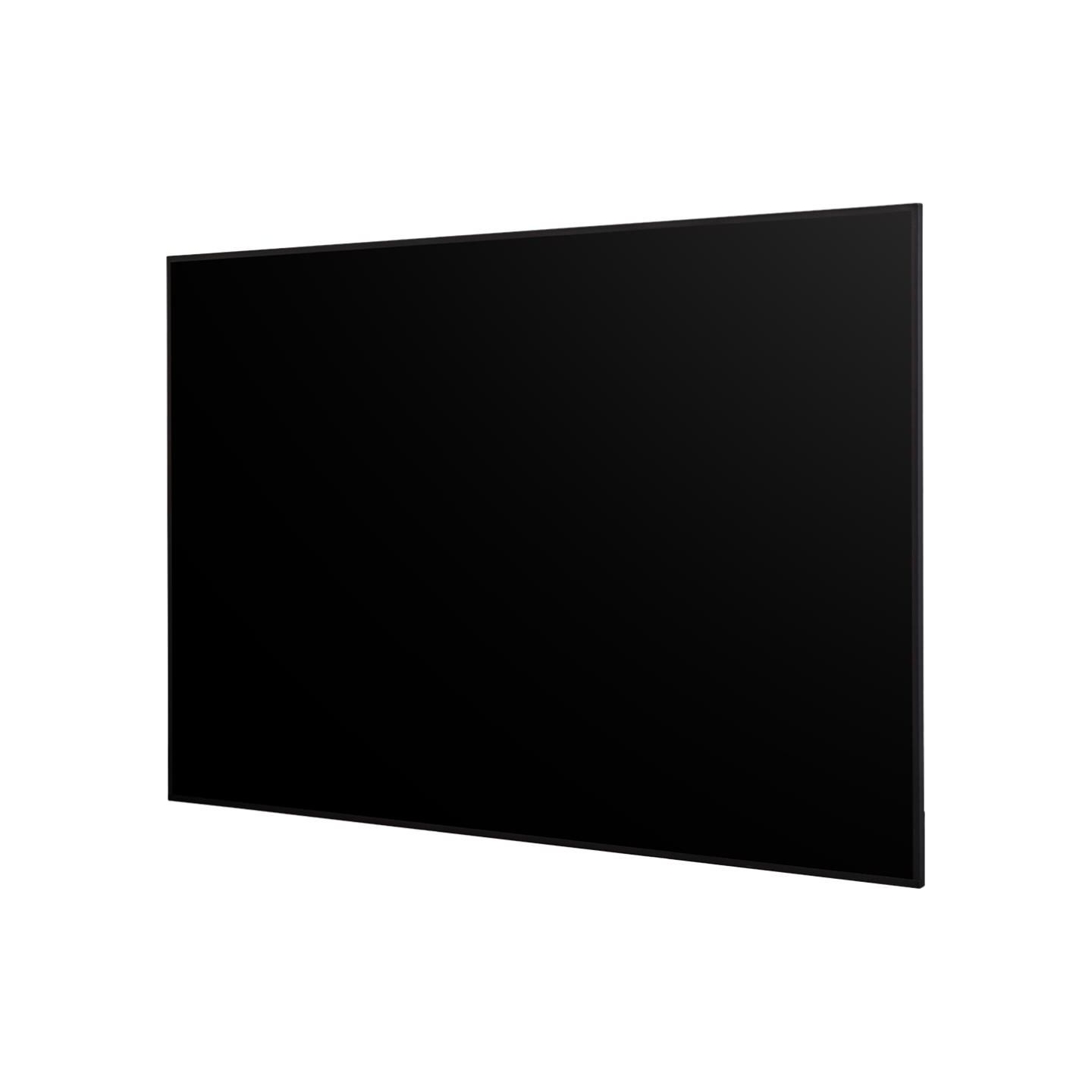

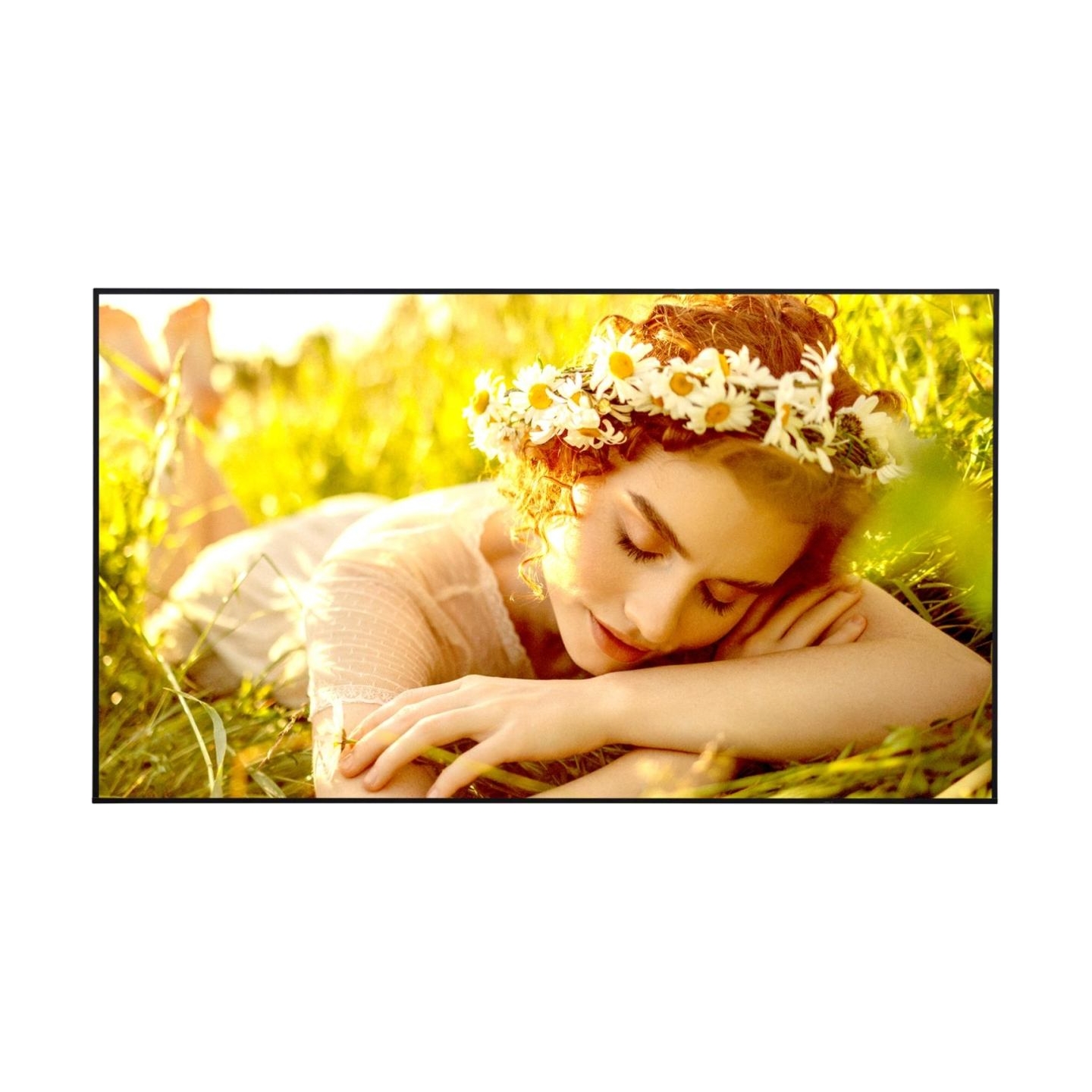

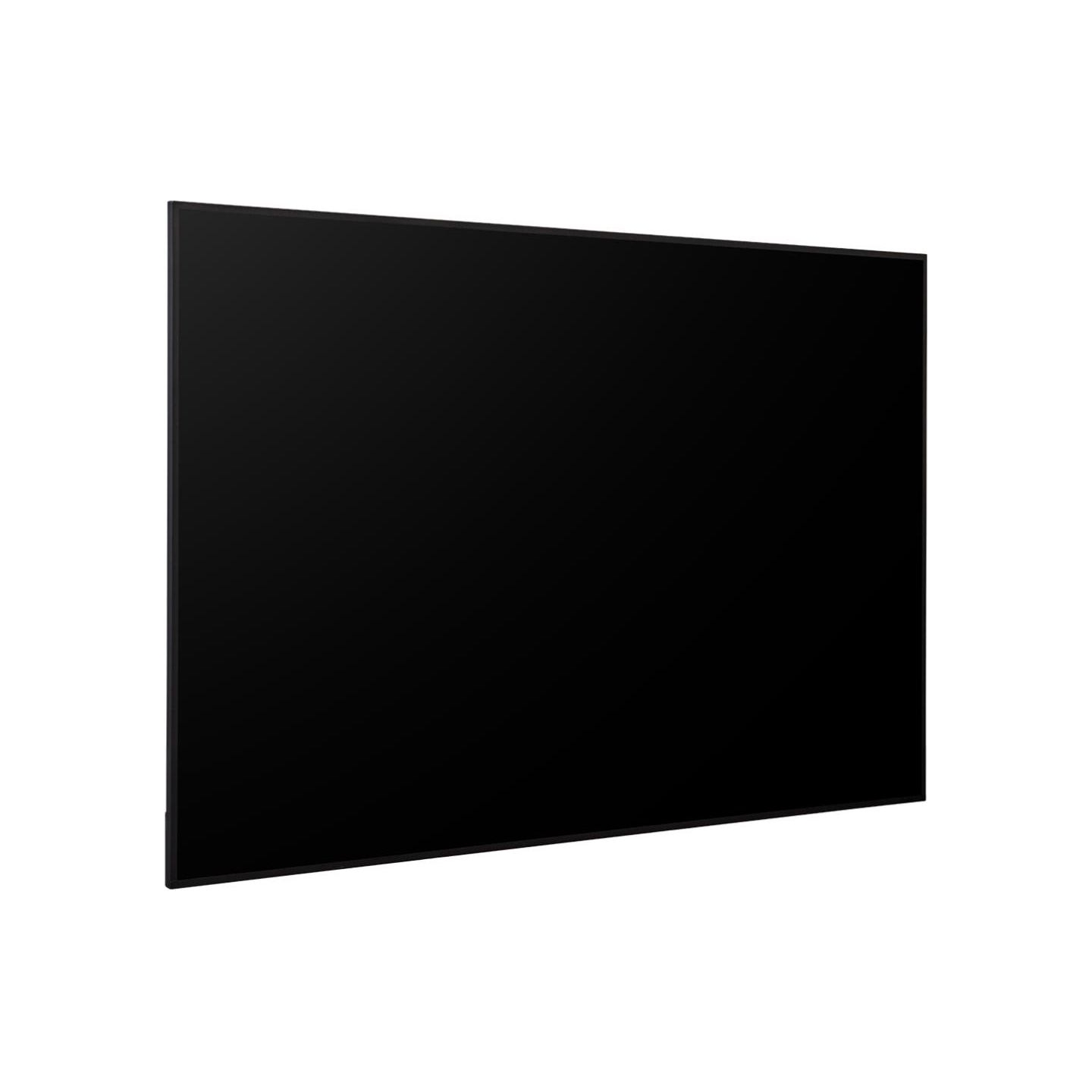

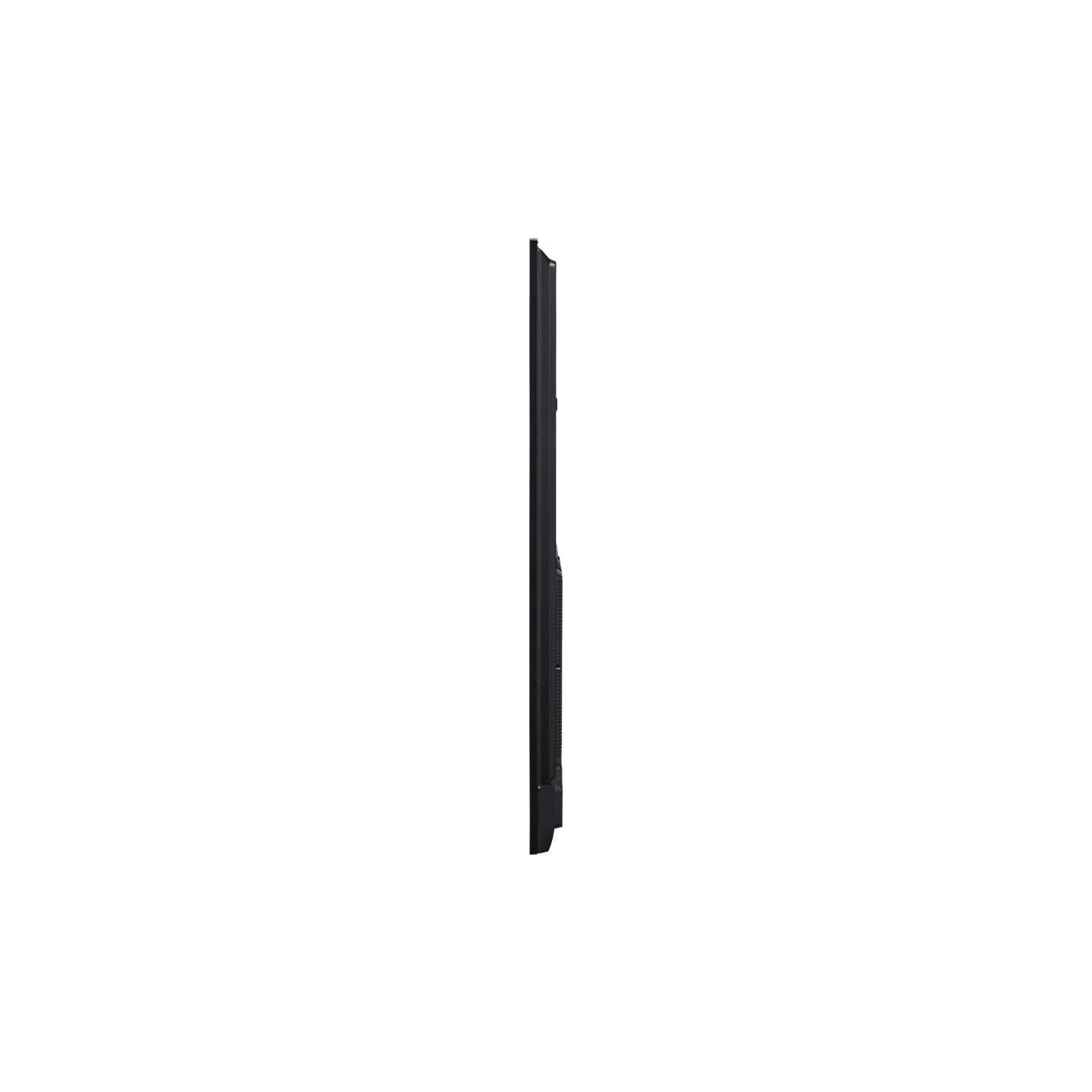

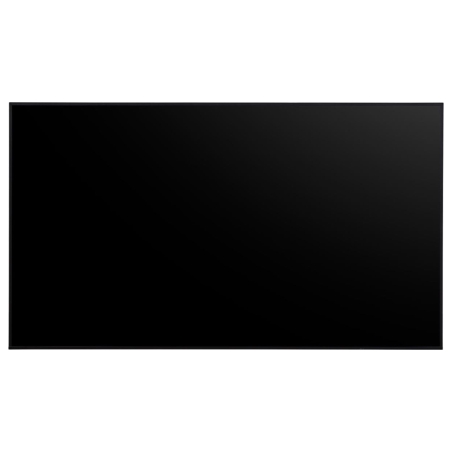

LG DISPLAY LCD 55"/55UL5Q-M LG
LG webOS UHD Signage for 24/7 Operation
Superb Picture Quality with Ultra HD Resolution
The UL5Q-M series, with UHD resolution, enhances the realism of colors and details in the content. Its wide viewing angle offers clear visuals, while its 500-nit brightness vividly showcases the content.
High-Performance with LG webOS 6.1
LG webOS 6.1 is available on the UL5Q-M series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.
Even Bezel Design
The UL5Q-M series features even bezels, enhancing the aesthetic appeal of various spaces. These uniform bezels not only facilitate easy installation but also transform standard displays into elegant focal points.
Adaptive Viewing Experience
Experience the flexibility with the UL5Q-M series’ up/down tilt capability. Whether mounted high or low, the display can be adjusted to eye level, offering viewer engagement regardless of installation height. This versatility not only enhances spatial efficiency but also provides visual comfort, delivering clear information from various viewing angles.
Engineered for 24/7 Operation
Built for environments that never sleep, the UL5Q-M series features panel technology that enables 24/7 operation.
* The UL5Q-M series includes the same standard warranty period as other signage models and offers an optional extended warranty, providing coverage for up to 5 years in total. If the extended warranty is purchased, coverage ends when either 50,000 hours of usage is reached or the 5-year period expires, whichever comes first.
Built-In Brightness Sensor
The UL5Q-M series’ front-mounted brightness sensor automatically adjusts brightness to match various lighting conditions, optimizing viewing quality and energy efficiency without manual intervention. This adaptive feature offers consistent display performance while also supporting power optimization, delivering a visual experience that dynamically responds to environmental changes.
Advanced Security Architecture
The UL5Q-M series incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.
Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anytime, anywhere from their mobile phone & PC in a network-accessible environment, with access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
EPEAT Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL5Q-M series is an EPEAT Bronze-certified* display which means that it meets all the required criteria in the Computers and Displays category.
LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients’ businesses.
* The availability of the ‘LG ConnectedCare’ service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nit (Typ.)
- 24Hr Usage Scene (24 Hours / 7 Days)
- Even Bezel
- High-Performance with webOS 6.1
Manufacturer Website:
https://www.lg-informationdisplay.com/product/digital-signage/standard/55UL5Q-M
- Category Code
- LCD
- CnCode
- 85285291
- Unit Box Height
- 0.825
- Unit Box Length
- 1.38
- Unit Box Width
- 0.12
- Display diagonal
- 55 "
- Display technology
- LED
- Panel type
- ADS
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 500 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 1200:1
- Contrast ratio (dynamic)
- 1000000:1
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
- Display number of colours
- 1.07 billion colours
- Colour saturation
- 80 %
- Rated lifetime
- 50000 h
- Haze rate
- 1 %
- Native refresh rate
- 60 Hz
- HDMI ports quantity
- 3
- HDMI version
- 2.2/1.4
- DVI port
- No
- USB port
- Yes
- USB ports quantity
- 2
- USB version
- 2.0
- USB connector type
- USB Type-A
- Ethernet LAN (RJ-45) ports
- 1
- RS-232C
- Yes
- PC Audio out
- Yes
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 20 W
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Orientation
- Horizontal/Vertical
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 300 x 300 mm
- Bezel width (bottom)
- 10.8 mm
- Bezel width (side)
- 10.8 mm
- Bezel width (top)
- 10.8 mm
- Bezel colour
- Black
- Purpose
- Commercial
- On Screen Display (OSD) languages
- Arabic/Czech/Danish/Dutch/English/Finnish/French/German/Greek/Italian/Japanese/Korean/Norwegian/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Traditional Chinese/Turkish
- Operating hours (hours/days)
- 24/7
- Web browser
- Yes
- webRTC support
- Yes
- Power consumption (typical)
- 124 W
- Power consumption (standby)
- 0.5 W
- Power consumption (off)
- 0.5 W
- Energy efficiency class (SDR)
- G
- Energy efficiency class (HDR)
- Not available
- Energy consumption (SDR) per 1000 hours
- 126 kWh
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Internal memory
- 8 GB
- Operating system installed
- WebOS
- Operating system version
- 6.1
- Display width
- 1234.2 mm
- Display depth
- 589 mm
- Display height
- 706.7 mm
- Display weight
- 12000 g
- Package width
- 1380 mm
- Package depth
- 825 mm
- Package height
- 118 mm
- Package weight
- 15400 g
- Remote control included
- Yes
- Cables included
- Power
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80 %
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- Gyroscope
- Yes
- Temperature sensor
- Yes
- Compliance certificates
- CB/CE/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)
- Power supply type
- Internal
- Energy efficiency class
- G
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/2521711/fiches?language=EN
- EPREL Version Number
- 1.001
- EPREL Registration Number
- 2521711
- Unit Calculated Weight
- 15.6 kg
- Unit Calculated Volume
- 0.1366 cubm
- Units per Shipping Box
- 1
- Shipping Box Weight
- 15.6 kg
- Unit Width
- 12 cm
- Shipping Box Height
- 82.5 cm
- Unit Depth
- 138 cm
- Shipping Box Depth
- 138 cm
- Unit Height
- 82.5 cm
- Shipping Box Width
- 12 cm
- Name
- DISPLAY LCD 55"/55UL5Q-M LG
- Model name
- 55UL5Q-M
