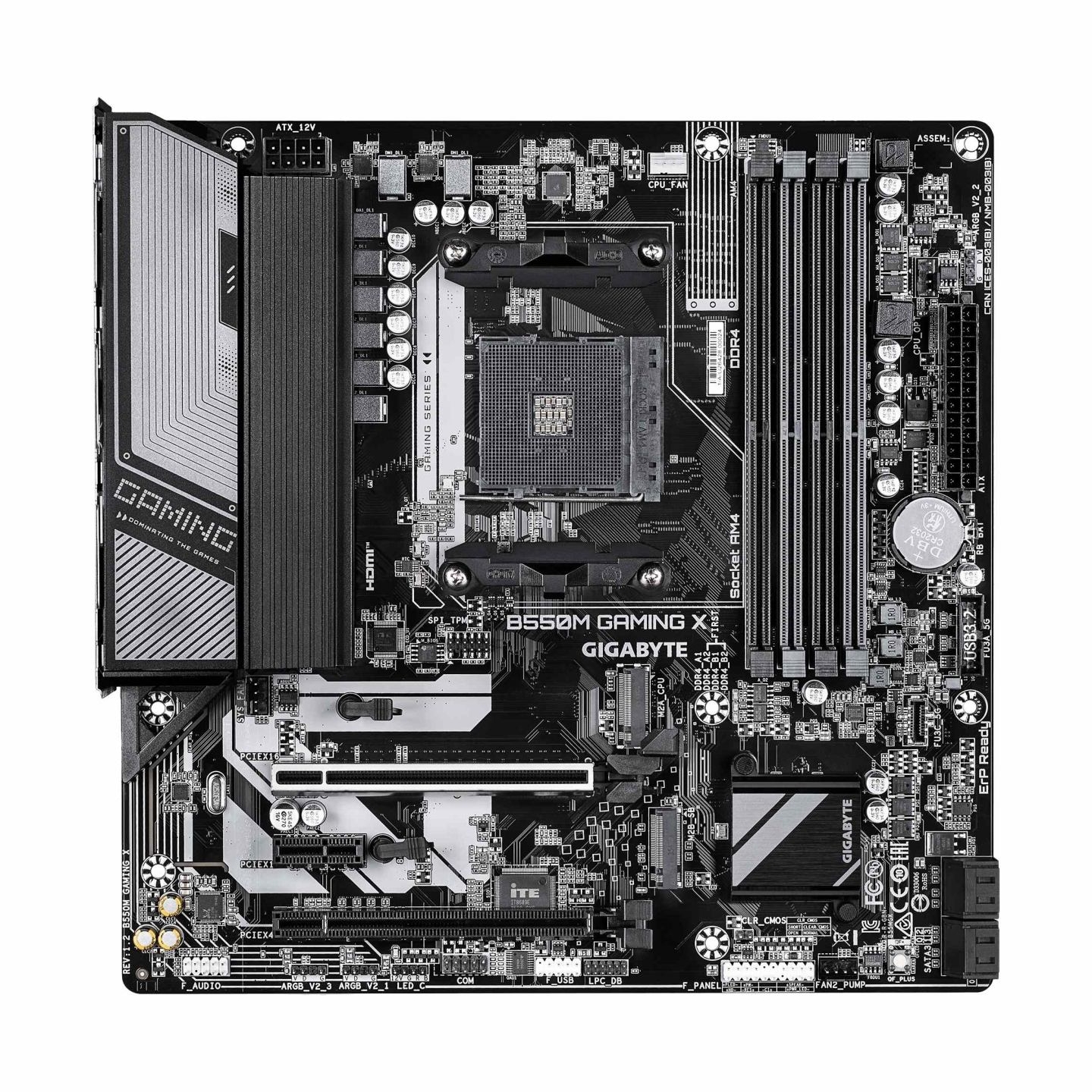

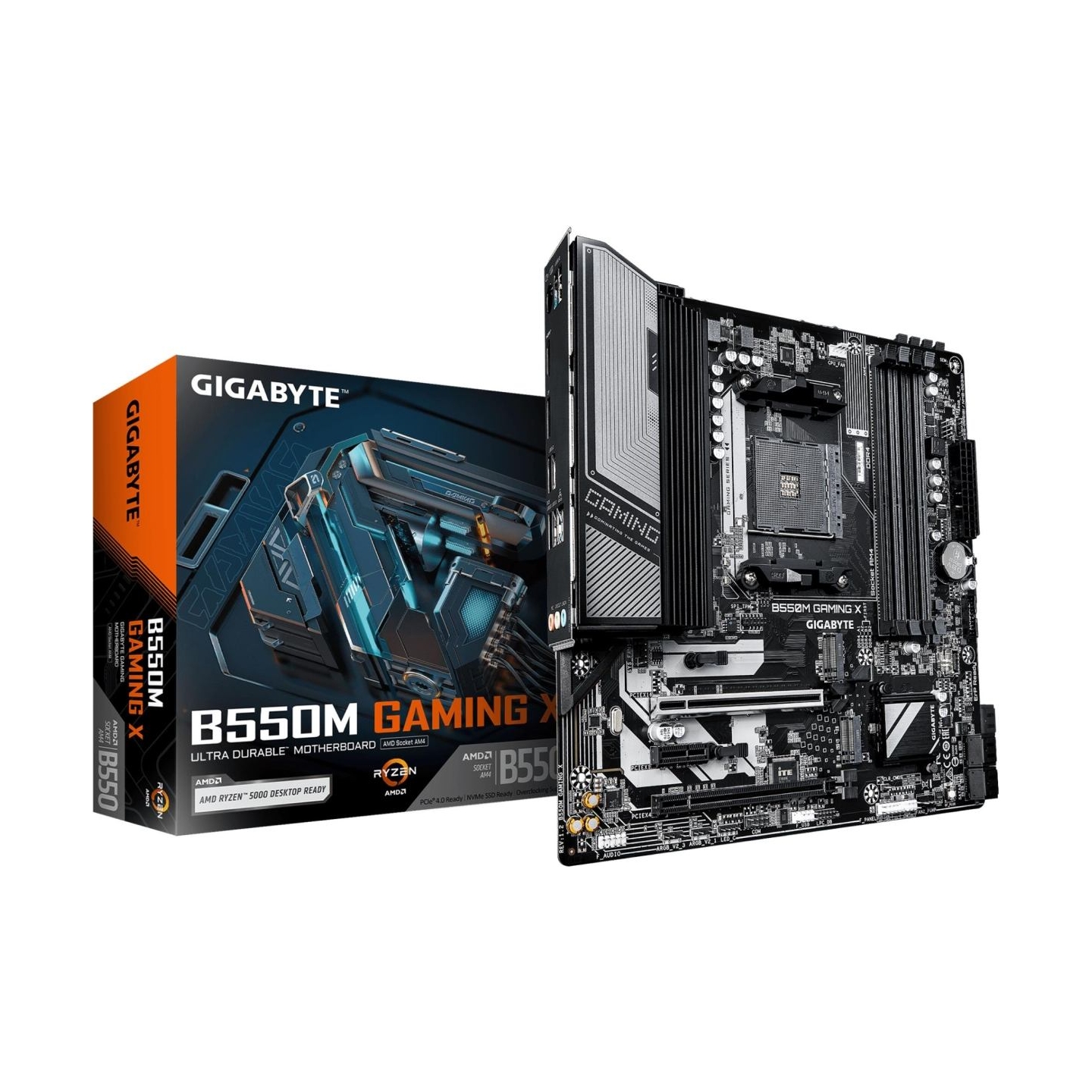

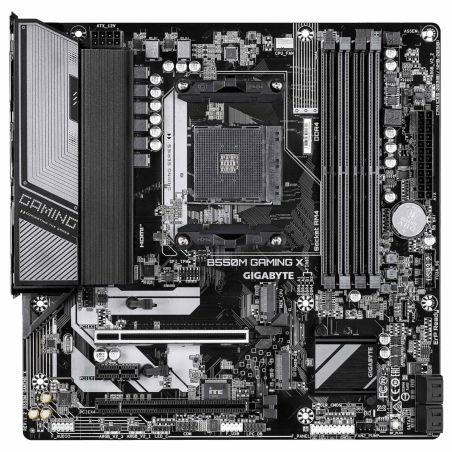

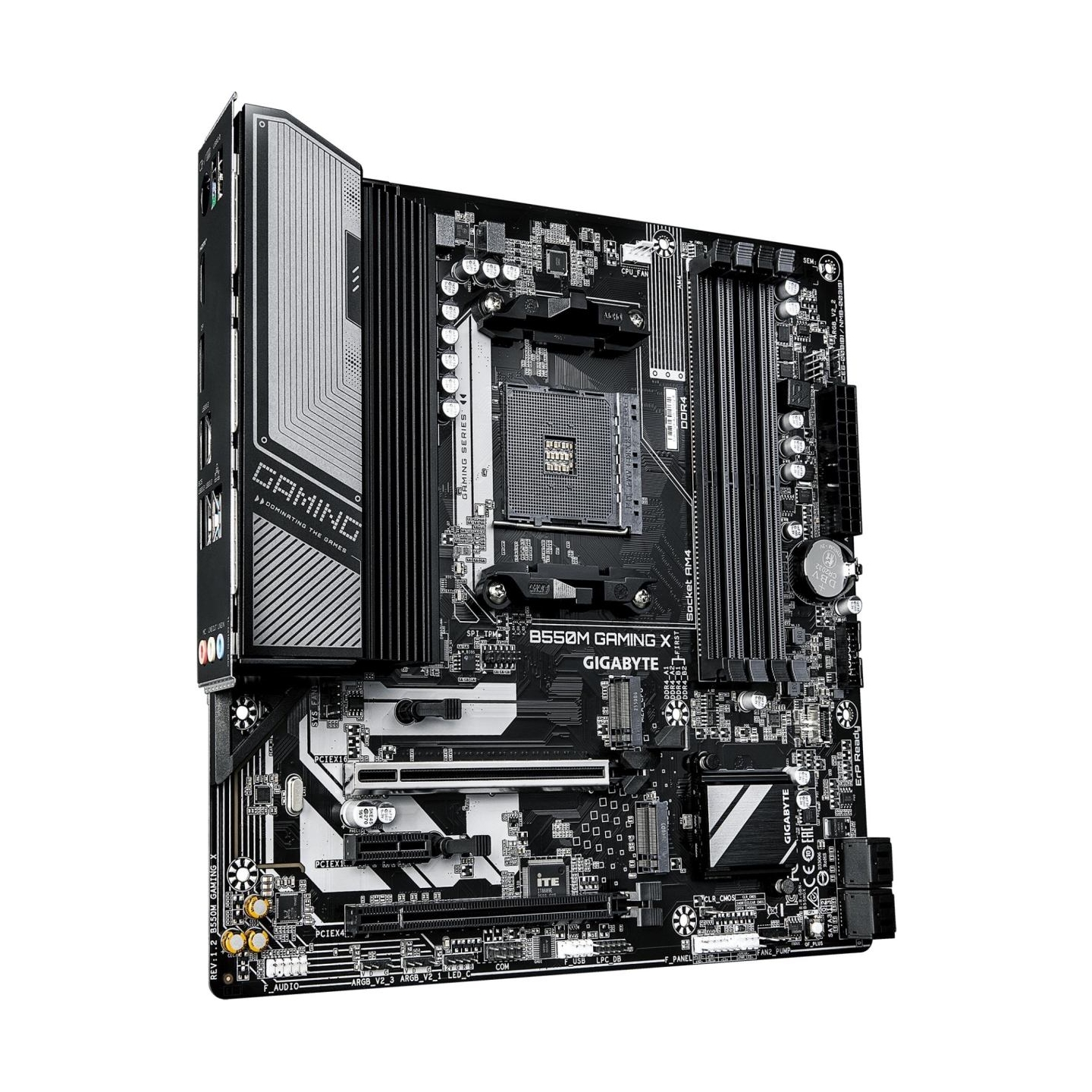

Gigabyte Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|2xNumber of M.2 (M) slots|B550MGAMINGX1.2

Gigabyte Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|2xNumber of M.2 (M) slots|B550MGAMINGX1.2

SKU B550M GAMING X 1.2 Category Mainboards

€105.01

Tax included

Last items in stock

Share on

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
Digital twin 6+2 phases VRM solution
Dual Channel DDR: 4*DIMMs
EZ-Latch: PCIe slots with Quick Release Design
Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal: VRM Thermal Armor Advanced
Fast Networking: GbE LAN
Extended Connectivity: HDMI, Displayport
PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Manufacturer Website:
https://www.gigabyte.com/

Category Code: MBA
CnCode: 84733020
Motherboard chipset: AMD B550
Audio chip: Realtek ALC1220
Product colour: Dark brown
PC health monitoring: CPU/Fan/Temperature/Voltage/Water cooling
Component for: PC
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133/2400/2667/2933/3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2,PCI Express 4.0,PCI Express 3.0,SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0/1/10
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
HDCP version: 2.3
DirectX version: 12.0
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
12V power connector: Yes
Number of water pump connectors: 2
Serial port headers: 1
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4

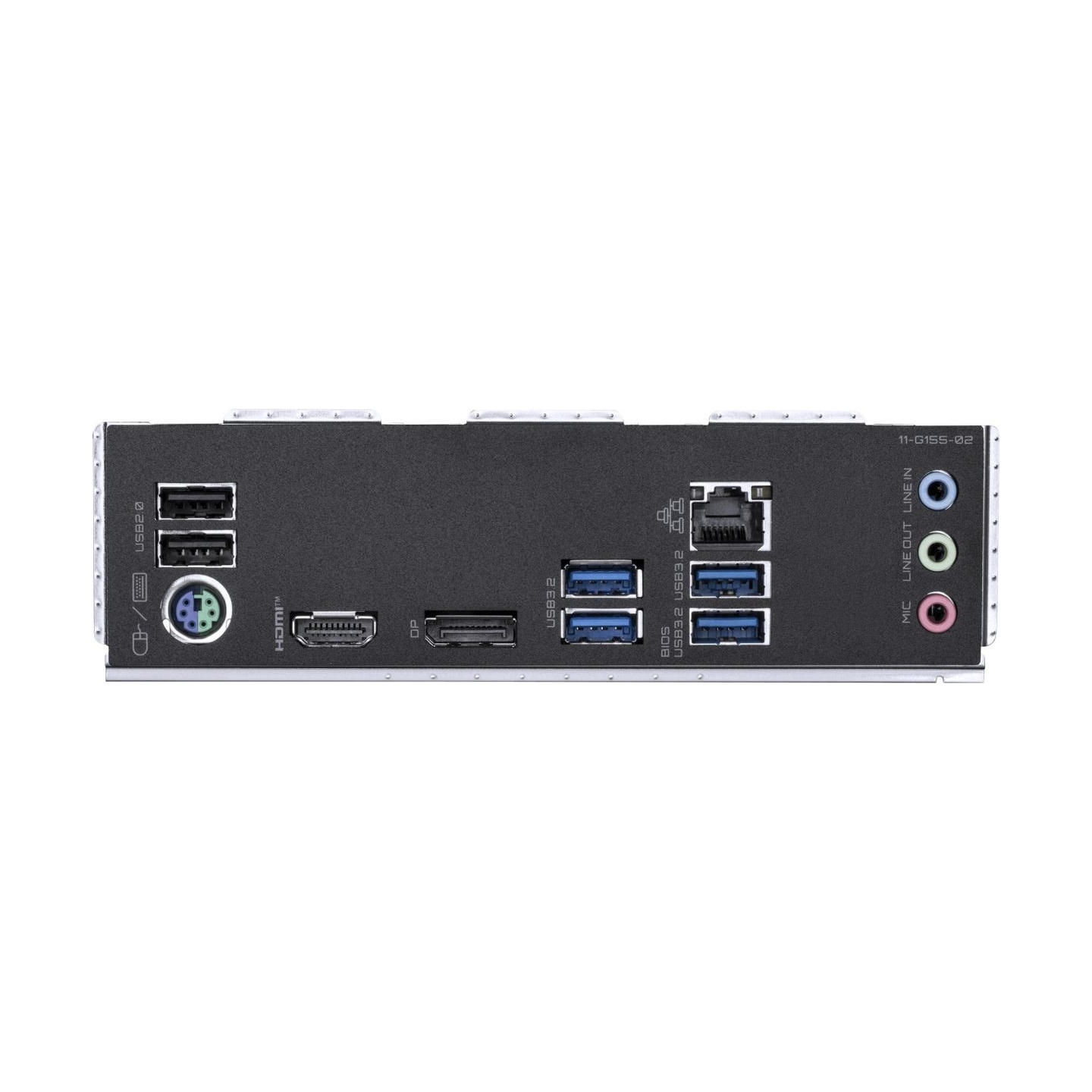

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
WiFi-AP antenna jack: 2
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111H
Wi-Fi: No
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Package width: 270 mm
Number of battery cells: 1
Package depth: 268 mm
Package height: 68 mm
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Package weight: 2490 g
Battery type: CR2032
Width: 244 mm
Depth: 244 mm
Height: 35 mm
Batteries included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)
Weight: 1090 g
Warranty period: 3 year(s)
Unit Calculated Weight: 2.49 kg
Battery weight: 3 g
Battery: Lithium battery
Product Net Weight: 2 kg
Unit Calculated Volume: 0.005435 cubm
Name: MB AMD B550 SAM4 MATX/B550M GAMING X 1.2 GIGABYTE
