Gigabyte B550M GAMING X WIFI6 AM4 MB
€116.70

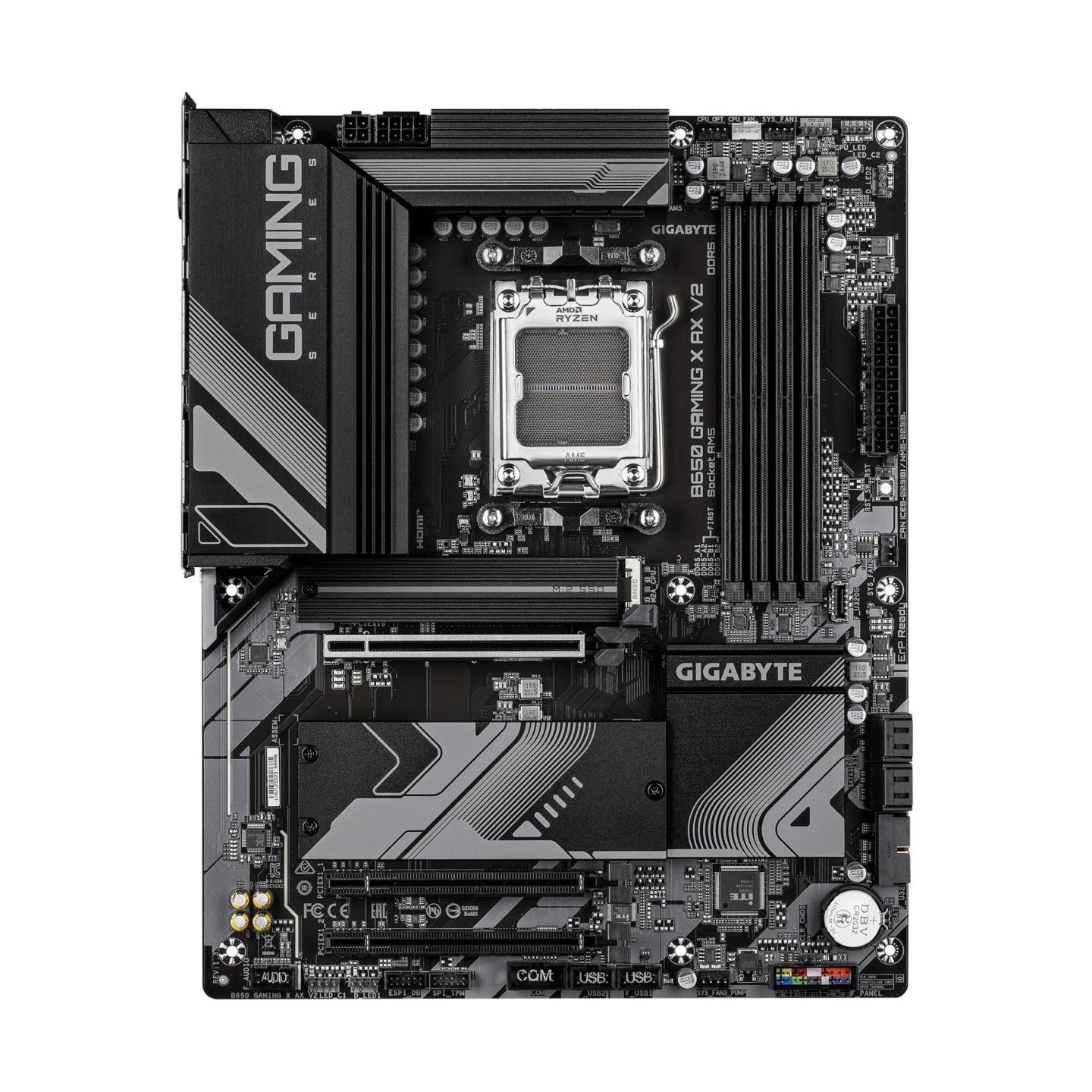

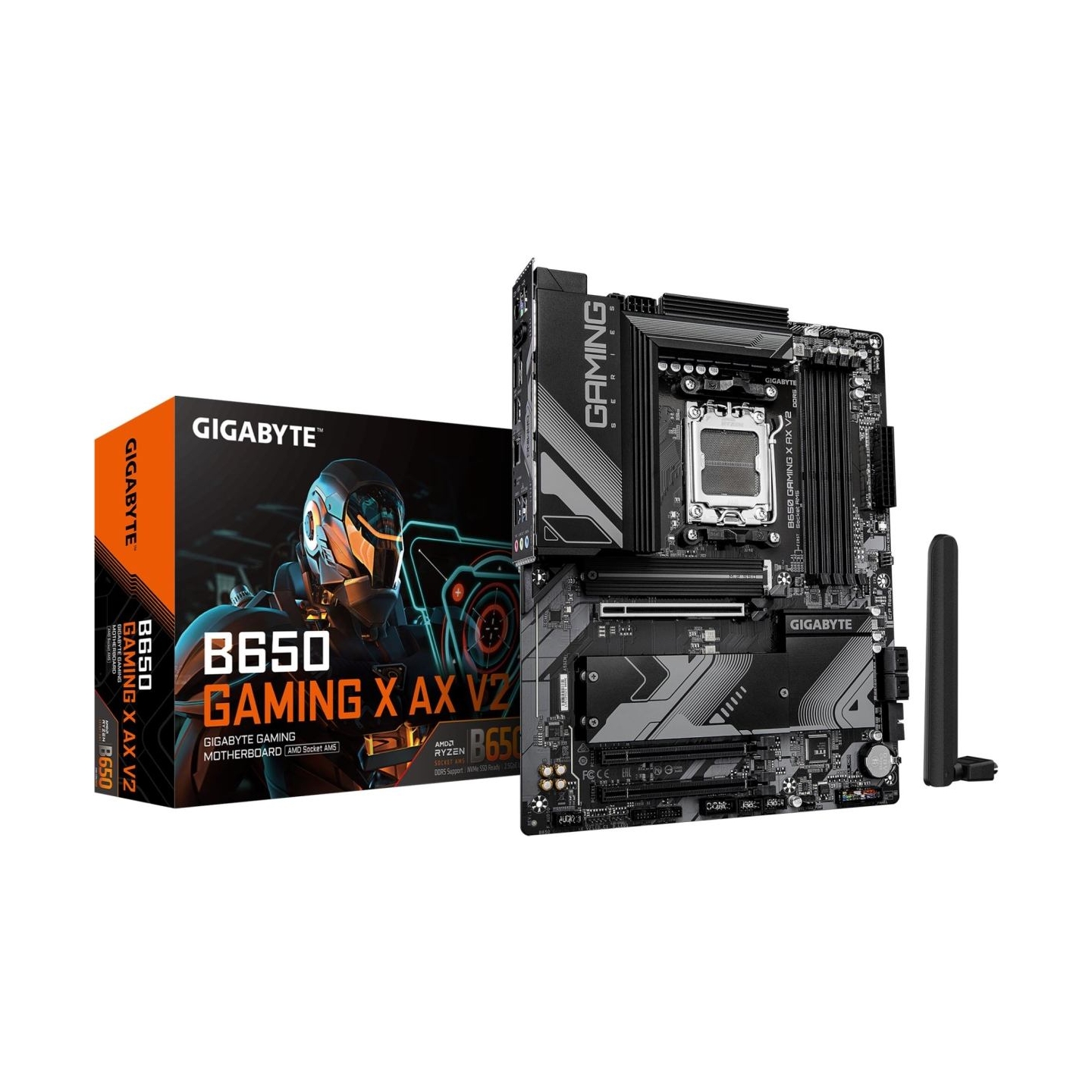

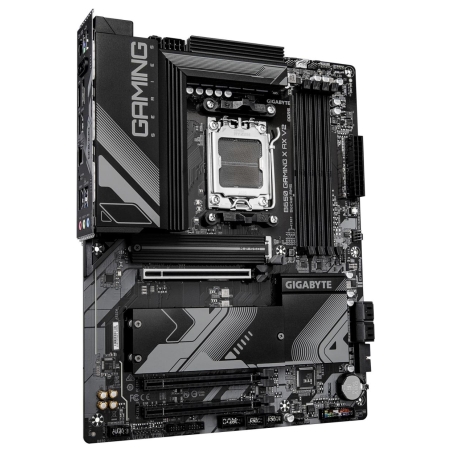

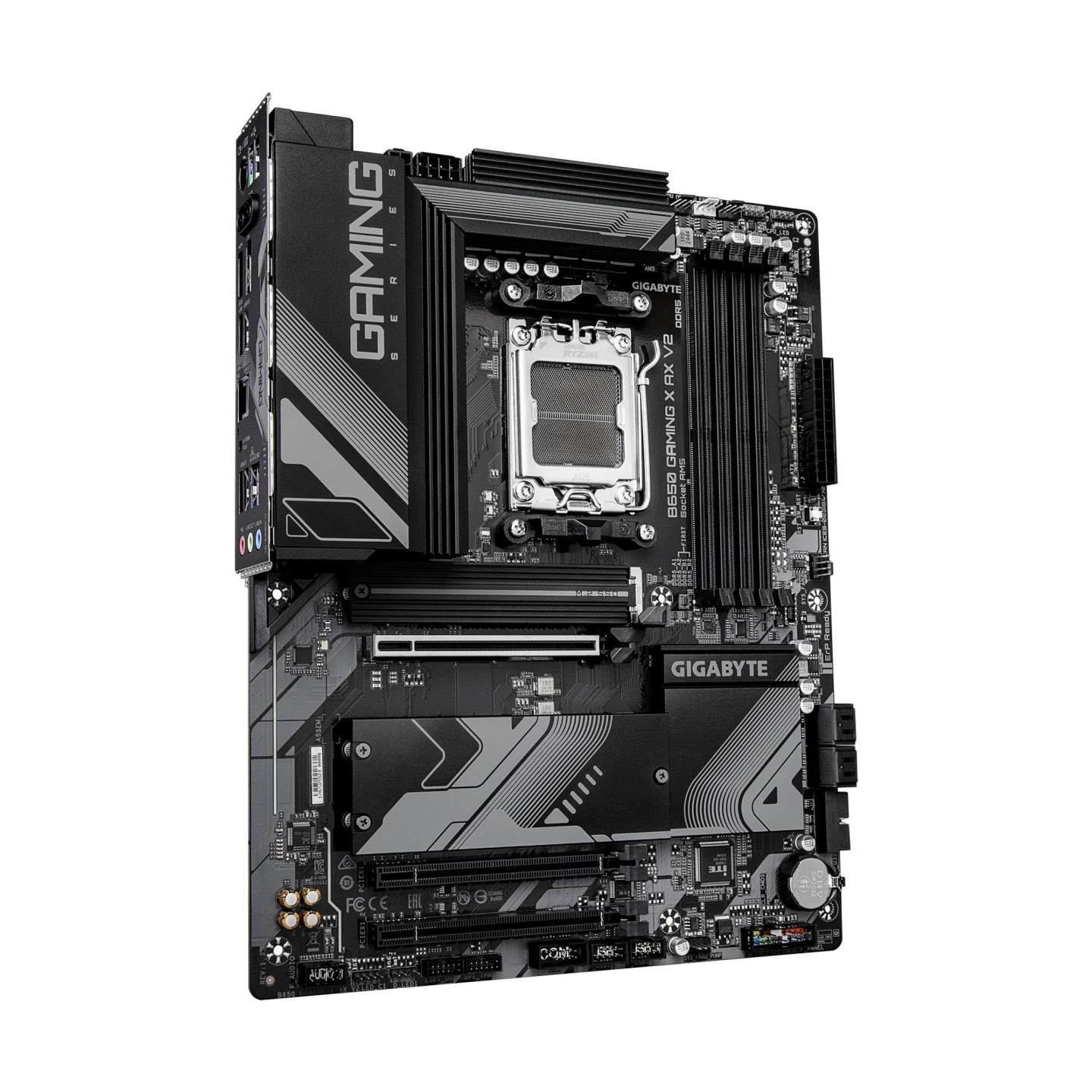

Gigabyte Mainboard|GIGABYTE|AMD B650|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xPCI Express x16 slots|3xNum
New
Price:
€159.30
Tax included
Share on
- AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

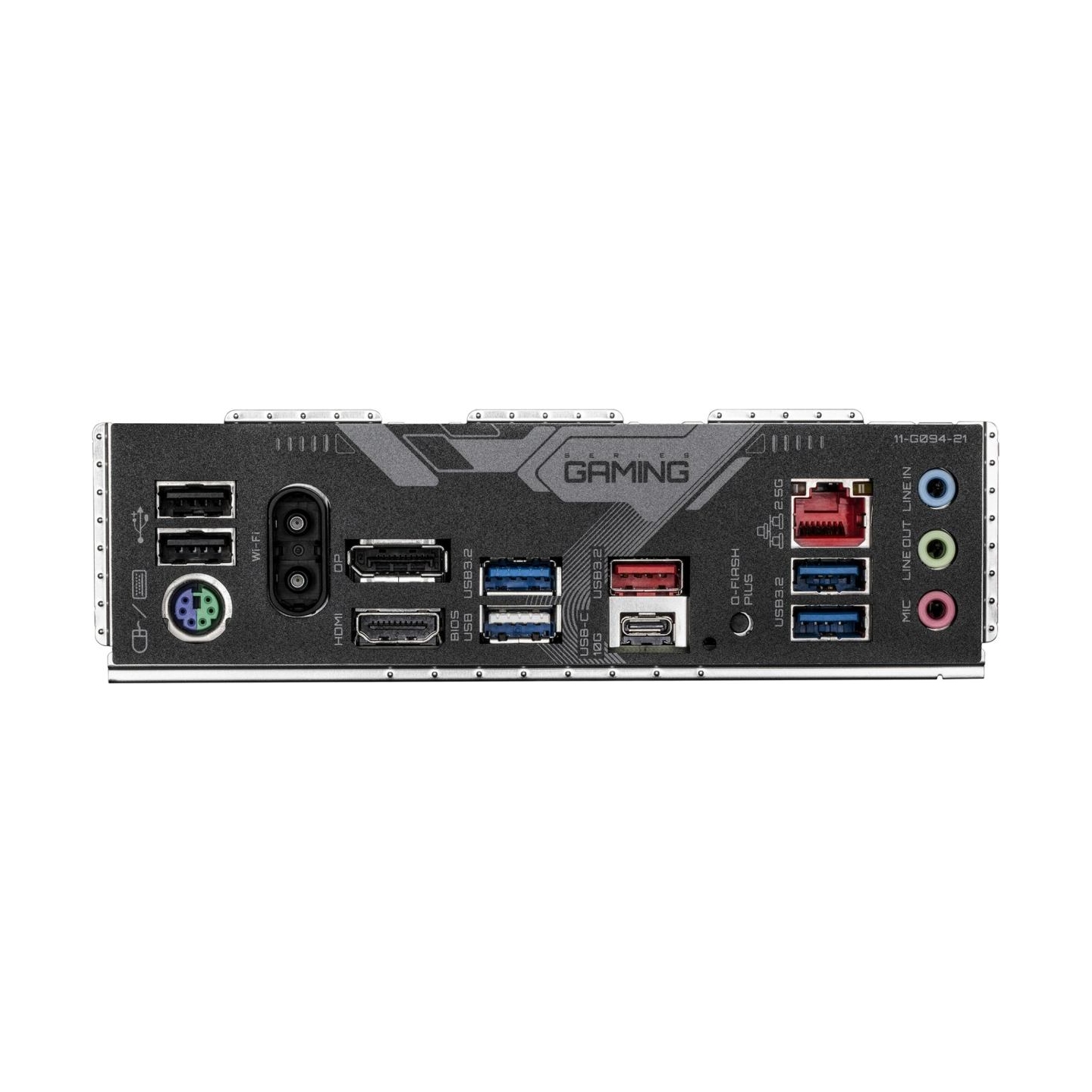

- Extended Connectivity: DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Manufacturer Website:
https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-13
- Category Code
- MBA
- CnCode
- 84733020
- Motherboard chipset
- AMD B650
- Product colour
- Black
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Component for
- PC
- Motherboard form factor
- ATX
- Audio output channels
- 7.1 channels
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
- Supported memory clock speed (max)
- 8000 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 64 GB
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- PCI Express 4.0,PCI Express 5.0,SATA III
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0/1/10
- Parallel processing technology support
- Not supported
- Maximum resolution
- 4096 x 2160 pixels
- HDCP
- Yes
- HDCP version
- 2.3
- High Dynamic Range (HDR) supported
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Peripheral (Molex) power connectors (4-pin)
- 1
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 1
- 12V power connector
- Yes
- Number of water pump connectors
- 1
- Serial port headers
- 1
- TPM connector
- Yes
- RGB LED pin header
- Yes
- Number of RGB LED pin headers
- 3
- USB 2.0 ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Headphone outputs
- 3
- Line-in
- Yes
- Microphone in
- Yes
- WiFi-AP antenna jack
- 2
- USB connector type
- USB Type-A/USB Type-C
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- WLAN controller model
- Intel Wi-Fi 6E AX210
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- PCI Express x16 slots
- 3
- Number of M.2 (M) slots
- 3
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 25110
- 3rd M.2 highest PCI Express generation
- 4.0
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Width
- 305 mm
- Depth
- 244 mm
- Antenna included
- Yes
- Cables included
- SATA
- Screws included
- Yes
- Bundled software
- Norton Internet Security
- Unit Calculated Weight
- 2.14 kg
- Unit Calculated Volume
- 0.0102 cubm
- Units per Shipping Box
- 8
- Name
- MB AMD B650 SAM5 ATX/B650 GAMING X AX V2 GIGABYTE
