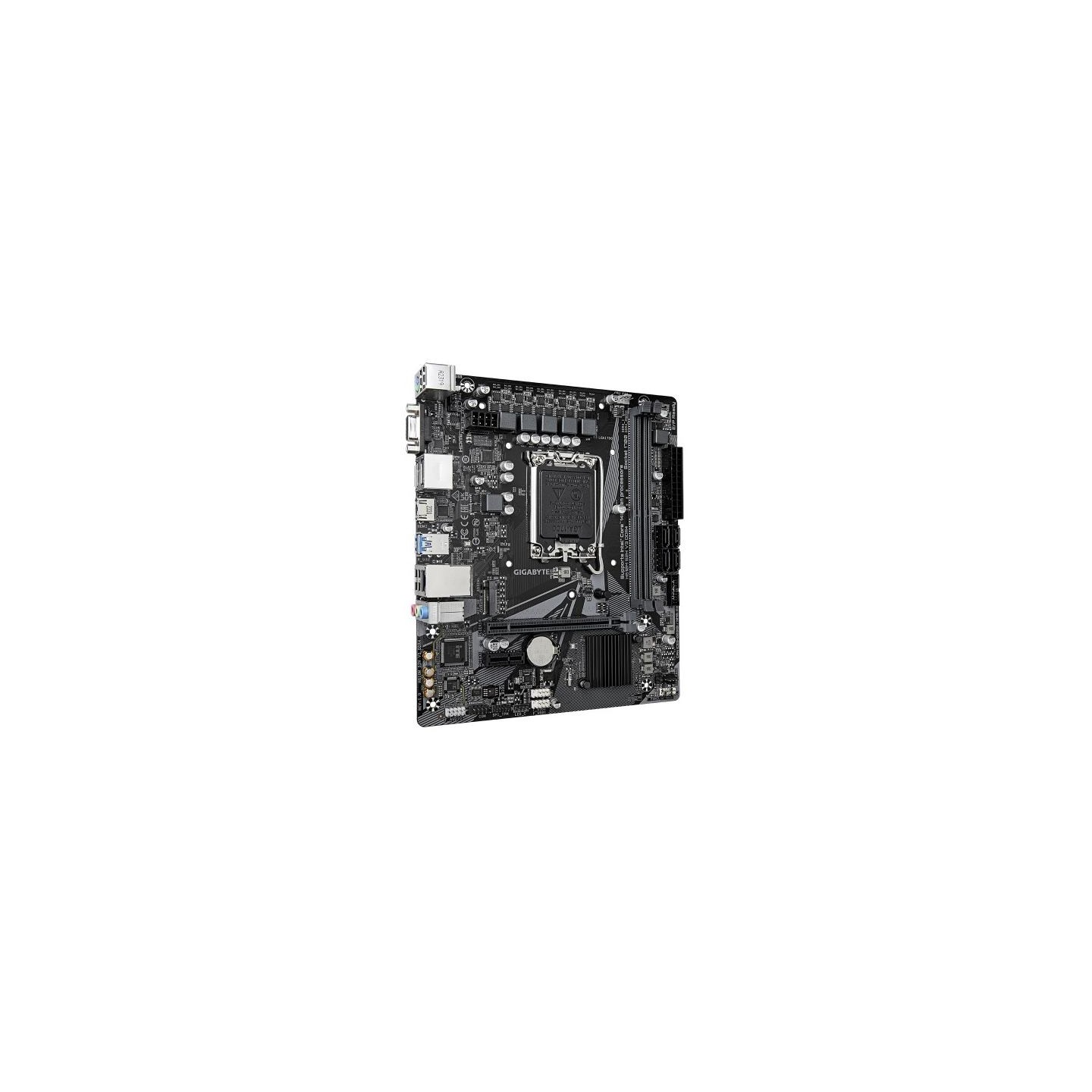

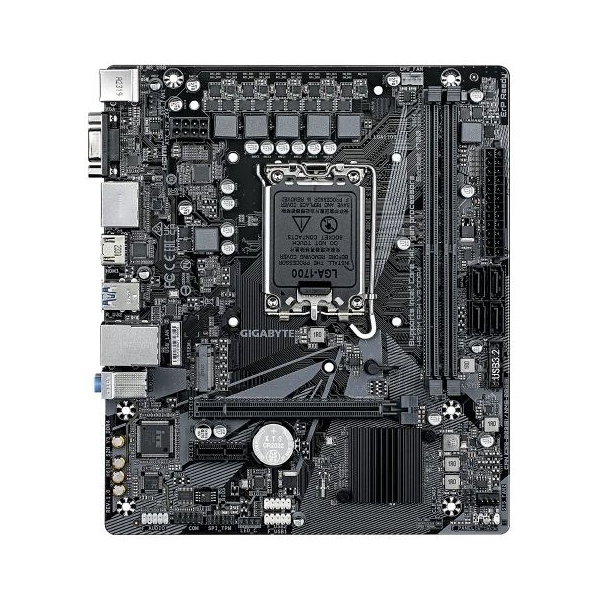

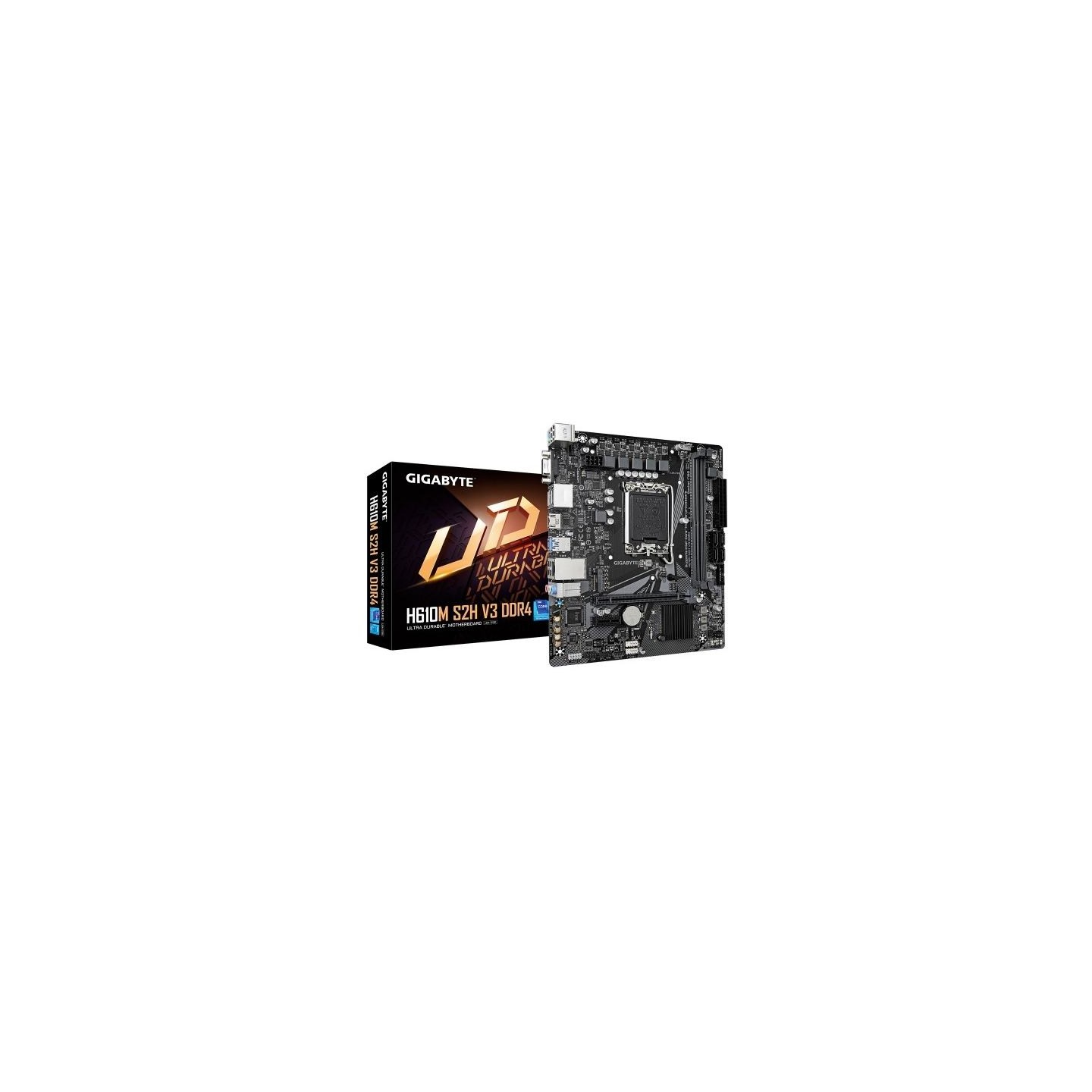

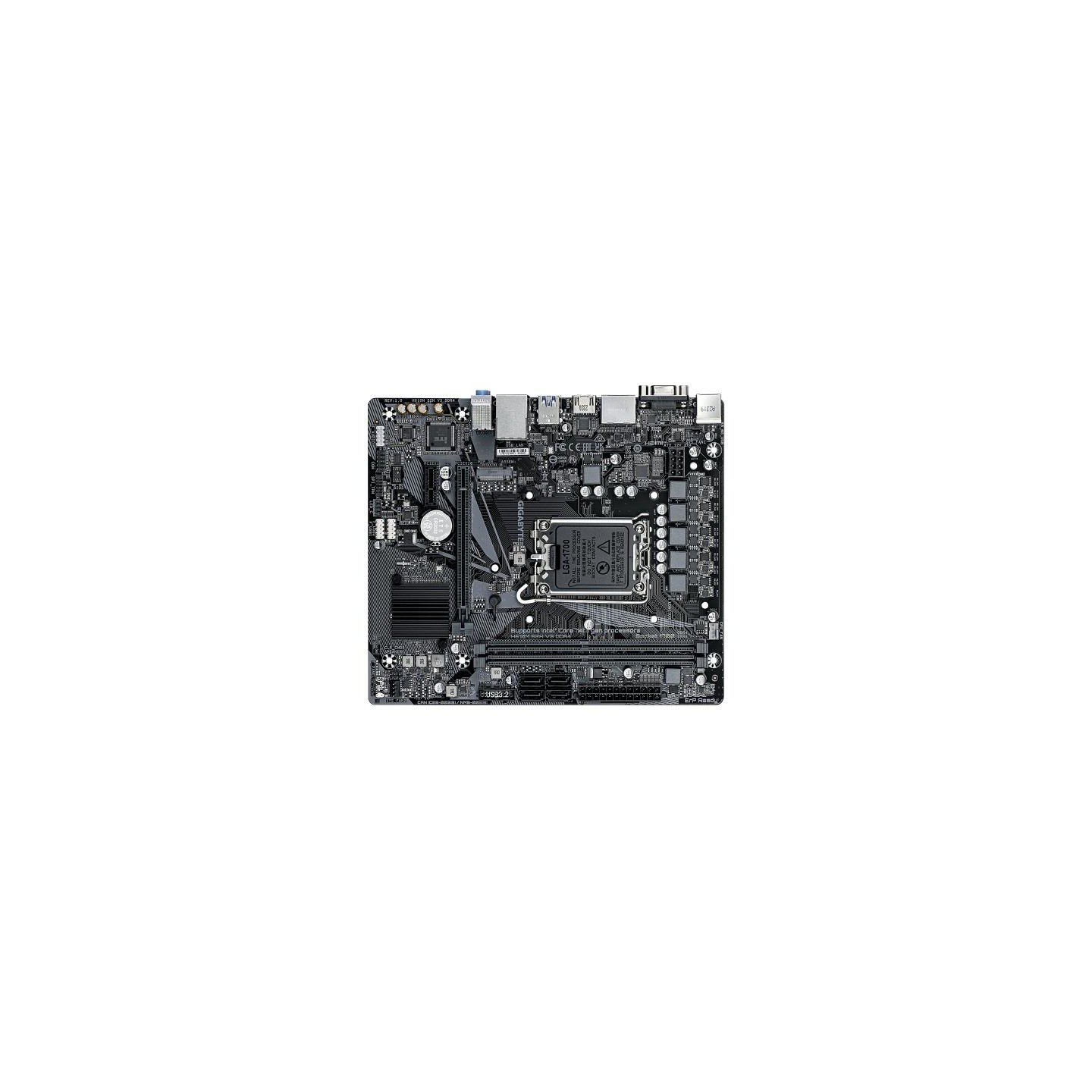

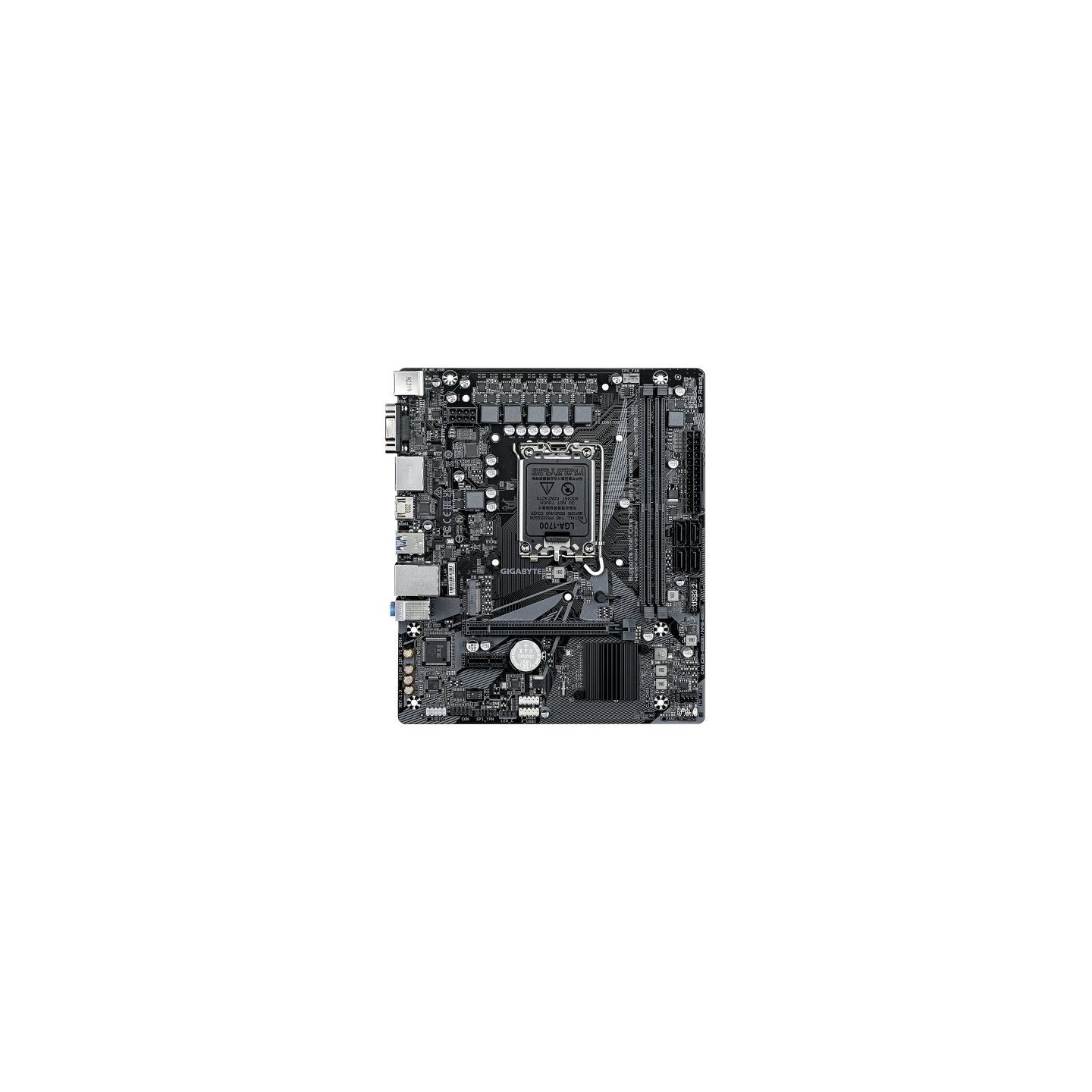

Gigabyte H610M S2H V3 DDR4 LGA1700
Price:
€104.44
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBGBAIIEH610U04
- Barcode
- 4719331859732
- Model
- H610M S2H V3 DDR4
- CPU socket
- LGA1700
- Processor family
- Intel Core i9
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Celeron
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel H610 Express
- Memory type
- DDR4
- Number of DDR4 slots
- 2
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 3200 MHz
- Max memory size
- 64
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- No
- Detailed data on disk/drive interfaces
- Chipset: 1 x M.2 connector (supports Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD) 4 x SATA 6Gb/s connector
- Graphics
- Integrated Graphics Processor - Intel HD Graphics Support: D-Sub port supporting a maximum resolution of 1920x1200 @ 60 Hz HDMI port supporting a maximum resolution of 4096x2160 @ 60 Hz * Support for HDMI 2.1 and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compliant ports. 2 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3
- Sound card
- Realtek Audio CODEC High Definition Audio Channels 2/4/5.1/7.1
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

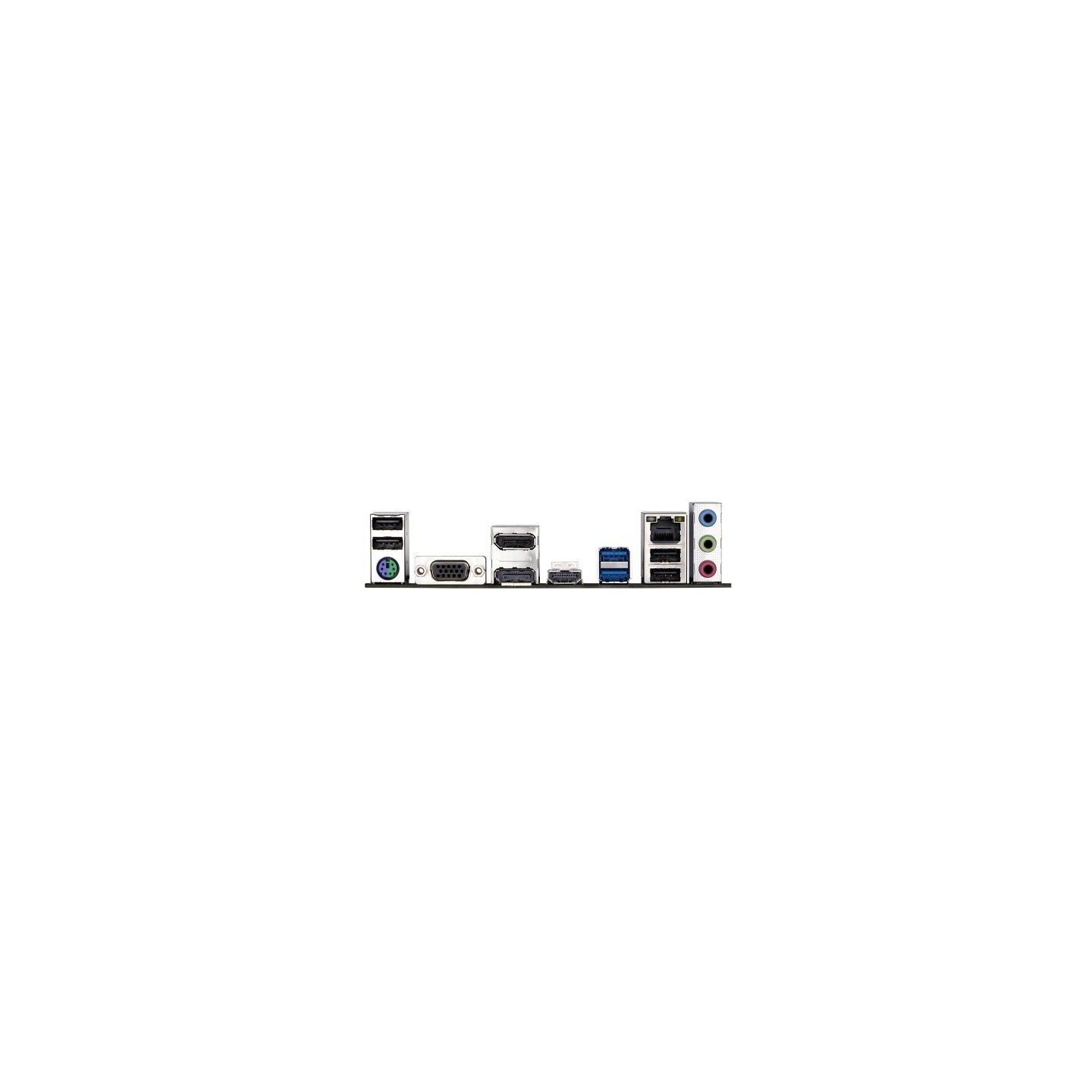

- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x D-Sub
- External connectors
- 2 x DisplayPort
- External connectors
- 2 x USB 3.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- Onboard connectors
- 1 x Speaker header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 4 x SATA III 6Gb/s
- BIOS
- 1 x 128 Mbit flash Uses AMI UEFI BIOS license PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 22.3 x 19.3 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
