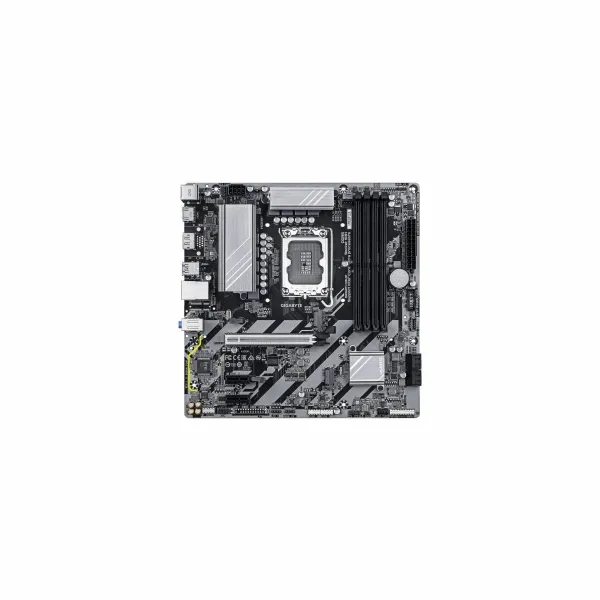

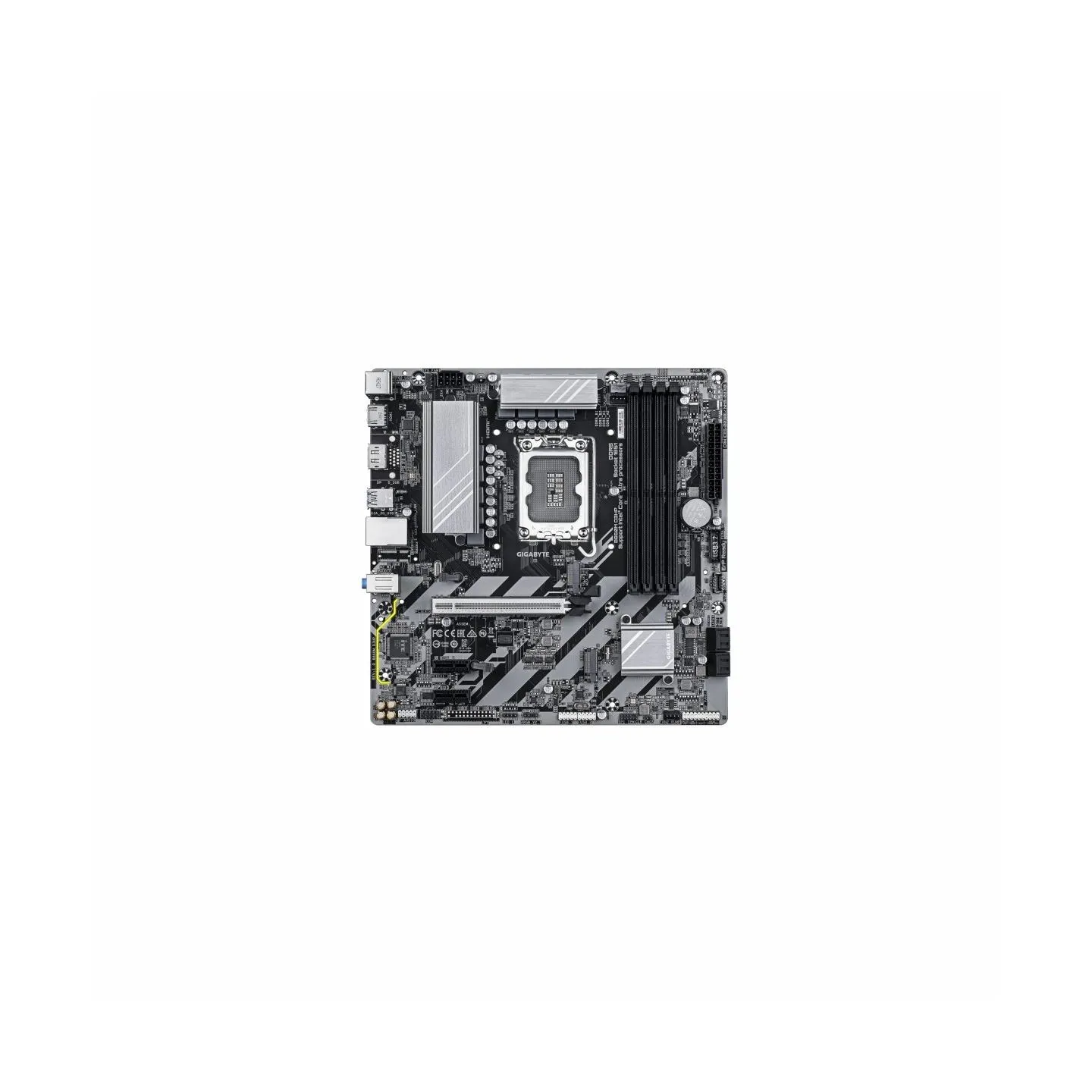

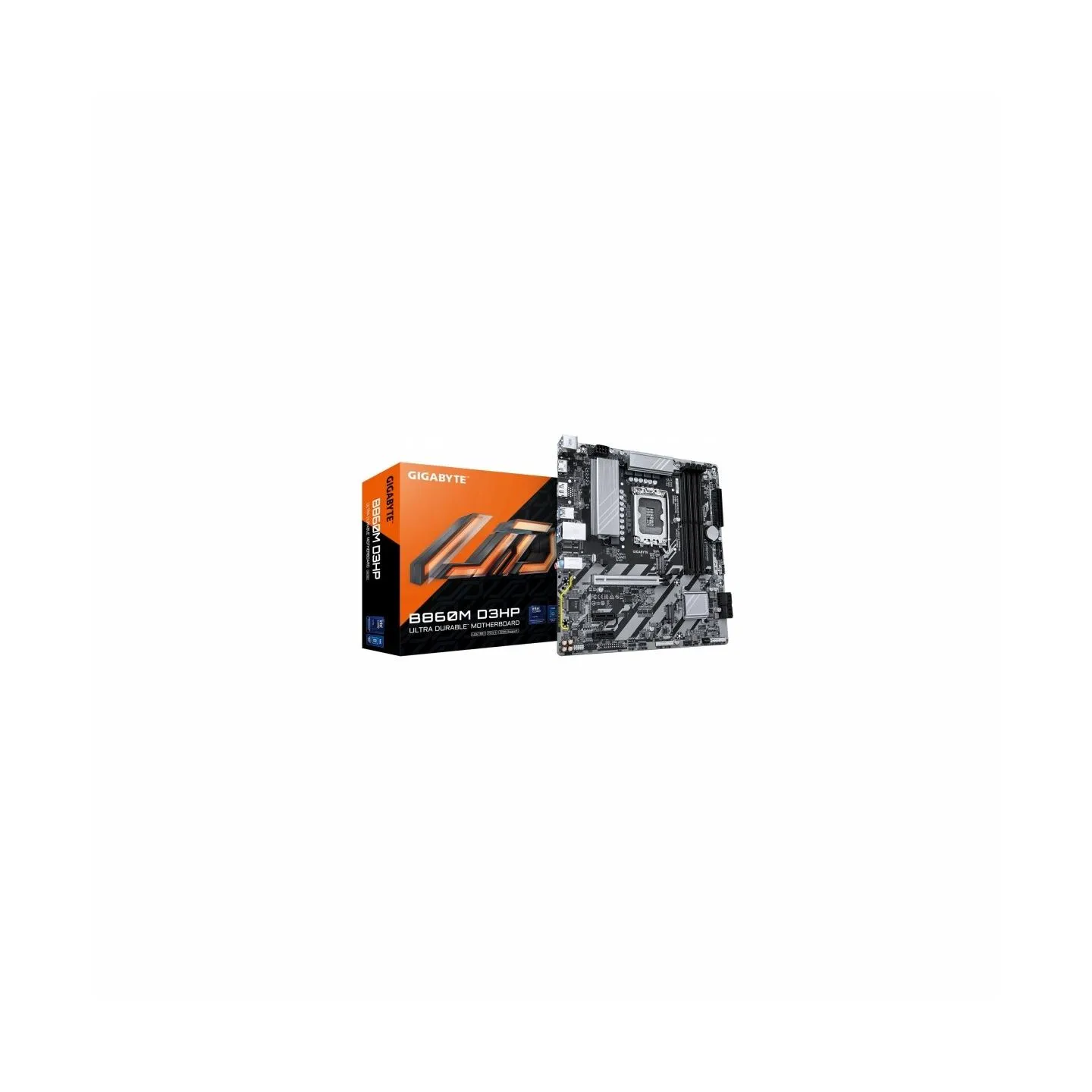

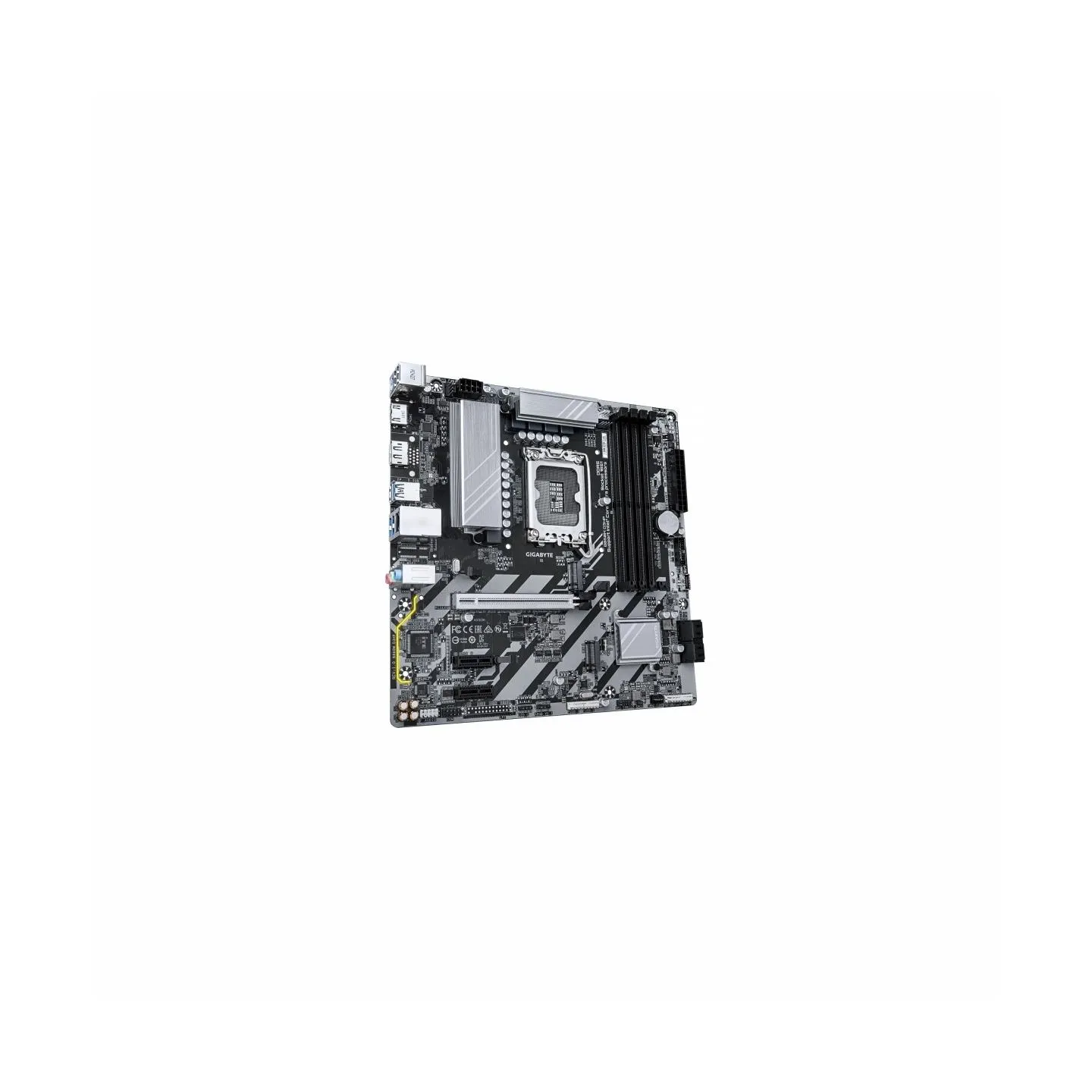

Gigabyte B860M D3HP LGA1851 MB
Price:
€163.19
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBGBAIIFB860U05
- Barcode
- 4719331866860
- Model
- B860M D3HP
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8266 MHz
- Memory bus frequency
- 8400 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 8600 MHz
- Memory bus frequency
- 8800 MHz
- Memory bus frequency
- 133 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 2 x PCIe 4.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 M.2 connector (Socket 3, M-key, supports 2280 PCIe 4.0 x4/x2 SSDs) (M2A_CPU) Chipset: 1 M.2 connector (Socket 3, M-key, supports 2280 PCIe 4.0 x4/x2 SSDs) (M2Q_SB) 4 SATA 6 Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
- Graphics
- Integrated graphics processor, Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz, supporting HDMI 2.1 and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz, supporting DisplayPort 2.1.
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x MIC
- External connectors
- 3 x USB 3.0
- External connectors
- 3 x USB 2.0
- External connectors
- 1 x RJ-45
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
