Gigabyte B760M D3HP WIFI6 LGA1700 MB

Name: Gigabyte B760M D3HP WIFI6 LGA1700 MB
Brand: GIGABYTE
SKU: B760M D3HP WIFI6
Price: 123.97 EUR
Availability: InStock

SKU B760M D3HP WIFI6 Category Mainboards

€123.97

Tax included

Share on

SKU: KBGBAIIEB760U18
Barcode: 4719331867638
Model: B760M D3HP WIFI6
CPU socket: LGA1700
Processor family: Intel Pentium Gold
Processor family: Intel Core
Processor family: Intel Celeron
Generation: Fourteenth
Generation: Thirteenth
Generation: Twelve
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B760 Express Chipset
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 5200 MHz
Memory bus frequency: 4800 MHz
Memory bus frequency: 5600 MHz
Memory bus frequency: 4400 MHz
Max memory size: 192
Expansion slots: 1 x PCIe 4.0 x 16
Expansion slots: 2 x PCIe 3.0 x 1
Expansion slots: 2 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 *The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 SATA connectorsCPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics: Integrated graphics processor - Intel HD Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200 @ 60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3. ** Supports native HDMI 2.1 TMDS-compliant ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz * Supports DisplayPort 1.2 and HDCP 2.3.
Sound card: Realtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels S/PDIF Out Support
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: 1 x 10/100/1000 Mbit/s
Network interface: LAN Realtek GbE LAN chip (1Gbps/100Mbps/10Mbps) Wireless communication module Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
USB ports at back panel: 5
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 6
FireWire (IEEE 1394): No
COM connector / port: Yes
LPT connector / port: No

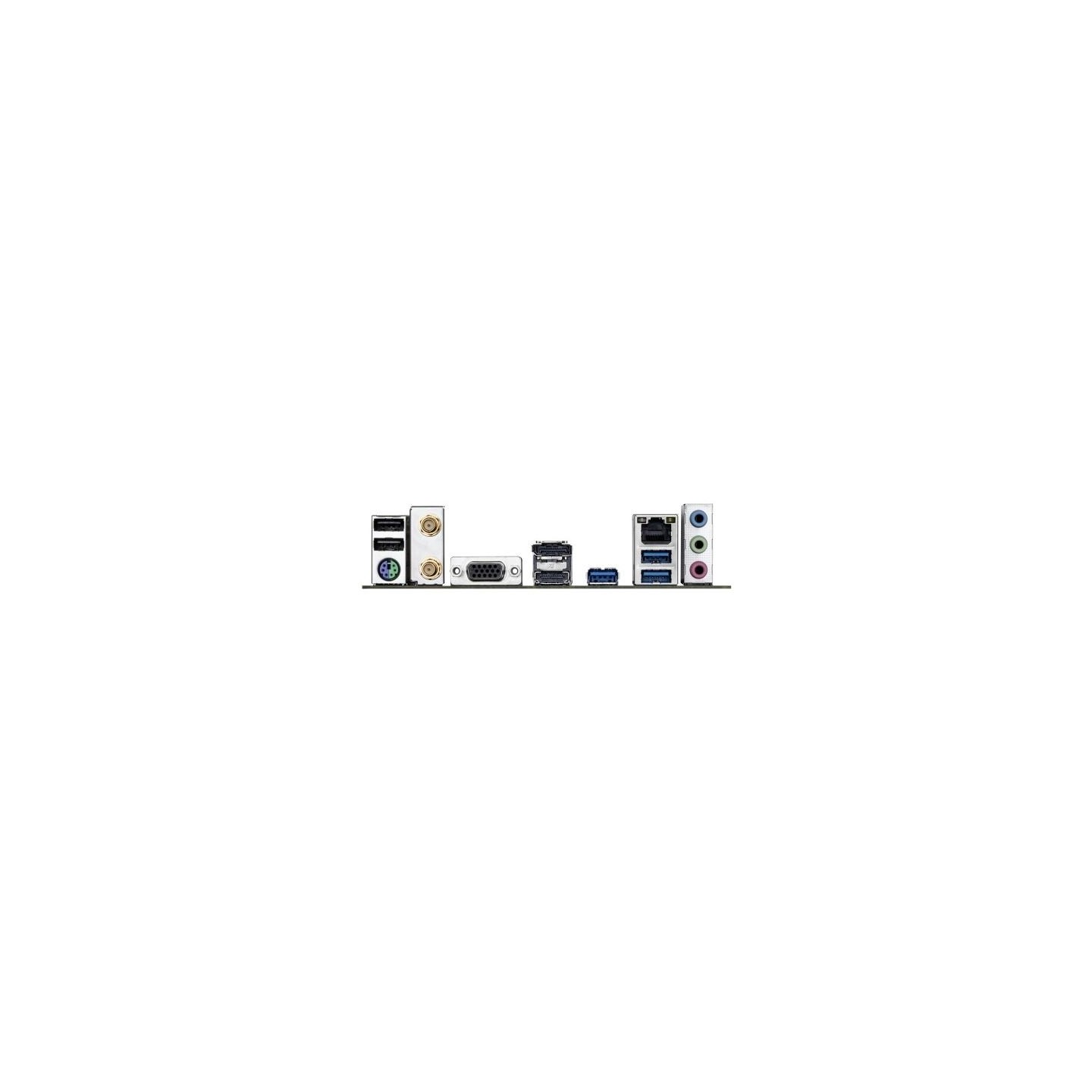

External connectors: 3 x USB 3.2 Gen 1 Type-A
External connectors: 2 x SMA
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 1 x RJ-45
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 1 x D-Sub
External connectors: 1 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 2 x USB 2.0
Onboard connectors: 1 x Addressable LED
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 1 x Serial port header
Onboard connectors: 1 x Parallel port header
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x S/PDIF Out header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x Reset jumper
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x Q-Flash Plus button
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 2 x M.2
Onboard connectors: 4 x SATA III 6Gb/s
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Dimensions: 24.4 x 17.4 cm
Supported operating systems: Windows 10
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE
