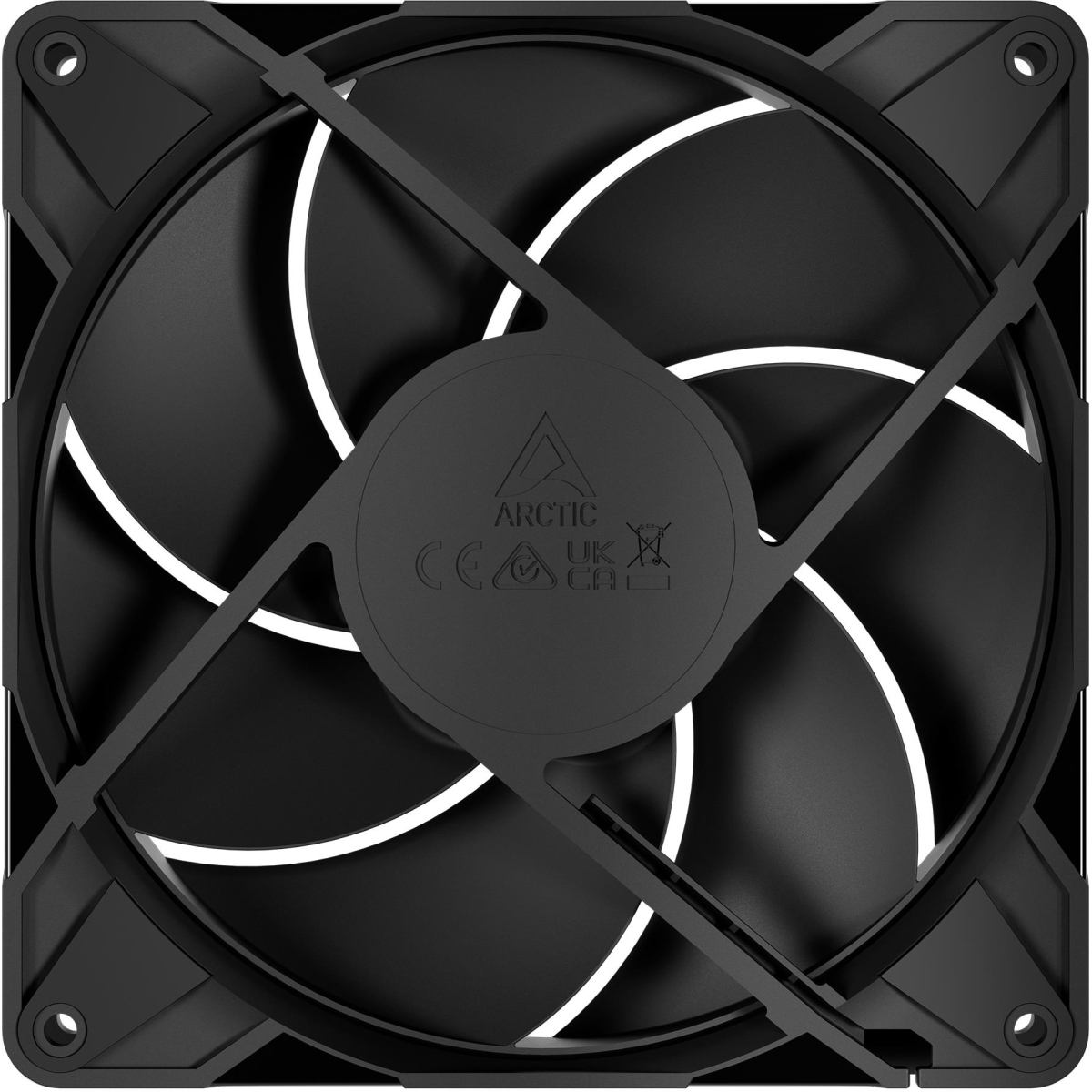

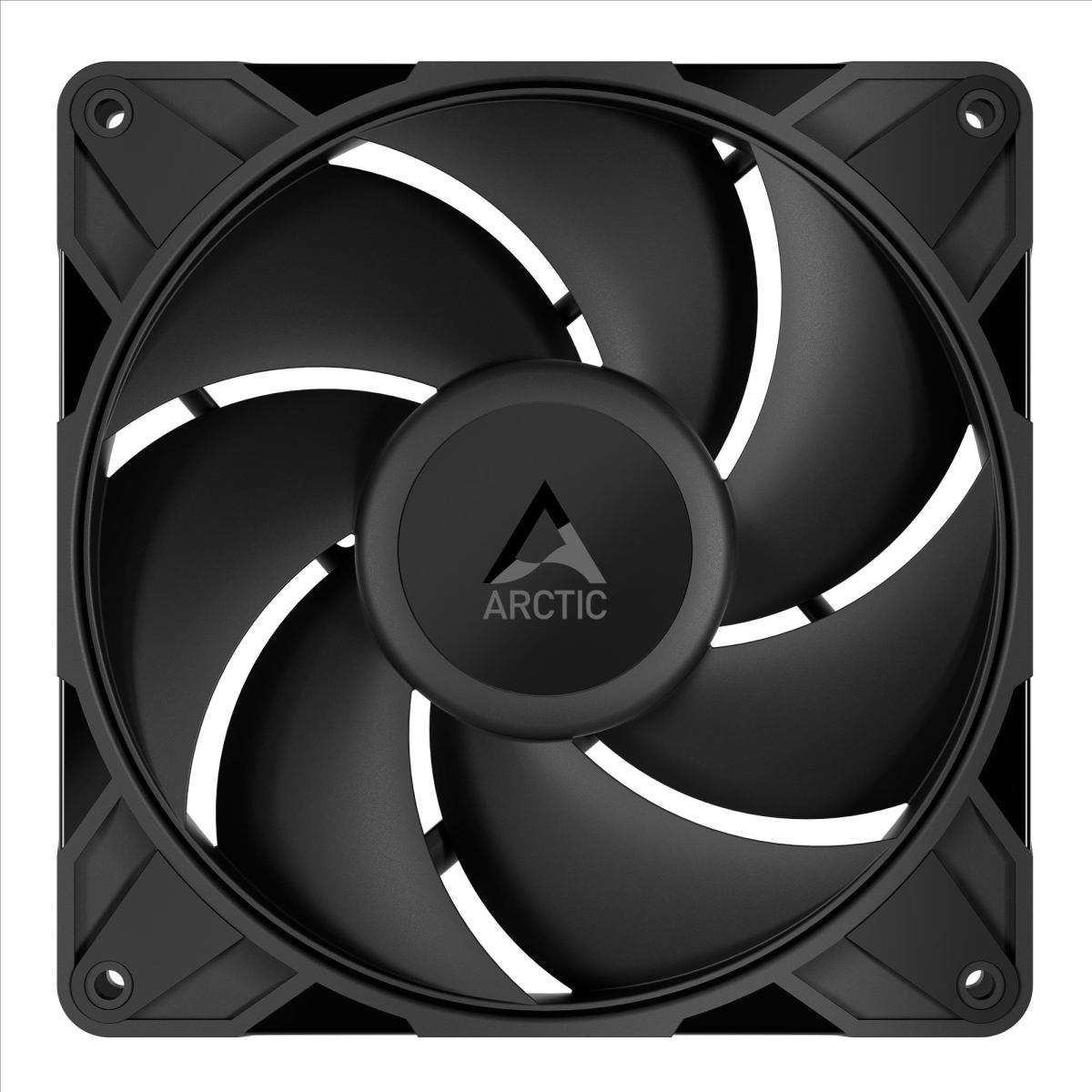

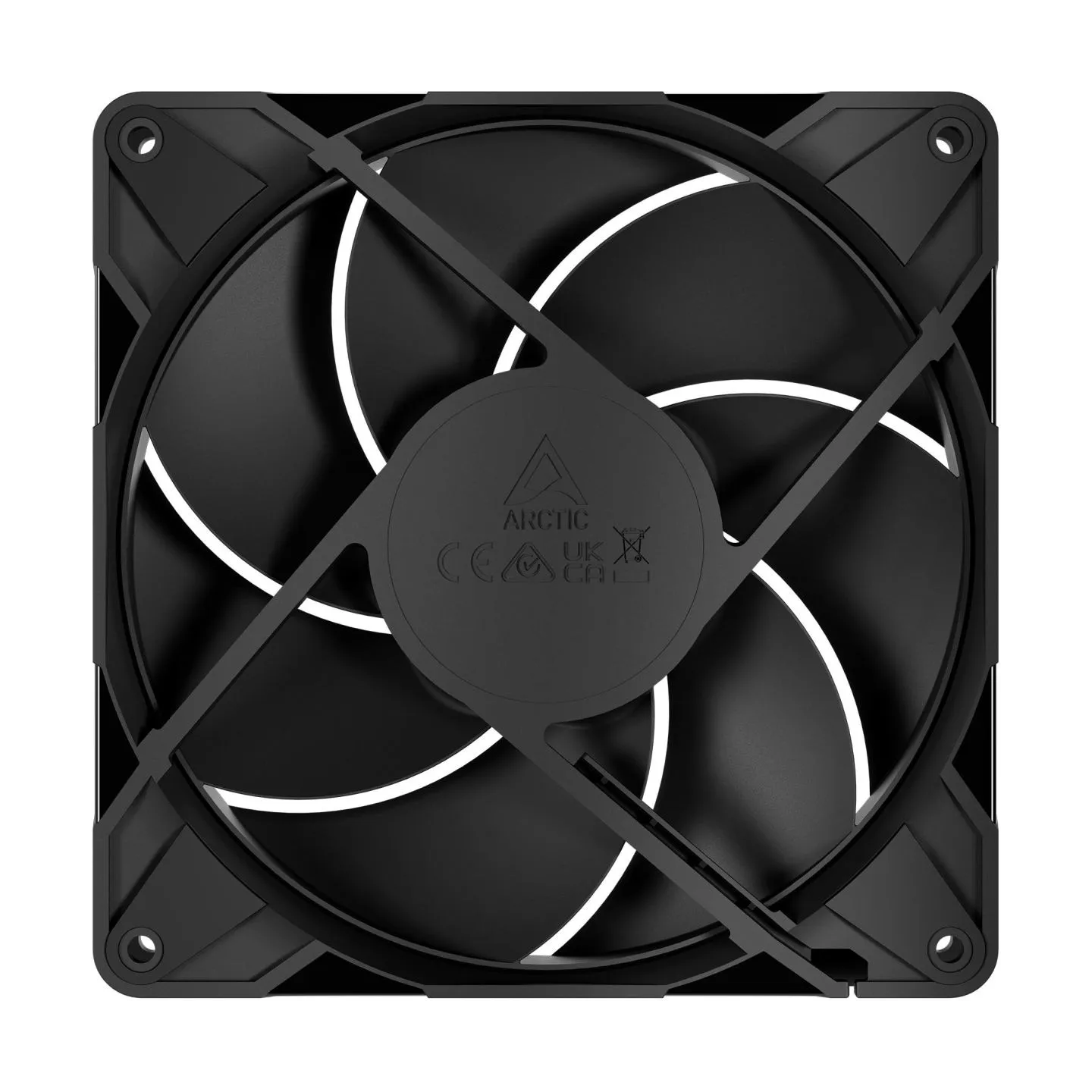

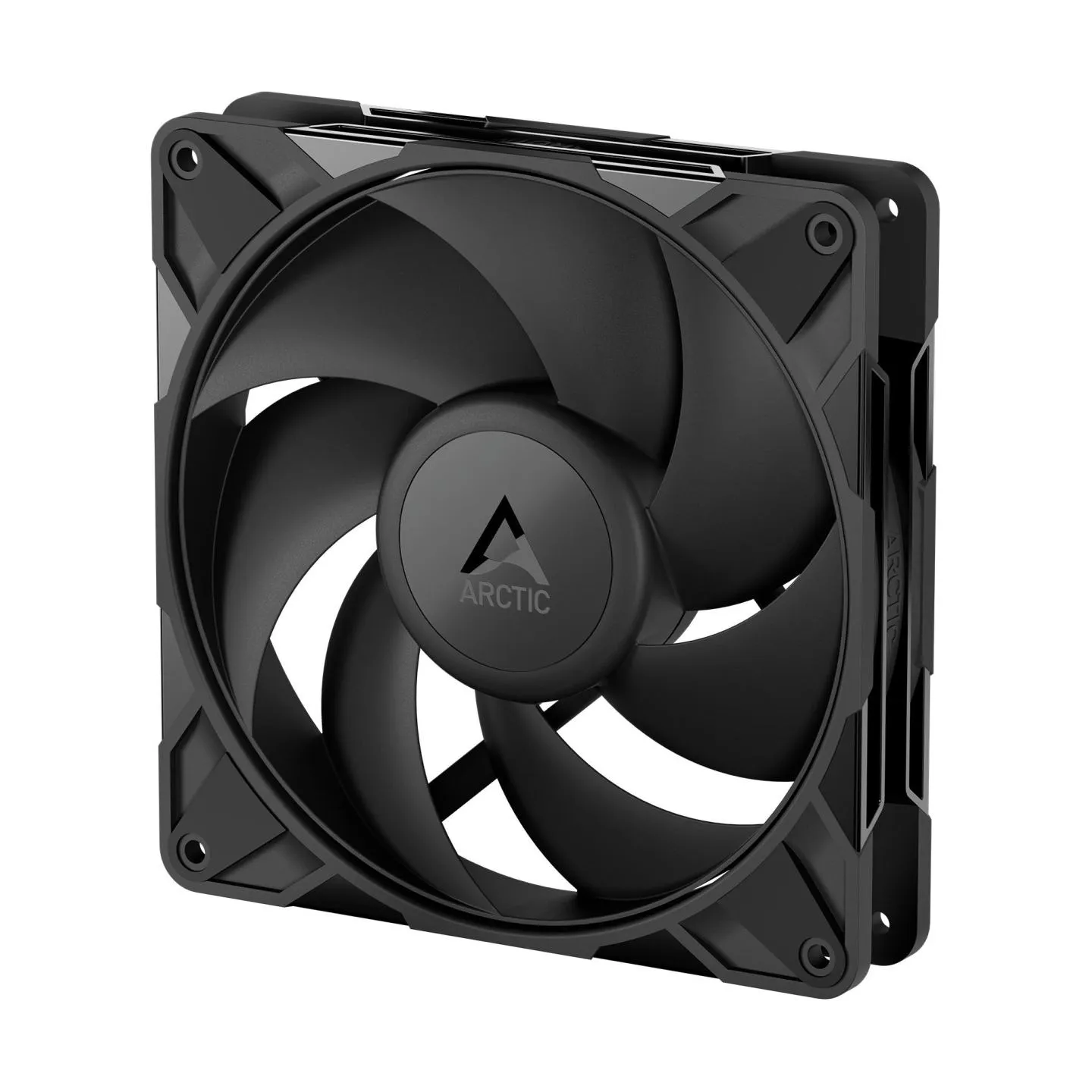

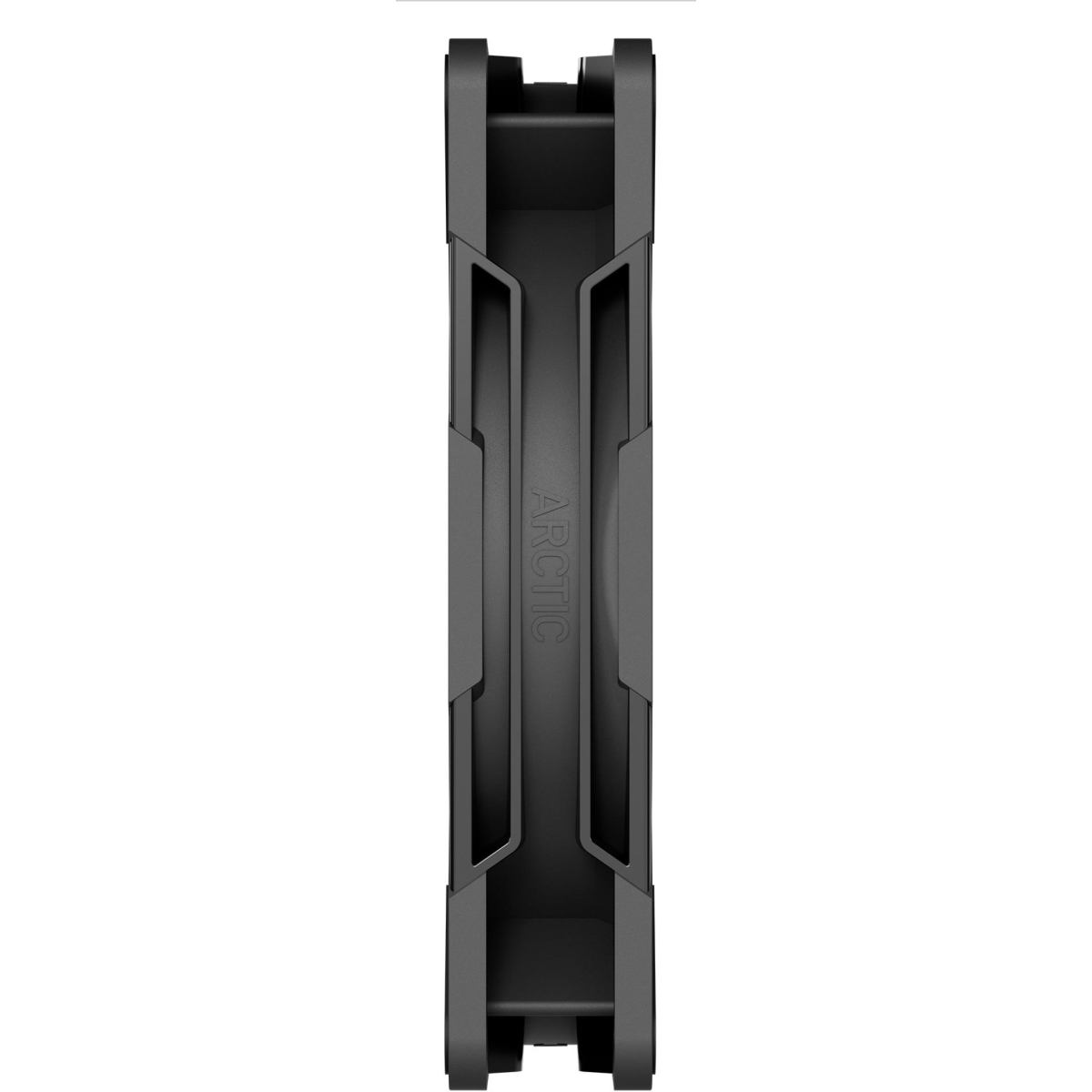

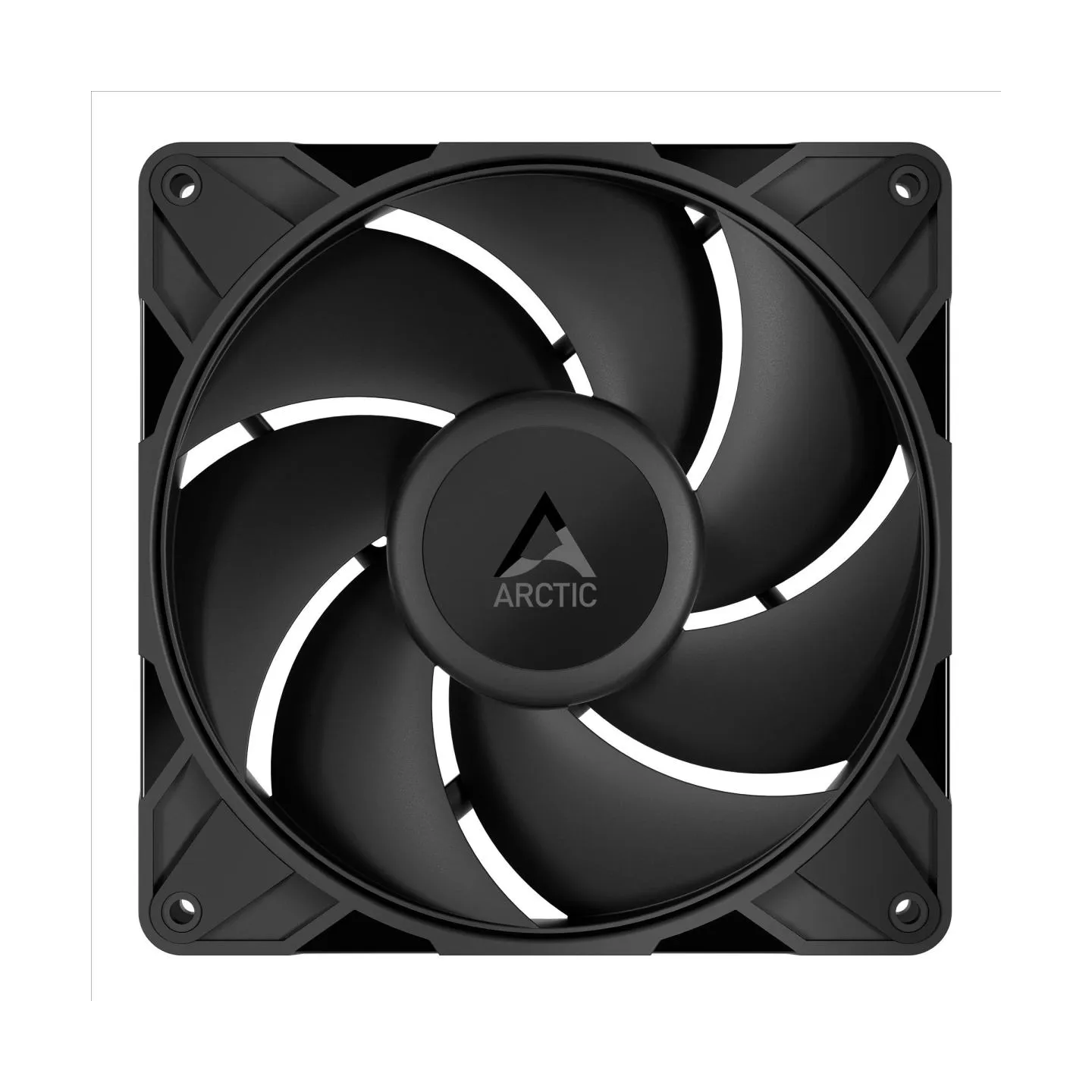

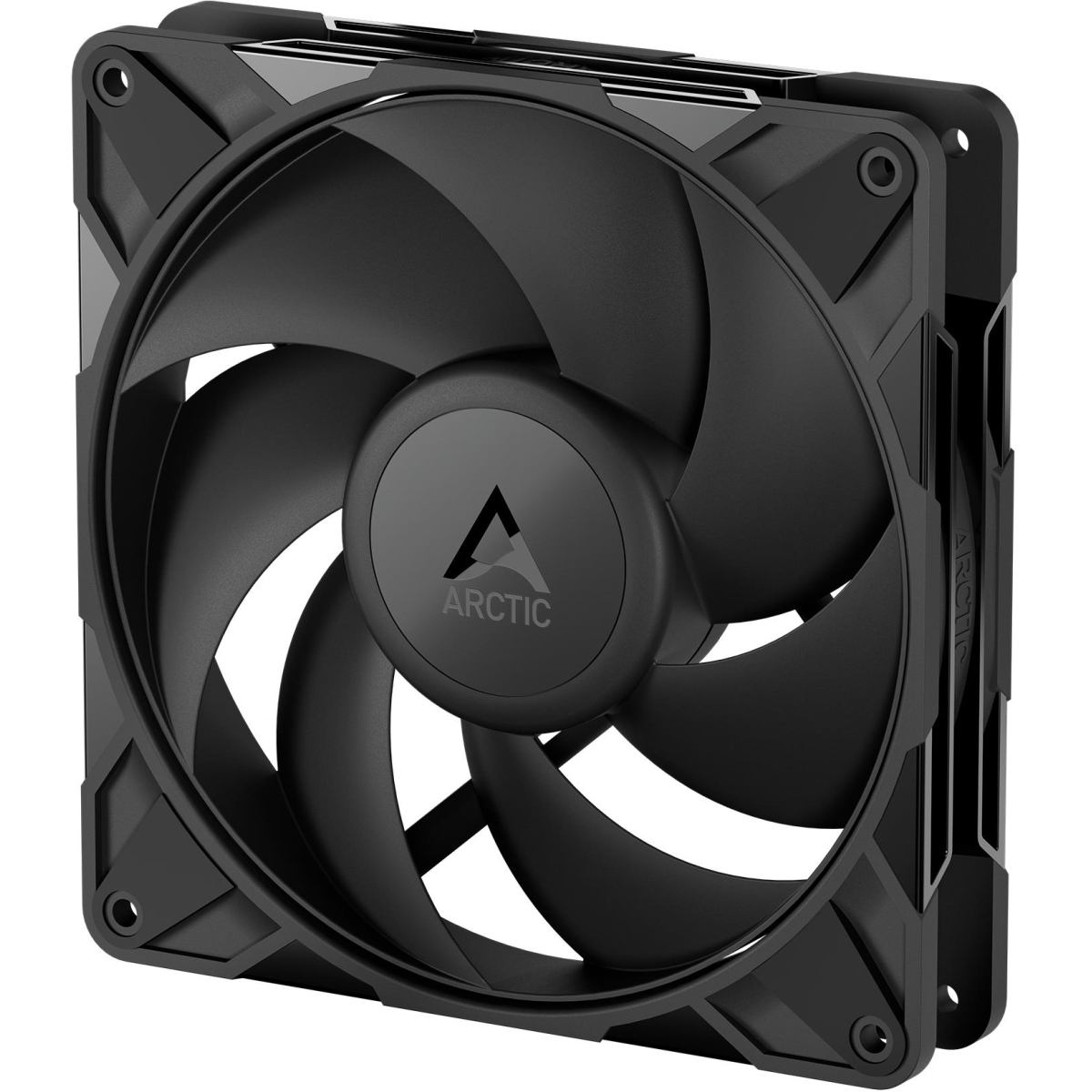

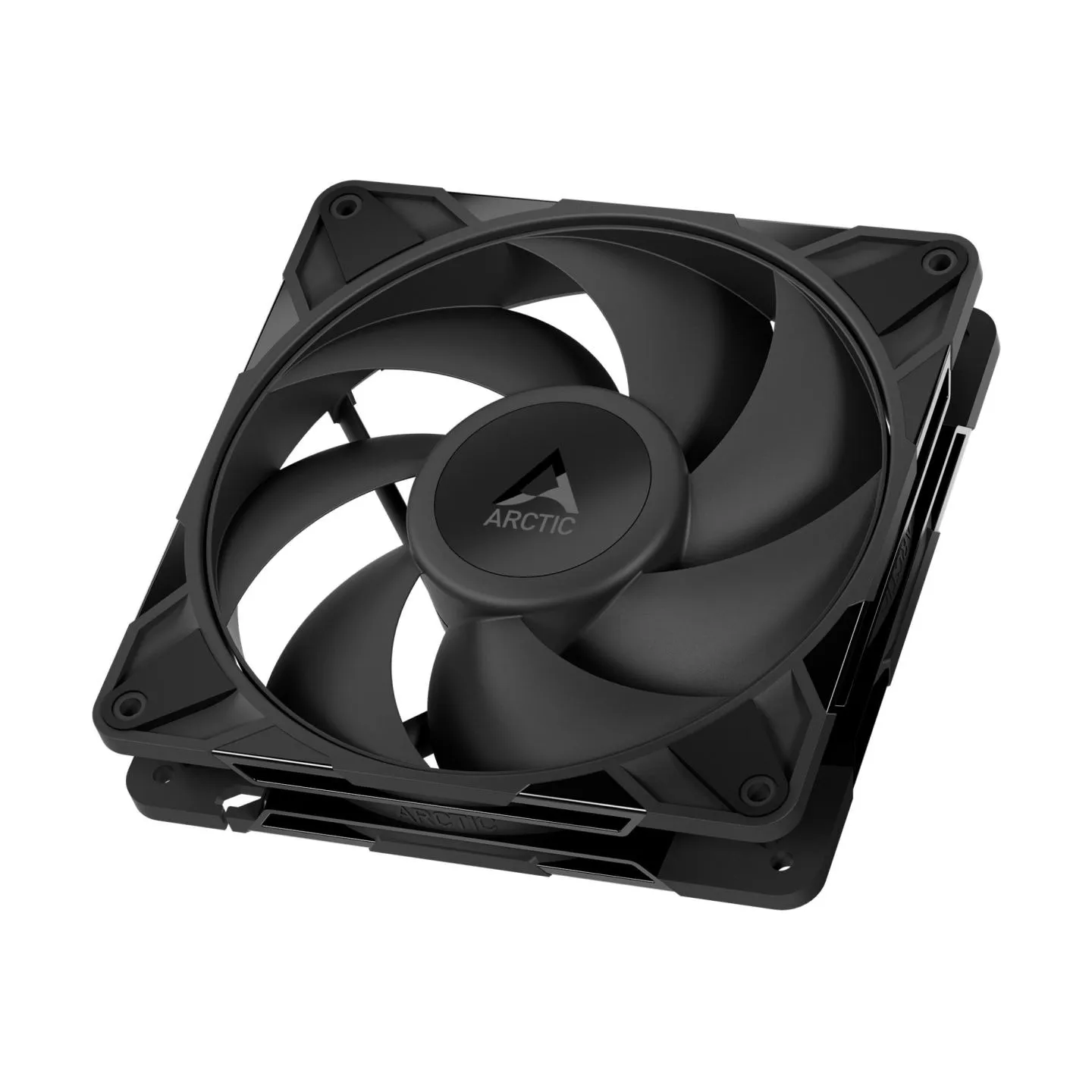

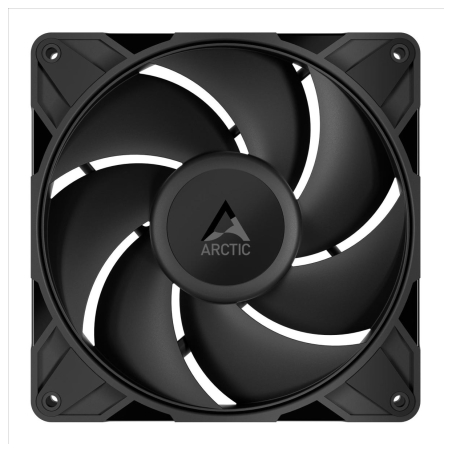

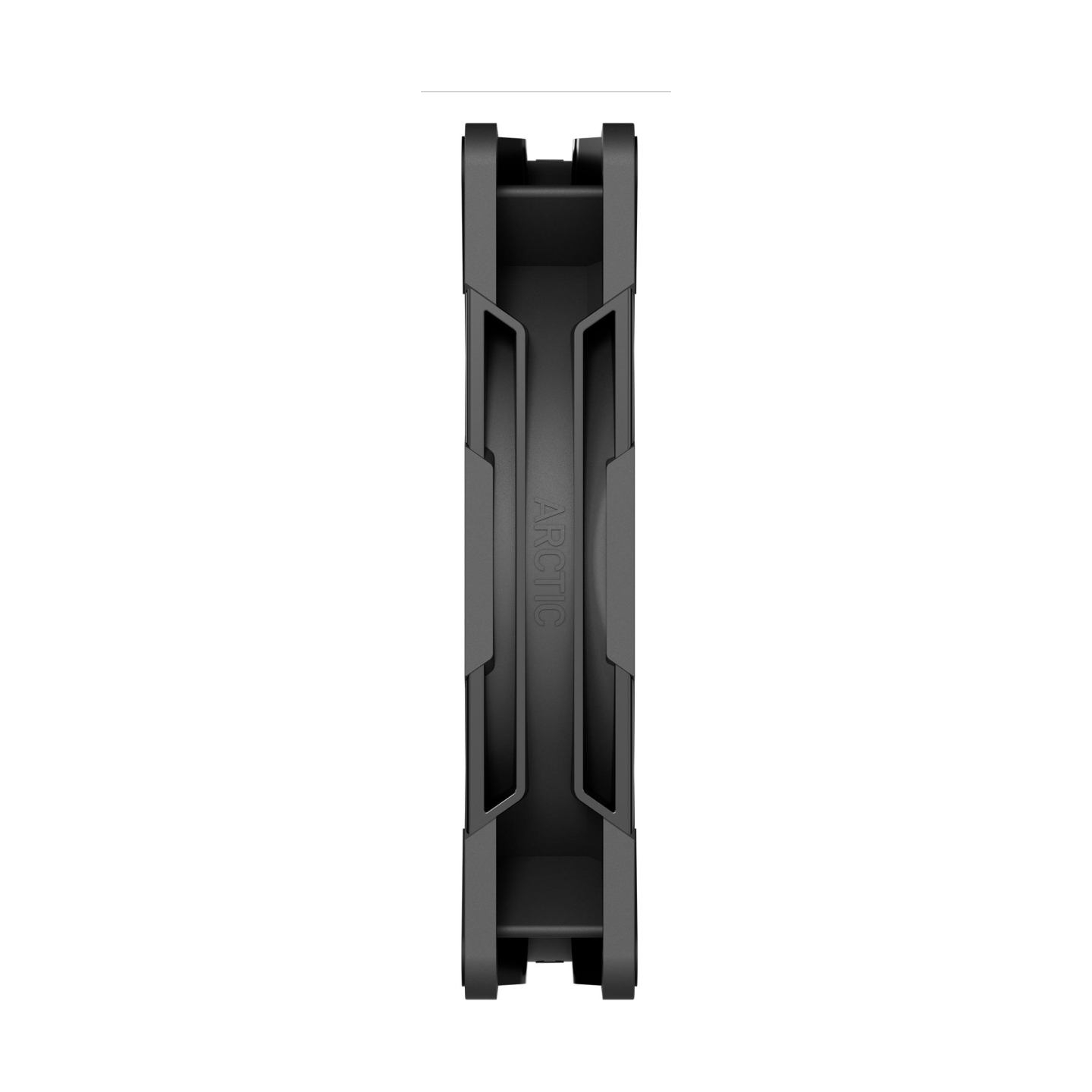

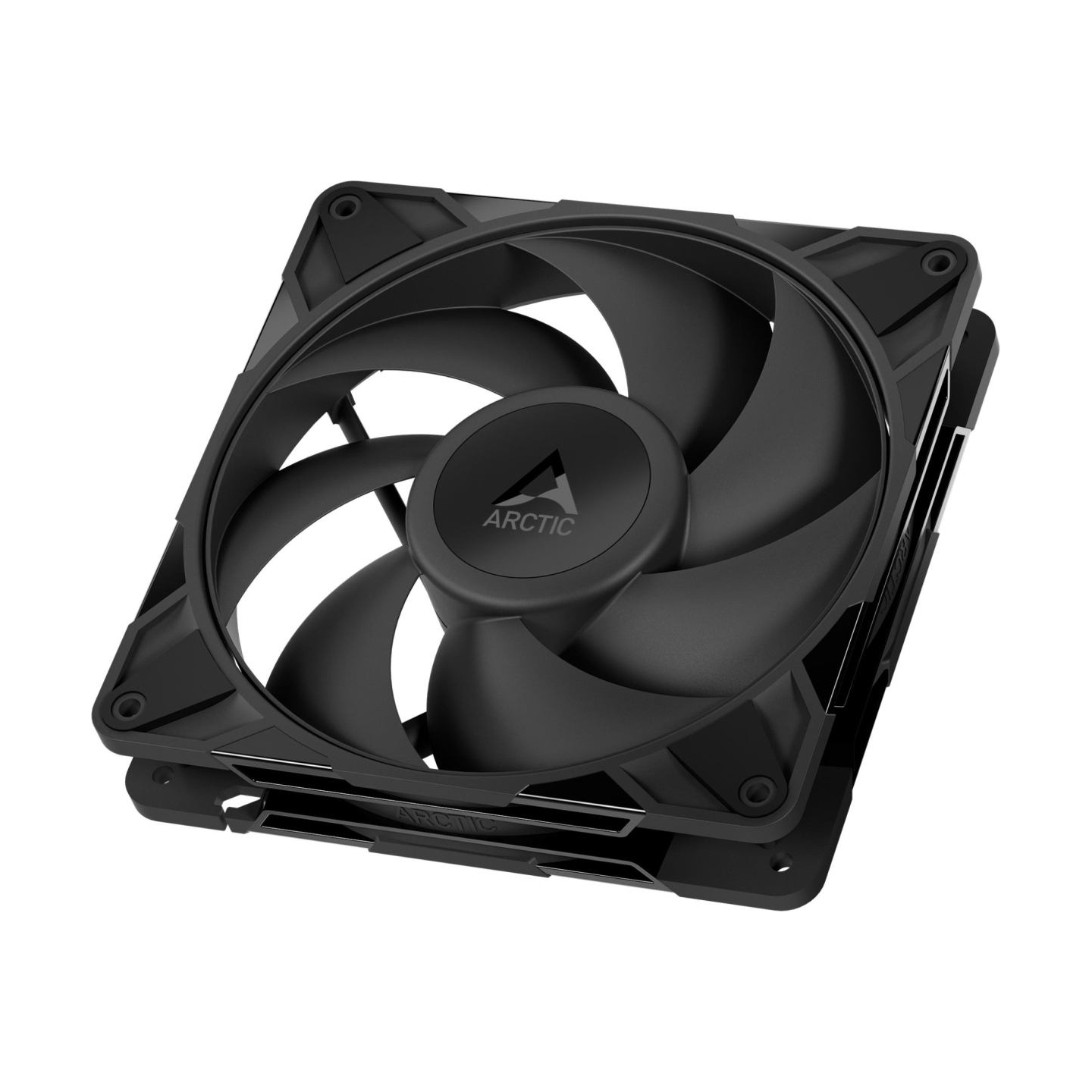

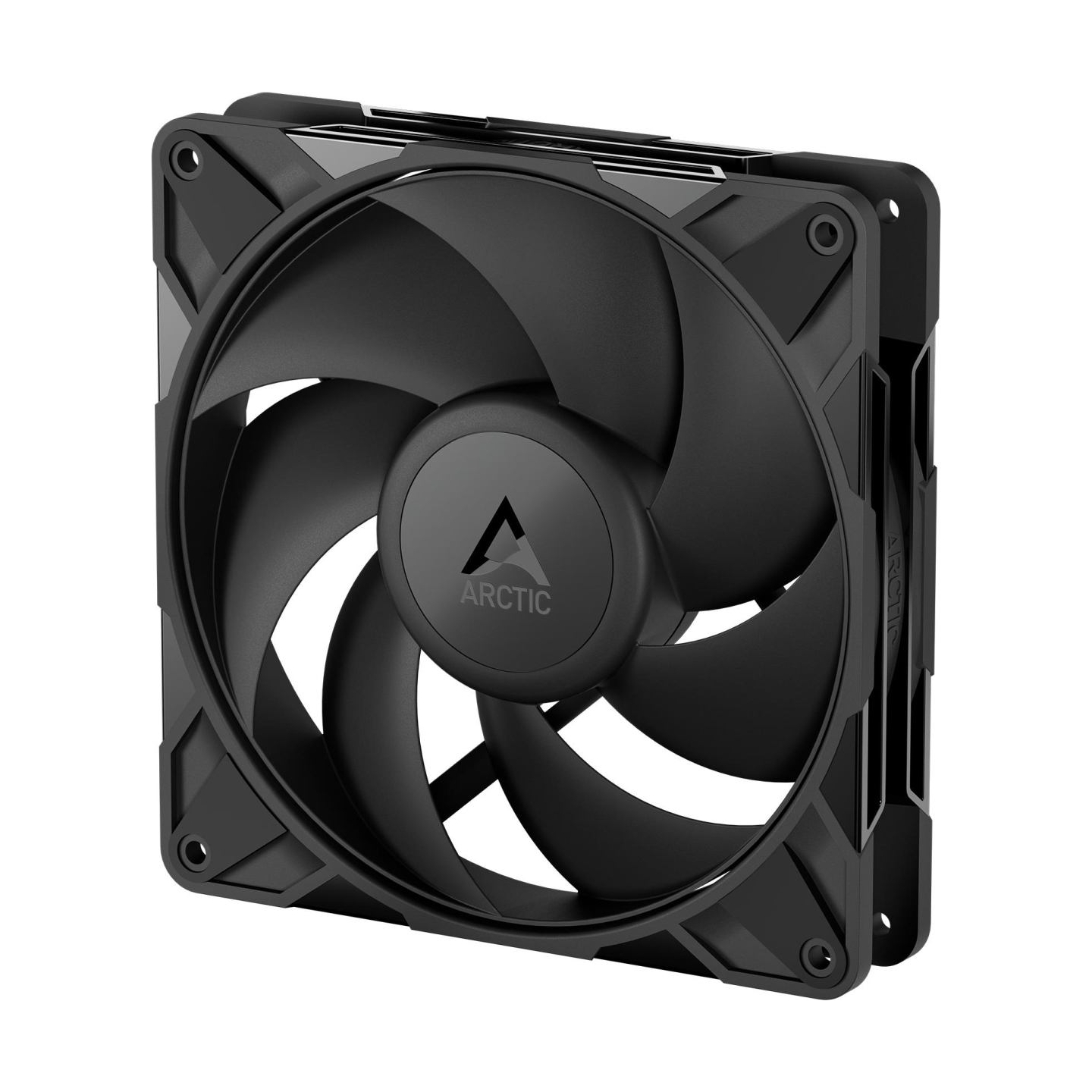

P14 Pro
140 mm
Type Fan
Suitable location Computer case
Rotational speed (max) 2500 RPM
Maximum airflow 110 cfm
Airflow 186 m³/h
Pulse-width modulation (PWM) support Yes
Bearing type Fluid Dynamic Bearing (FDB)
Operating temperature (T-T) 0 - 40 °C
Colour Black
Number of fans 1 fan(s)
Fan connector 4-pin
Rated current 0.35 A
Manufacturer Website:
https://www.arctic.de/en/P14-Pro/ACFAN00313A
- Summary
- ARCTIC P14 Pro 140 mm PWM Fan. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 2500 RPM, Airflow: 186 m³/h, Maximum air pressure: 5.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
- Category Code
- COS
- CnCode
- 84145925
- Unit Box Height
- 0.147
- Unit Box Length
- 0.15
- Unit Box Width
- 0.035
- Airflow
- 186 m³/h
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Fan diameter
- 140 mm
- Maximum air pressure
- 5.2 mmH2O
- Maximum airflow
- 110 cfm
- Operating temperature (T-T)
- 0 - 40 °C
- Pulse-width modulation (PWM) support
- Yes
- Rotational speed (max)
- 2500 RPM
- Rotational speed (min)
- 400 RPM
- Suitable location
- Computer case
- Type
- Fan
- Fan connector
- 4-pin
- Number of fans
- 1 fan(s)
- Product colour
- Black
- Rated current
- 0.35 A
- Rated voltage
- 12 V
- Starting voltage
- 5 V
- Cable length
- 0.4 m
- Fan dimensions (W x D x H)
- 140 x 140 x 27 mm
- Fan weight
- 240 g
- Package depth
- 145 mm
- Package height
- 32 mm
- Package weight
- 290 g
- Package width
- 145 mm
- Number of screws
- 4
- Screws included
- Yes
- Model
- ACFAN00313A
- Model name
- P14 Pro
- Units per Shipping Box
- 48
- Unit Calculated Volume
- 0.0008341 cubm
- Unit Calculated Weight
- 0.298 kg
