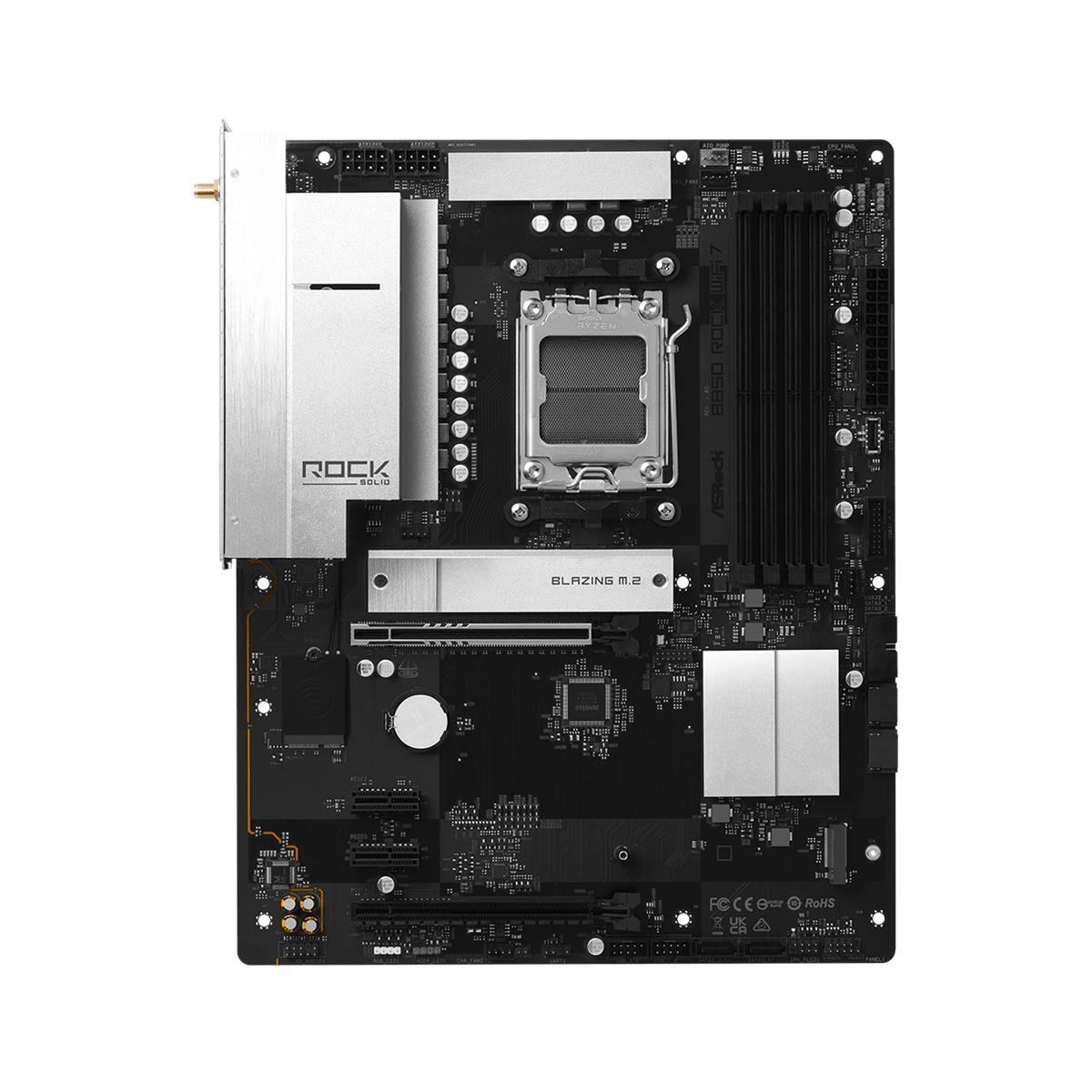

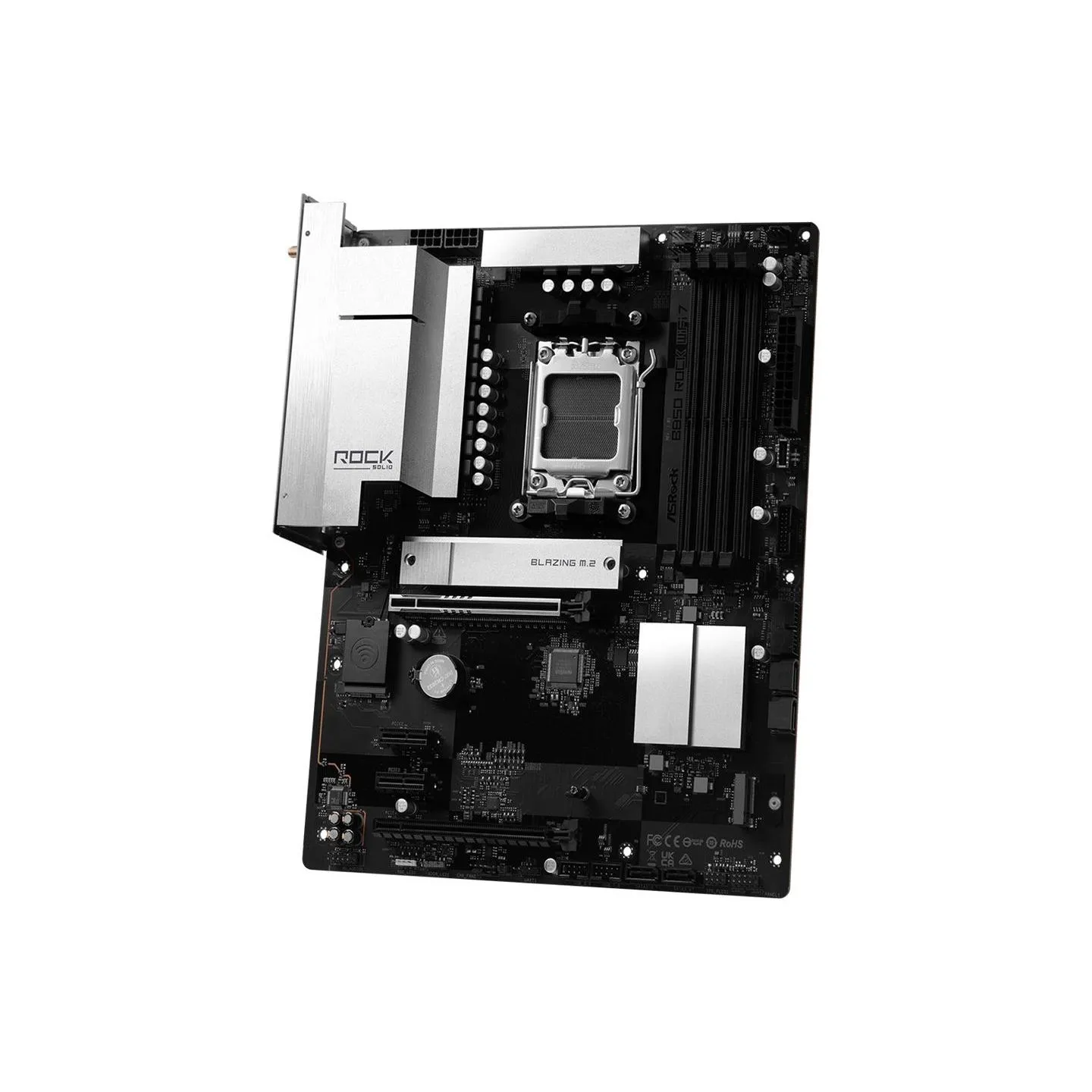

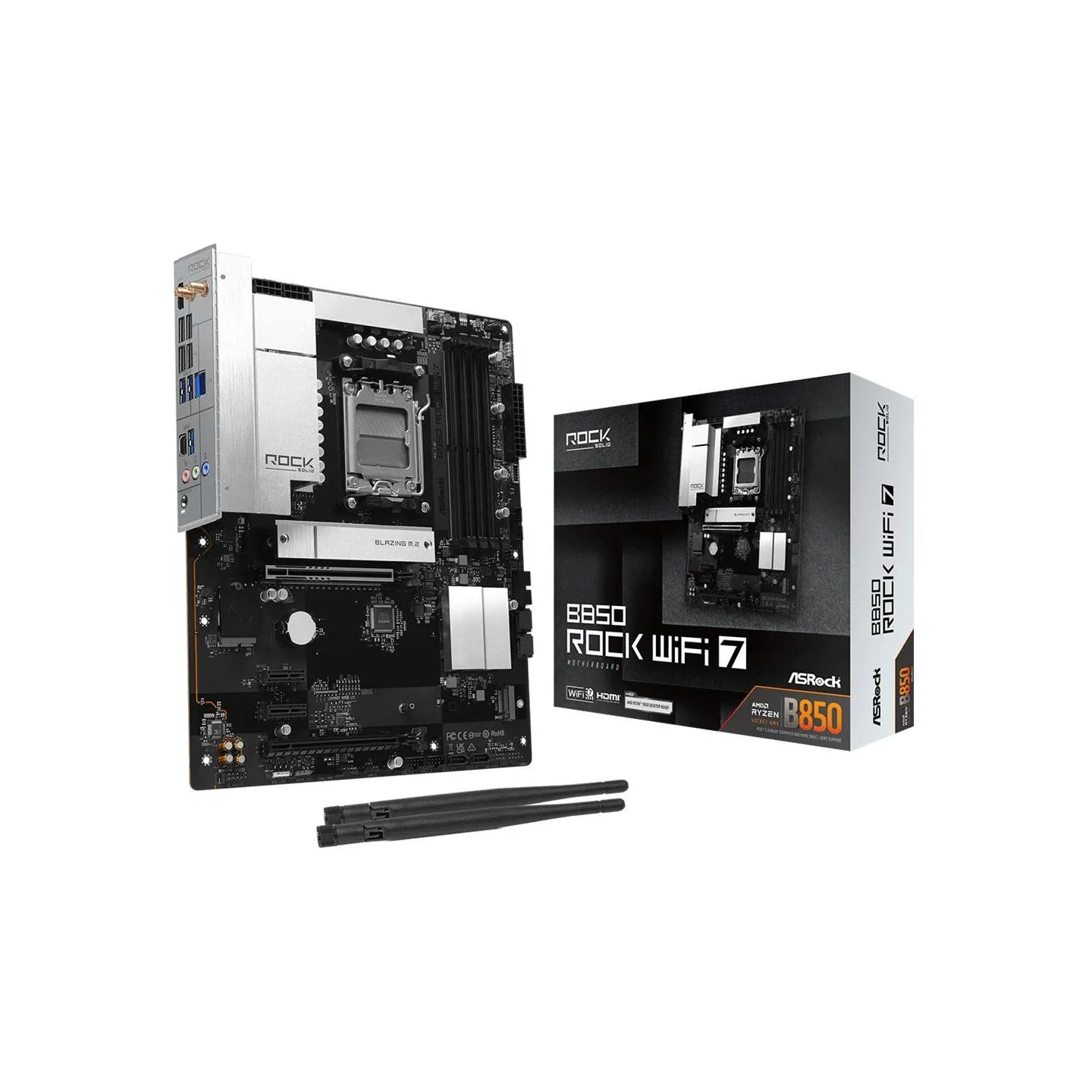

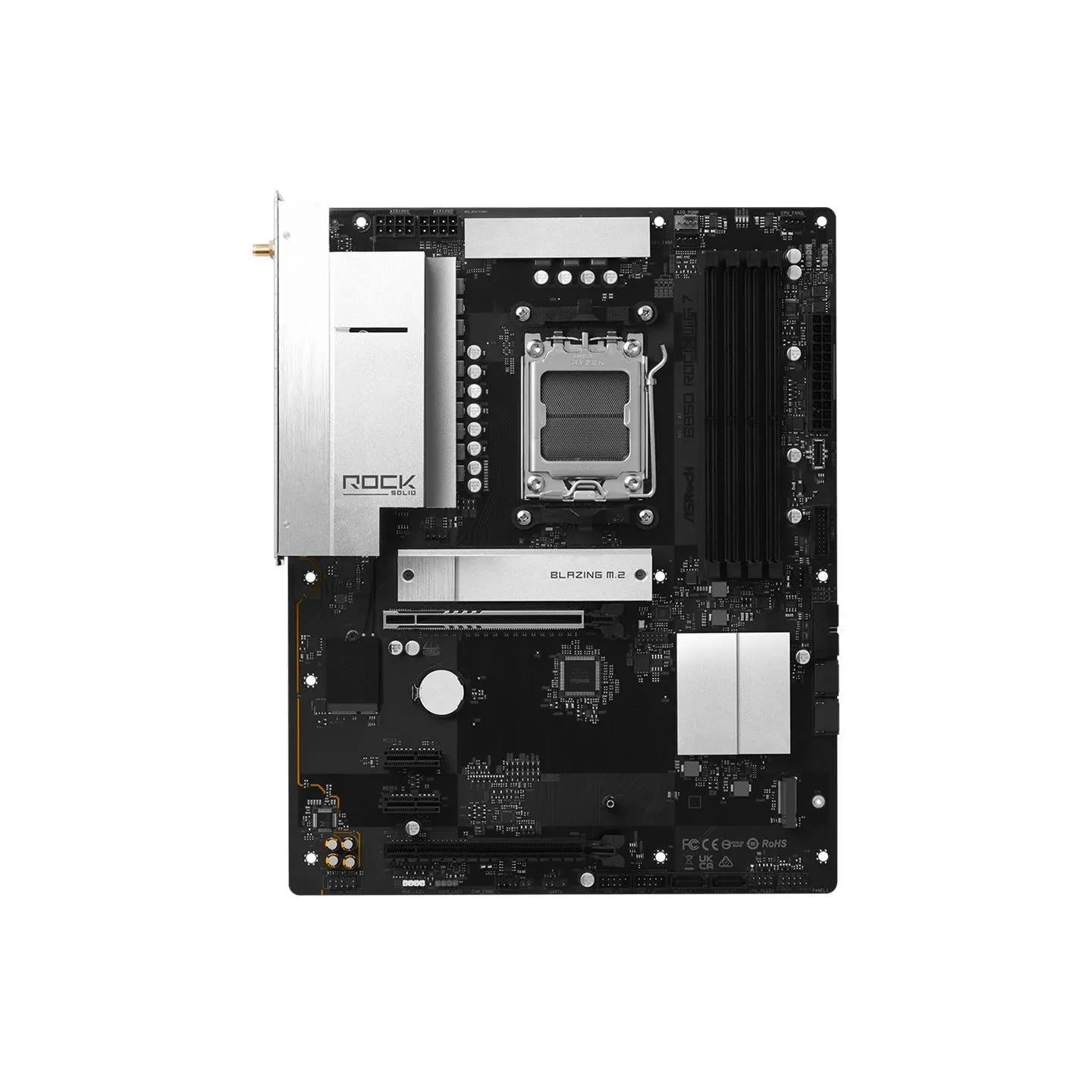

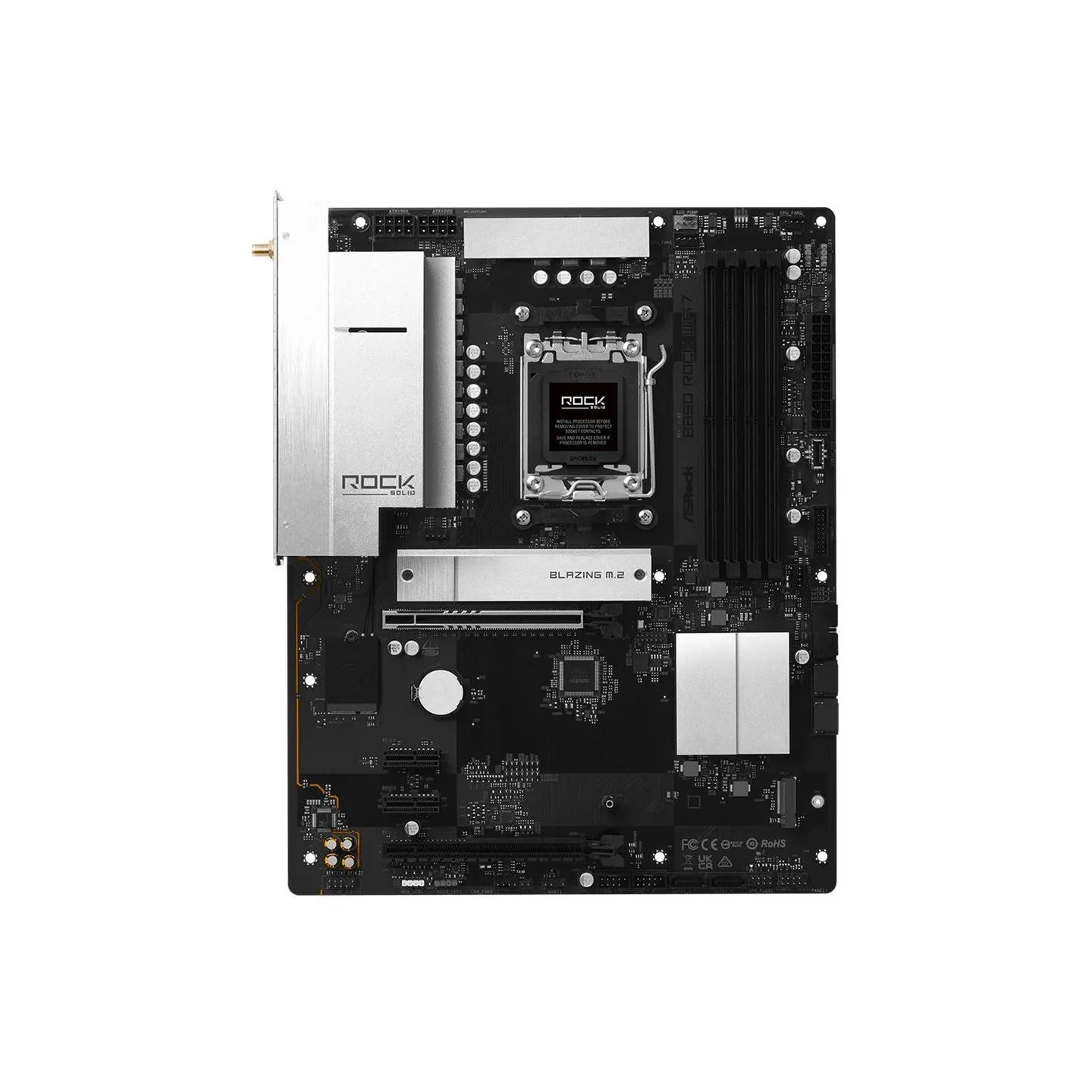

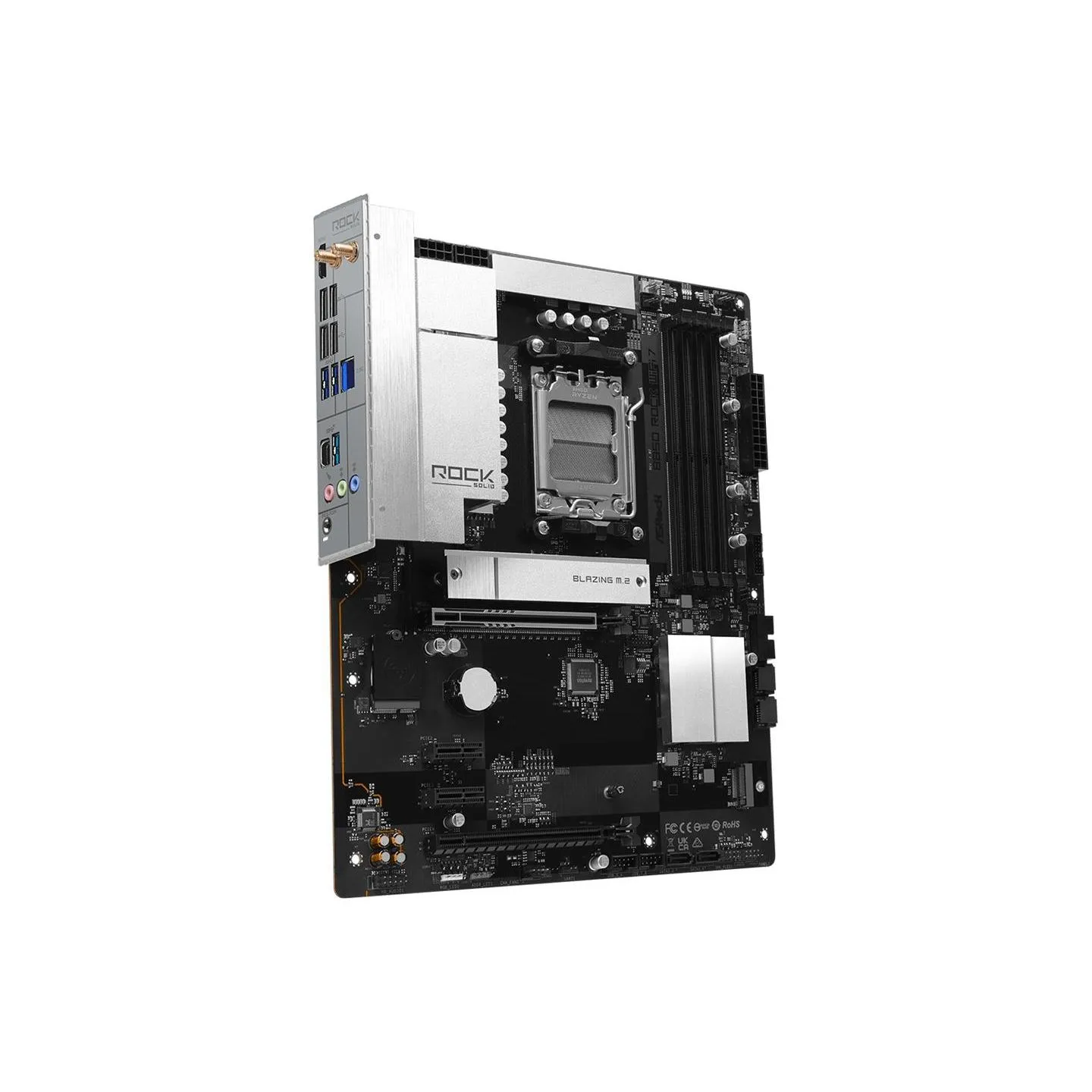

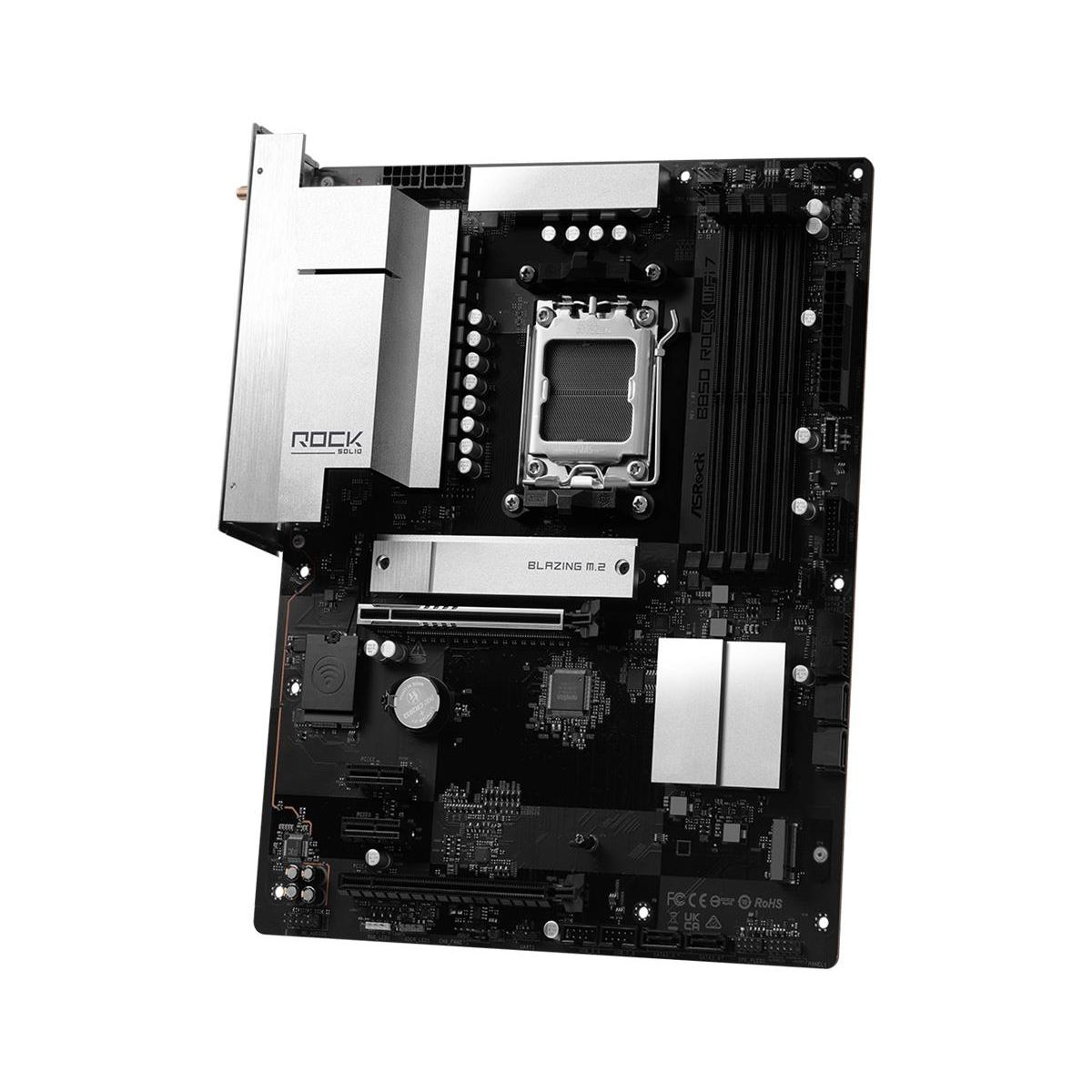

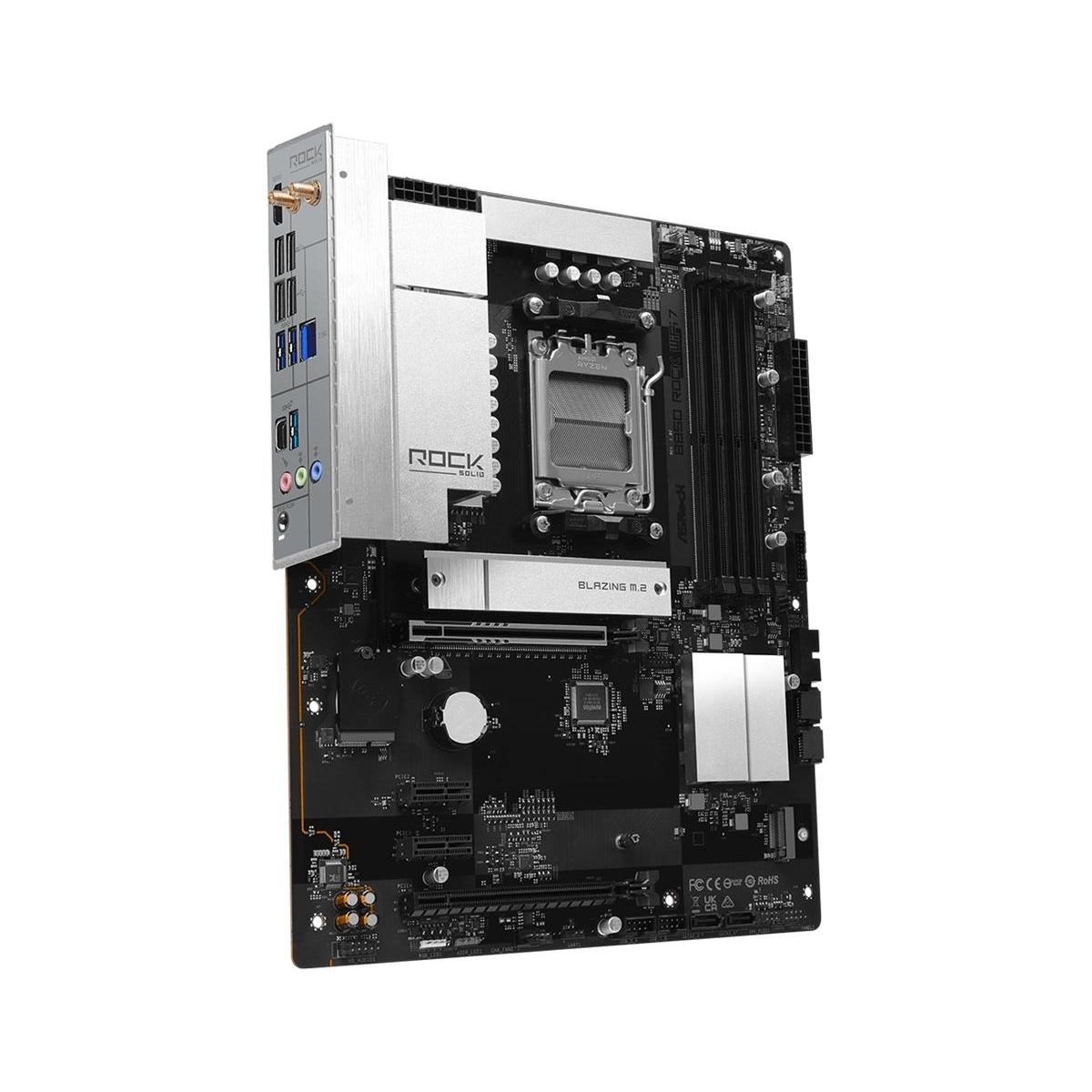

Asrock Motherboard B850 ROCK WIFI 7 AM5 4DDR5 ATX
Price:
€209.20
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
- SKU
- KBASRAA8B850A08
- Barcode
- 4711581493841
- Model
- B850 ROCK WIFI 7
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 2 x PCIe 4.0 x 1
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

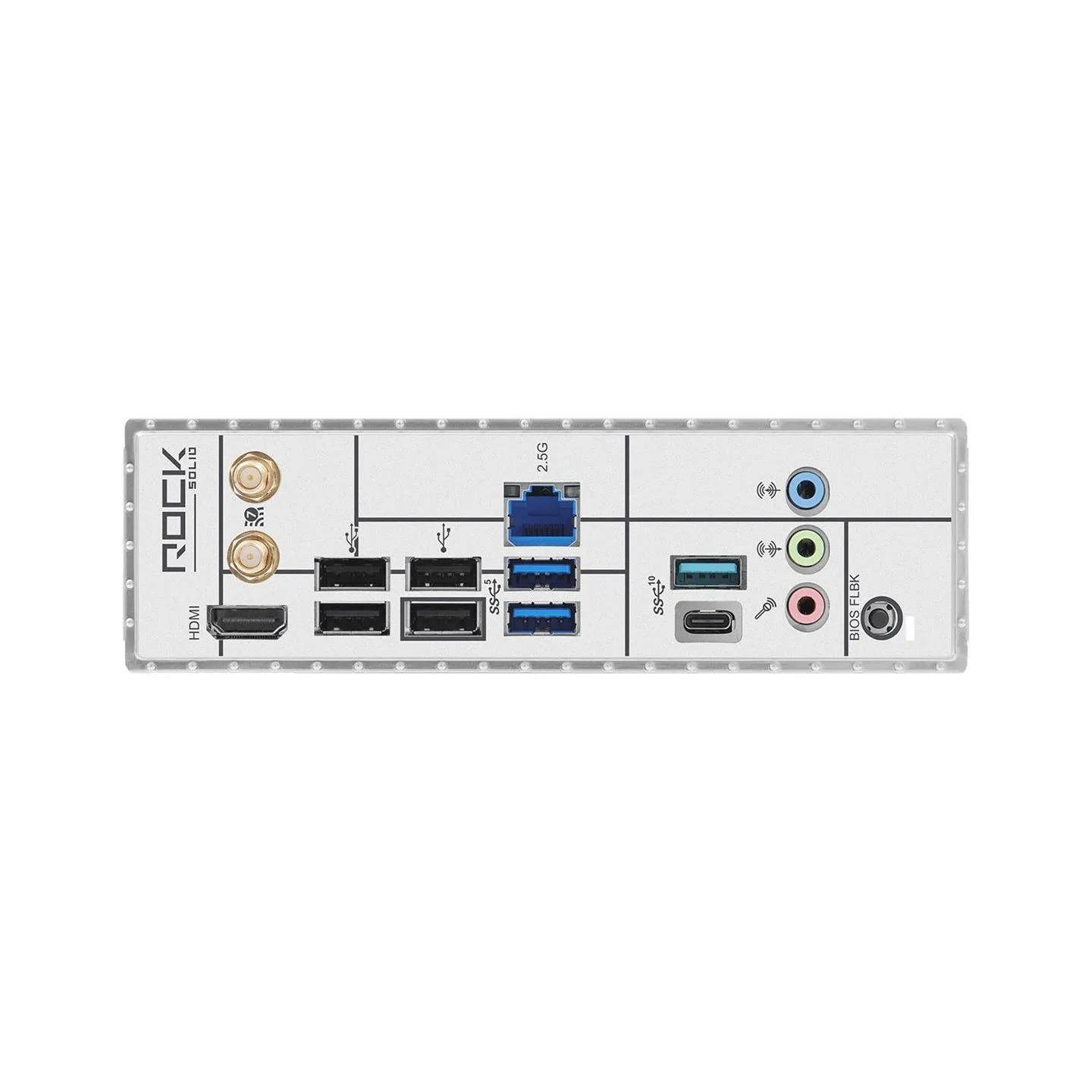

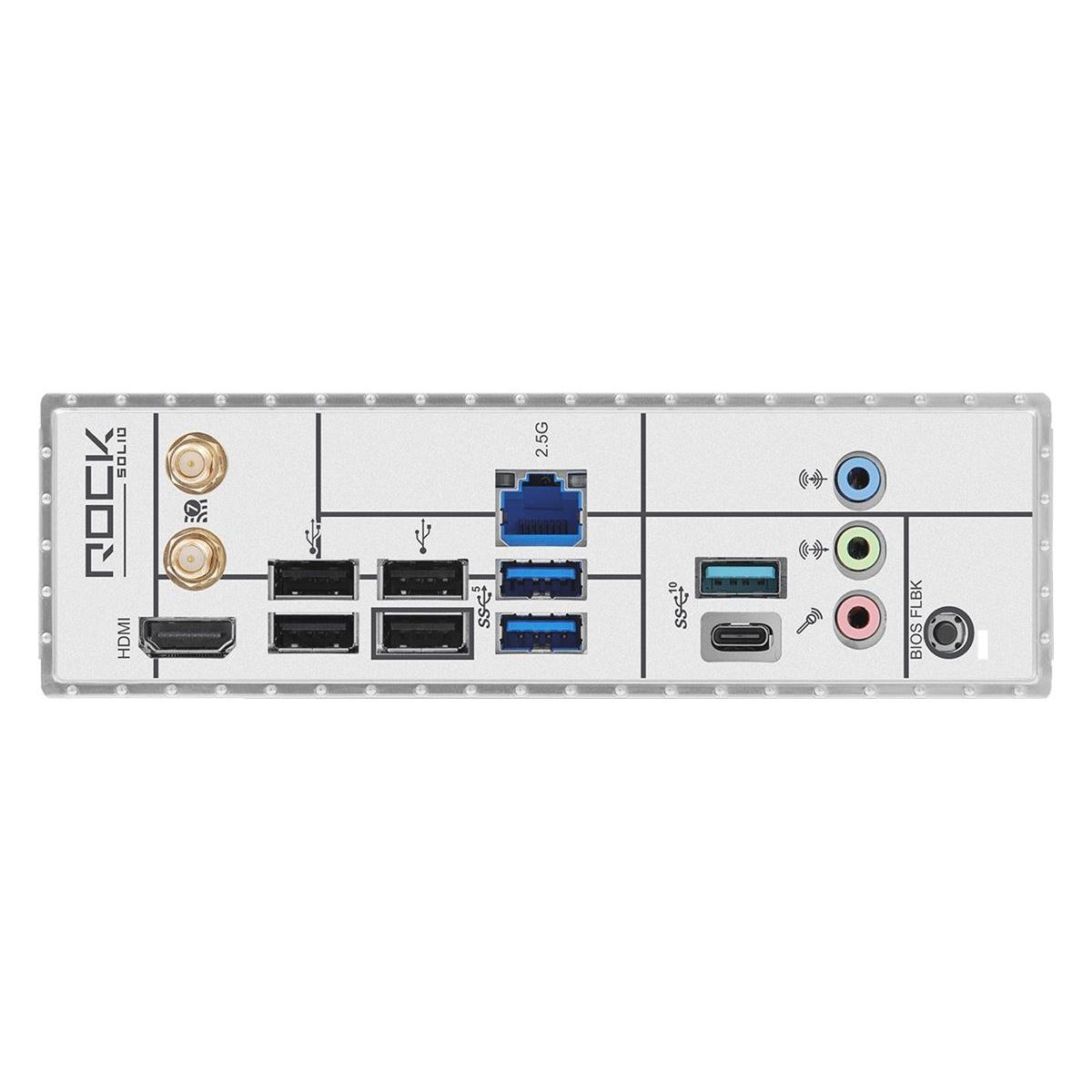

- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x MIC
- External connectors
- 2 x SMA
- External connectors
- 1 x Line Out
- External connectors
- 1 x Line In
- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x RGB LED strip header
- BIOS
- 512Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC
- Designation
- CE+WEEE
