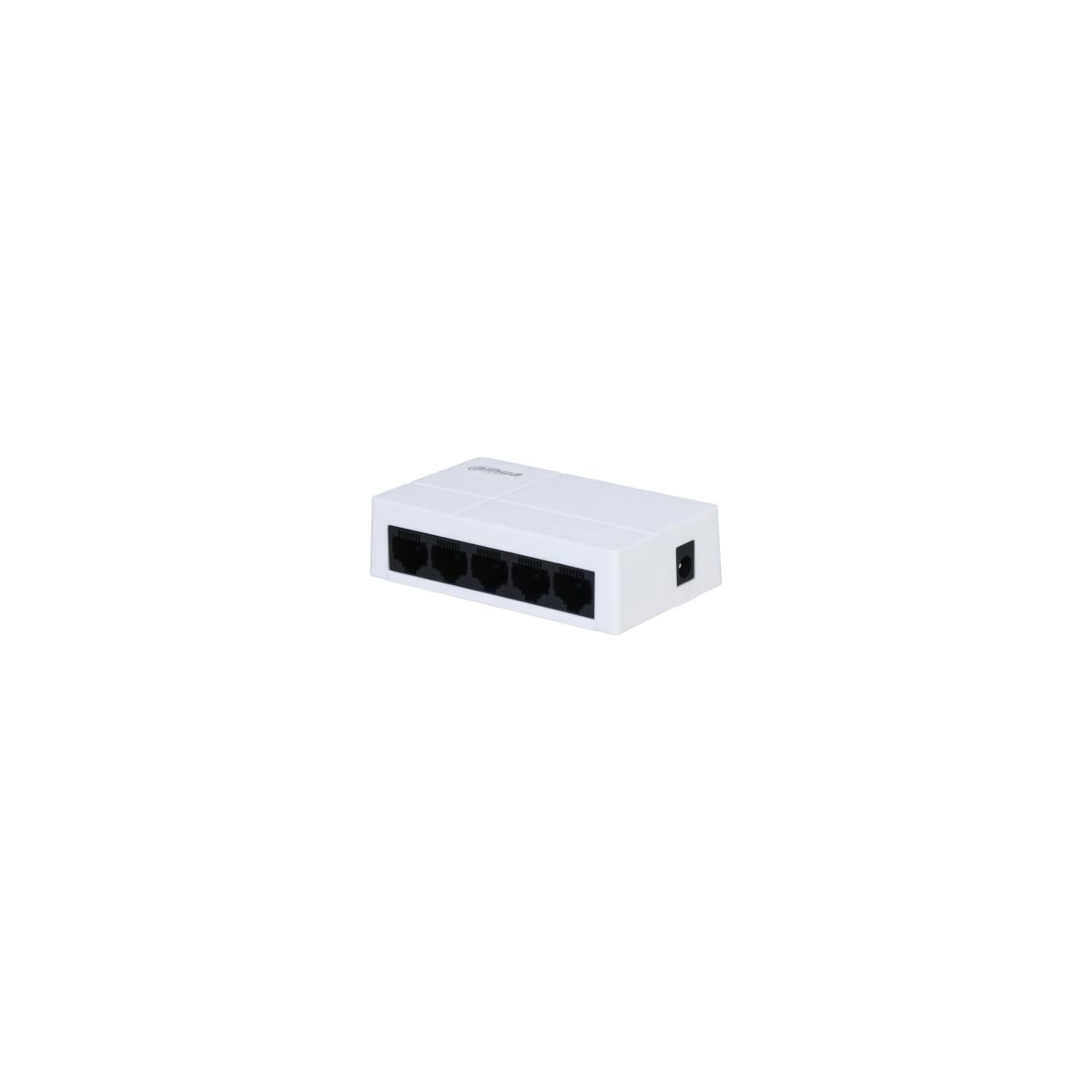

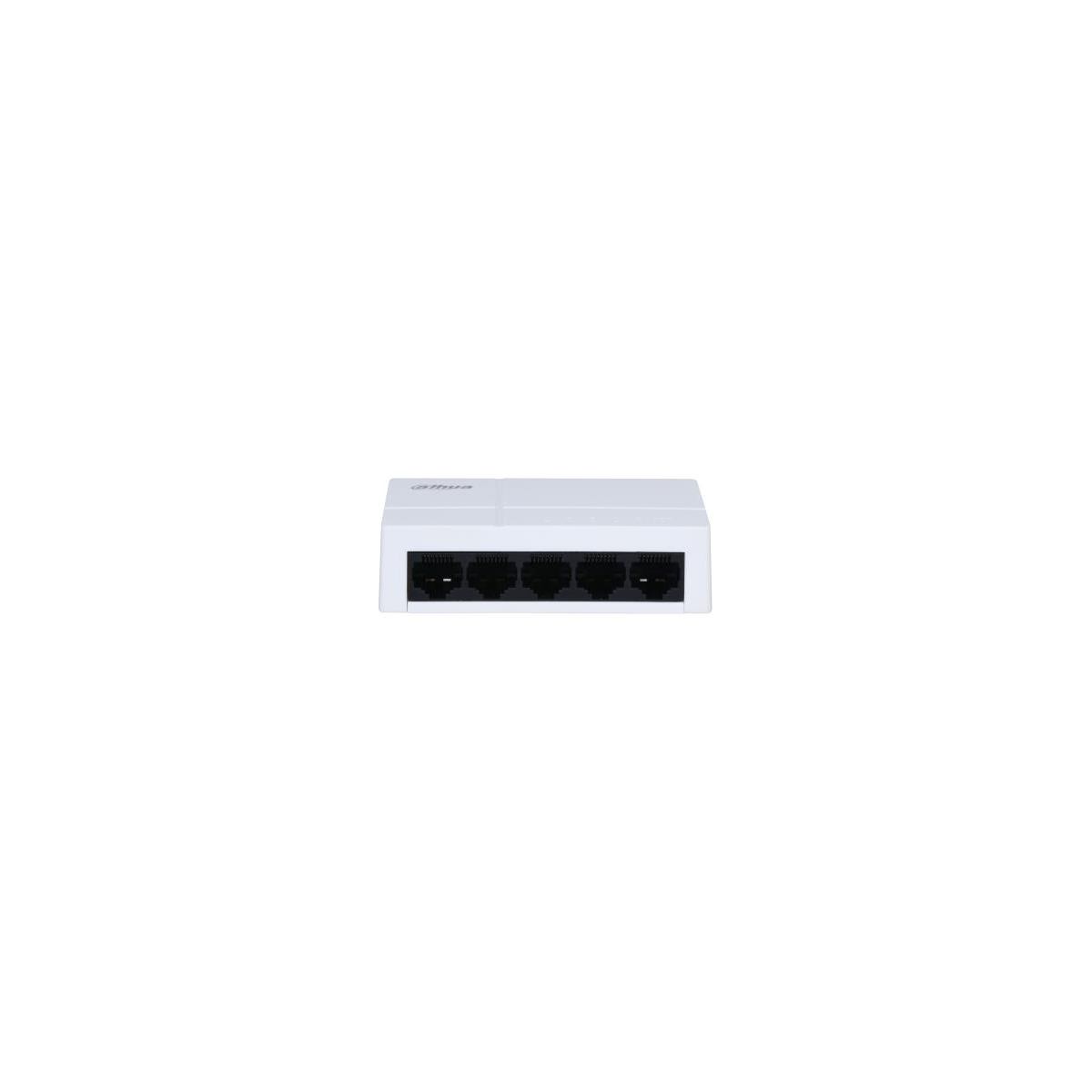

Dahua Switch|DAHUA|5xRJ-45 ports|SG1005L-EUR
The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/SG1005L
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.065
- Unit Box Length
- 0.115
- Unit Box Width
- 0.095
- Switch layer
- L2
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 5
- 10G support
- No
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-T/10BASE-T
- Forwarding rate
- 7.44 Mpps
- MAC address table
- 2000 entries
- Packet buffer memory
- 1 MB
- Store-and-forward
- Yes
- Switching capacity
- 10 Gbit/s
- Housing material
- Plastic
- Product colour
- White
- DC input voltage
- 5 V
- Input current
- 1 A
- Power consumption (max)
- 1.5 W
- Power source
- DC
- Power supply included
- Yes
- Power over Ethernet (PoE)
- No
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 0 - 45 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 52 mm
- Height
- 23 mm
- Weight
- 120 g
- Width
- 86.4 mm
- Package depth
- 94 mm
- Package height
- 67 mm
- Package weight
- 230 g
- Package width
- 111 mm
- Compliance certificates
- CE
- Model
- SG1005L-EUR
- Units per Shipping Box
- 30
- Unit Calculated Volume
- 0.000852 cubm
- Unit Calculated Weight
- 0.2 kg
