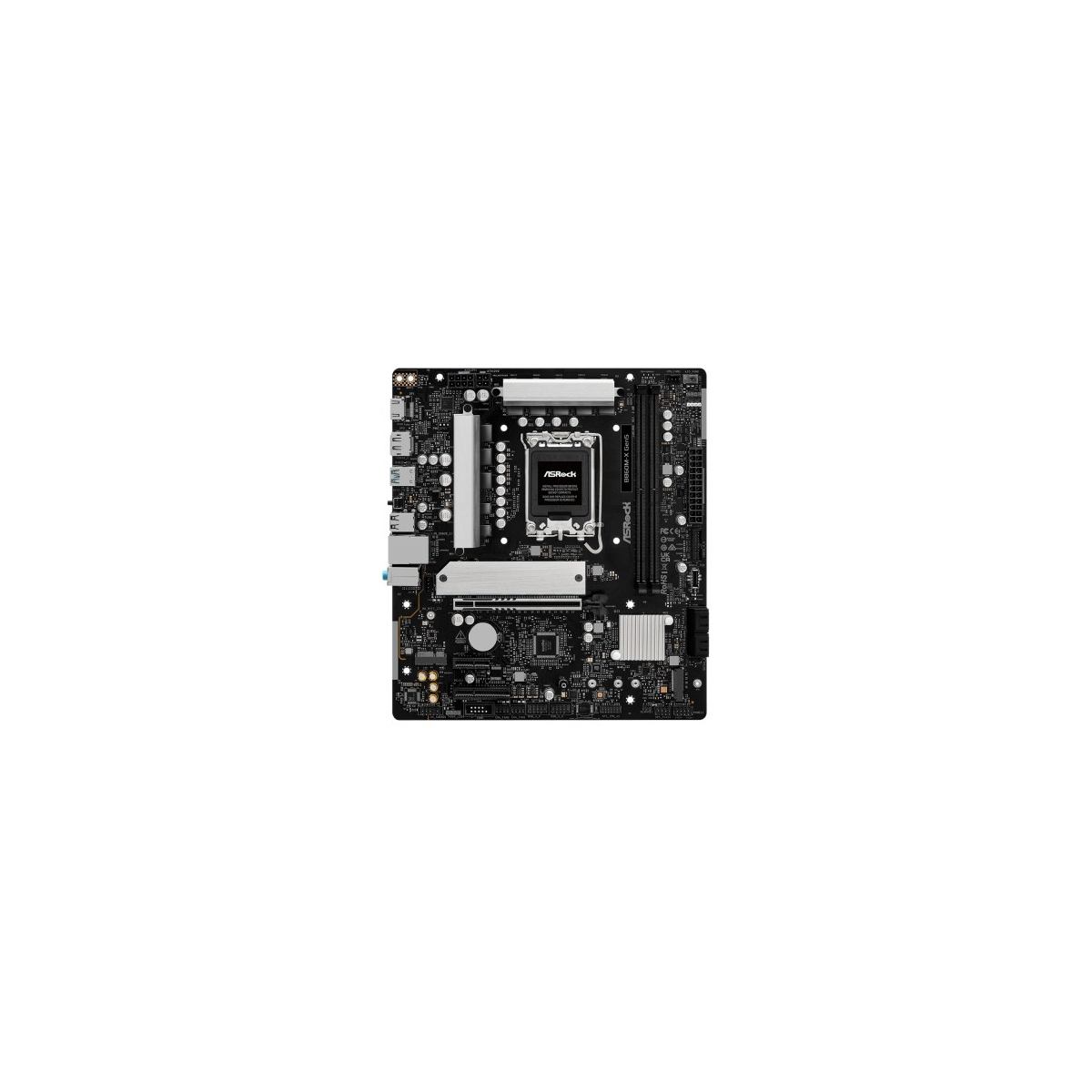

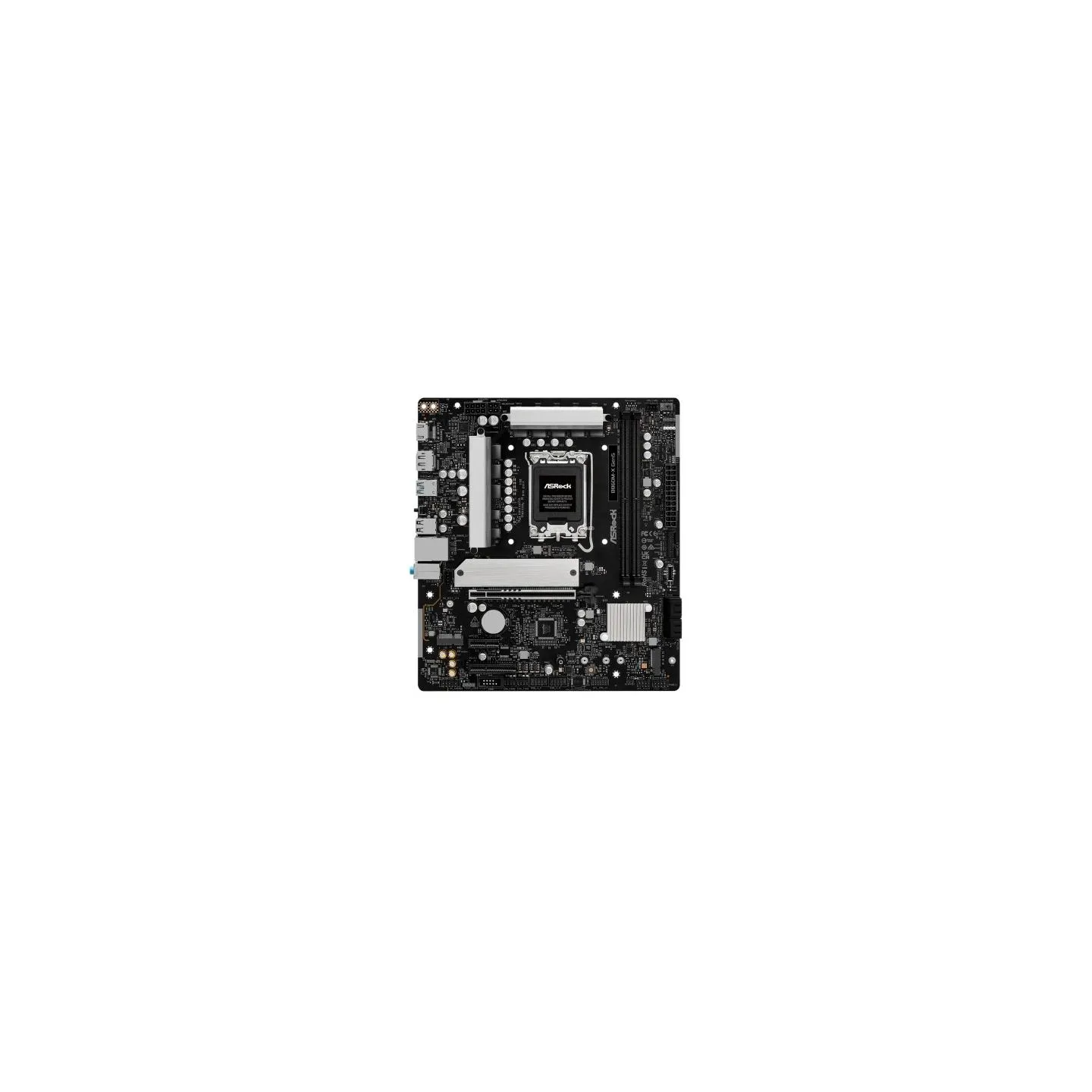

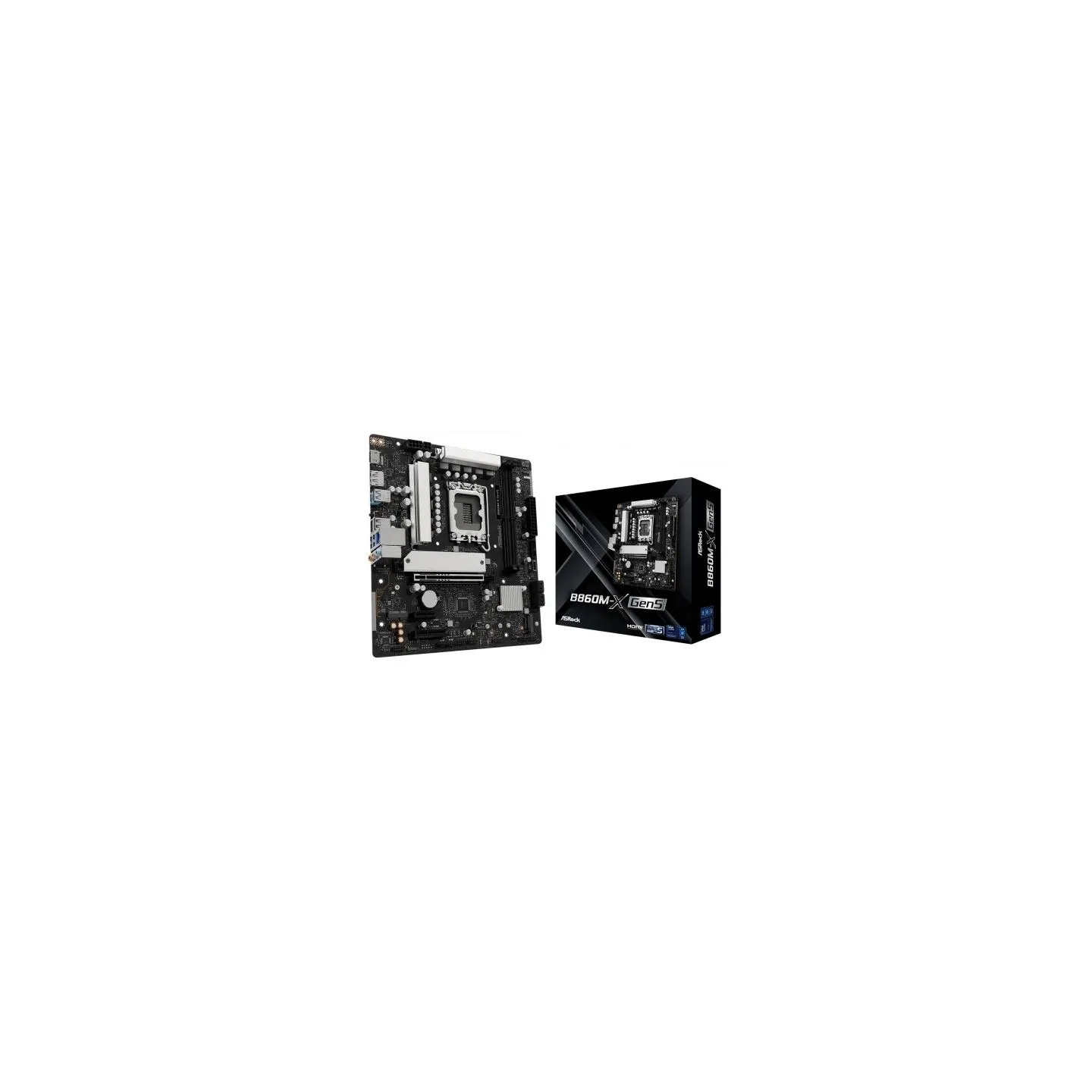

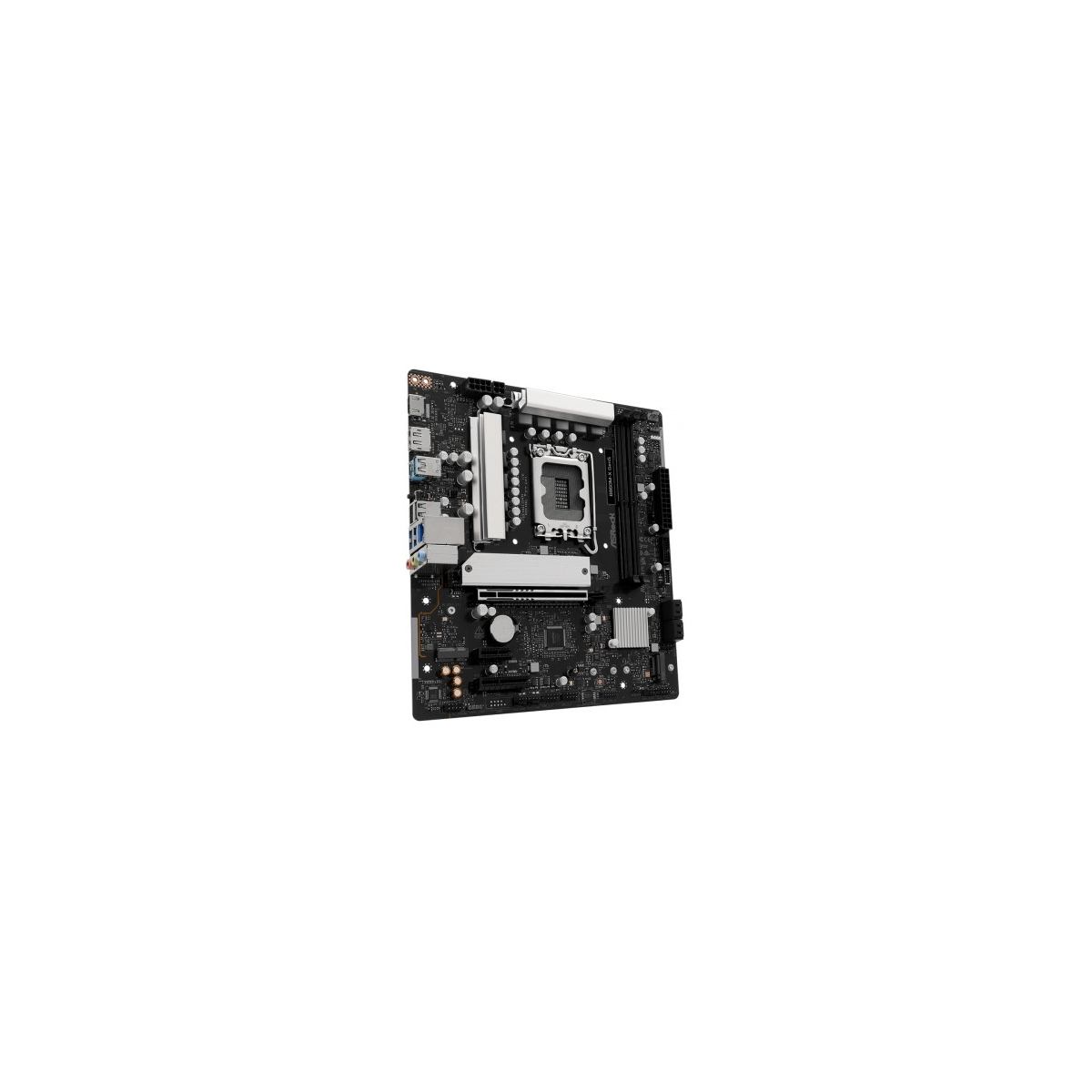

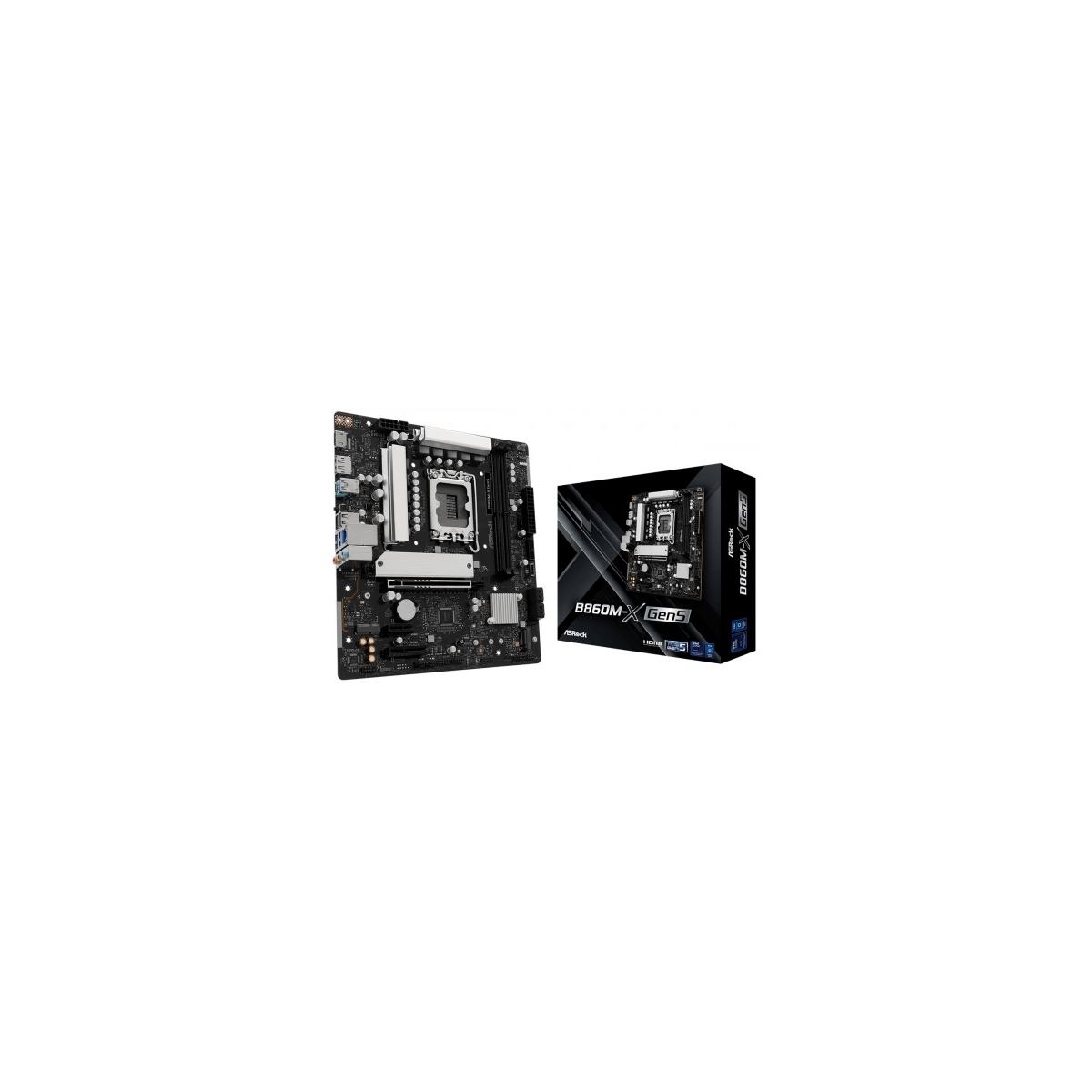

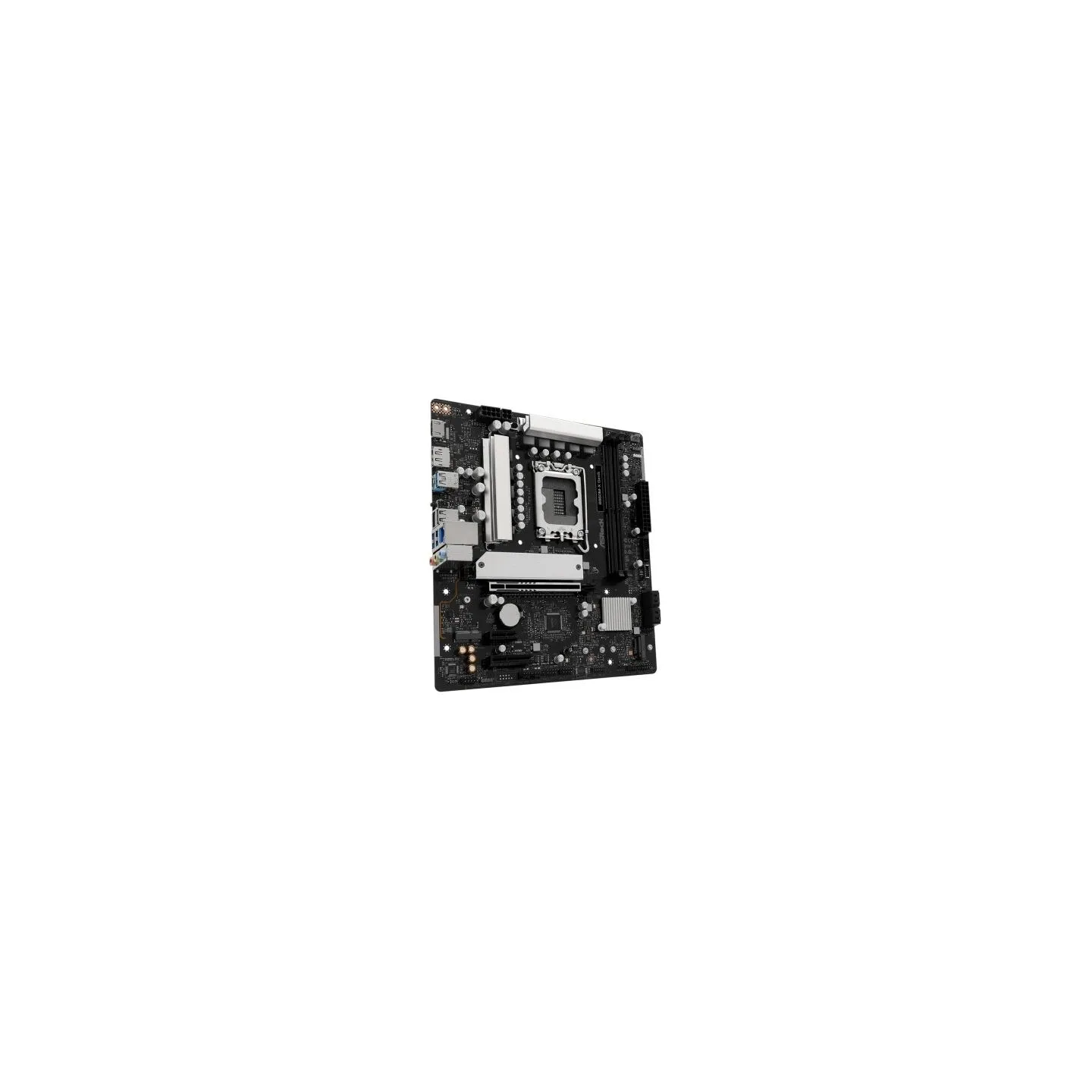

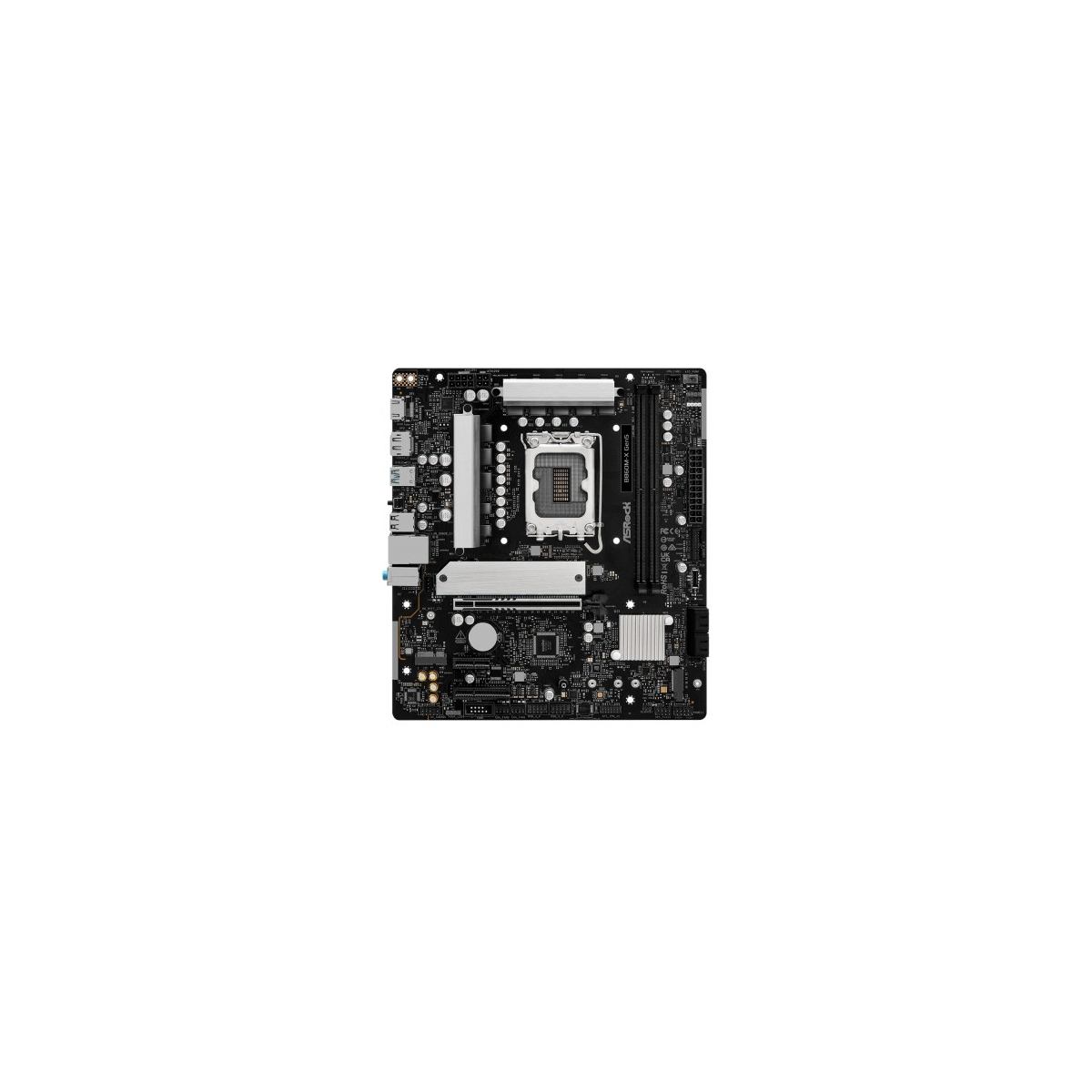

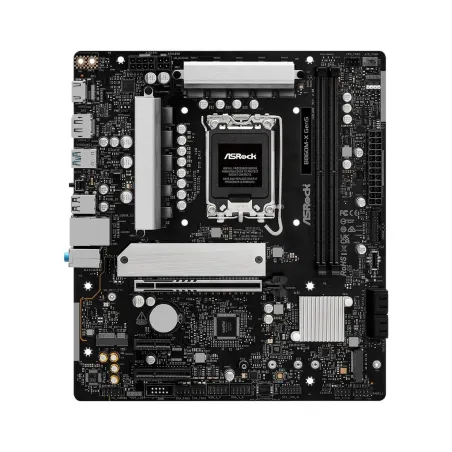

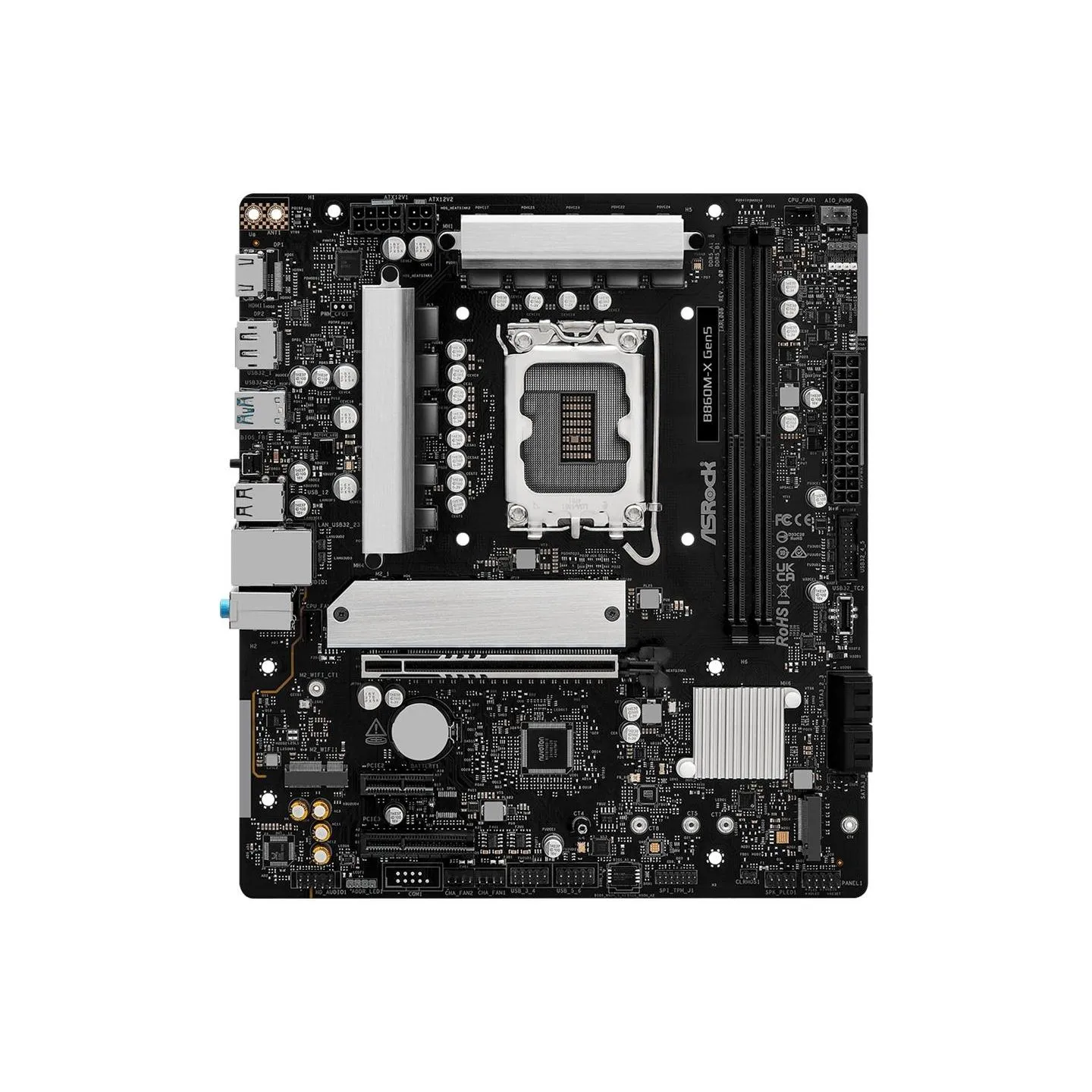

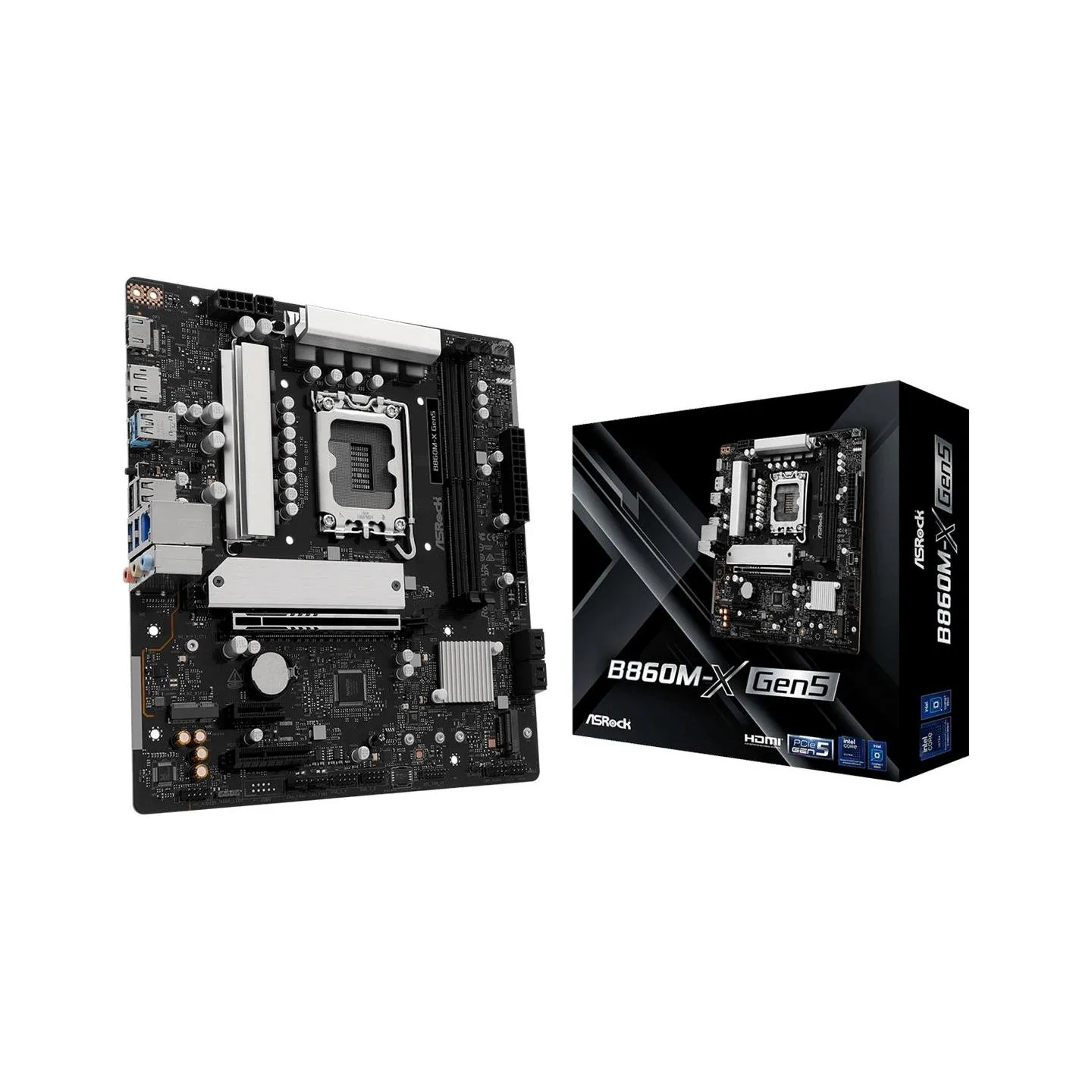

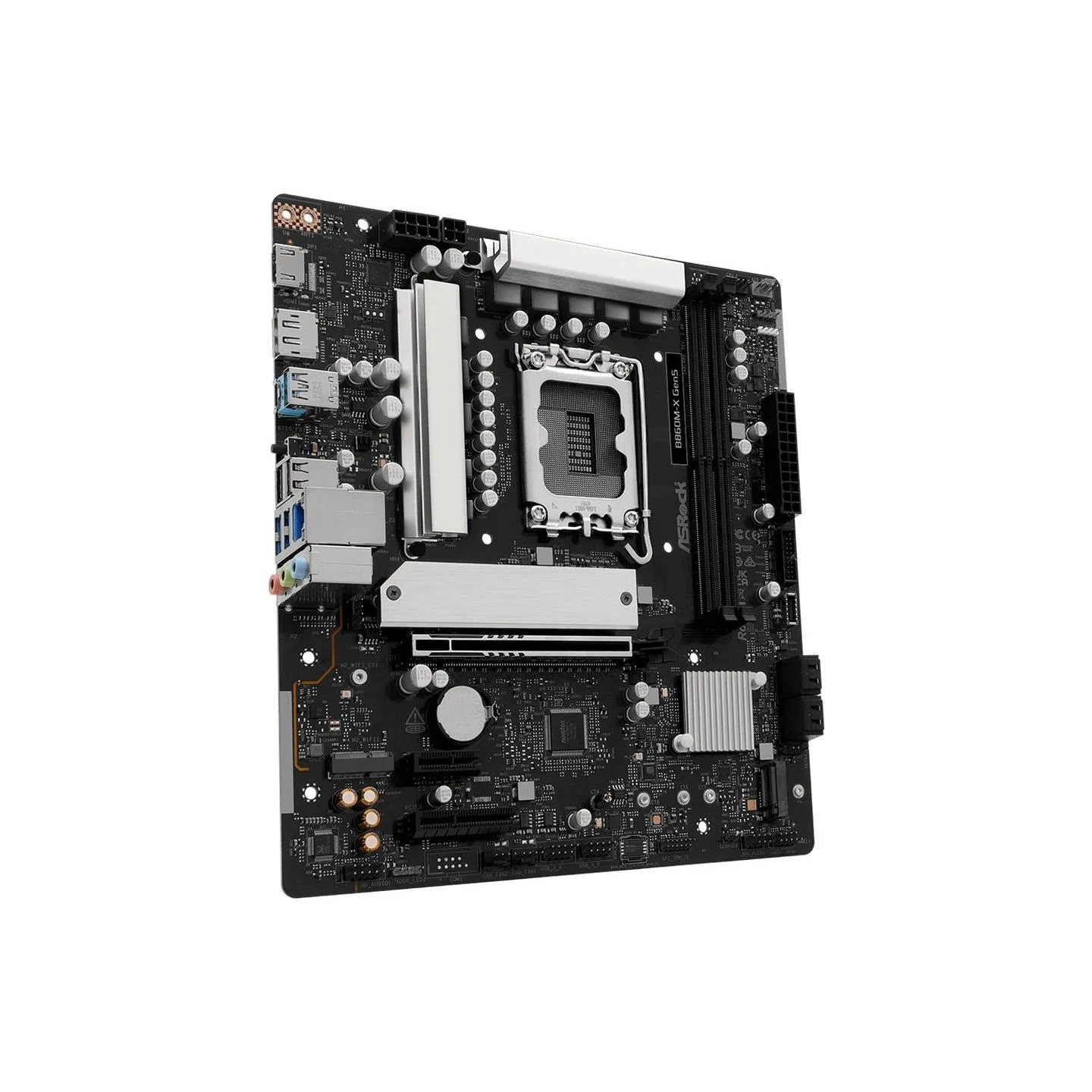

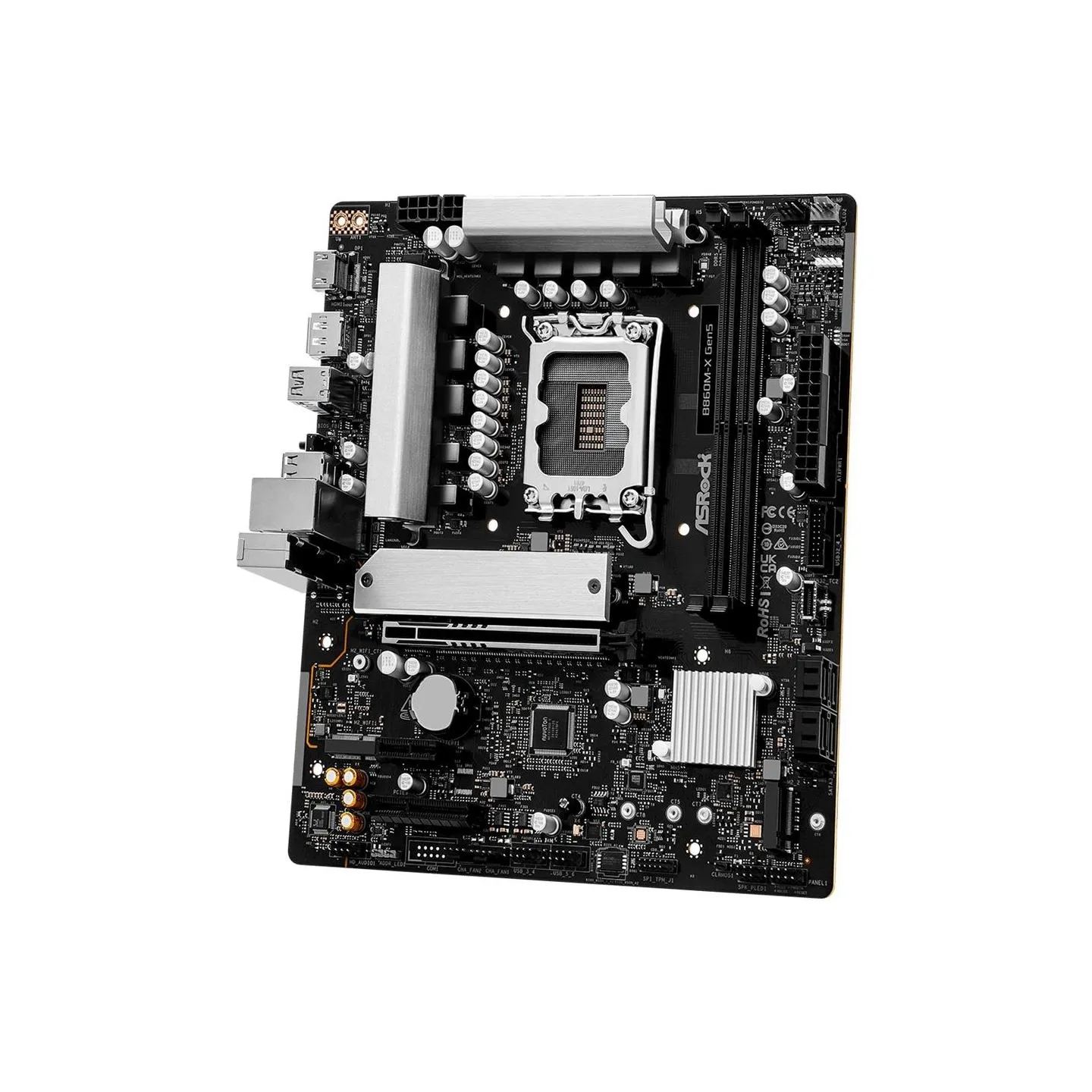

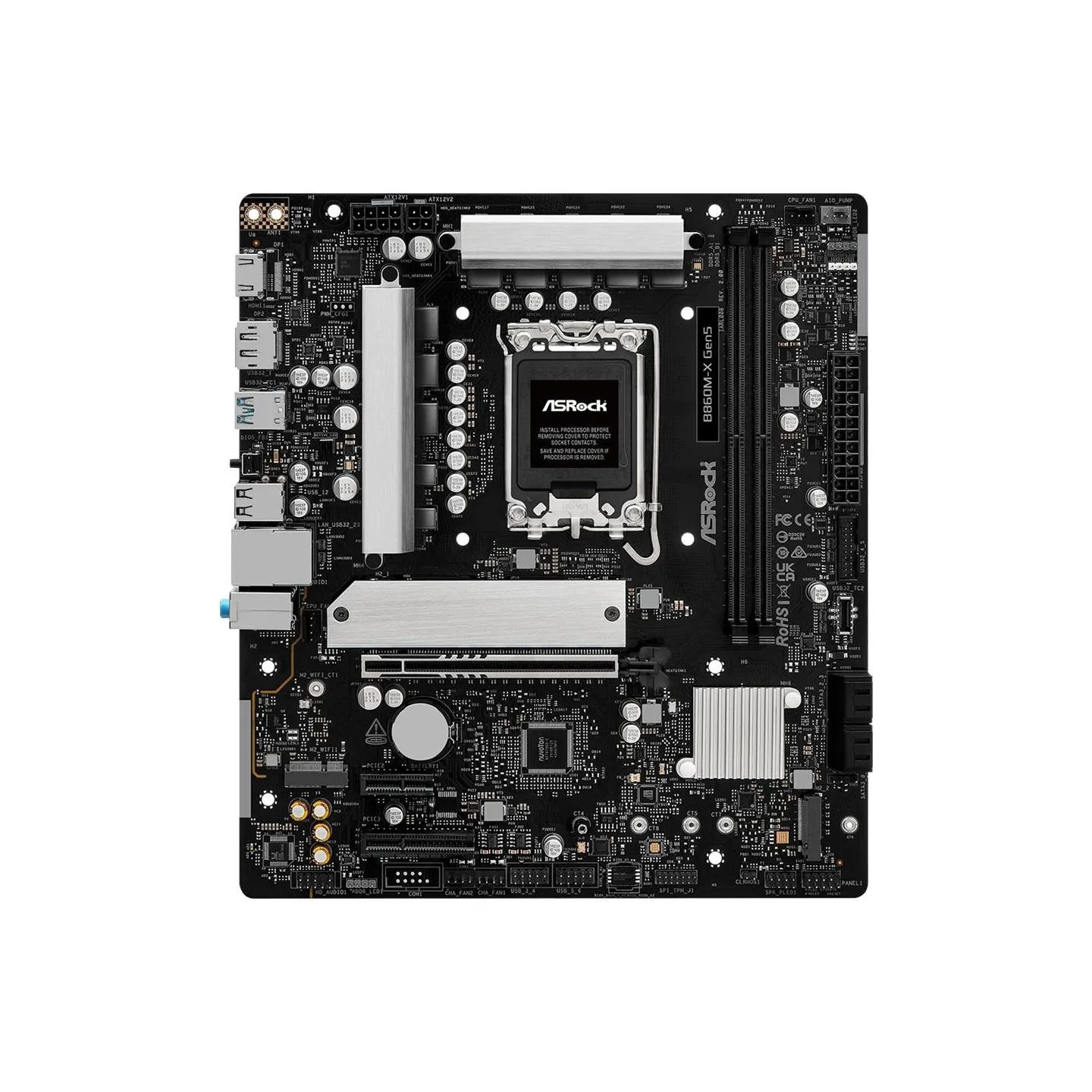

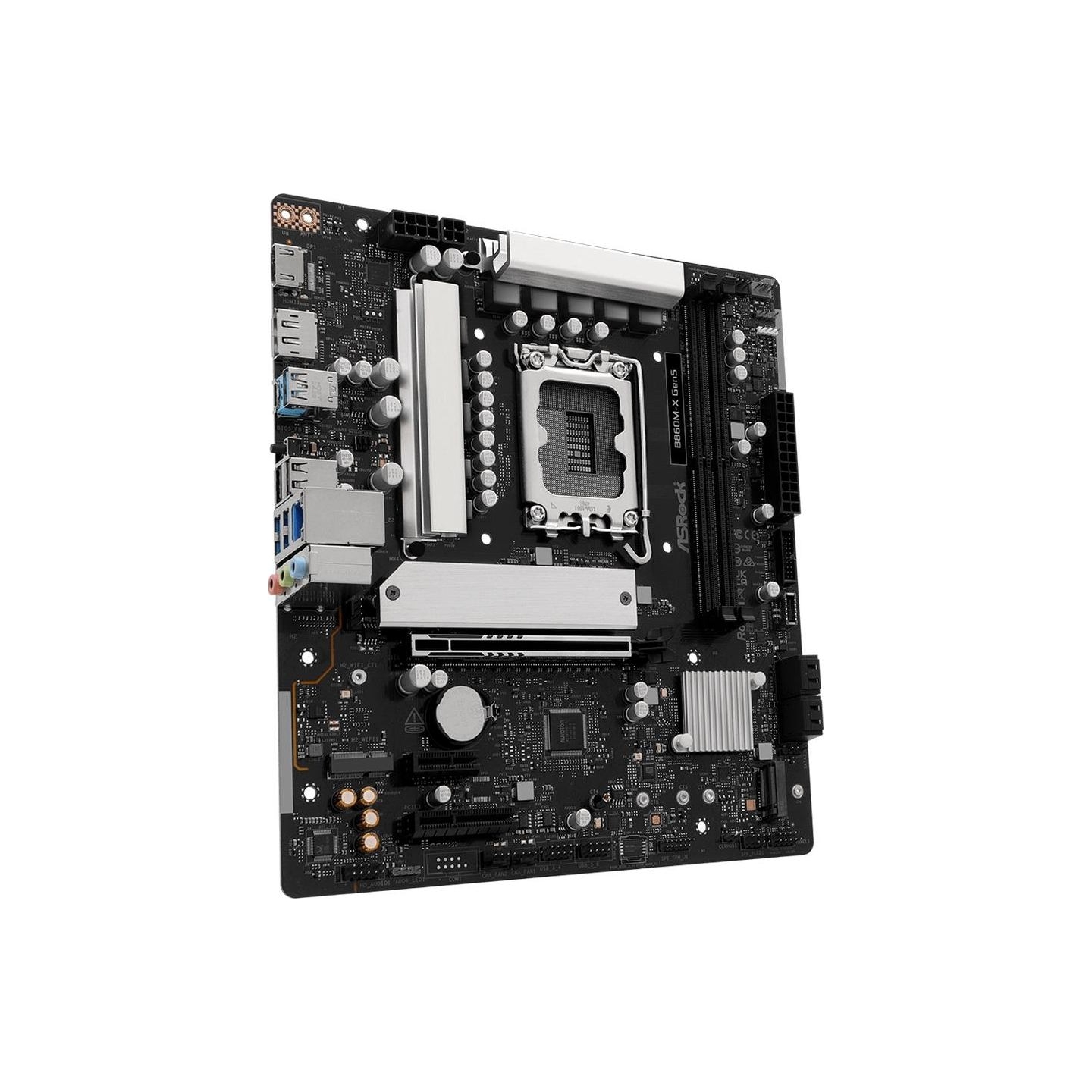

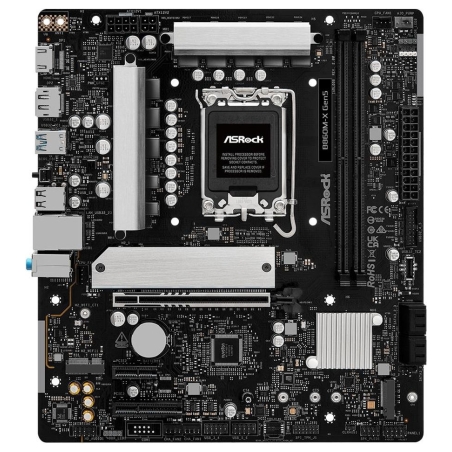

Asrock B860M-X GEN5 s1851 2DDR5 mATX
Price:
€156.99
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
- SKU
- KBASRIIFB860U03
- Barcode
- 4711581490727
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Generation
- second
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 9066 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

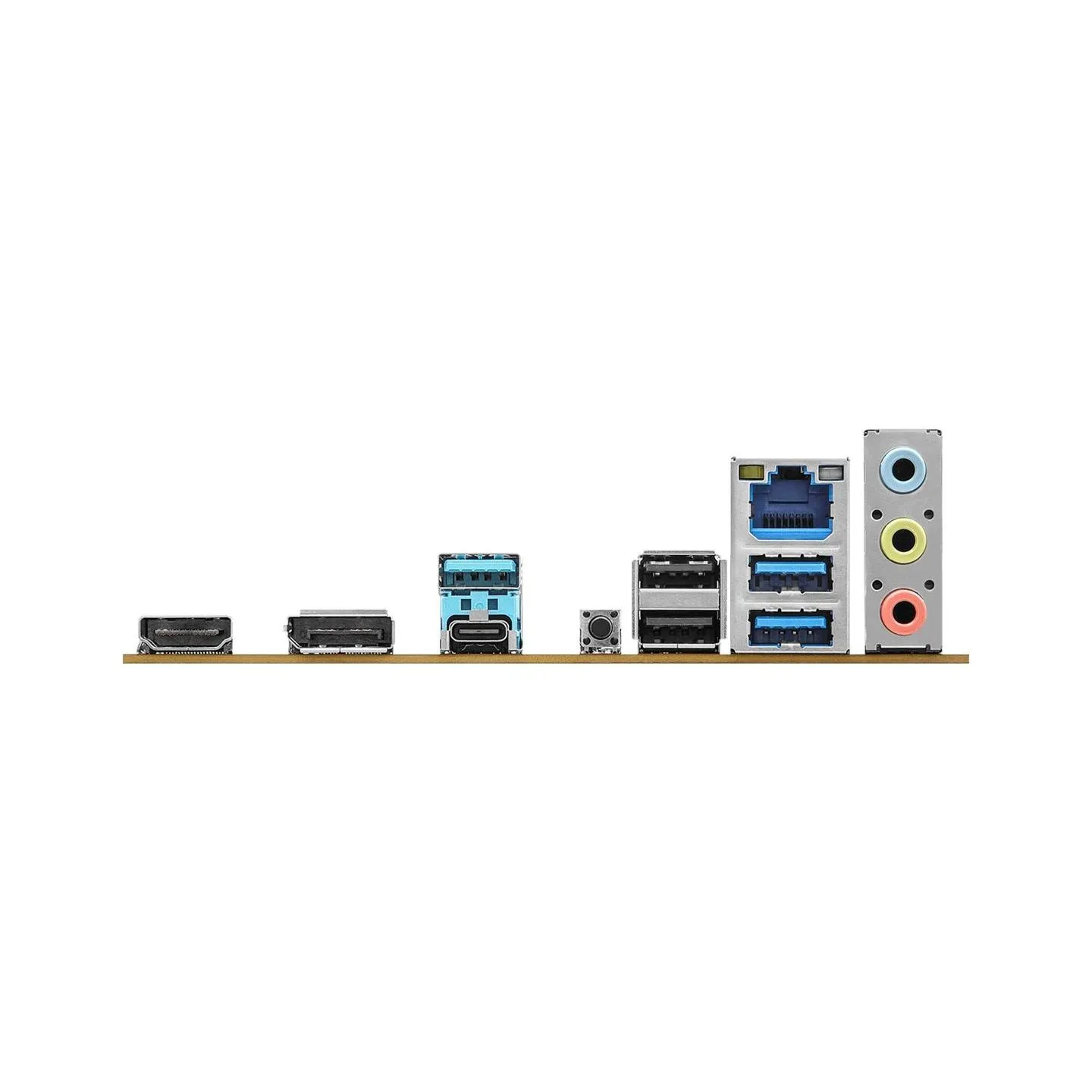

- External connectors
- 1 x Flash BIOS Button
- External connectors
- 3 x USB 3.0
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x USB 2.0
- External connectors
- 2 x SMA
- External connectors
- 1 x MIC
- External connectors
- 1 x HDMI
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x USB 3.0 header
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 x 21.8 cm
- Accessories included
- I/O Shield SATA Data Cables Screws for M.2 Sockets Standoff for M.2 Socket
- Supported operating systems
- Windows 11
- Software
- Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Designation
- CE+WEEE
