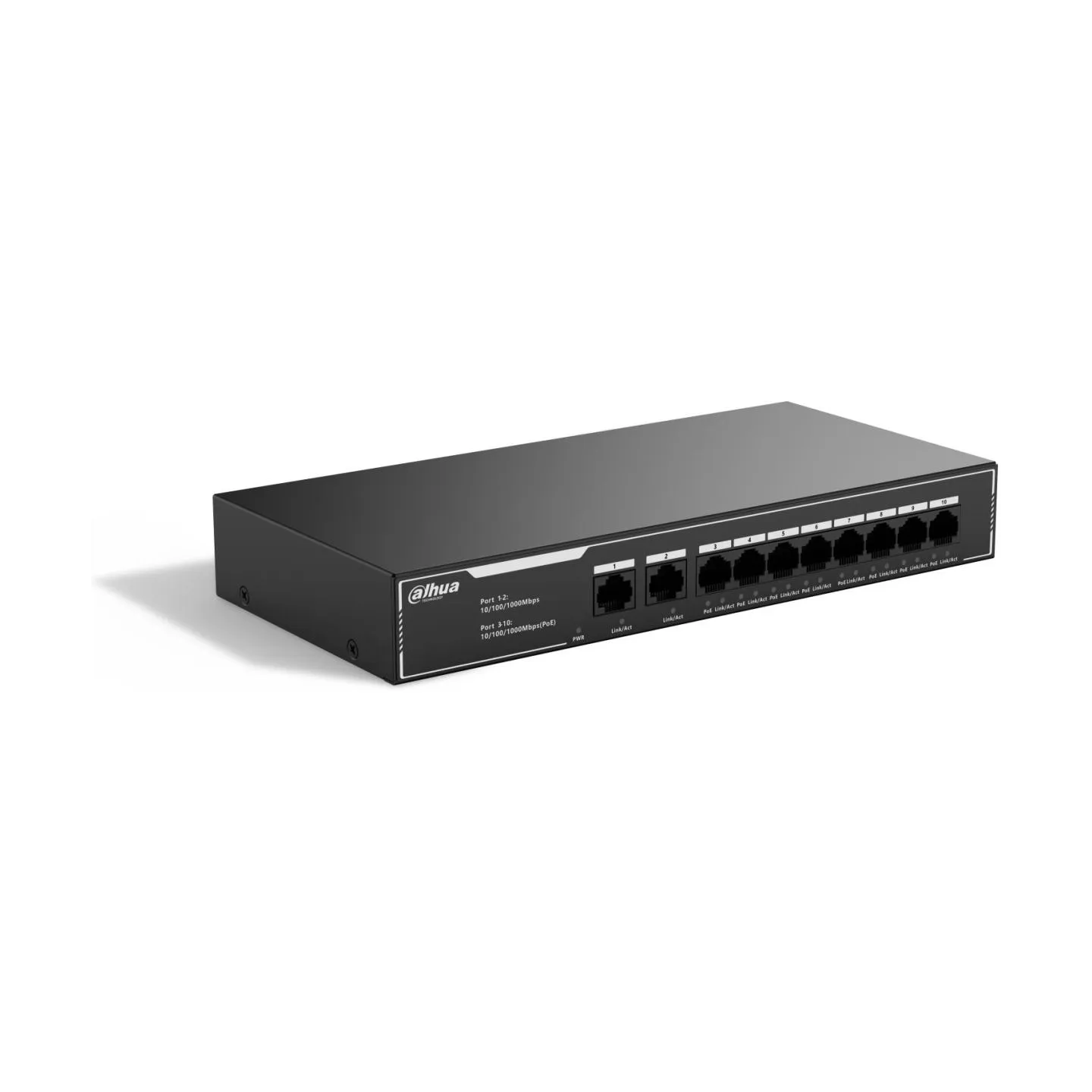

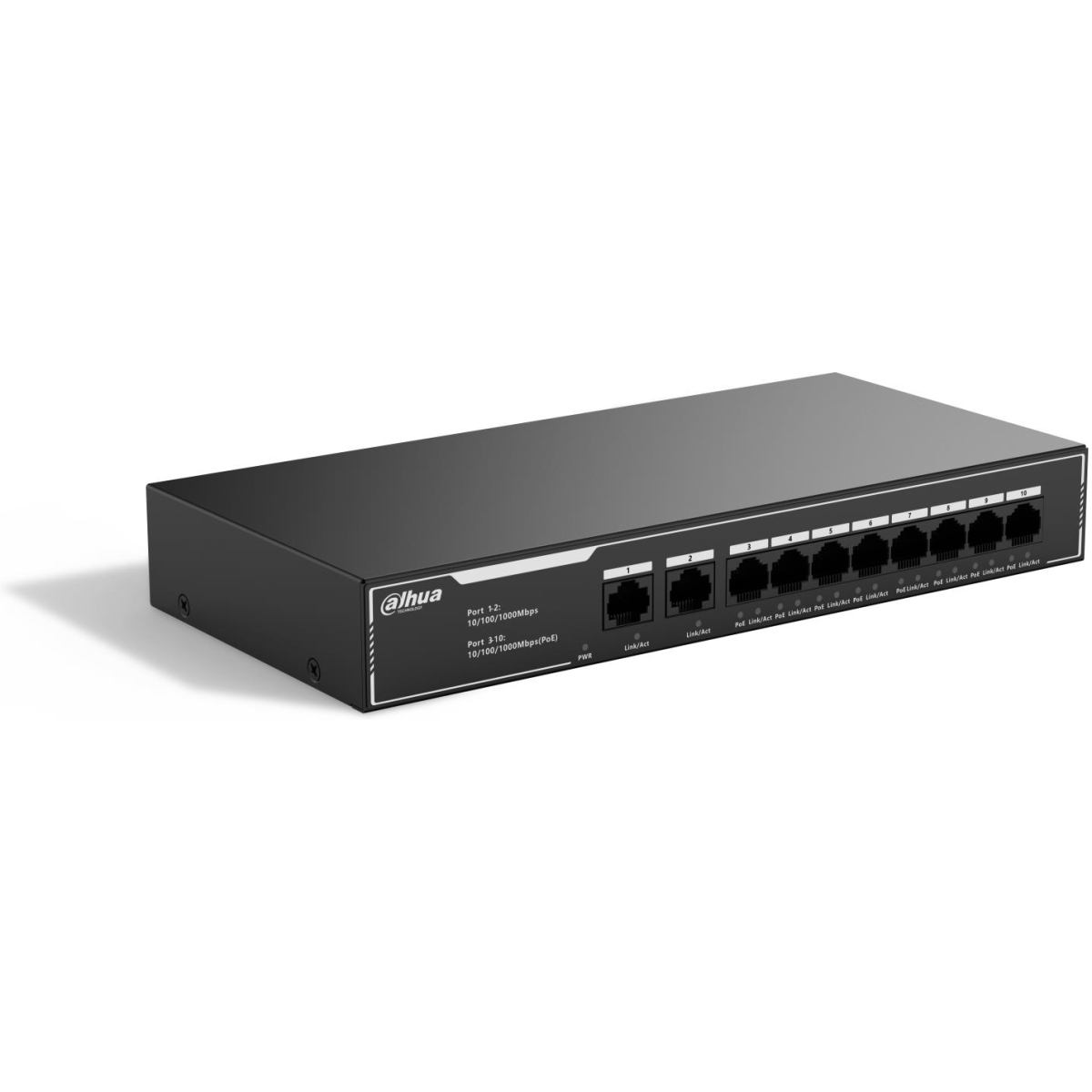

Dahua Switch|DAHUA|10-Port Economical Gigabit PoE Switch with 8-Port PoE|Type L2|SG1010LP
DH-SG1010LP Unmanaged All-gigabit Switch is highly efficient, coming with 8 × 10/100/1000 Mbps PoE ports. It consumes 65 W at most, and has 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink Ethernet ports. Hassle-free, it does not require any configuration due to its plug-and-play design. The switch is a reliable, cost-effective option for small and medium-sized scenes
Eight-pin PoE
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
All-Gigabit Ports
Designed with large buffer memory and all-Gigabit ports, enabling high-definition access of large stream.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, and has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness, adapted to harsh environments.
- Unmanaged gigabit PoE switch
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
- Easy to install, and plug and play
- Meets the IEEE 802.3af and IEEE802.3at power supply standards
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SG1010LP
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.26
- Unit Box Length
- 0.3
- Unit Box Width
- 0.07
- Switch layer
- L2
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 10
- Uplink ports quantity
- 2
- 10G support
- No
- Networking standards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
- Forwarding rate
- 14.88 Mpps
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 2 MB
- Switching capacity
- 20 Gbit/s
- Housing material
- Iron
- Product colour
- Black
- Rack mounting
- No
- Plug and Play
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Input current
- 1.5 A
- Power consumption (max)
- 65 W
- Power source
- DC/PoE
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 65 W
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -10 - 55 °C
- Depth
- 243 mm
- Height
- 35 mm
- Weight
- 800 g
- Width
- 118 mm
- Package depth
- 300 mm
- Package height
- 70 mm
- Package weight
- 1800 g
- Package width
- 260 mm
- Sustainability compliance
- Yes
- Compliance certificates
- CE
- Model
- SG1010LP
- Model name
- 10-Port Economical Gigabit PoE Switch with 8-Port PoE
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.006506 cubm
- Unit Calculated Weight
- 1.35 kg
