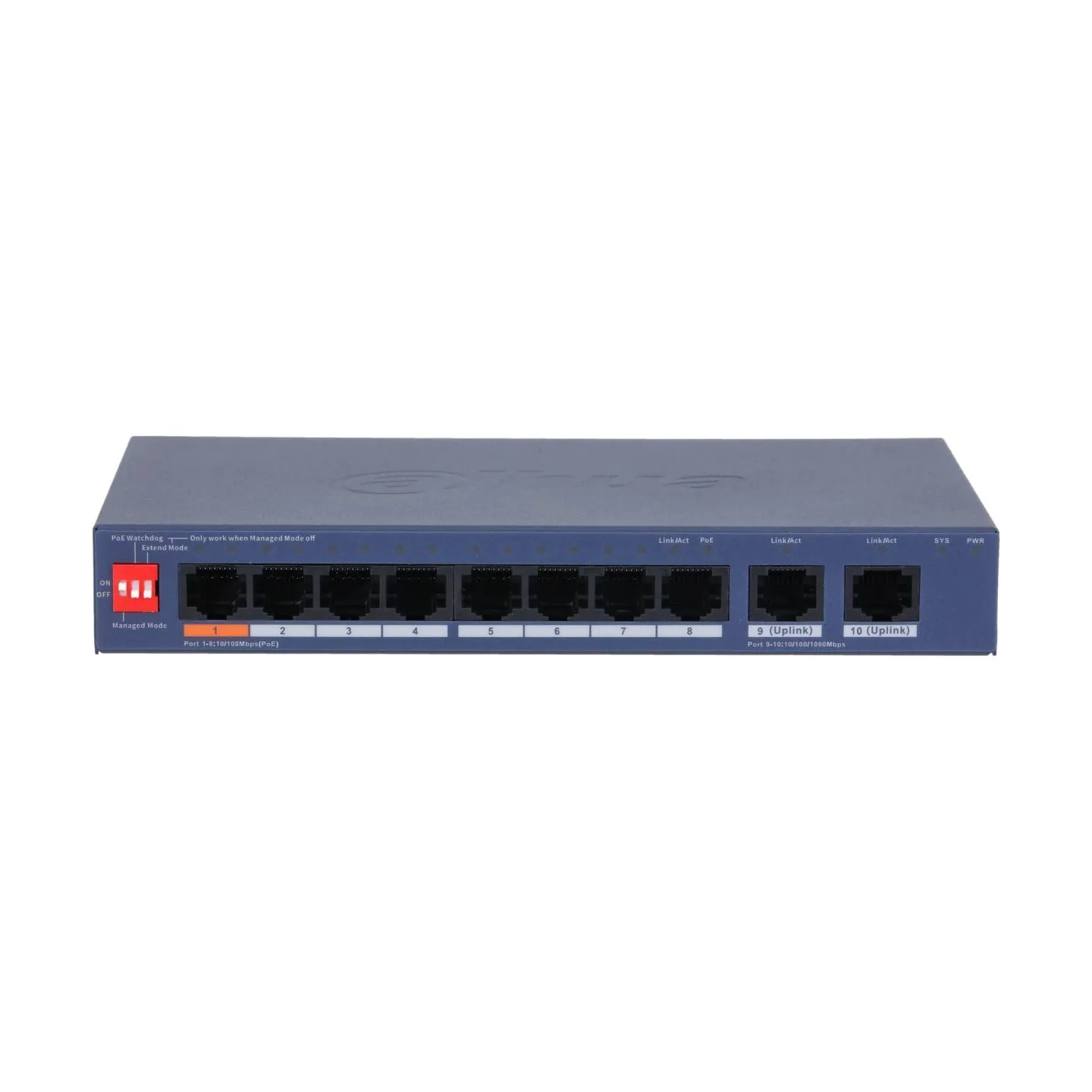

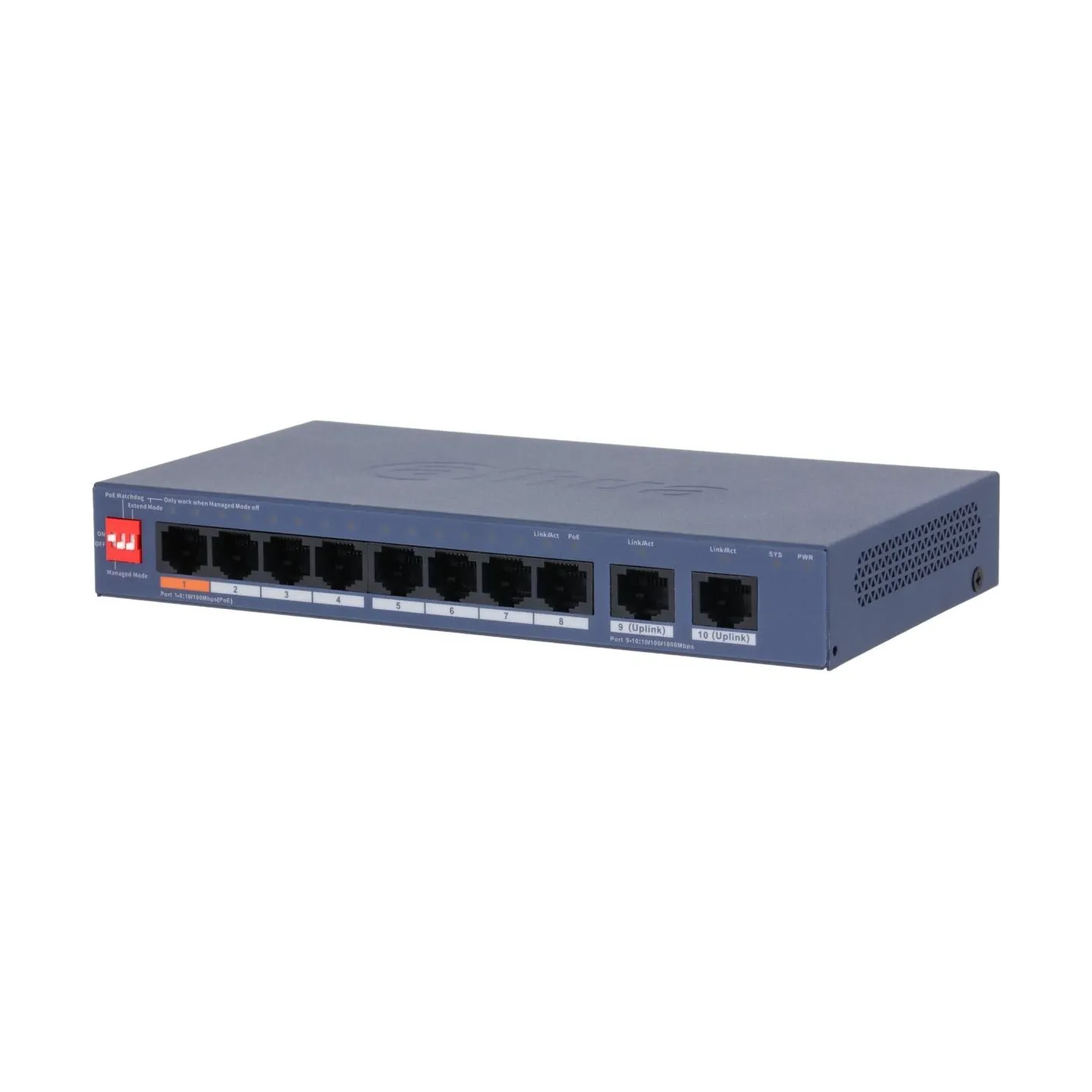

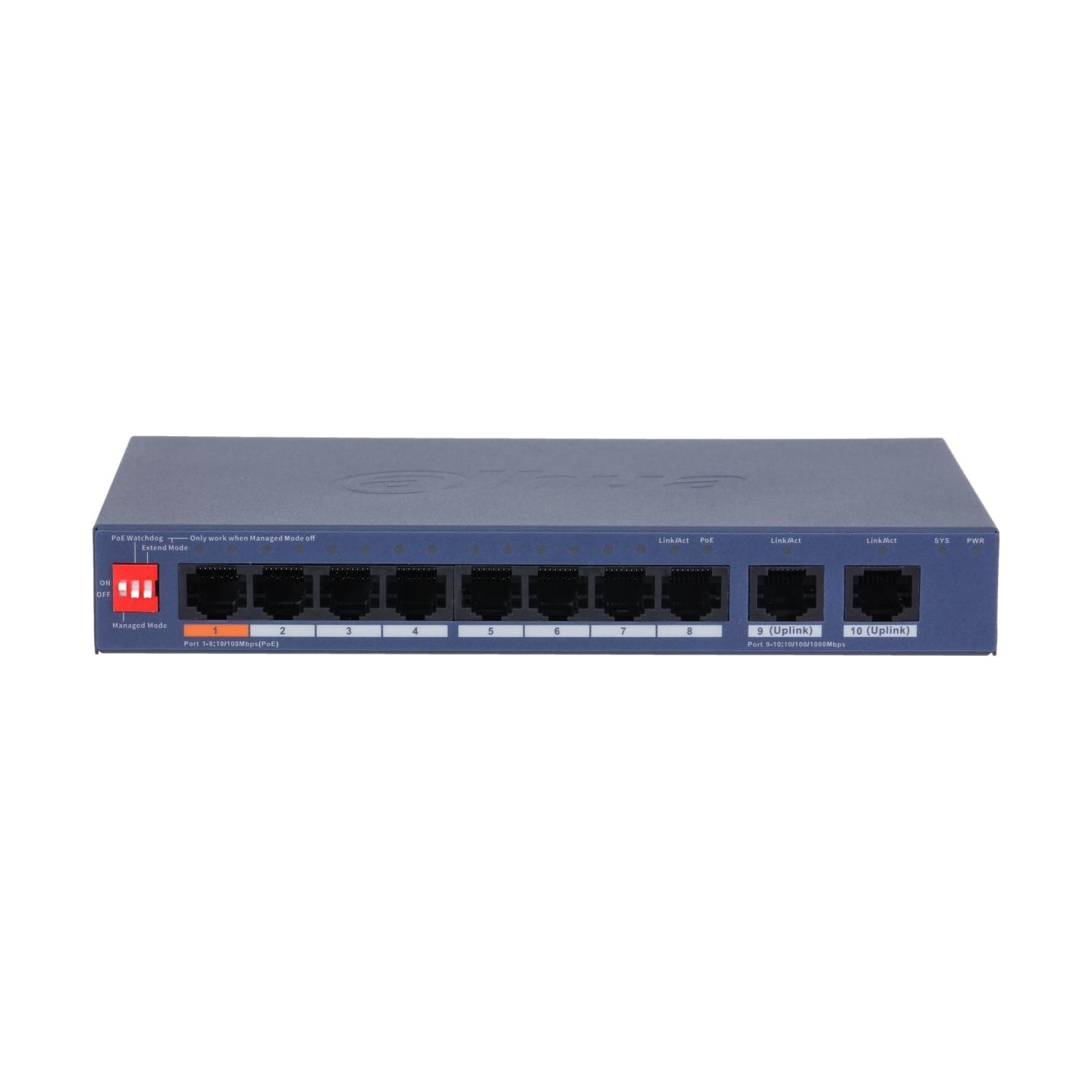

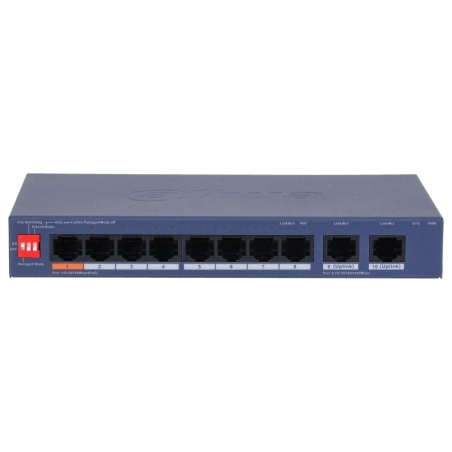

Dahua Switch|DAHUA|DH-CS4010-8ET2GT-60|Switch layer L2|8xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|2xGigabit Ethernet
Price:
€47.22
Tax included
Share on
- 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports
- 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
- Wide operating temperature ranging from –10 °C to 55 °C
- Supports VLAN and loop protection
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
- Easy config to auto detect and set up network and security systems
Manufacturer Website:
https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4010-8et2gt-60
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.11
- Unit Box Length
- 0.25
- Unit Box Width
- 0.135
- Cloud-managed
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Fast Ethernet (copper) ports quantity
- 8
- Gigabit Ethernet (copper) ports quantity
- 2
- Power connector
- DC-in jack
- 10G support
- No
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Flow control support
- Yes
- Networking standards
- IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Number of VLANs
- 32
- Port mirroring
- Yes
- VLAN support
- Yes
- Forwarding rate
- 4.17 Mpps
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Packet buffer memory
- 4 MB
- Switching capacity
- 5.6 Gbit/s
- DHCP features
- DHCP client
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- Multicast support
- Yes
- Housing material
- Metal
- LED indicators
- Yes
- Product colour
- Blue
- Rack mounting
- No
- Reset button
- Yes
- Wall mountable
- Yes
- Mean time between failures (MTBF)
- 2837361 h
- DC input voltage
- 53 V
- Input current
- 1.22 A
- Power source
- DC/PoE
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 60 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -10 - 55 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 184.6 mm
- Height
- 27 mm
- Weight
- 360 g
- Width
- 103.3 mm
- Cables included
- AC
- Manual
- Yes
- Package depth
- 252 mm
- Package height
- 113 mm
- Package weight
- 920 g
- Package width
- 137 mm
- Compliance certificates
- CE
- Model name
- CS4010-8ET2GT-60
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004615 cubm
- Unit Calculated Weight
- 1 kg
