Dahua Switch|DAHUA|LR2110-8ET-120-V2|PoE ports 8|DH-LR2110-8ET-120-V2

Name: Dahua Switch|DAHUA|LR2110-8ET-120-V2|PoE ports 8|DH-LR2110-8ET-120-V2
Brand: DAHUA
SKU: DH-LR2110-8ET-120-V2
Price: 210 EUR
Availability: InStock

SKU DH-LR2110-8ET-120-V2 Category Switches

€210.00

Tax included

Share on

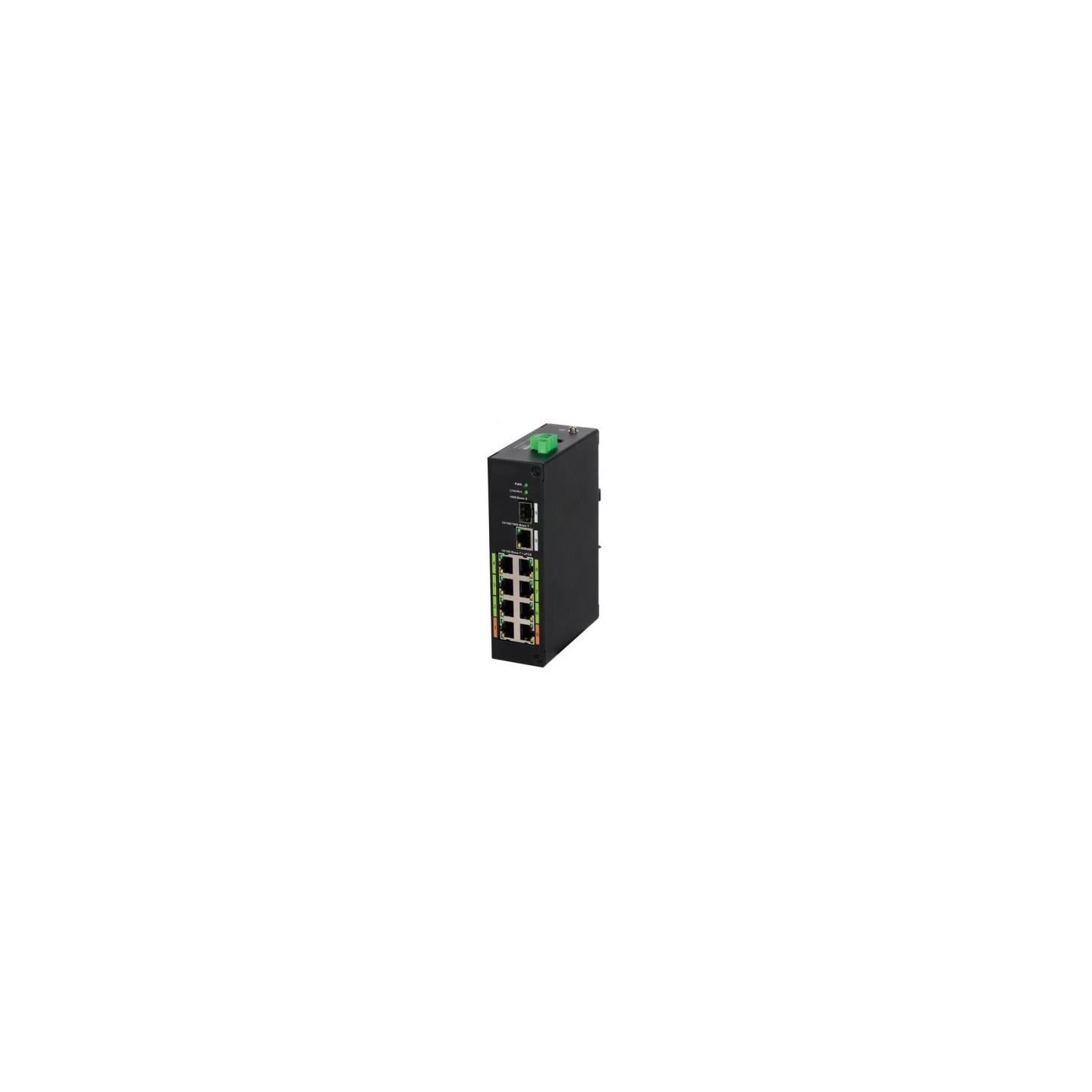

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
Layer-two ePoE switch· MAC auto study and aging, MAC address list capacity is 8K
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
Industrial wide temperature design
Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10

Manufacturer Website:
https://www.dahuasecurity.com/search/products?keyword=LR2110-8ET-120-V2

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.076
Unit Box Length: 0.267
Unit Box Width: 0.24
Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 1
SFP module slots quantity: 1
10G support: No
Flow control support: Yes
Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Forwarding rate: 4.17 Mpps
MAC address table: 8000 entries
Packet buffer memory: 2.75 MB
Switching capacity: 8.8 Gbit/s
LED indicators: Yes
Product colour: Black
DC input voltage: 48 - 57 V
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 120 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -30 - 65 °C
Depth: 100 mm
Height: 42 mm
Weight: 590 g
Width: 150 mm
Model name: LR2110-8ET-120-V2
Units per Shipping Box: 1
Unit Calculated Volume: 0.00487 cubm
Unit Calculated Weight: 1.36 kg
