SKU SWM282 Category Switches

€336.62

Tax included

Last items in stock

Share on

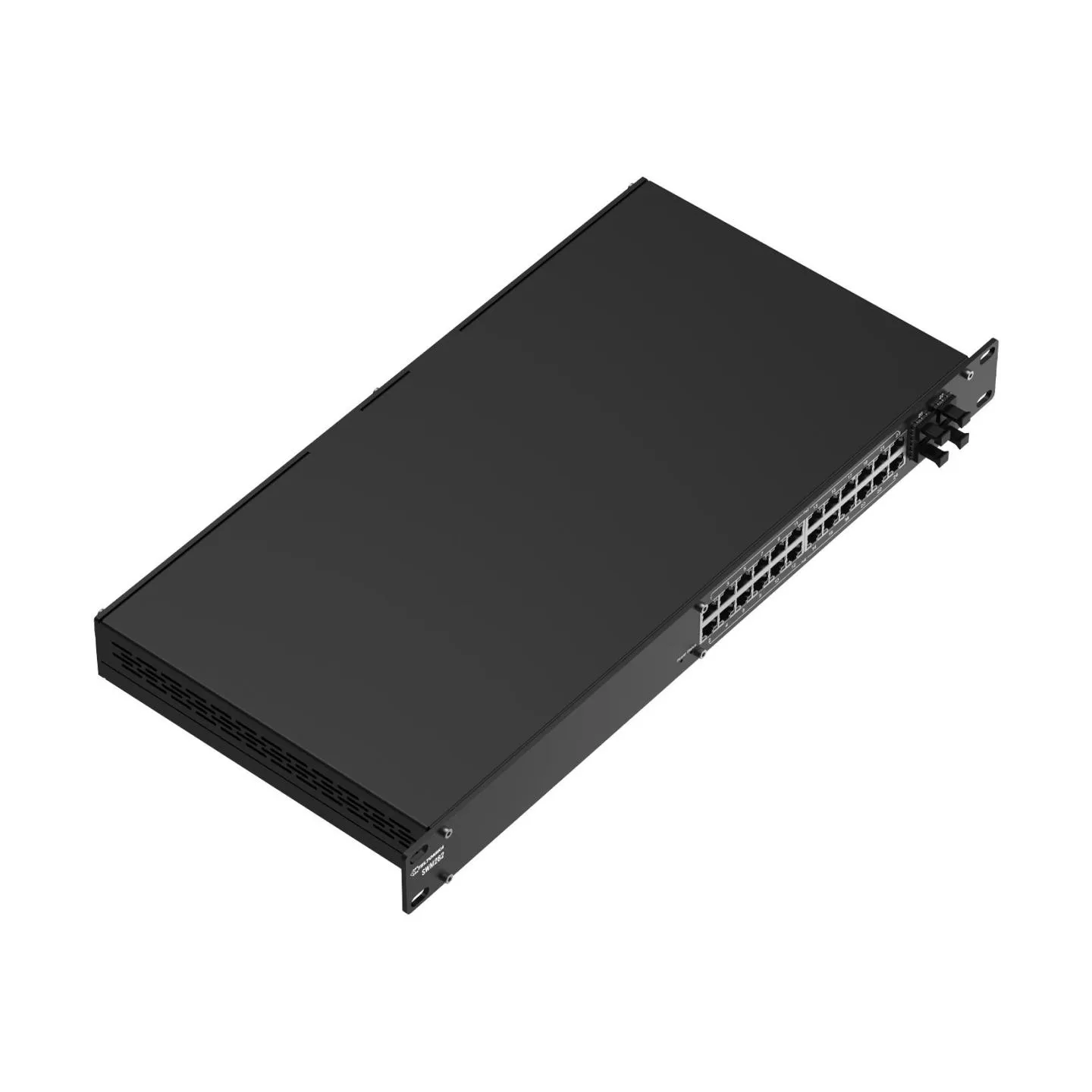

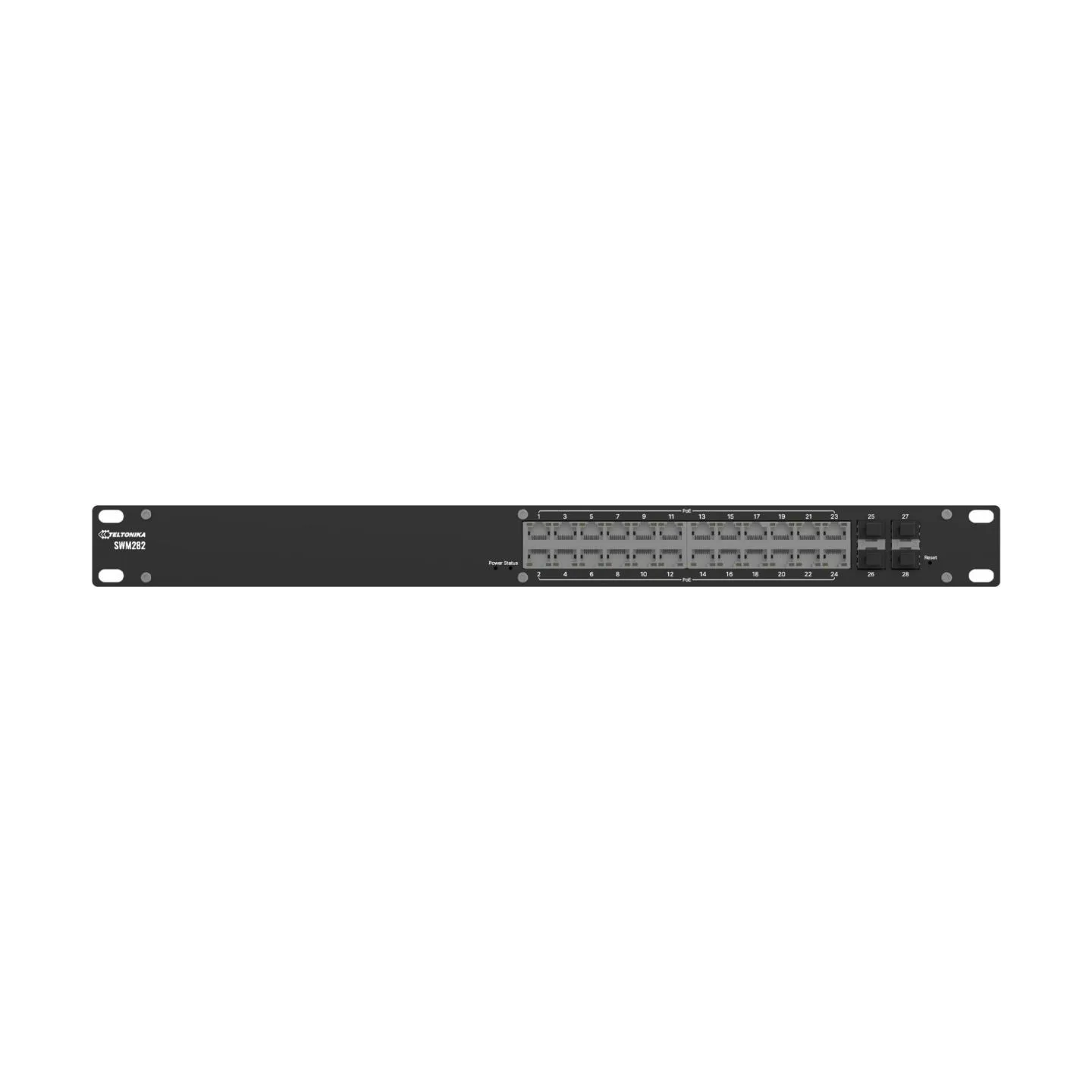

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

Manufacturer Website:
https://www.teltonika-networks.com/products/ethernet-switches/swm282

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.1
Unit Box Length: 0.52
Unit Box Width: 0.33
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
Traffic shaping: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
SFP module slots quantity: 4
10G support: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Port mirroring: Yes
Rate limiting: Yes
VLAN support: Yes
Forwarding rate: 83.33 Mpps
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 0.512 MB
Static route: Yes
Switching capacity: 56 Gbit/s
Authentication type: RADIUS,TACACS+
DHCP features: DHCP client/DHCP server/DHCPv6 client
Loop protection: Yes
MAC address filtering: Yes
Queue scheduling algorithms: SP/Weighted Round Robin (WRR)/WFQ
Housing material: Aluminium
International Protection (IP) code: IP30
Product colour: Black
Rack mounting: Yes
Reset button: Yes
Built-in processor: Yes
Firmware upgradeable: Yes
Flash memory: 16 MB
Internal memory: 128 MB
Memory type: DDR3-SDRAM
Processor frequency: 500 MHz
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 330 W
Power source: AC
Power supply included: No
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) modes: Alternative A
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: Active PoE/PoE+
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 300 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): 0 - 50 °C
Depth: 234 mm
Height: 44 mm
Weight: 2291 g
Width: 483 mm
Quick start guide: Yes
Package type: Box
Compliance certificates: CB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA
Model: SWM282
Model name: SWM282000200
Units per Shipping Box: 1
Unit Calculated Volume: 0.01716 cubm
Unit Calculated Weight: 2.58 kg
