SKU DH-PFS3009-8ET1GT-96-V2 Category Switche
Price: €77.83
Tax included
Add to Cart
Share on

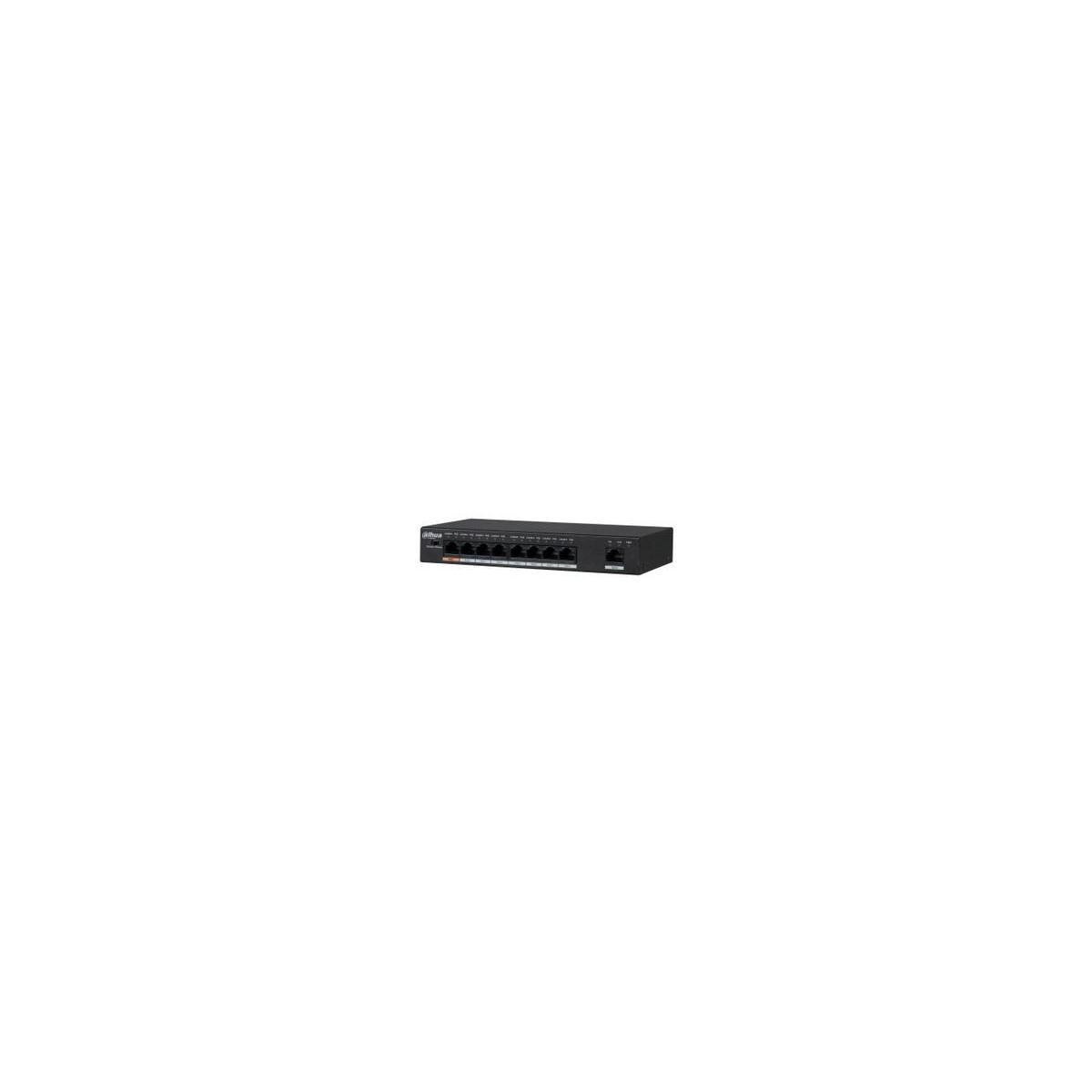

DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

  • Layer two commercial switch
  • > Supports PoE power management
  • > Supports wall-mount installation
  • > Supports anti-theft lock hole
  • > MAC auto learning and aging, MAC address capacity is 2K
  • > Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • > RJ45 port supports 10/100 Mbps self-adaptation
  • > Supports 250 meters long distance PoE transmission
  • > Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply



Manufacturer Website:
https://www.dahuasecurity.com/products/productDetail/12971

Category Code
SWI
CnCode
85176200
Unit Box Height
0.24
Unit Box Length
0.27
Unit Box Width
0.08
Switch layer
L2
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
10G support
No
Auto MDI/MDI-X
Yes
Flow control support
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.3af/IEEE 802.3at
Forwarding rate
1.34 Mpps
MAC address table
2000 entries
Packet buffer memory
0.768 MB
Switching capacity
1.8 Gbit/s
Product colour
Black
Rack mounting
No
Stackable
No
DC input voltage
48 - 57 V
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Total Power over Ethernet (PoE) budget
96 W
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-10 - 55 °C
Depth
100 mm
Height
30 mm
Weight
480 g
Width
190 mm
Units per Shipping Box
1
Unit Calculated Volume
0.005184 cubm
Unit Calculated Weight
1.25 kg
Category Switche Brand DAHUA EAN13 6923172523242 In stock 7 Items
