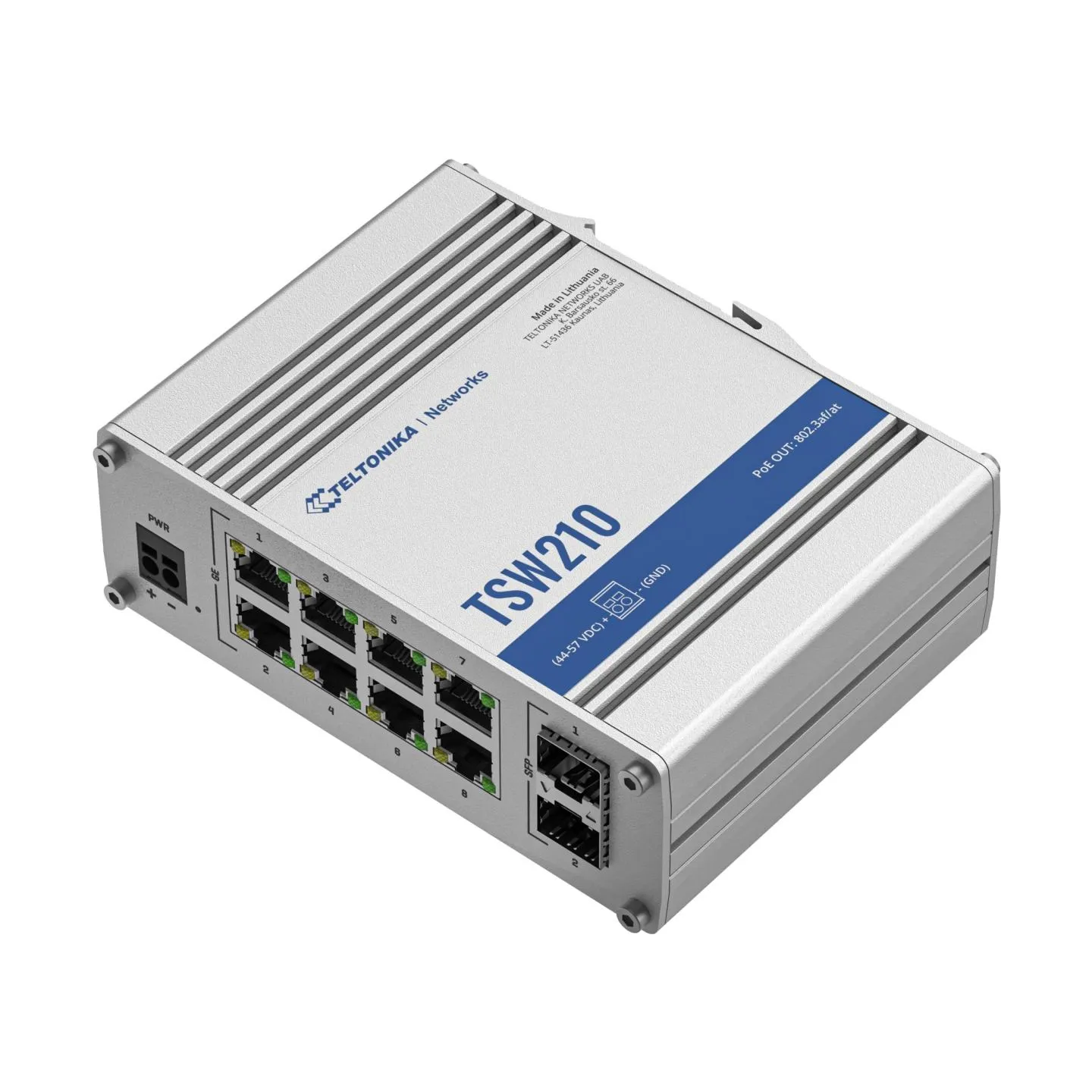

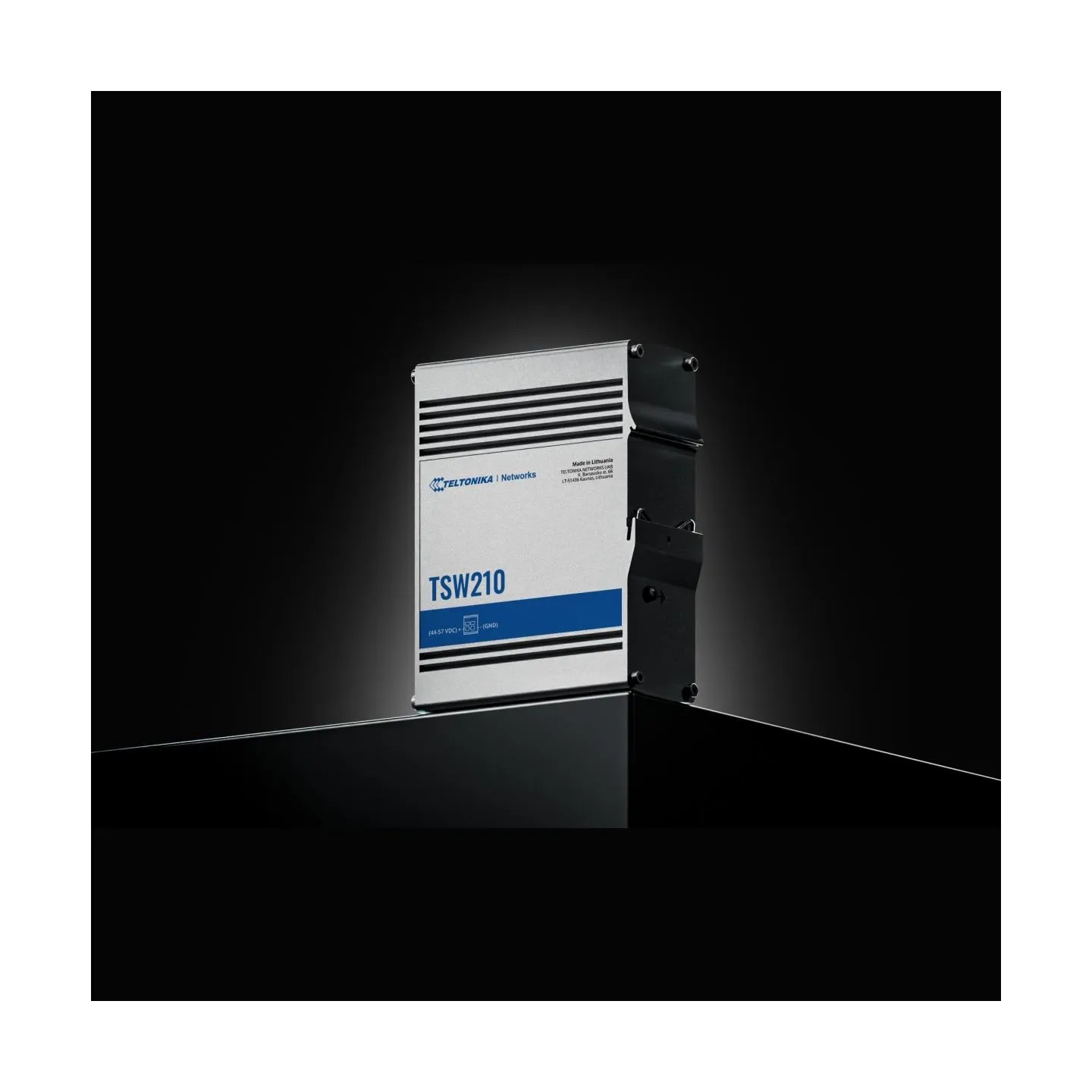

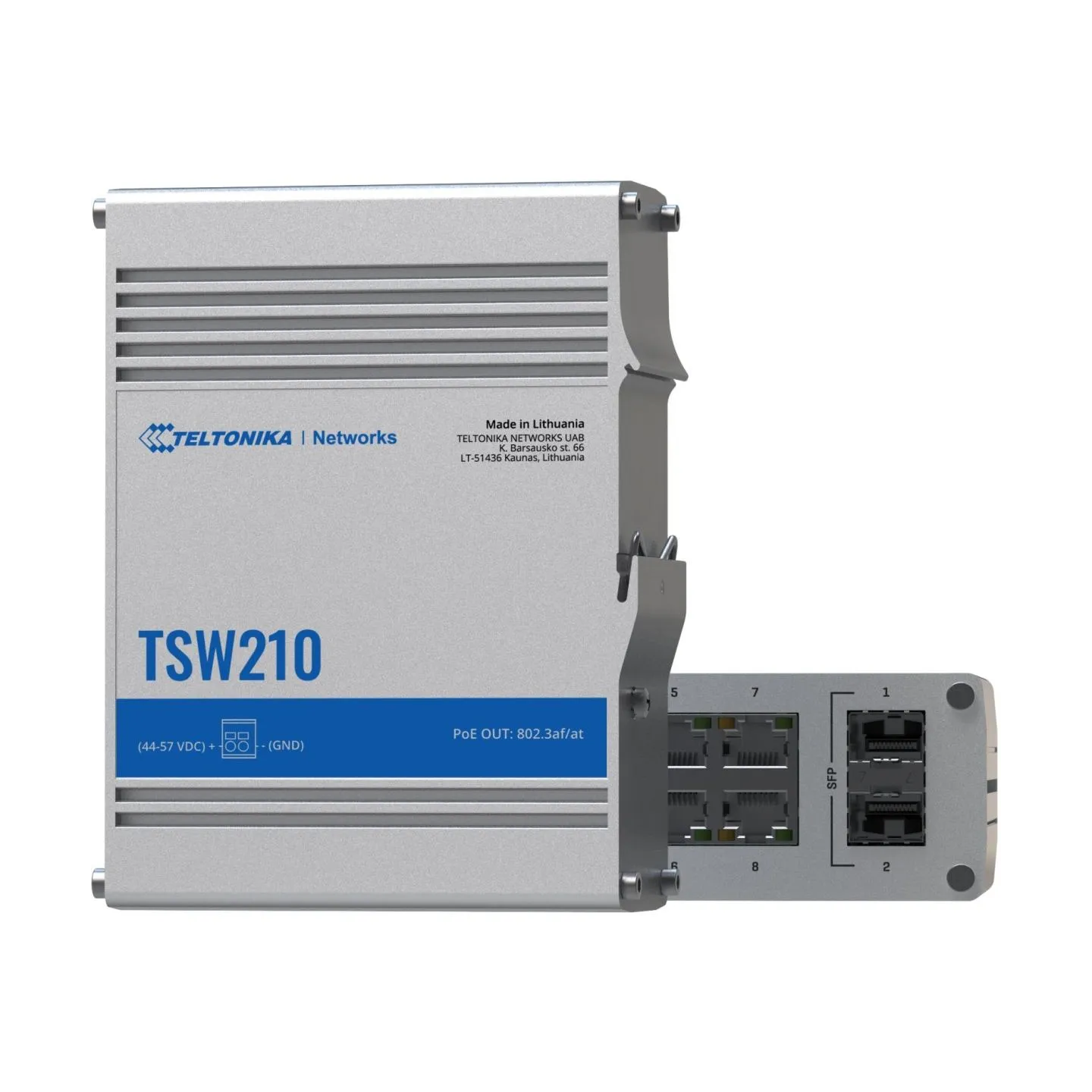

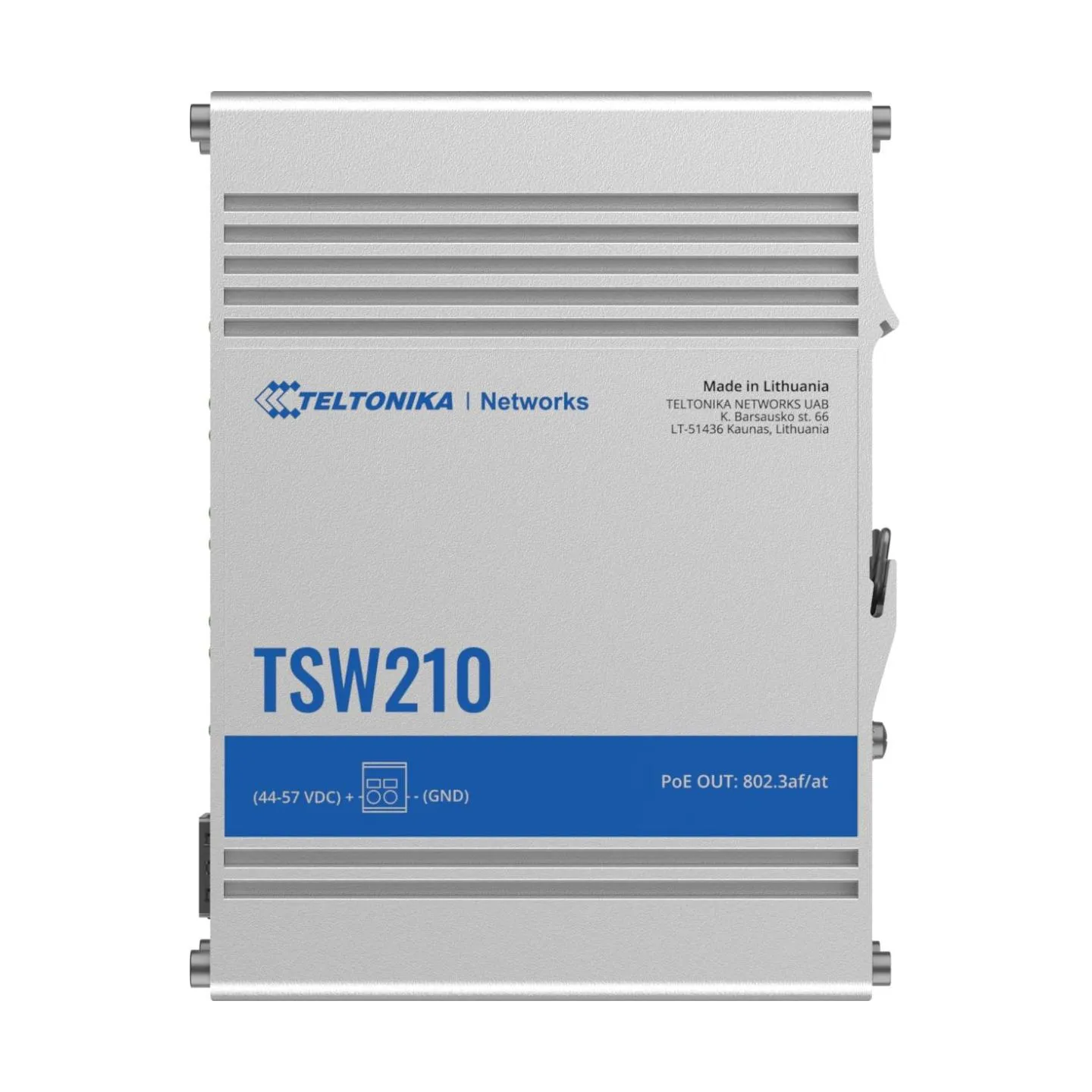

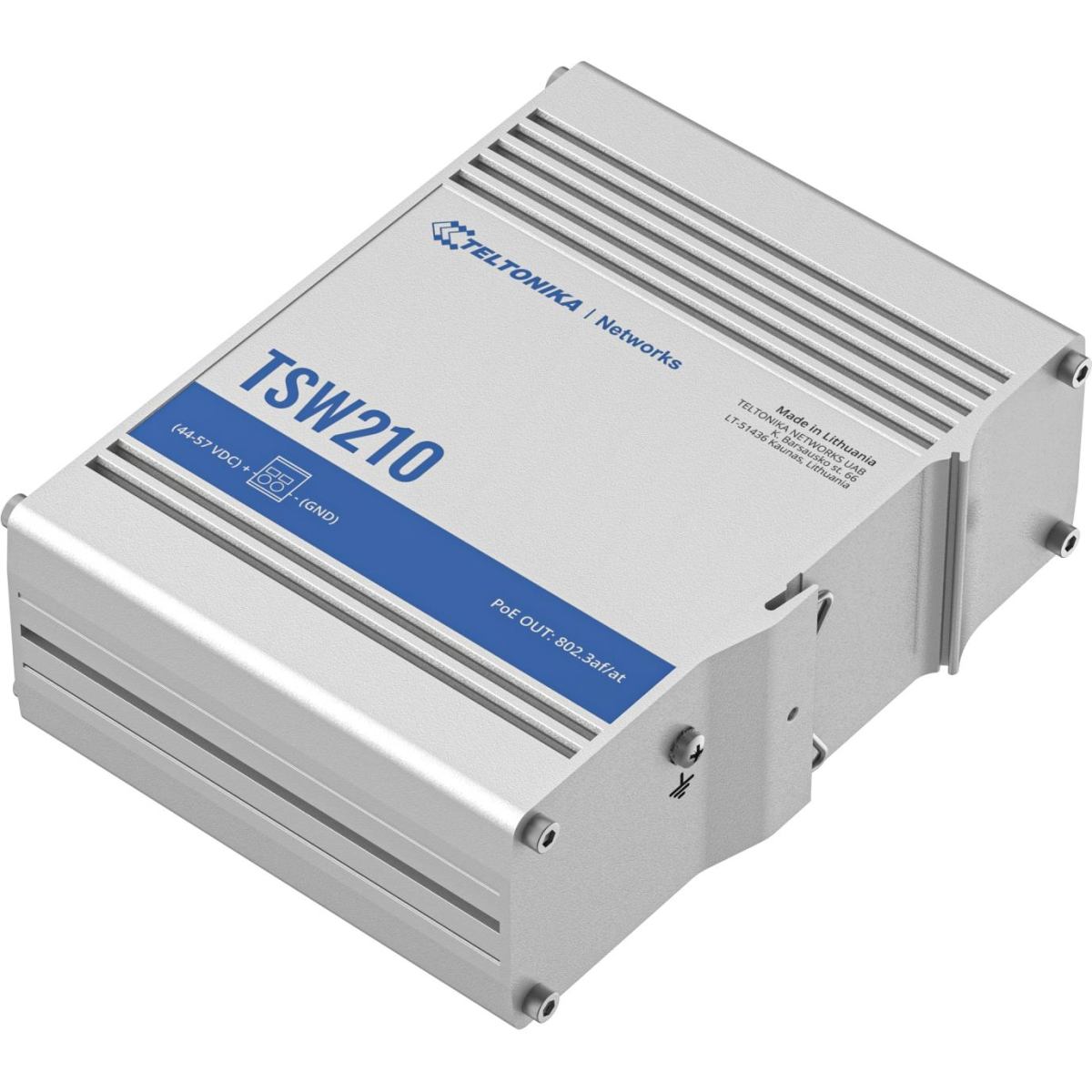

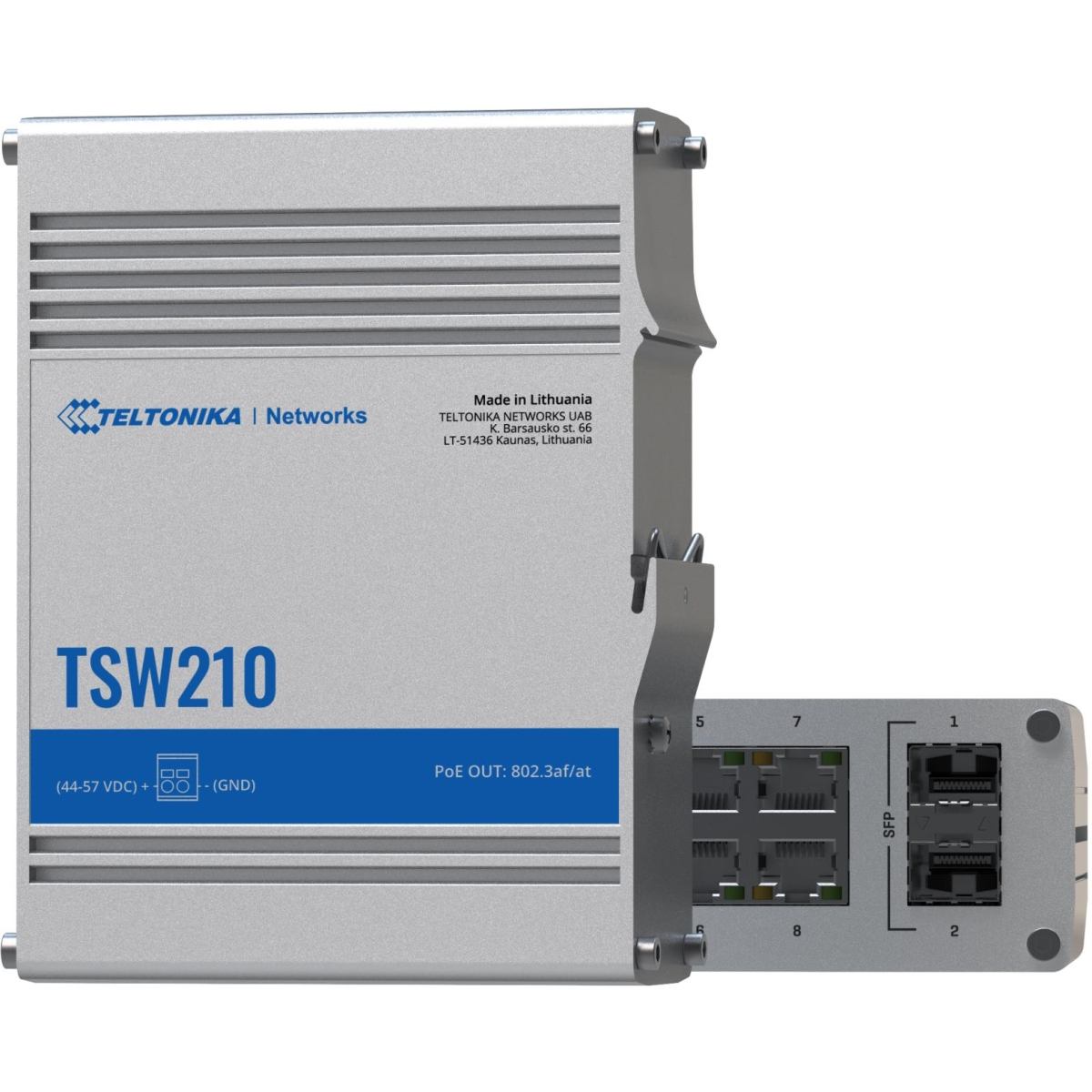

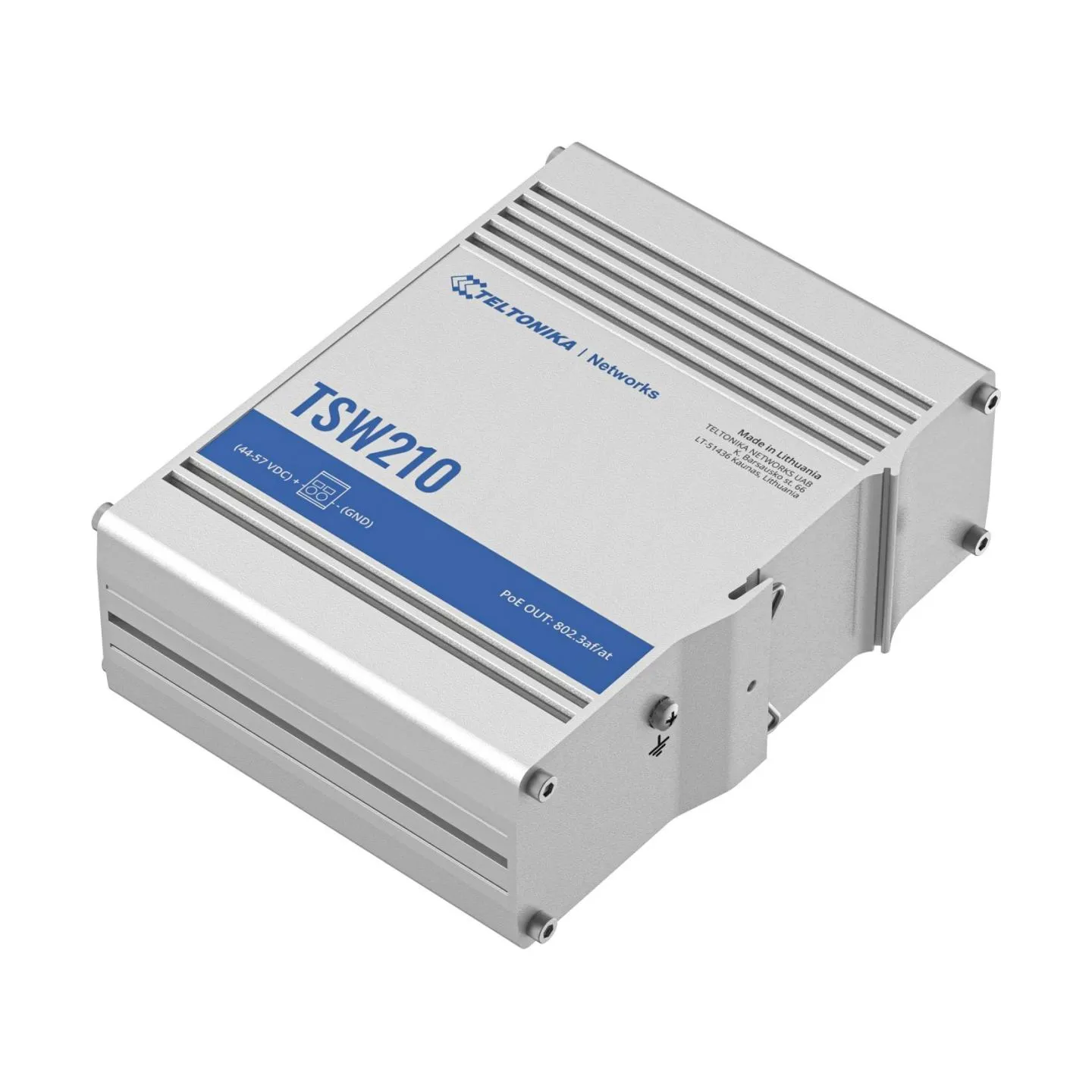

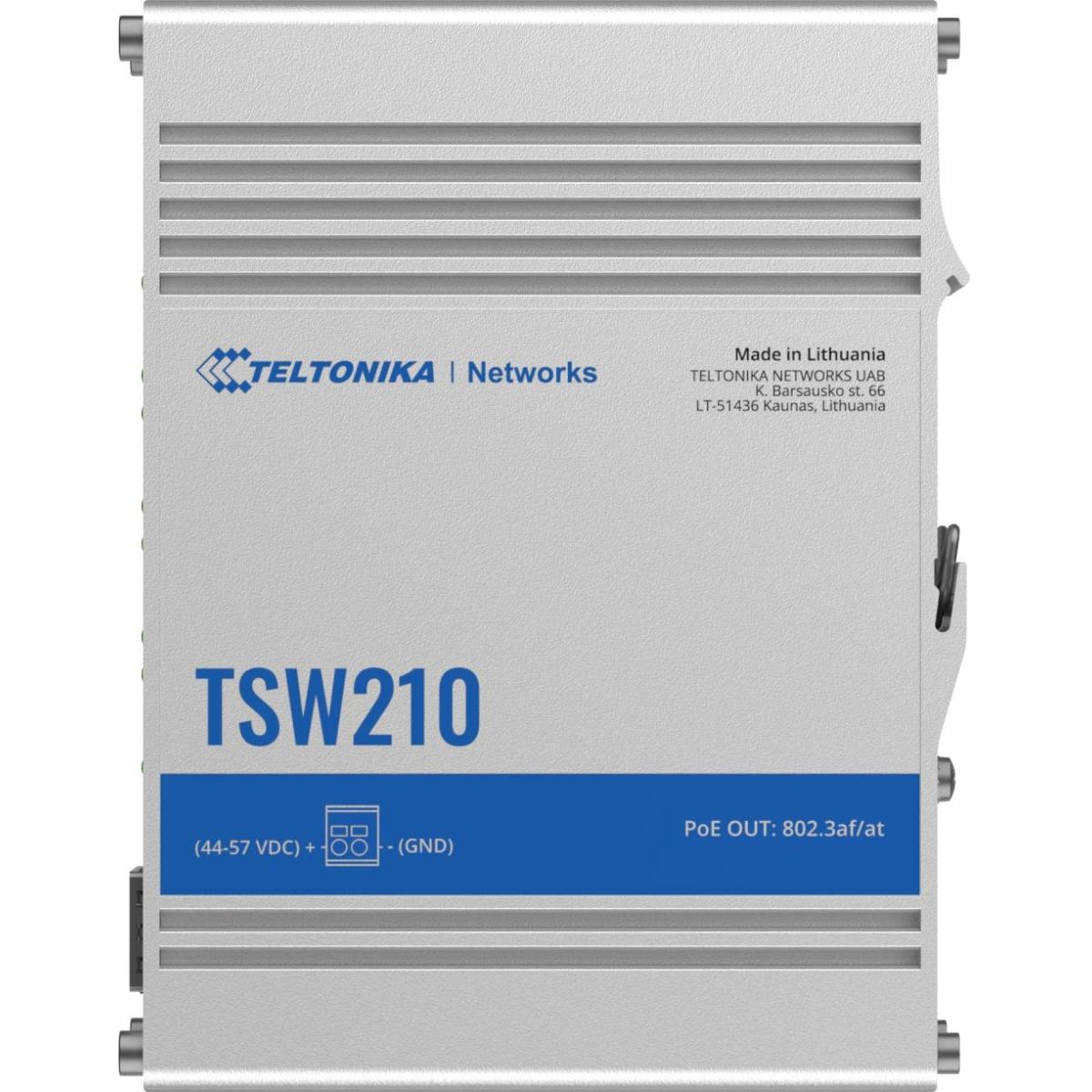

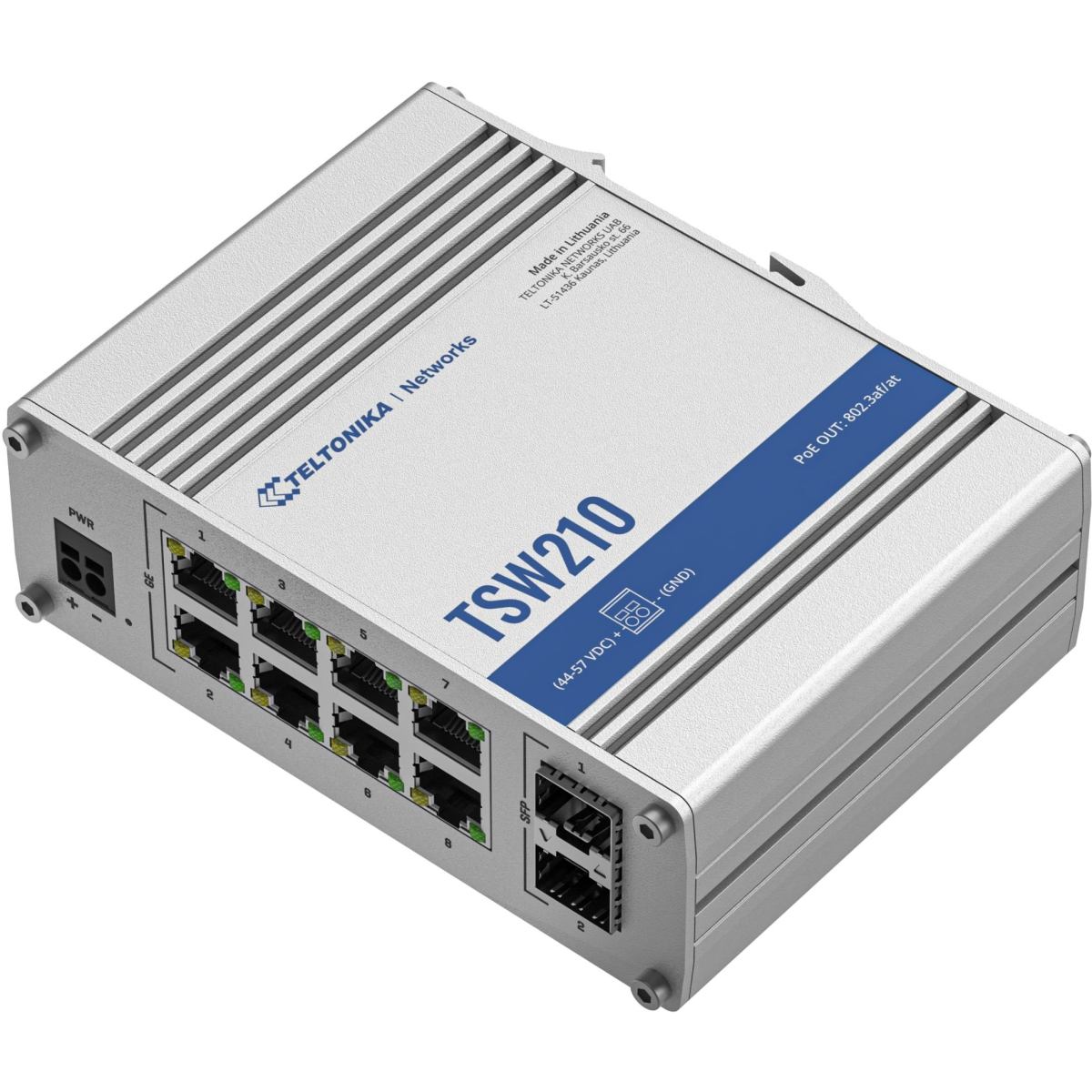

The TSW210 is an unmanaged industrial switch for centralizing your resources.

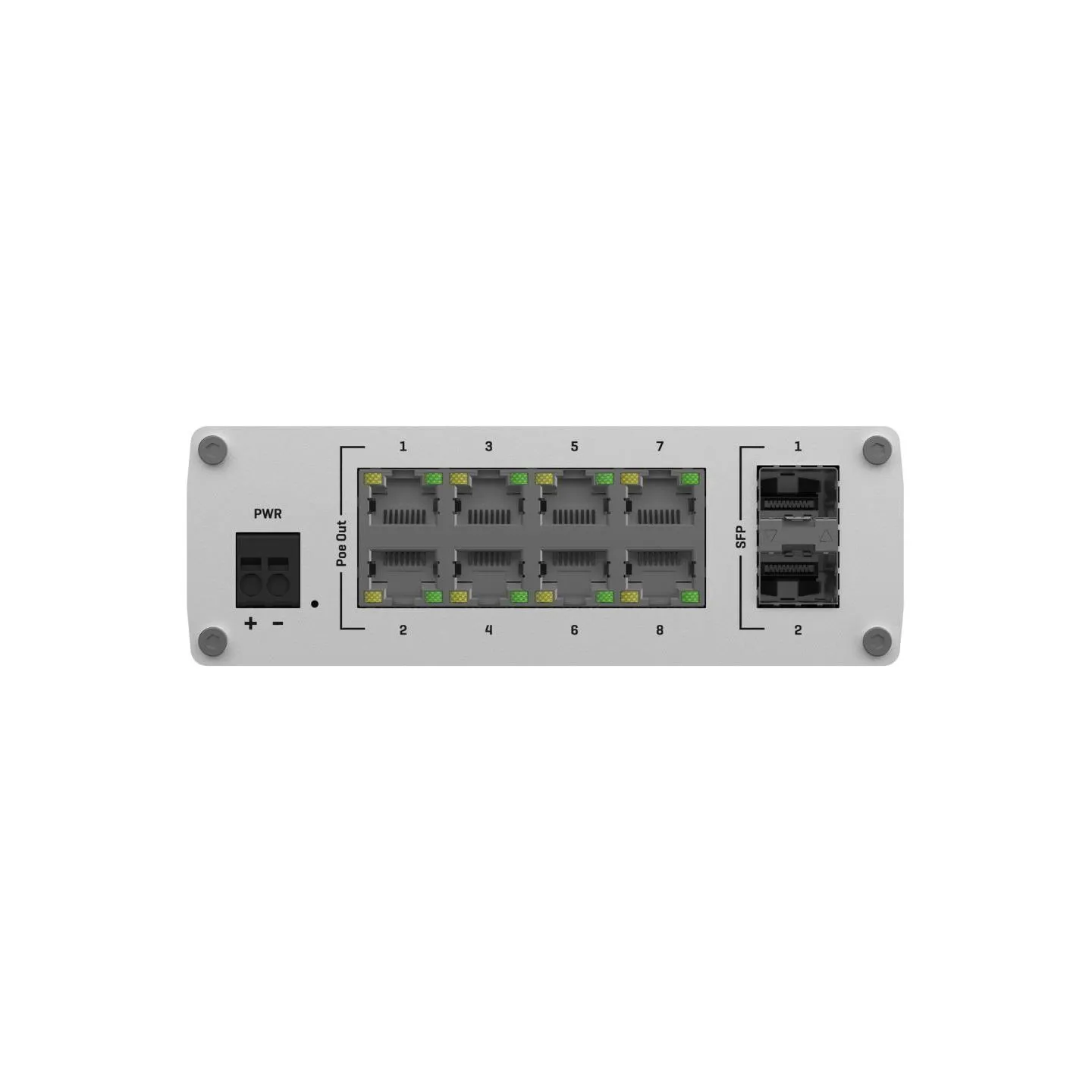

Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.
Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
- SFP
- ETHERNET
- DURABILITY

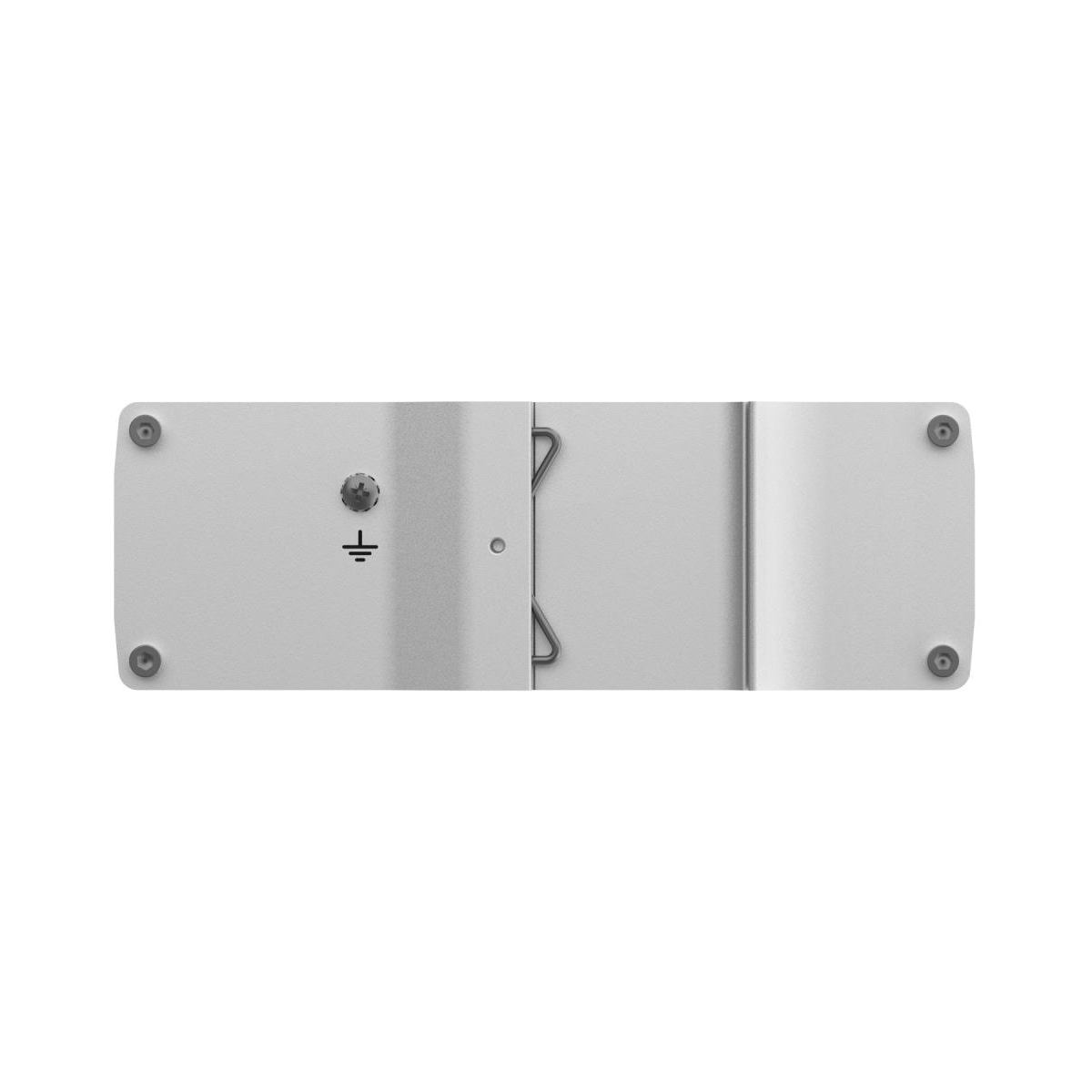

- MOUNTING (DIN rail)
Manufacturer Website:
https://teltonika-networks.com/product/tsw210/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.148
- Unit Box Length
- 0.17
- Unit Box Width
- 0.07
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 2
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Networking standards
- IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2048 entries
- Packet buffer memory
- 128 MB
- Switching capacity
- 20 Gbit/s
- DIN rail mounting
- Yes
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- LED indicators
- LAN/Power/Status
- Product colour
- Aluminium
- Rack mounting
- No
- Stackable
- No
- Wall mountable
- Yes
- DC input voltage
- 7 - 57 V
- Power consumption (max)
- 3.71 W
- Power consumption (typical)
- 1.03 W
- Power source
- DC
- Power supply included
- No
- Power over Ethernet (PoE)
- No
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 95.1 mm
- Height
- 44.2 mm
- Weight
- 500 g
- Width
- 132 mm
- Model
- TSW210
- Model name
- TSW210000040
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.001761 cubm
- Unit Calculated Weight
- 0.6 kg
