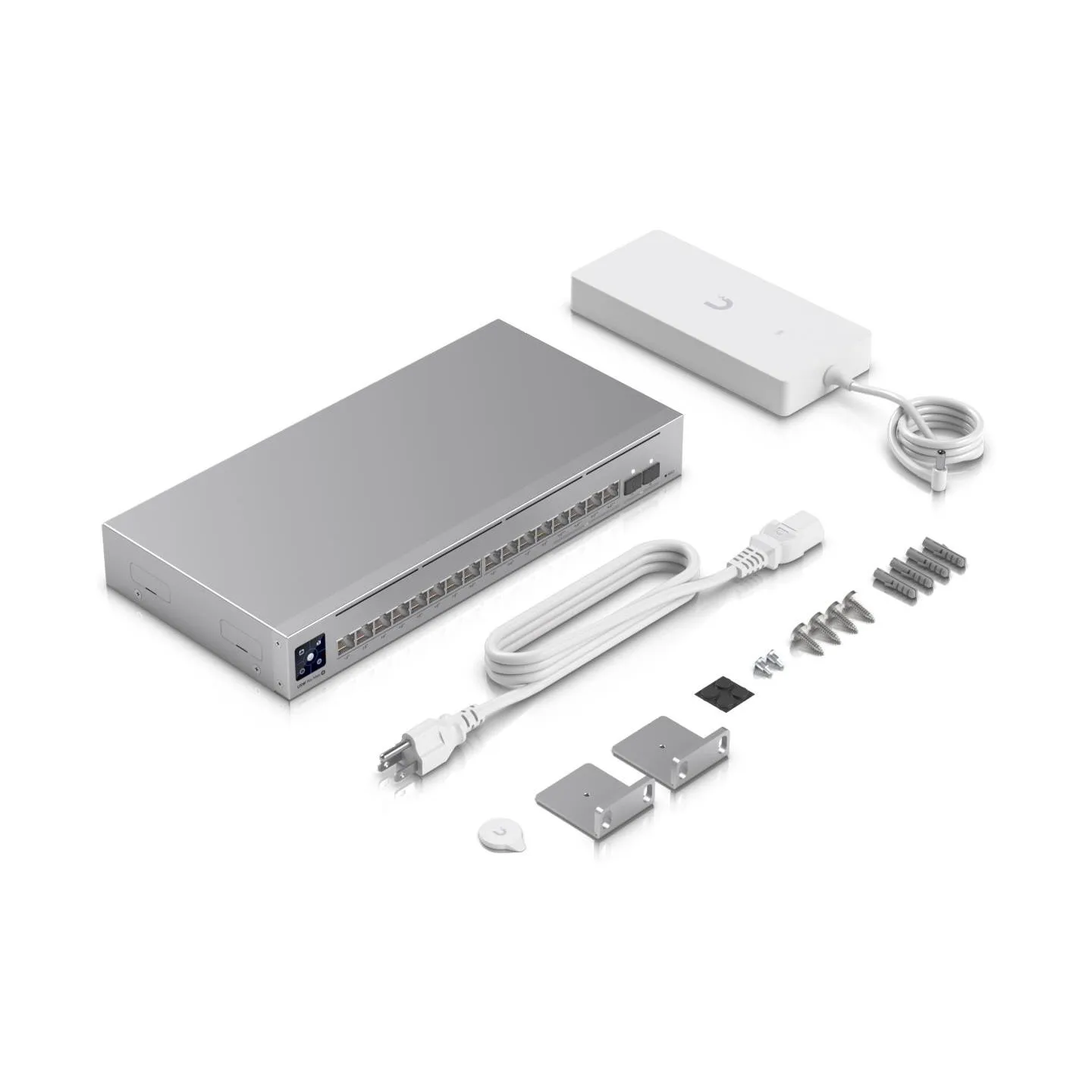

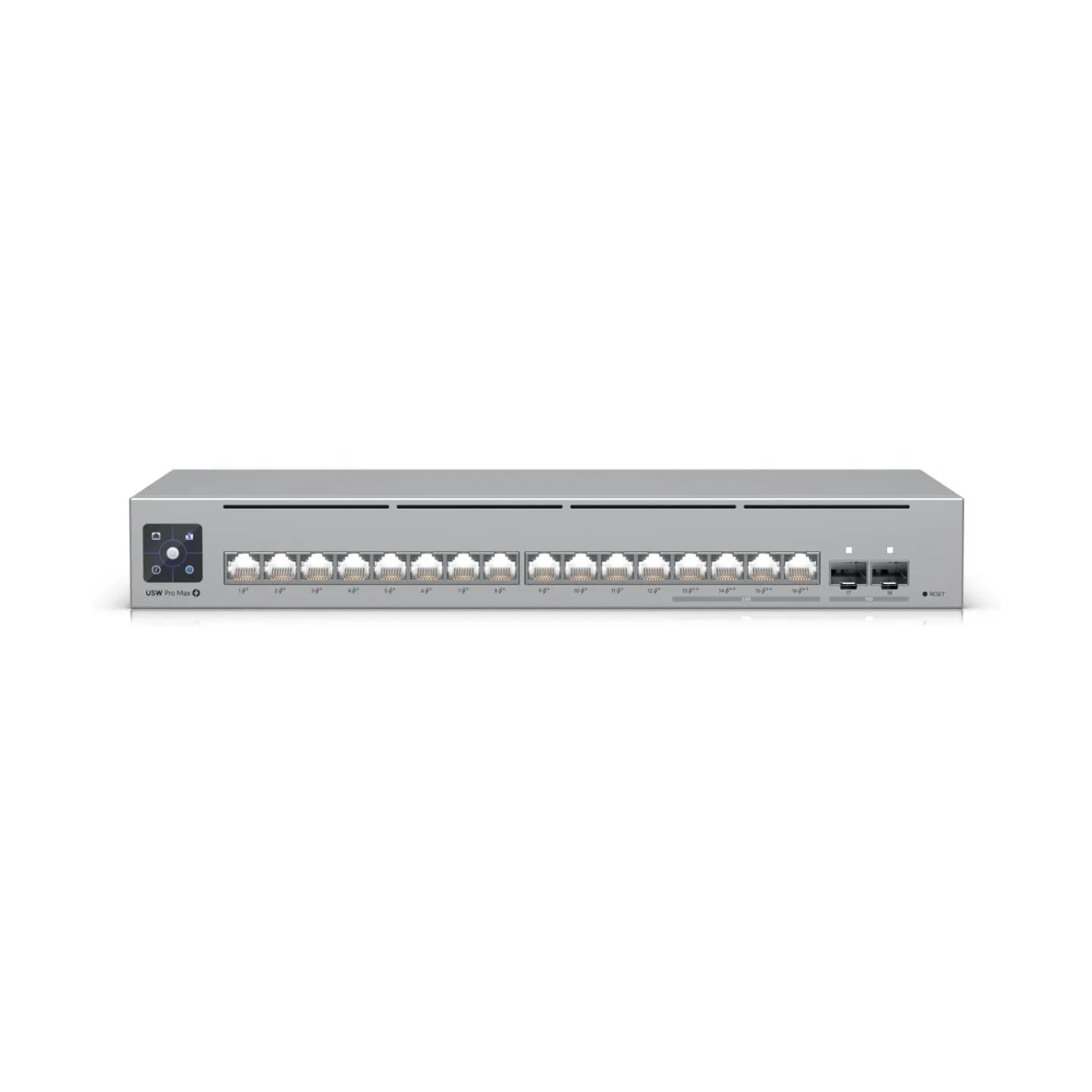

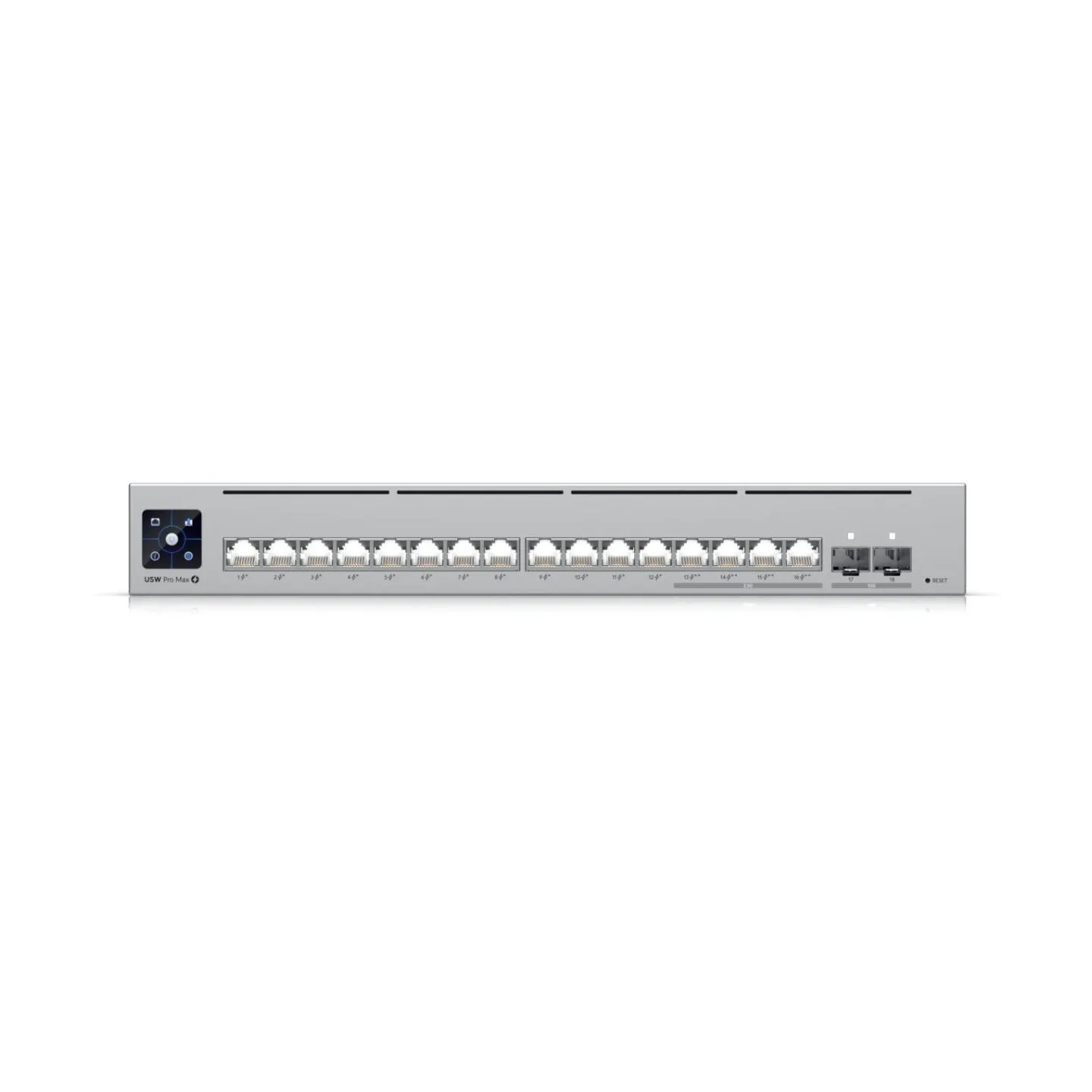

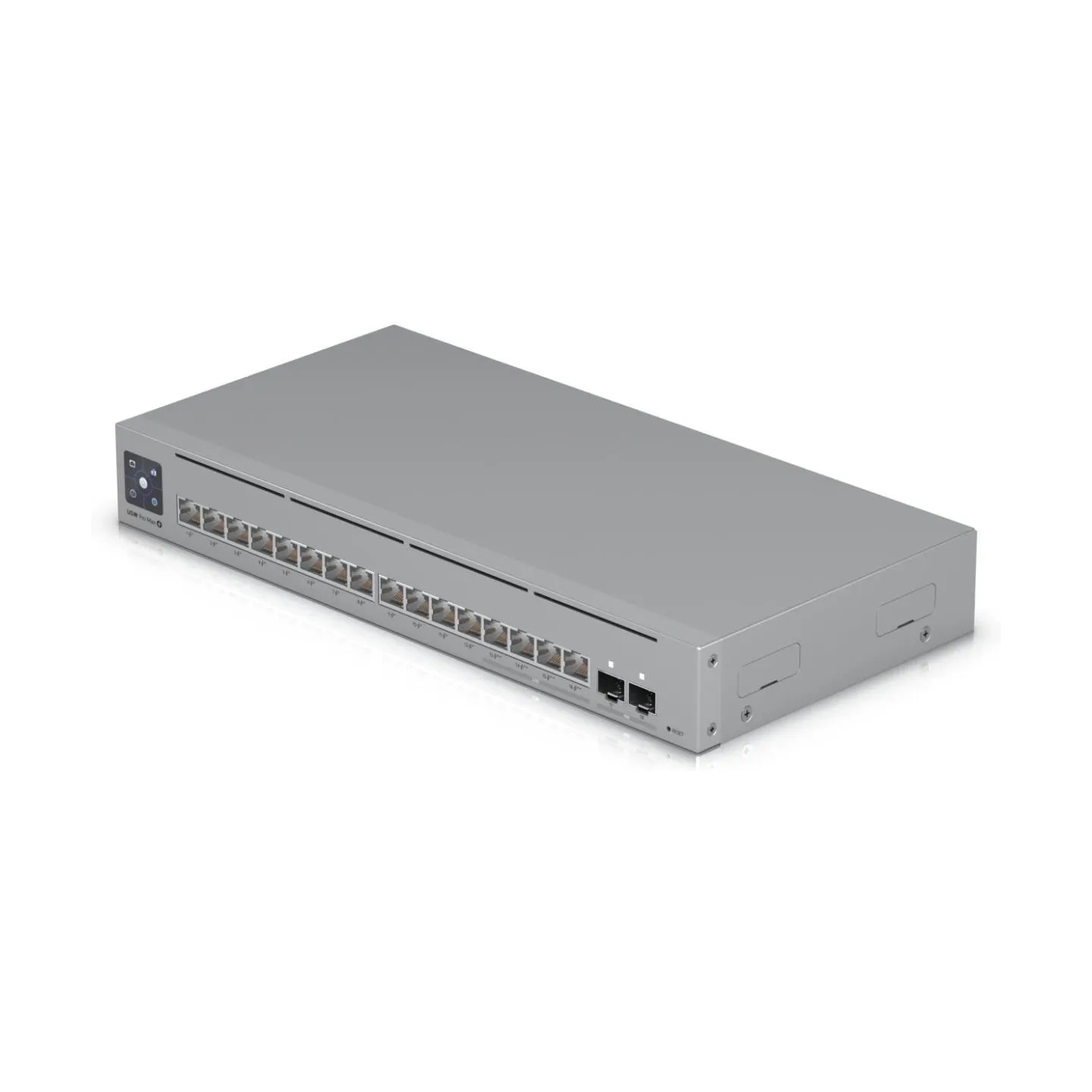

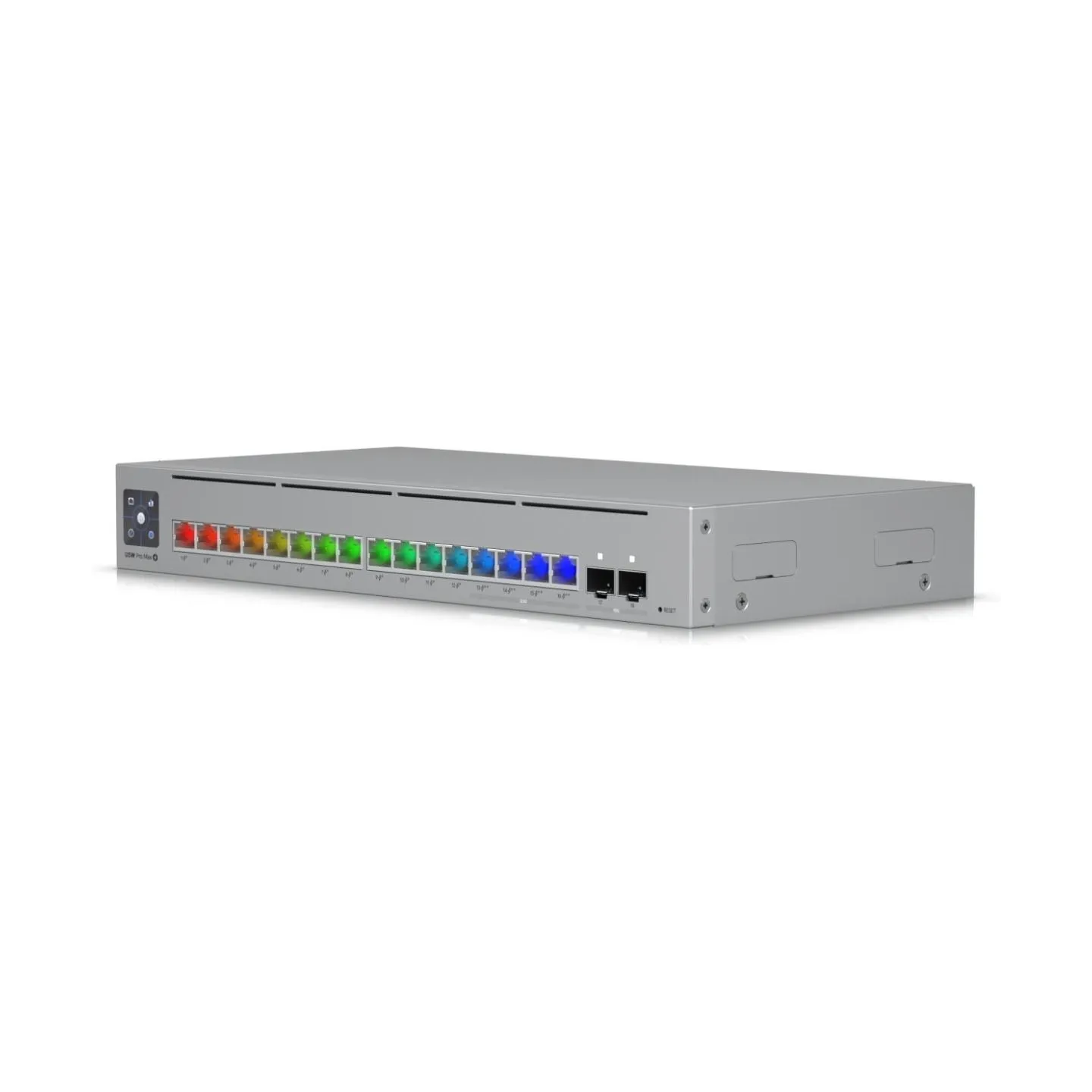

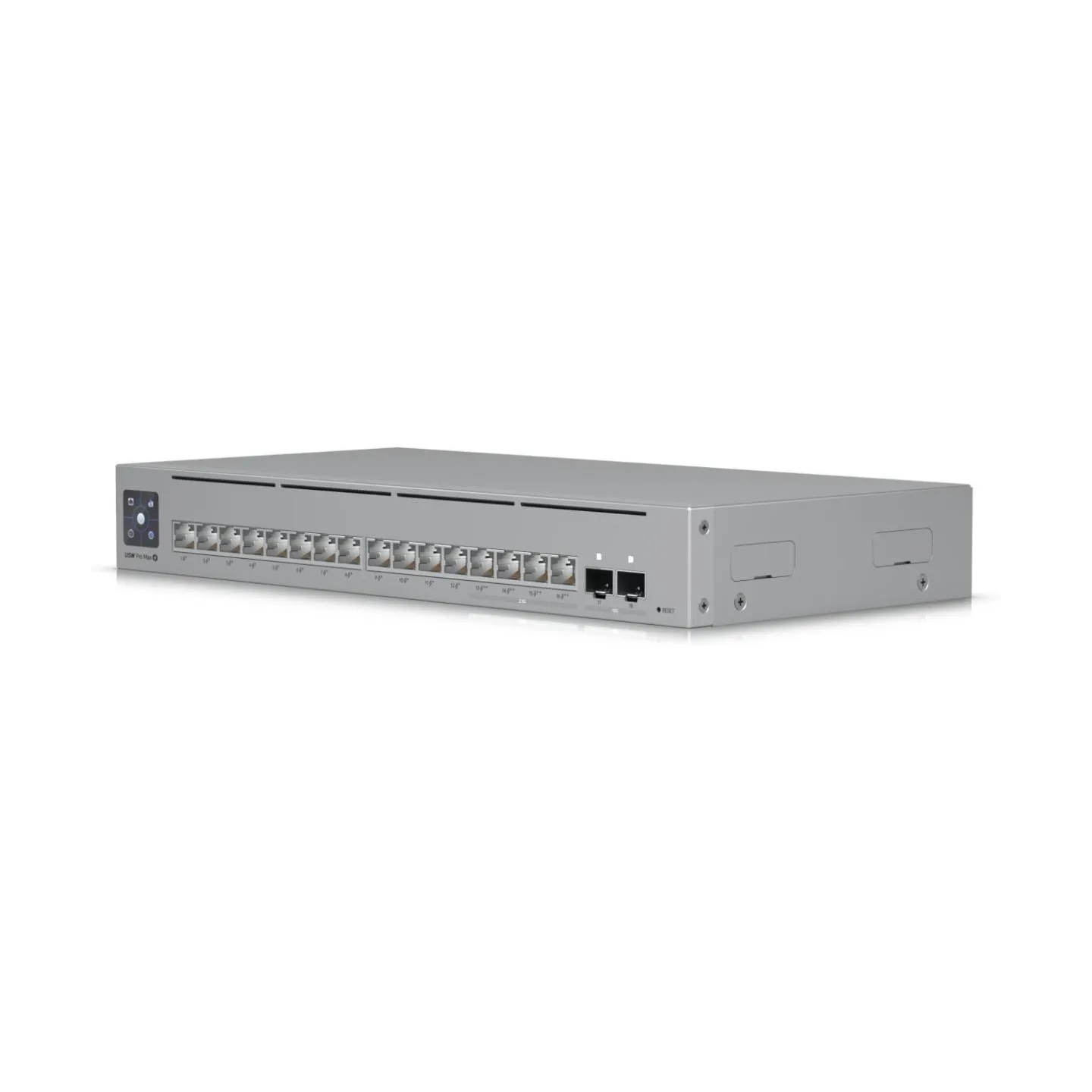

Ubiquiti USW-PRO-MAX-16-POE

Name: Ubiquiti USW-PRO-MAX-16-POE
Brand: UBIQUITI
SKU: USW-PRO-MAX-16-POE
Price: 451.7 EUR
Availability: InStock

SKU USW-PRO-MAX-16-POE Category Switches

€451.70

Tax included

Last items in stock

Share on

Pro Max 16 PoE
Type Managed
Switch layer L3
16xBasic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
2xSFP+ module slots quantity
Yes
Port mirroring Yes
Switching capacity 84 Gbit/s
Throughput 42 Gbit/s
Forwarding rate 62.496 Mpps
Rack mounting Yes
Product colour Grey
Power source AC/DC
Power supply included Yes
Power over Ethernet (PoE) Yes
12xPower over Ethernet plus (PoE+) ports quantity
4xPower over Ethernet 4PPoE (PoE++) ports quantity
Power over Ethernet (PoE) power per port 15 W
Total Power over Ethernet (PoE) budget 180 W
Width 325.1 mm
Depth 160 mm
Height 43.7 mm
Weight 2100 g

Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/products/usw-pro-max-16-poe

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.11
Unit Box Length: 0.515
Unit Box Width: 0.25
Switch layer: L3
Switch type: Managed
2.5G Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 12
Power connector: DC-in jack
SFP+ module slots quantity: 2
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
Networking standards: IEEE 802.1x
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN
VLAN support: Yes
Forwarding rate: 62.496 Mpps
Jumbo frames support: Yes
Switching capacity: 84 Gbit/s
Throughput: 42 Gbit/s
DHCP features: DHCP snooping/DHCPv6 relay
IGMP snooping: Yes
Loop protection: Yes
Multicast support: Yes
Display type: LCM
Housing material: Steel
LED indicators: System
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
DC input voltage: 44 - 57 V
Power consumption (max): 30 W
Power source: AC/DC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15 W
Power over Ethernet 4PPoE (PoE++) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 12
Total Power over Ethernet (PoE) budget: 180 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 40 °C
Depth: 160 mm
Height: 43.7 mm
Weight: 2100 g
Width: 325.1 mm
Cables included: Power
Manual: Yes
Mounting brackets included: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model: USW-PRO-MAX-16-POE
Model name: Pro Max 16 PoE
Units per Shipping Box: 4
Unit Calculated Volume: 0.01723 cubm
Unit Calculated Weight: 4.08 kg

Category Switches Brand UBIQUITI EAN13 810084694572 In stock 1 Item
