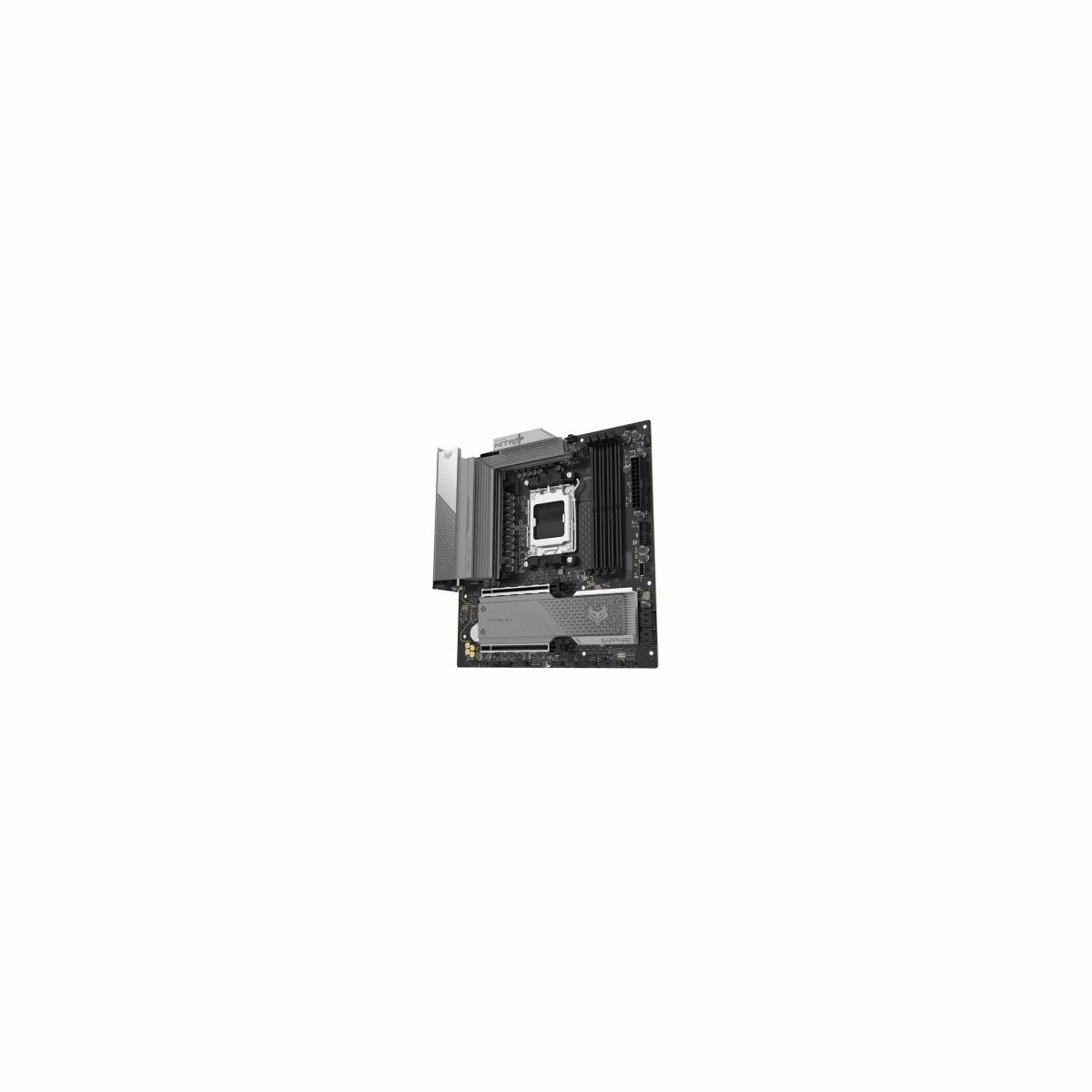

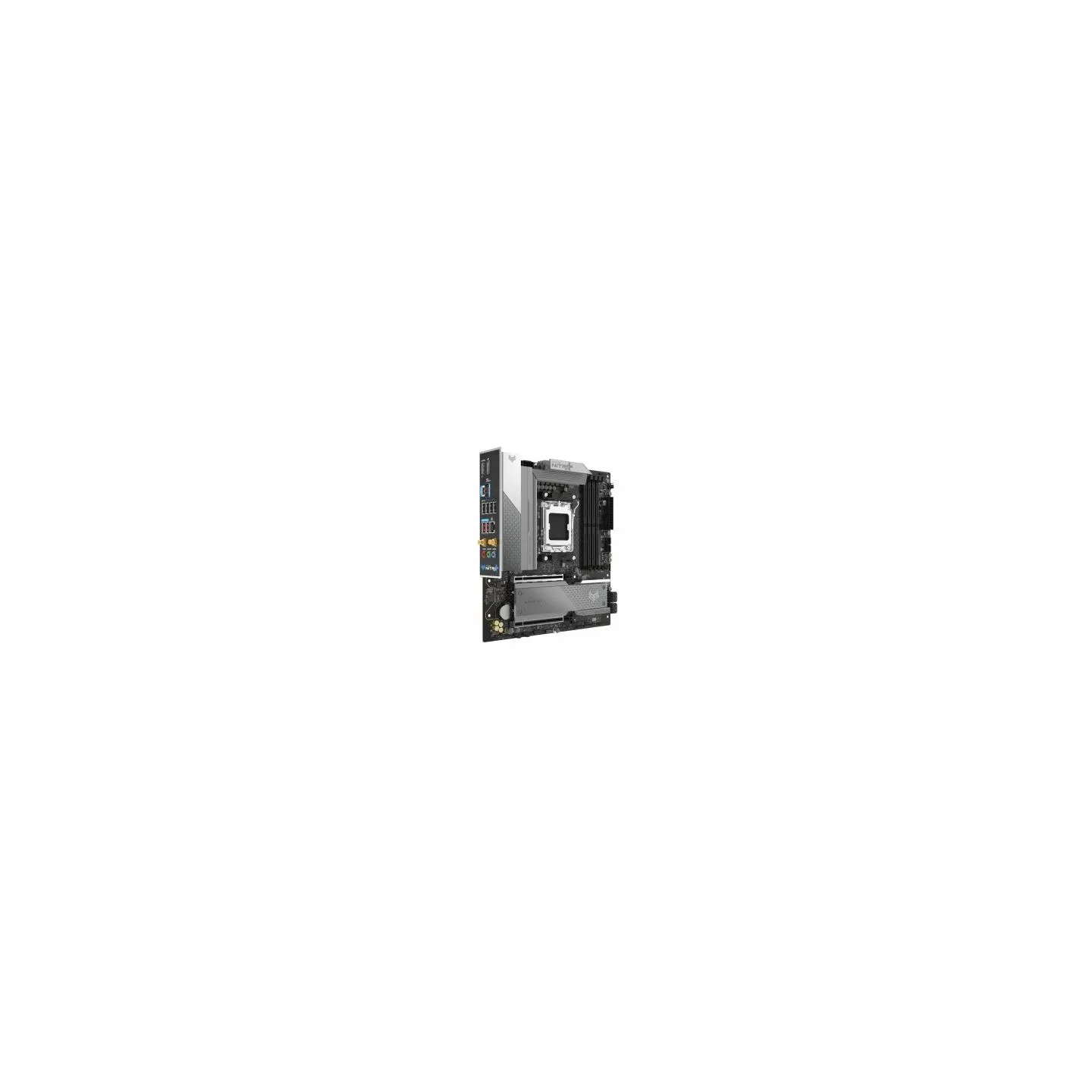

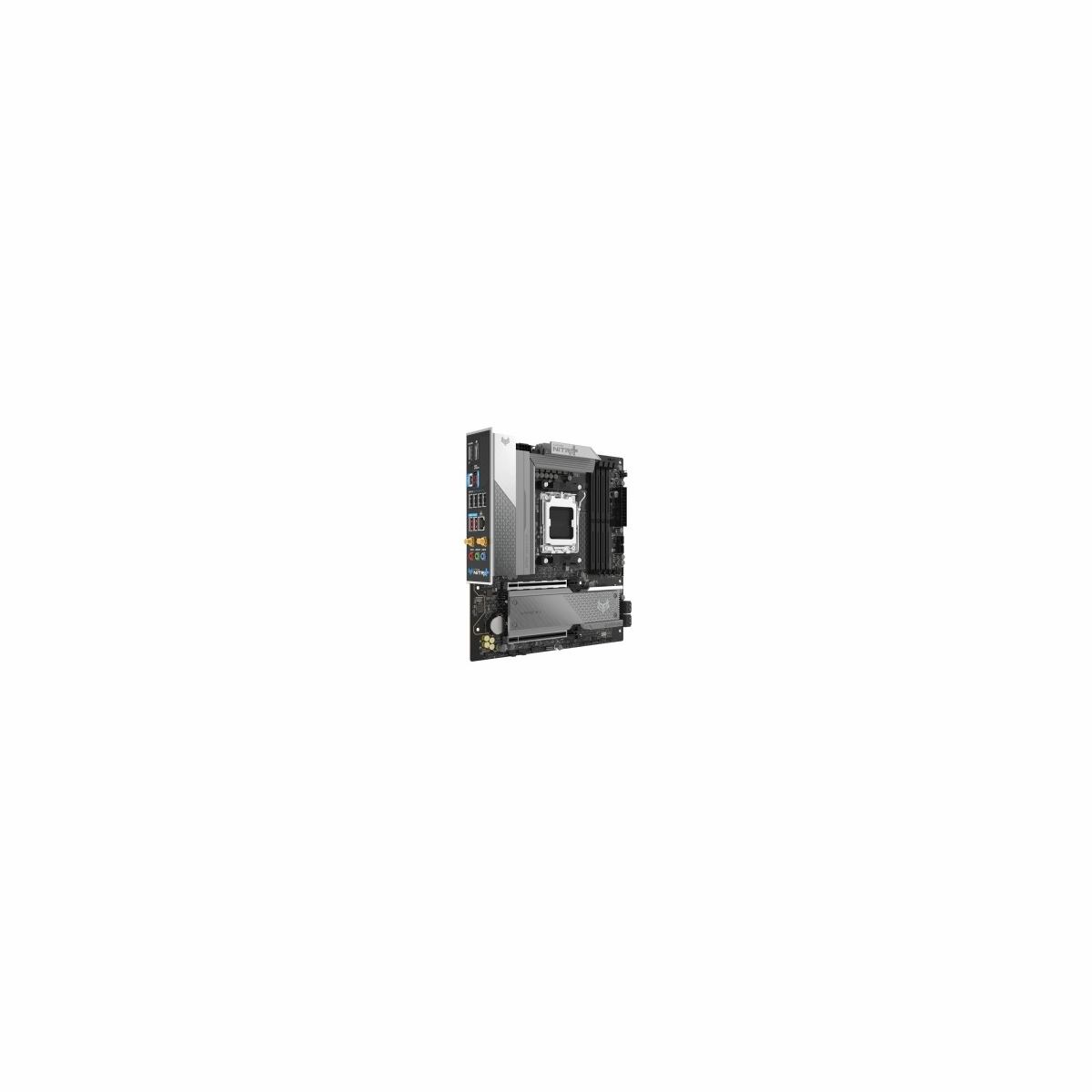

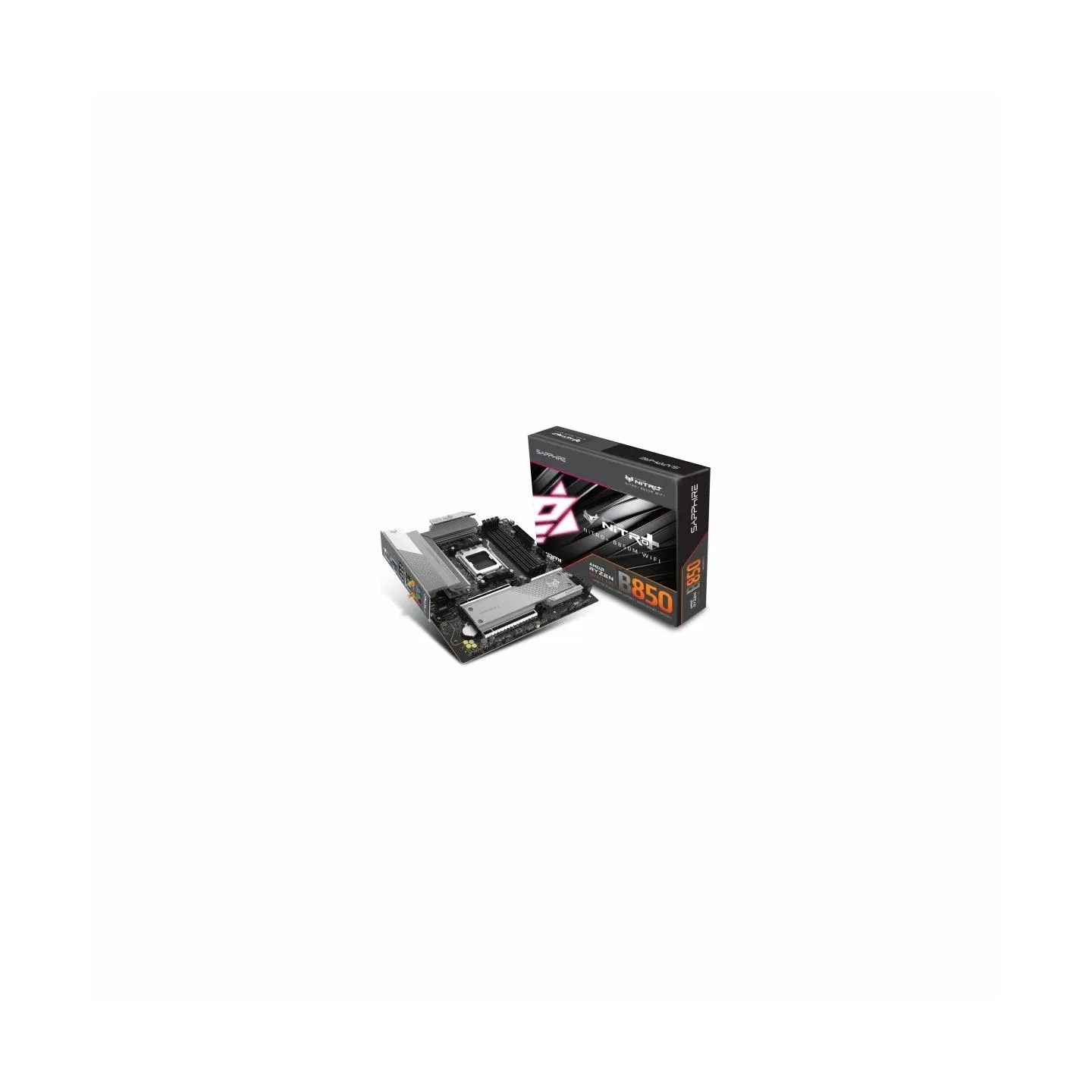

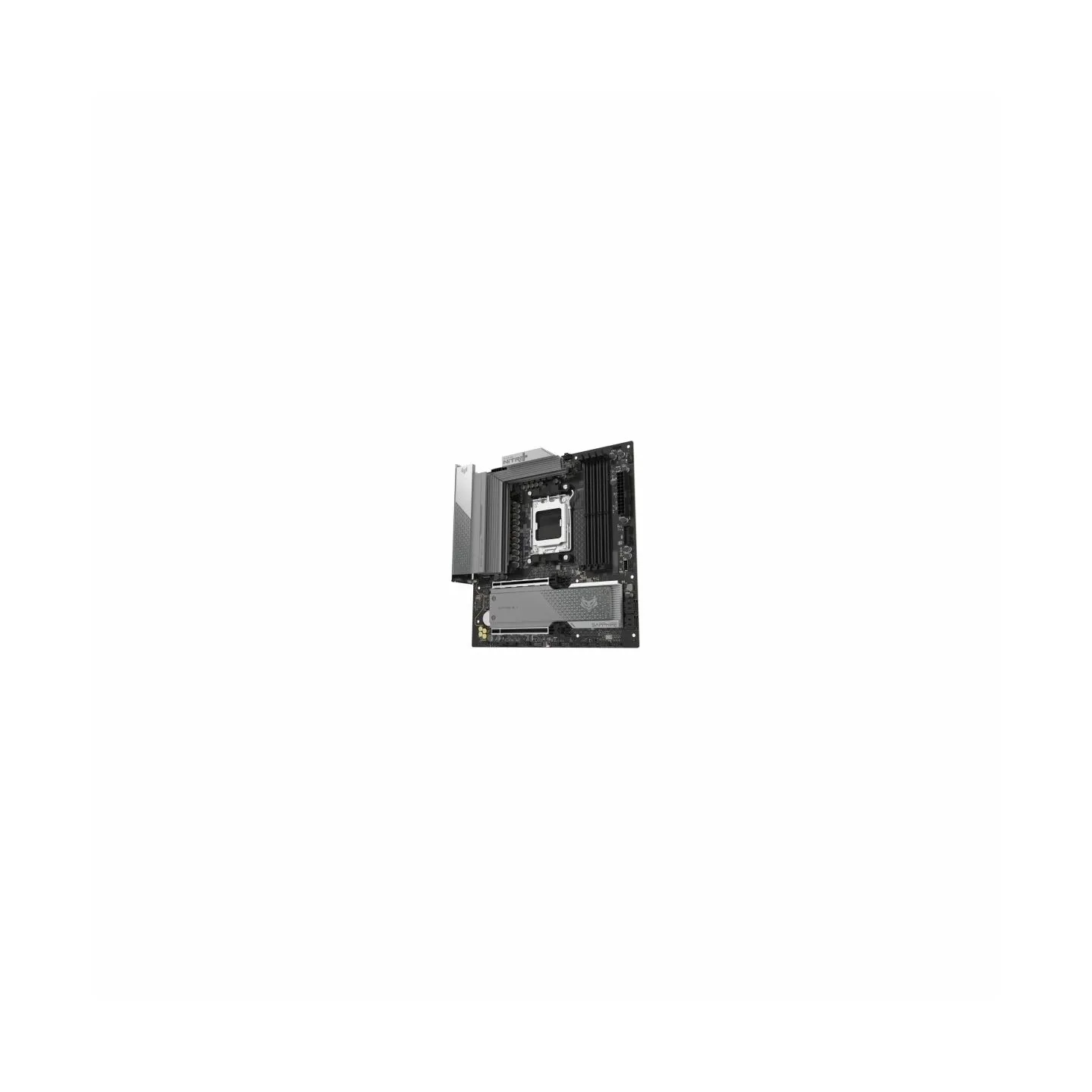

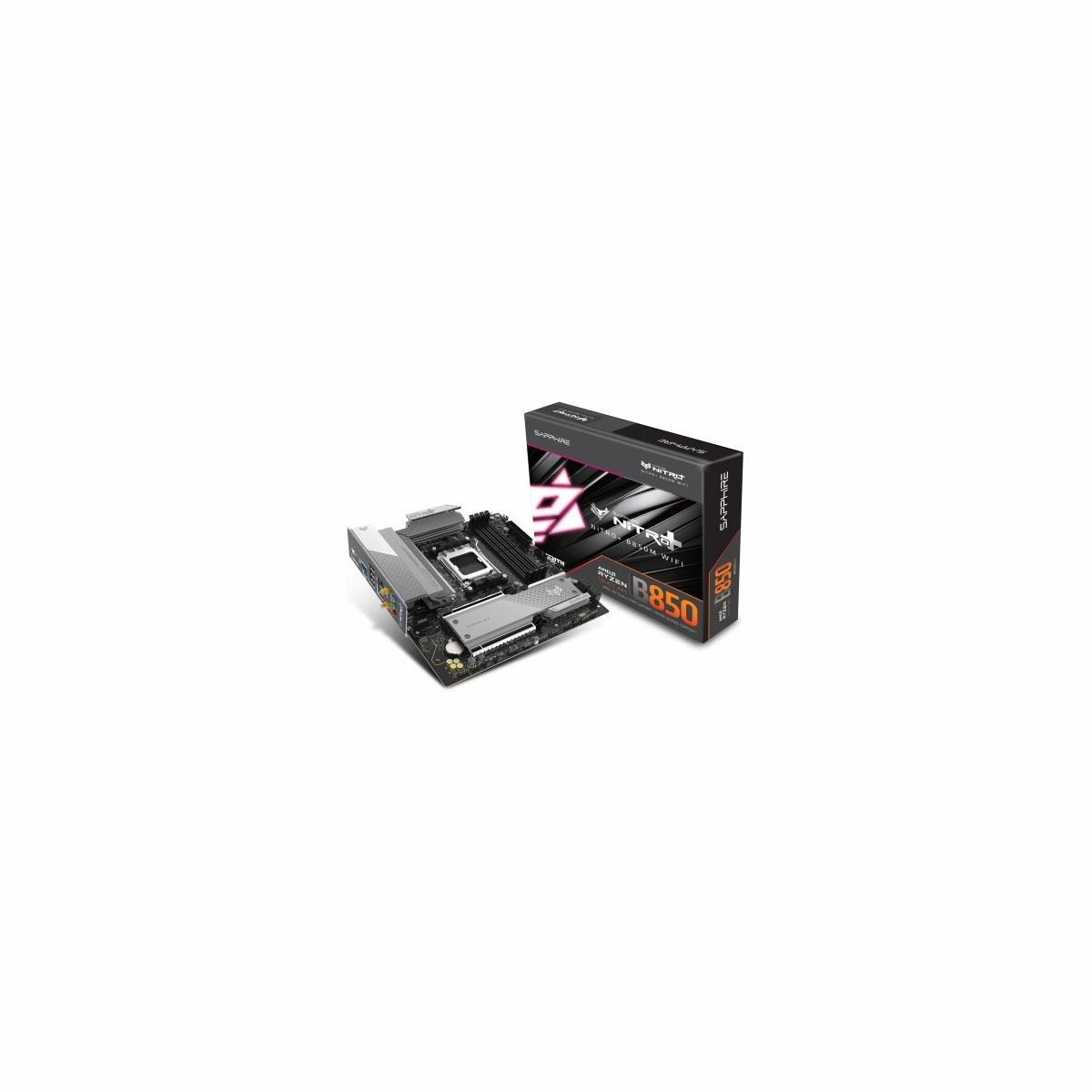

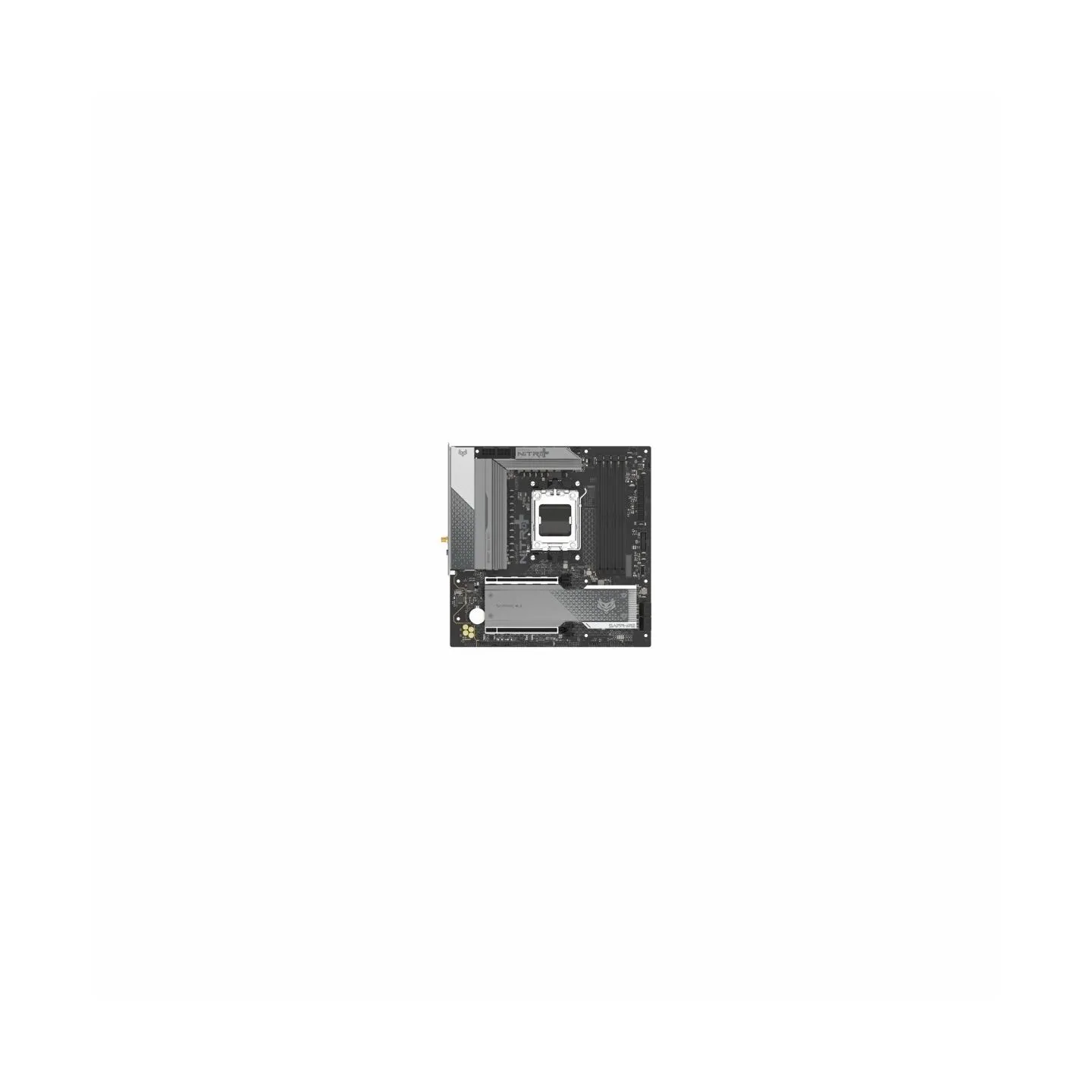

Sapphire Motherboard NITRO+ B850M WIFI AM5 4DDR5 mATX
Price:
€175.16
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBSAPAA8B850U01
- Barcode
- 4895106296916
- Model
- NITRO+ B850M WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 3
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- Sound card
- Realtek ALC897 HD Audio, 5.1 Channel
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Realtek RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support
- USB ports at back panel
- 8
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 3 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- BIOS
- SAPPHIRE CORE BIOS
- Form factor
- micro ATX
- Dimensions
- 244 x 244 mm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
