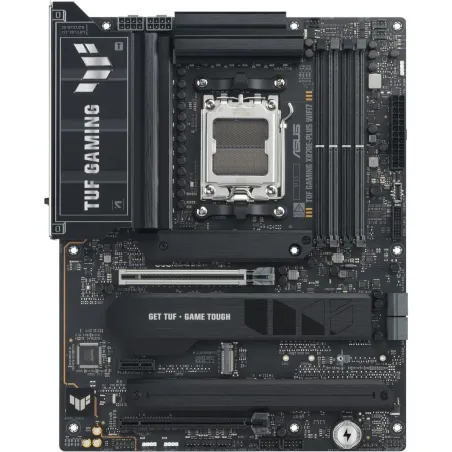

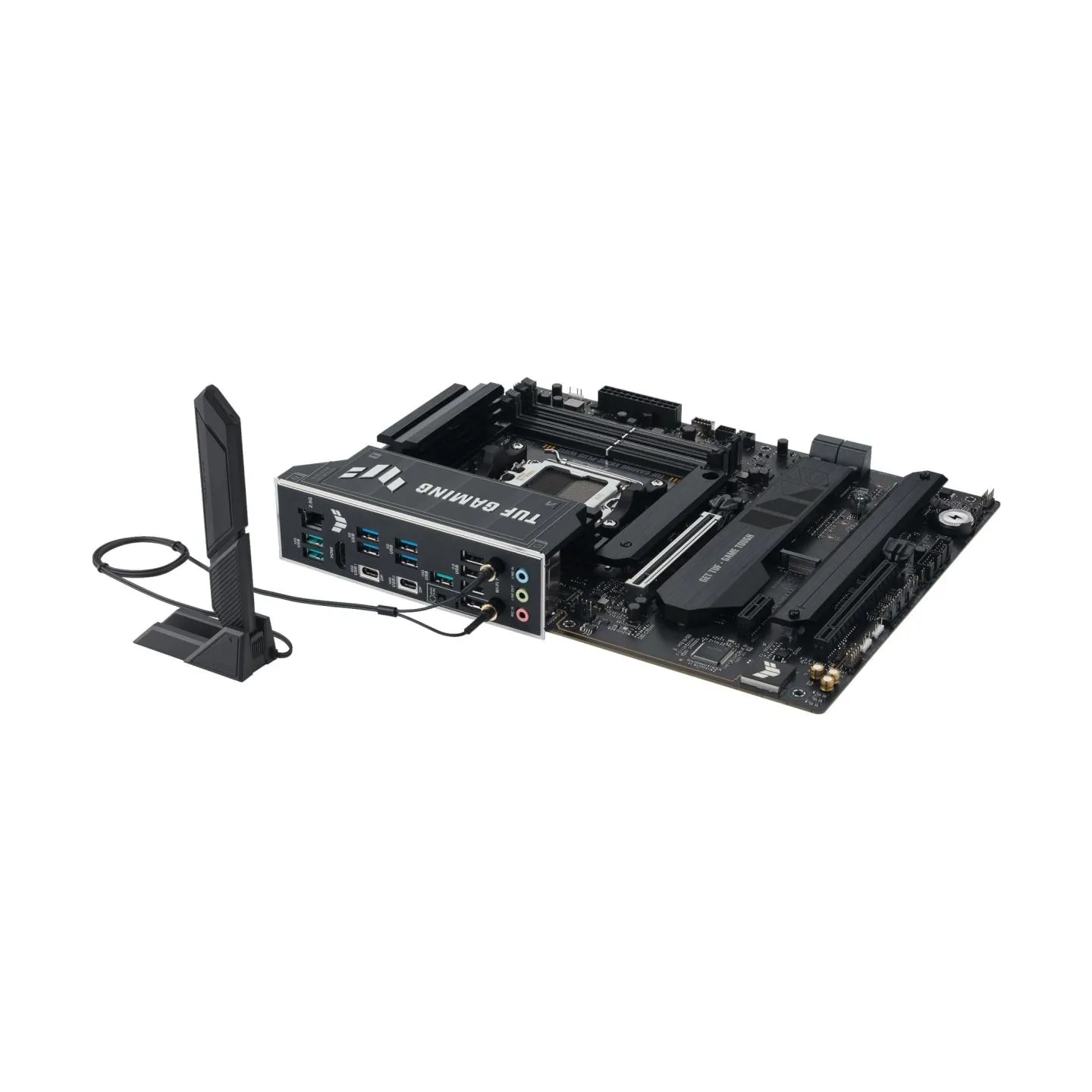

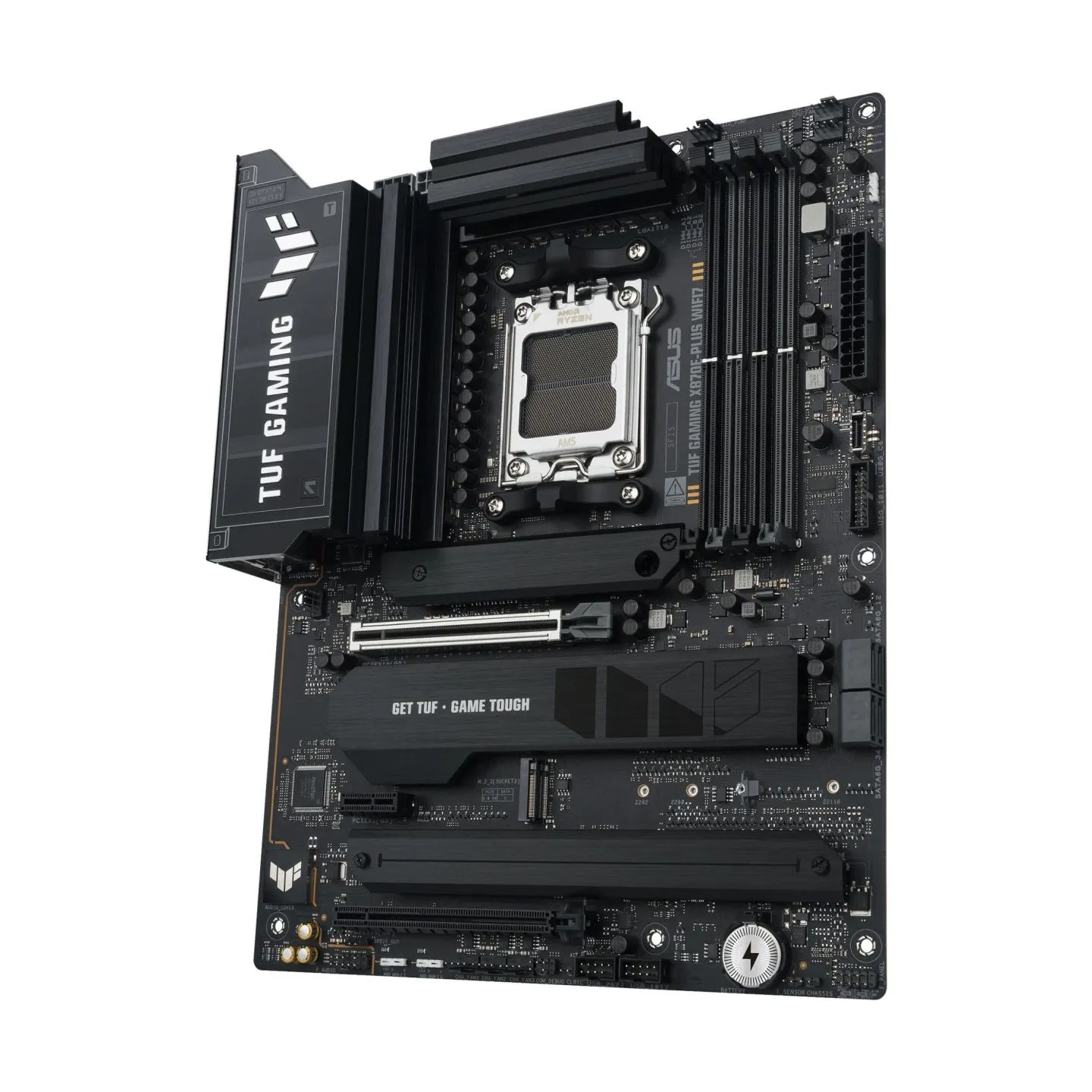

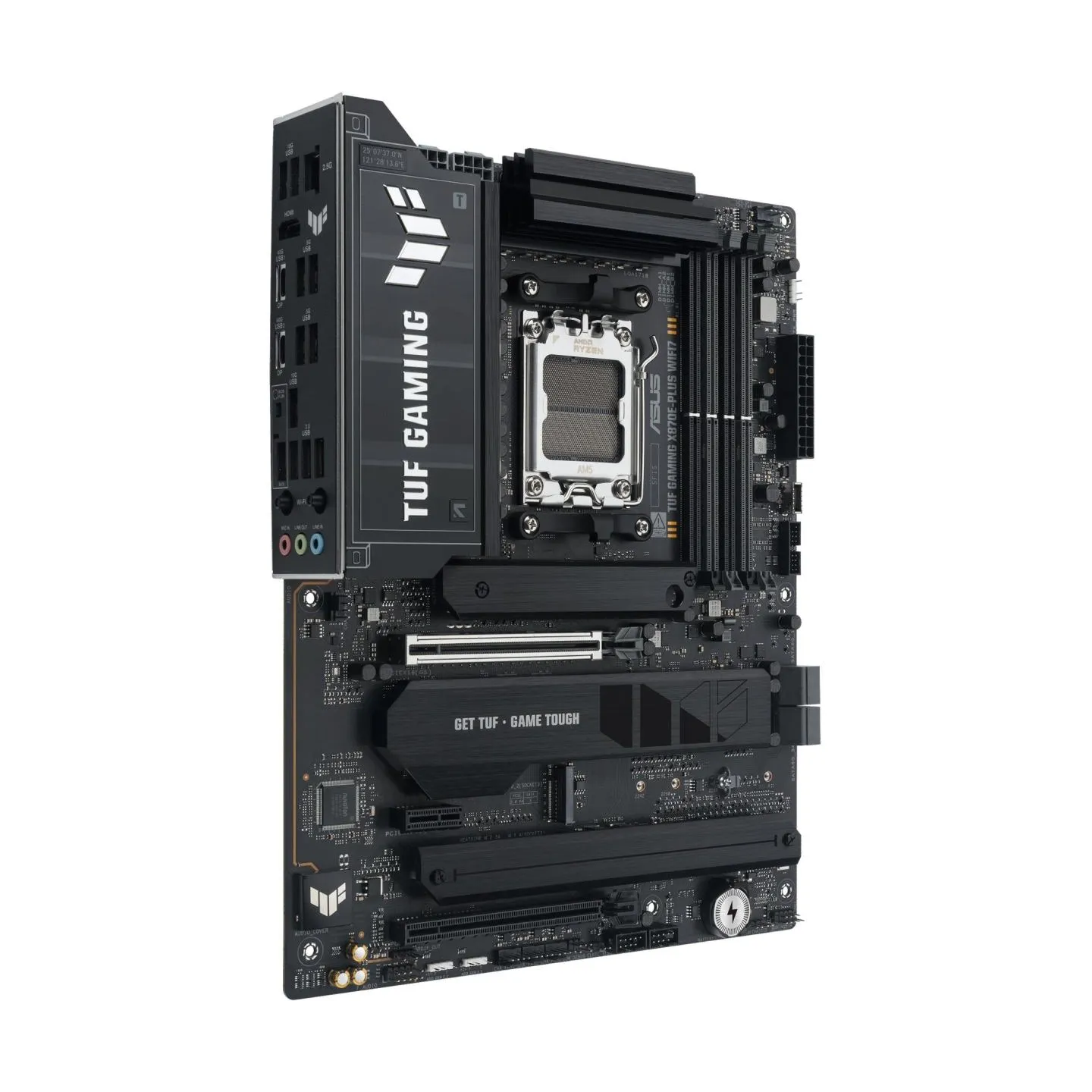

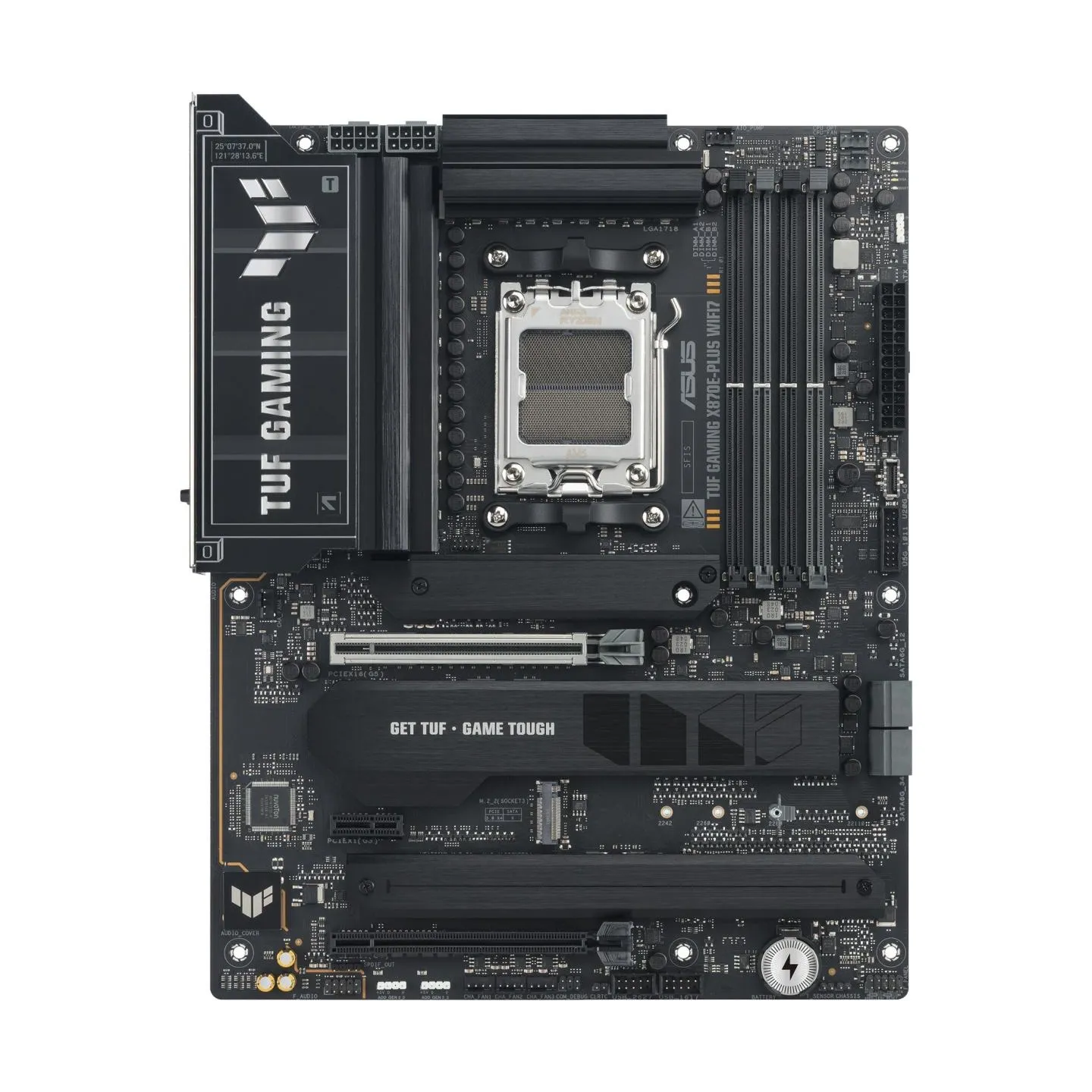

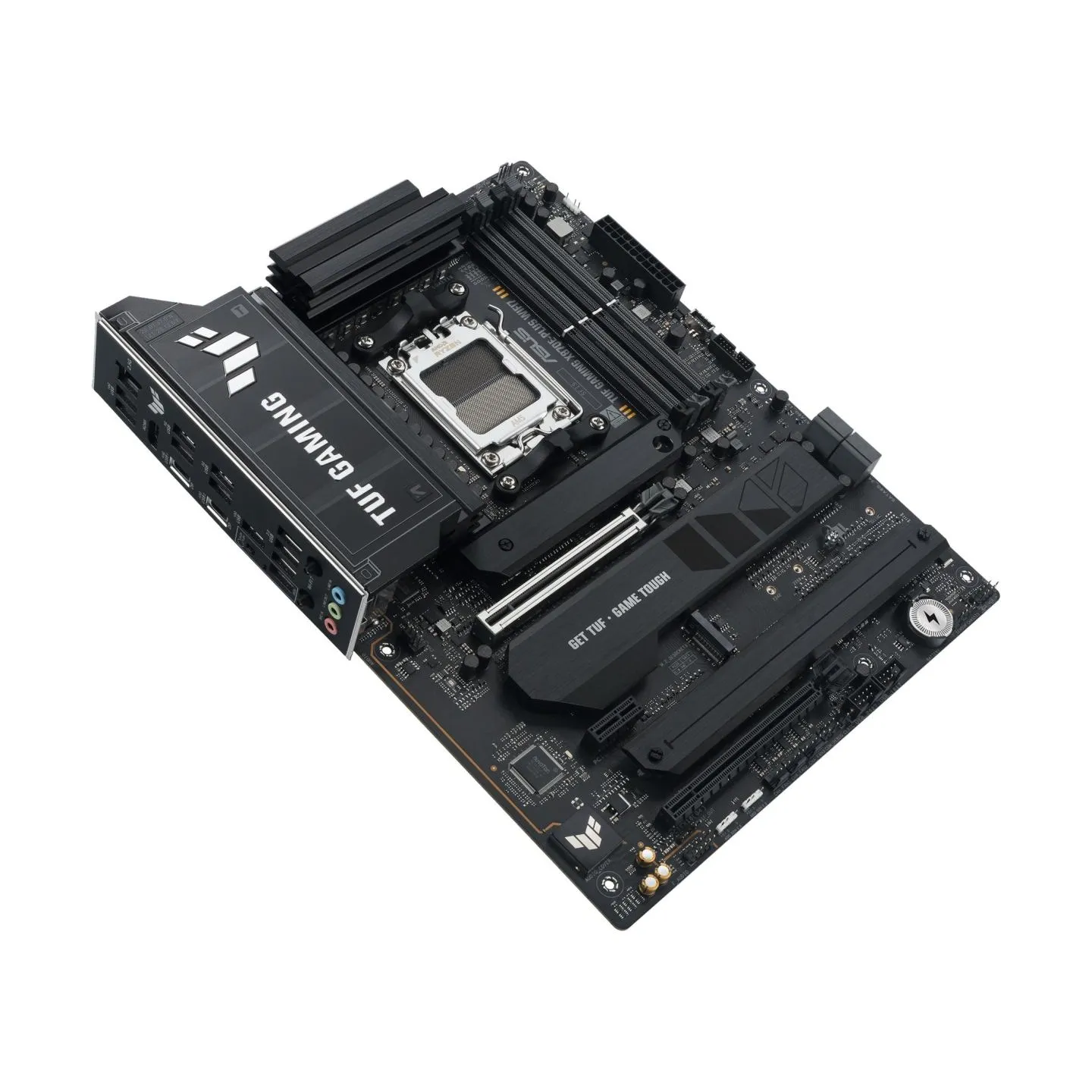

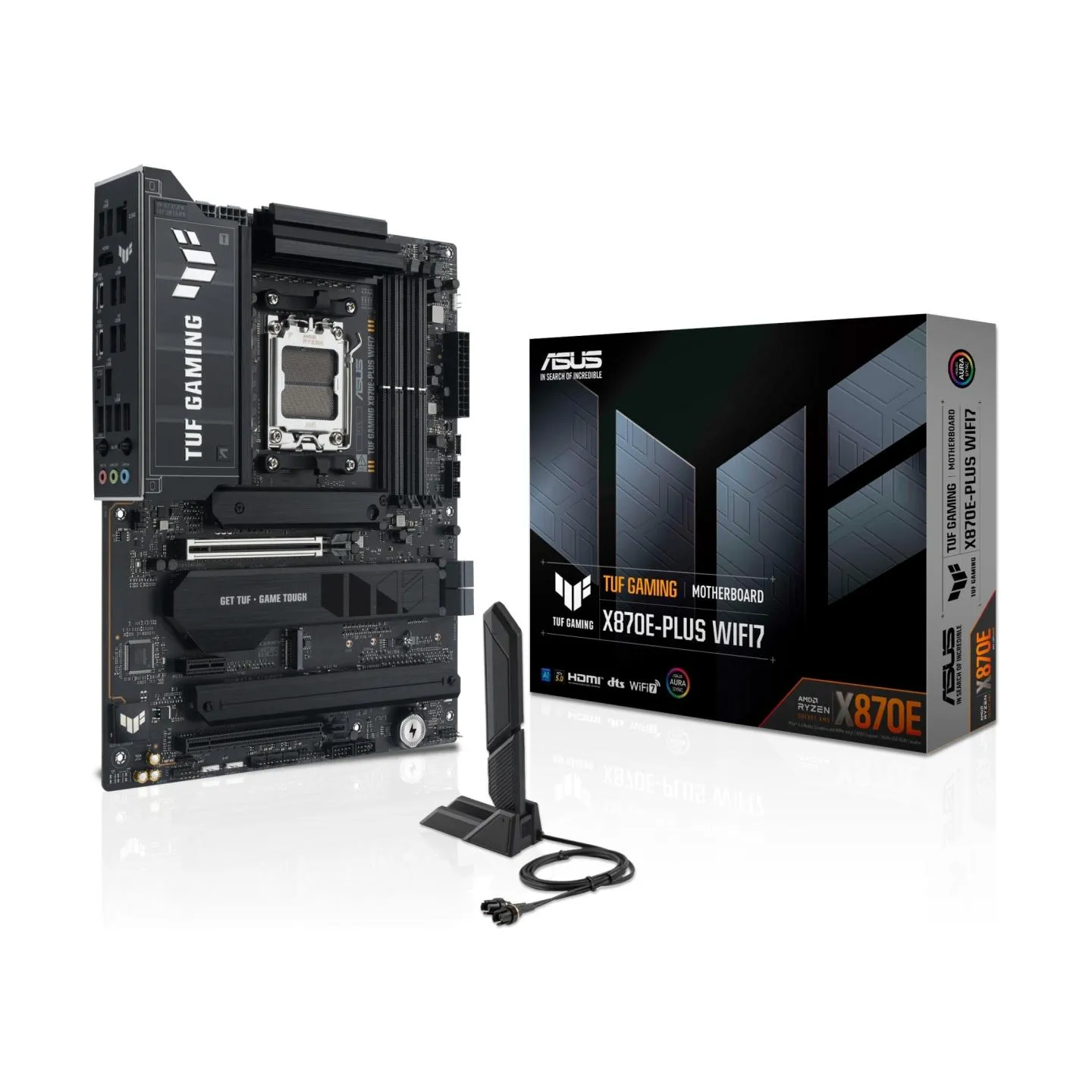

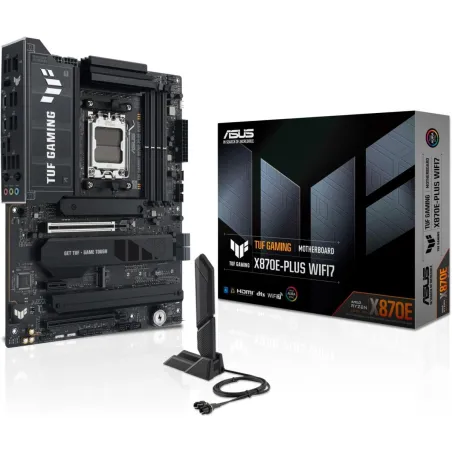

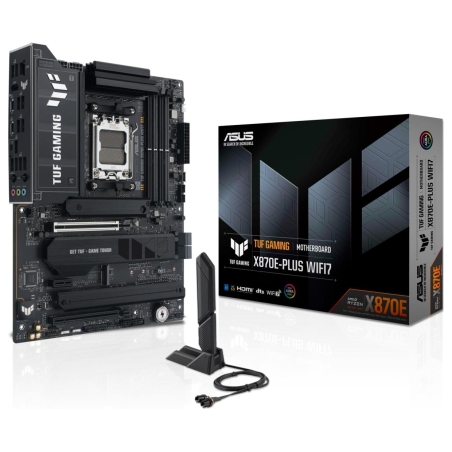

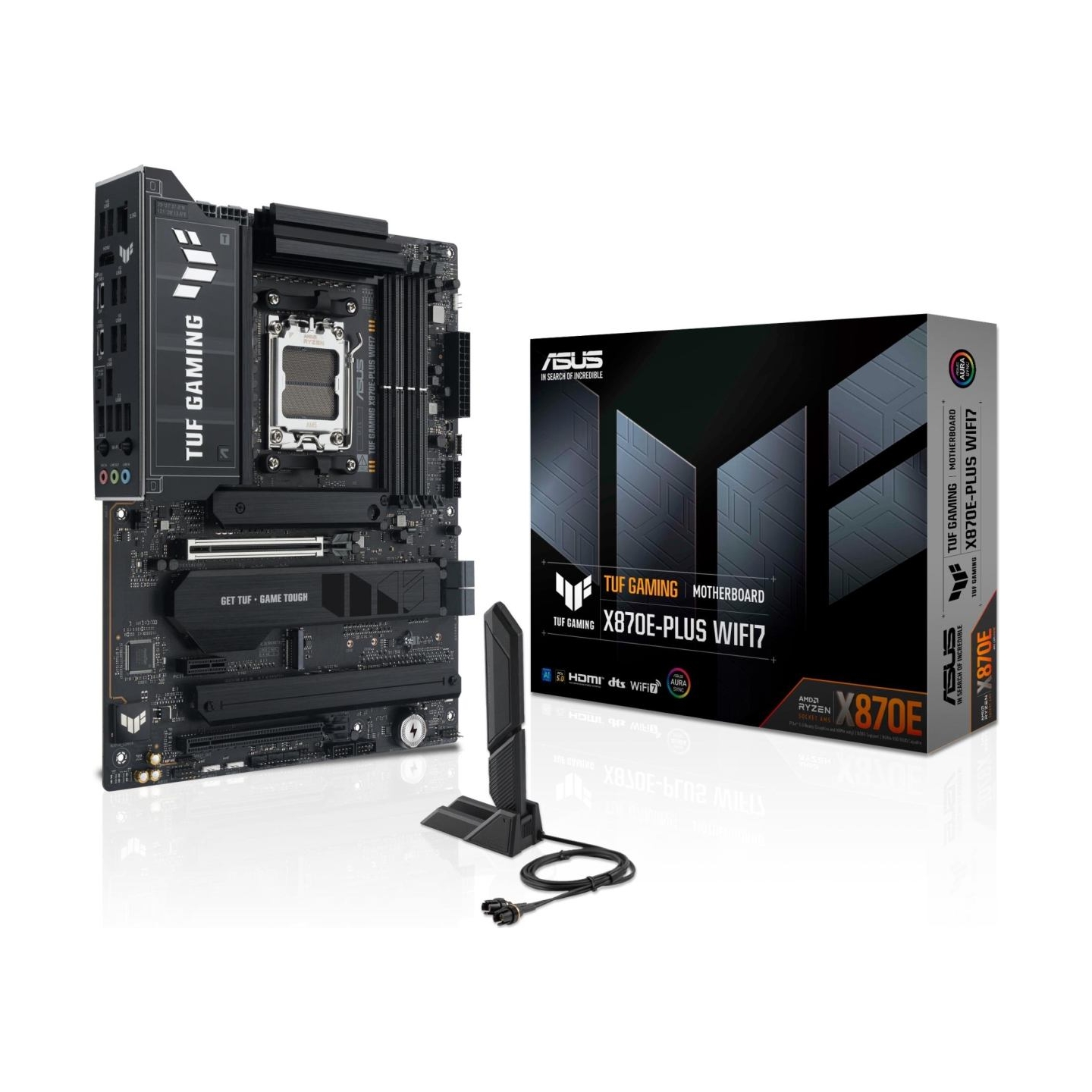

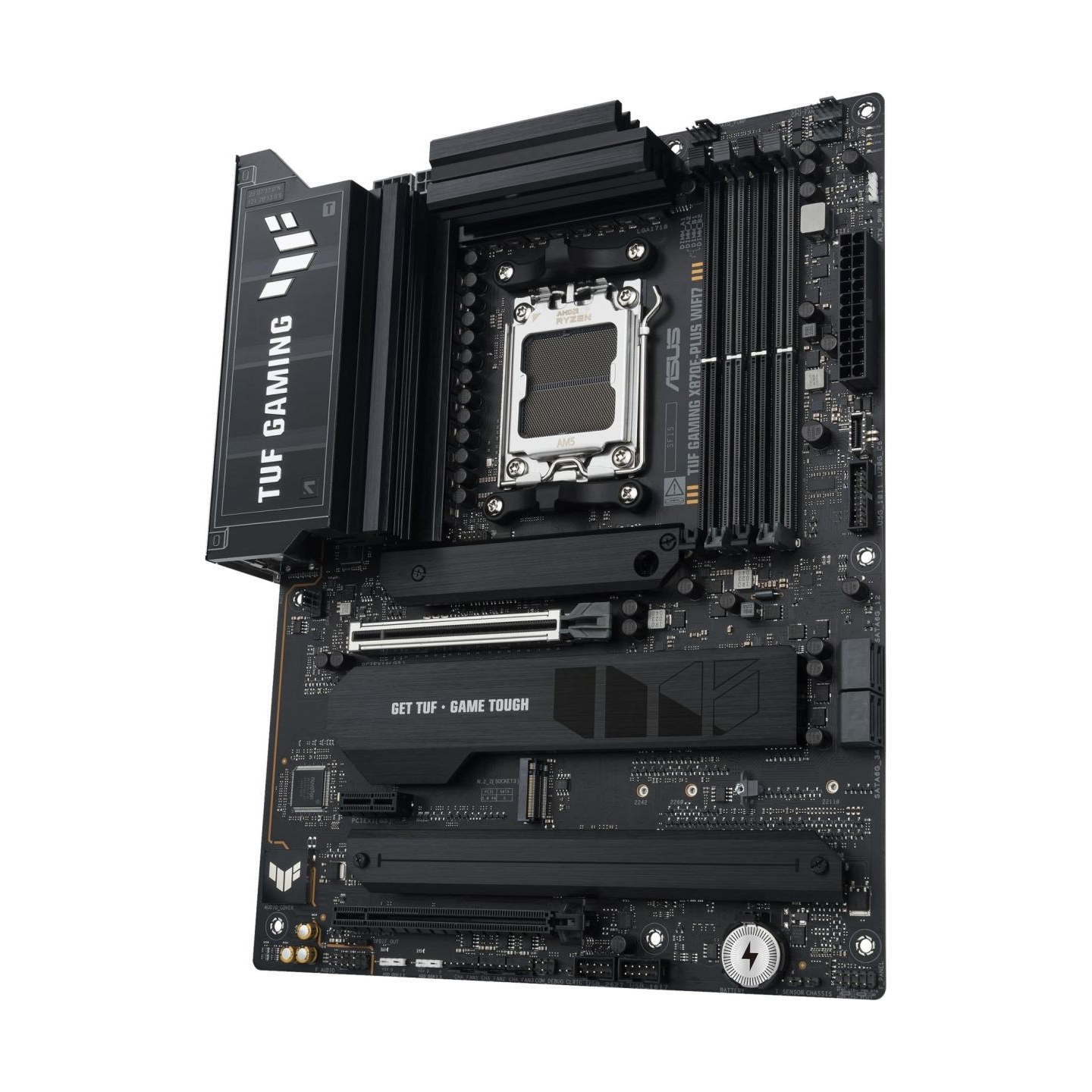

Asus Motherboard TUF GAMING X870E-PLUS W IFI AM5 4DDR5 HDMI/USB-C
Out-of-Stock
Price:
€496.56
Tax included
Out-of-Stock
Share on
- SKU
- KBASUAA8X870A10
- Barcode
- 4711636100342
- Model
- TUF GAMING X870E-PLUS WIFI7
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 4 x M.2
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- AMD RAIDXpert2 technology Ryzen 9000 series processors: RAID 0/1/5/10 Ryzen 8000 series processors: RAID 0/1 Ryzen 7000 series processors: RAID 0/1/10
- Graphics
- 1 x HDMI port**2 x USB4 (40 Gbps) ports support USB Type-C output**** Graphics specifications may vary depending on processor type. Please refer to AMD processor specifications.** Supports 4K@60Hz resolution as per the HDMI 2.1 specification.*** Supports up to 4K@60Hz resolution as per the DisplayPort 1.4a specification.*** VGA resolution support depends on the resolution of the processor or graphics card.
- Sound card
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio Codec Impedance sensing for front and rear headphone outputs Internal audio amplifier ensures the highest sound quality for headphones and speakers Supports: jack detection, multi-stream streaming, and front panel jack remapping High-quality stereo output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz* Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Shield Unique de-pop circuit *Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported in 7.1 surround sound.
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 160 MHz band, transfer speeds up to 2.9 Gbps Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system. In Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality; Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. **Wi-Fi 6 GHz frequency band and throughput may vary by country. ***Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- USB ports at back panel
- 13
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

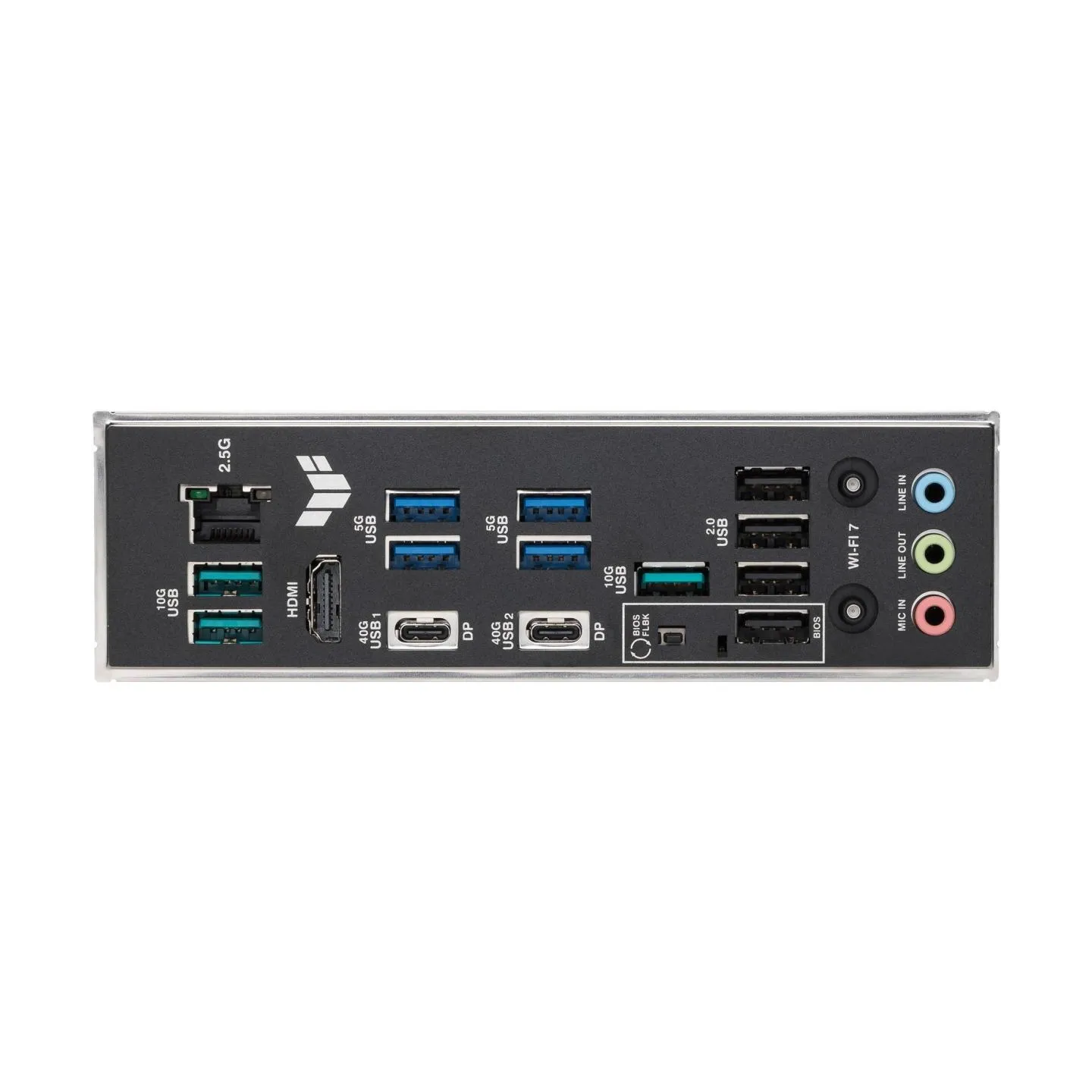

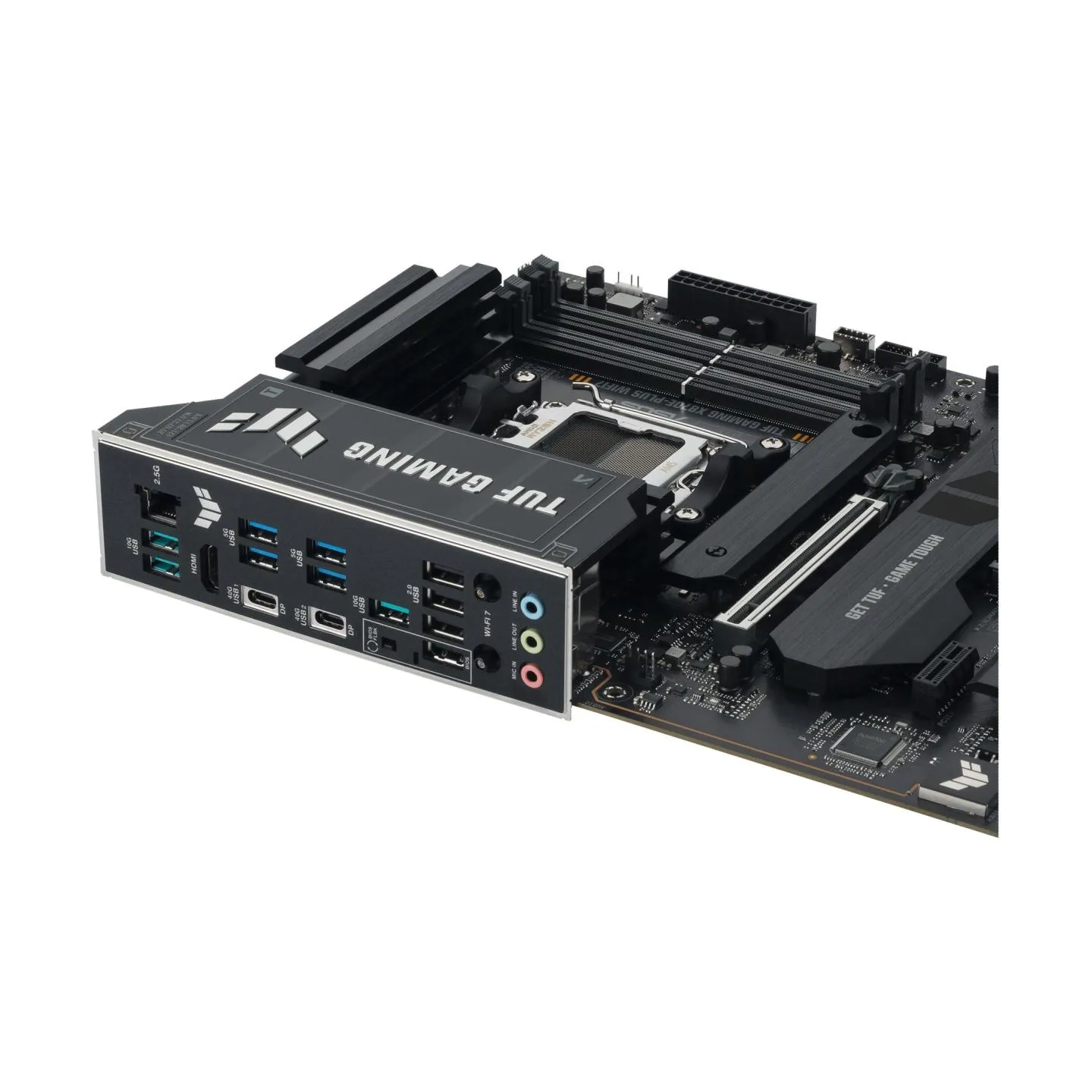

- External connectors
- 1 x Wi-Fi Module
- External connectors
- 1 x USB BIOS Flashback button
- External connectors
- 4 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB4 Type-C
- External connectors
- 3 x USB 3.2 Gen 2 Type-A
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 2 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 6 x SATA III 6Gb/s
- Onboard connectors
- 1 x Thermal sensor connector
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm

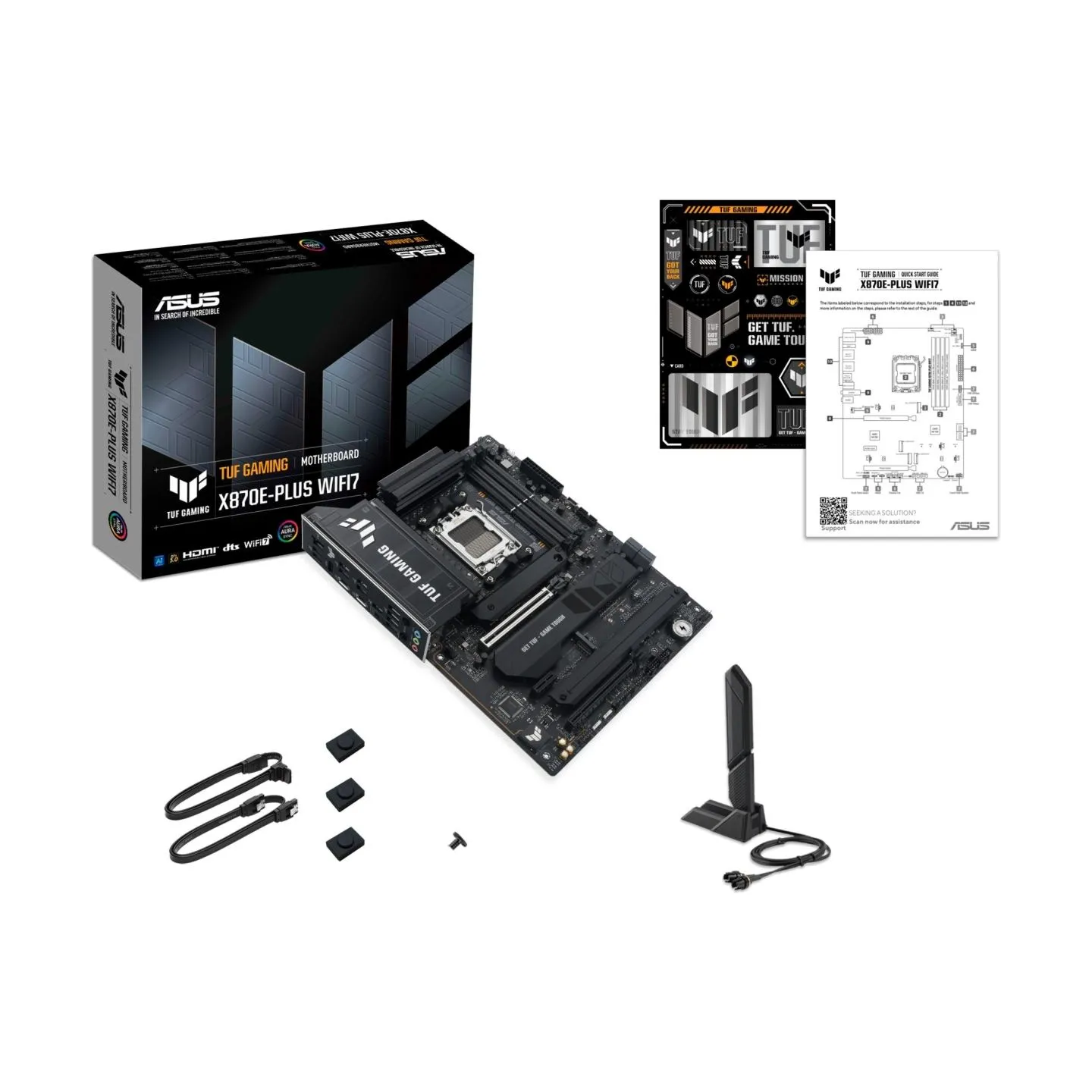

- Accessories included
- 2 x SATA 6 Gb/s Cable ASUS WiFi Q Antenna 2 x M.2 Rubber Boots M.2 SSD Screw Set TUF GAMING Sticker Quick Start Guide
- Supported operating systems
- Windows 11
- Software
- ASUS Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
- Designation
- CE+WEEE
