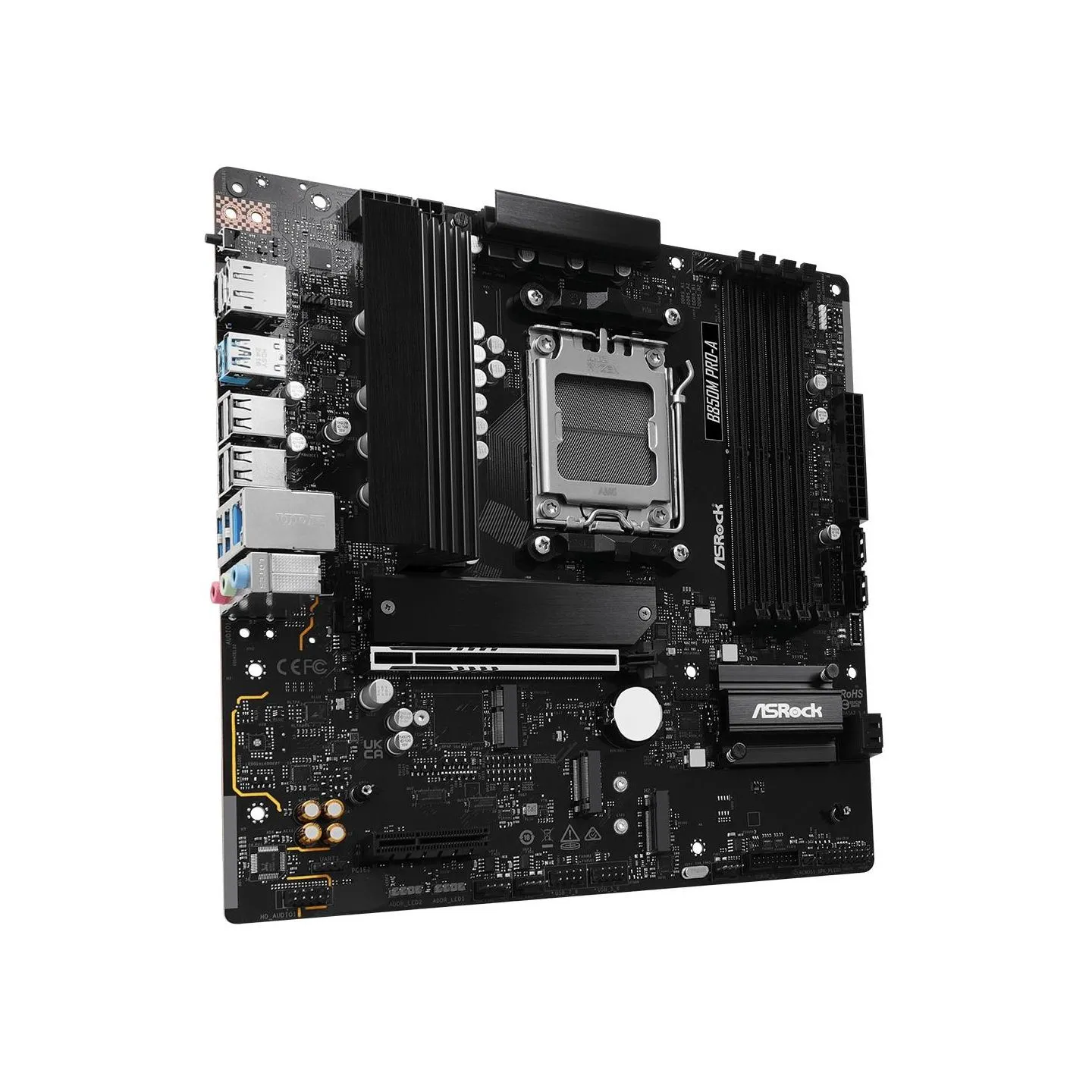

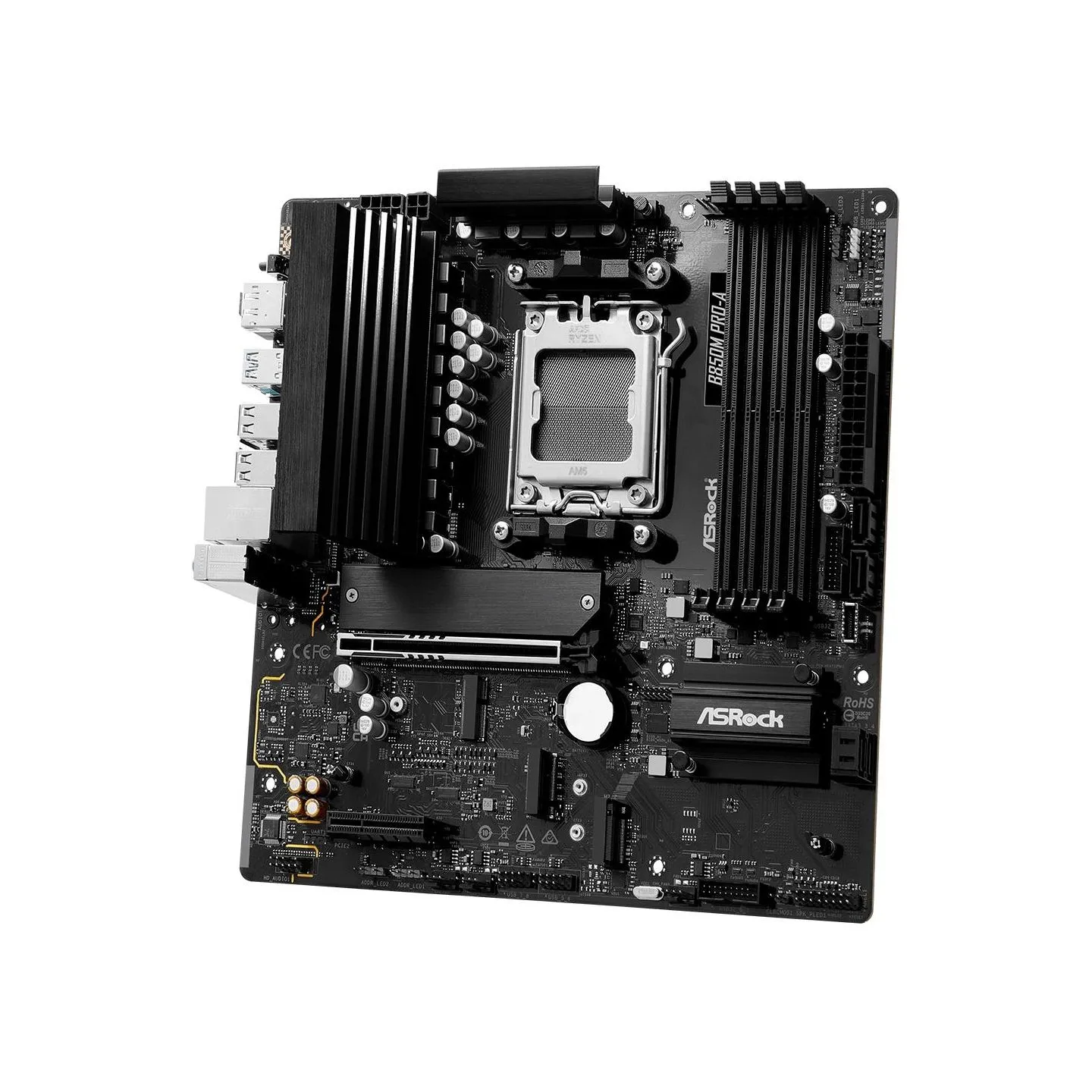

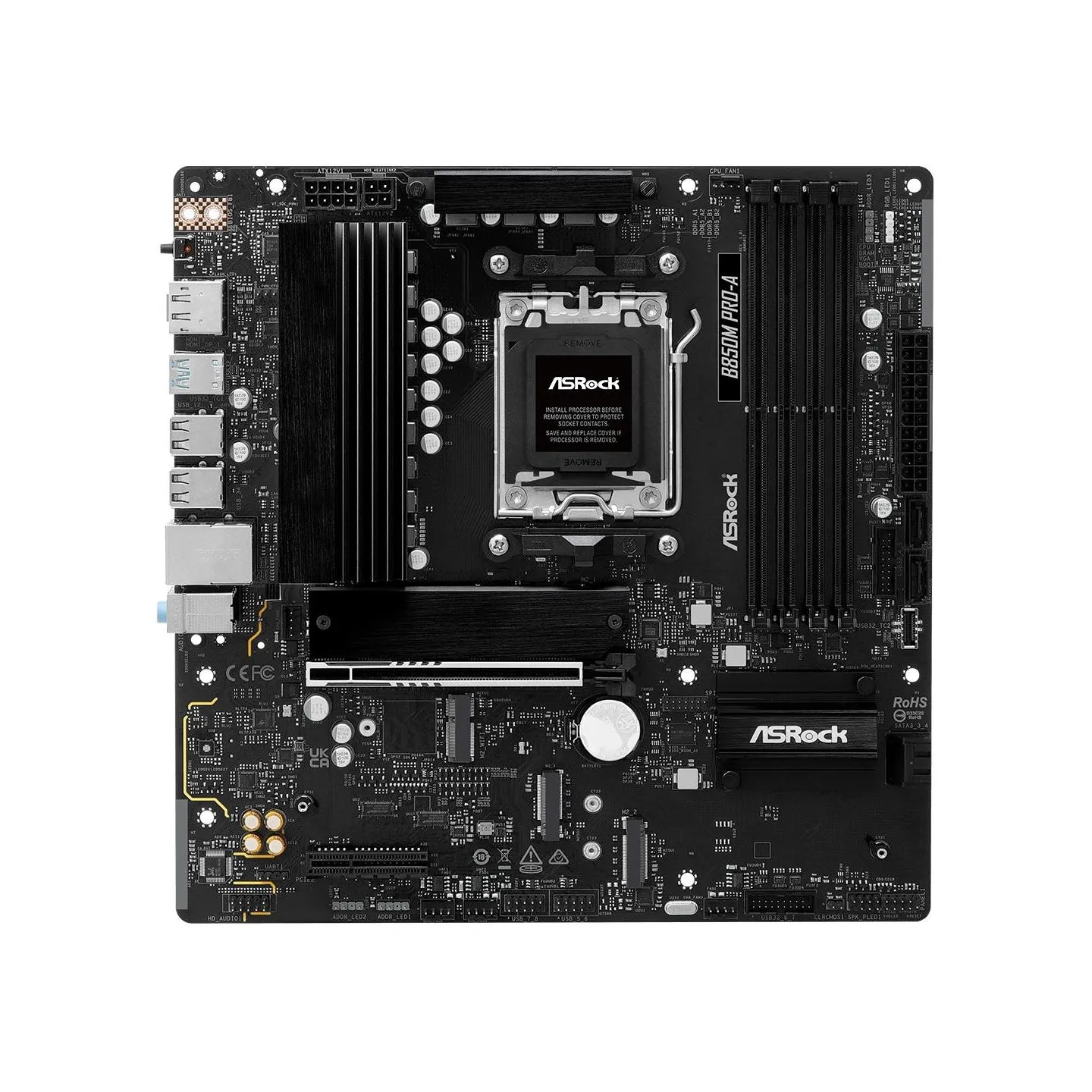

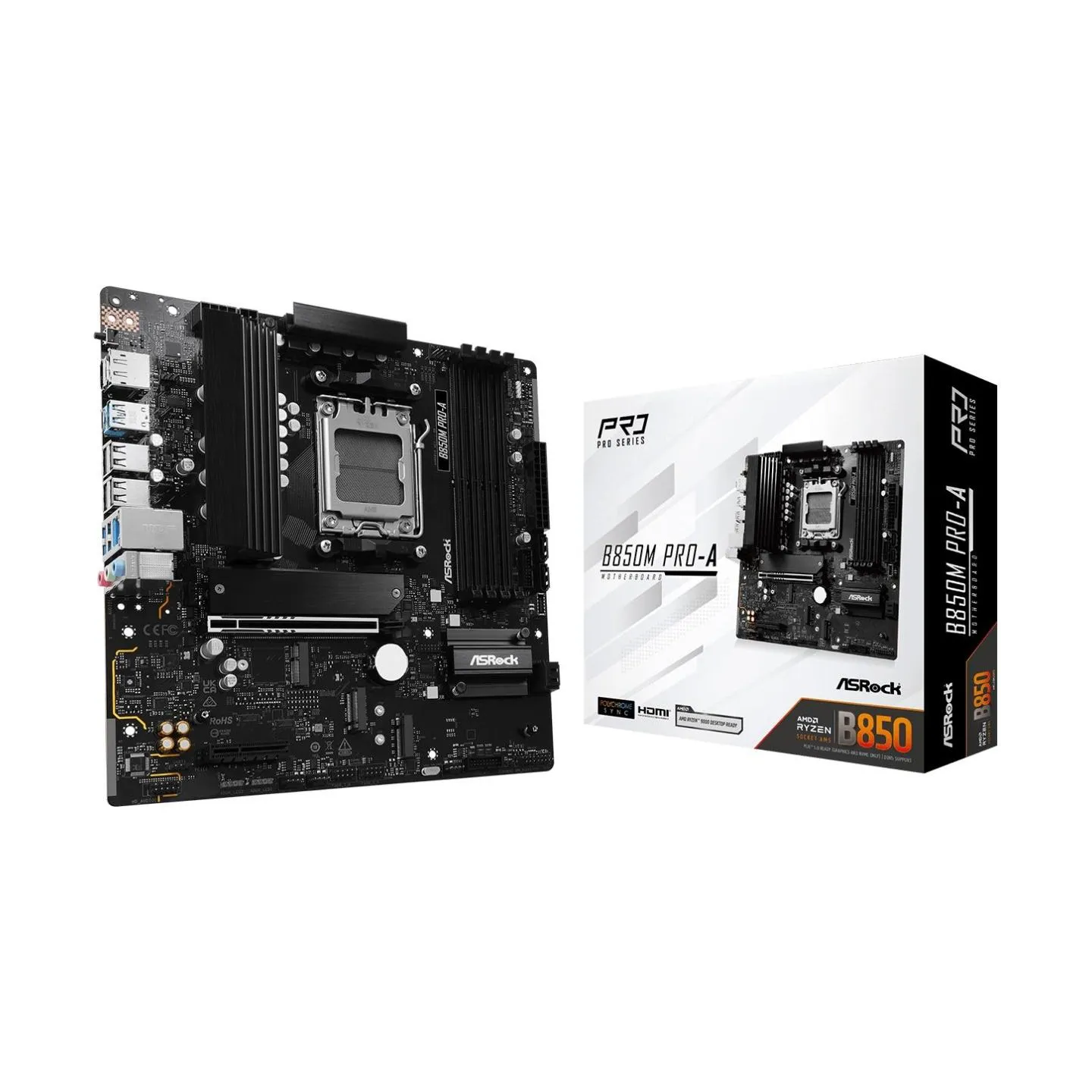

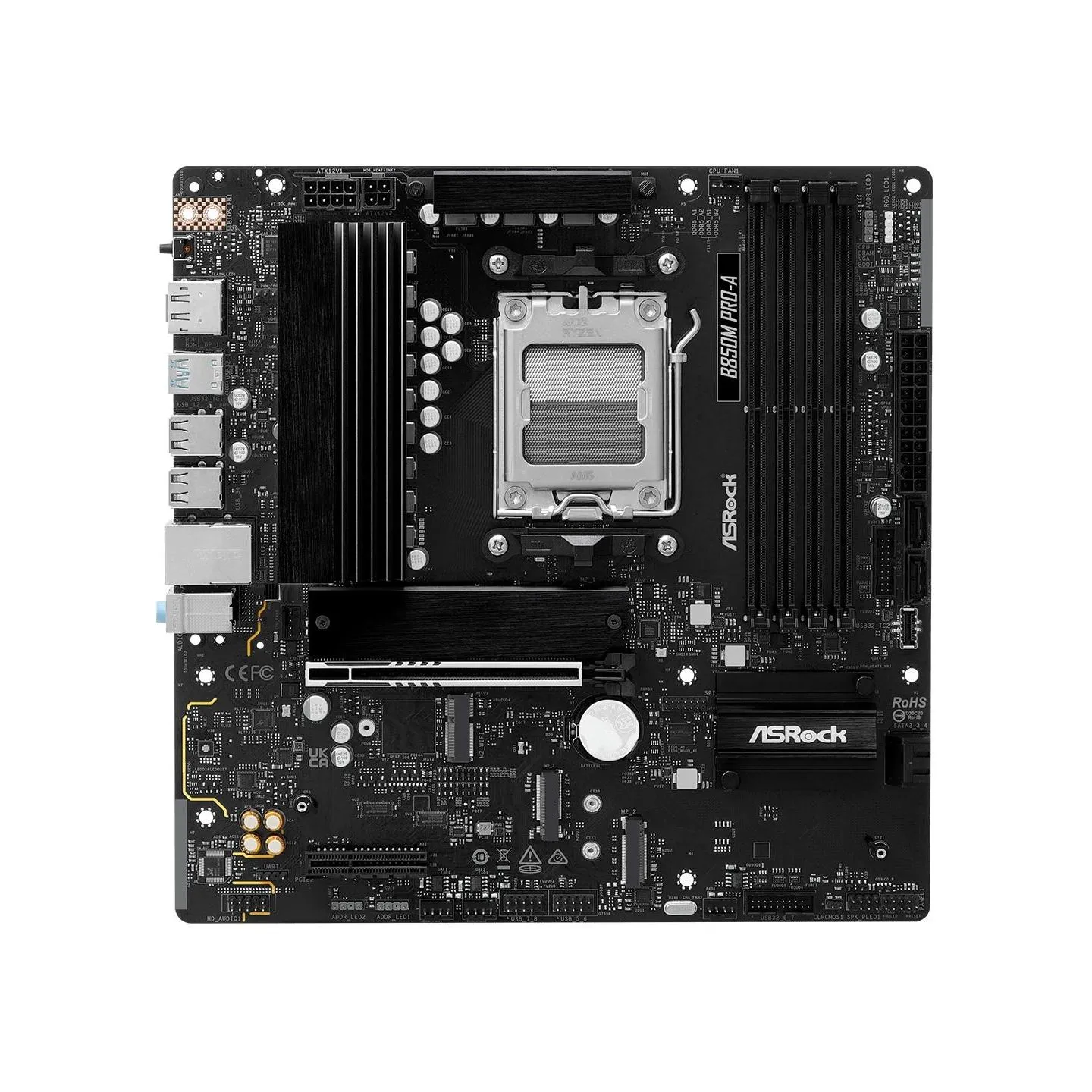

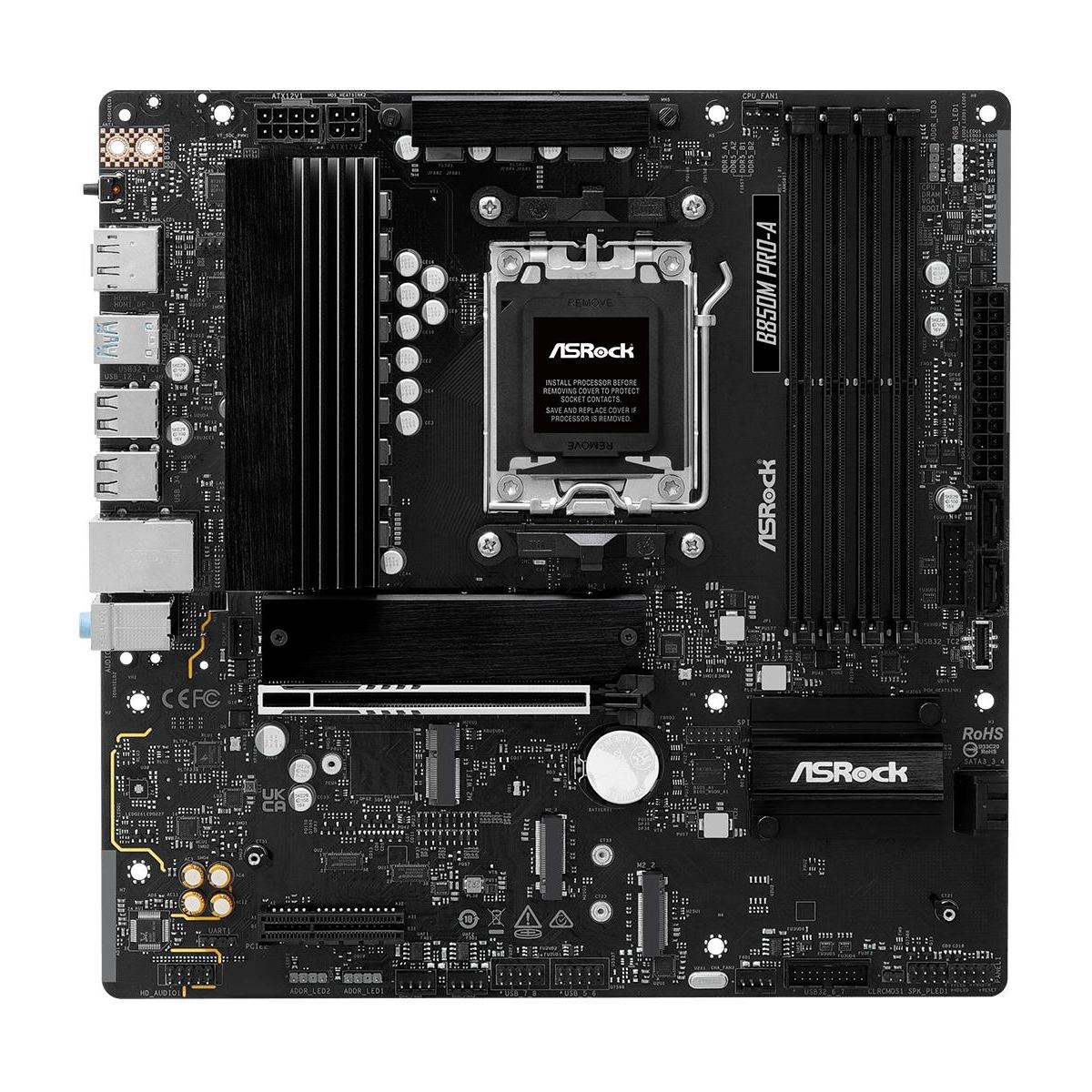

Asrock Motherboard B850M PRO-A AM5 4DDR5 HDMI/DP mATX
Price:
€138.96
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBASRAA8B850U07
- Barcode
- 4711581490390
- Model
- B850M PRO-A
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Integrated AMD RDNA Graphics (Support may vary depending on CPU) 1 × HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and a maximum resolution of up to 4K at 120Hz 1 × DisplayPort 1.4 with DSC (compressed) - supports HDCP 2.3 and a maximum resolution of up to 4K at 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

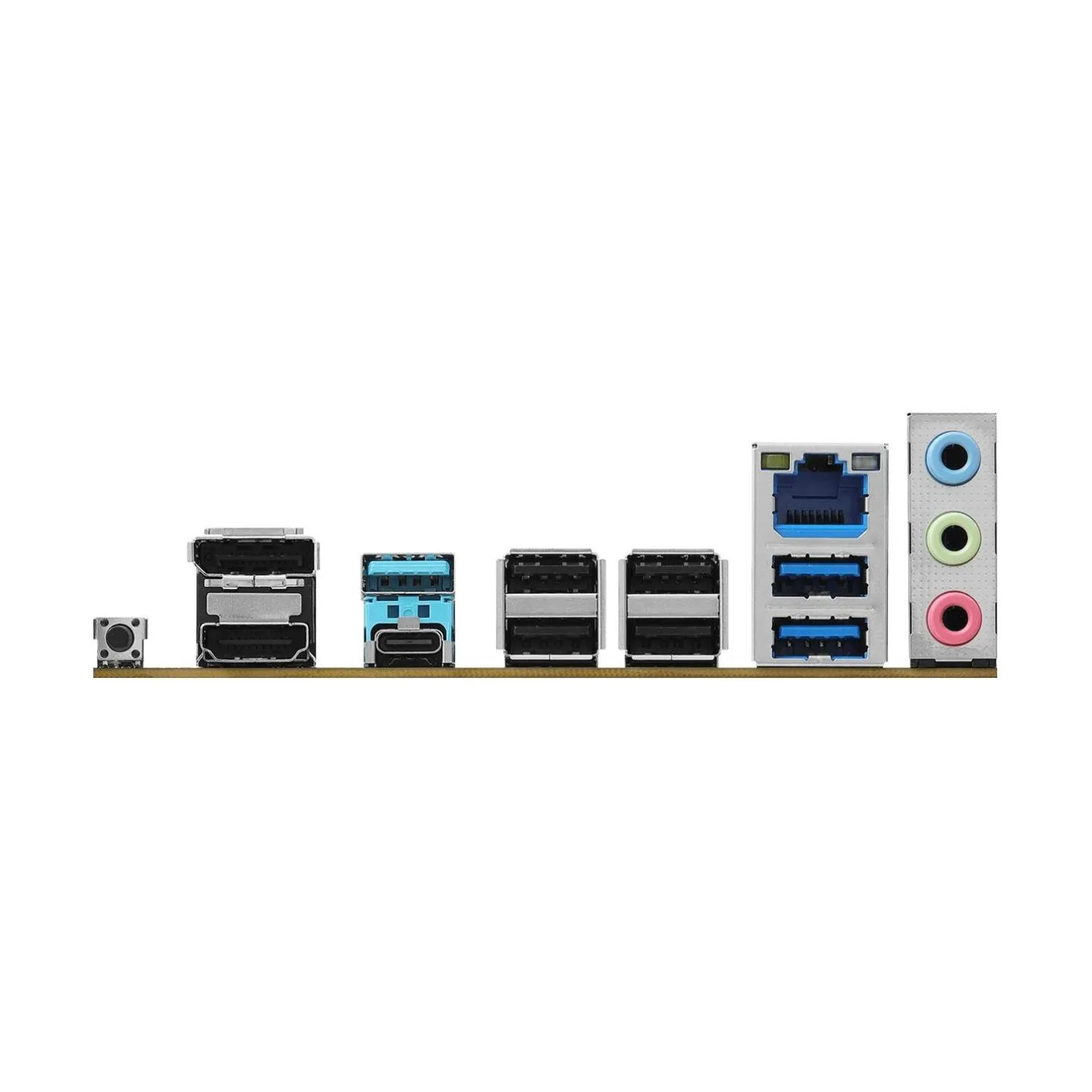

- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 2 x SMA
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x MIC
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x RJ-45
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 4 x USB 3.2 Gen 1 Type-A
- BIOS
- 256 Mb AMI UEFI Legal BIOS z obsługą GUI
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Accessories included
- I/O Shield 2 x SATA Data Cables Screw for M.2 Socket
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash Function
- Designation
- CE+WEEE
