Ubiquiti Wireless Router|UBIQUITI|Wireless Router|Mesh|IEEE 802.11a|IEEE 802.11g|IEEE 802.11h|IEEE 802.11n|IEEE 802.11ac|IEEE 80
With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds.
It features a dual-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance and backwards compatibility with previous Wi-Fi standards.
AmpliFi Alien can be used as a stand-alone router, or you can add an unlimited number of AmpliFi Alien Routers for use as MeshPoints to expand range coverage.
Tri-Band Wi–Fi 6 Router.
Polished Performance.
Elegantly designed AmpliFi Alien brings revolutionary Wi-Fi 6 benefits to your home. Increase your network capacity by 4x and boost coverage by 2x, while reducing battery drain in mobile devices.
AmpliFi Alien comes with 2.4/5 GHz Wi-Fi 6 and 5 GHz Wi-Fi 5 radios. They deliver 7685 Mbps total capacity and 16 spatial streams from a single AmpliFi Alien unit.
Easily mesh multiple units over the air to build virtually unlimited Wi-Fi capacity in your home.
Flexible Interfaces
AmpliFi Alien is a powerful and secure router with a single Gigabit internet interface and internal power supply.

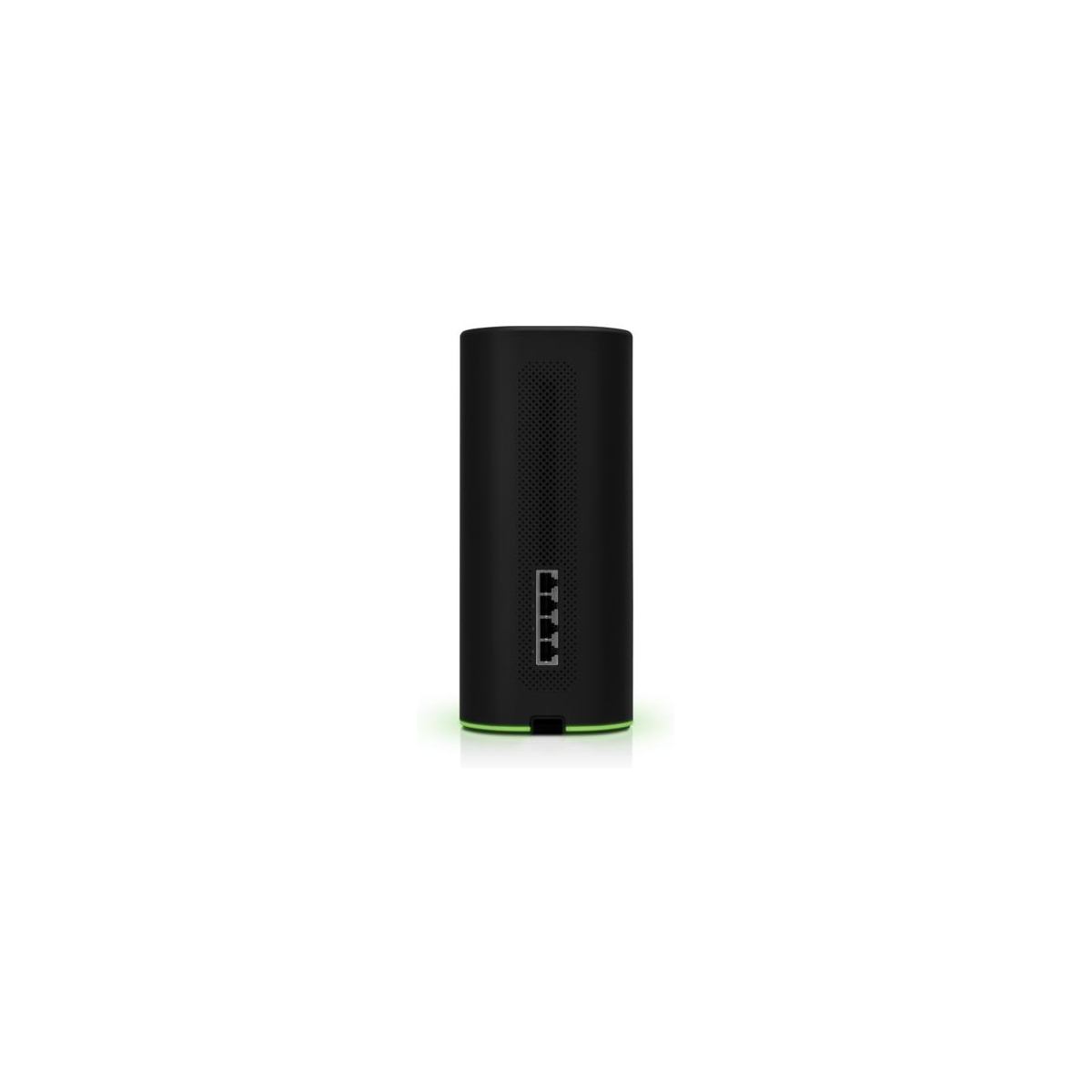

Each Alien router has an integrated LAN switch with 4 Gigabit Ethernet ports.
Bring Gigabit Ethernet into any room without pulling wires. Use Wi-Fi 6 for wireless connectivity and the LAN ports for local wired connectivity.
Performance
AmpliFi Alien is optimized to provide your home network with the highest possible performance regardless of how many client devices are connected simultaneously. Utilizing MU-MIMO and OFDMA for communication across twelve Wi-Fi 6 spatial streams, Alien eliminates dead spots and increases total home network capacity by four times. Alien also offers a separate 5 GHz radio with Wi-Fi 5 (802.11ac) speeds which you can dedicate to performance-critical devices and avoid competing for bandwidth with other devices on your home network.
AmpliFi App.
Simple Setup, Rich Controls.
Set up your AmpliFi network in a minute with the included AmpliFi app.
User-friendly, yet feature-rich controls and statistics let you configure the AmpliFi Alien for your environment.
Scalable Mesh
Wi-Fi Technology
Simple and powerful Wi-FI 6 standard Mesh system that easily covers any home providing simultaneous 4K/8K UHD streaming and online gaming to multiple clients from any room.
- Wi-Fi 6 performance
- 5 GHz 8x8 Wi-Fi 6 radio (Max speed 4804 Mbps)
- 2.4 GHz 4x4 Wi-Fi 6 radio (Max speed 1148 Mbps)
- 4-Port Gigabit Ethernet switch
- Touchscreen display
- Includes AmpliFi Teleport configuration-free VPN solution
Manufacturer Website:
https://amplifi.com/alien
- Category Code
- WRO
- CnCode
- 85176200
- Unit Box Height
- 0.31
- Unit Box Length
- 0.14
- Unit Box Width
- 0.14
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band)
- 1148 Mbit/s
- WLAN data transfer rate (max)
- 4800 Mbit/s
- WLAN data transfer rate (second band)
- 4800 Mbit/s
- Ethernet WAN
- Yes
- WAN connection type
- RJ-45
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- Ethernet LAN interface type
- Gigabit Ethernet
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- 3G
- No
- 4G
- No
- Ethernet LAN (RJ-45) ports
- 4
- Memory card slot(s)
- No
- USB port
- No
- MU-MIMO technology
- Yes
- Guest access
- Yes
- Security algorithms
- WPA2
- Indication light
- Yes
- Product colour
- Black/Green
- Product type
- Tabletop router
- Antenna design
- Internal
- Antenna gain level (max)
- 6 dBi
- Antennas quantity
- 2
- Built-in processor
- Yes
- Internal memory
- 1024 MB
- Processor cores
- 4
- Processor frequency
- 2000 MHz
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Power source type
- AC
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -10 - 45 °C
- Depth
- 110 mm
- Height
- 250 mm
- Weight
- 1200 g
- Width
- 110 mm
- Harmonized System (HS) code
- 85176990
- Model name
- AFI-ALN-R
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.006076 cubm
- Unit Calculated Weight
- 2.25 kg
