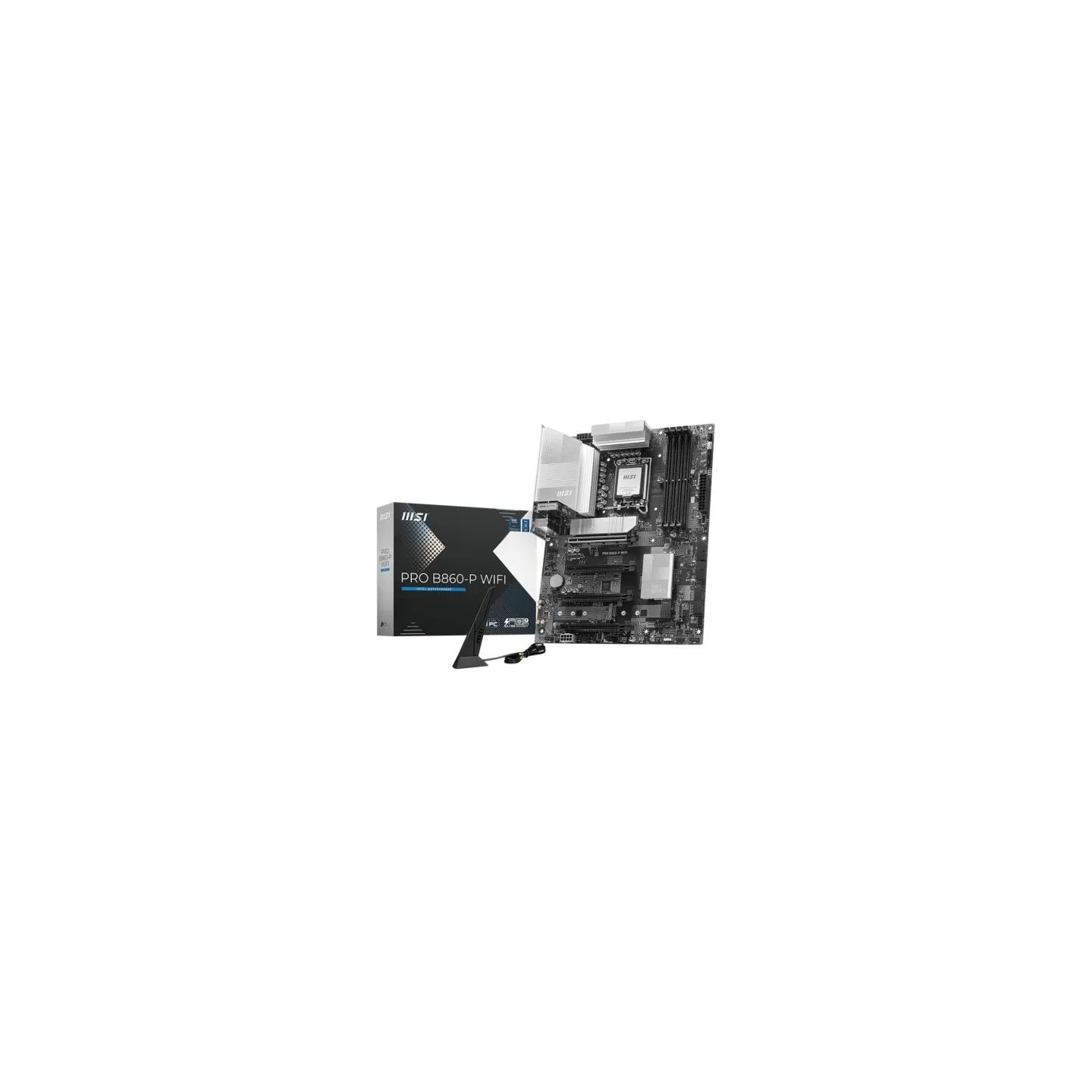

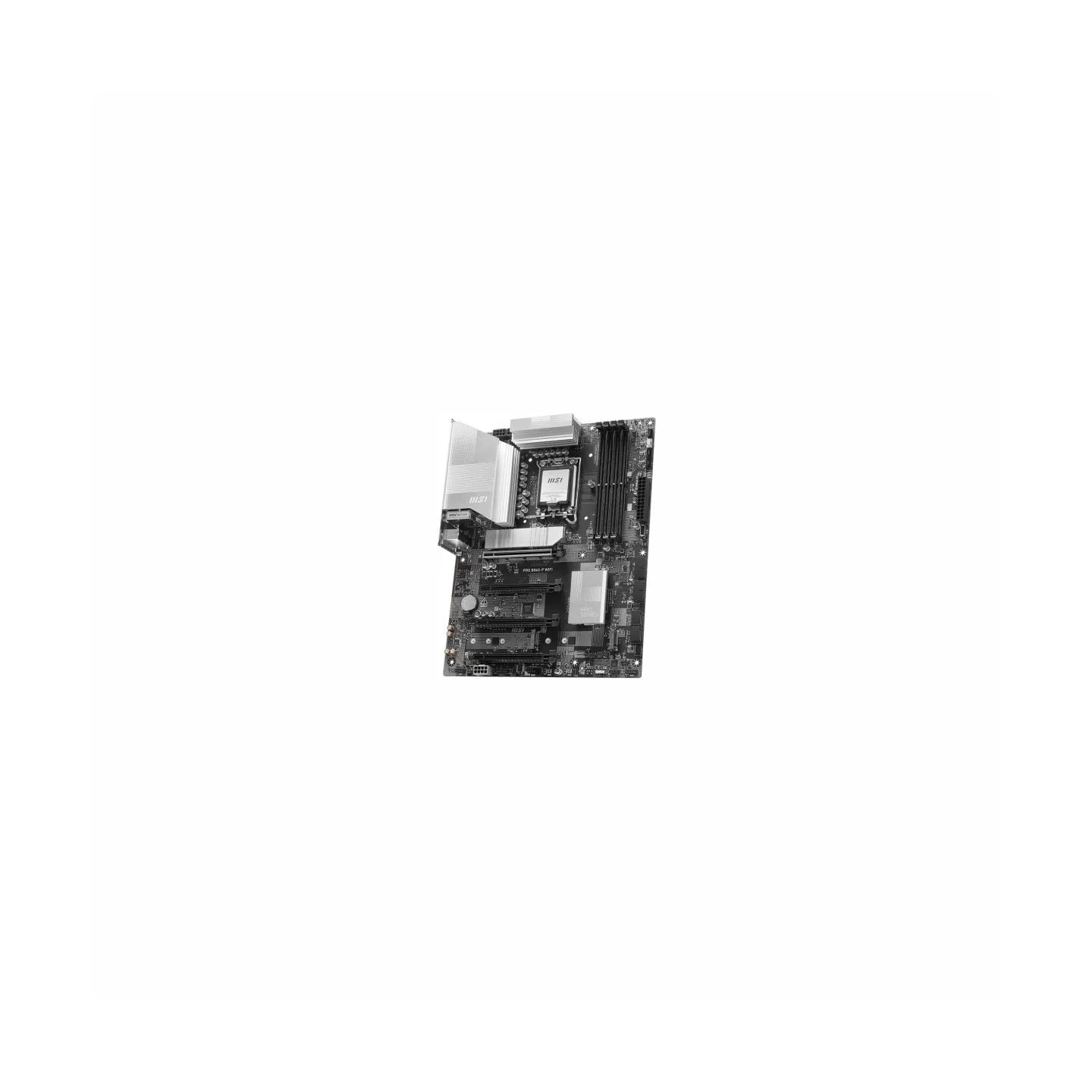

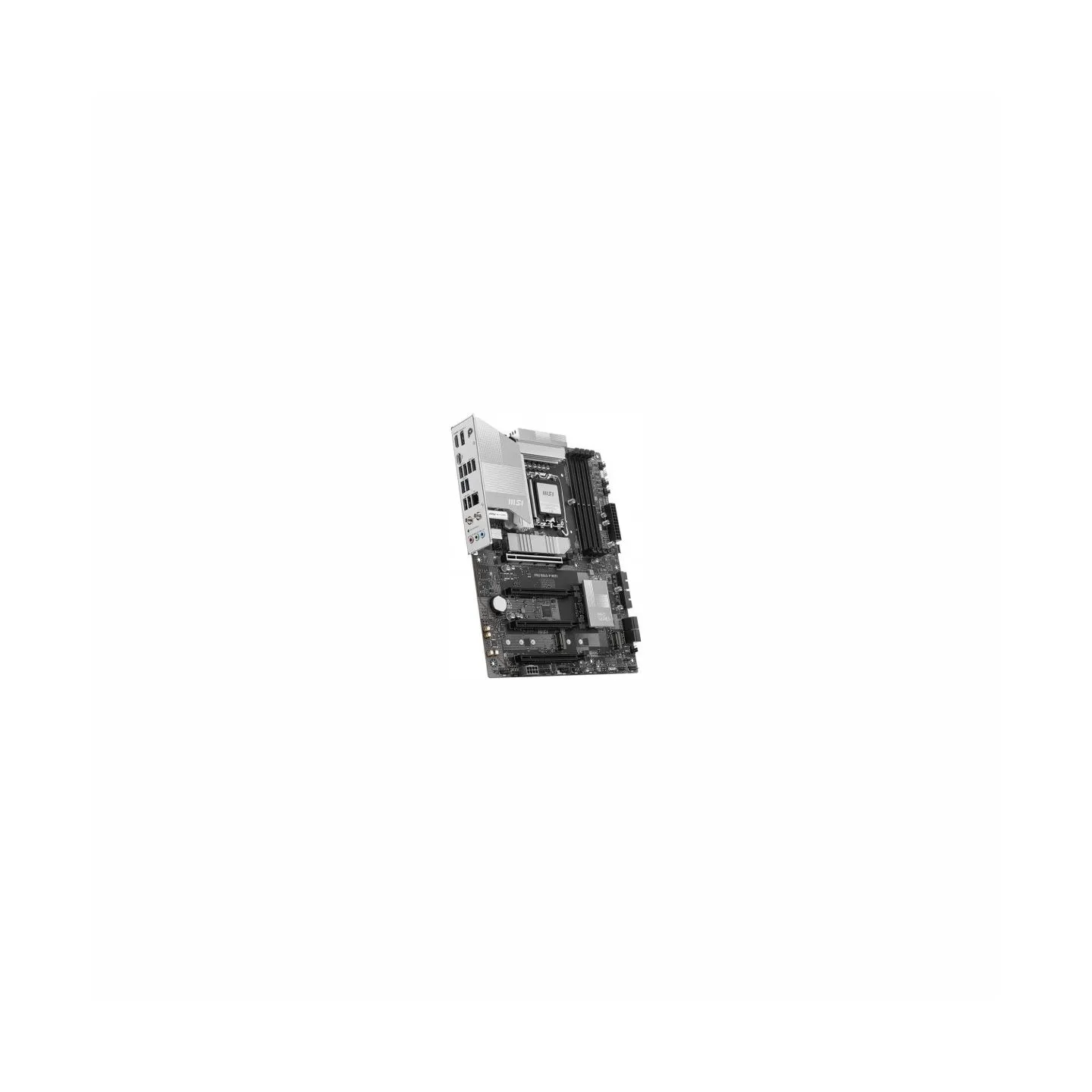

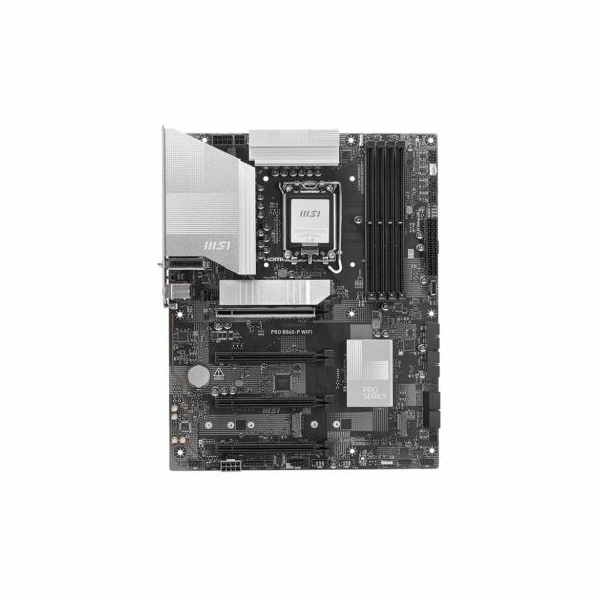

PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Manufacturer Website:
https://www.msi.com/Motherboard/PRO-B860-P-WIFI
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel B860
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 11 x64
- Compatible processor series
- Intel Core Ultra (Series 2)
- Maximum internal memory supported by processor
- 256 GB
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Supported processor sockets
- LGA 1851
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8800 MHz
- Supported memory clock speeds
- 4800/6400/8800 MHz
- Supported memory types
- DDR5-SDRAM
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,Micro SATA III
- Supported storage drive types
- HDD & SSD
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 1
- RGB LED pin header
- Yes
- Total number of SATA connectors
- 4
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 3
- PCI Express x16 (Gen 4.x) slots
- 3
- PCI Express x16 (Gen 5.x) slots
- 1
- ACPI version
- 6.5
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- System Management BIOS (SMBIOS) version
- 3.7
- Depth
- 304.8 mm
- Width
- 243.84 mm
- Model
- PRO B860-P WIFI
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.008299 cubm
- Unit Calculated Weight
- 1.69 kg
