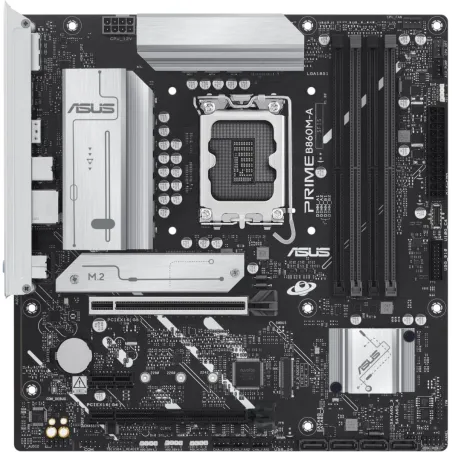

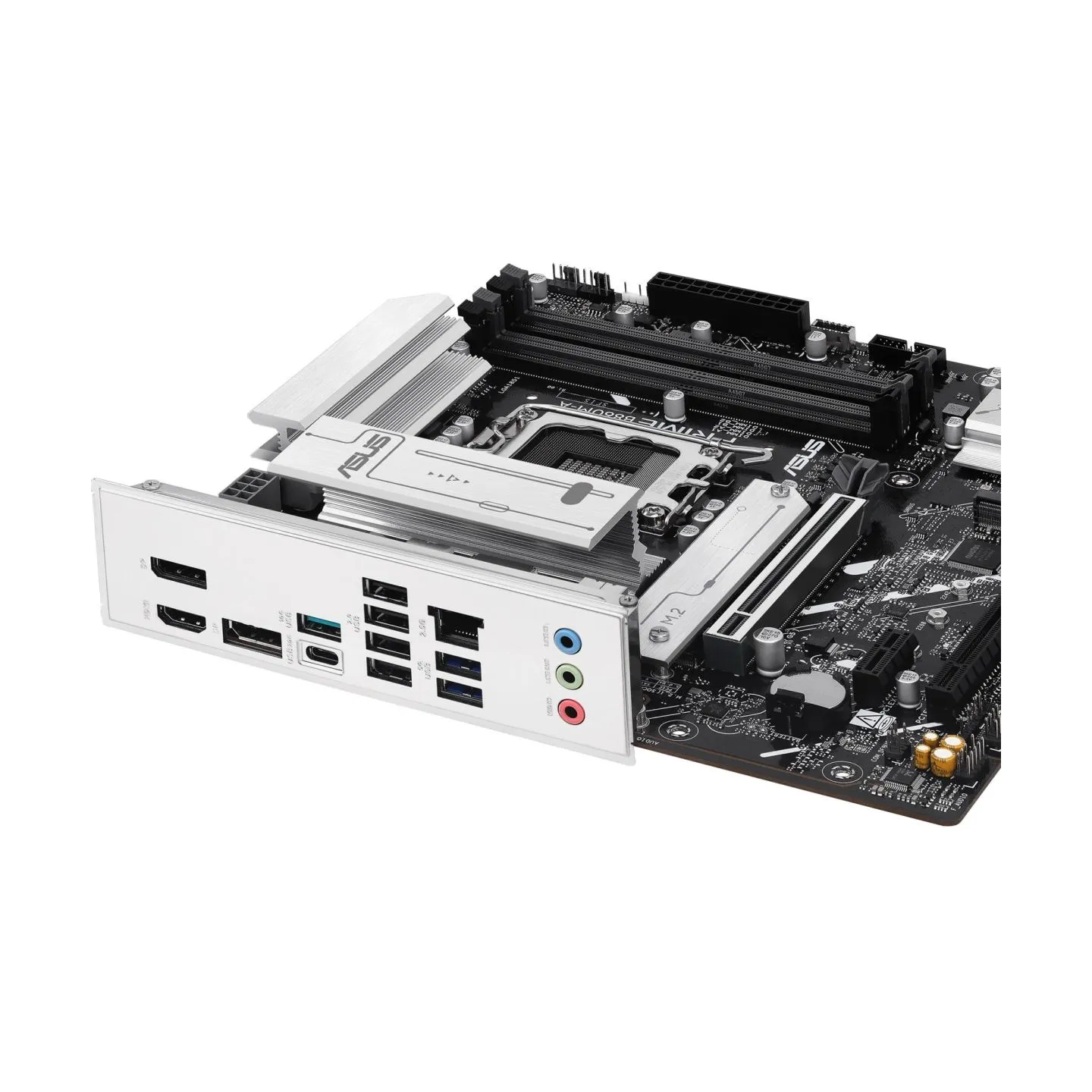

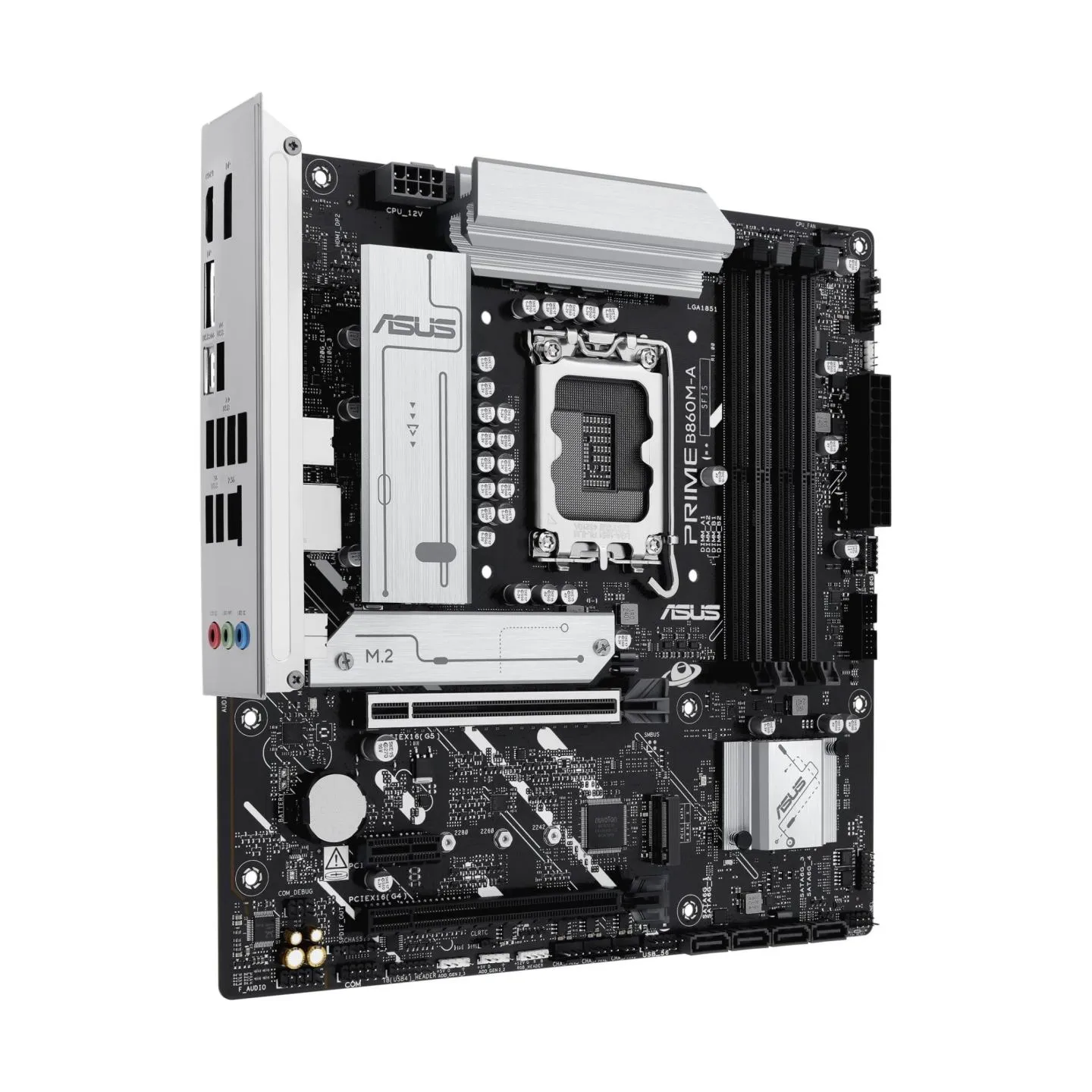

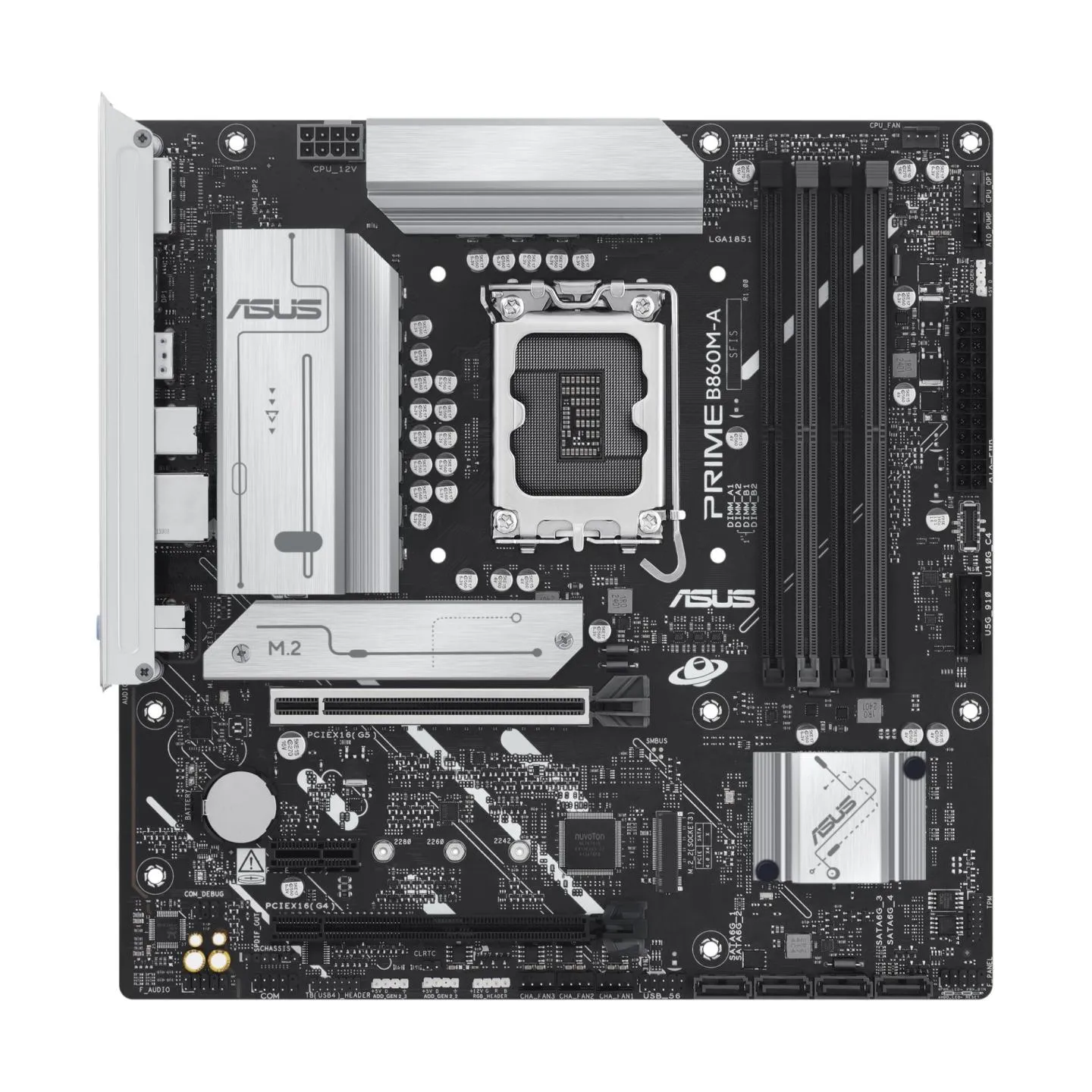

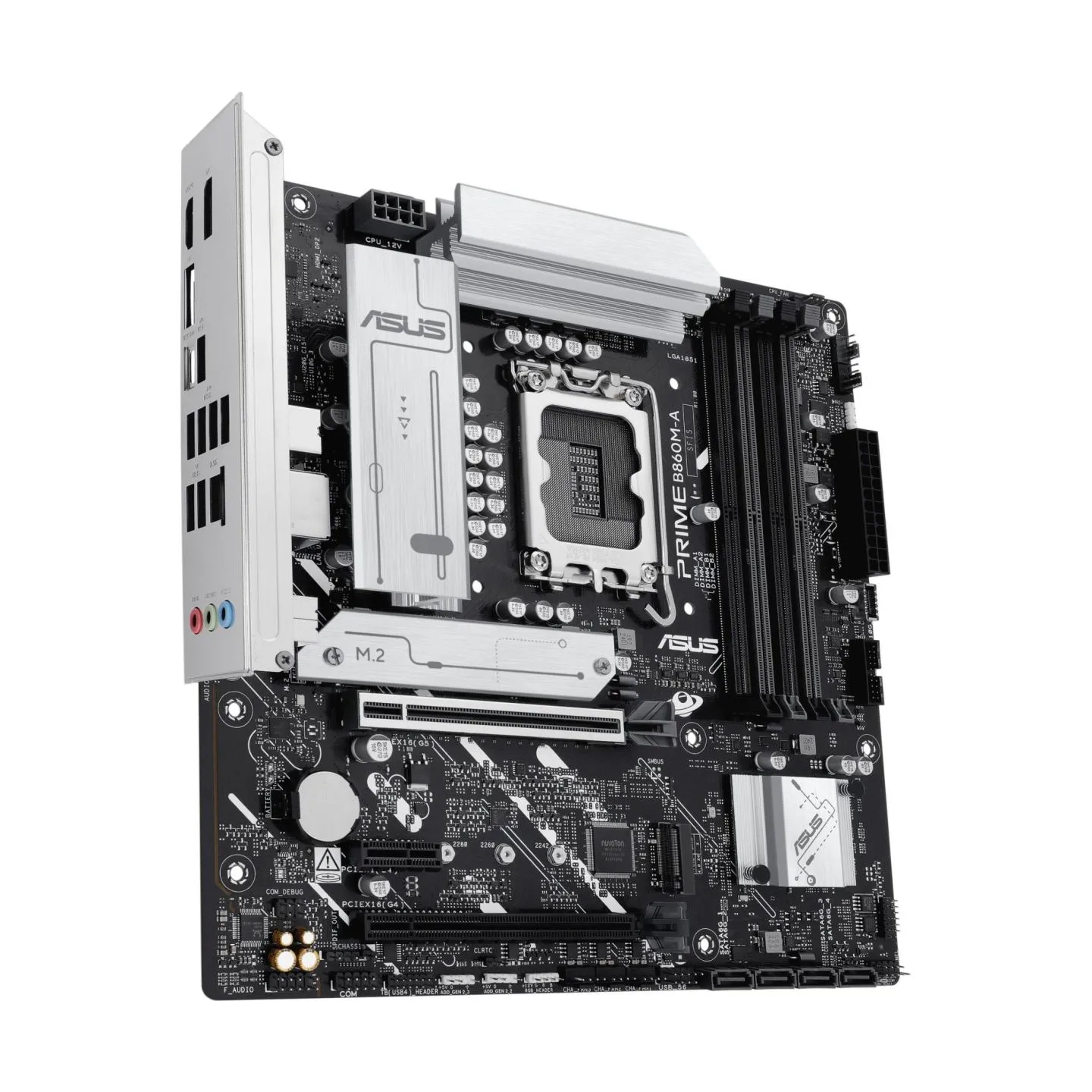

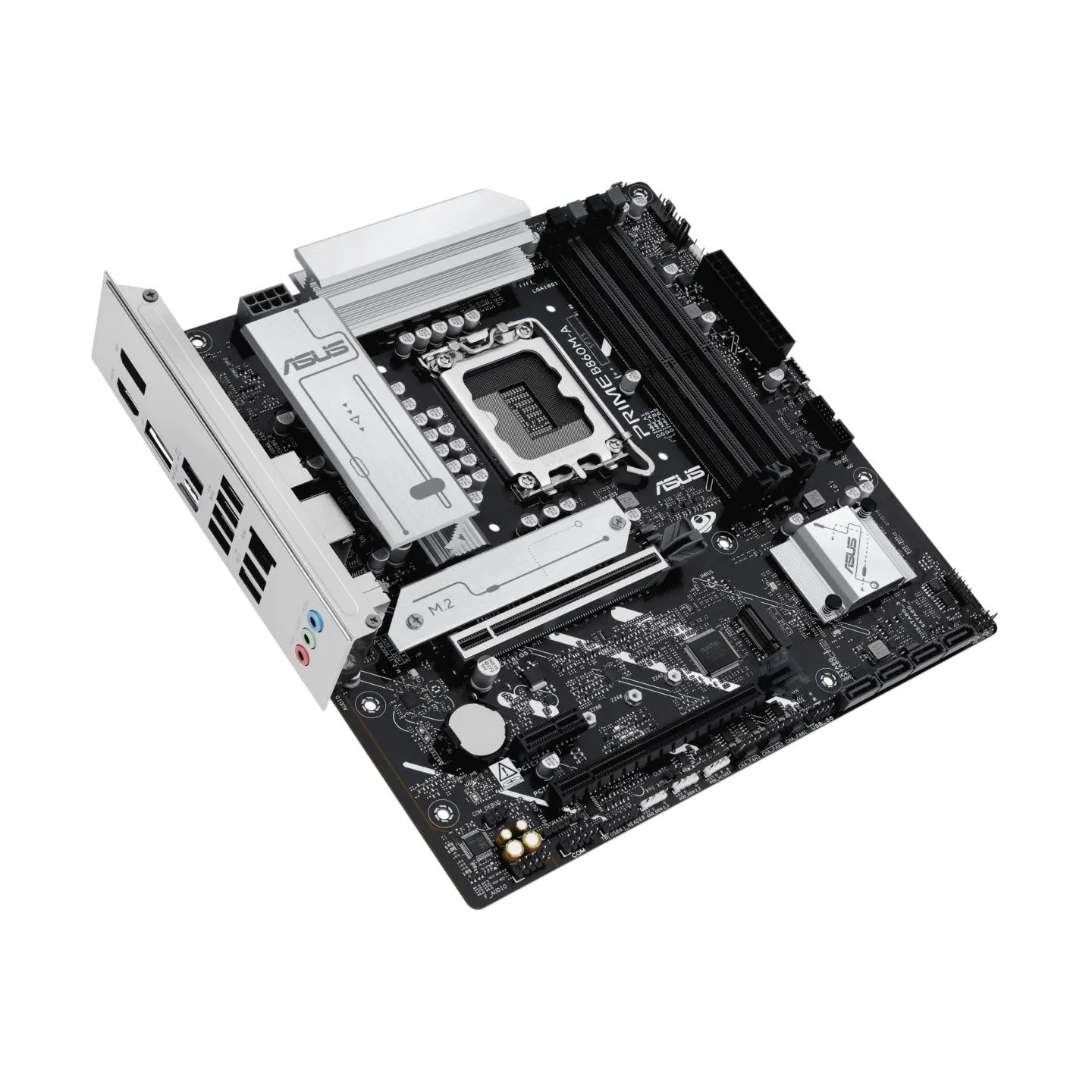

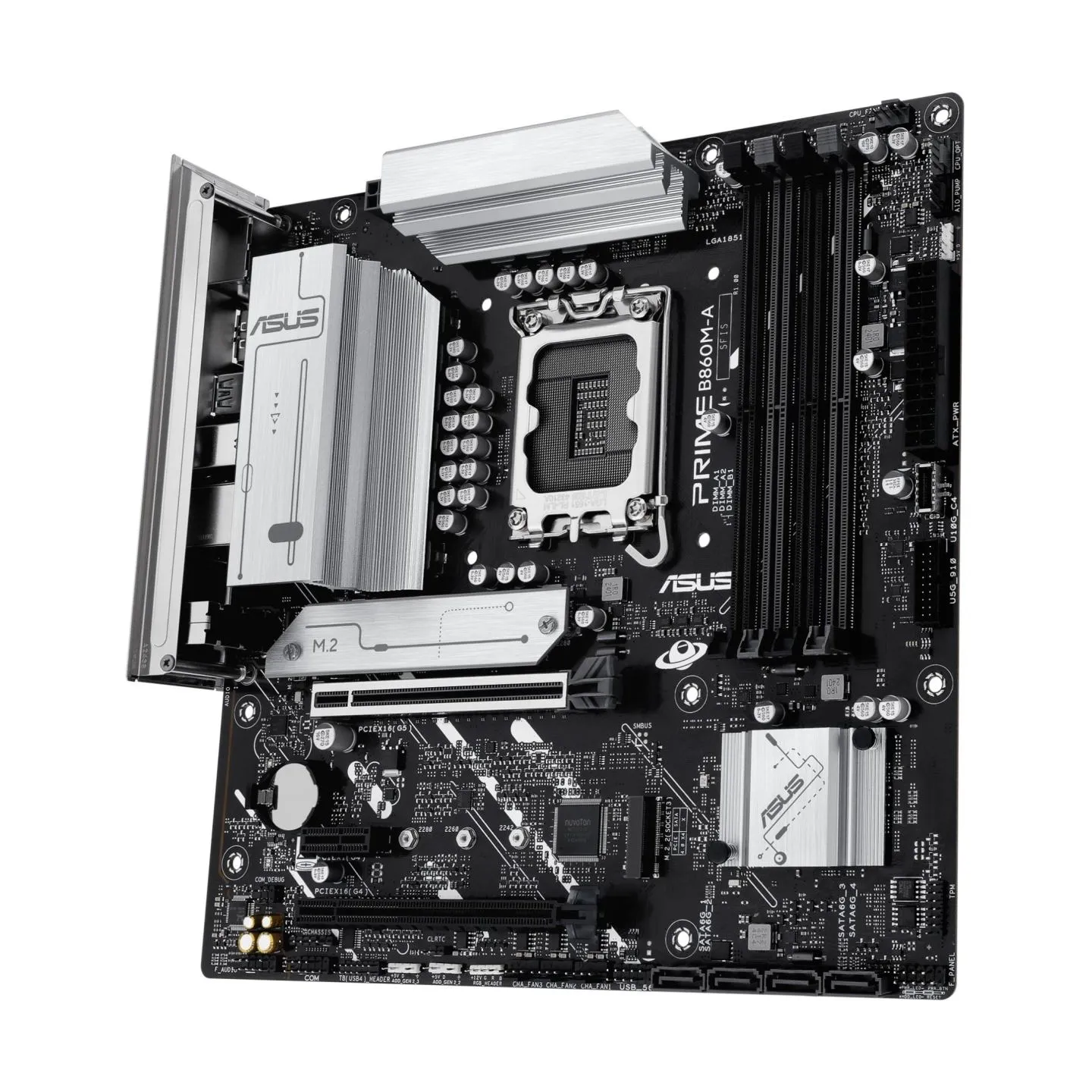

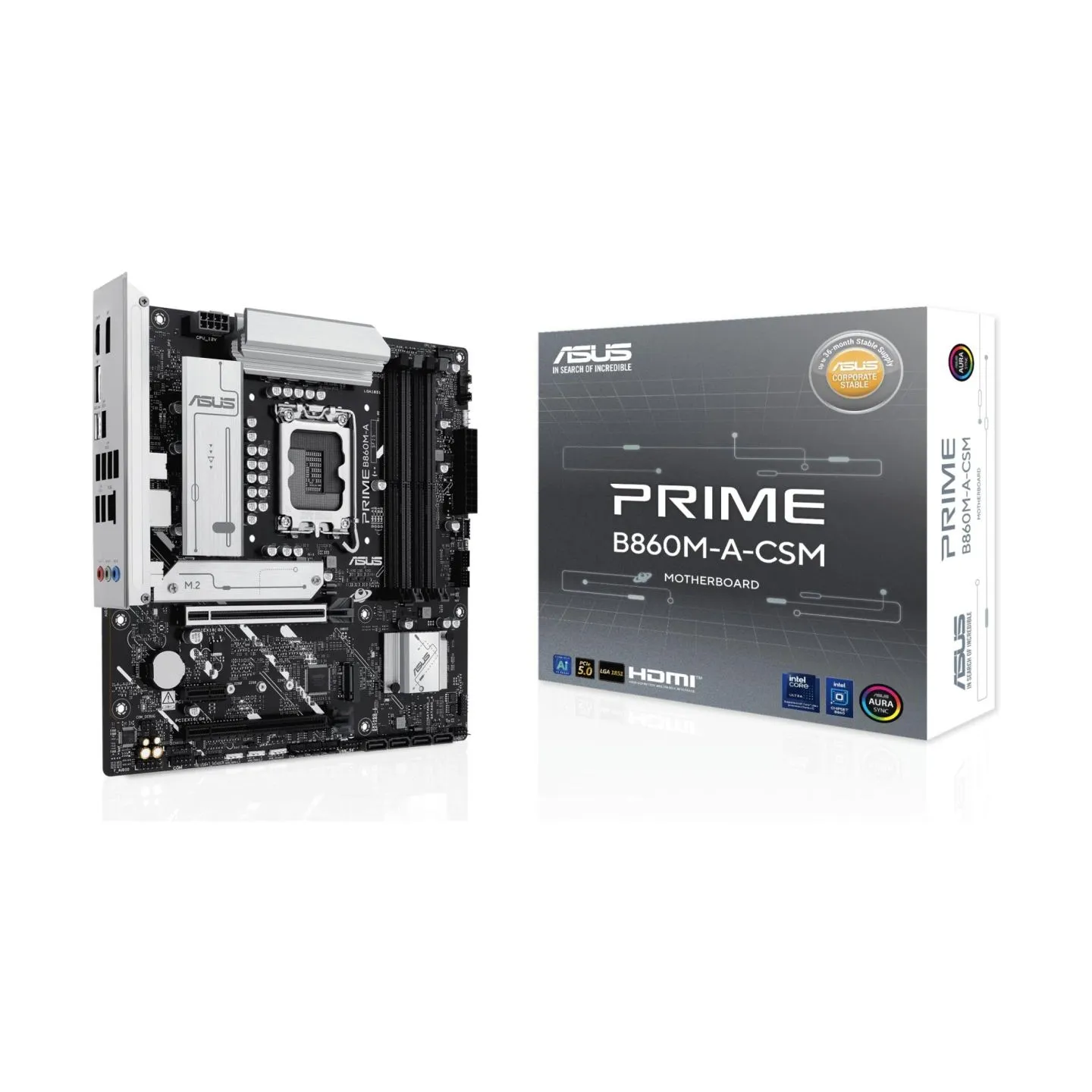

Asus Motherboards PRIME B860M-A-CSM
Price:
€211.62
Tax included
Last items in stock
Share on
- SKU
- KBASUIIFB860U04
- Barcode
- 4711387819869
- Model
- PRIME B860M-A-CSM
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8666 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) IntelB860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Graphics
- 2 x DisplayPort 1 x HDMI
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC*: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
- USB ports at back panel
- 8
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

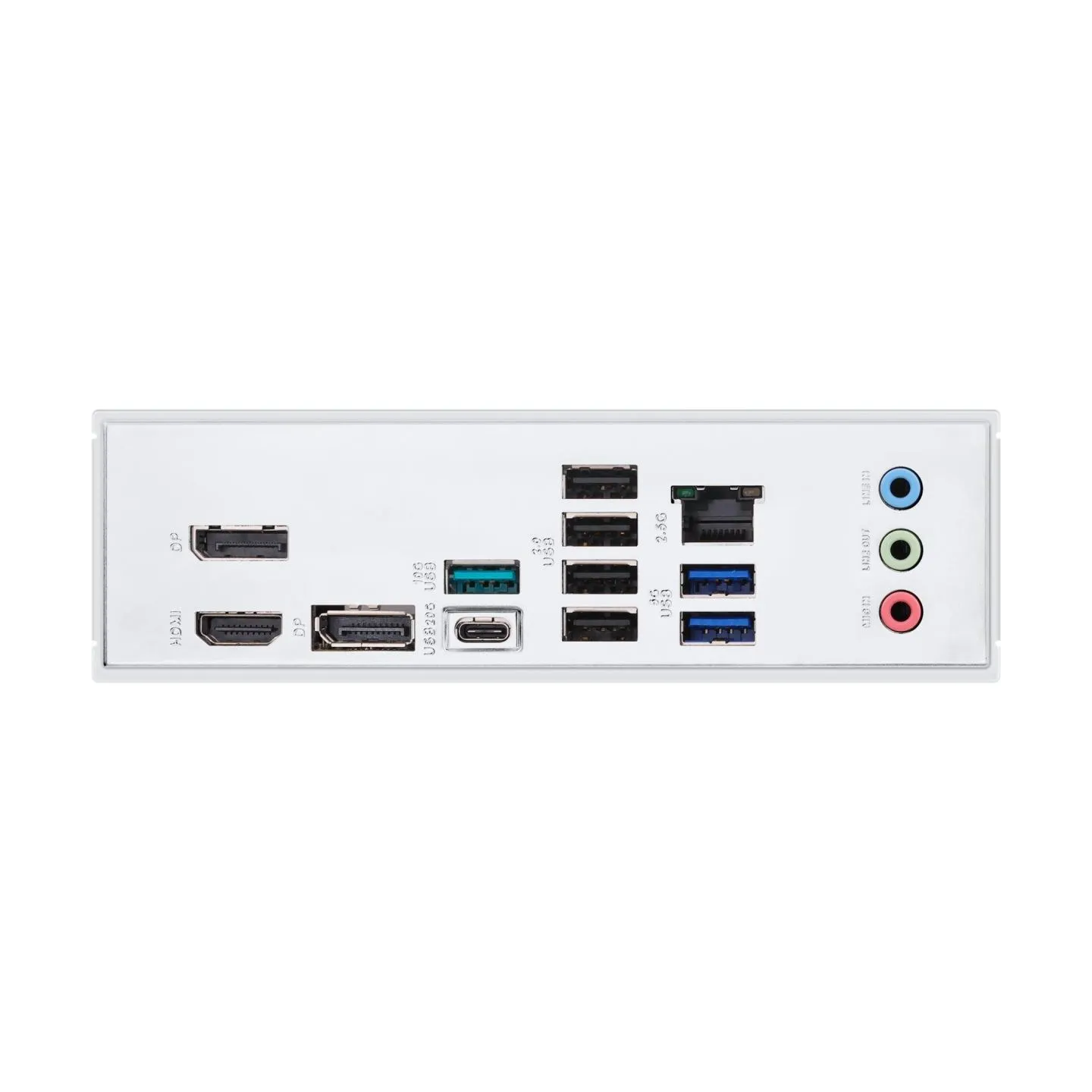

- External connectors
- 1 x DisplayPort
- External connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x Line In
- External connectors
- 1 x HDMI
- External connectors
- 4 x USB 2.0
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 2 x USB 2.0/1.1 header
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s cable M.2 rubber package Screw package for M.2 SSD ACC Express Activation Key Card Quick start guide
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- WOL by PME, PXE
- Designation
- CE+WEEE
