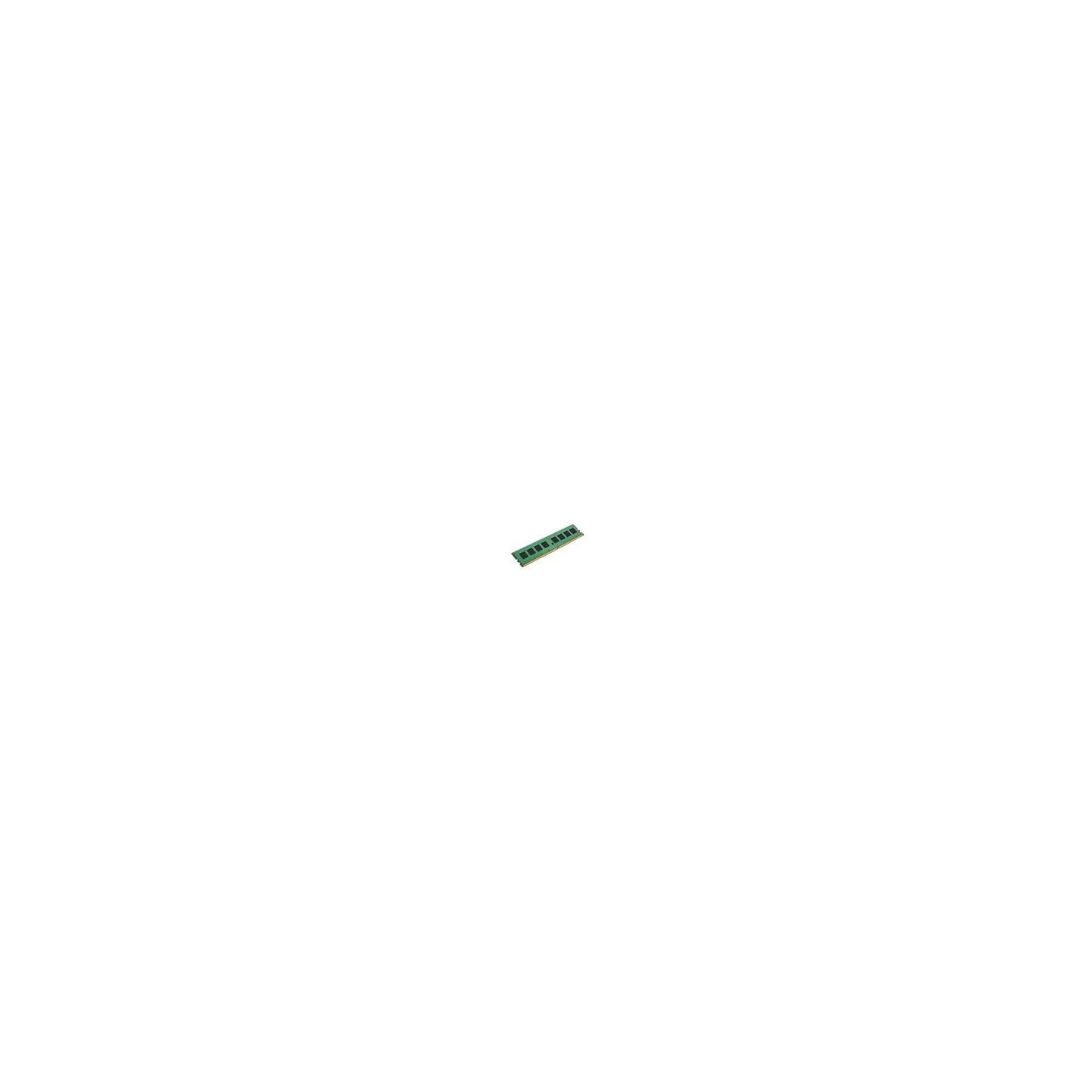

Kingston 8GB 3200MHz DDR4 CL22 DIMM
Price:
€131.59
Tax included
Product Comments module (productcomments) must be installed!
Share on
ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- RoHS Compliant and Halogen-Free
Manufacturer Website:
https://www.kingston.com/en
- Category Code
- MEM
- CnCode
- 84733020
- Unit Box Height
- 0.008
- Unit Box Length
- 0.16
- Unit Box Width
- 0.045
- Buffered memory type
- Unregistered (unbuffered)
- CAS latency
- 22
- Component for
- PC/Server
- Country of origin
- Taiwan
- ECC
- No
- Internal memory
- 8 GB
- Internal memory type
- DDR4
- JEDEC standard
- Yes
- Lead plating
- Gold
- Memory data transfer rate
- 3200 MT/s
- Memory form factor
- 288-pin DIMM
- Memory layout (modules x size)
- 1 x 8 GB
- Memory ranking
- 1
- Memory voltage
- 1.2 V
- Module configuration
- 1024M x 64
- Programming power voltage (VPP)
- 2.5 V
- Refresh row cycle time
- 350 ns
- Row active time
- 32 ns
- Row cycle time
- 45.75 ns
- Operating temperature (T-T)
- 0 - 85 °C
- Storage temperature (T-T)
- -55 - 100 °C
- Compliance certificates
- RoHS
- Doesn't contain
- Halogen
- Height
- 31.25 mm
- Width
- 133.35 mm
- Harmonized System (HS) code
- 84733020
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 5.76E-05 cubm
- Unit Calculated Weight
- 0.03 kg
