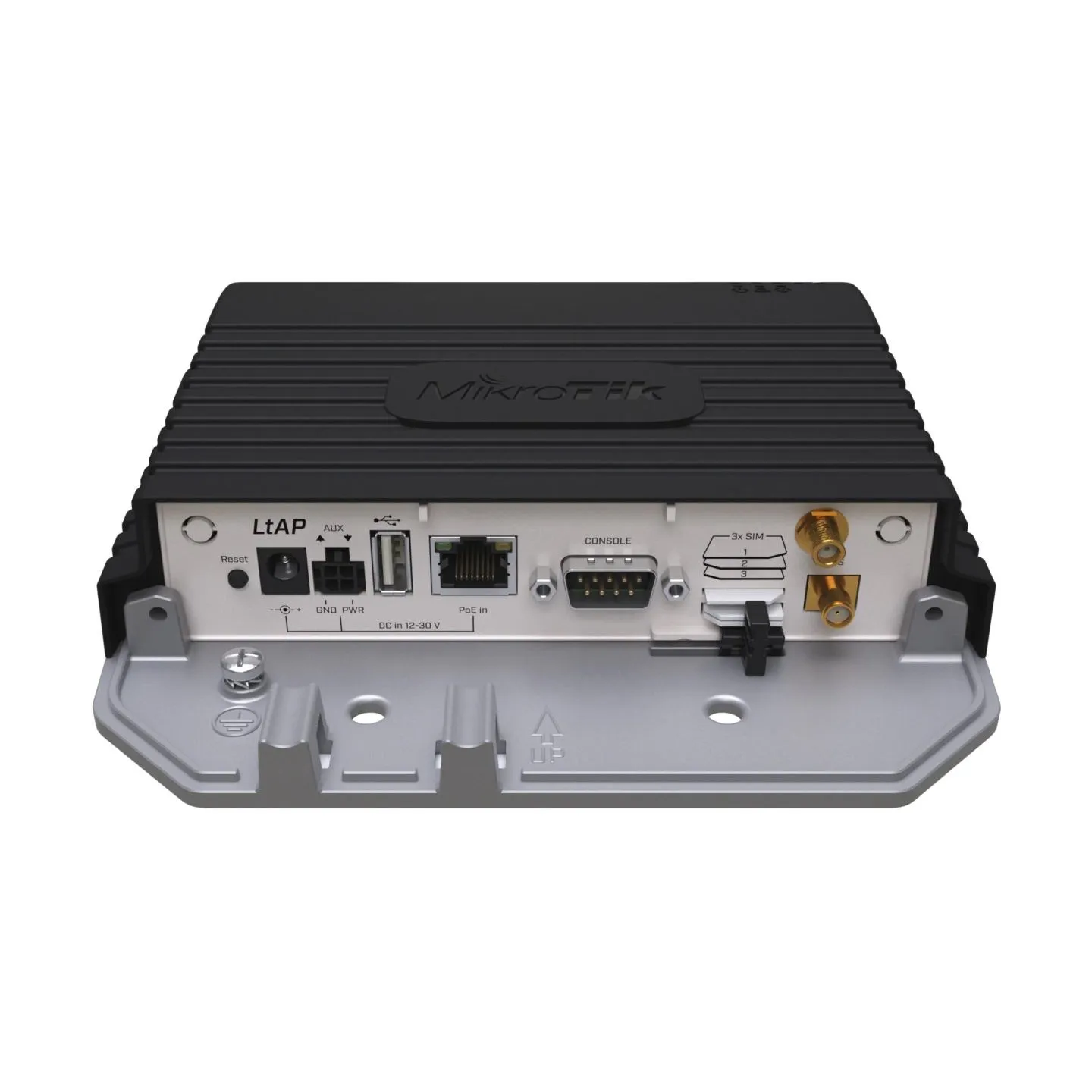

Mikrotik Access Point|MIKROTIK|300 Mbit/s|1xLAN ports|LTAP-2HND&FG621-EA&LR8G
A rugged all-in-one device for IoT connectivity, ideal for industrial or public use. Perfect for transportation projects or logistics, the LtAP LR8G LTE6 Kit combines:
- LoRa® connectivity, LTE, and GPS for maximum versatility
- Dual-chain 2.4 GHz WiFi for added flexibility
- A tough, robust enclosure built for industrial and mobile setups
- Mini SIM slot and a built-in modern LTE6 modem for fast and responsive mobile connectivity
- Enhanced 868MHz Rx sensitivity for effective long-range communication
- Many powering options, including automotive
- SMA female connectors for external antennas
The Things Network
Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy - anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!
Manufacturer Website:
https://mikrotik.com/product/ltap_lr8g_lte6_kit
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.05
- Unit Box Length
- 0.29
- Unit Box Width
- 0.19
- 2.4 GHz
- Yes
- 5 GHz
- No
- 6 GHz
- No
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- GPS (satellite)
- Yes
- Maximum data transfer rate
- 300 Mbit/s
- Mean time between failures (MTBF)
- 200000 h
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
- USB 2.0 ports quantity
- 1
- USB connector type
- USB Type-A
- DC voltage range
- 12 - 30 V
- Power consumption (max)
- 24 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Passive PoE
- International Protection (IP) code
- IPX0
- Product colour
- Black
- Built-in processor
- Yes
- Flash memory
- 16 MB
- Internal memory
- 128 MB
- Operating system installed
- RouterOS
- Processor frequency
- 880 MHz
- Processor model
- MediaTek MT7621AT
- 3G bands supported
- 850,900,2100,1800 MHz
- 4G FDD-LTE bands supported
- 2100,1800,850,2600,900,800,700 MHz
- 4G LTE category
- 6
- 4G TDD-LTE bands supported
- 2600,2300,2500 MHz
- Compliance certificates
- CE/EAC/RoHS
- SIM card slot
- Yes
- SIM card type
- MiniSIM
- AC adapter included
- Yes
- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Model
- LTAP-2HND&FG621-EA&LR8G
- Model name
- LtAP LR8G LTE6 kit
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.003413 cubm
- Unit Calculated Weight
- 1.11 kg
