- SKU
- KBASUAA8B850A01
- Barcode
- 4711387771013
- Model

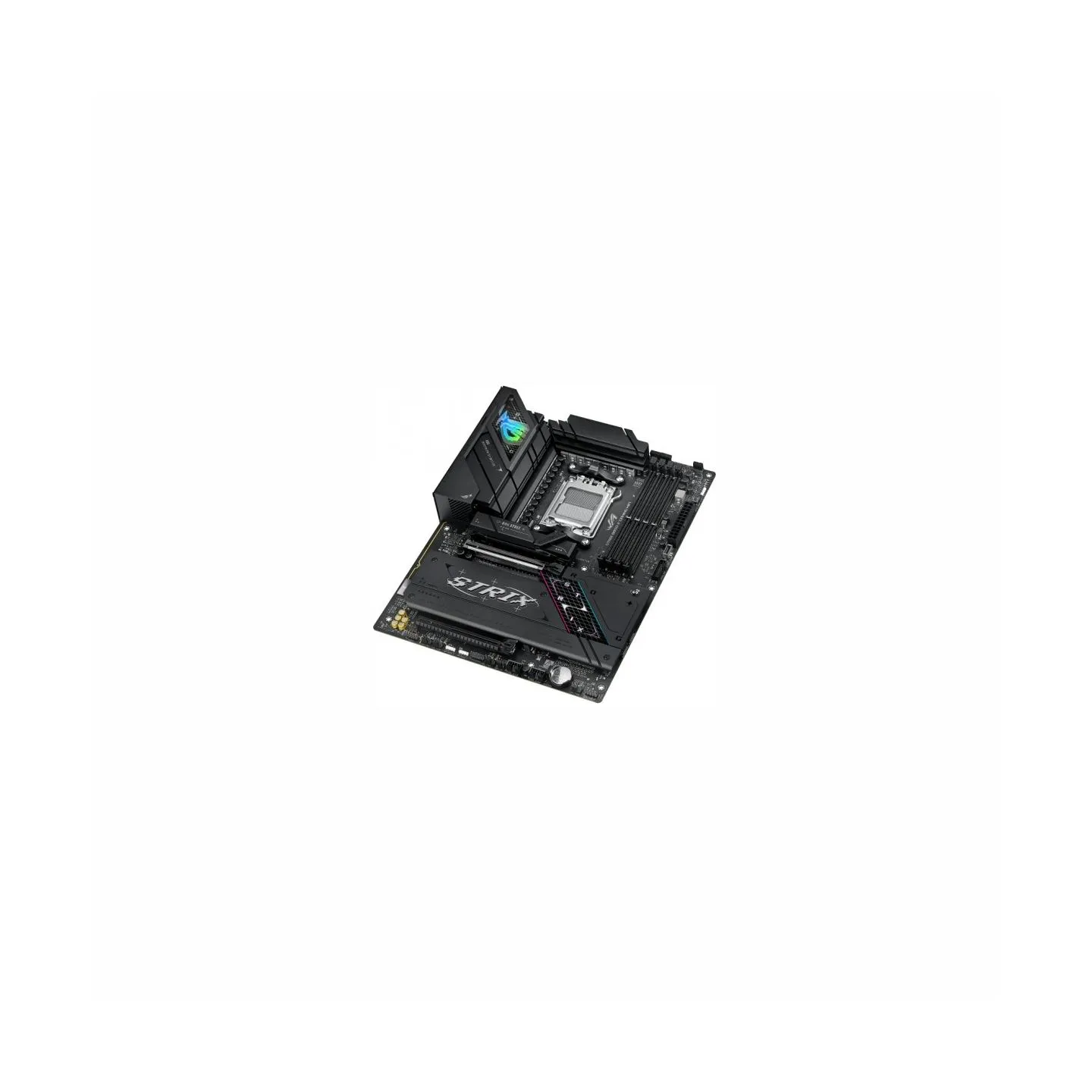

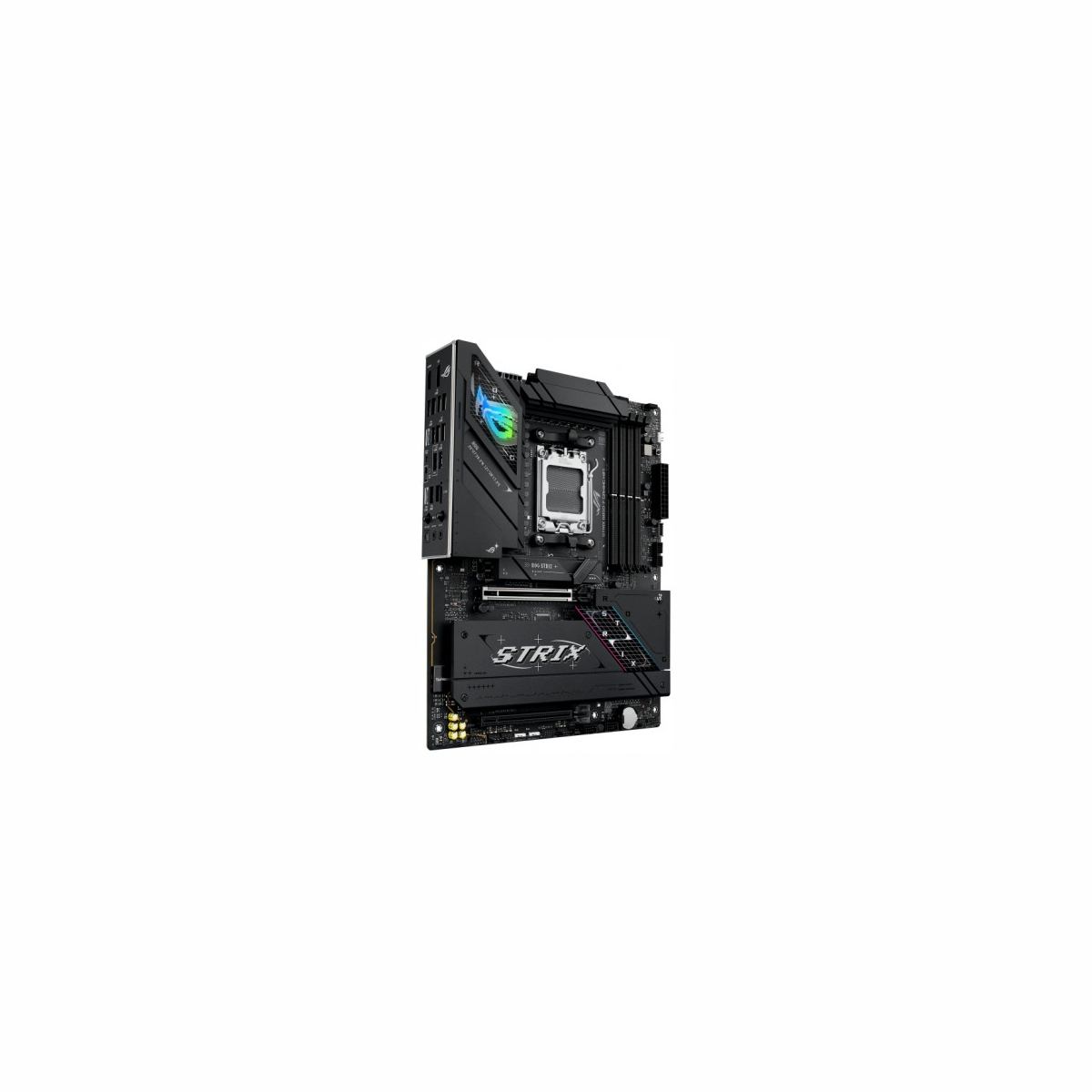

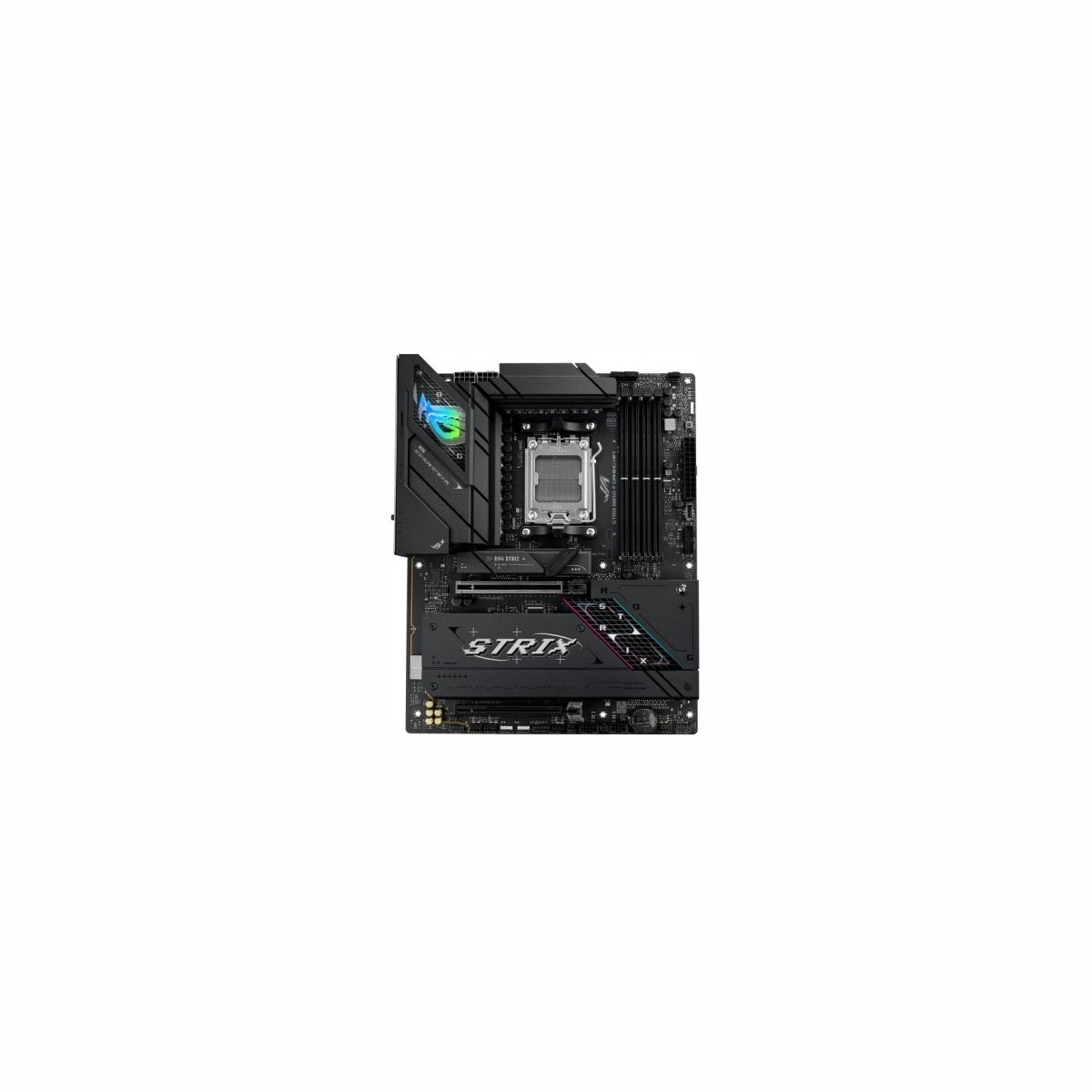

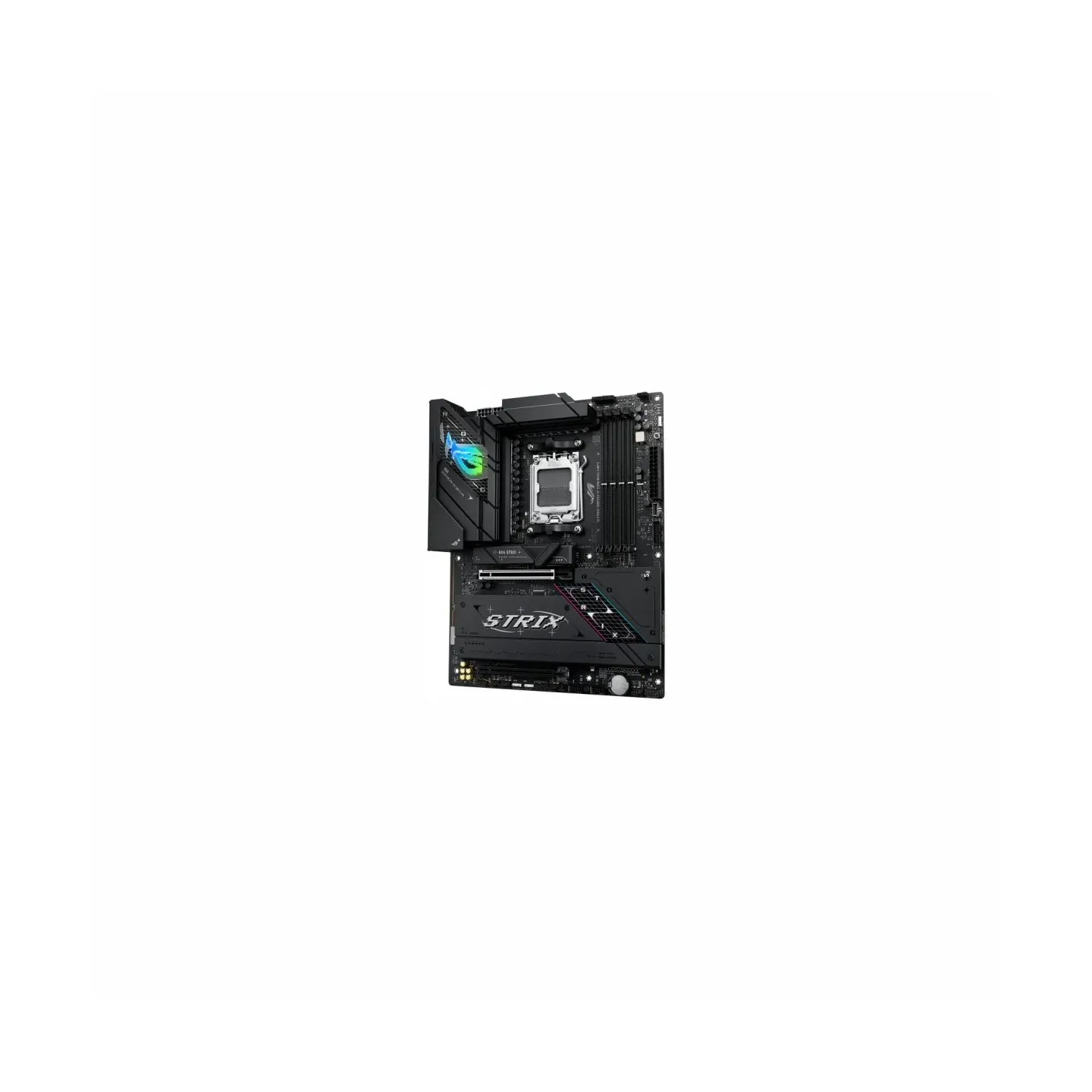

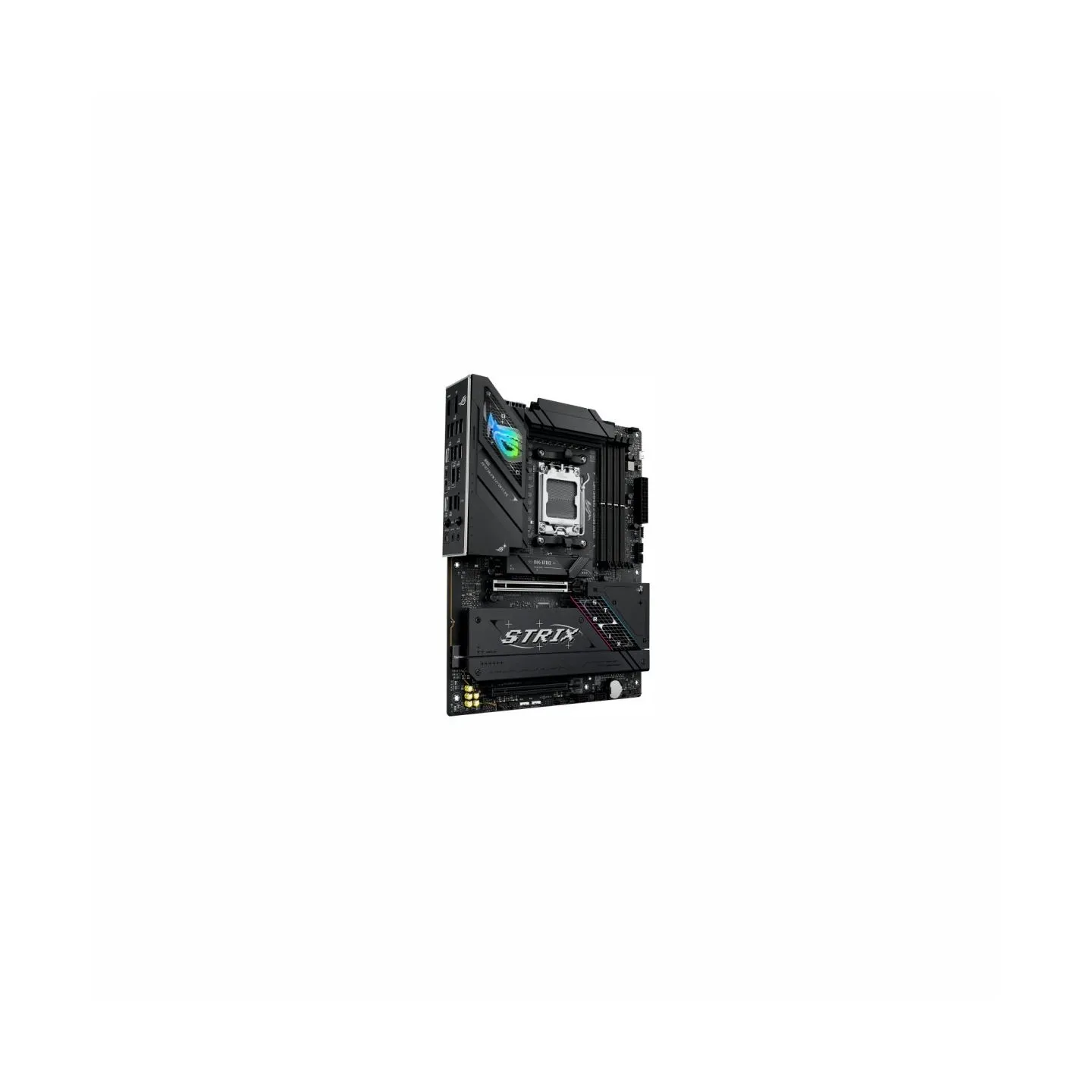

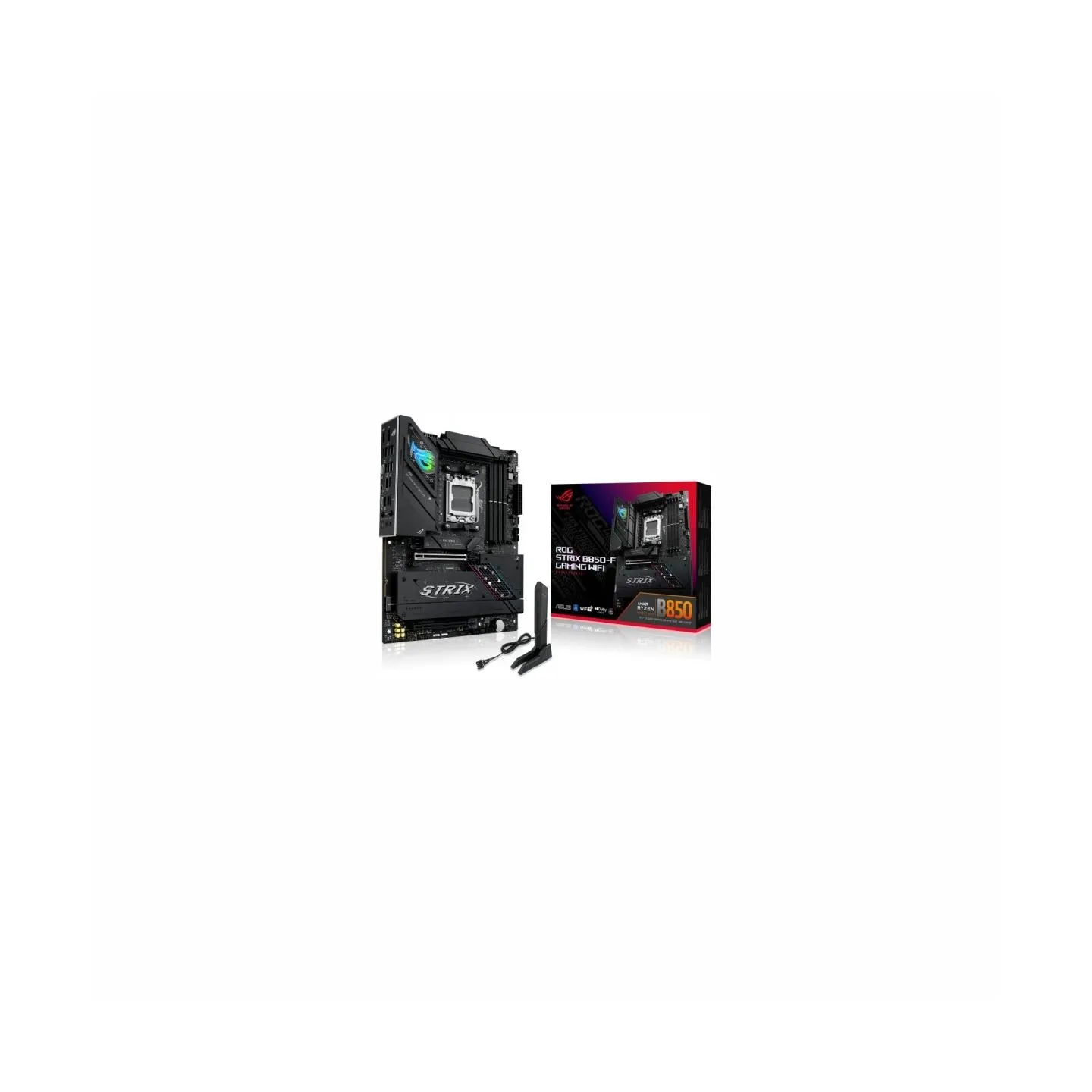

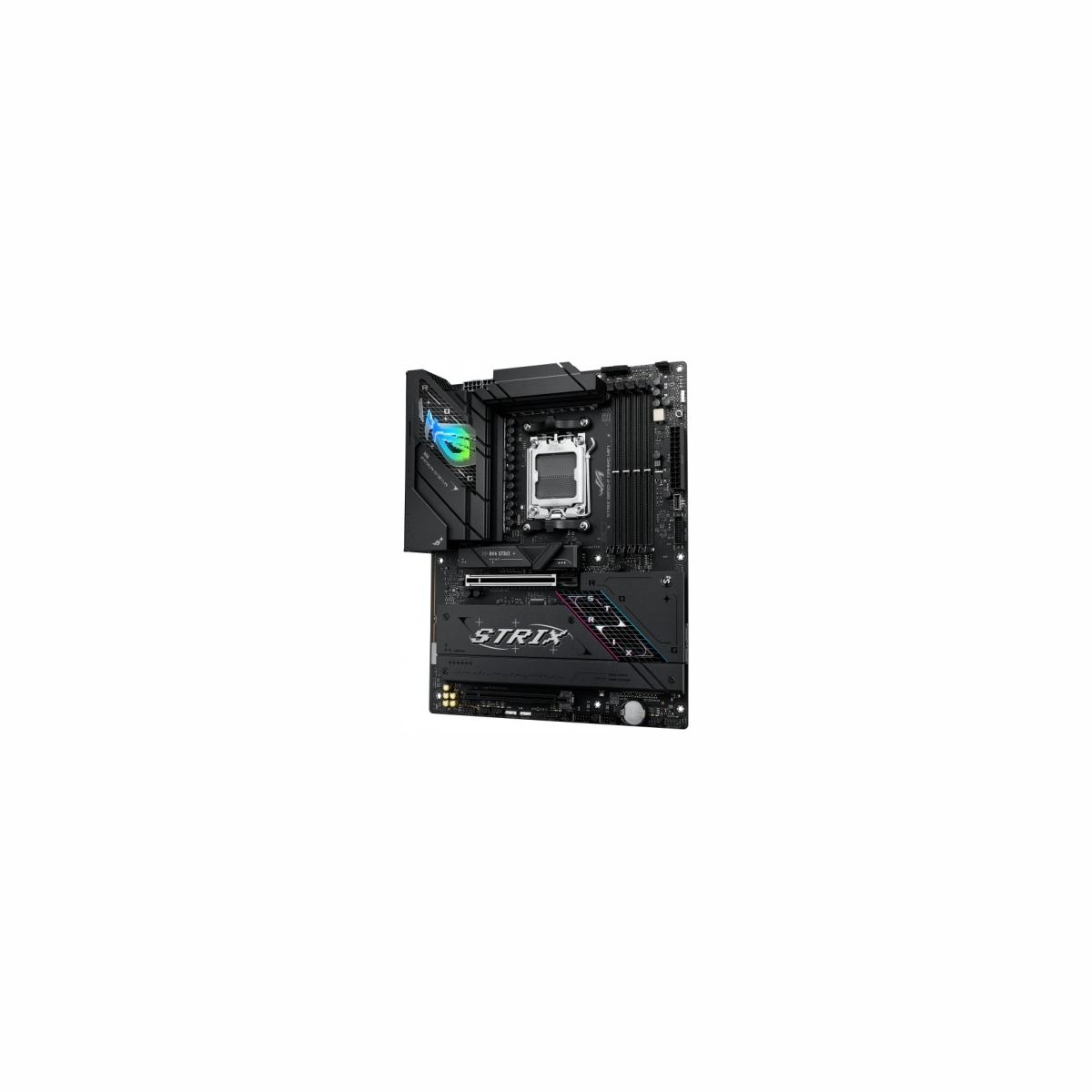

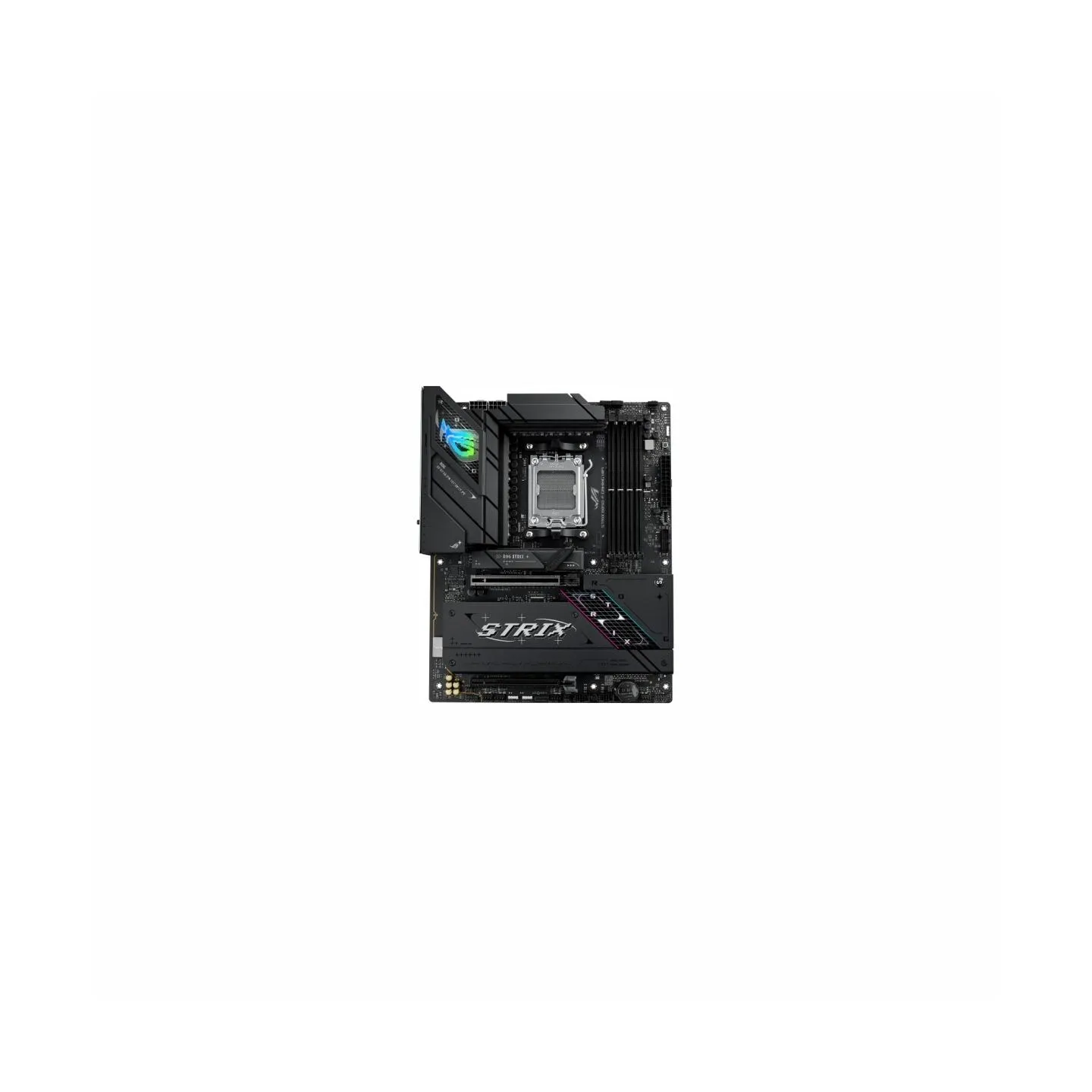

- ROG STRIX B850-F GAMING WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 5
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 192
- Expansion slots
- 4 x M.2
- Expansion slots
- 2 x PCIe 5.0 x16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 2
- RAID
- Yes
- Detailed data on disk/drive interfaces
- AMD Ryzen 7000 & 9000 Series Desktop ProcessorsM.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*AMD B850 ChipsetM.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)2 x SATA 6Gb/s ports* Specifications vary by CPU types.** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.AMD RAIDXpert2 TechnologyRyzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
- Graphics
- 1 x DisplayPort* 1 x HDMI port** * Supports up to 8K@30Hz according to the DisplayPort 1.4 specification ** Supports 4K@60Hz according to the HDMI 2.1 specification *** VGA resolution support depends on the resolution of the processor or graphics card.
- Sound card
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Rear Optical S/PDIF Output Premium Audio Capacitors Audio Shield *A chassis with a front-panel HD audio module is required for 7.1 Surround Sound audio output.**The rear-panel LINE OUT port does not support surround sound. To enjoy surround sound, connect your audio output device to the front-panel audio jack or use a USB audio device.
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands Supports Wi-Fi 7 160 MHz band, up to 2.9 Gbps transfer speeds. Bluetooth v5.4
- USB ports at back panel
- 12
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- External connectors
- 1 x Wi-Fi Module
- External connectors
- 1 x MIC
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x RJ-45
- External connectors
- 1 x DisplayPort
- Onboard connectors
- 1x CPU/DRAM overvoltage jumper
- Onboard connectors
- 2 x SATA III 6Gb/s
- Onboard connectors
- 1 x Power button
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x Thermal sensor connector
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s Cable ASUS WiFi Q-Antenna Cable Tie Pack M.2 Q-Latch Pack M.2 Q-Slide Pack ROG Keychain ROG Strix Stickers 4 x M.2 Rubber Bands Quick Start Guide
- Supported operating systems
- Windows 11
- Software
- ROG exclusive software ROG CPU-Z Dolby Atmos ASUS exclusive software Armoury Crate AIDA64 Extreme (60-day free trial) Aura Creator Aura Sync Fan Xpert 4 GameFirst HWiNFO Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
- Other information
- WOL management via PME, PXE
- Designation
- CE+WEEE
