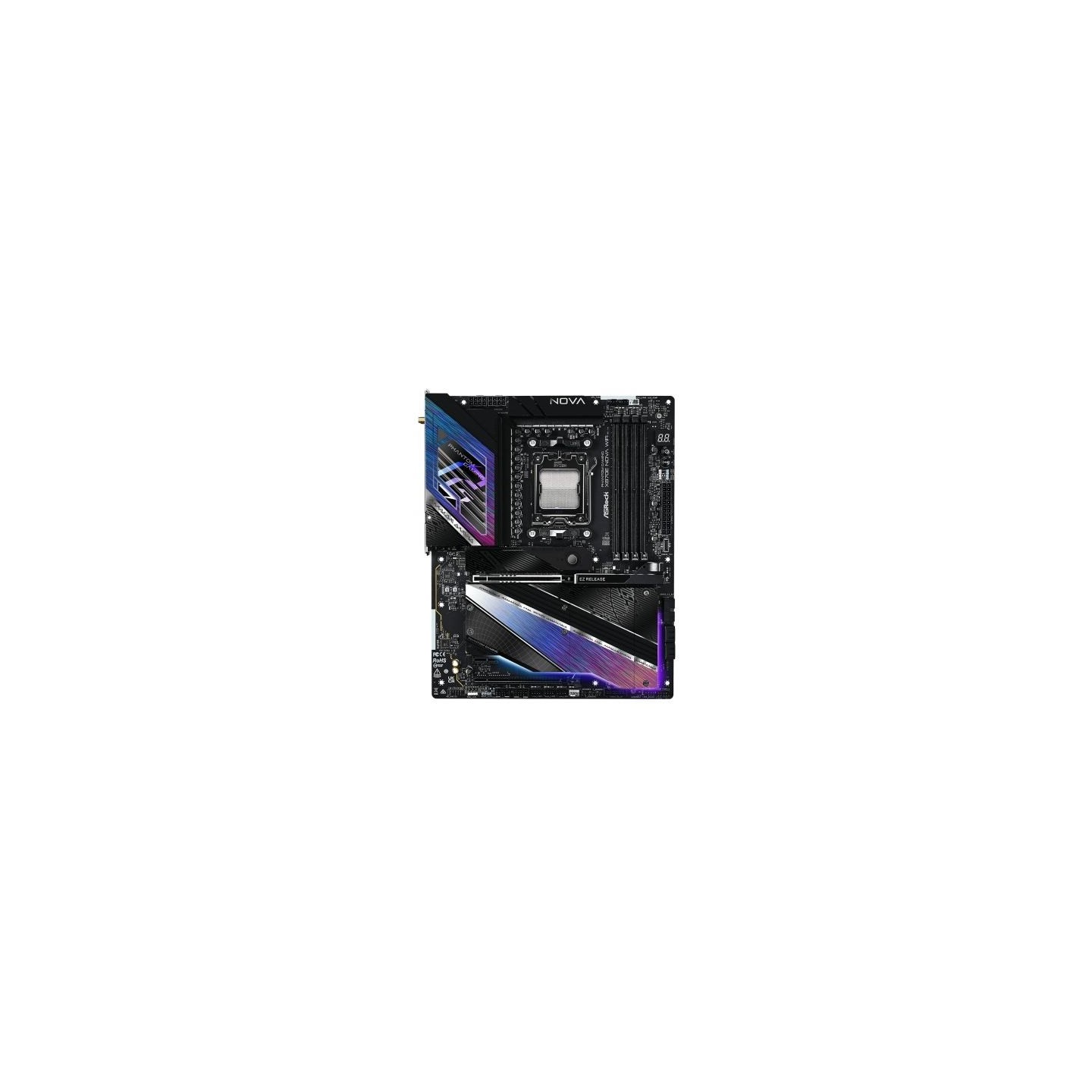

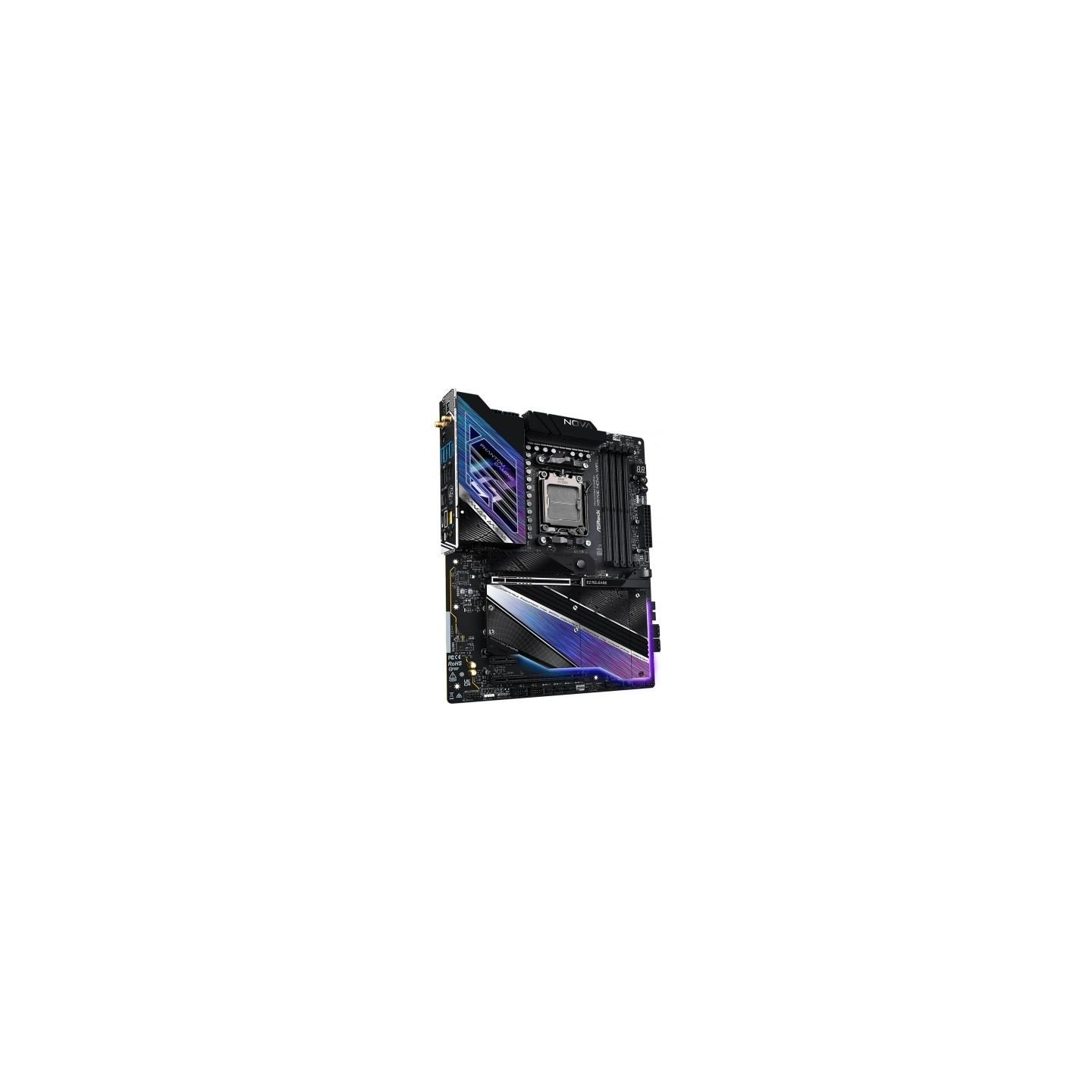

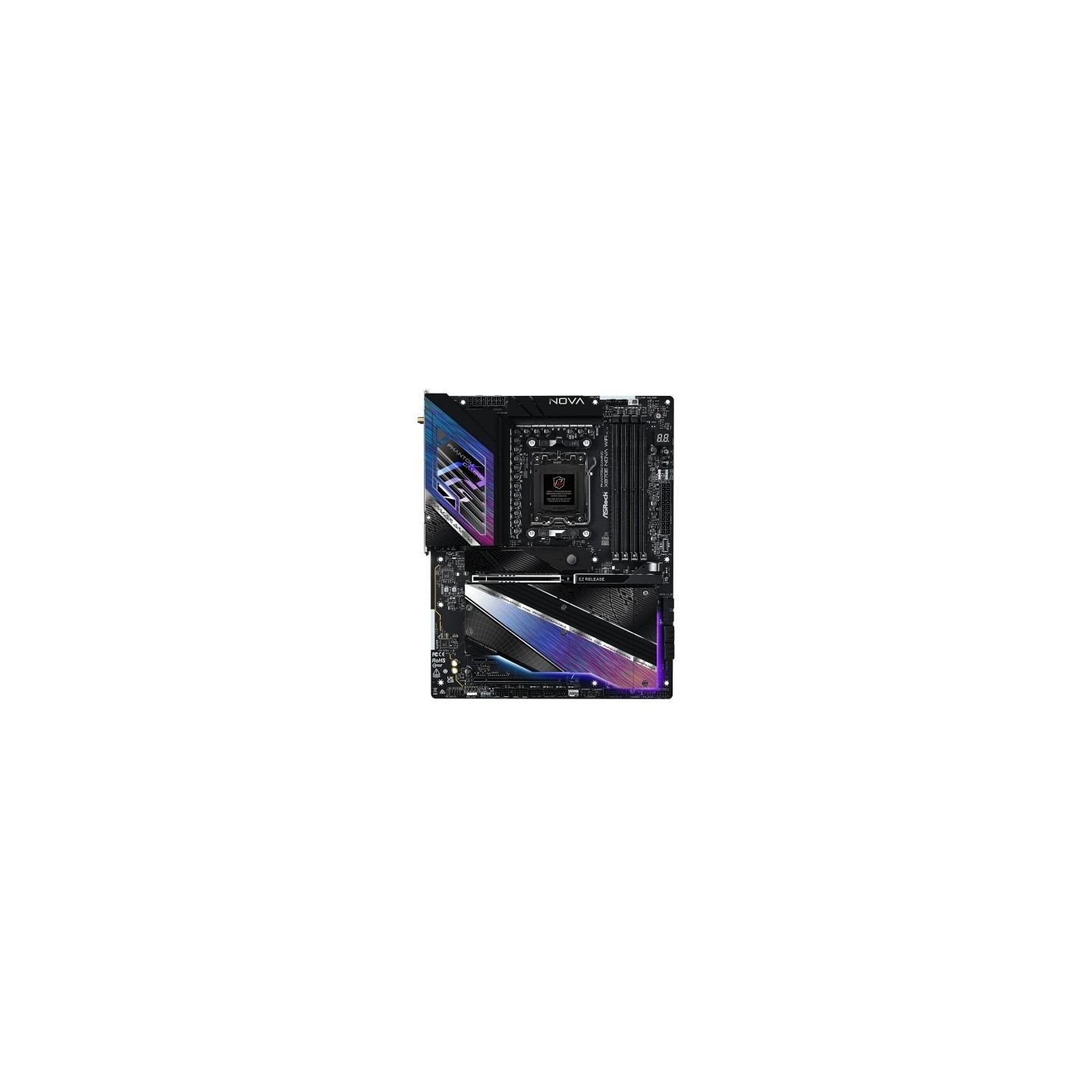

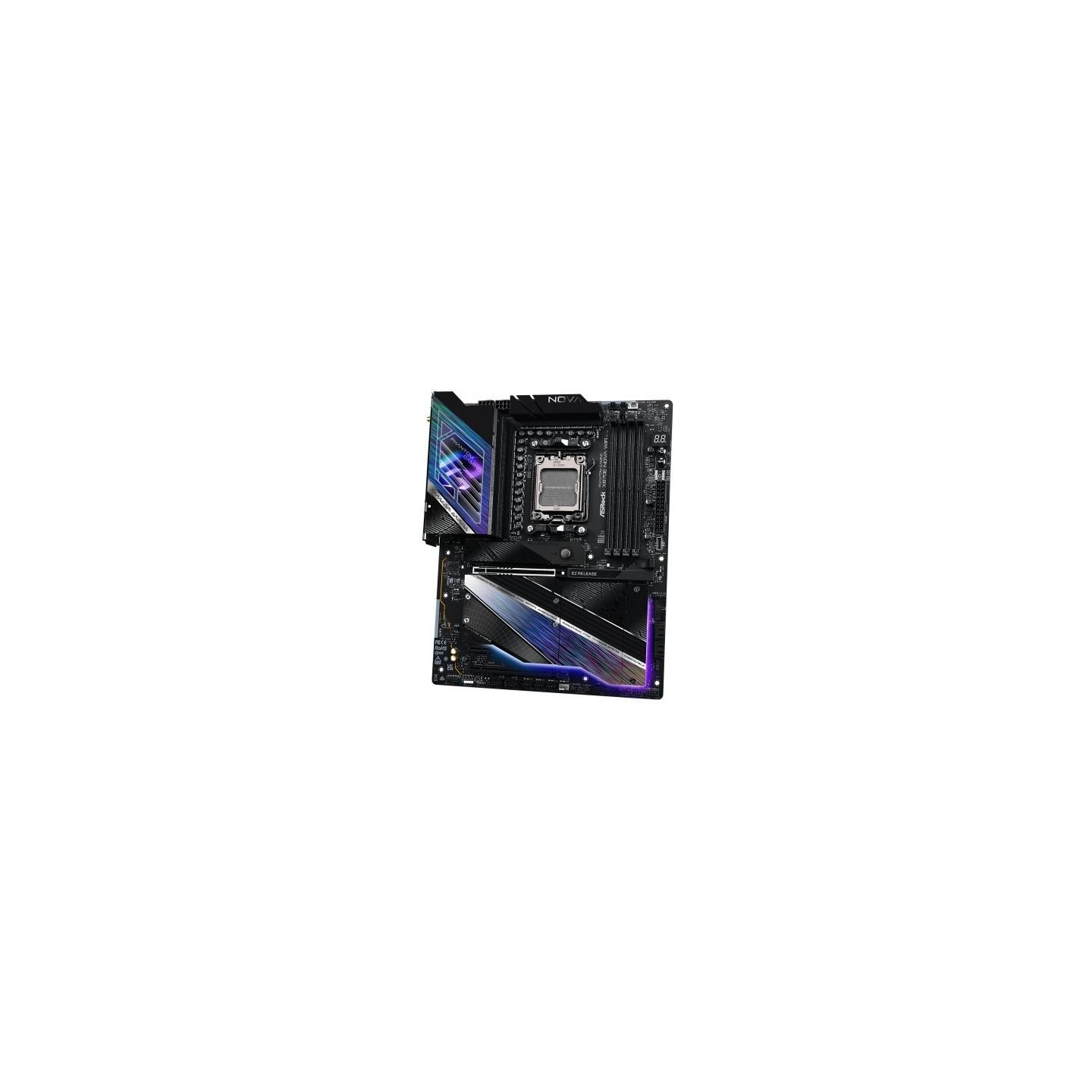

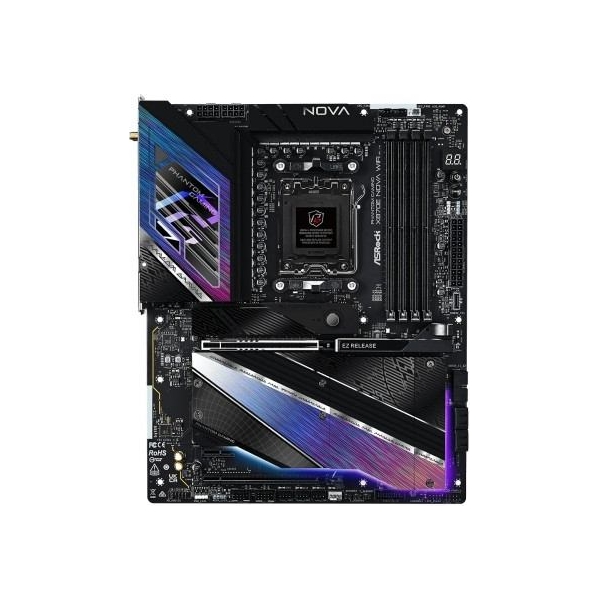

Asrock Motherboard X870E NOVA WIFI AM5 4DDR5 M.2 ATX
Price:
€420.68
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
- SKU
- KBASRAA8X870A05
- Barcode
- 4710483949654
- Model
- X870E NOVA WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Integrated CPU
- Yes
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8200 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 5 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- SlotsCPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* PCIE1 will operate on the Gen5x16 bus with 9000 and 7000 series processors, on the Gen4x8 bus with 8000 series processors (Phoenix 1), and on the Gen4x4 bus with 8000 series processors (Phoenix 2).StorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*- 2 x SATA3 6.0 Gb/s ConnectorsASMedia ASM1061:- 2 x SATA3 6.0 Gb/s Connectors* The M2_1 connector is the first priority for M.2 installations.The M2_1 will work on the Gen5x4 platform with 9000 and 7000 series processors and on the Gen4x4 platform with 8000 series processors (Phoenix 1 and Phoenix 2).
- Graphics
- Integrated AMD RDNA graphics (Support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and max resolution up to 4K 120Hz 2 x USB 4 ports, supports HDCP 2.3 and max resolution up to 8K 30Hz* *Only processor-integrated graphics can be displayed via USB 4 ports. If you want to display on a Type-C monitor, use AMD Ryzen 9000, 8000, and 7000 processors with integrated graphics.
- Network interface
- 1 x 10/100/1000/2500/5000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mbps Realtek RTL8126 Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna supporting 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 12
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 8
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x USB4 Type-C
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 5 x USB 3.1
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x SMA
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x Debug card header
- Onboard connectors
- 1 x Power button
- Onboard connectors
- 1 x Power led header
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 2 x USB C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 3 x Thermistor Cable Header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm

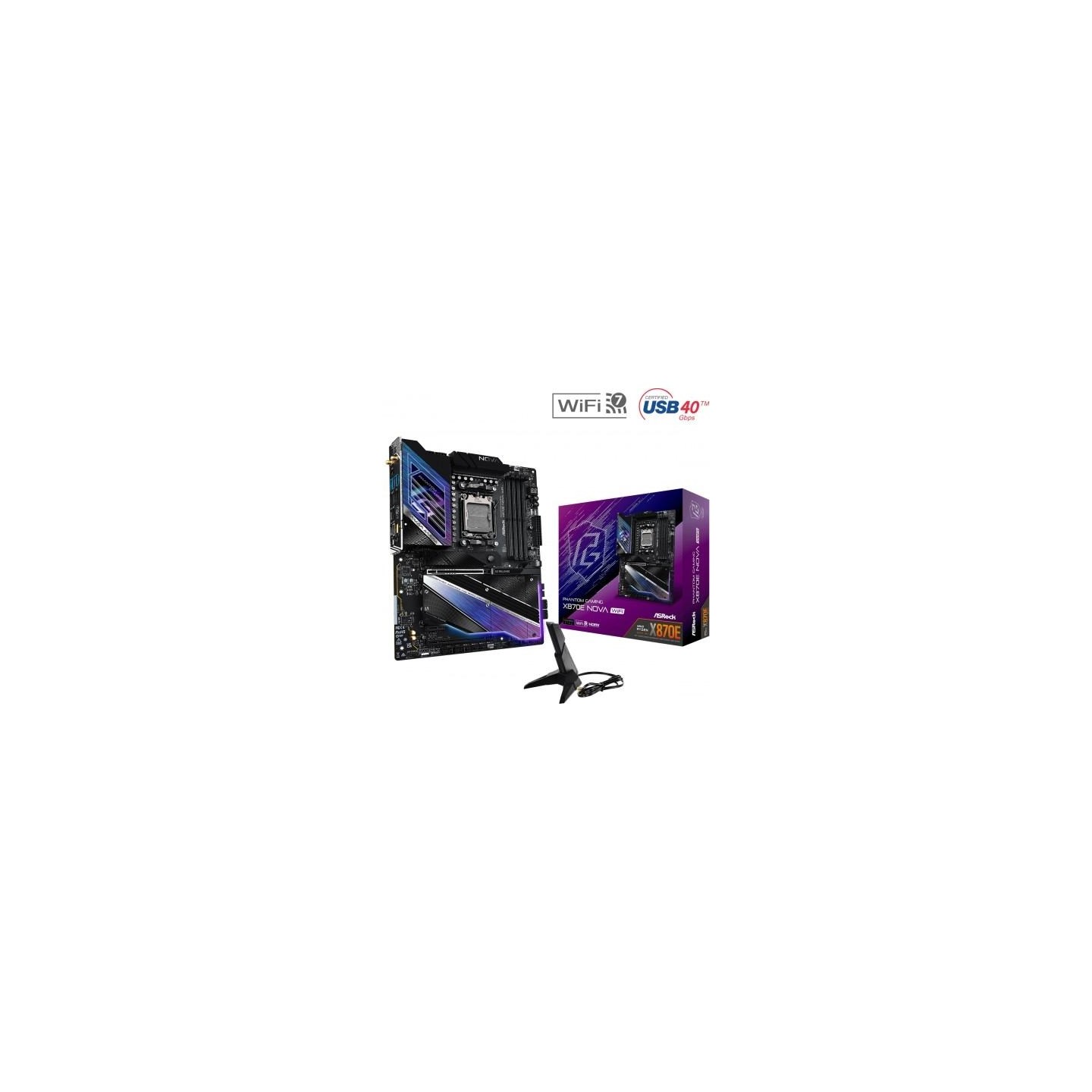

- Accessories included
- 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
- Other information
- Incredible Performance PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s) Rock-Solid Server-Grade Low-Loss PCB 20+2+1 Power Phase, 110A SPS for VCore+SOC with Extended Heatsink Armor Flexible Integrated I/O Port Cover Durable Black 20K Capacitors (High-Quality, High-Conductivity Polymer Capacitors) Ultra-Fast Gaming 5G LAN, 802.11be Wi-Fi 7 Module ASRock Thunderbolt Gaming Ports EZ Updates BIOS Flashback Button ASRock Automatic Driver Installer
- Designation
- CE+WEEE
