Lian Li Case|LIAN LI|A3-mATX|Micro|MicroATX|MiniITX|Colour Black|G99.A3X.00

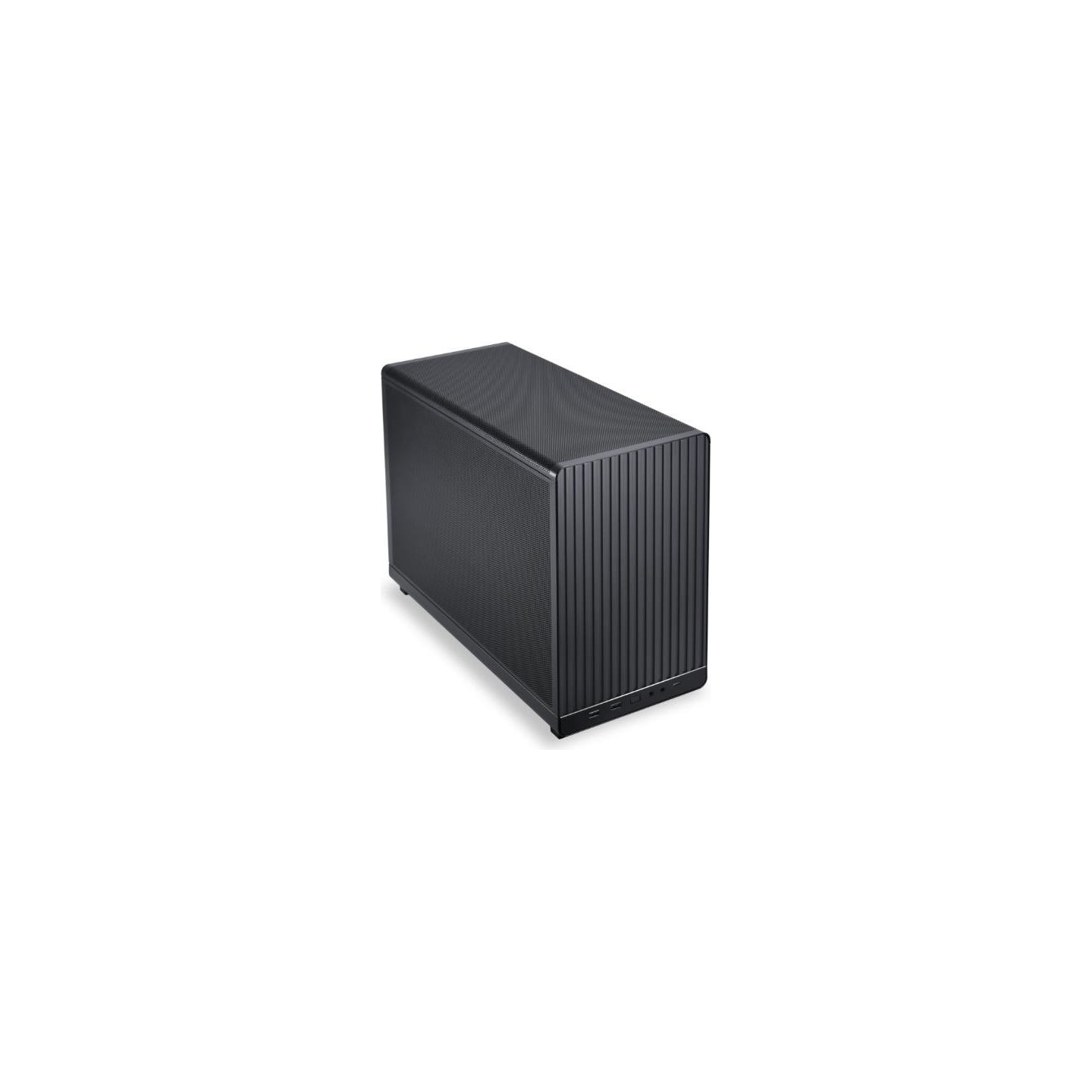

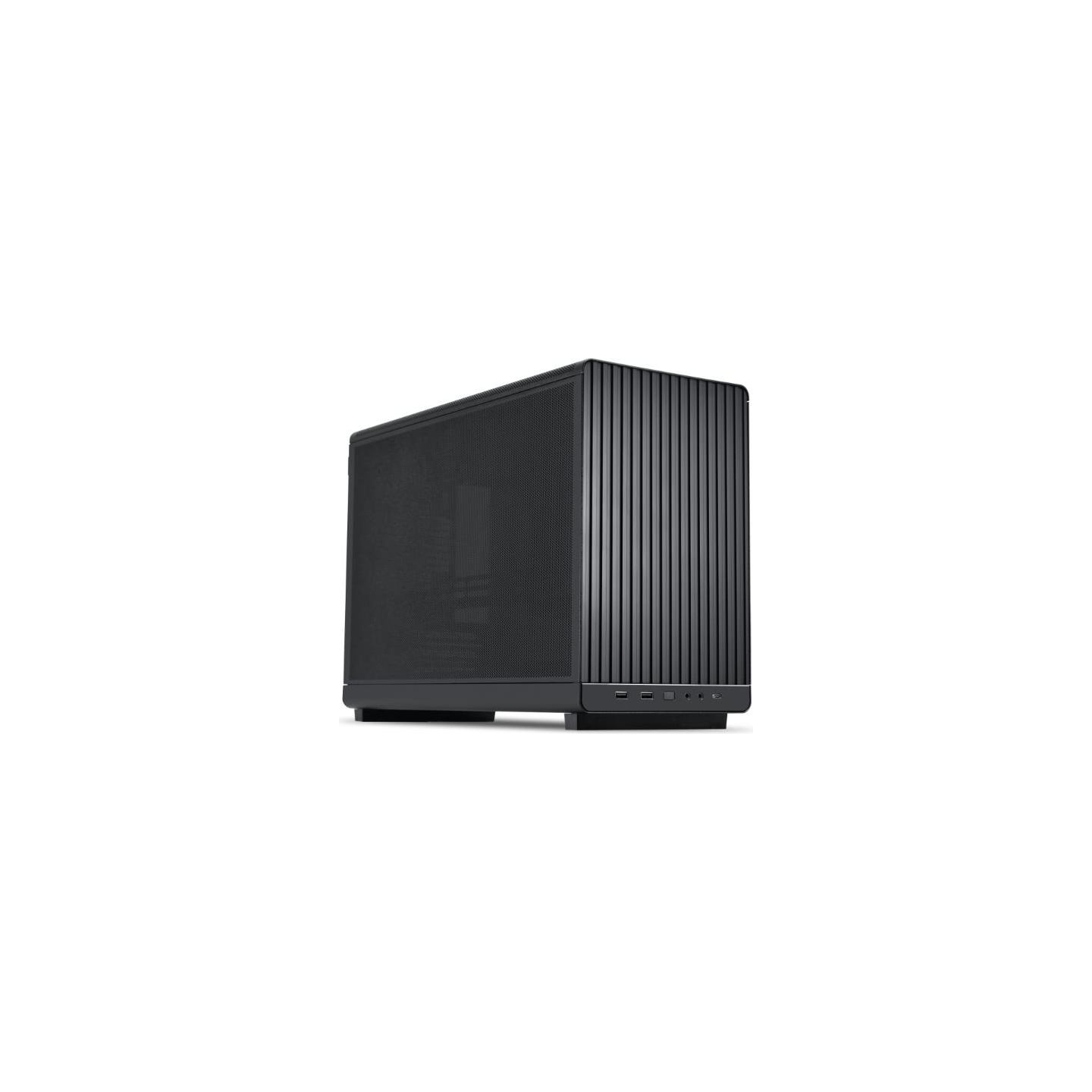

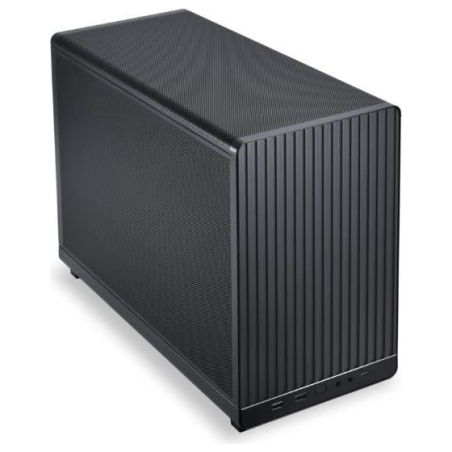

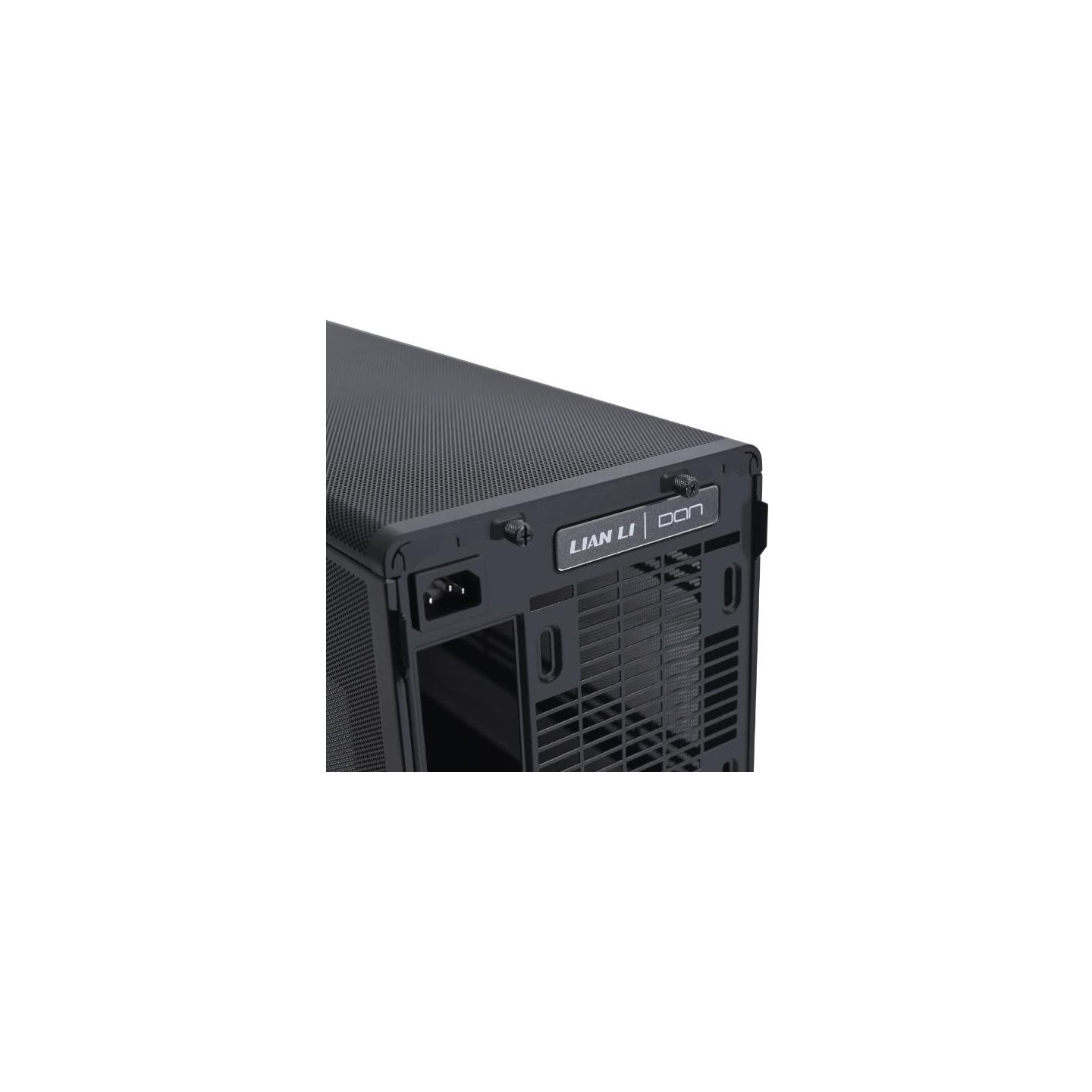

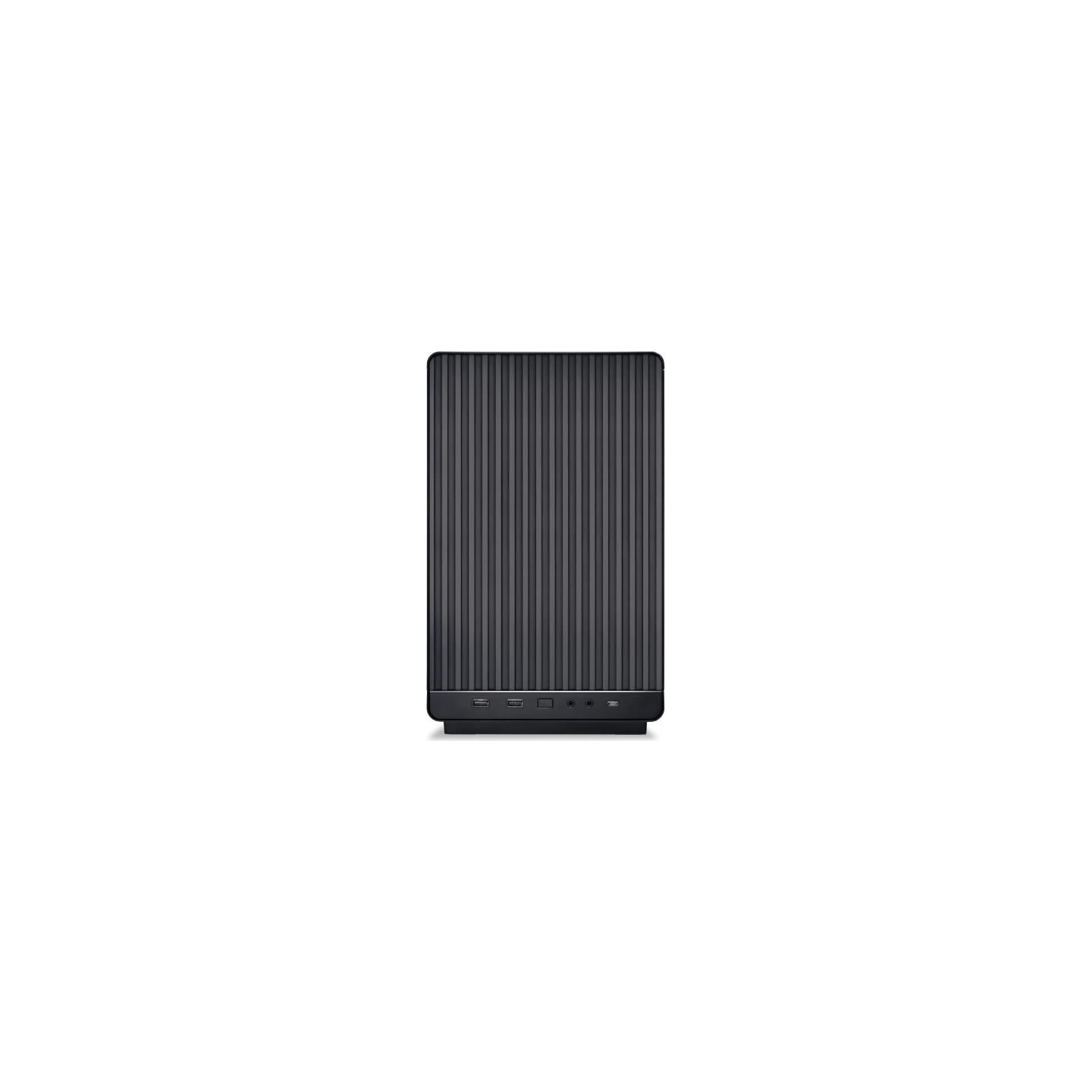

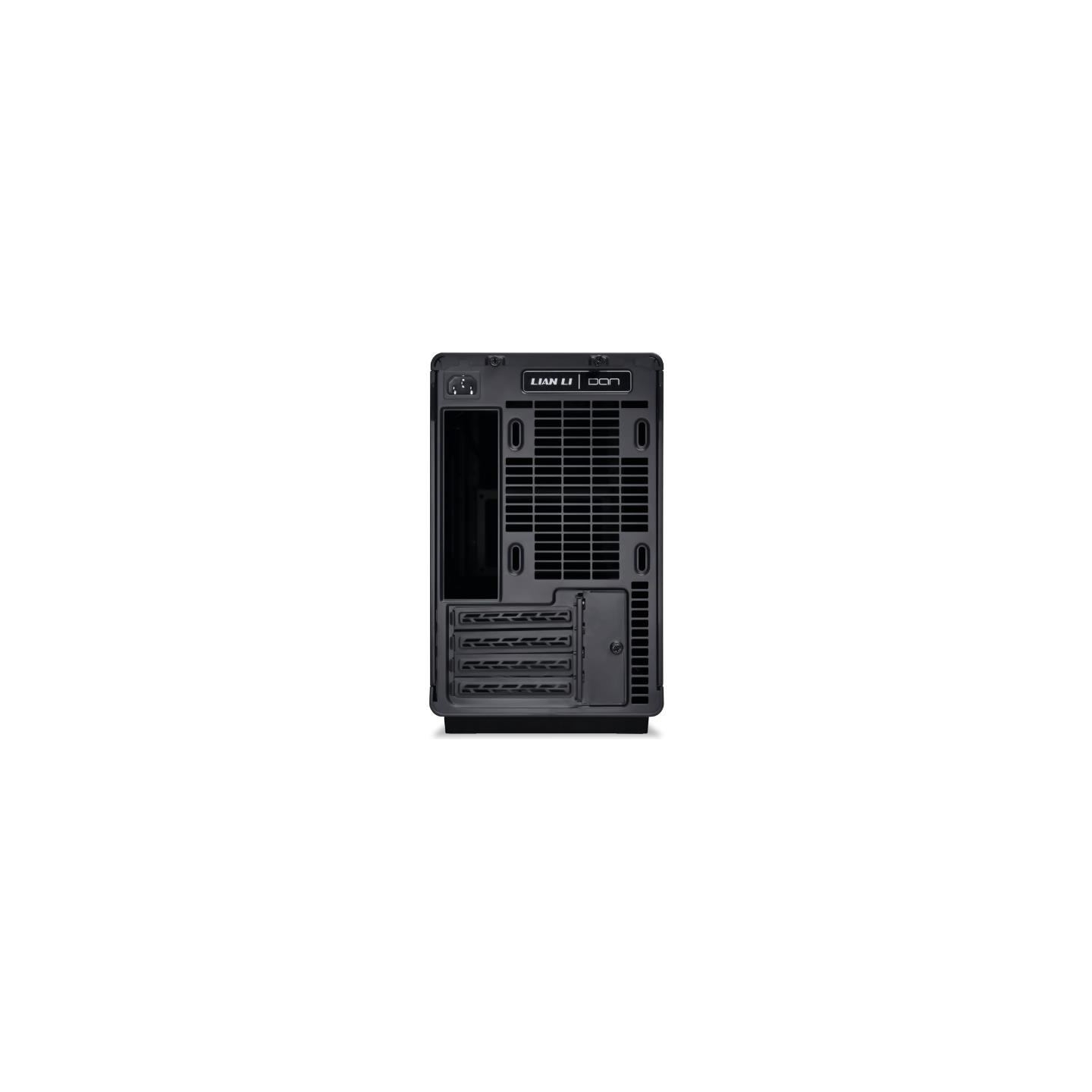

The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.
WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.
EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.
VERSATILE COMPATIBILITY, ULTIMATE CUSTOMIZATION
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-performance, large size components.
The A3-mATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a radiator and fan combo, there will be no space for the GPU.
- Minimalistic sleek design 26.3L micro form factor chassis
- Side and top panels are designed with steel mesh
- Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
- Supports up to 360 radiator and 10 x 120mm fans
- Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
- In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI
Manufacturer Website:
https://lian-li.com/product/a3-matx/?cn-reloaded=1
- Category Code
- CAS
- CnCode
- 84733080
- Unit Box Height
- 0.385
- Unit Box Length
- 0.5
- Unit Box Width
- 0.27
- Anti-dust filter
- Yes
- Form factor
- Micro Tower
- Material
- Steel
- Maximum CPU cooler height
- 165 mm
- Maximum graphics card length
- 415 mm
- Maximum PSU length
- 220 mm
- Number of 2.5" bays
- 2
- On/off button
- Yes
- Product colour
- Black
- Side window
- Yes
- Supported motherboard form factors
- micro ATX/Micro-ITX
- Tempered glass panel(s)
- Yes
- Type
- PC
- Power supply included
- No
- Audio input
- Yes
- Audio output
- Yes
- USB 3.0
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Bottom fans diameters supported
- 120 mm
- Bottom radiator sizes supported
- 240 mm
- Number of bottom fans supported (max)
- 3
- Number of rear fans supported (max)
- 1
- Number of side fans supported (max)
- 3
- Number of top fans supported (max)
- 3
- Rear fans diameters supported
- 120 mm
- Side fans diameters supported
- 120/140 mm
- Side radiator sizes supported
- 240/280/360 mm
- Top fans diameters supported
- 120 mm
- Top radiator sizes supported
- 240/360 mm
- Supported HDD sizes
- 2.5/3.5 "
- Depth
- 443 mm
- Height
- 321.5 mm
- Width
- 194 mm
- Model name
- A3-mATX
- Model
- A3-mATX BLACK
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.05198 cubm
- Unit Calculated Weight
- 6 kg
