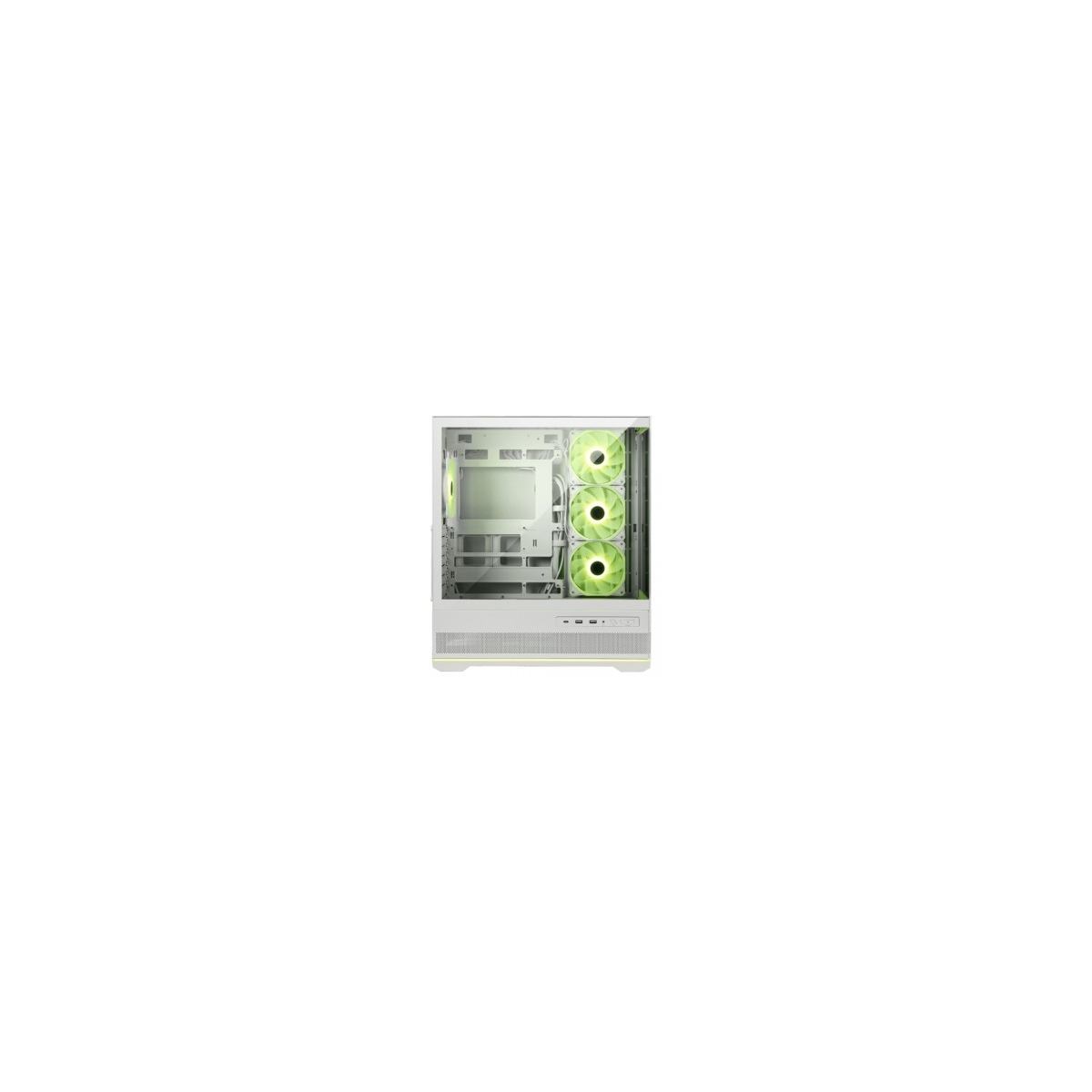

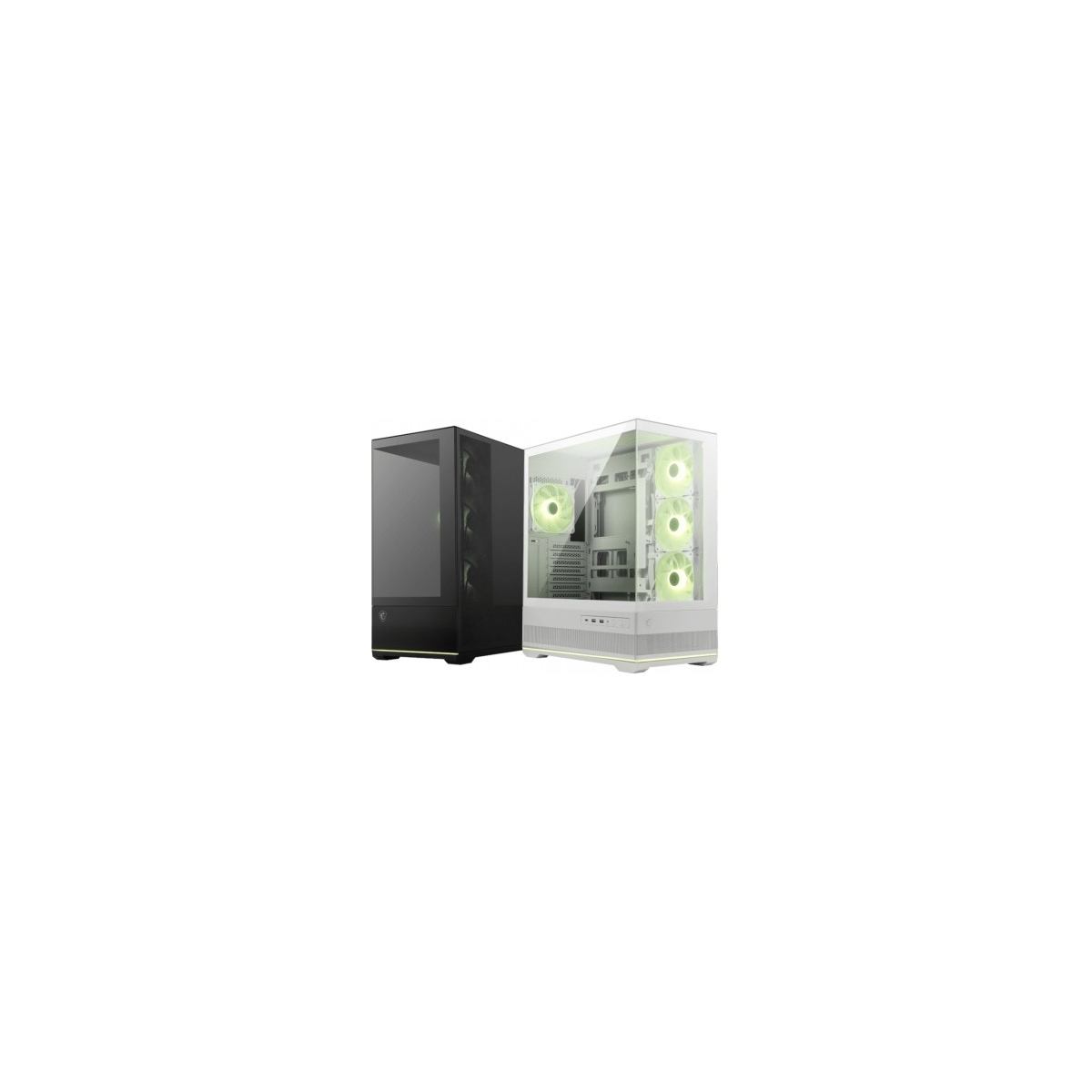

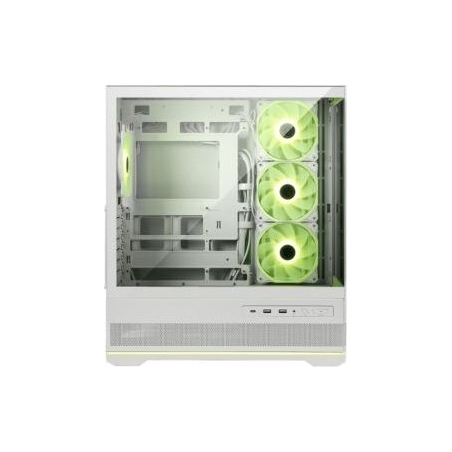

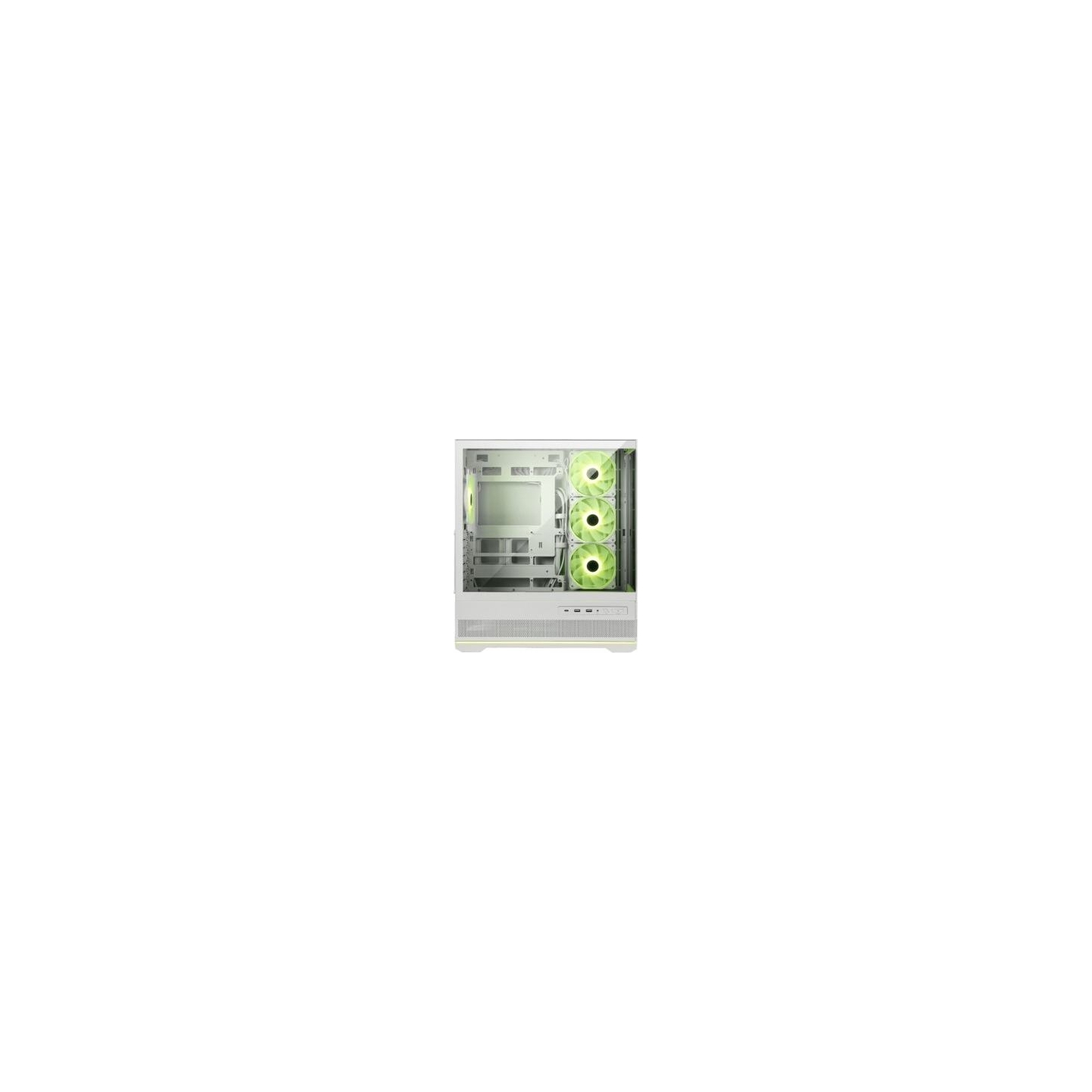

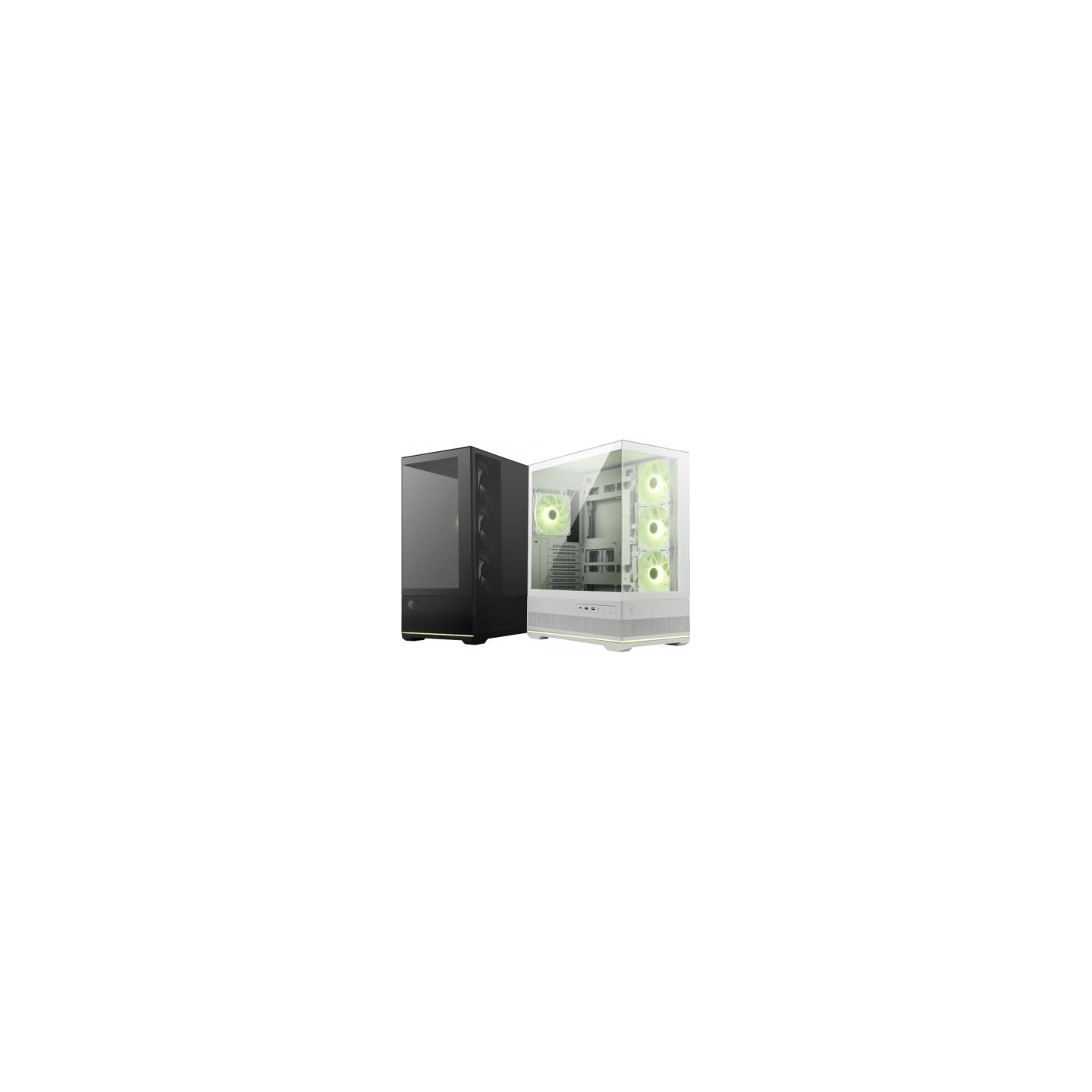

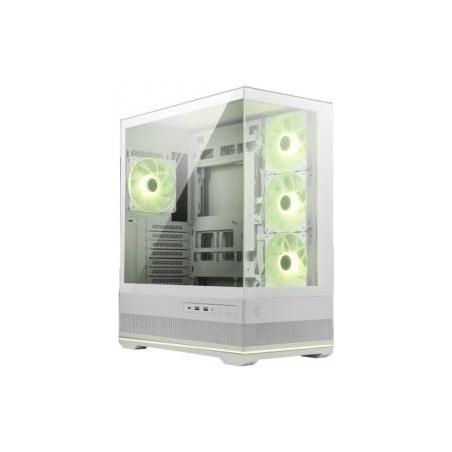

MSI MAG PANO 110R PZ WHITE ARGB FAN
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.
Decorated with a metal nameplate to highlight the MAG family identity.
Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.
Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.
- 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components
- Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup
- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames
- ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
- Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance
Manufacturer Website:
https://www.msi.com/PC-Case/MAG-PANO-110R-PZ/Overview
- Category Code
- CAS
- CnCode
- 84733080
- Unit Box Height
- 0.535
- Unit Box Length
- 0.57
- Unit Box Width
- 0.33
- Form factor
- Midi Tower
- Illumination location
- Case fans
- LED indicators
- Yes
- Material
- Tempered glass
- Maximum CPU cooler height
- 160 mm
- Maximum graphics card length
- 200 mm
- Maximum PSU length
- 400 mm
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 2
- Number of expansion slots
- 7
- On/off button
- Yes
- Product colour
- White
- Side window
- Yes
- Suitable for
- Gaming
- Supported motherboard form factors
- ATX/micro ATX/Mini-ATX
- Type
- PC
- Power supply included
- No
- Power supply location
- Bottom
- Supported power supply form factors
- ATX
- Combo headphone/mic port
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Bottom fans diameters supported
- 120/140/160 mm
- Bottom radiator sizes supported
- 120/240/360 mm
- Number of bottom fans supported (max)
- 3
- Number of rear fans supported (max)
- 1
- Number of side fans supported (max)
- 3
- Number of top fans supported (max)
- 3
- Rear fans diameters supported
- 120 mm
- Rear fans installed
- 1x 120 mm
- Rear radiator sizes supported
- 120 mm
- Side fans diameters supported
- 120/140 mm
- Side fans installed
- 3x 120 mm
- Side radiator sizes supported
- 120/240/360 mm
- Top fans diameters supported
- 120/140 mm
- Top radiator sizes supported
- 120/240/360 mm
- Supported HDD sizes
- 2.5/3.5 "
- Depth
- 420 mm
- Height
- 485 mm
- Width
- 225 mm
- Model name
- MAG PANO 110R PZ / WHITE
- Case product features
- Transparent panel
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.09086/0.1006 cubm
- Unit Calculated Weight
- 11.3 kg
