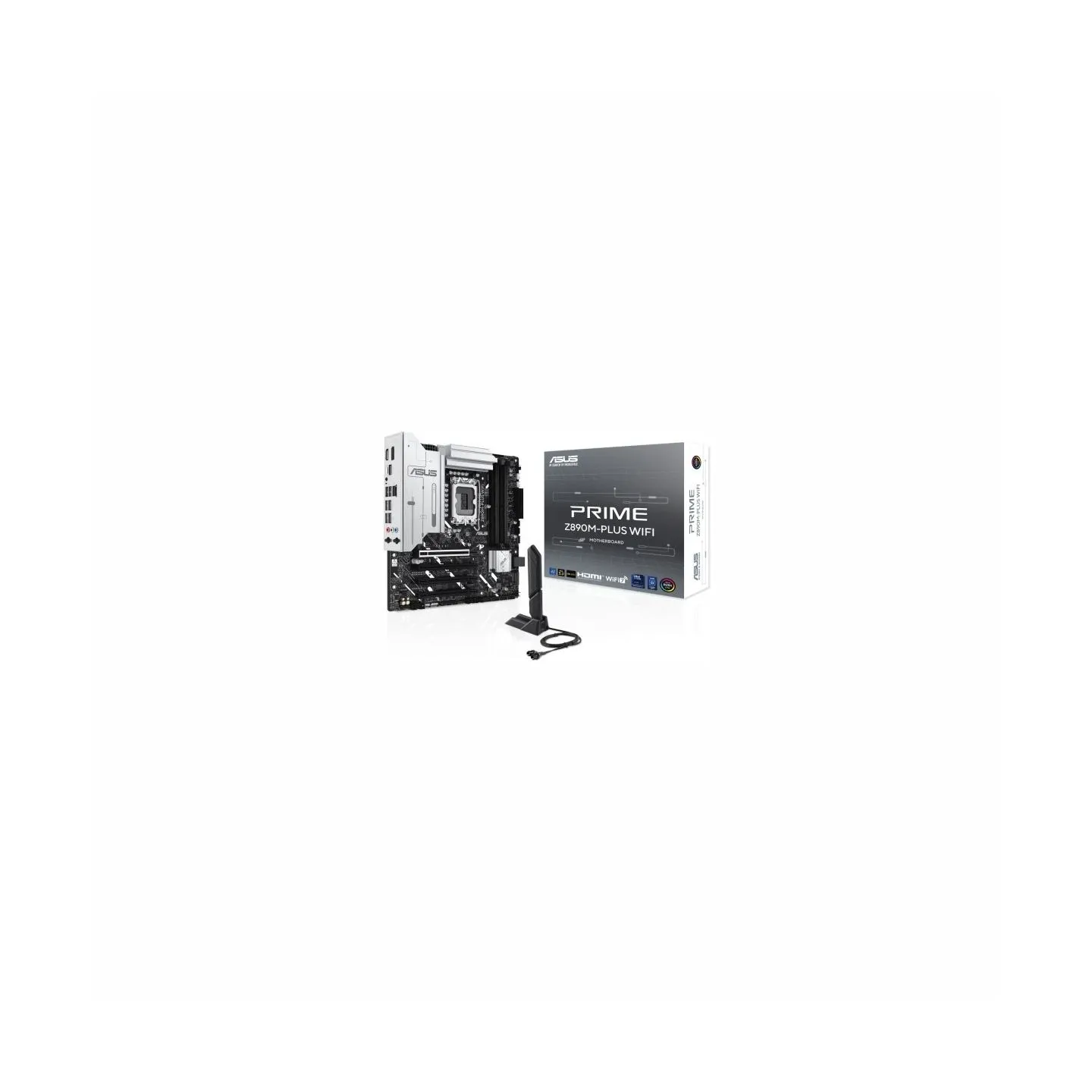

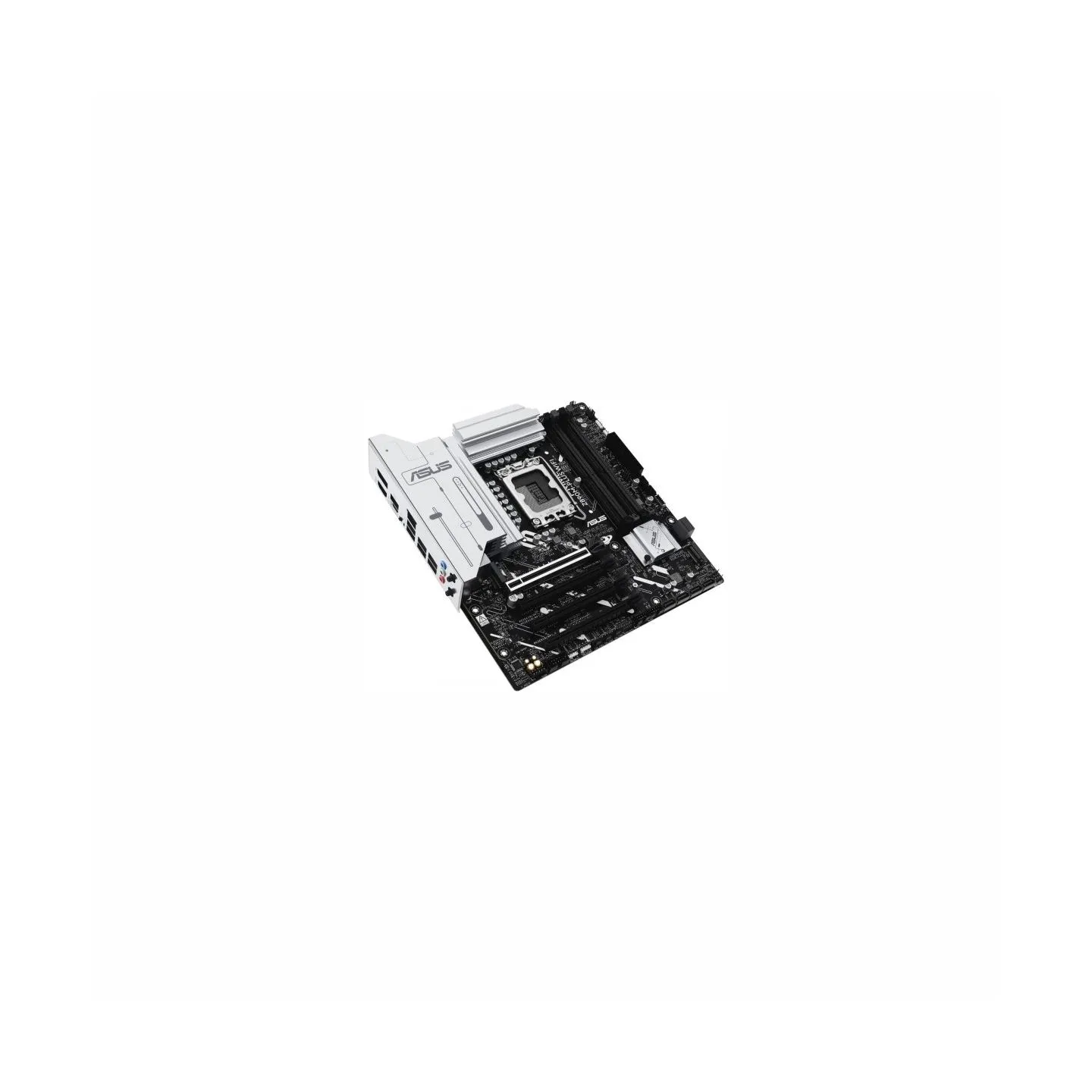

Asus Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0
Price:
€314.01
Tax included
Last items in stock
Share on
- SKU
- KBASUIIFZ890U00
- Barcode
- 4711387755419
- Model
- PRIME Z890M-PLUS WIFI
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7600 MHz
- Max memory size
- 192
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 3 x M.2
- Max. number of SATA devices
- 6
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Intel Core Ultra Processors*M.2_1 (M-Key) socket, type 2280 (supports PCIe 5.0 x4 mode)Intel Z890 ChipsetM.2_2 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)M.2_3 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)6 SATA 6 Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, the M.2 socket on the processor only supports RAID 0/1/5.
- Graphics
- 1 x DisplayPort** 1 x HDMI port*** 1 x 20 Gbps USB port (USB Type-C) supports DisplayPort video output**** *Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.**Supports up to 4K@60Hz as per DisplayPort 1.4 specification.***Supports 4K@60Hz as per HDMI 2.1 specification.****Supports up to 4K@120Hz as per DisplayPort 1.4 specification.***** VGA resolution support depends on processor or graphics card resolution.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports the 160 MHz Wi-Fi 7 band, up to 2.9 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The 6 GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x USB BIOS Flashback button
- External connectors
- 1 x Wi-Fi Module
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 6 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Form factor
- micro ATX
- Dimensions
- 24.4 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 3 x M.2 SSD screw packs 1 x Quick Start Guide
- Supported operating systems
- Windows 11
- Software
- ASUS Exclusive Software Armory Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
- Designation
- CE+WEEE
