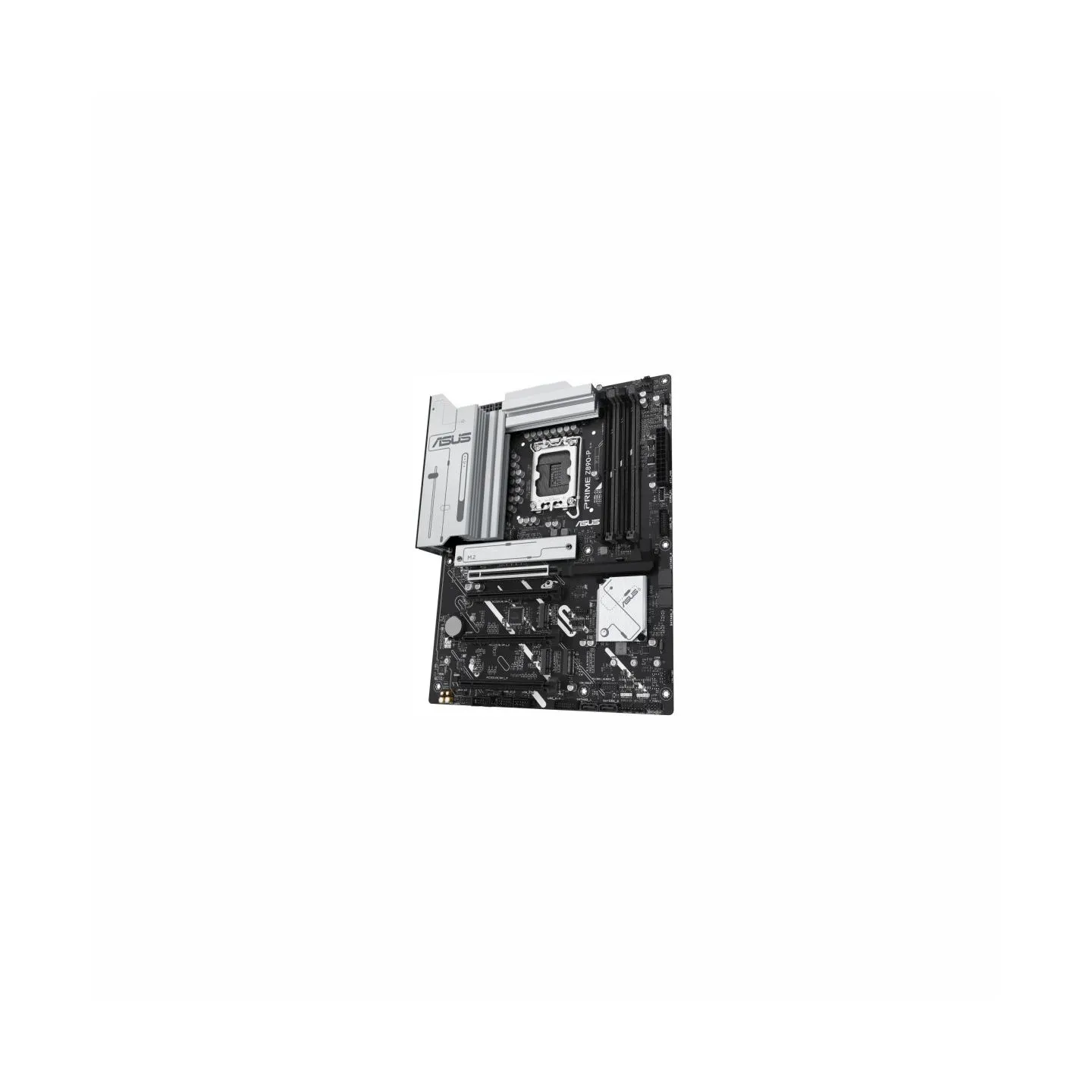

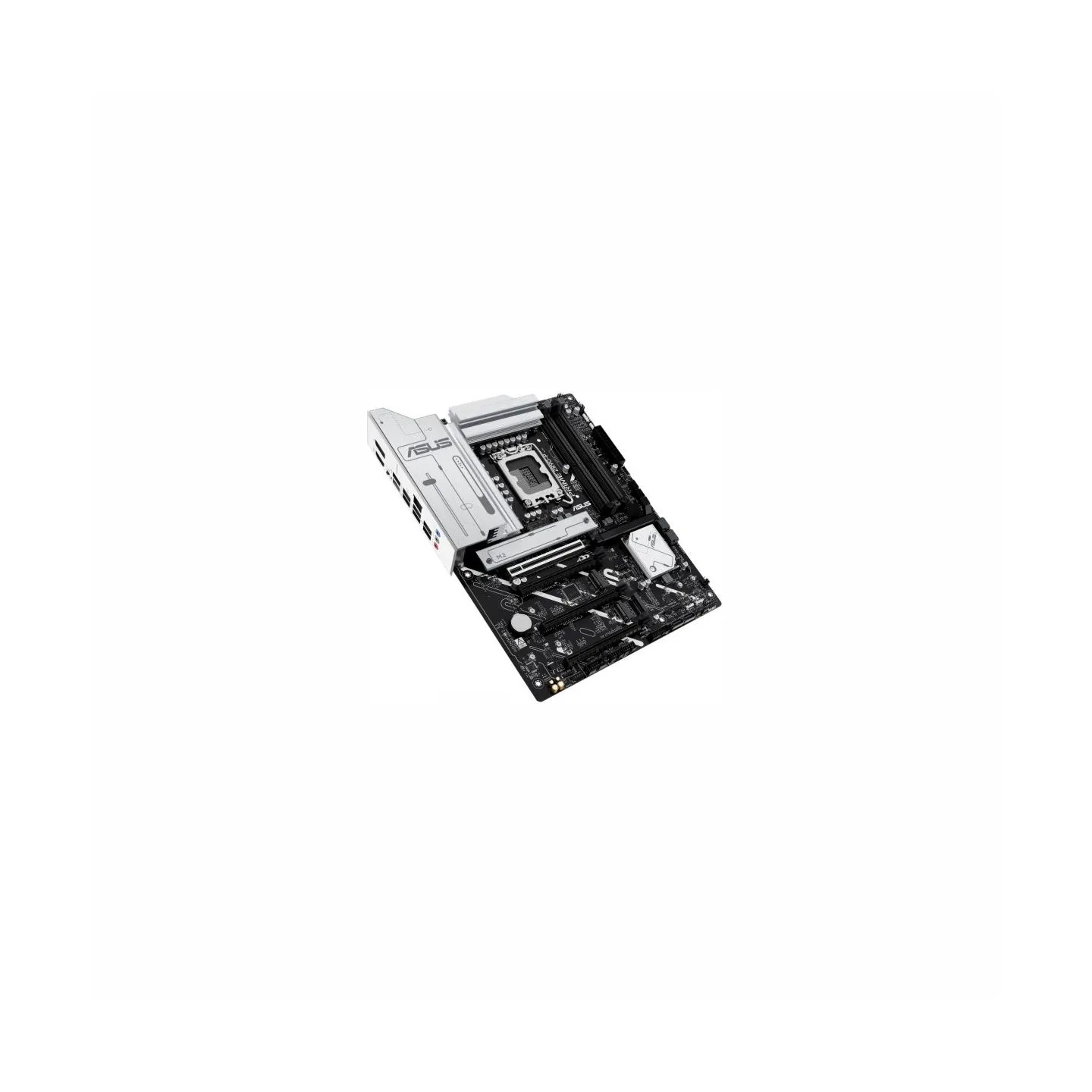

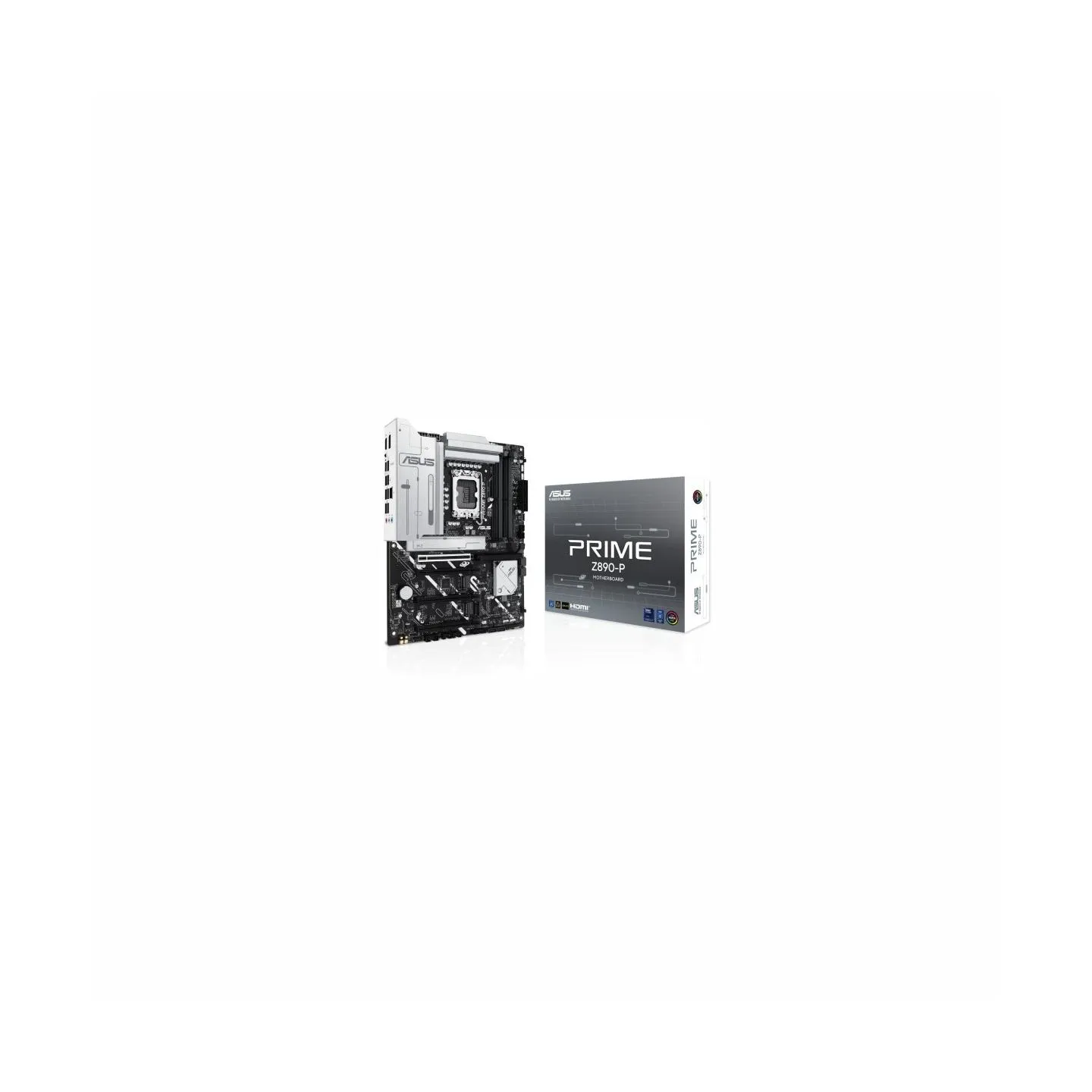

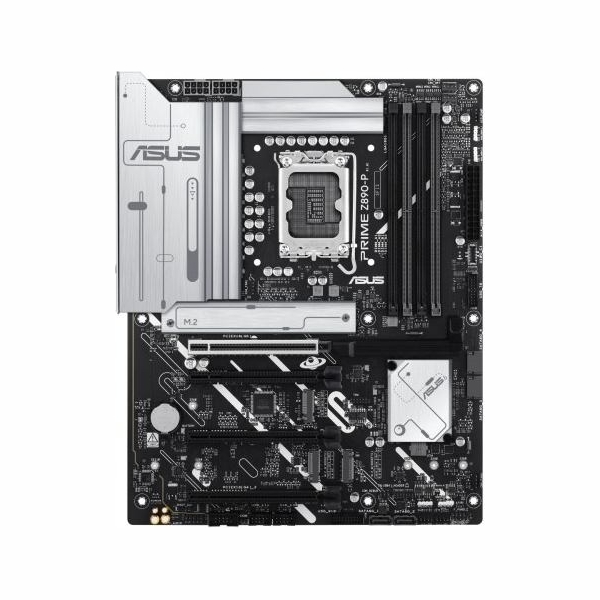

Asus Motherboard PRIME Z890-P s1851 4DDR 5 DP/HDMI/DP/TB4 ATX /90MB1I50-M0EAY0
Price:
€320.84
Tax included
Last items in stock
Share on
- SKU
- KBASUIIFZ890A00
- Barcode
- 4711387759103
- Model
- PRIME Z890-P
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7600 MHz
- Max memory size
- 192
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 4 x M.2
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Expansion slots Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Data warehouse Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
- Graphics
- 1 x DisplayPort** 1 x HDMI port** 1 x 20 Gbps USB port (USB Type-C) supports DisplayPort video output**** * Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.** Supports up to 4K@60Hz as per DisplayPort 1.4 specification.*** Supports 4K@60Hz as per HDMI 2.1 specification.**** Supports up to 4K@120Hz as per DisplayPort 1.4 specification.***** VGA resolution support depends on processor or graphics card resolution.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack detection,Multi-streaming, Front Panel Jack retasking- Supports playback up to 24-bit/192 kHzAudio Features - Audio Shielding - Premium Audio Capacitors - Dedicated PCB Audio Layers * A chassis with an HD audio module on the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s Cables M.2 Rubber Pack 2 x M.2 SSD Screw Packs Quick Start Guide
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Designation
- CE+WEEE
