- SKU
- KBGBAIIFZ890A05
- Barcode
- 4719331864507
- Model

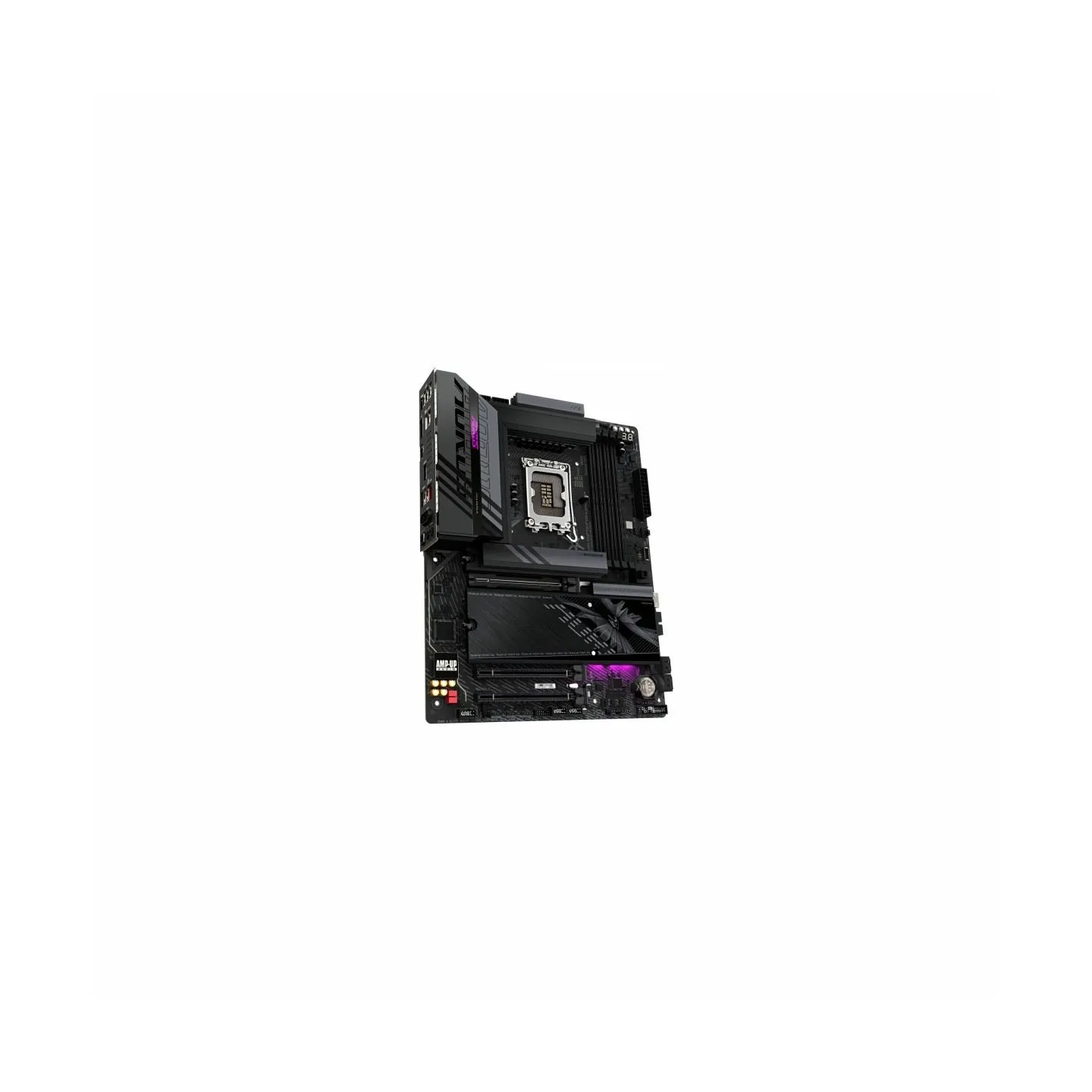

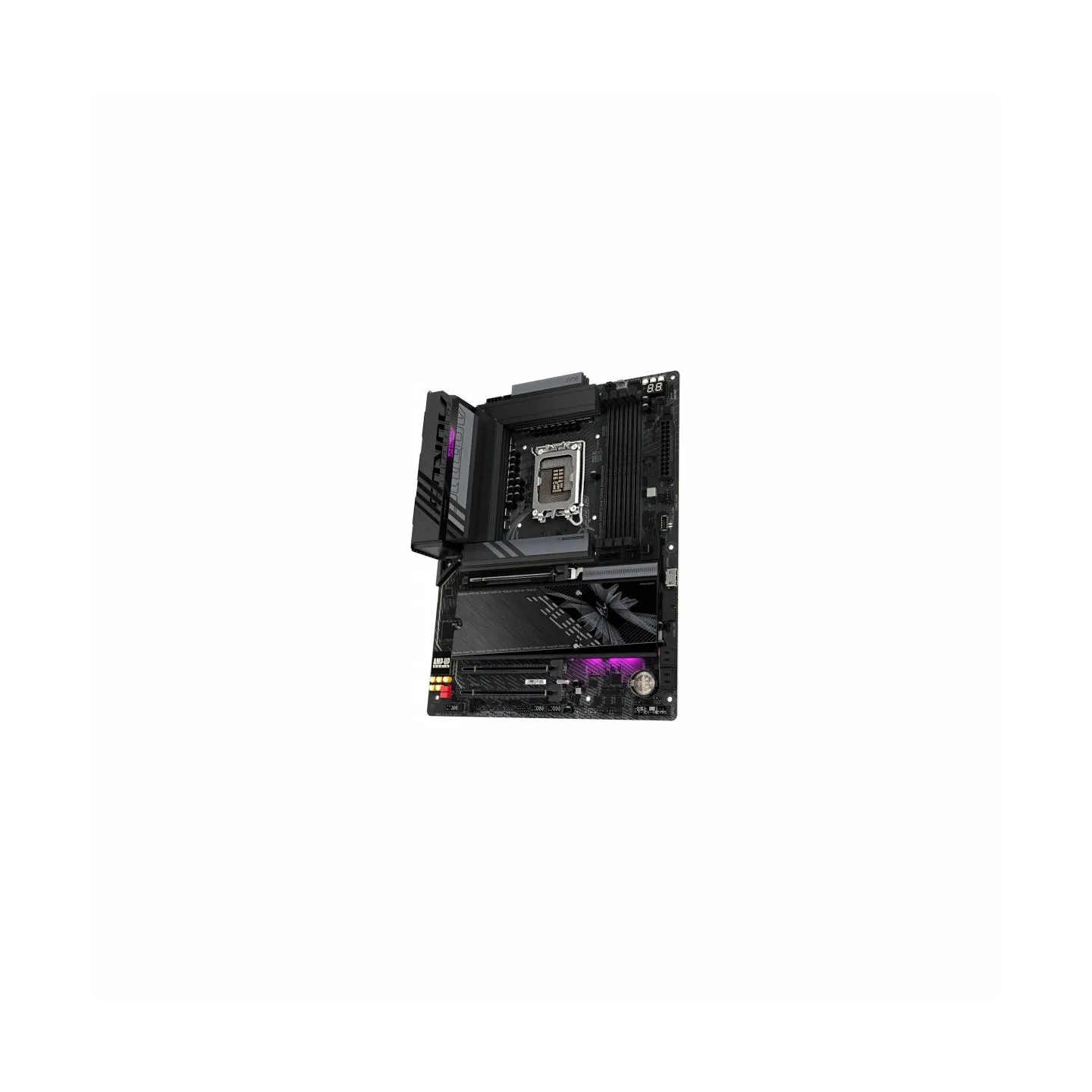

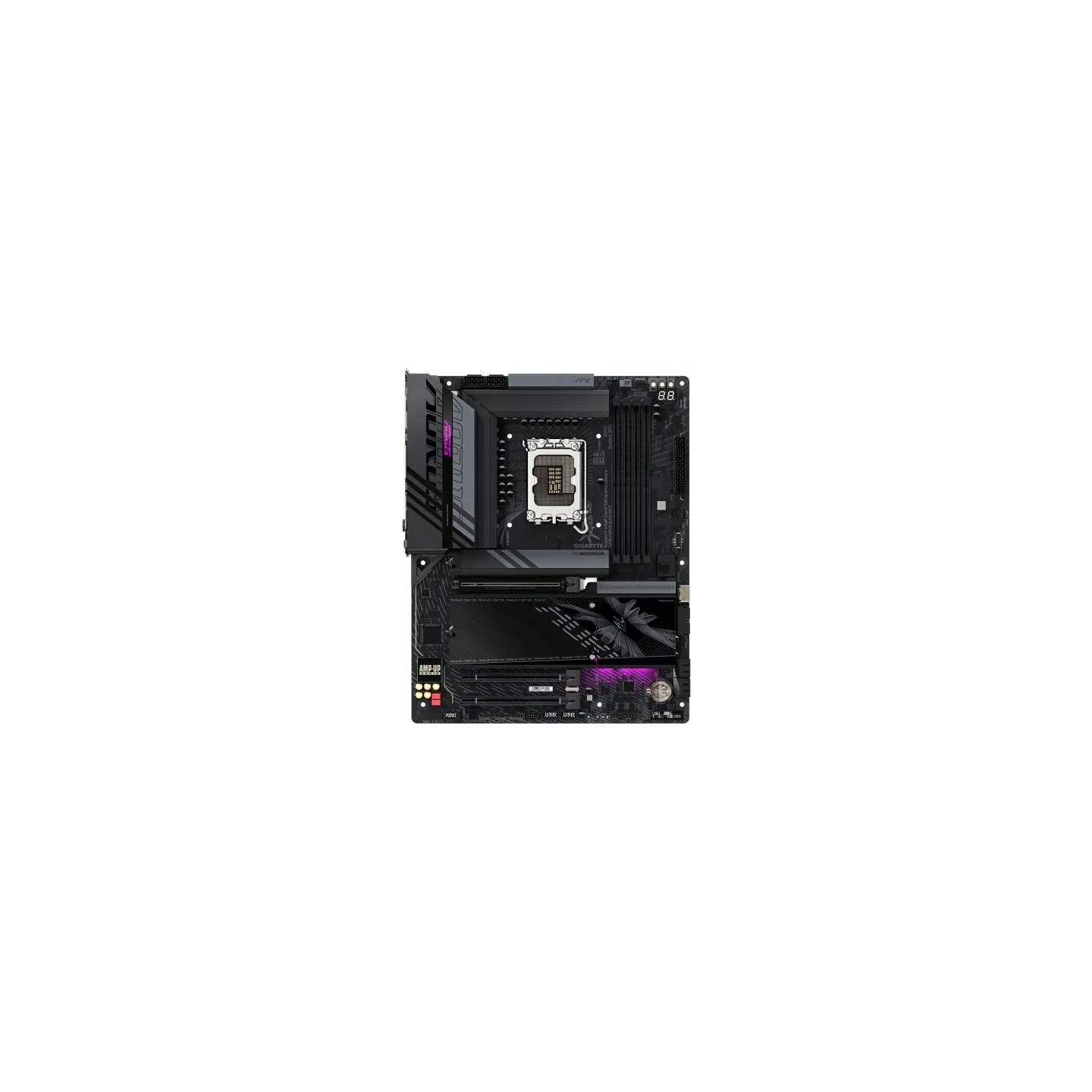

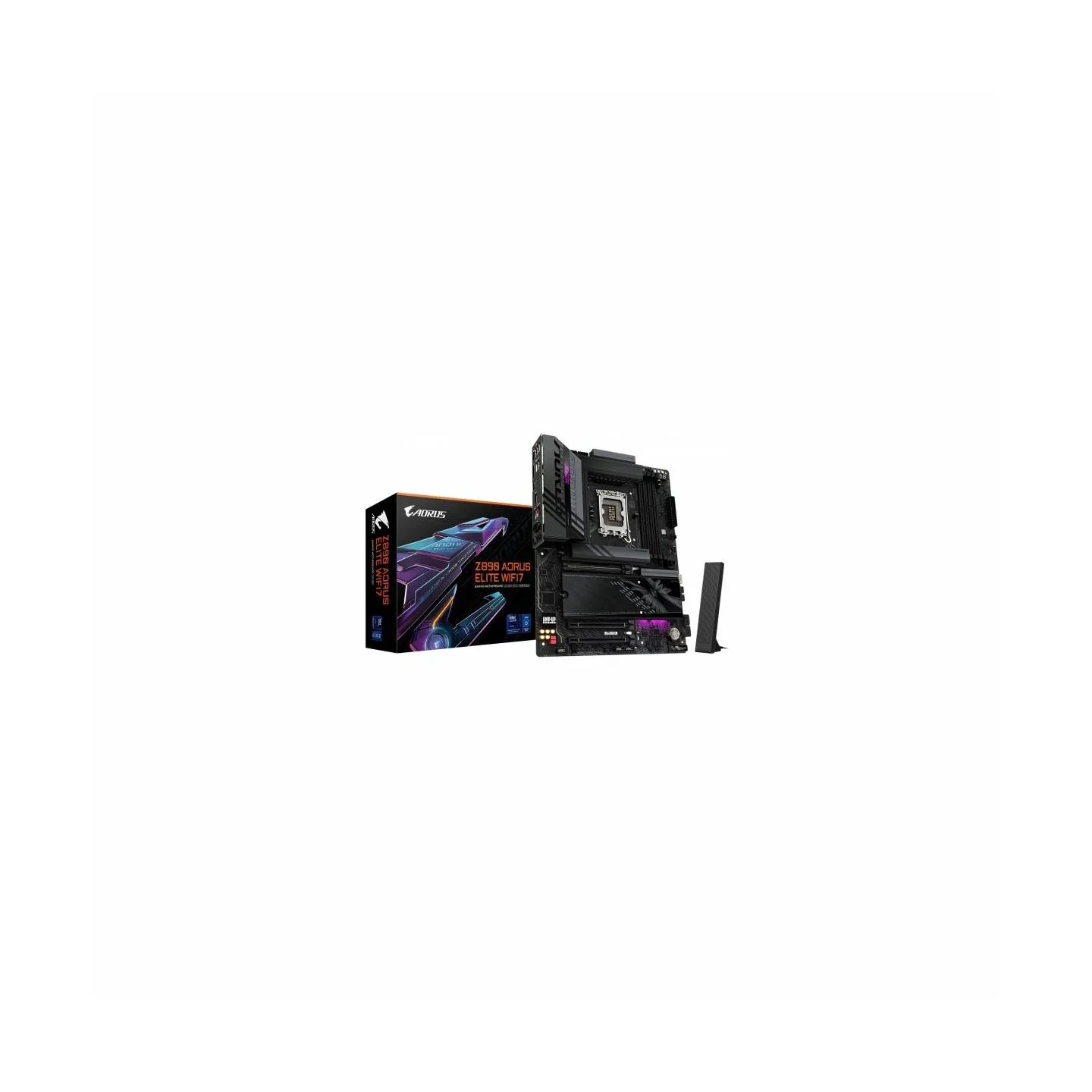

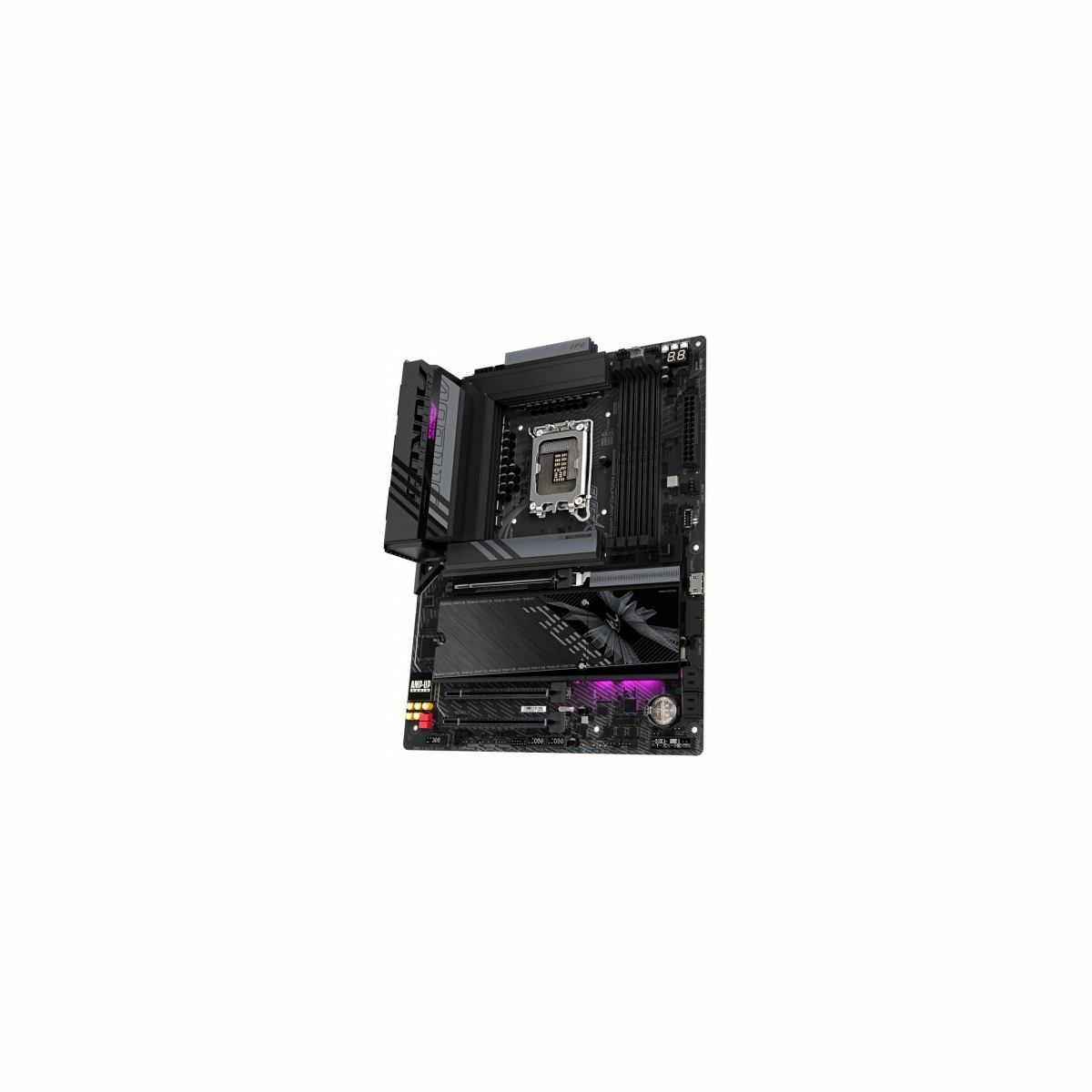

- Z890 A ELITE WIFI7
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- Yes
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 8400 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 8600 MHz
- Memory bus frequency
- 8800 MHz
- Memory bus frequency
- 8266 MHz
- Memory bus frequency
- 8933 MHz
- Memory bus frequency
- 9066 MHz
- Memory bus frequency
- 9200 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 2 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Graphics
- Integrated Graphics Processor - Intel HD Graphics support:- 1 Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputWhen a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).* Due to limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, please refer to 2-6 Back Panel Connectors.)* Support DisplayPort 2.1 and HDCP 2.3- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support HDMI 1.4- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support DisplayPort 2.1 and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Support for up to three displays simultaneously
- Sound card
- Realtek ALC1220 CODEC* The line-out jack on the rear panel supports DSD audio.High-Resolution Audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard (Actual data transfer rate may vary depending on environment and equipment.)
- USB ports at back panel
- 9
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

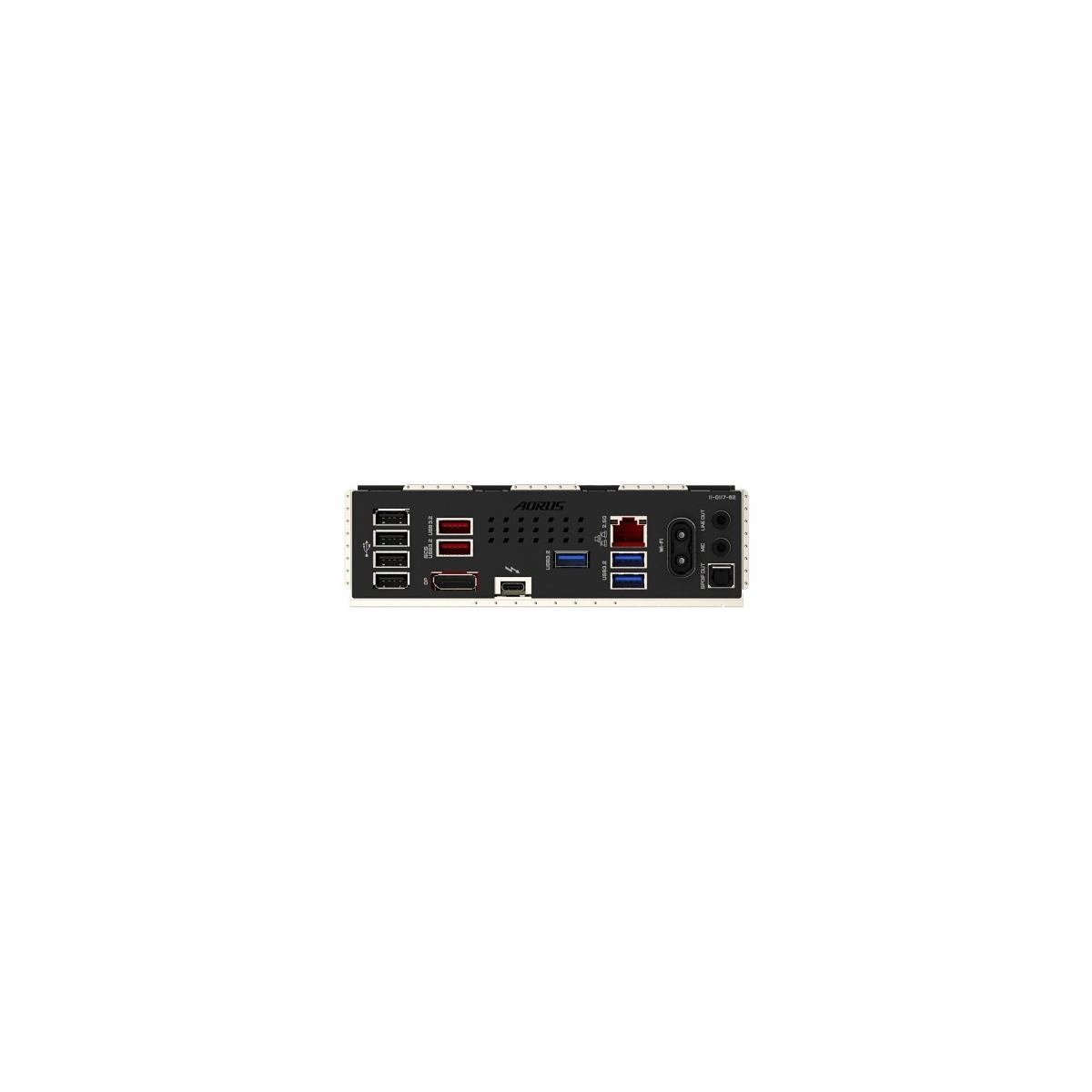

- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x Thunderbolt 4
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x SMA
- Onboard connectors
- 1 x HDMI
- Onboard connectors
- 1 x Power button
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
